The 8th World Drone Congress, also known as the Shenzhen UAV expo, is in place from May 24 to May 26. This is a venue for many manufacturers to showcase and launch their newest developments and products. ViewPro was one of the many big companies that participated in the venue and launched a few new products. Let’s take a look at them.

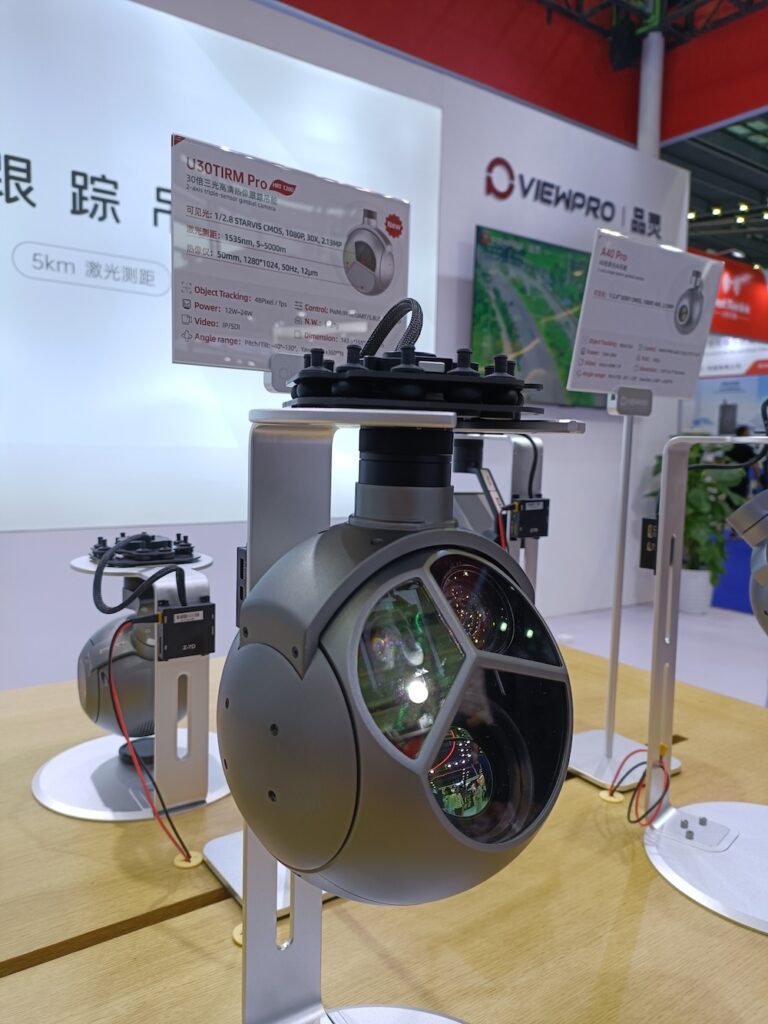

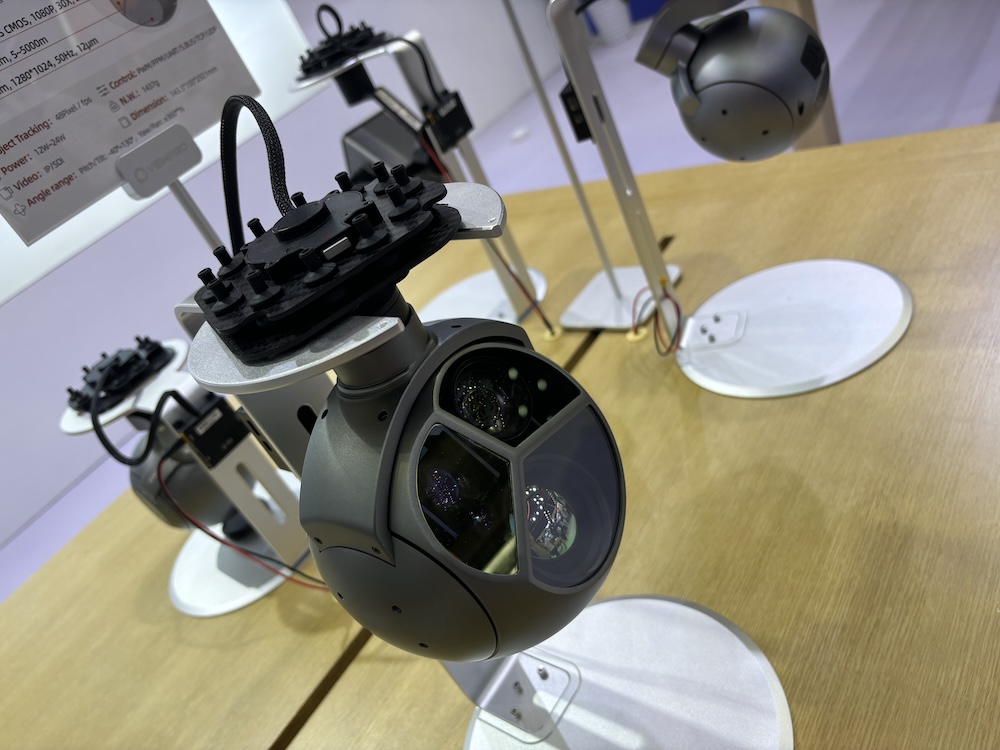

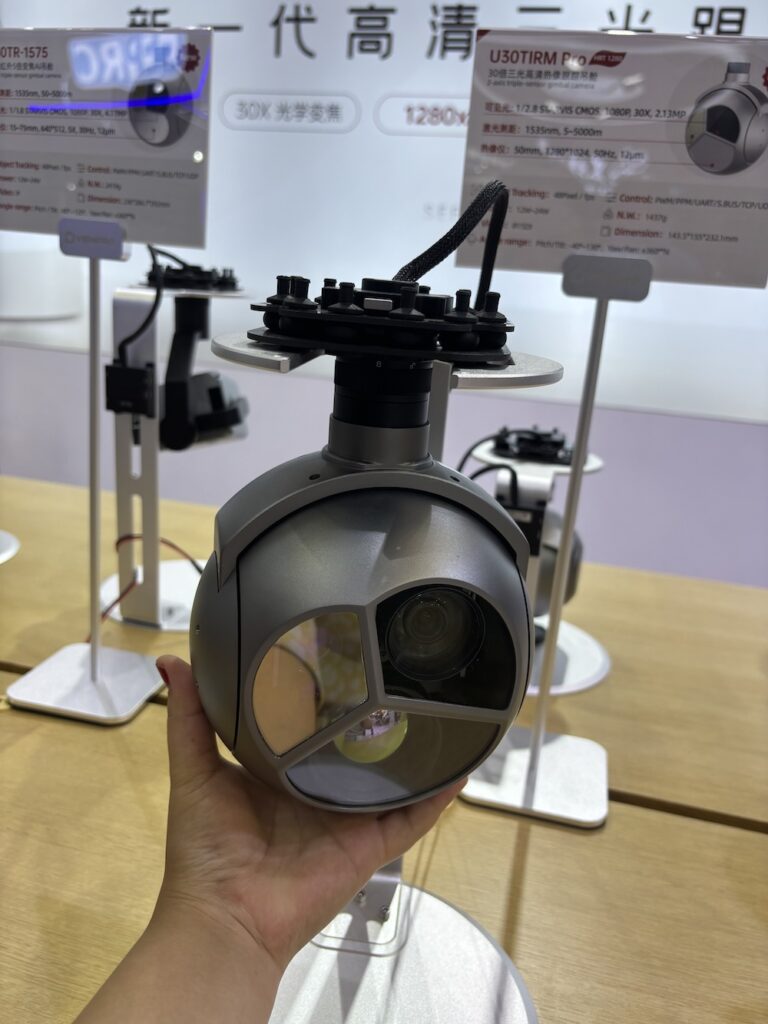

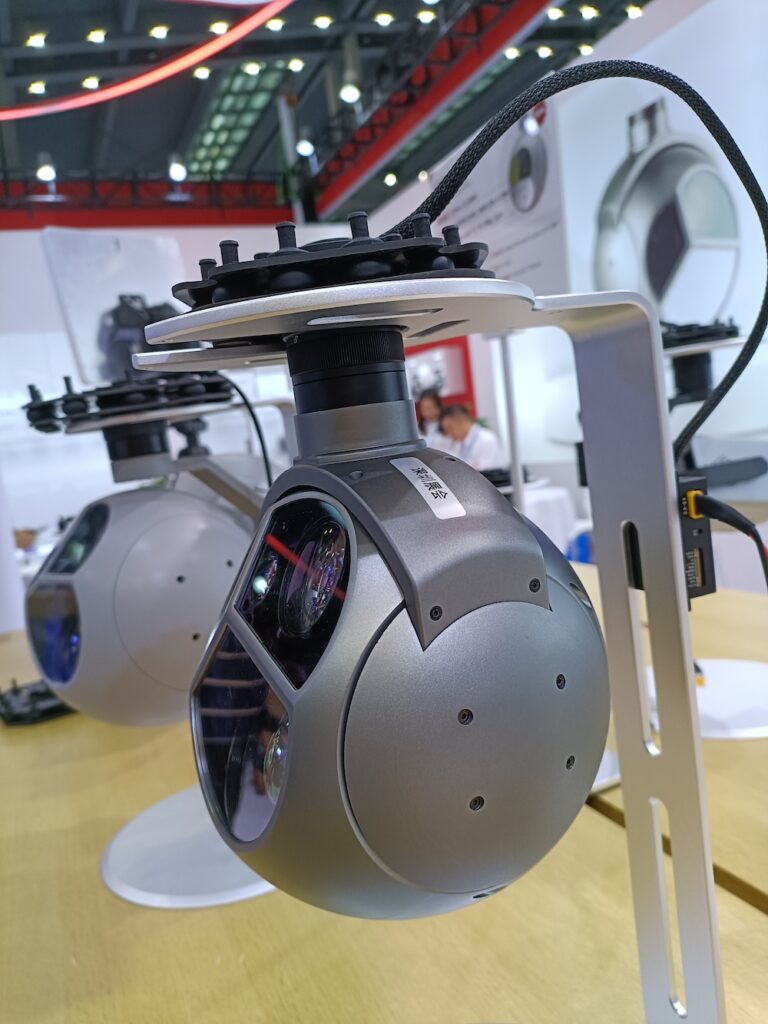

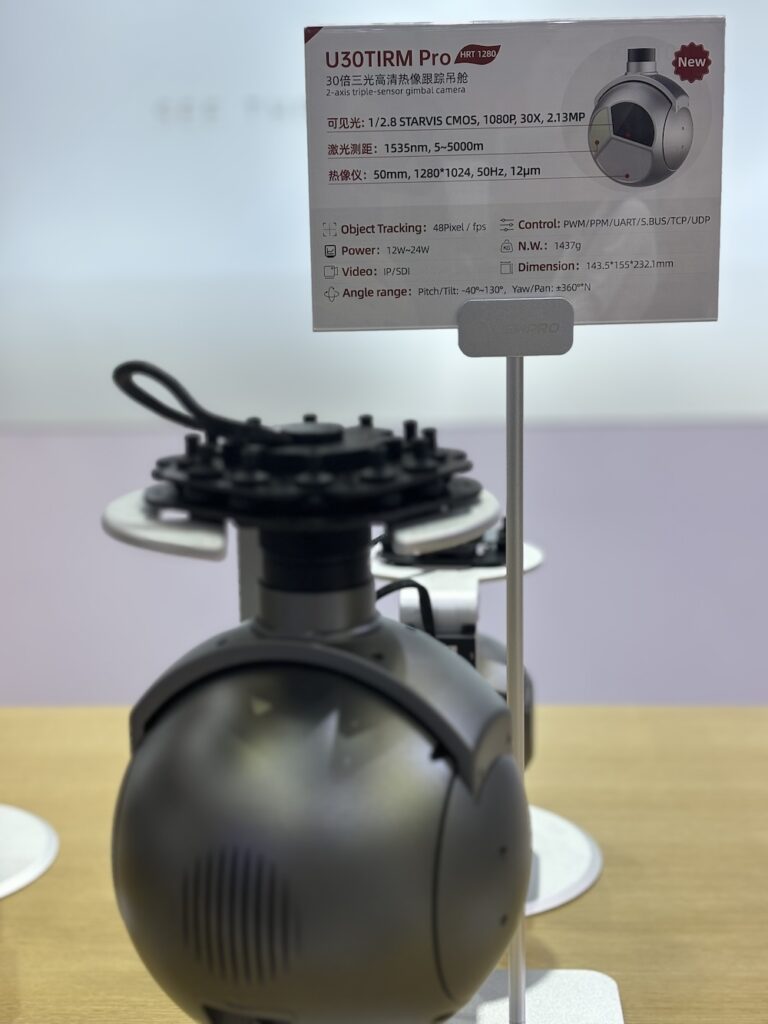

One of the new series of the releases products are multi sensor gimbals with High Resolution Thermal (HRT) Sensors. So far, all the available models had a resolution of at most 640×512. However, the new models have a high resolution of 1280×1024 for the thermal sensor, and support 50Hz update rate. U30TIRM Pro is one of the models with these new features. It is a 2-axis gimbal model, with a 50mm thermal lens, 30x daylight optical zoom sensor, and 5km laser range finder (LRF).
| U30TIRM Pro Gimbal Specification | |
| Image Sensor | 1/2.8″ SONY CMOS |
| Lens | 30x optical zoom, f=4.3~129mm |
| Total Pixel | 2.13MP |
| Thermal Sensor | 1280×1024, 50mm focus length, 12um, 50Hz |
| AI Function | Human/Vehicle AI Identification and Tracking |
| Laser Range | 5~5000m |
| Object Tracking | Available |
| Working Voltage | 4s~6s |
| Output | micro HDMI / IP |
| Control Method | PWM / TTL / S.BUS / TCP / UDP |
| Local Storage | SD Card up to 512GB |
| Net Weight | 1450g |
| Dimension | 143.5x155x232.1mm |

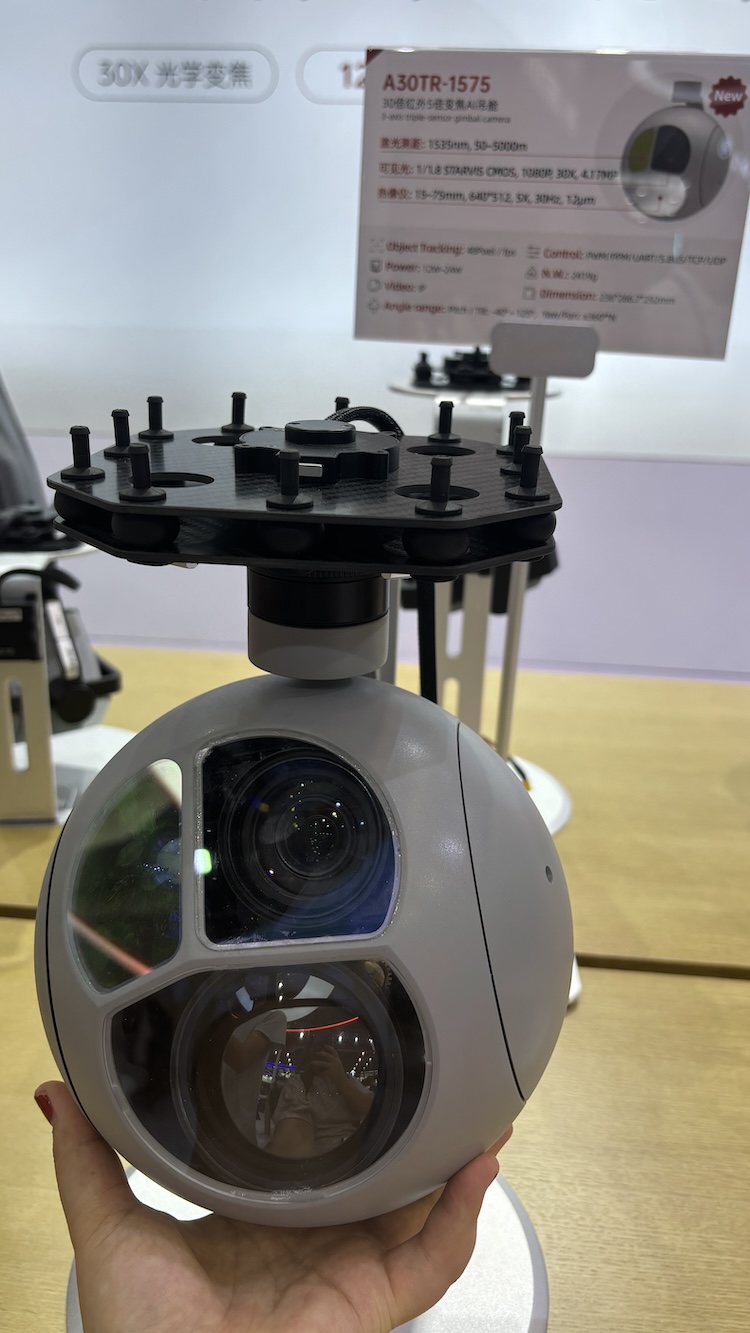

More than that, most of the available models have a fixed lens for the thermal sensor, while digital zoom is supported. The good news is that Viewpro came up with a highly demanded solution to solve that issue. The two newly released products, A30TR-1575 and Q30TIRM-15100 are the two models, having 5x and 7x thermal optical zoom respectively. A30TR-1575 has a 25Hz, 640×512 thermal sensor, with a variable 15~75mm focus length. A 4.17MP, 1/1.8″ CMOS sensor with 30x optical zoom and a 5km laser range finder makes this model a perfect choice for multiple applications.Â

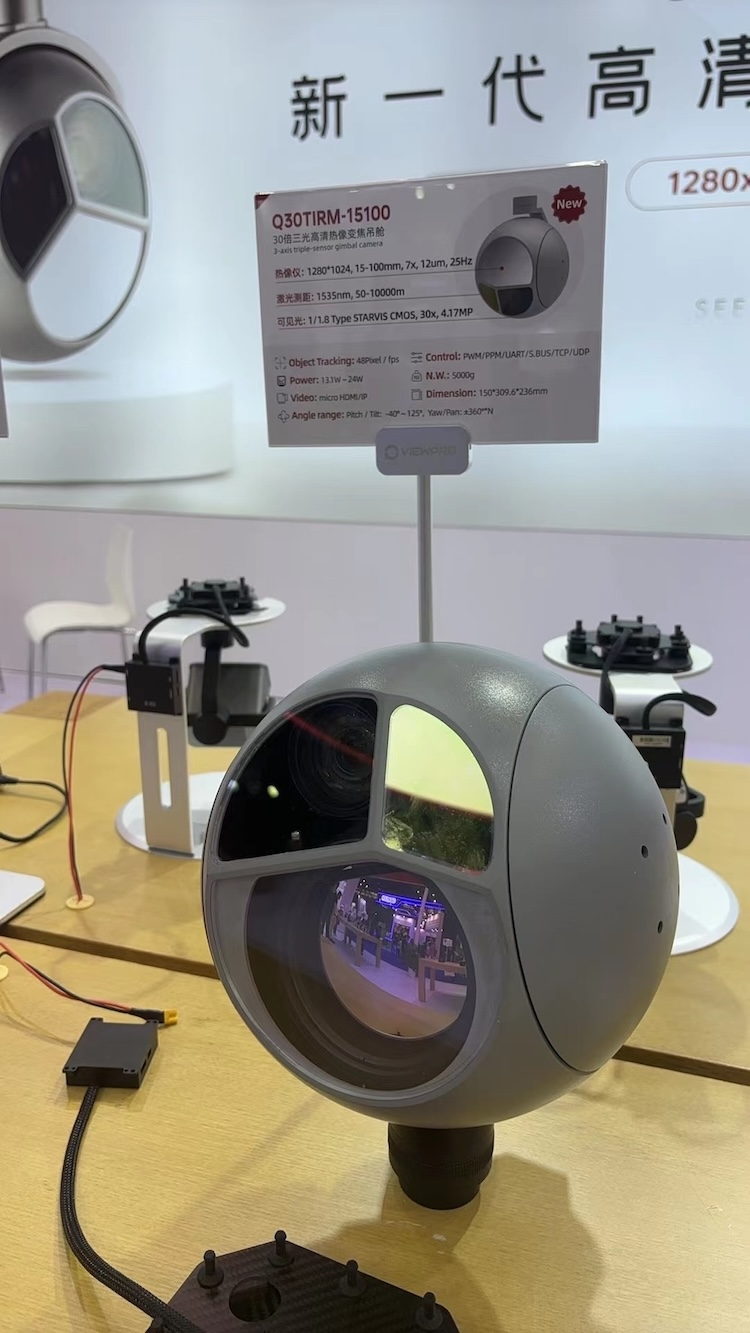

More interestingly, Q30TIRM-15100 not only has a high resolution 25Hz, 1280×1024 thermal sensor and a variable 15~100mm focus length, which is an improvement over the A30TR-1575 but also it comes with an improved 10km laser range finder. Q30TIRM-15100 stands out as the biggest and heaviest product from this company so far.
| Â | A30TR-1575 | Q30TIRM-15100 |
| Image Sensor | 1/1.8 Type STARVIS CMOS | |
| Lens | 30x optical zoom, f=6.5~162.5mm | |
| Total Pixel | 4.17MP | |
| Thermal Sensor | 640*512, 15~75mm focus length, 5x optical zoom, 12um, 25HZ | 1280*1024, 15~100mm focus length, 7x optical zoom, 12um, 25Hz |
| AI Function | Human/Vehicle AI Identification and Tracking | – |
| Laser Range | 5~5000m | 5~10000m |
| Object Tracking | Available | |
| Working Voltage | 4s~6s | |
| Output | IP | micro HDMI / IP |
| Control Method | PWM / TTL / S.BUS / TCP / UDP | |
| Local Storage | SD Card up to 256GB | SD Card up to 512GB |
| Net Weight | 2530g | 5120g |
| Dimension | 150*256.7*190mm | 150*309.6*236mm |
By introducing these new generations, we guess they will cost more than 50K USD (Not official), Viewpro will have more impact on the industrial drone market.
Visit the Motionew Online Shop to view our entire product line to see the latest product and more products similar to this new gimbal.
Stay tuned for more pictures from the Shenzhen expo.
