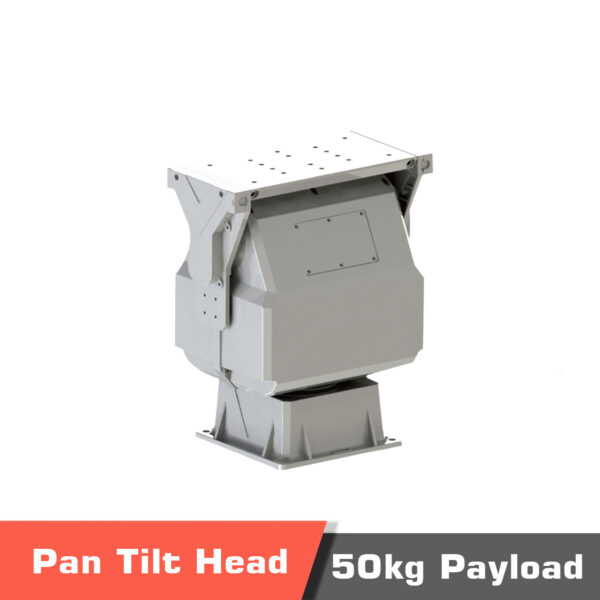

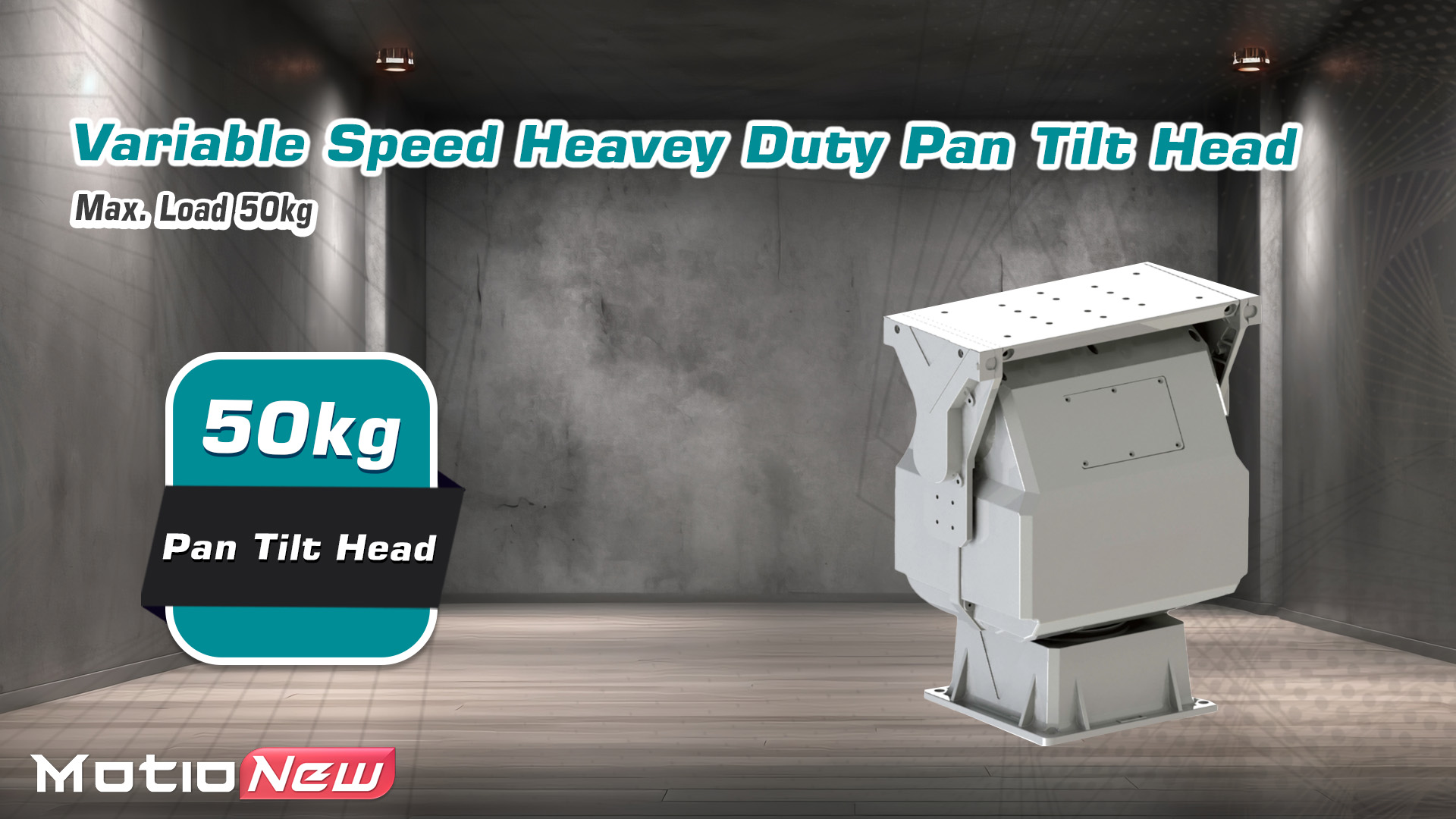

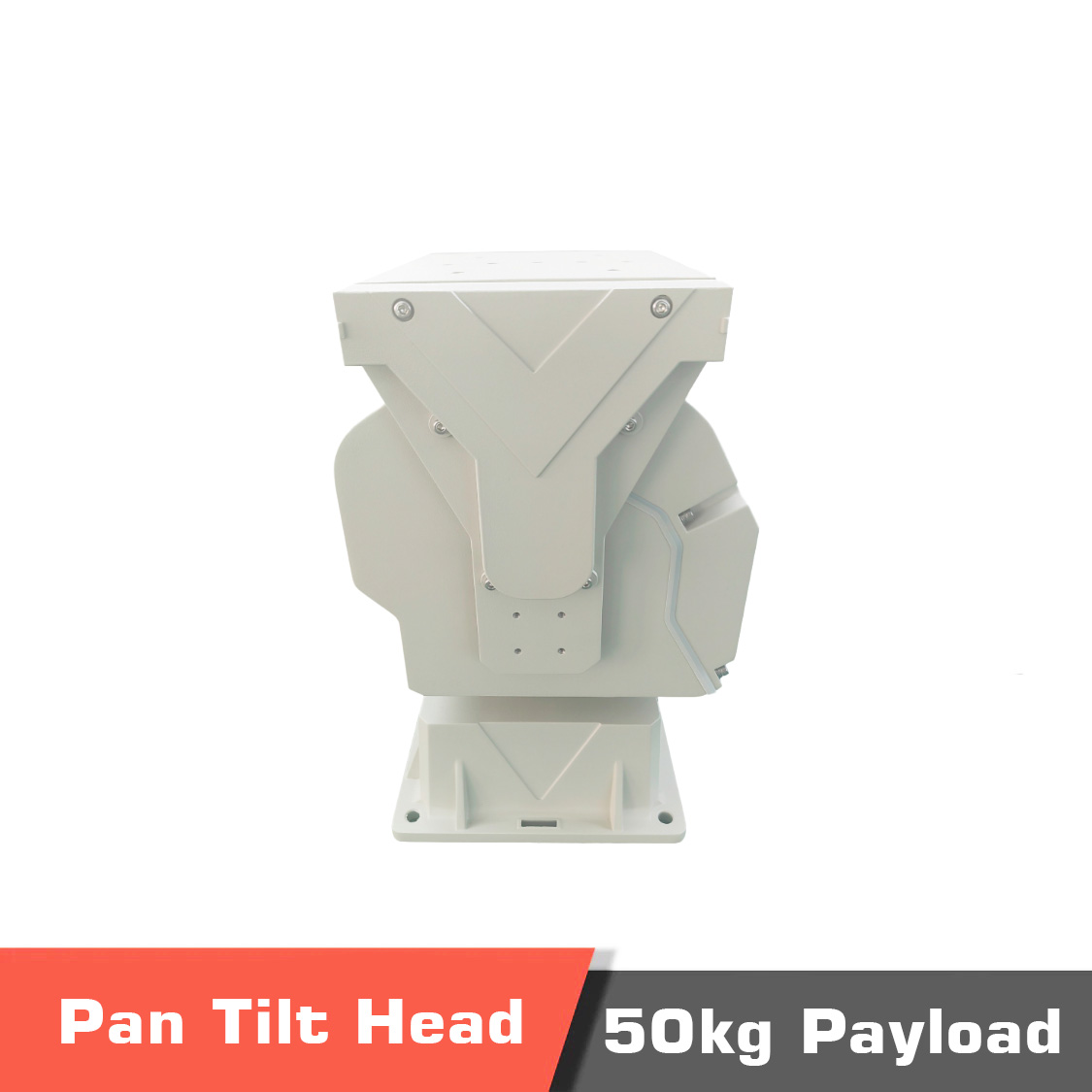

Pan Tilt servo with 50kg max payload, suitable for automatic antenna tracker (AAT)

Pan tilt head. 50kg. Temp. 1 - pan tilt - motionew - 7
Pan tilt head. 50kg. Temp. 2 - pan tilt - motionew - 8

Pan Tilt servo with 50kg max payload, suitable for automatic antenna tracker (AAT)

1214.00 $ – 1384.00 $

PayPal
Visa
Master

Description

This Pan tilt head is capable of driving a load with up to 50kg weight. It is suitable for designing a automatic antenna tracker (AAT) and is able to carry large weight antenna.

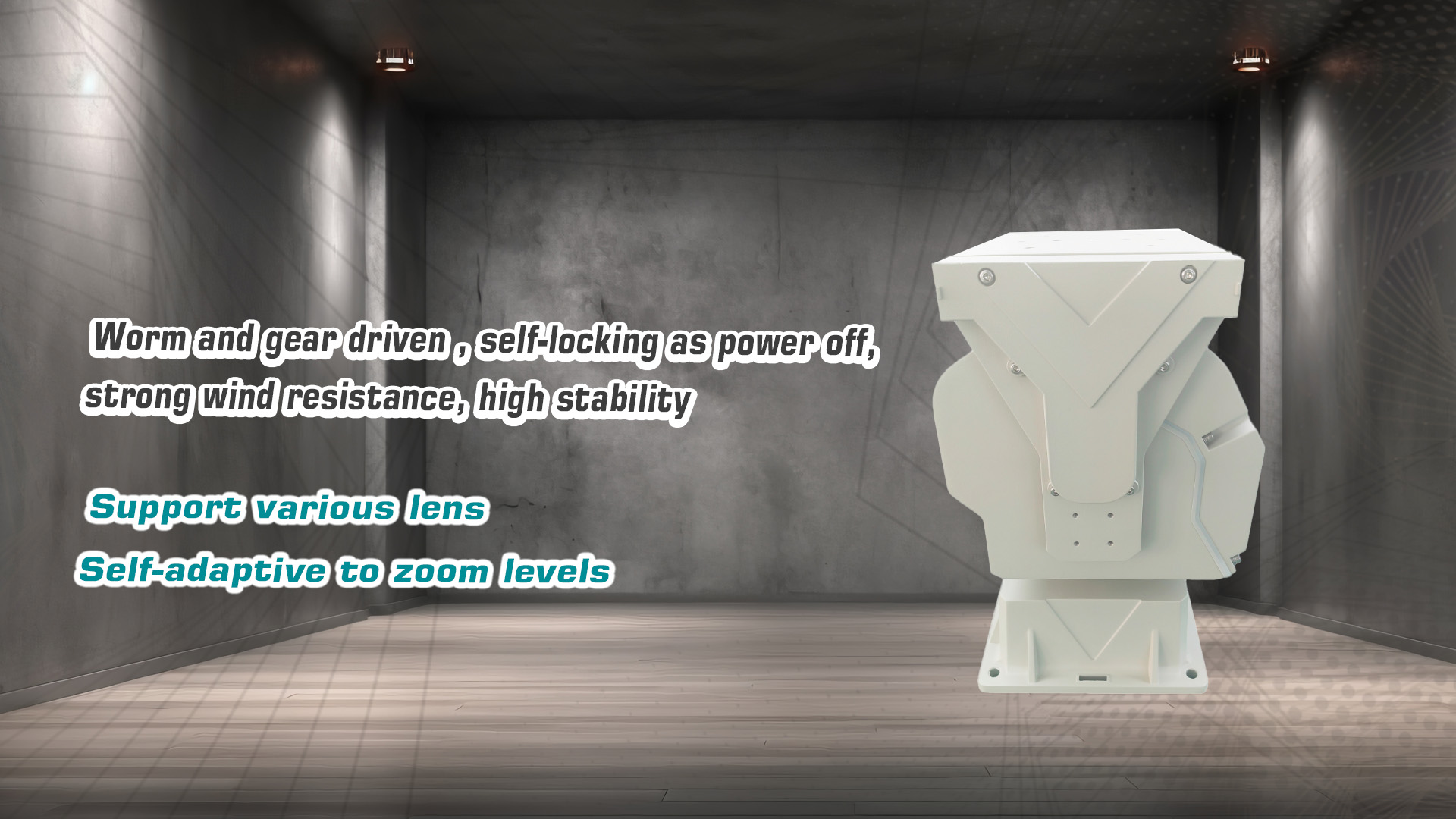

  • Worm and gear driven, self-locking as power off, strong wind resistance, high stability
  • Support various lens, zoom self-adaptive

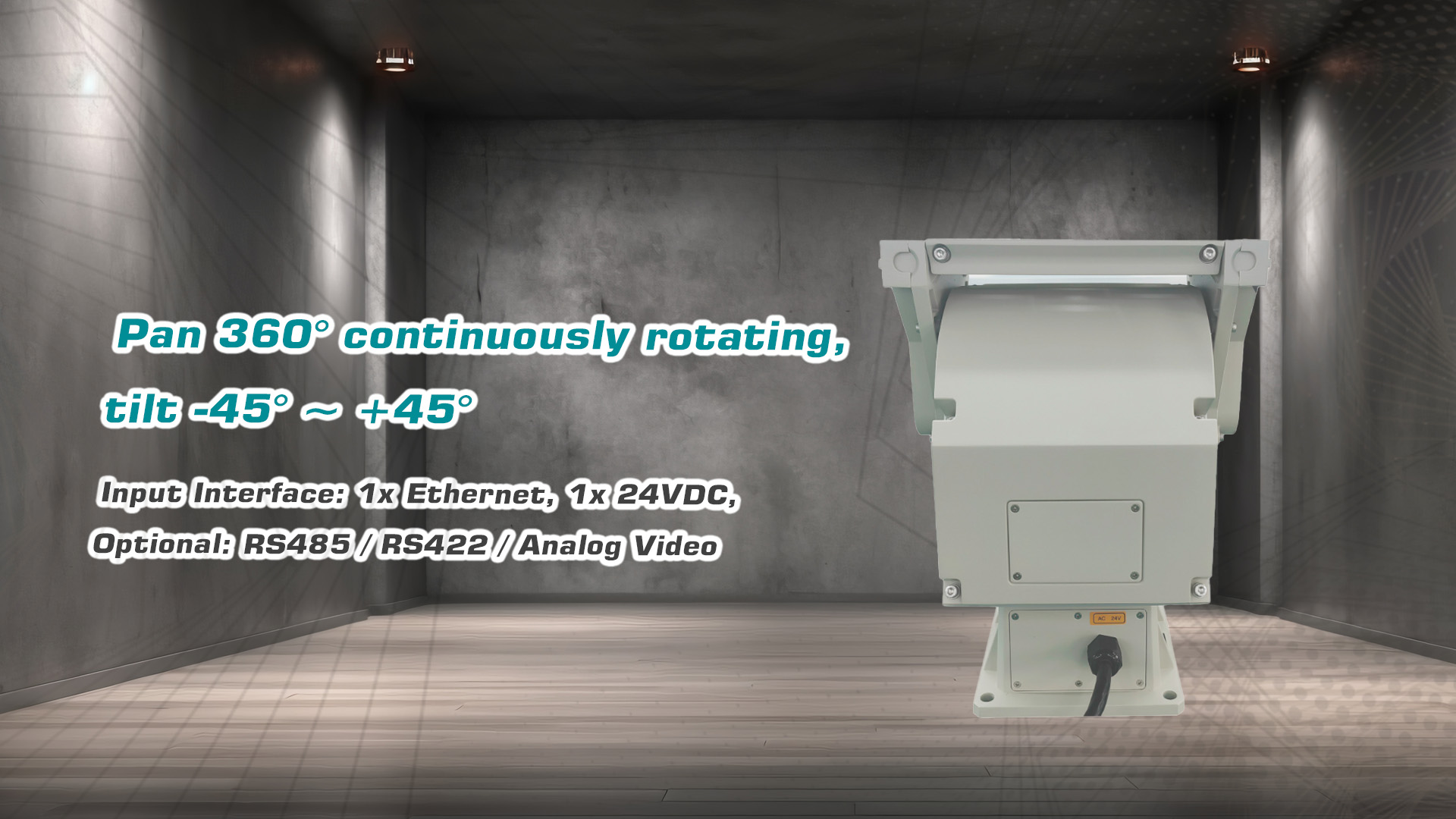

  • Pan 360˚continuously rotating, tilt +45°～ -45°
  • High positioning accuracy ±0.1°
  • Max. Load 50kg
  • IP66

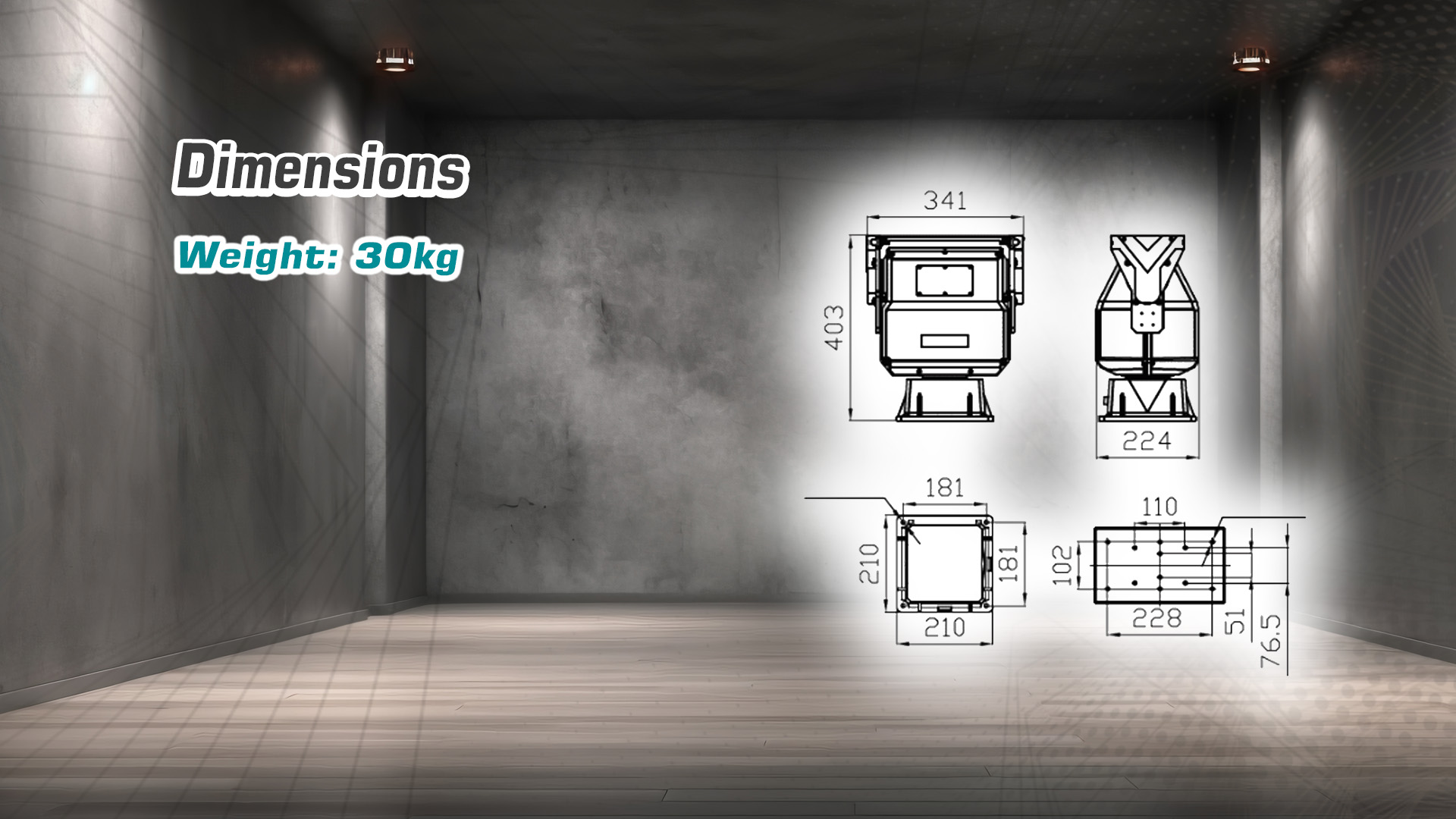

Pan tilt servo 50kg Pan tilt servo 50kg specification Pan tilt head. 50kg. 3 - pan tilt - motionew - 9 Pan tilt servo 50kg 360 Pan tilt servo 50kg dimensions

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Max. load 50kg
Load Mode Top load
Driving Worm and gear driving
Pan Rotation Angle 360° continuous
Tilt Rotation Angle ﹣45°～+45°
Pan Speed 0.01°~30°/s
Tilt Speed 0.01°~15°/s
Preset Position 200
Presetting Precision ±0.1°
PTZ Speed Adaptive Support
Auto Scan support
Auto Cruise support
Keep Watch Support, one preset or one auto cruise or one auto scan can be set
Power Failure Memory Support, recover to PTZ satus before power failure
Communication Interface RS485
Protocol Pelco D
Baud Rate 2400/4800/9600/19200 bps optional
Angle Query Return RS485, angle return by query command  /  RS422, angle real-time return ( optional)
System
Input Voltage 24VDC±10%
Consumption Power ≤150W
Input Interface 10/100M Ethernet  * 1； 24VDC * 1 ； Optional: RS485 / RS422 / Analog video
Working Temperature ﹣35°C～﹢65°C
Humidity ＜90%RH
Anti-lighting Power : 2000V （line to ground 2000 V, line to line 1000V) ,
Video signal : 1000V （line to ground 1000 V, line to line 500V)
Salt Spray Resistance PH 6.5 〜7.2, continuous spraying 48 hours without surface change
Waterproof IP66
Material Aluminum alloy
Weight ≤30kg



Documents

Please contact us for more information.

Product contents

Please contact us for more information.
