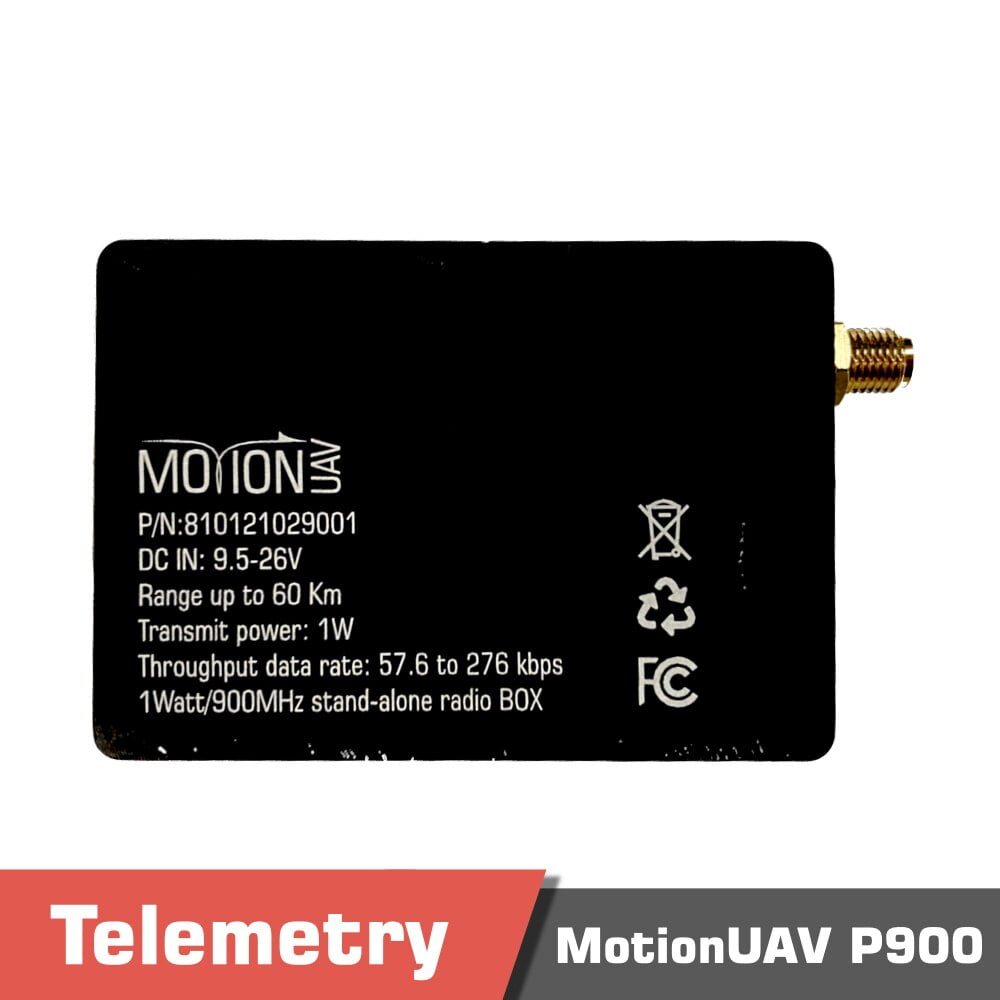

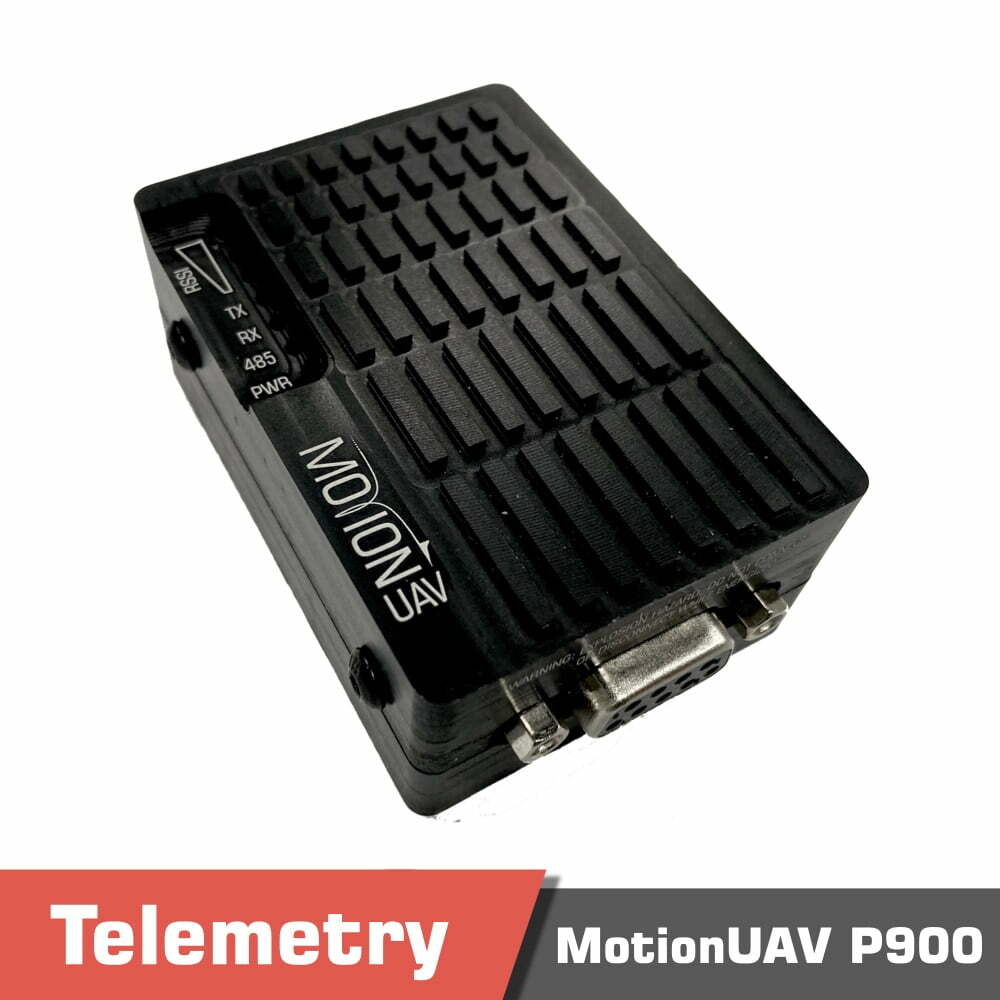

MotionUAV P900 Long Range Radio Telemetry Module
830.00 $
Description
Overview of MotionUAV P900
MotionUAV offers the P900 Radio, a new line-of-sight communication module for drones. A UAV datalink drone MotionUAV P900 is capable of capturing serial and diagnostic data from legacy devices. The MotionUAV P900 provides excellent noise figure, superior interference rejection, agile frequency synthesis, digital modulation, and matched filter detection with its advanced features. Browse Motionew Online Shop to see a complete listing of our products.
Features
- Very Low Cost
- Supports up to 276kbps!
- Quad Filter Stage provides Extreme Noise & Interference Rejection
- True Self Healing Mesh, Auto Routing, Store & Forward
- Industrial Temperature (-55C to +85C)
- Maximum allowable transit power (Adjustable, up to 1W)
- Low Power consumption in Sleep and Sniff modes
- 32 bits of CRC, selectable Forward Error Correction with retransmit
- Separate diagnostics port—transparent remote diagnosis and online network control

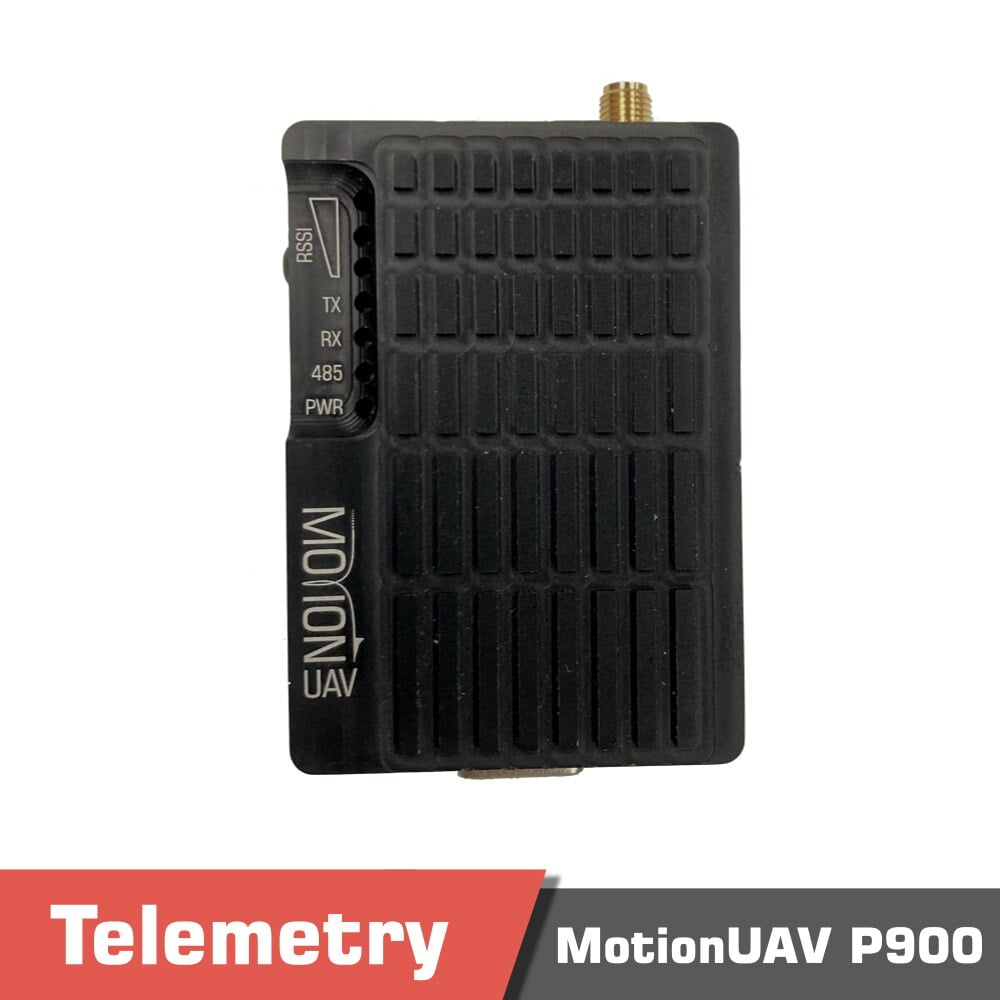

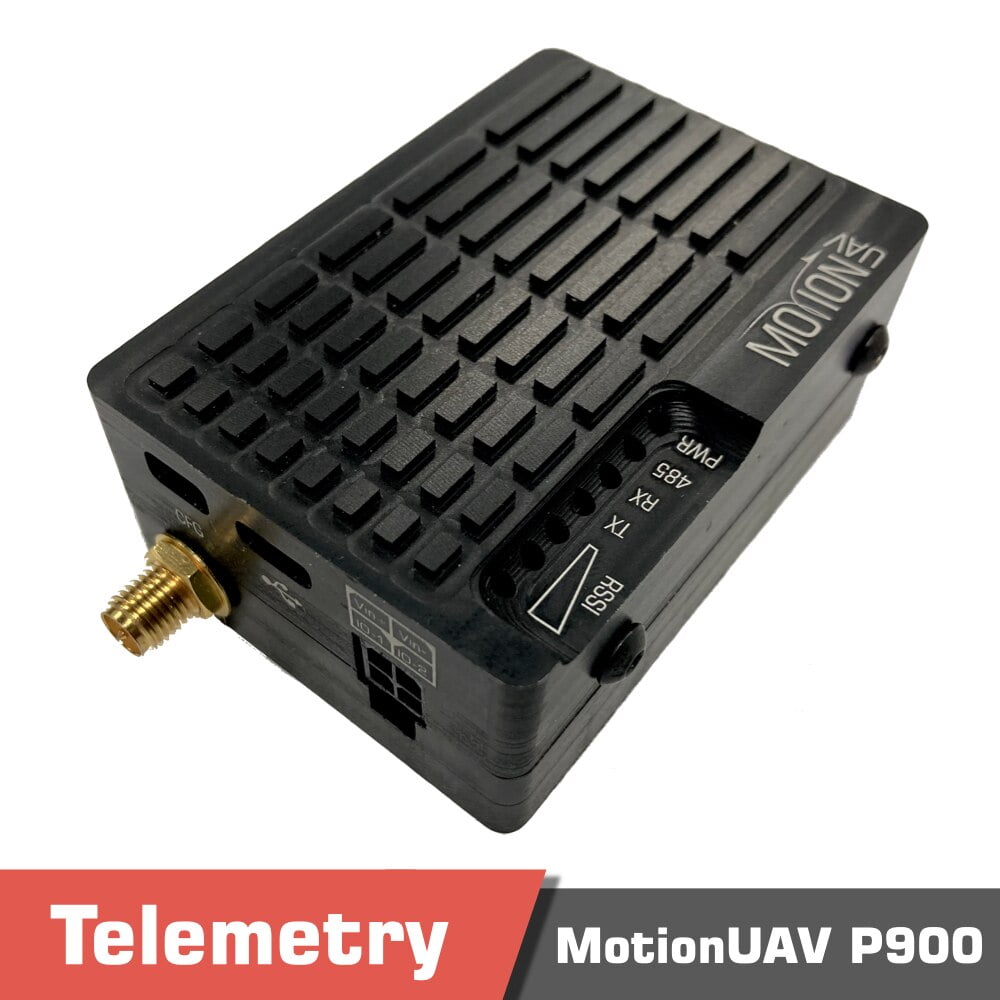

Pinouts
1- Receive Signal Strength Indicators
2- This LED will illuminate when the P900 Data port is configured as a RS485 port
3- When illuminated, this LED indicates that the modem is transmitting data over the air
4- This LED indicates that the modem is synchronized and has received valid packets
5- This LED will illuminate when the P900 Enclosed is connected to a power source (9-30 VDC)
6-Holding this button while powering-up the modem will boot the unit into COMMAND mode: the default serial interface will be active and temporarily set to operate at its default serial settings of RS232 and 9600/8/N/1
7-USB Port for configuration of module. Only available on new versions
8-RP-SMA Female Bulkhead Antenna connector. ATTENTION: DO NOT POWER the module without the Antenna connected
9-Vin+/Vin– is used to power the unit. The input Voltage range is 9-30 Vdc with at least 1A current requirement
10-Data Serial interface for connection to a PC (using a R232/RS485 to USB cable) or to Pixhawk / Paparazzi / MotionUAV flight controllers (using a RS232/485 to TTL convertor)
Power Requirements
The module needs an independent 1A current power supply.
General Connection Mode
Please attach a RS232-USB transmission cable to the module, in order to connect it to the computer. The default standard interface rate is 9600. The required interface baud rate can be changed according to the requirements. To do so, you need the change the configuration of the module. Please do not change the configuration if you do not know what you are doing (please do it only if you are an expert), as you may brick the module.
If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.
Specifications
MotionUAV P900 Specification | |
Frequency | 902-928MHz |
Spreading Method | Frequency Hoping |
Forward Error Detection | Hamming
BCH Golay Reed-Solomon |
Error Detection | 32 bits of CRC, ARQ |
Encryption | Optional (AES) |
Range | 40 miles (60km) |
Sensitivity
(@10-4 ) |
-114 dBm @ 57.6 kbps
-112 dBm @ 115.2 kbps -109 dBm @ 172.8 kbps -107 dBm @ 230.4 kbps |
Output Power | 100mW-1W (20-30dBm) |
Serial Interface | RS232/RS485 (Selectable) |
Serial Baud Rate | Up to 230.4 kbps asynchronous |
Link Rate | 57.6 to 276 kbps |
Operating Modes | Mesh, Auto Routing, Store and Forward, Self Healing, Packet Routing Modes |
Blocking | +/- 1 MHz > 55 dBc
+/- 2.5 MHz > 60 dBc +/- 5 MHz > 65 dBc > 930 MHz> 70 dBc < 890 MHz > 70 dBc |
Power Consumption (3.3V +/- 0.3V @1W) | Sleep < 1mA
Idle 3.5mA Rx: 45mA to 98mA Tx : 1000mA to 1400mA |
Connectors | Antenna: RP-SMA Female Bulkhead
Data: DB-9F |
Environmental | 55oC – +85oC |
Weight | 100g |
Dimensions | 46x66x29mm |
Product contents
Product contents
Documents
Please contact us for more information.
