MotionUAV P900 V2 Radio Telemetry Module
1653.00 $
Description
Overview of MotionUAV Radio Telemetry
The MotionUAV P900 V2 offers fast data transmission, low latency, and secure data communications. UAV Datalink drone MotionUAV P900 V2 is capable of capturing serial and diagnostic data from legacy devices. The MotionUAV P900 V2 provides excellent noise figure, superior interference rejection, agile frequency synthesis, digital modulation, and matched filter detection with its advanced features. If you would like to see the full range of our products, please visit the Motionew Online Shop

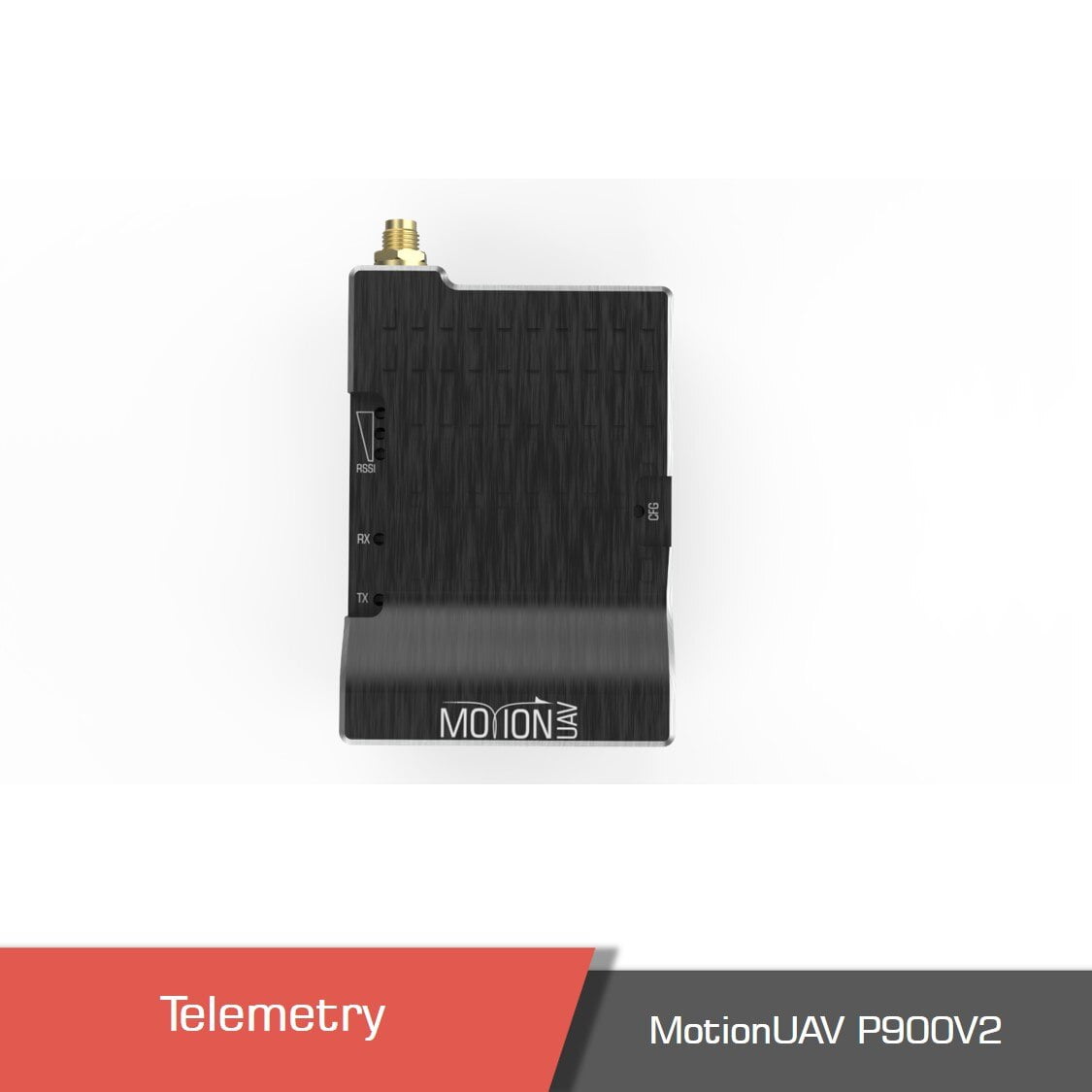

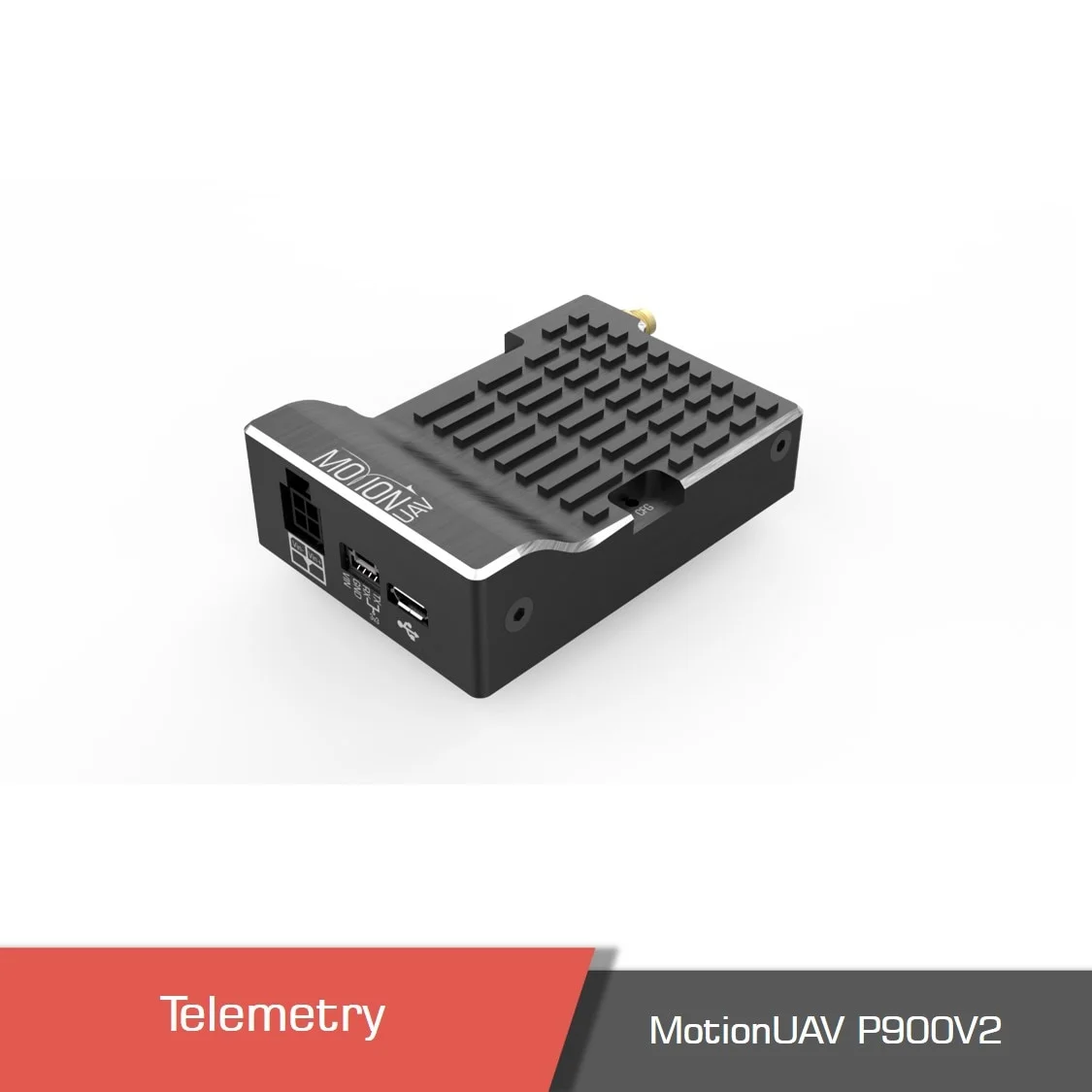

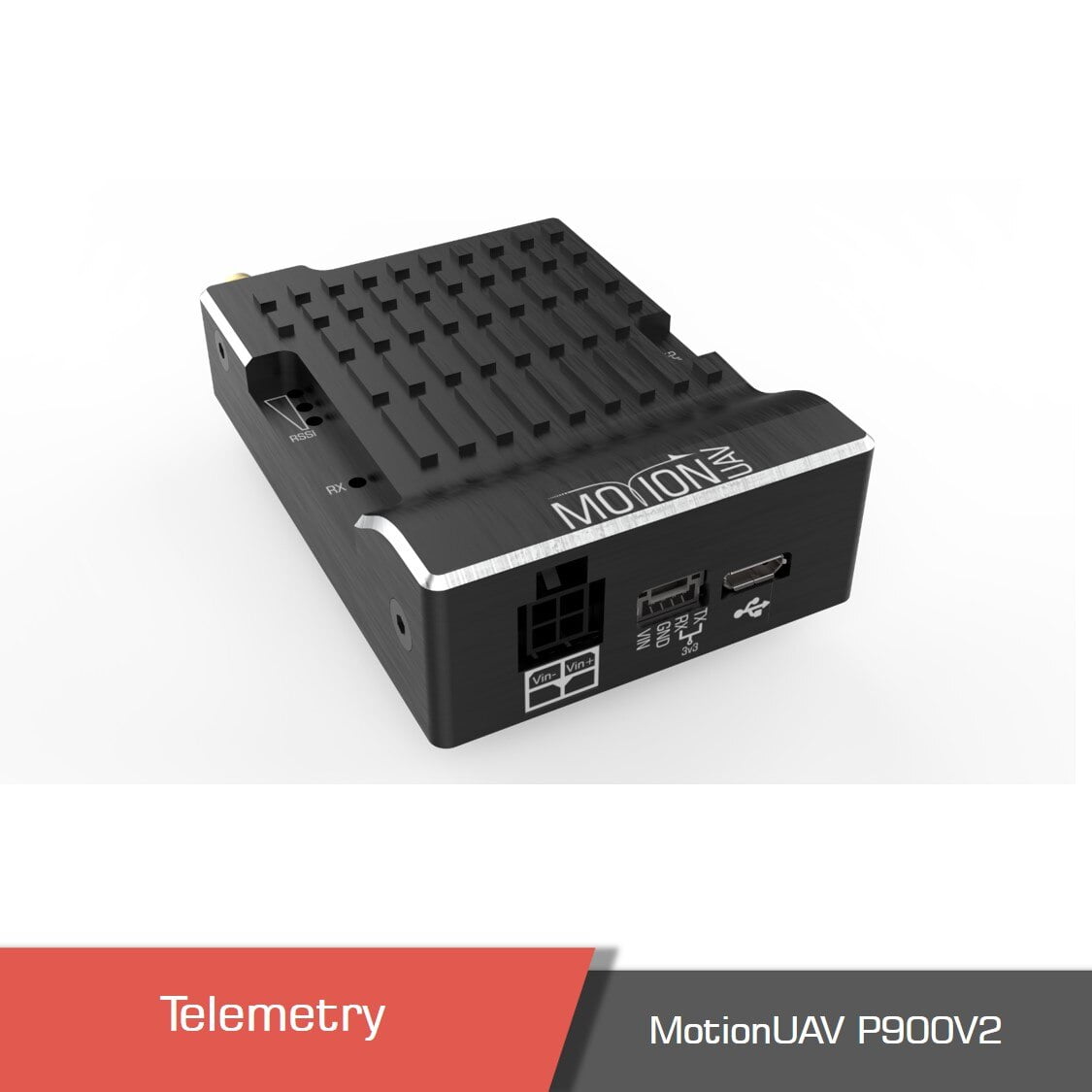

Description of the numbers in the above picture
1-Receive Signal Strength Indicators
2-This LED indicates that the modem is synchronized and has received valid packets
3-When illuminated, this LED indicates that the modem is transmitting data over the air
4-Holding this button while powering up the modem will boot the unit into COMMAND mode: the default serial interface will be active and temporarily set to operate at its default serial settings of RS232 and 9600/8/N/1
5-USB Port for configuration of the module. Only available on new versions
6-Vin /Vinโ is used to power the unit. The input Voltage range is
9-30 Vdc with at least 1A current requirement
7-Data Serial interface for connection to a PC (using a Serial to USB cable) or to Pixhawk / Paparazzi / MotionUAV flight controllers (3.3v Logic)
8-RP-SMA Female Bulkhead Antenna connector. ATTENTION: DO NOT POWER the module without the Antenna connected
Power Requirements
The module needs an independent 1A current power supply.
General Connection Mode
Please attach a TTL Serial-USB transmission cable to the module, in order to connect it to the computer.
The default standard interface rate is 9600. The required interface baud rate can be changed according to the requirements. To do so, you need the change the configuration of the module. Please do not change the configuration if you do not know what you are doing (please do it only if you are an expert), as you may brick the module.
Features of MotionUAV P900 V2
- Very Low Cost
- Supports up to 276kbps!
- Quad Filter Stage provides Extreme Noise & Interference Rejection
- True Self Healing Mesh, Auto Routing, Store & Forward
- Industrial Temperature (-55oC to 85oC)
- Maximum allowable transit power (Adjustable, up to 1W)
- Low Power consumption in Sleep and Sniff modes
- 32 bits of CRC, selectable Forward Error Correction with retransmit
- Separate diagnostics portโtransparent remote diagnosis and online network control
If you have any questions regarding our products, use theย Motionew Contact usย page to consult our engineering team.
Specifications
| MotionUAV P900 V2 Specification | |
| Frequency | 902-928MHz |
| Spreading Method | Frequency Hoping |
| Forward Error Detection | Hamming
BCH Golay Reed-Solomon |
| Error Detection | 32 bits of CRC, ARQ |
| Encryption | Optional (AES) |
| Range | 40 miles (60km) |
| Sensitivity(@10-4) | -114 dBm @ 57.6 kbps
-112 dBm @ 115.2 kbps -109 dBm @ 172.8 kbps -107 dBm @ 230.4 kbps |
| Output Power | 100mW-1W (20-30dBm) |
| Serial Interface | 3.3v TTL |
| Serial Baud Rate | Up to 230.4 kbps asynchronous |
| Link Rate | 57.6 to 276 kbps |
| Operating Modes | Mesh, Auto Routing, Store and Forward, Self Healing, Packet Routing Modes |
| Blocking | /-1 MHz> 55 dBc
/-2.5 MHz > 60 dBc /-5 MHz> 65 dBc >930 MHz> 70 dBc <890 MHz> 70 dBc |
| Power Consumption (3.3V /- 0.3V @1W) | Sleep< 1mA
Idle3.5mA Rx:45mA to 98mA Tx :1000mA to 1400mA |
| Connectors | Antenna:RP-SMA Female Bulkhead
Data:DB-9F |
| Environmental | 55oC- 85oC |
| Weight | 90g |
| Dimensions | 51x74x25mm |
Product contents
Product contents
Documents
Pleaseย contact usย for more information.
