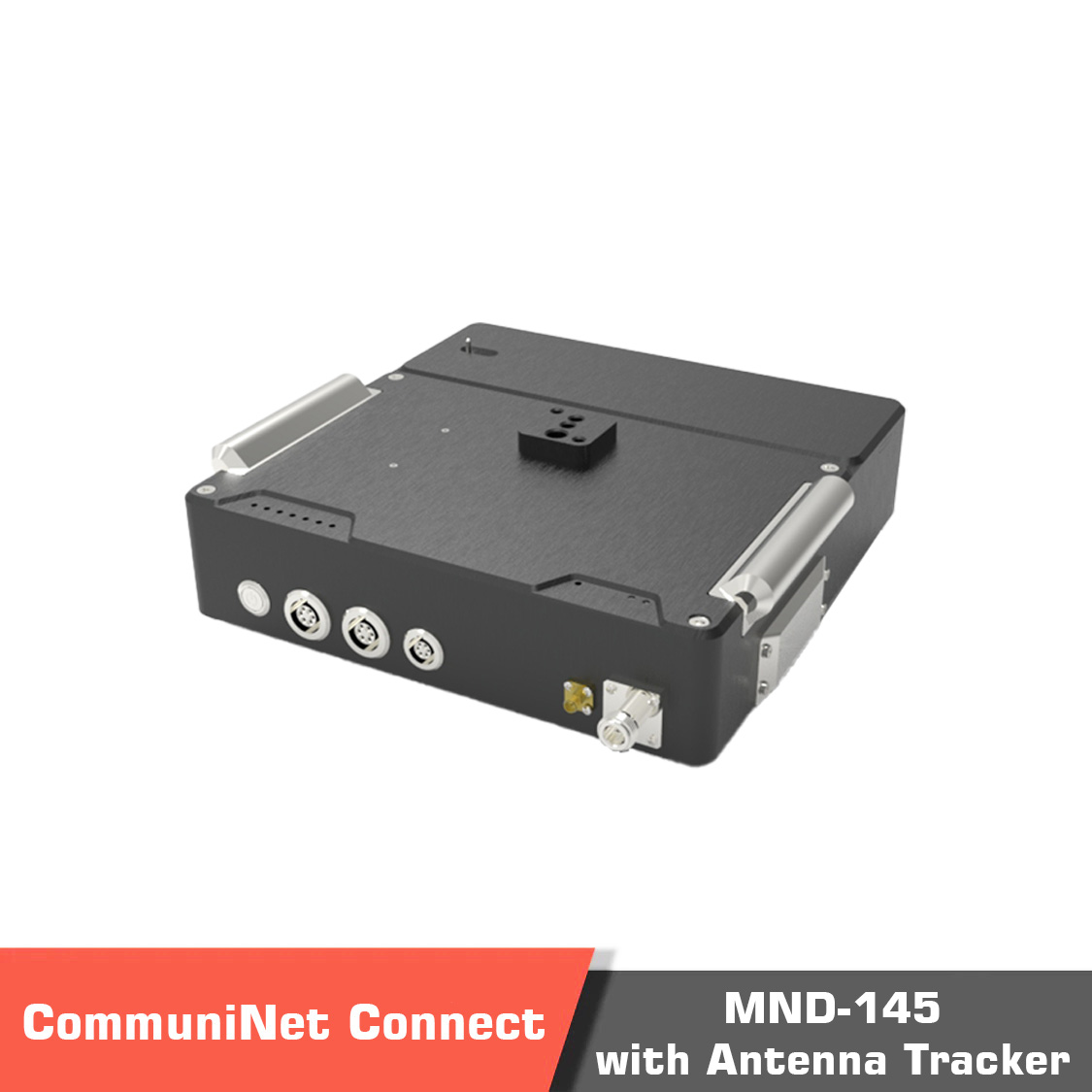

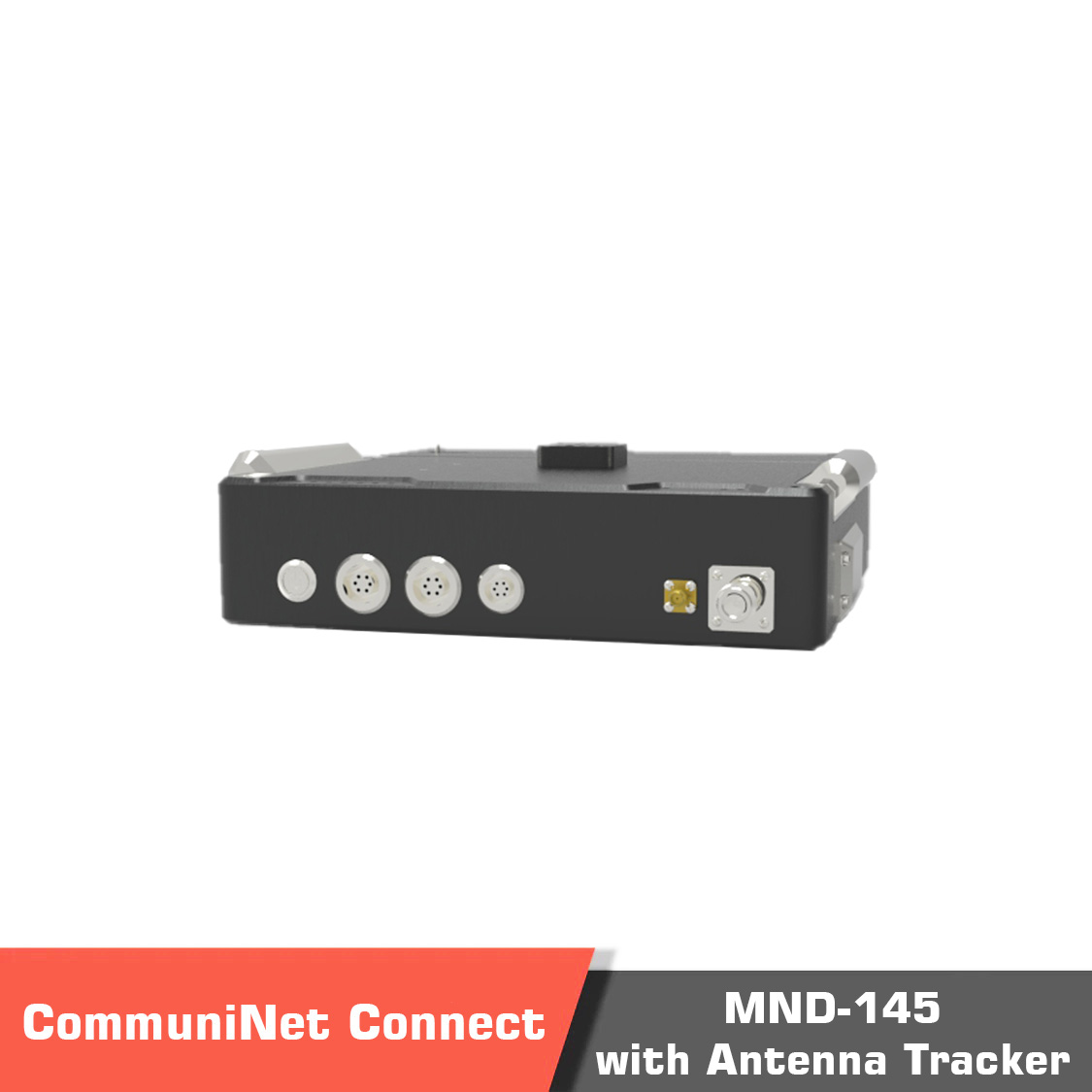

(Customizable) CommuniNet MND-145 with Datalink box, Tripod, and Automatic Antenna Tracker
Description

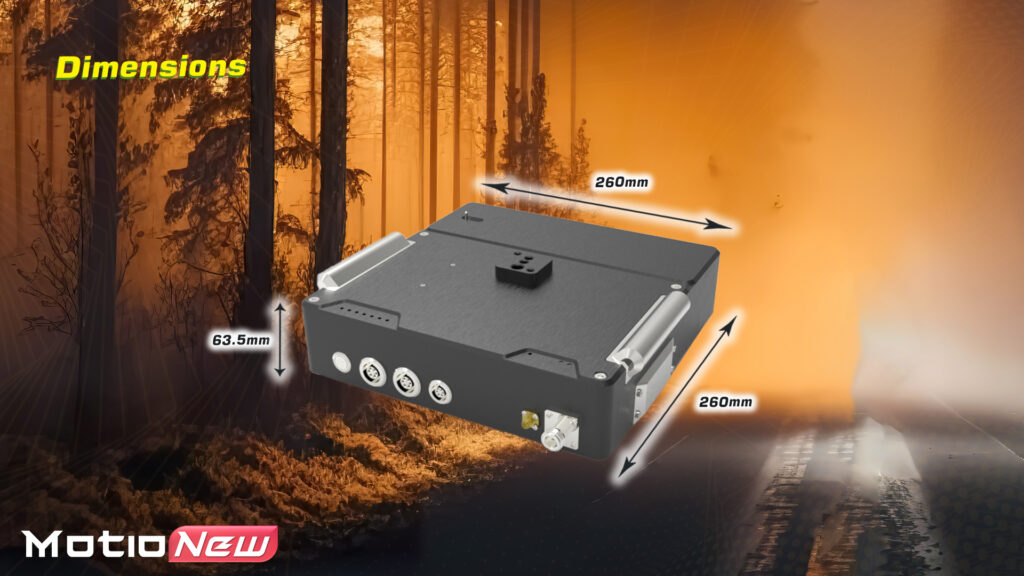

Please contact us if you need to customize the datalink box based on your needs. The size of the compartment can be modified to fit your datalink, and the ports are customizable too.
Overview CommuniNet MND-145 Long-Range Data Link with Integrated Automatic Antenna Tracker

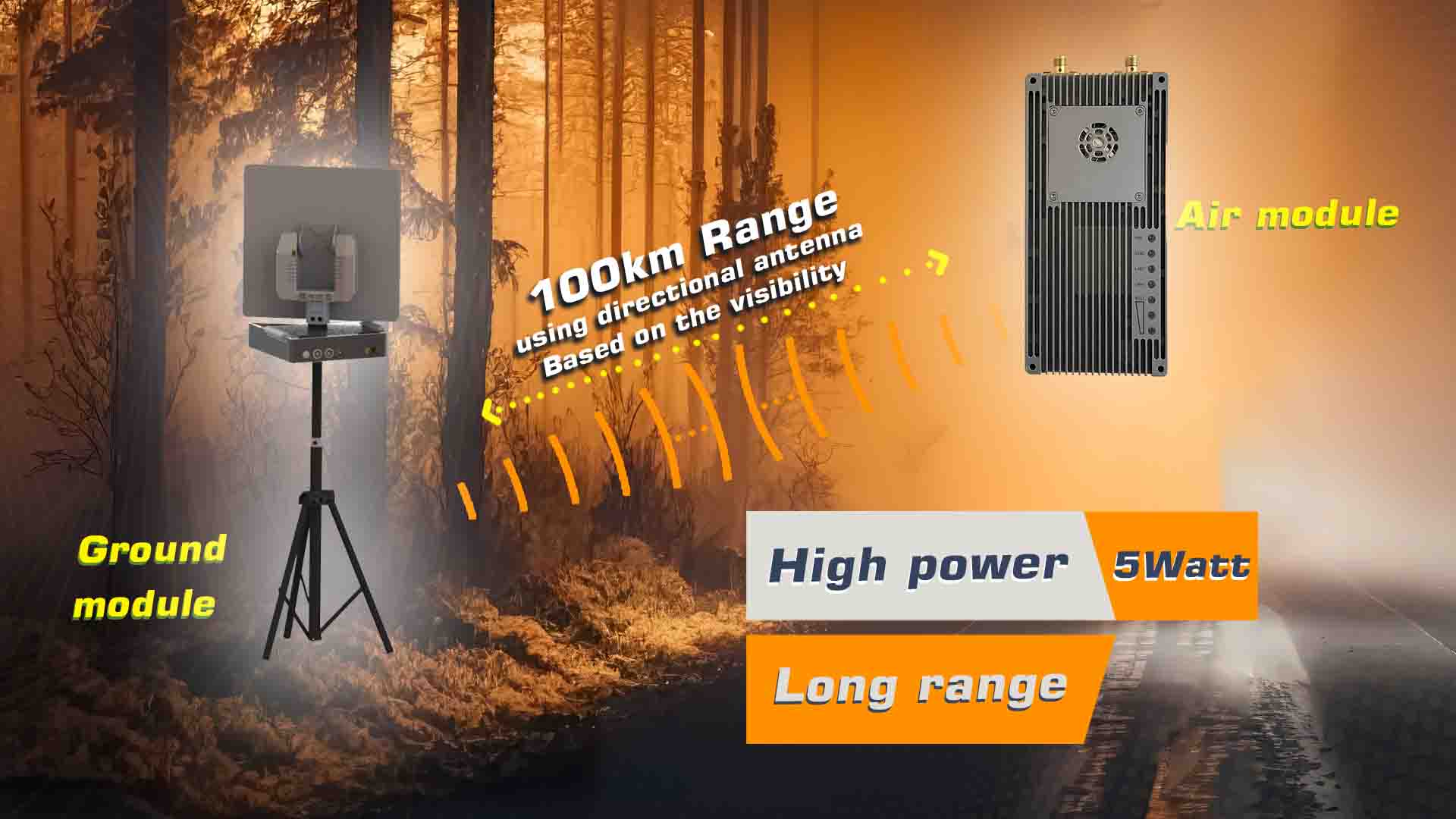

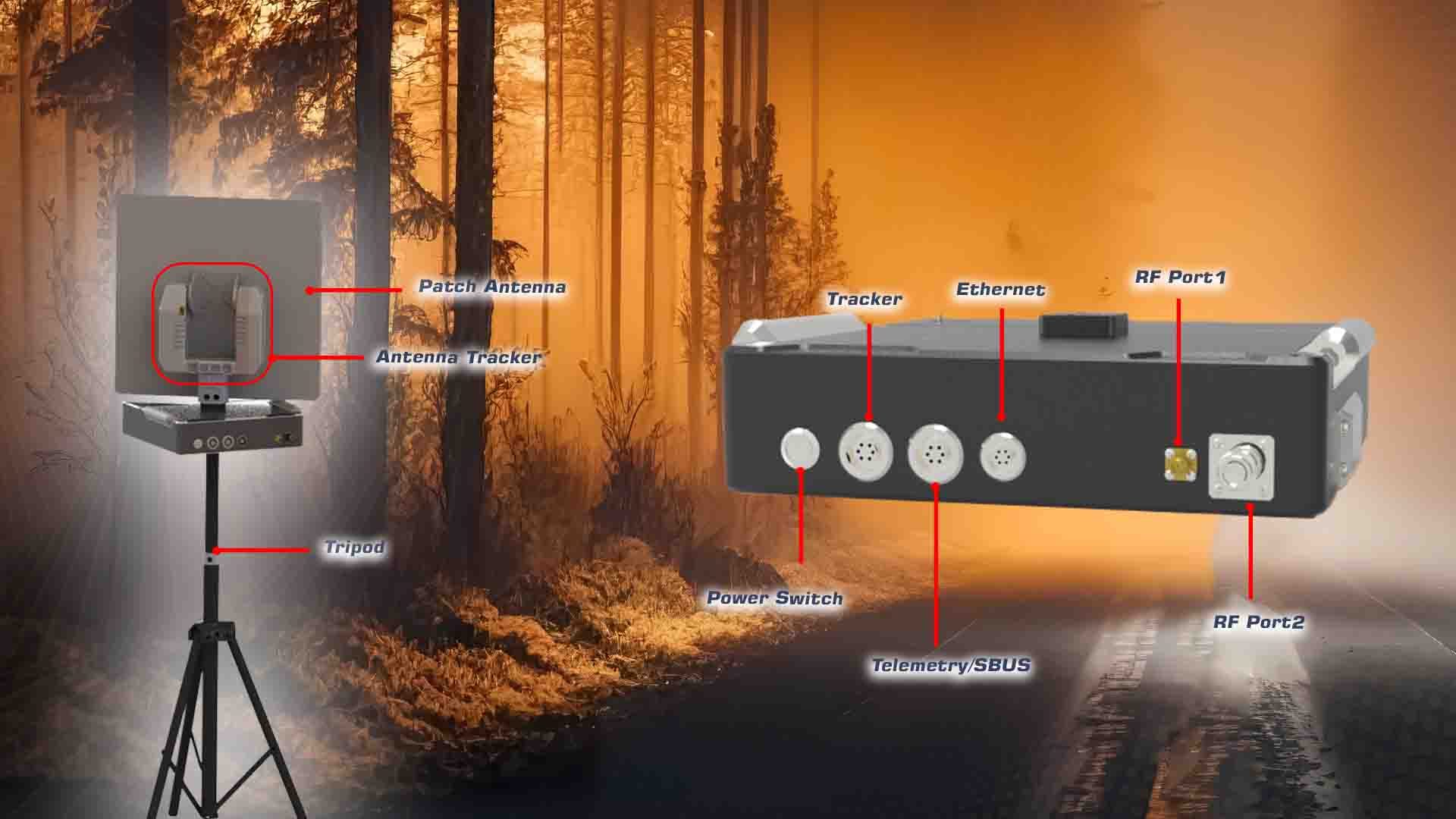

The CommuniNet MND-145 with Datalink box, Tripod, and Automatic Antenna Tracker combines a powerful long-range data transmission system with an advanced Automatic Antenna Tracker (AAT), delivering seamless communication for UAVs and remote platforms. It is the best choice for use with video link and wireless data link drone systems in order to boost their communication distance. This integrated solution offers precise tracking, robust data encryption, and extended operational reliability, making it ideal for demanding aerial missions. The system is equipped with a 16dBi patch antenna. It is compatible with MavLink and NMEA-0183 protocols, which makes it easy to integrate it with open source autopilot systems that are designed based on Pixhawk and use PX4 or Ardupilot firmware.

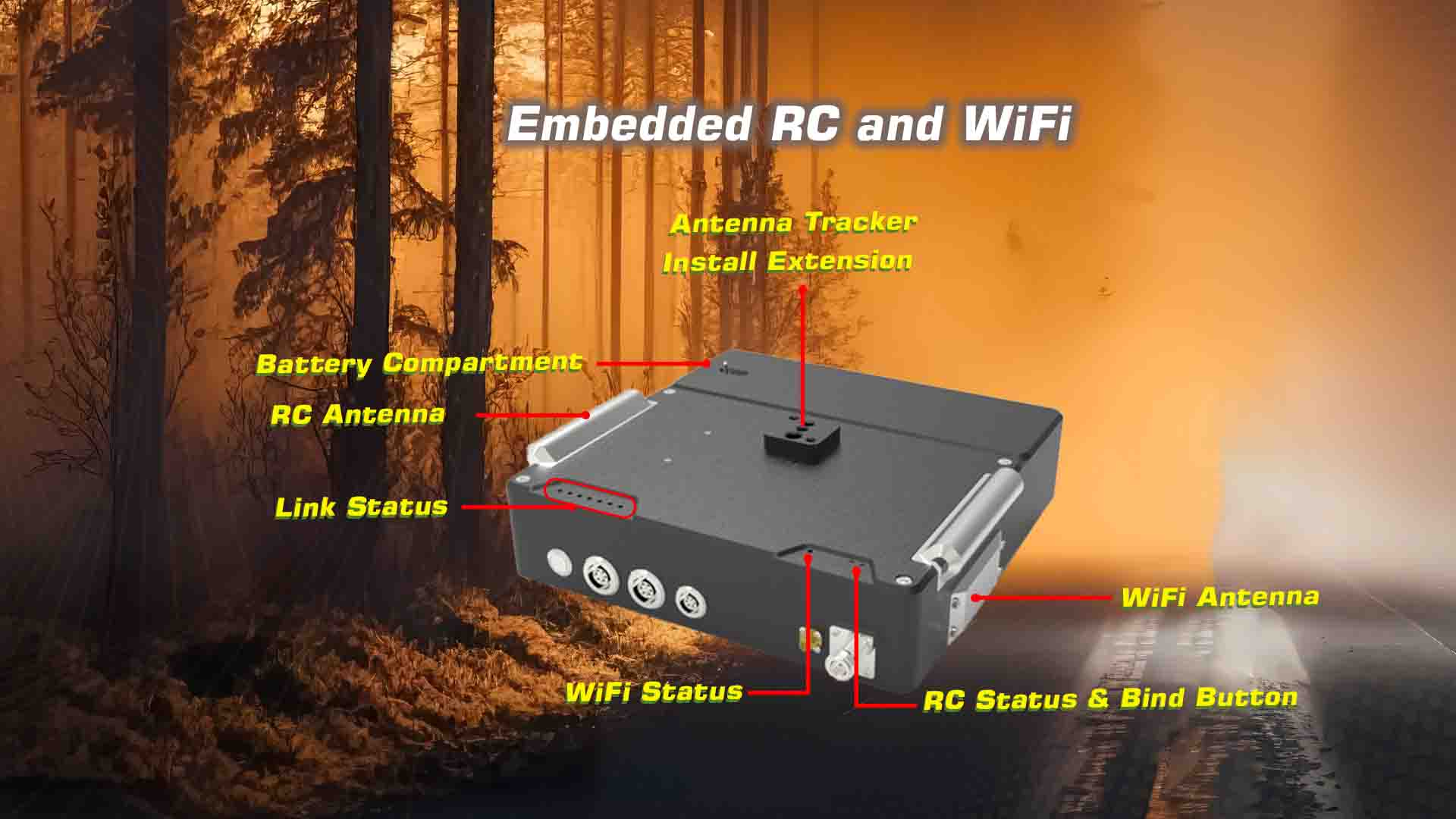

The antenna tracker has stability accuracy of around 0.5°, and can rotate seamlessly around yaw, and its maximum torque is 300N.cm. Integrated with Wi-Fi and Radio control, it brings a seamless wireless ground control station set up for the best user experience.
This combined system ensures precise positioning and stable communication over vast distances, even in harsh environments, making it an essential tool for UAV and remote platform operators.
Overview table of the CommuniNet MND-145 with Automatic Antenna Tracker features
| Automatic Antenna Tracker (AAT) Features | |
| Yaw stability accuracy | <0.5° |
| Pitch stability accuracy | <0.1° |
| Yaw rotation range | Unlimited/450° |
| Pitch rotation range | -15~135° |
| Max. Horizontal turning rate | 300°/s |
| Max. Vertical turning rate | 60°/s |
| Weight | 2.6kg |
| Max. Torque | 300 N.cm |
| Operational Voltage | DC 12v~15v |
| Average Power Consumption | 15W |
| Interface | WiFi, Radio Control, TTL Serial, SBUS, Ethernet (Customizable) |
| Supported Protocol | MavLink, NMEA-0183 |
| CommuniNet MND-145 Specifications |
|
| Working frequency | 1350~1470MHz |
| Transmission power | 37dBm (5W) |
| Transmission distance | Air-to-ground:
100km+ (visibility) |

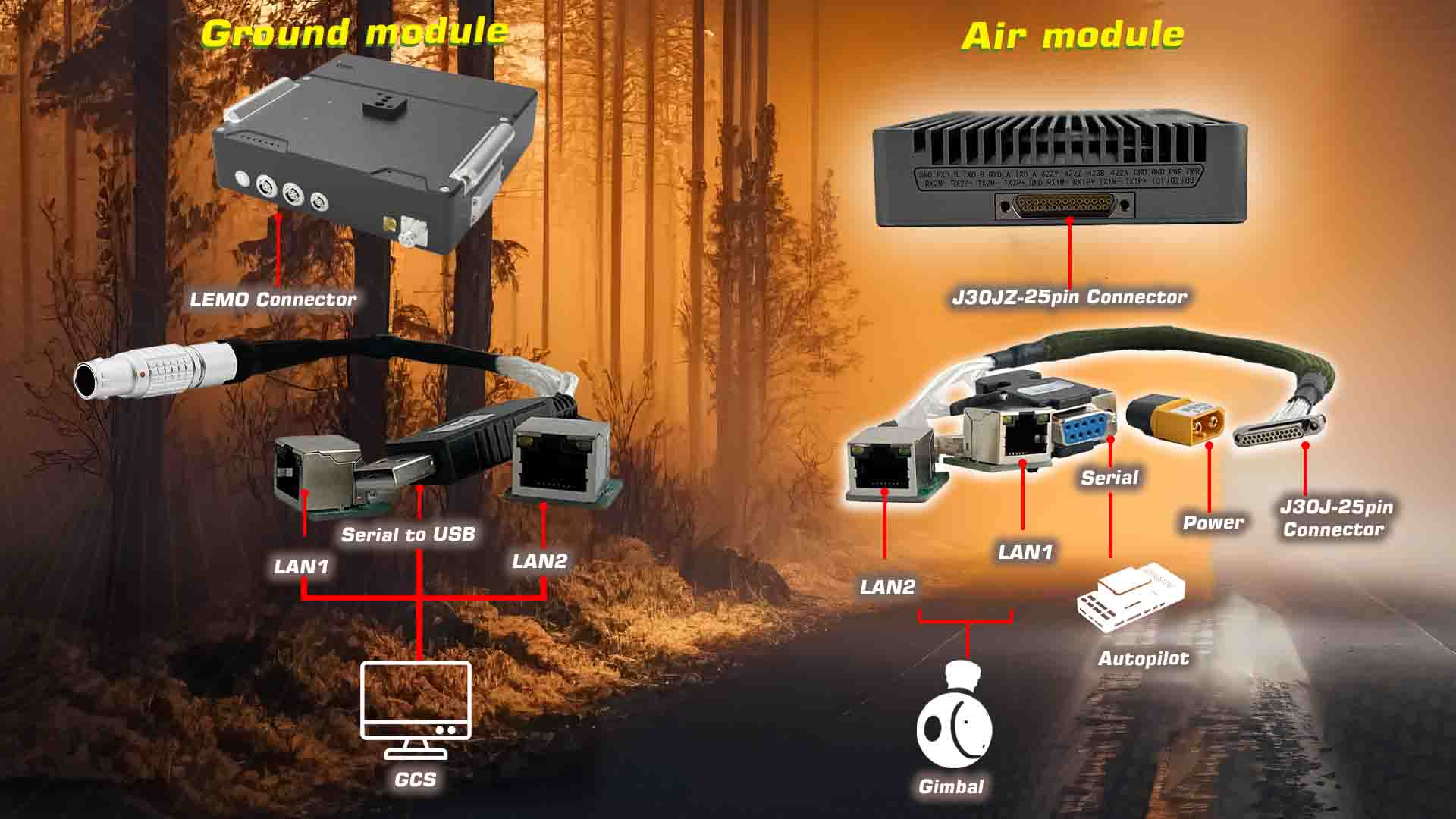

| Transmission delay | 10ms |
| Antenna interface | 2x SMA |
| Interface | 2x Network Port, 2x TTL/RS232, SBUS |
Consult MotioNew Online Shop to see the full range of our products. Moreover, if you are interested in long-range wireless video to integrate with this antenna tracker, you can visit the video and data link page.
CommuniNet MND-145 with Automatic Antenna Tracker Features (with datalink box and tripod)
If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.
Specifications
| Automatic Antenna Tracker (AAT) Features | |
| Yaw stability accuracy | <0.5° |
| Pitch stability accuracy | <0.1° |
| Yaw rotation range | Unlimited/450° |
| Pitch rotation range | -15~135° |
| Max. Horizontal turning rate | 300°/s |
| Max. Vertical turning rate | 60°/s |
| Weight | 2.6kg |
| Max. Torque | 300 N.cm |
| Operational Voltage | DC 12v~15v |
| Average Power Consumption | 15W |
| Working Temperature | -20~60°C |
| IP level | IP65 |
| Working humidity | 20% ~ 70% |
| Interface | WiFi, Radio Control, TTL Serial, SBUS, Ethernet (Customizable) |
| Supported Protocol | MavLink, NMEA-0183 |
| CommuniNet MND-145 Specifications |
|

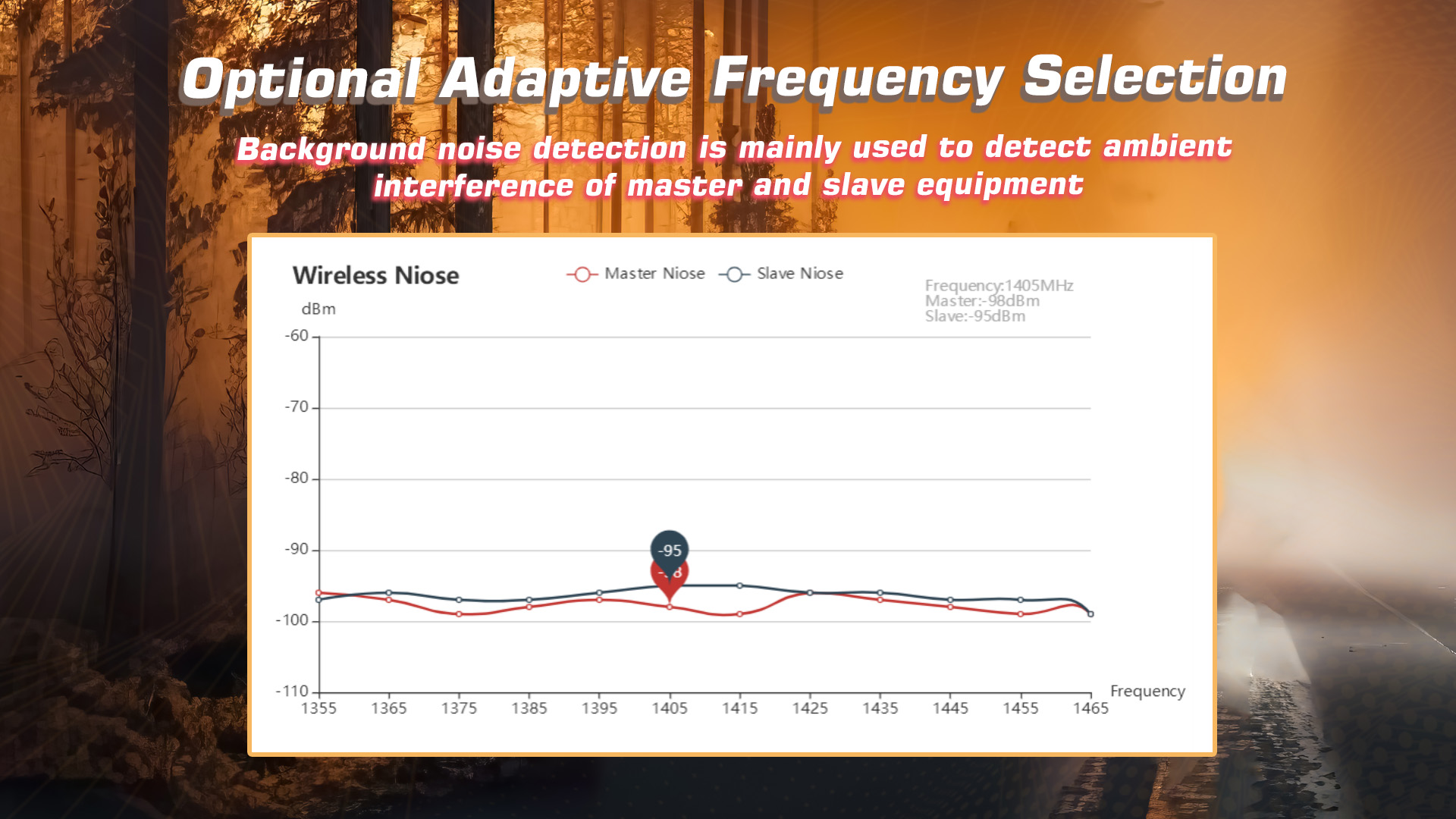

| Working frequency | 1350~1470MHz |
| Wireless channel |
2T2R |
| Transmission power | 37dBm (5W) |
| Transmission distance | Air-to-ground:
100km+ (visibility) |
| Channel bandwidth | 10MHz |
| Modulation mode | QPSK/16QAM |
| Receiving sensitivity |
-99dBm@10MHz@QPSK1/3 |
| Speed | up to 17Mbps@16QAM3/4 |
| Communication encryption | AES256 |
| Transmission delay | 10ms |
| Antenna interface | 2x SMA |
| Interface | 2x Network Port, 2x TTL/RS232, RS422, SBUS |
| Overall power consumption | Air Unit ≤ 24W, Ground Unit≤ 10W |
| Dimension (L*W*H) | 153 x 77 x 28mm |
| Weight | 350g |
| Working voltage | DC 9~26V, Typical value: +12V |
| Working temperature | -40℃~+75℃ |
