Description

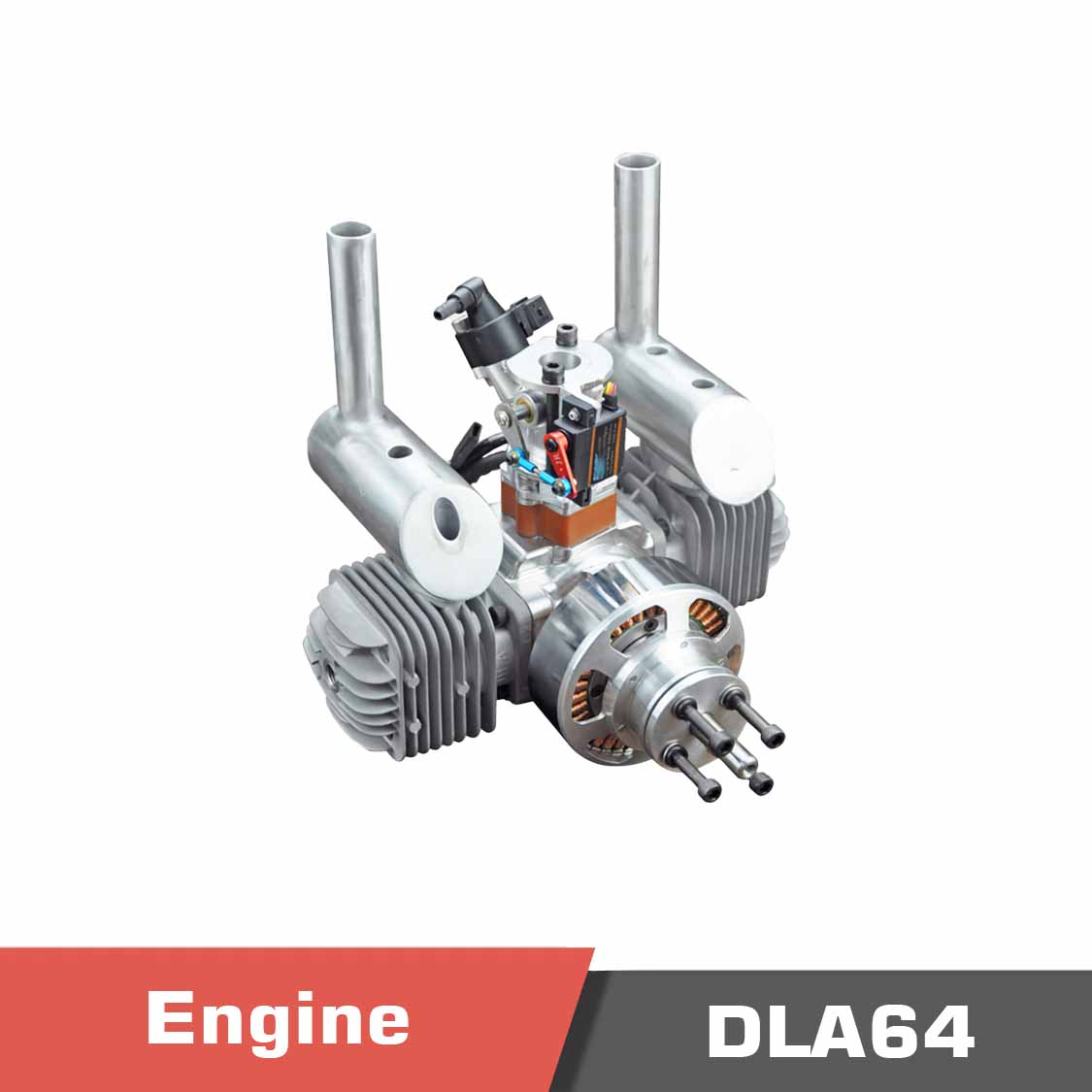

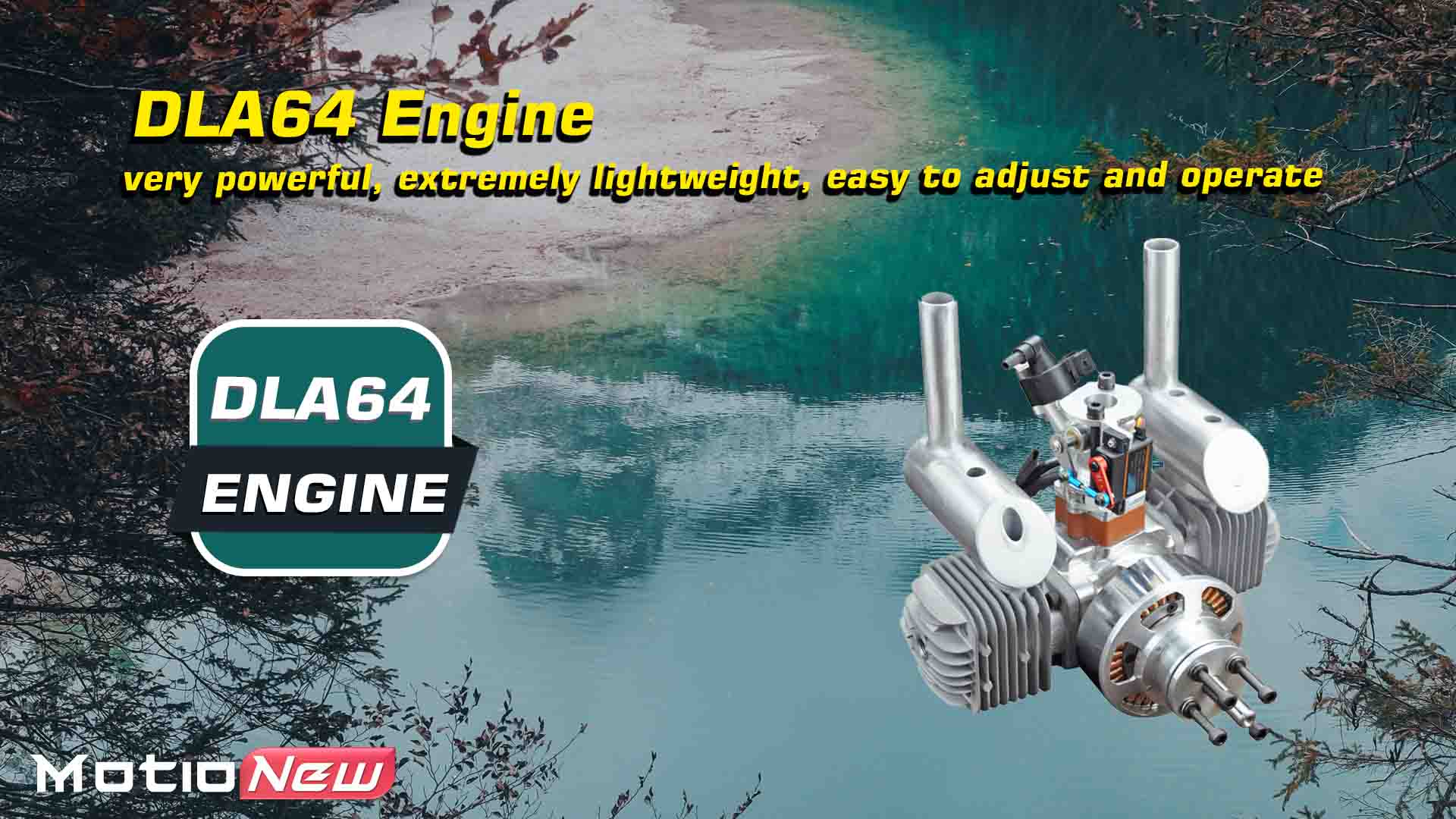

The DLA64 engine has been specifically designed, developed, and manufactured from proprietary components for a giant-scale model. It is very powerful, extremely lightweight, easy to adjust and operate, and should provide years of outstanding performance.

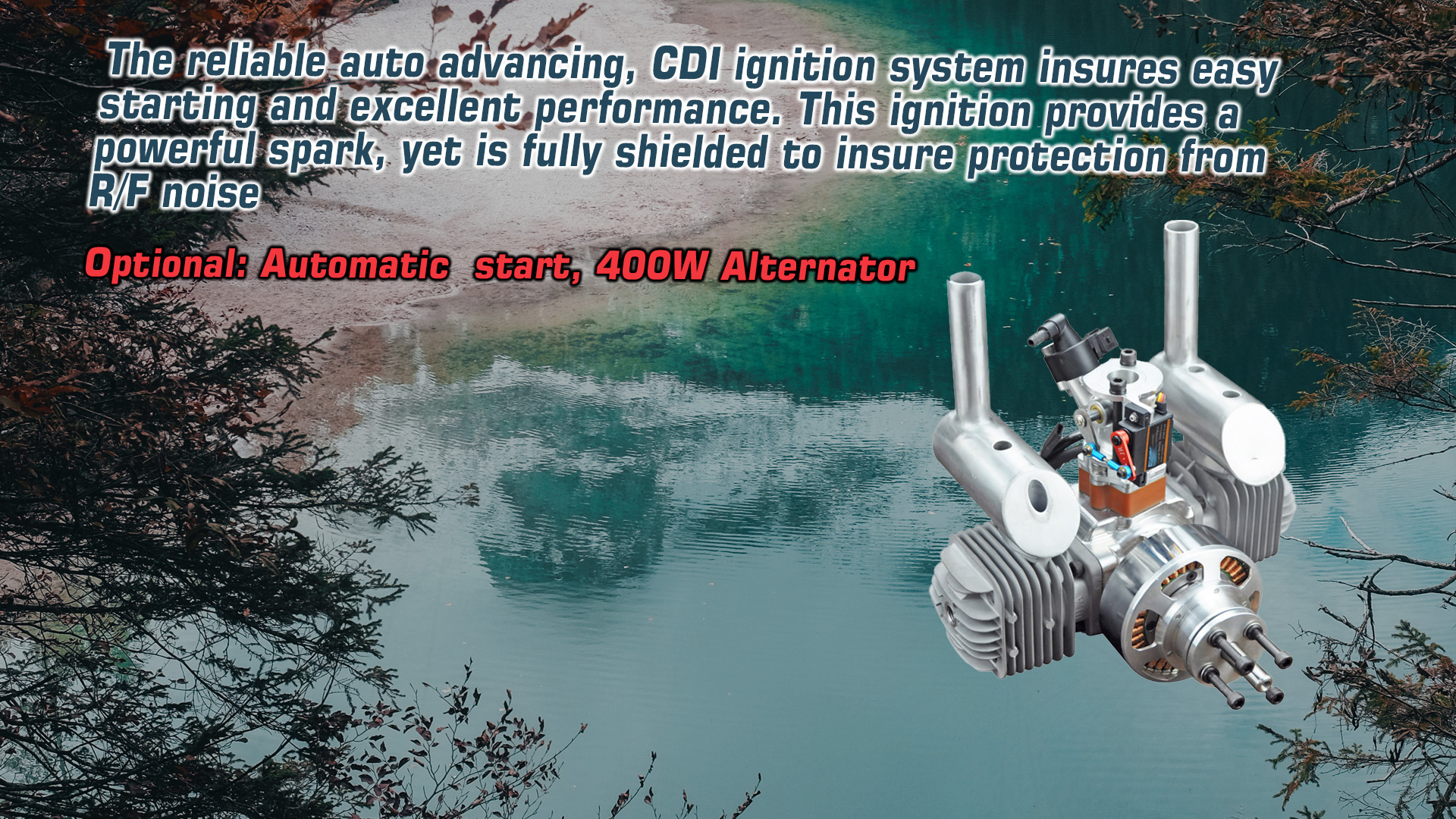

The reliable auto-advancing, CDI ignition system ensures easy starting and excellent performance. This ignition provides a powerful spark, yet is fully shielded to ensure protection from R/F noise.

This DLA64 Engine (64cc UAV engine) is designed for large fixed wings and VTOL UAVs. Its crankcase, crankshaft, and central screws are all made of high-performance materials with the CNC processing method. With its beautiful appearance, high precision, drop resistance, fatigue resistance, stability, and strong power performance, it has obtained a good reputation from users.

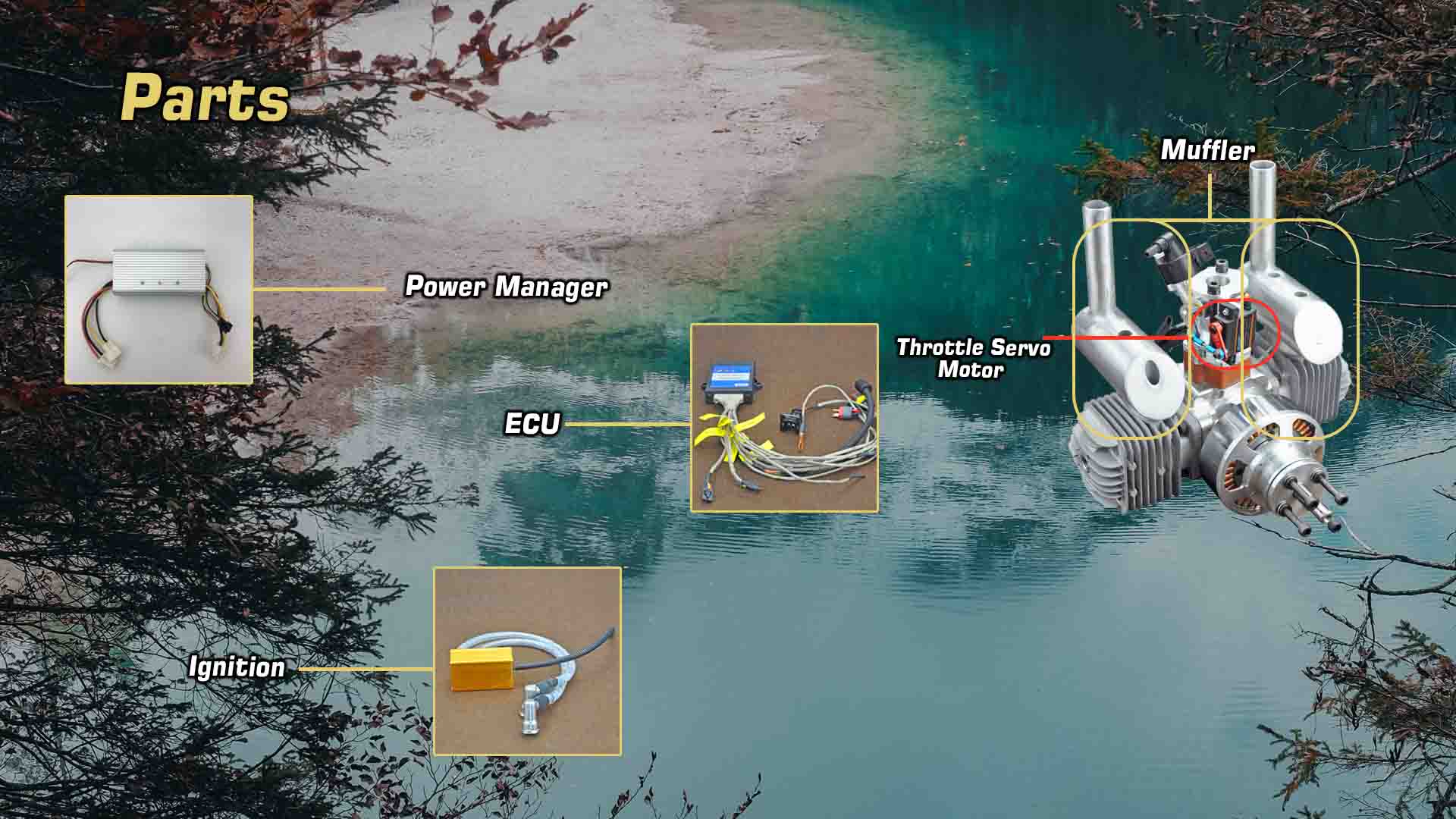

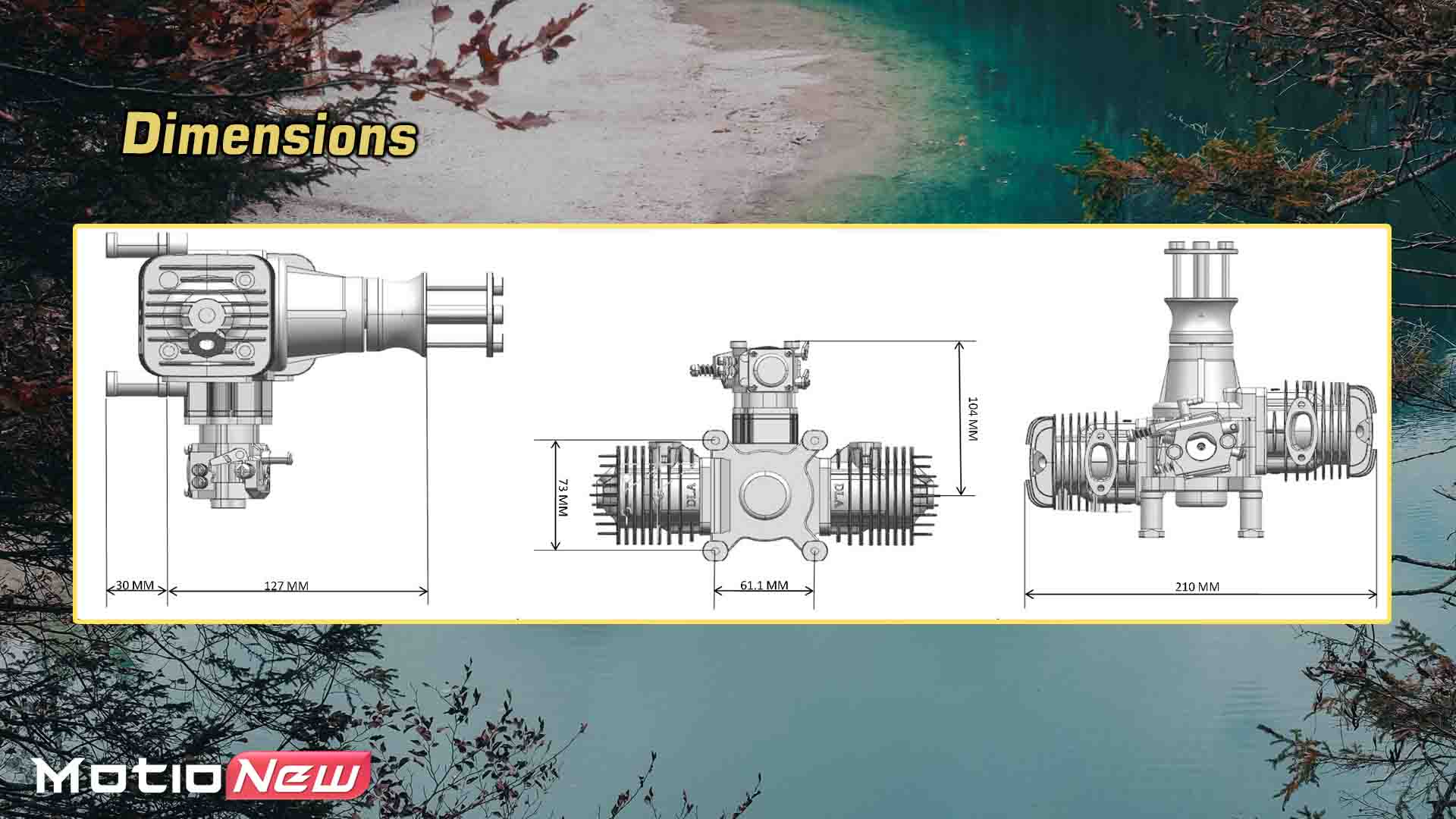

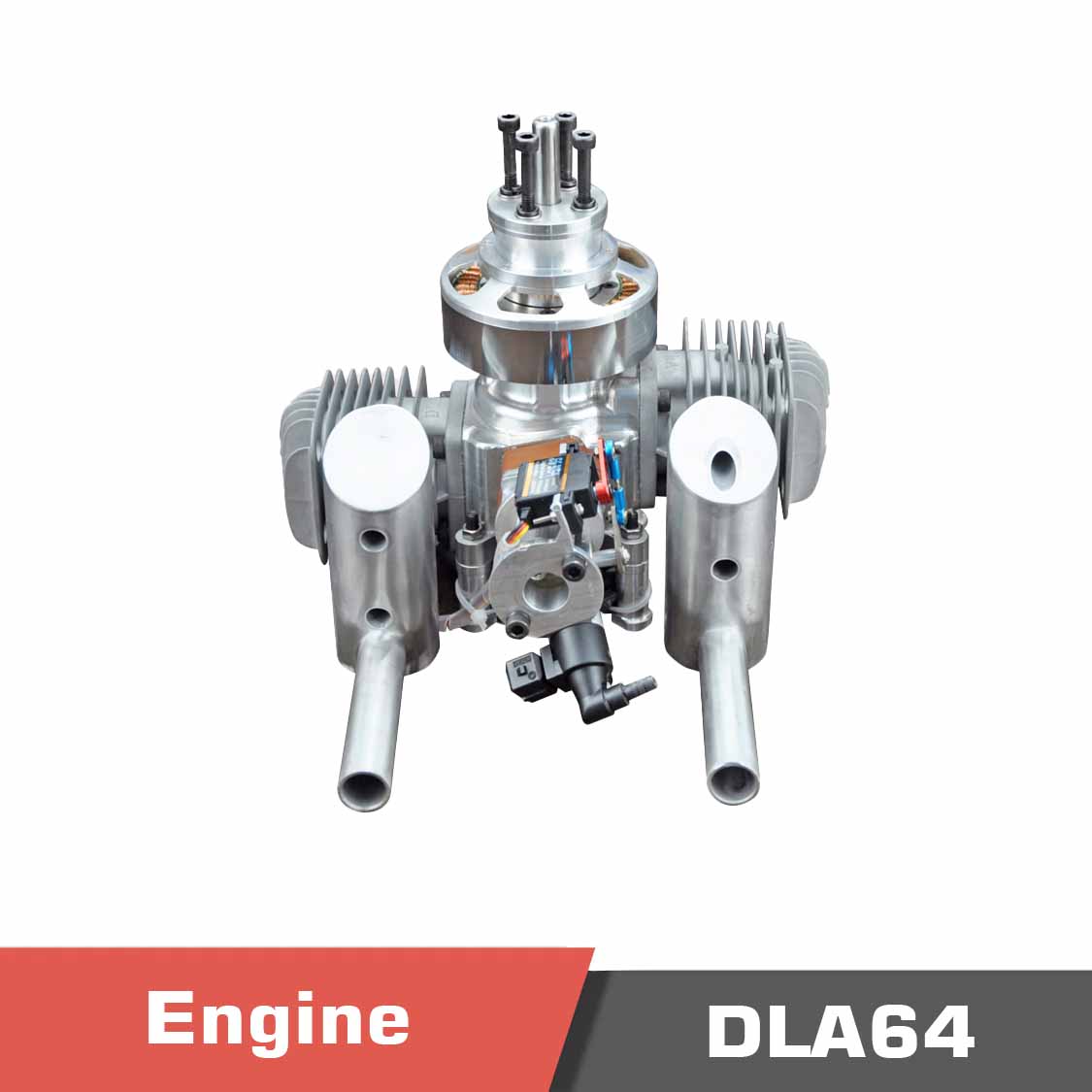

Dla64. 1 - dla64 engine - motionew - 3 Dla64. 2 - dla64 engine - motionew - 4 Dla64. 3 - dla64 engine - motionew - 5 Dla64. 4 - dla64 engine - motionew - 6 Dla64. 5 - dla64 engine - motionew - 7 Dla64. 6 - dla64 engine - motionew - 8



For a comprehensive reading of related products, please visit the Motionew website.

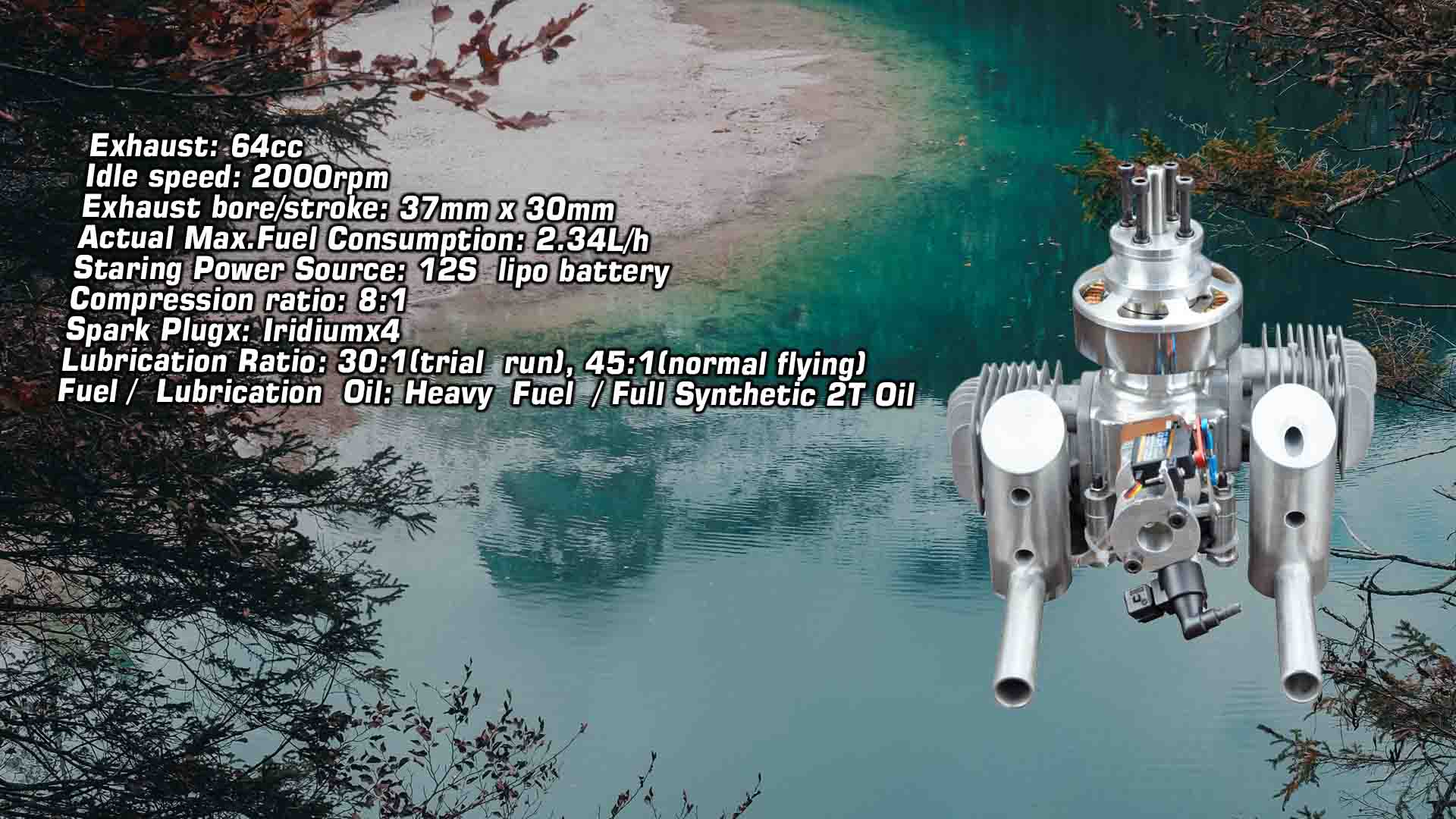

Specifications

Specifications

Exhaust 64cc
Idle speed 2000rpm
Exhaust bore / stroke 37mm*30mm
Actual Max. Fuel Consumption 2.34L/h

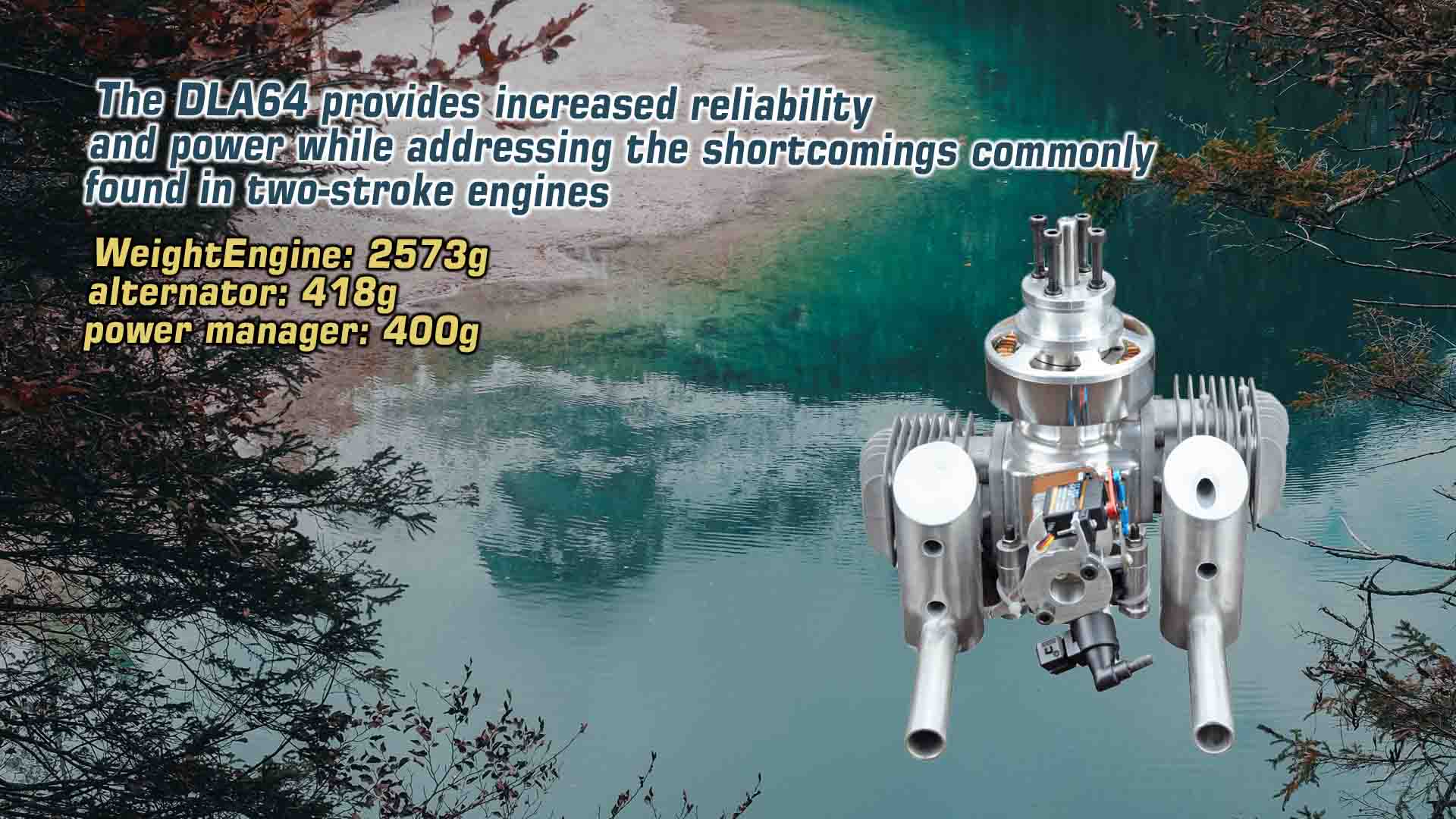

Weight Engine: 2573g
alternator: 418g
power manager: 400g
Staring Power Source 12S lipo battery
Compression ratio 8:1
Spark Plug Iridium*4
Optional Functions Automatic  start, 400W Alternator
Lubrication Ratio 30:1 (trial run)
45:1 (normal flying)
Fuel / Lubrication Oil Heavy  Fuel  / Full Synthetic 2T Oil



Documents

Documents

Please contact us for more information.

Product contents

Product contents

Please contact us for more information.

Reviews
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “DLA64 Engine | 64cc Exhaust | 2000rpm Idle Speed”

Your email address will not be published. Required fields are marked *

1 2 3 4 5
1 2 3 4 5
1 2 3 4 5

Specification:

Weight 5 kg
Dimensions 30 × 30 × 30 cm
Engine Weight

2.573kg

Engine Displacement

64cm3

Engine Bore

37mm

Engine Stroke

30mm
