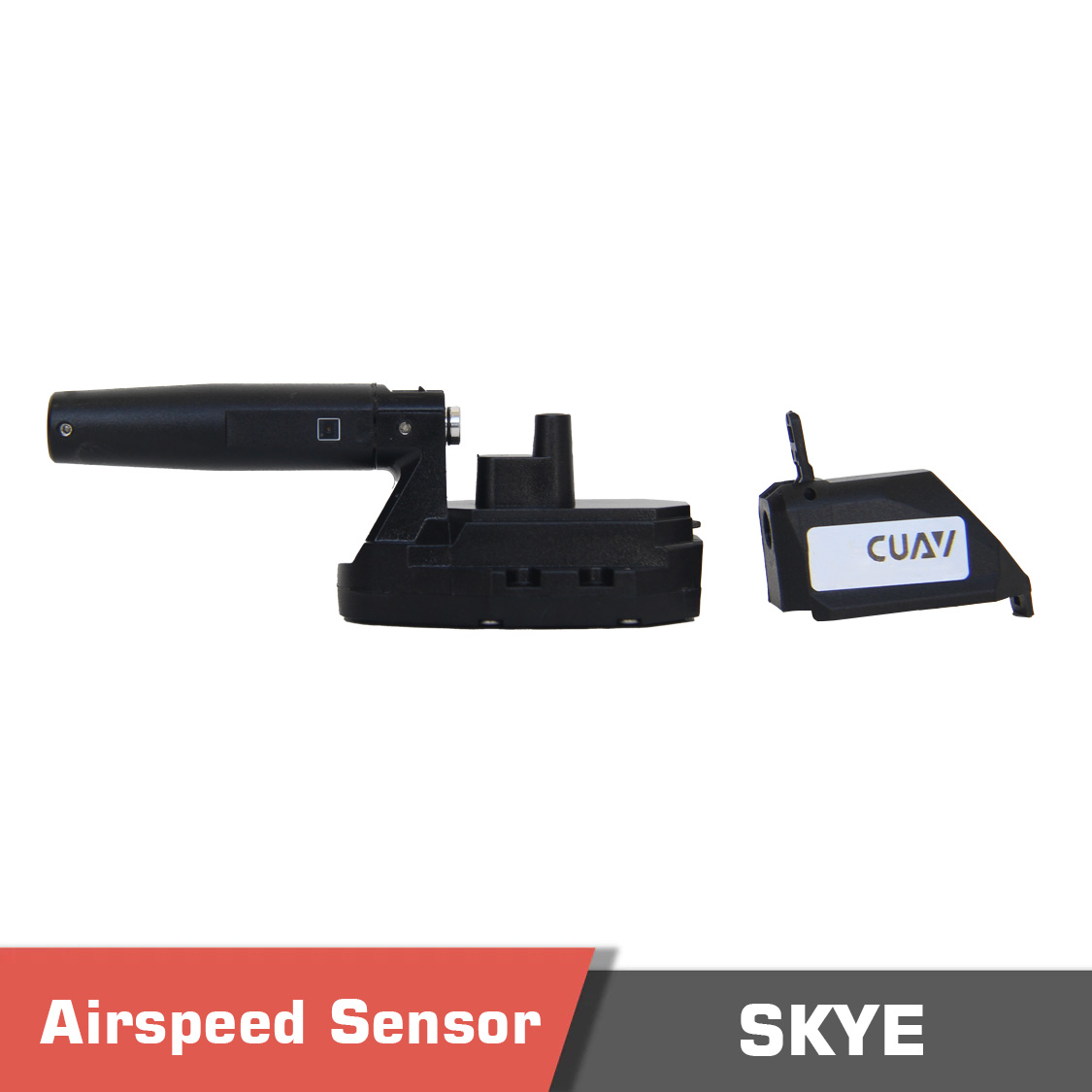

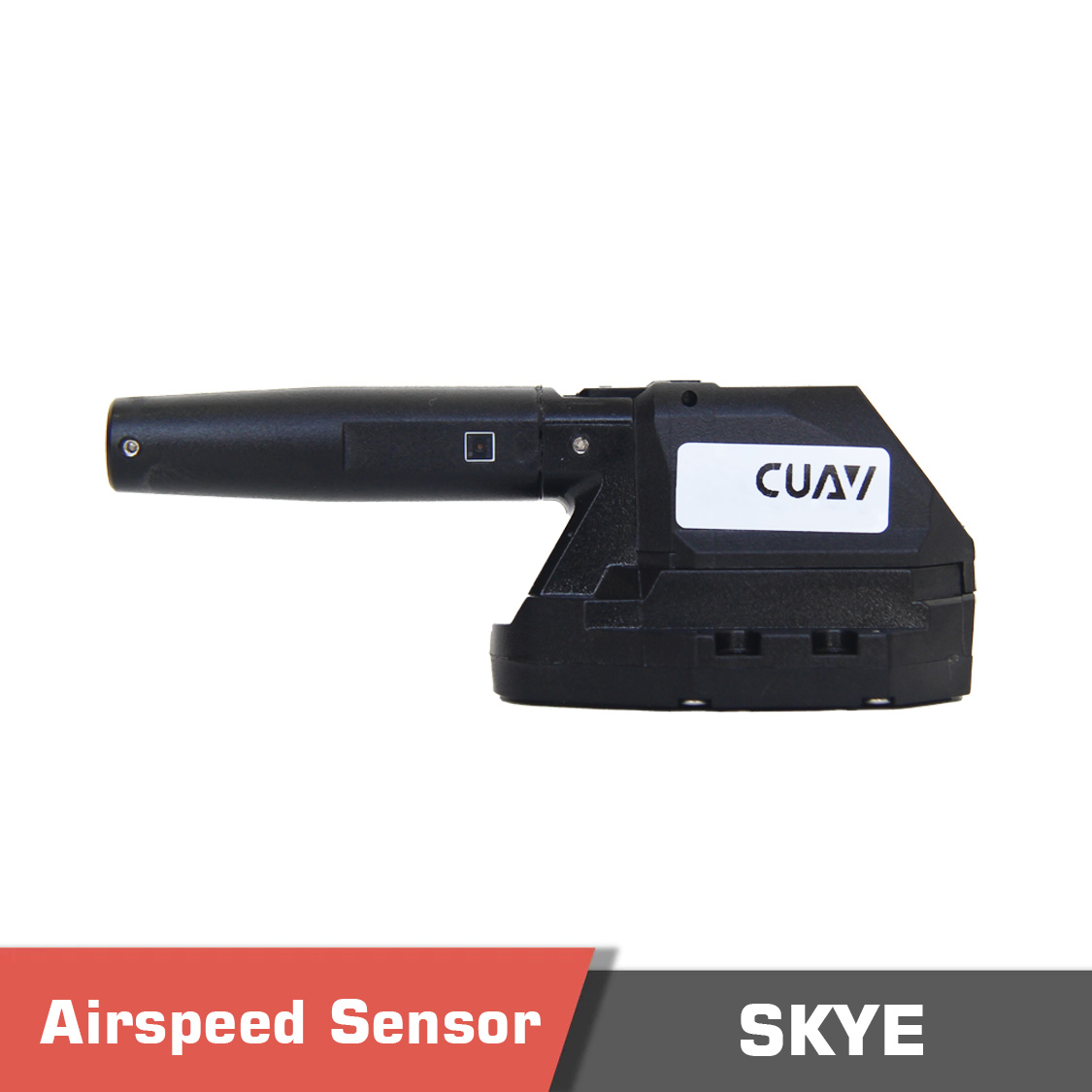

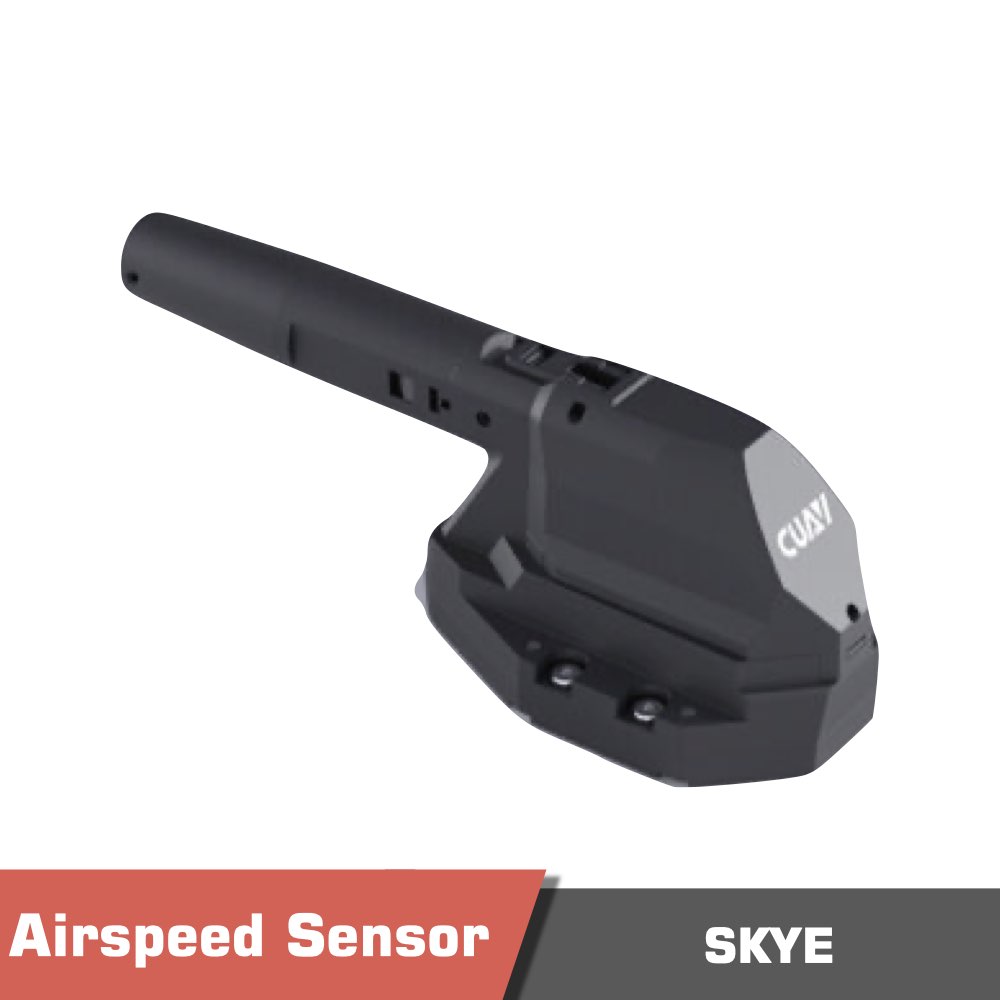

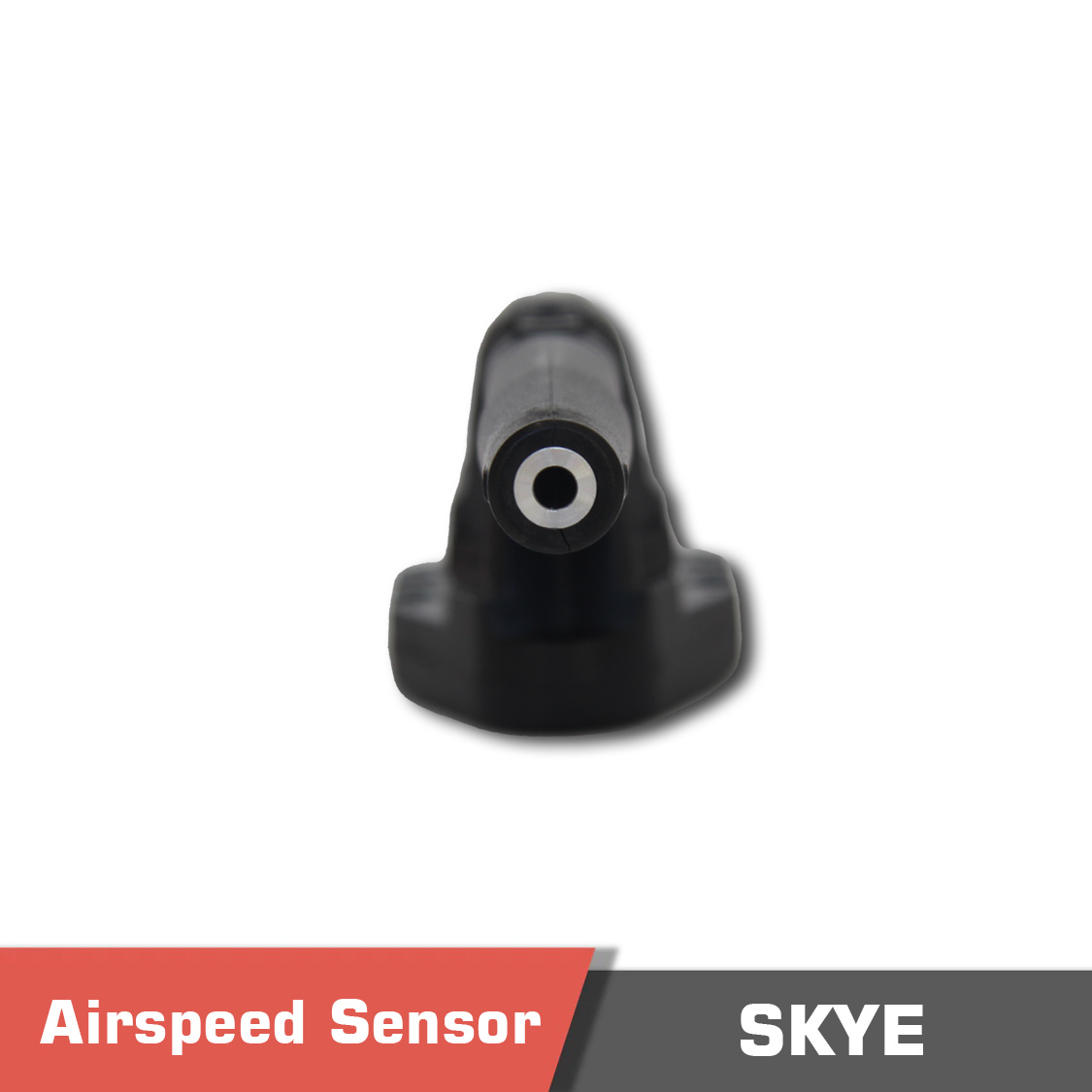

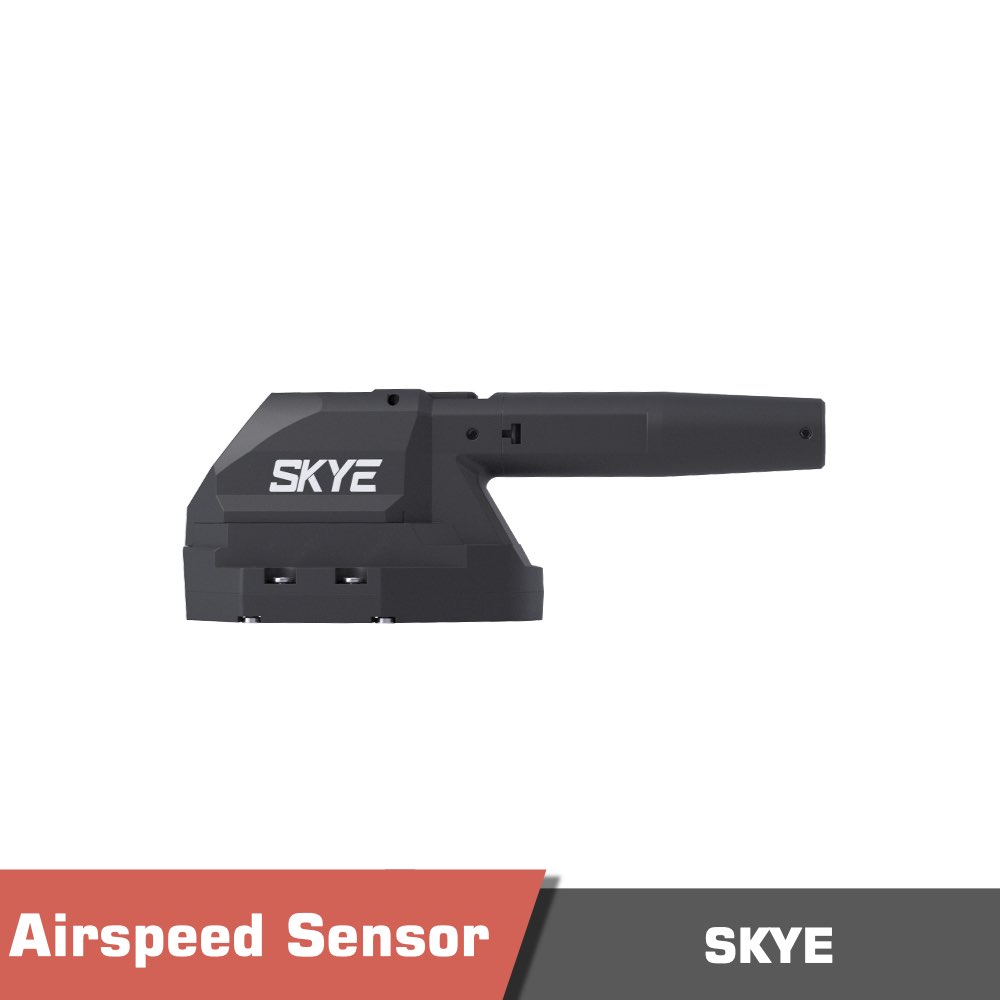

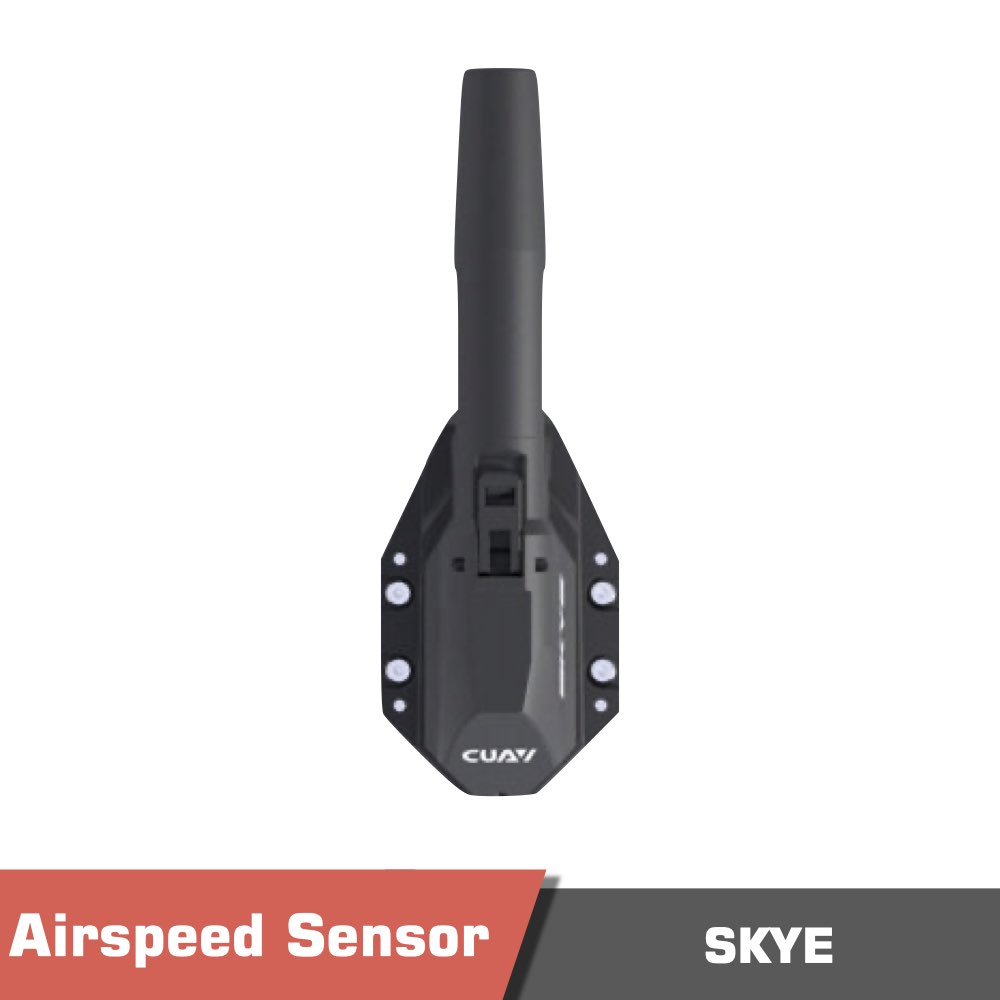

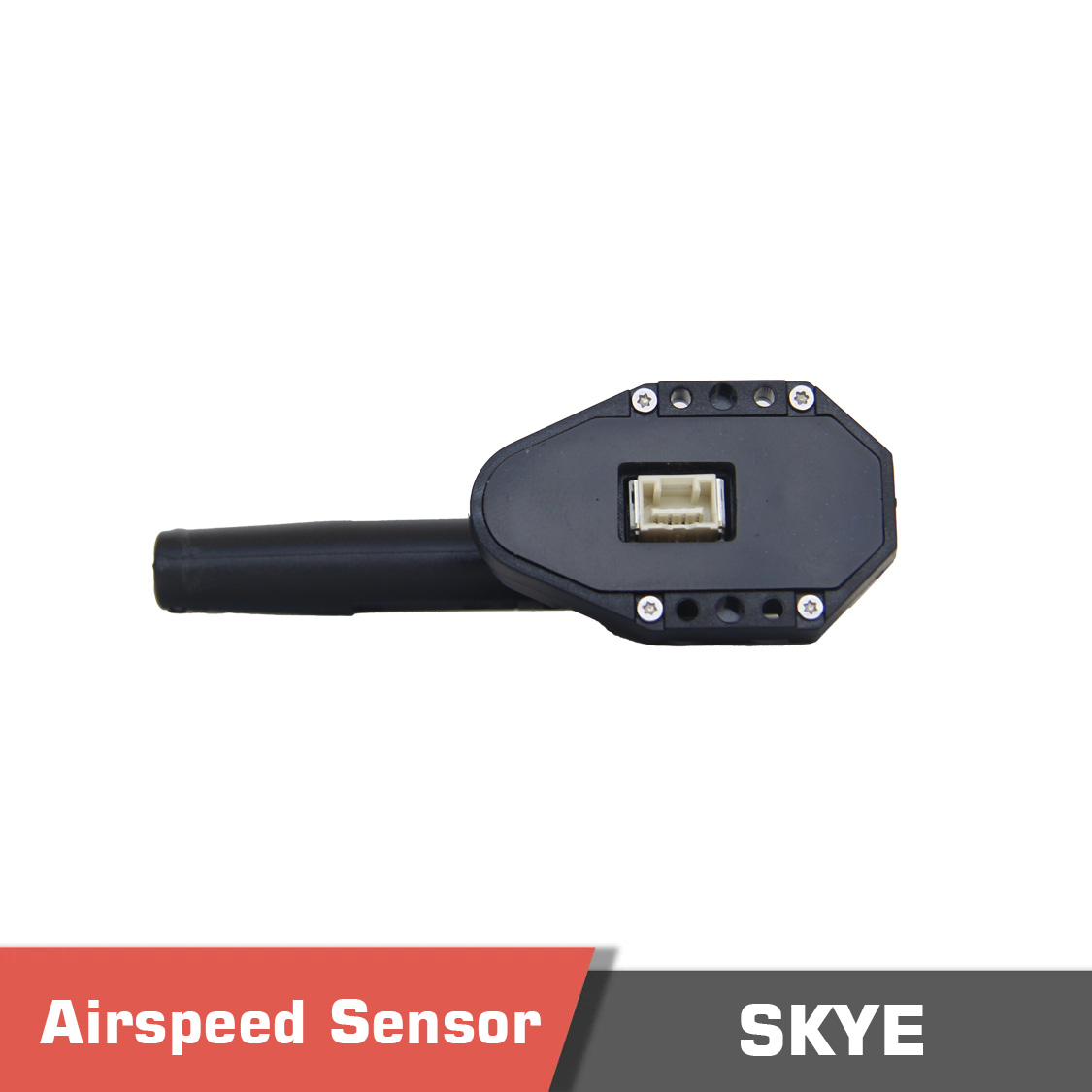

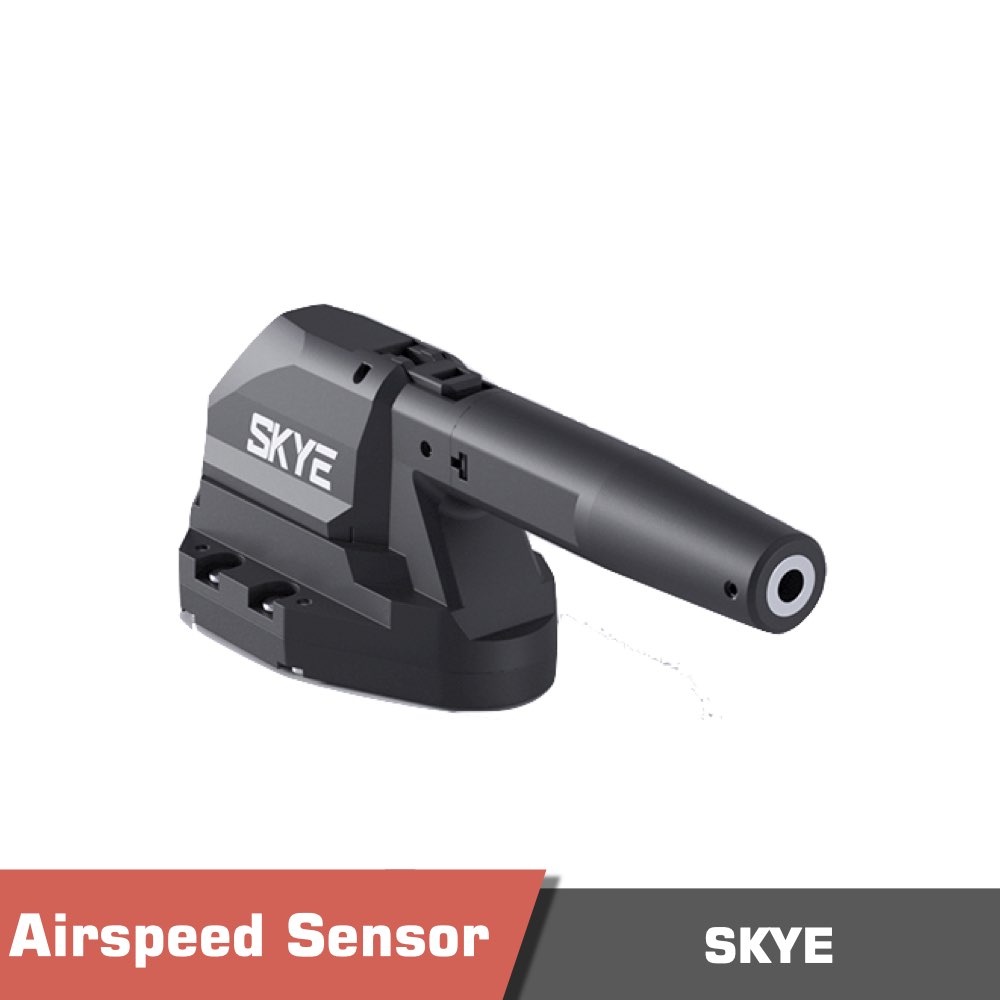

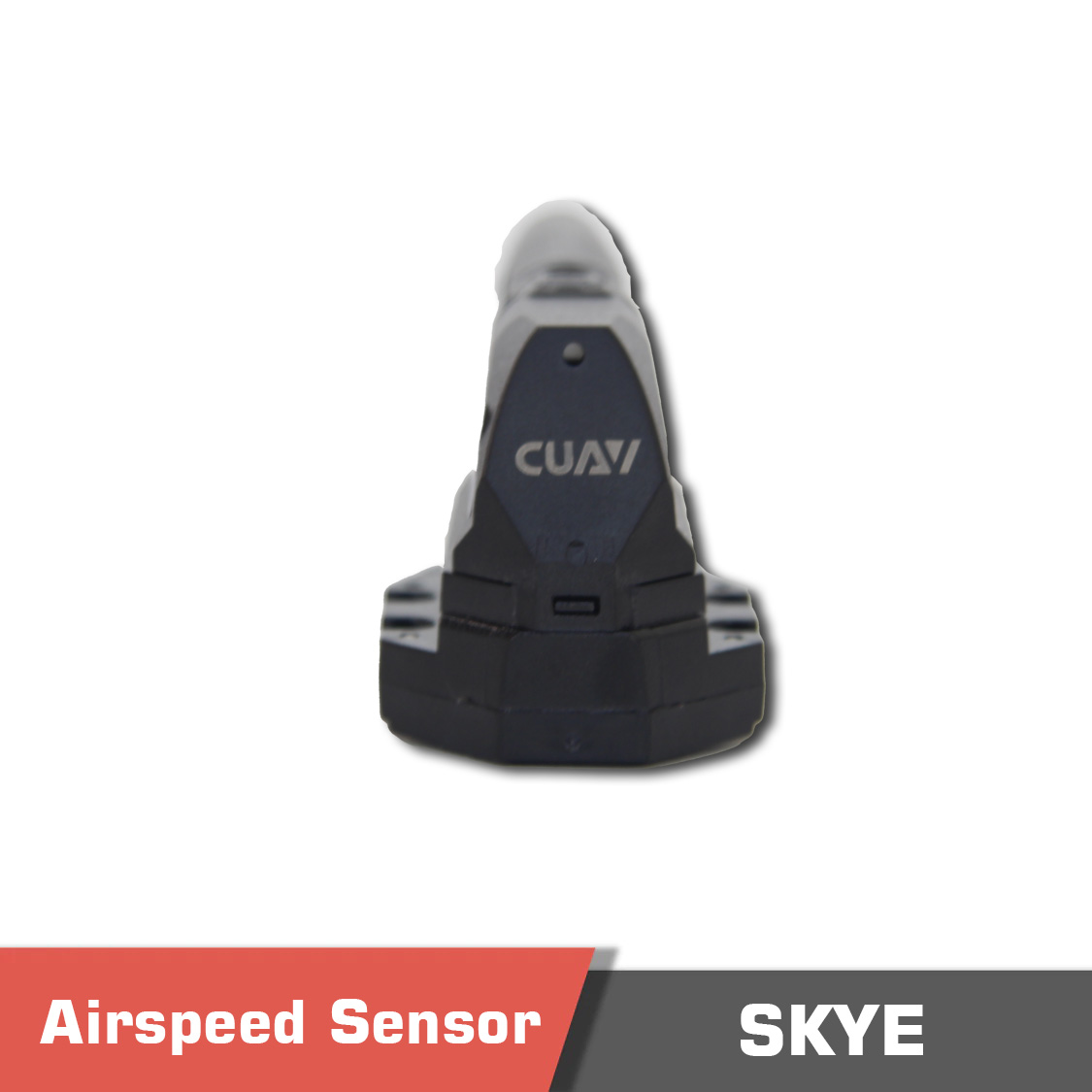

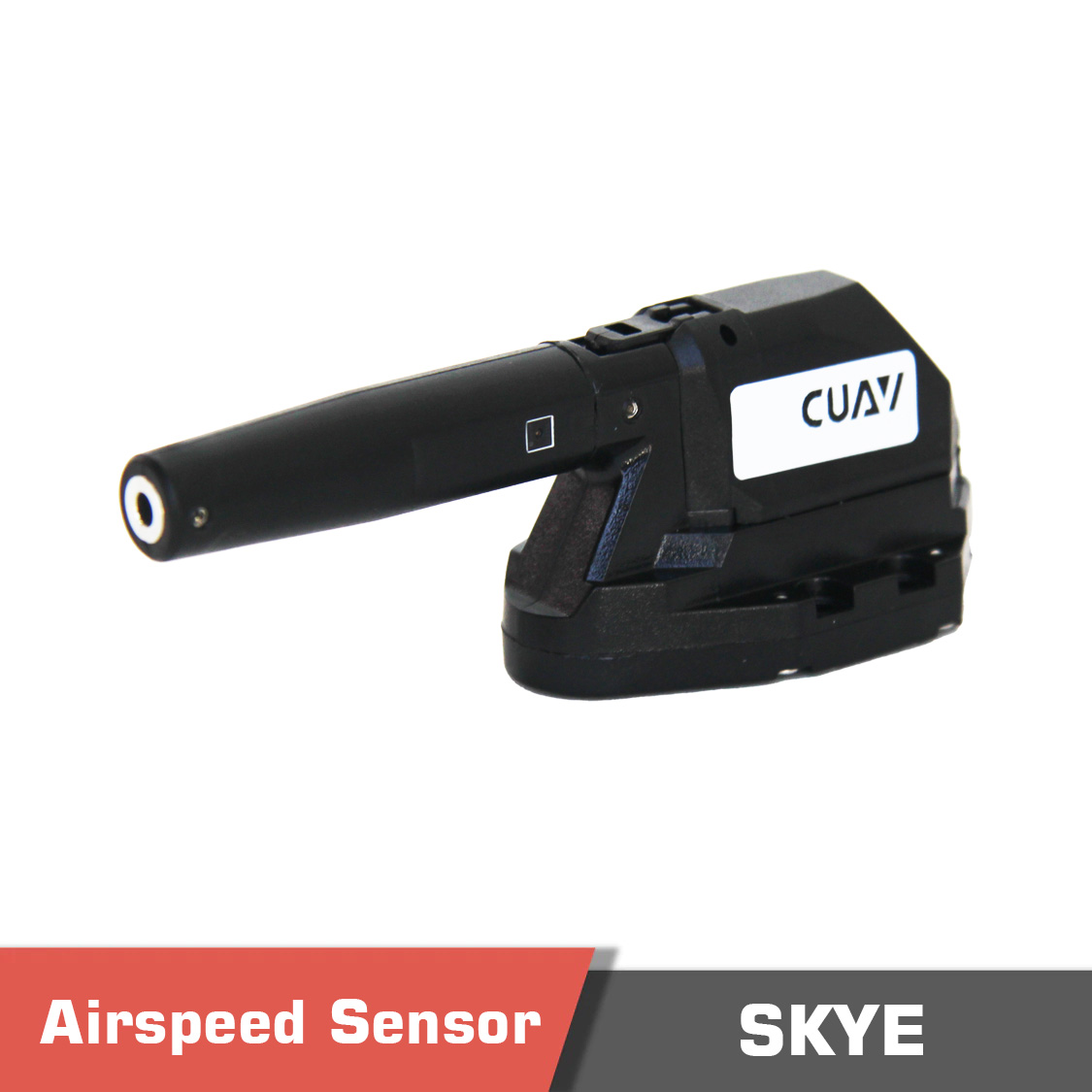

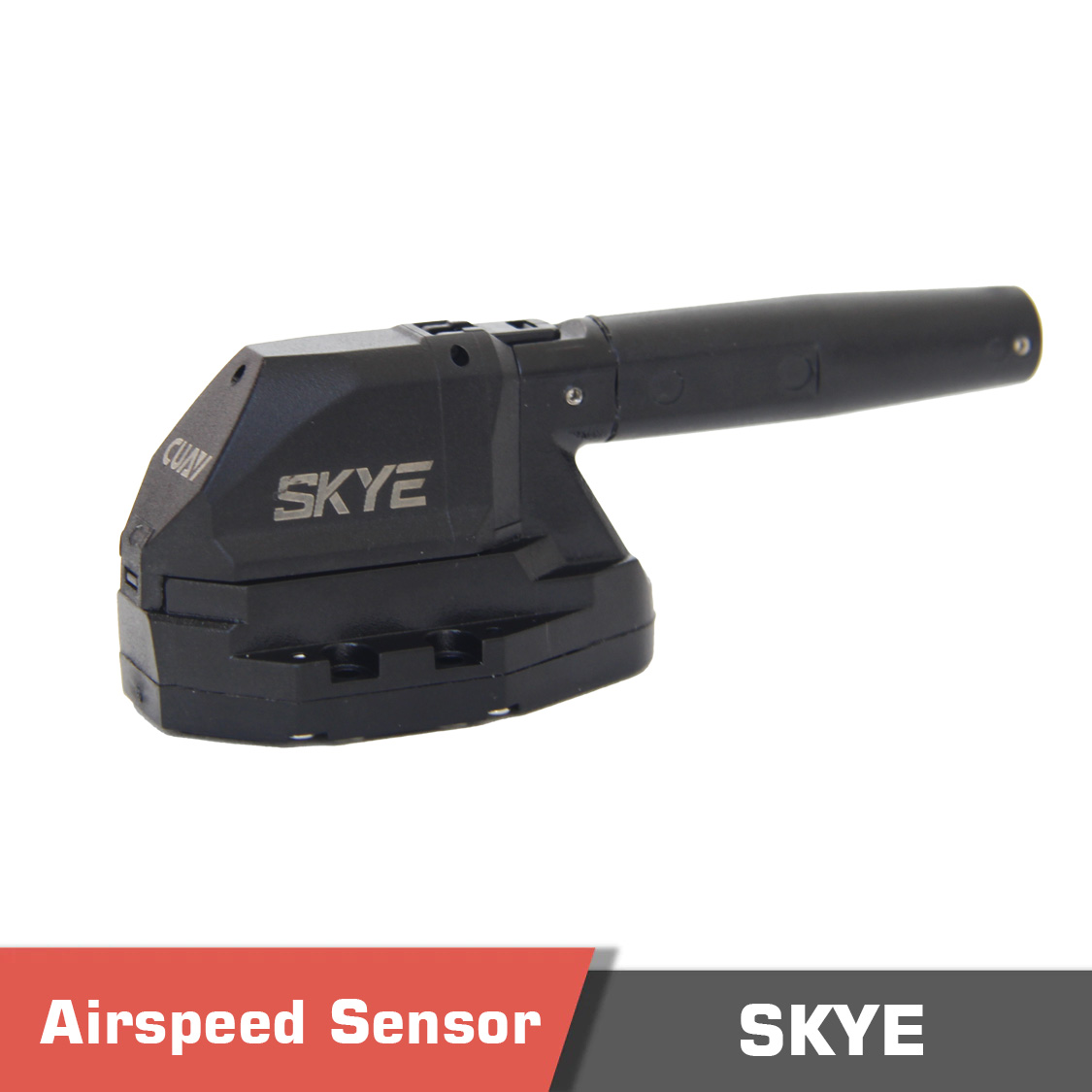

CUAV SKYE Heated Airspeed Sensor for Pixhawk
CUAV SKYE Airspeed sensor has an automatic heated pitot tube mechanism. Heated pitot airspeed sensors are highly demanded in DIY UAVs by using Pixhawk flight controllers, it makes the drones more reliable and improves the robustness of the avionics systems. By using CUAV SKYE heated airspeed sensor you can have a decent feature and reduce the probability of measurement error. This pixhawk airspeed sensor has a Dual Temperature Control System to do the airspeed compensation automatically, significantly improving the drone’s safety level and making it operational in harsh environments. It can also pass the IP44 protection standard. In the end, by processing collected data with a highly integrated STM32F4 processor and industrial-level CAN interface you can easily use it with most Pixhawk flight controllers or any DroneCAN-supported flight controls.
SKYE — CUAV Heated Pitot Tube Airspeed sensor Features:
- Built-in STM32F4 processor
- DroneCAN Protocol
- Dual temperature compensation system
- Intelligent de-icing
- IP44 protection class
- Automatic drainage design
Specifications
Specifications
| Processor | STM32F4 |
| Protocol | DroneCAN |
| Pitot tube temperature control type | Resistance heating |
| Airspeed sensor | MS5525 |
| Sensor performance | |
|---|---|
| Airspeed measurement range | ±500km/h |
| Airspeed accuracy | ±0.69Pa |
| Total Error Band | ±2.5%FS |
| Temperature measurement range | -15℃-150℃ |
| Humidity measurement range | 0-100% |
| Physical characteristics | |
| Pitot tube heating power | 35W |
| DC IN | Default 12-36V |
| Operating Temperature | -20℃±75℃ |
| Size | 82.5×30.4×28.2mm |
| Weight | 22g |
| Protection Level | IP44（To be installed on request） |

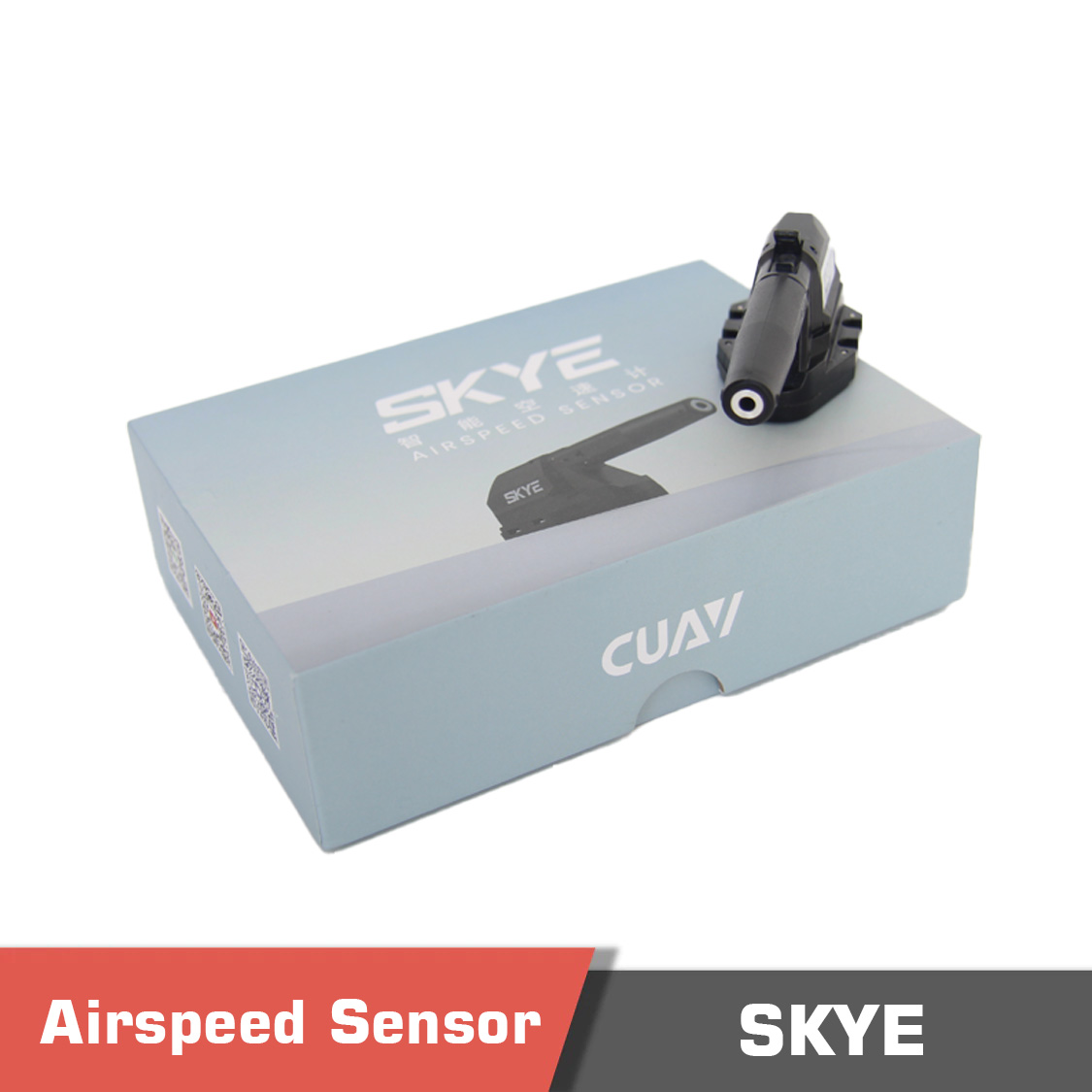

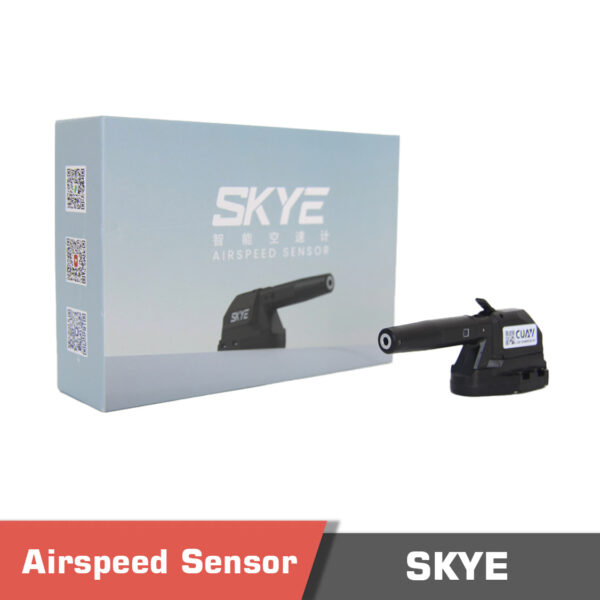

Product contents
Product contents
1x SKYE Airspeed Sensor
1x Airspeed HUB
1x Airspeed sensor cable
(HUB->SKYE)
(100cm)
1xCAN Data Cable
(35cm)
1xXT30 Power Cable
(30cm)
