Flightcase Radar 24GHz Miniature UAV Drone Altimeter, ISTRA24
279.00 $

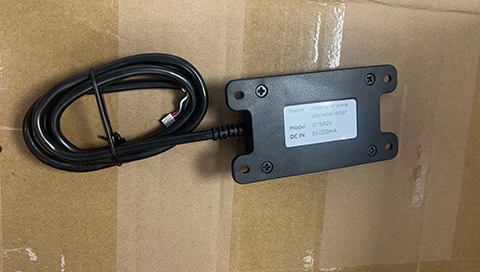

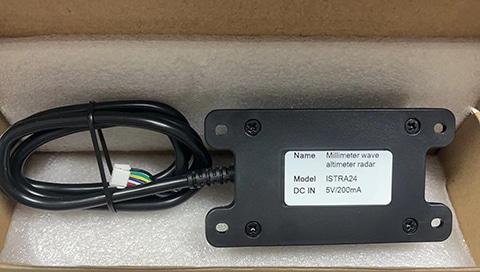

Customer Product Gallery
Description

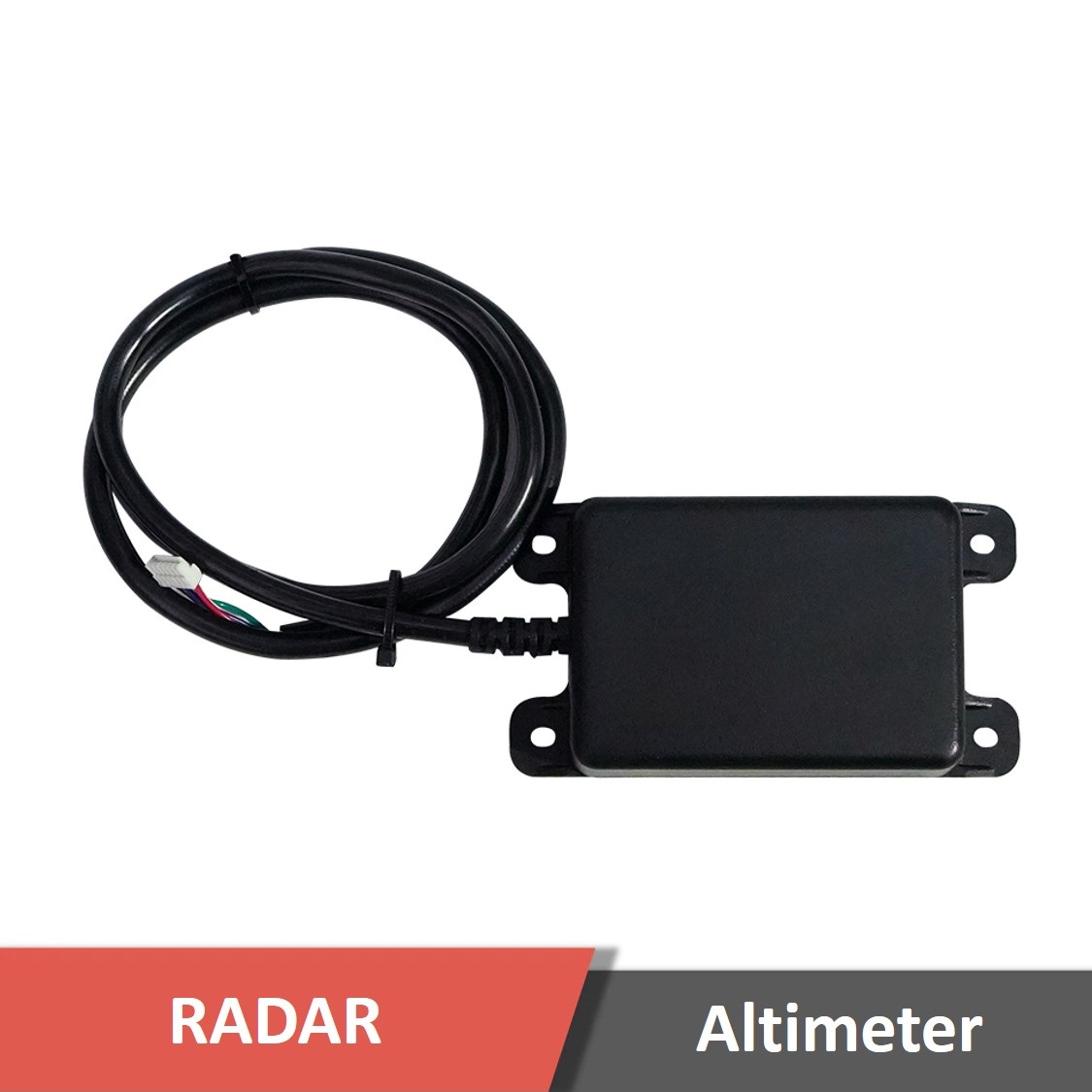

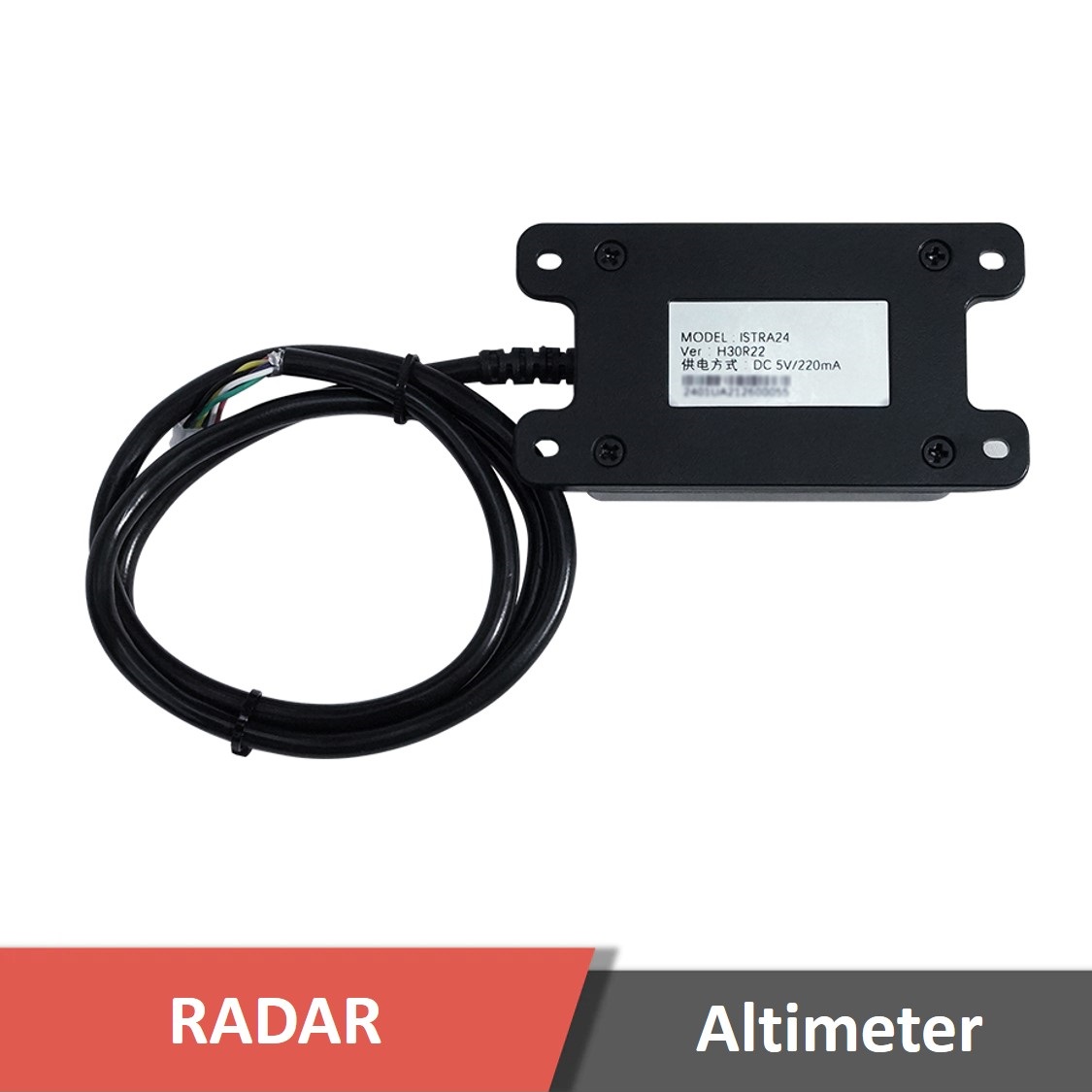

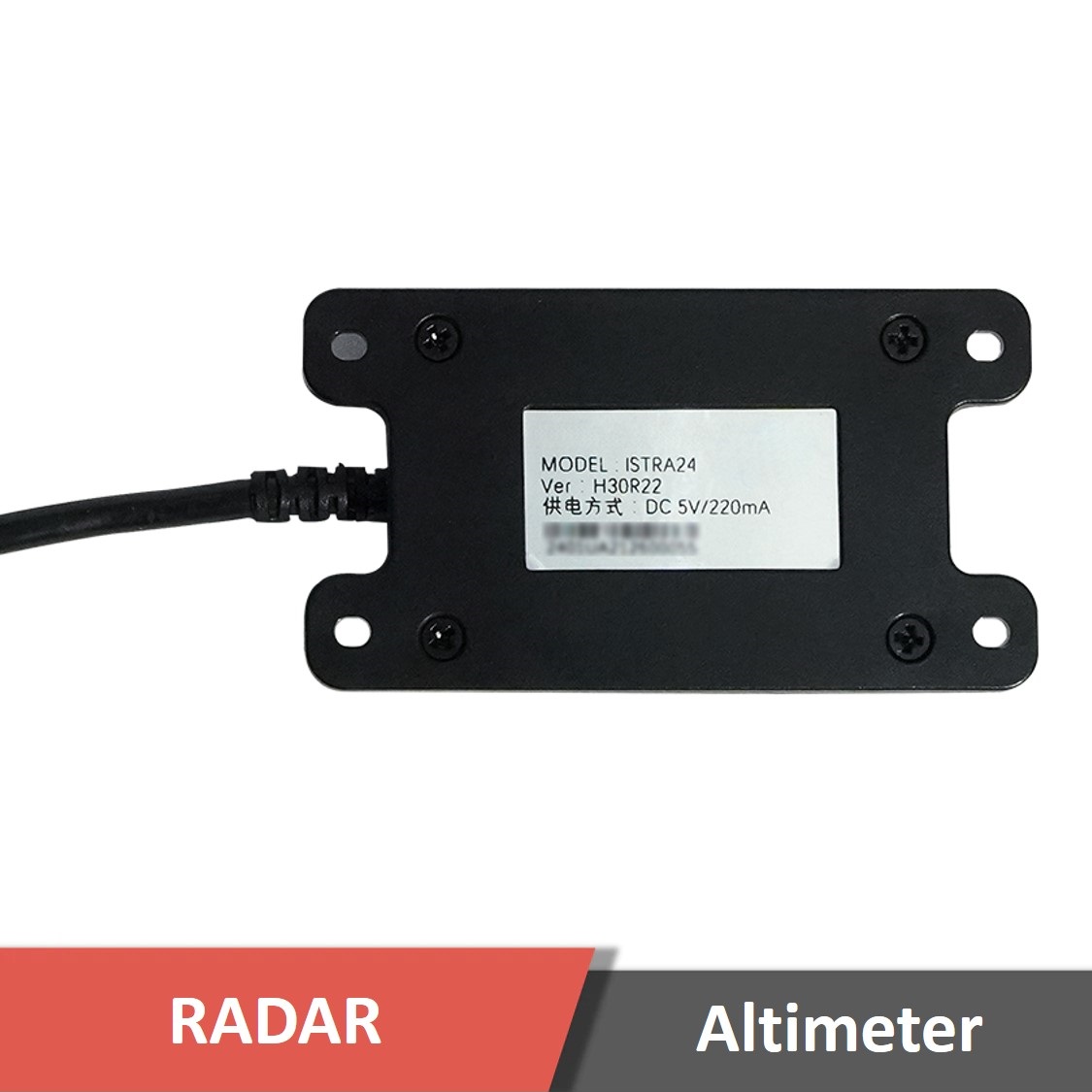

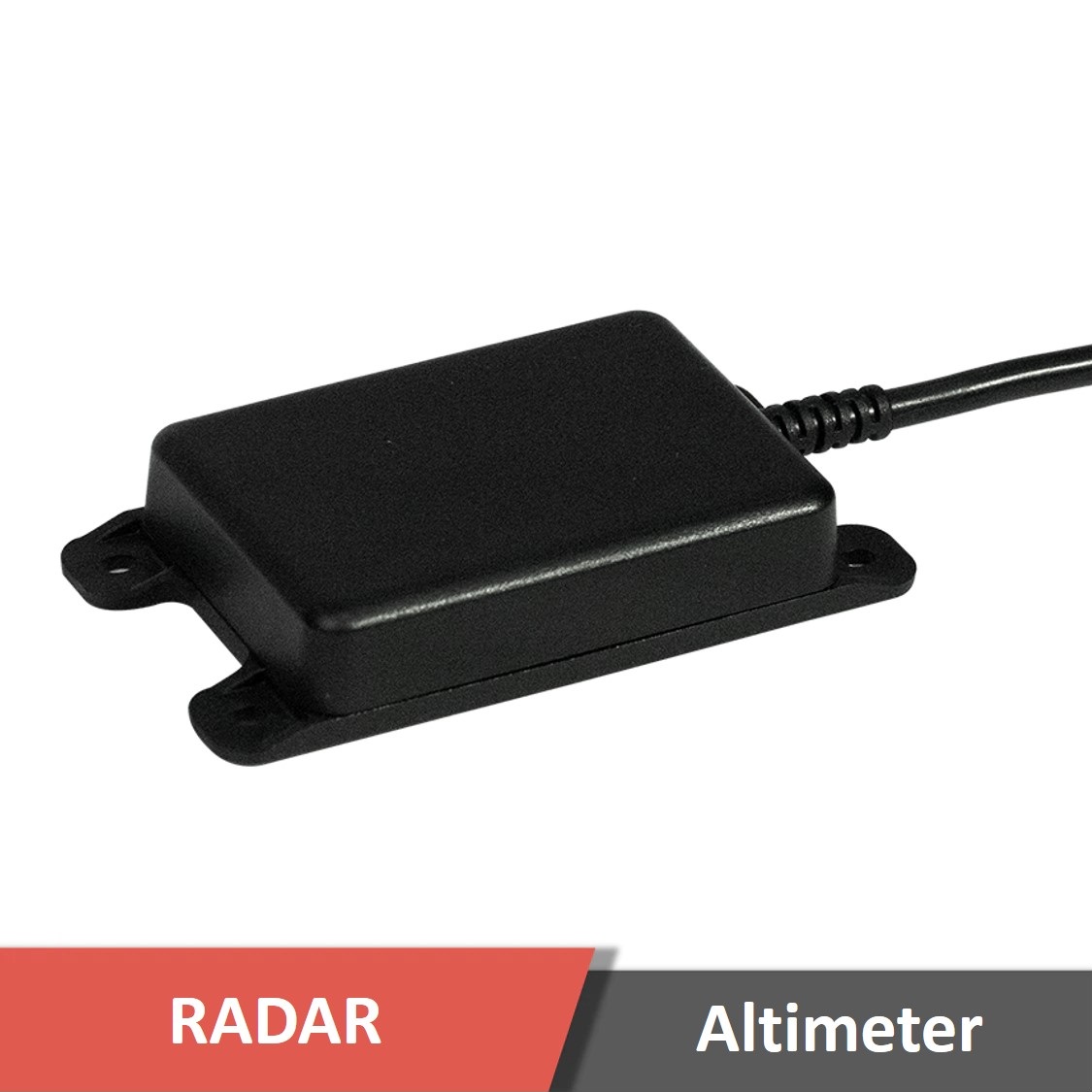

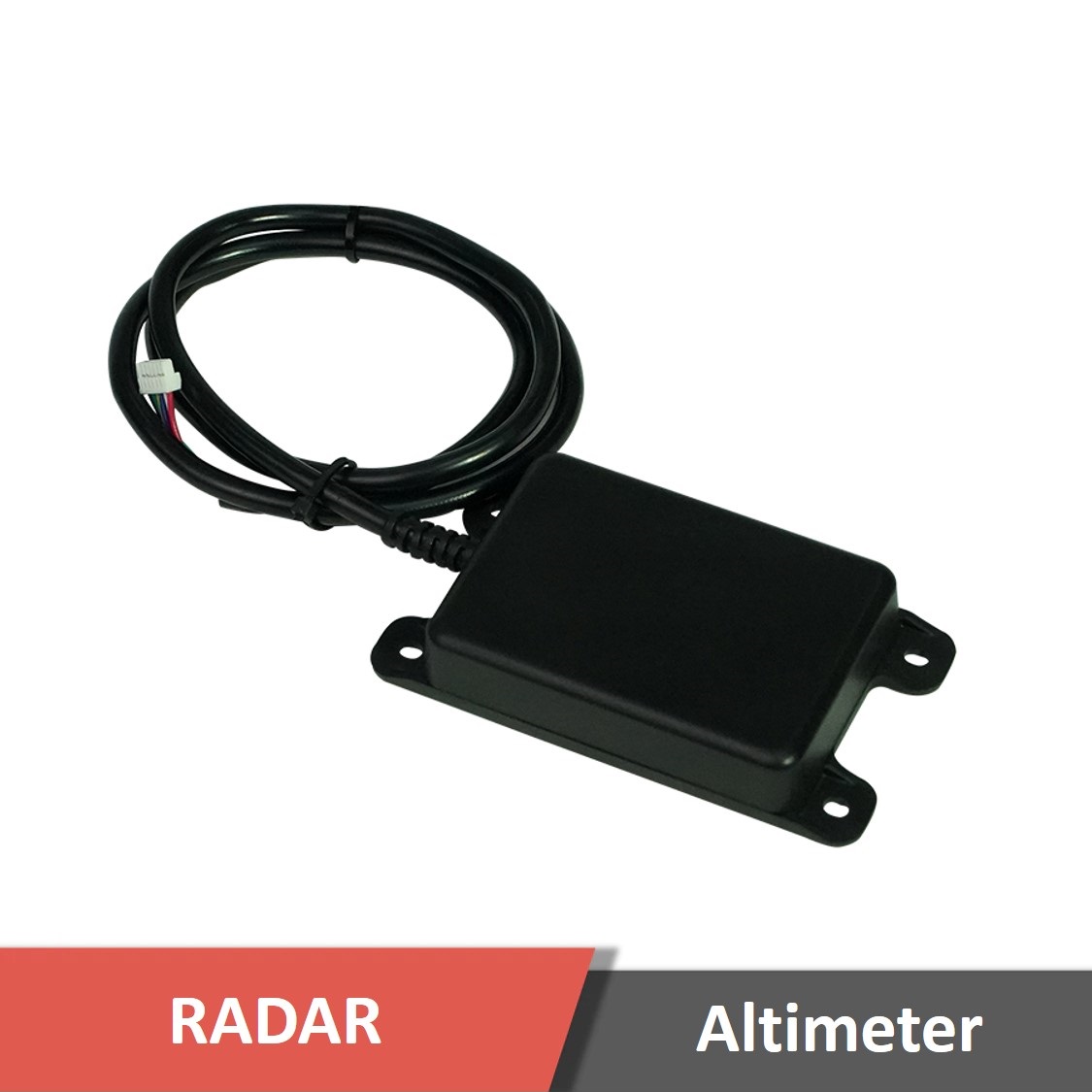

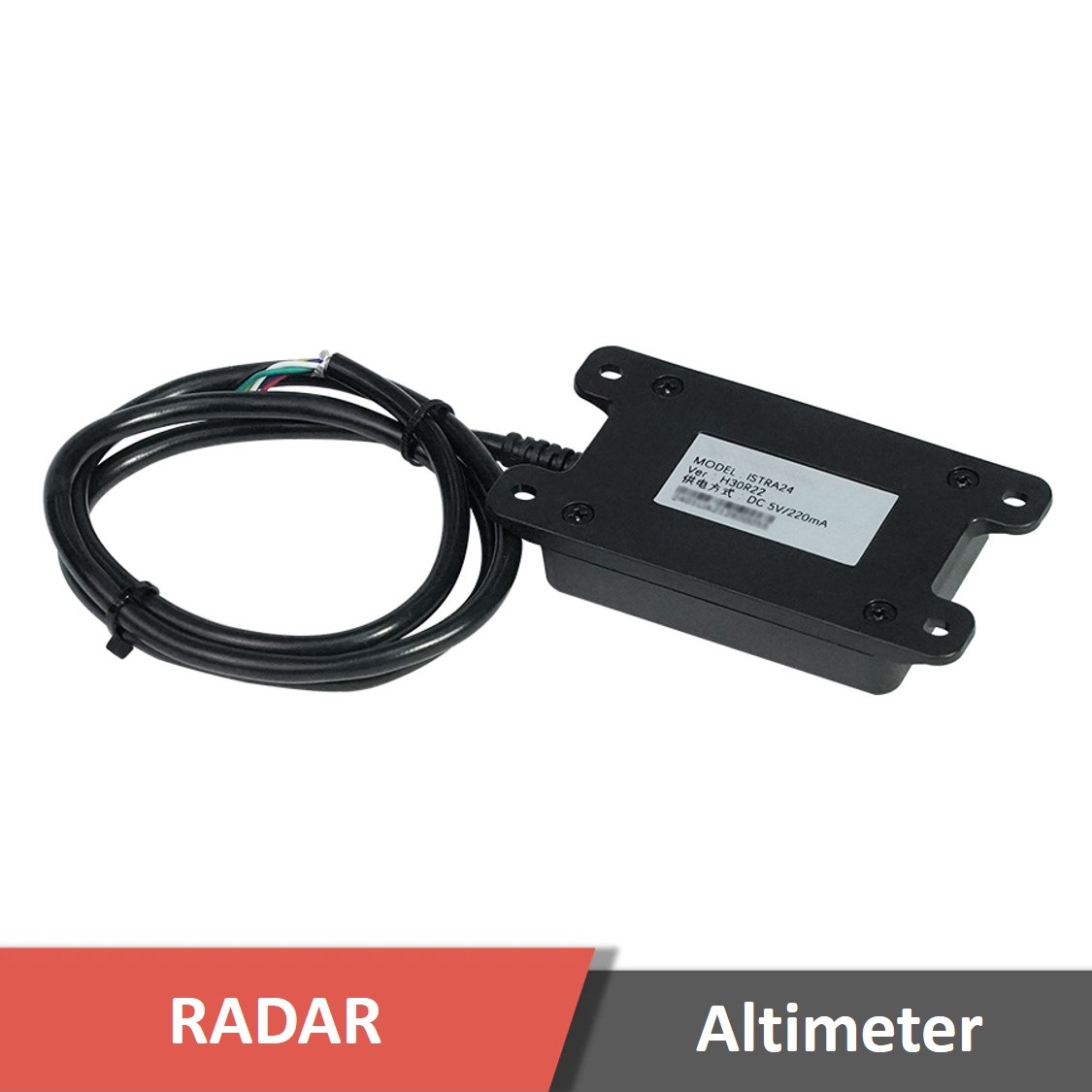

Flightcase Radar 24GHz Miniature UAV Drone Altimeter, ISTRA24 Radar
Flightcase radar (ISTRA24 radar) is a small (45x45mm in size) and lightweight (only 6g) radar sensor that can be conveniently installed on the frame of your drone, or under any vehicle that you need. This mm-wave altimeter is capable of detecting altitude in the range of 0.2m~50m, a convenient feature for hovering, or following a terrain at a specific altitude above the ground. This sensor becomes the main input of control in altitude flight mode, making the control of the vehicle much easier in both Auto Mission mode and Manual mode when a human pilot controls the drone. This module is compatible with most open-source Ground Control Station (GCS) software including MissionPlanner and QGroundControl.
ISTRA24 radar works in the range of 24GHz, and has a 20dBm transmitting power. The distance is measured with a Frequency Modulated Continuous Wave. With an update rate of 50Hz, you can connect ISTRA24 radar to your drone using a UART connection (voltage level is TTL).
If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.
Specifications
| System Features | |
| Transmitting Frequency | 24.0~24.25GHz |
| Transmitting Power (EIRP) | 20dBm |
| System | Frequency Modulated Continuous Wave |
| Hardware Interface | UART-TTL |
| Dimensions | 45x45x6mm (PCBA) |
| Weight | 6.5g |
| Working Voltage | 4~5.5V / Typical Value: 5v |
| Working Current | 200~275mA / Typical Value: 220mA @ 5V |
| Storage Temperature | -40~85ยฐC |
| Working Temperature | -40~85ยฐC |
| Altitude Fixing Range | 0.2m~50m |
| Update rate | 50Hz |
Documents
ISTRA24 Radar Usermanual.
Product contents
1x Flightcase 24GHz radar
