Overview of High-level V7 Pro Autopilot and Flight Control

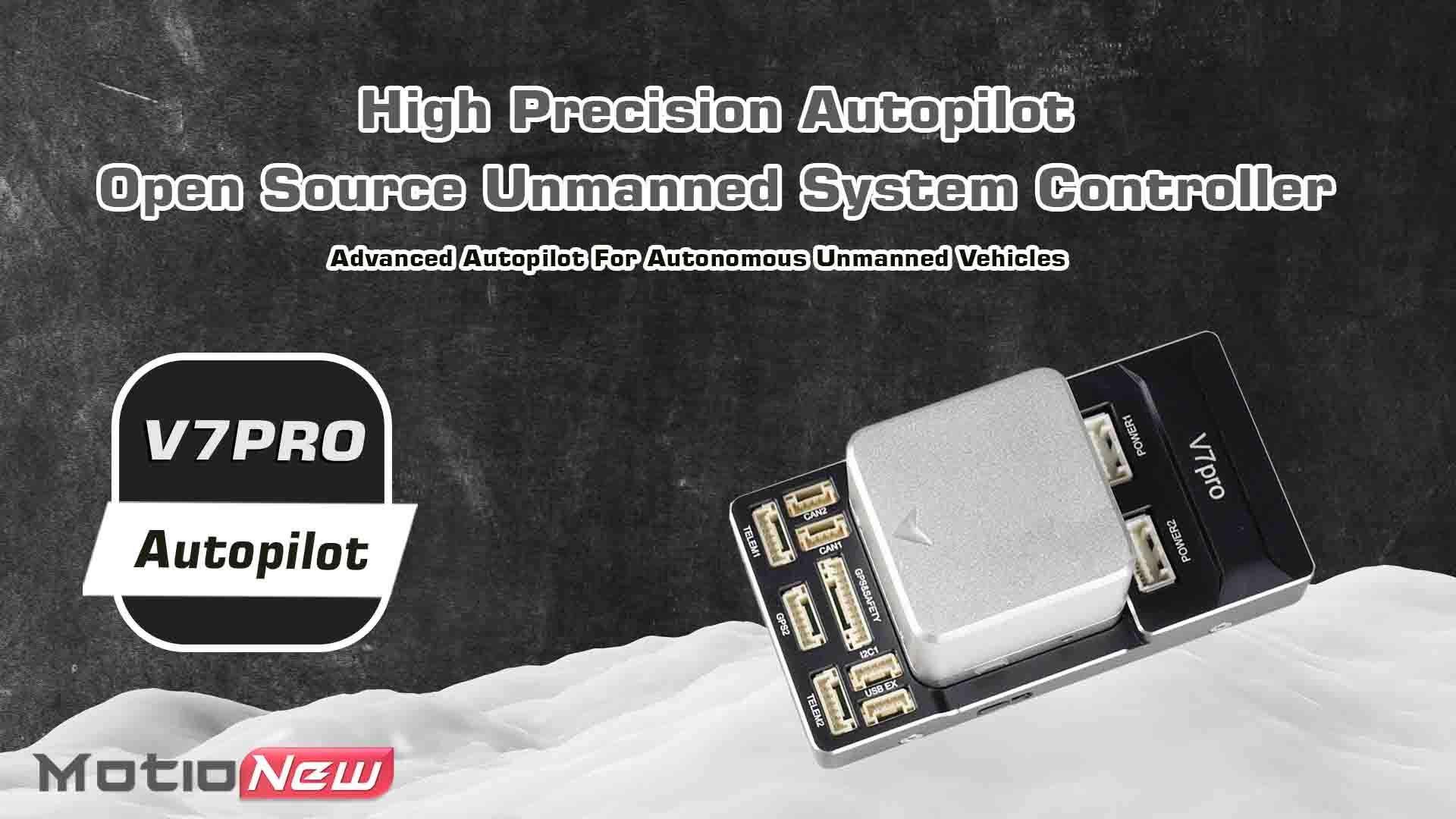

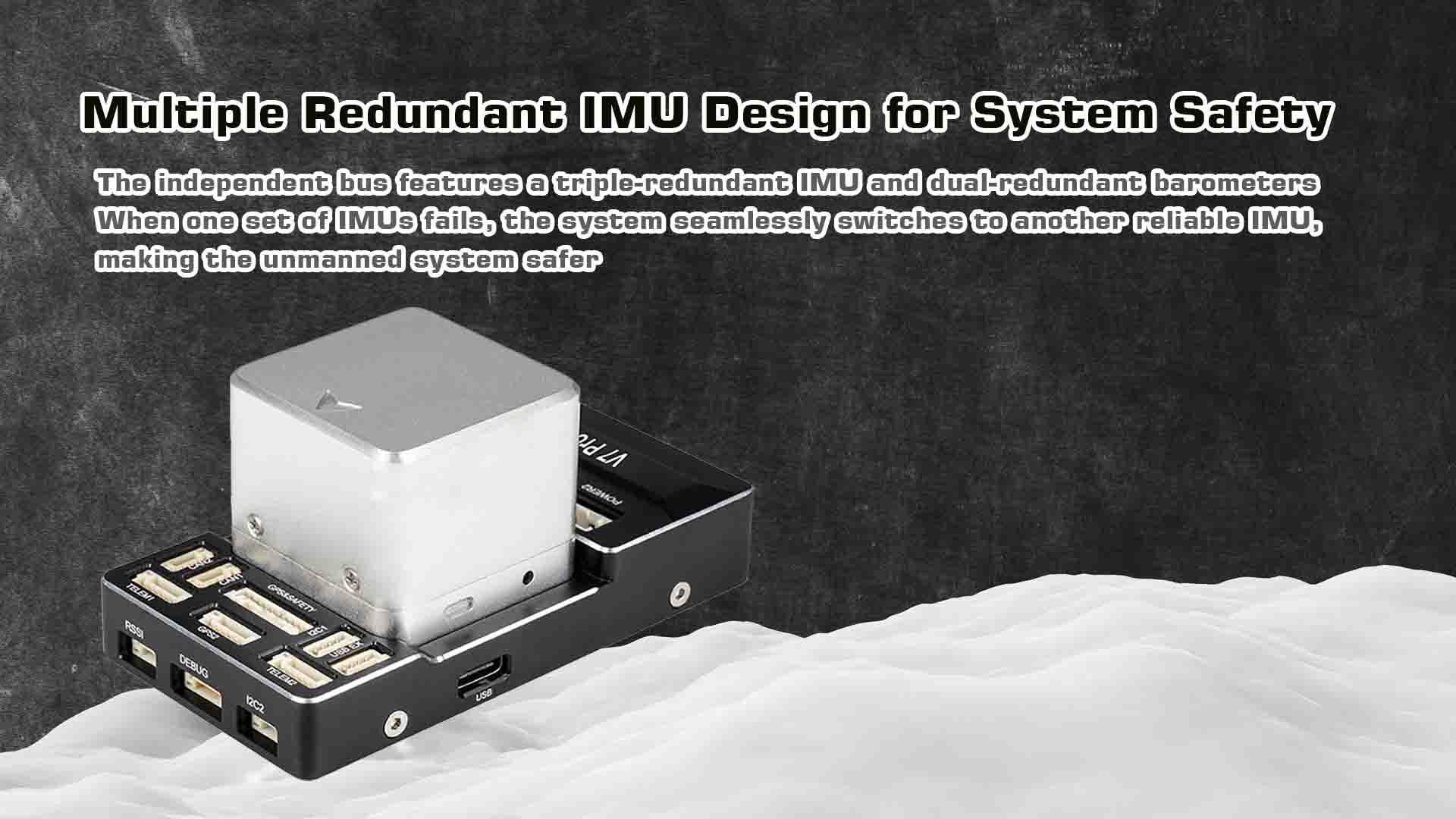

High-level V7 Pro is a cutting-edge, high-precision Mavlink-compatible open-source autopilot, engineered for superior navigation and control. Designed for professional applications, it features a triple-redundant IMU and dual-redundant barometers, delivering outstanding stability and reliability.

As a high-level flight controller for drones, the V7 Pro is powered by the STM32H743 processor with a Cortex-M7 core, integrating a high-precision intelligent temperature compensation system and an automotive-grade magnetometer to ensure exceptional accuracy in diverse operating conditions.

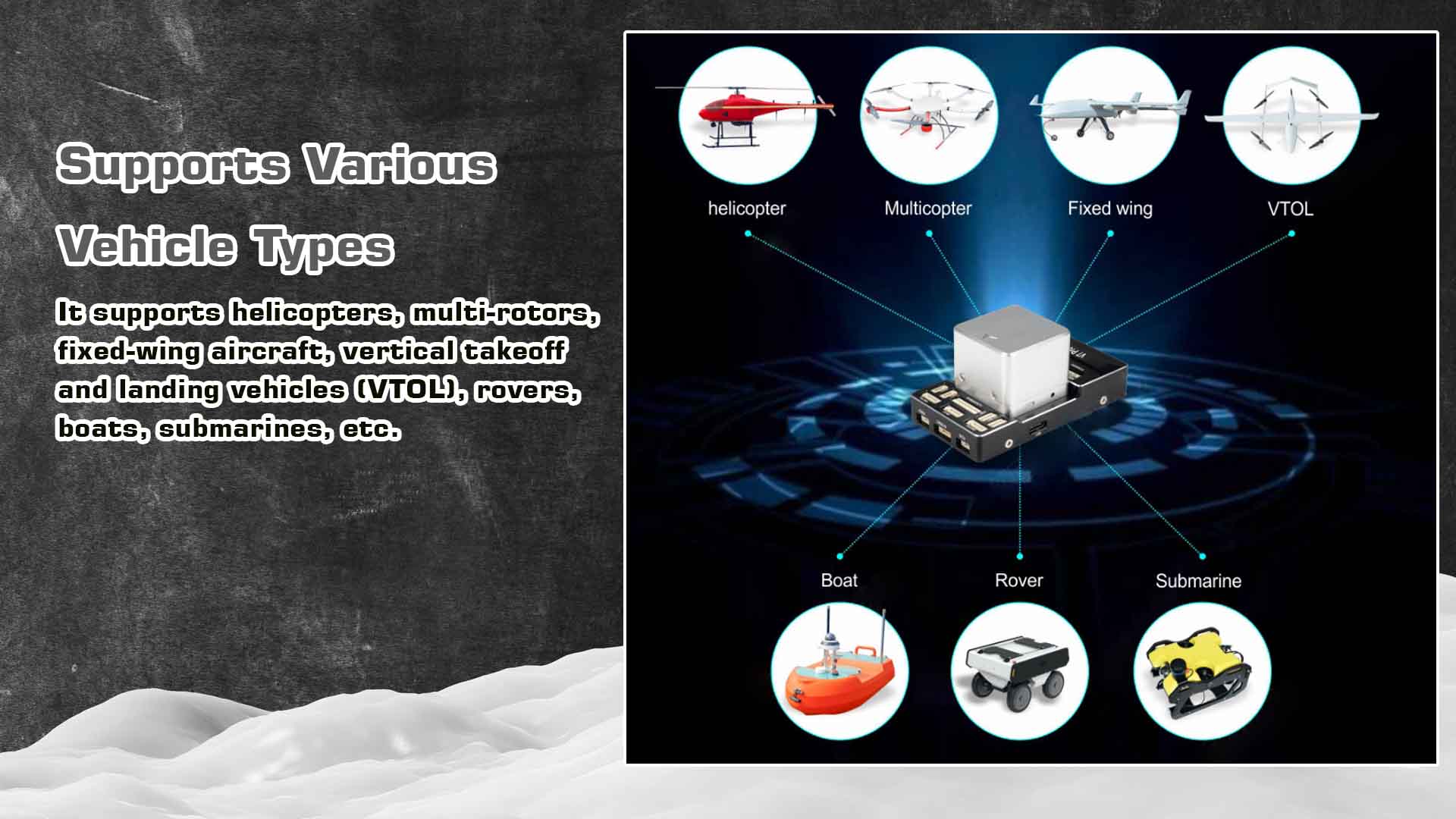

With a lightweight design of just 100g, the V7 Pro offers broad compatibility with rotary-wing, fixed-wing, VTOL, helicopters, vehicles, and boats. Supporting Ardupilot 4.5.7 beta and above, it provides seamless performance and adaptability, making it an ideal choice for demanding aerial and ground-based applications.

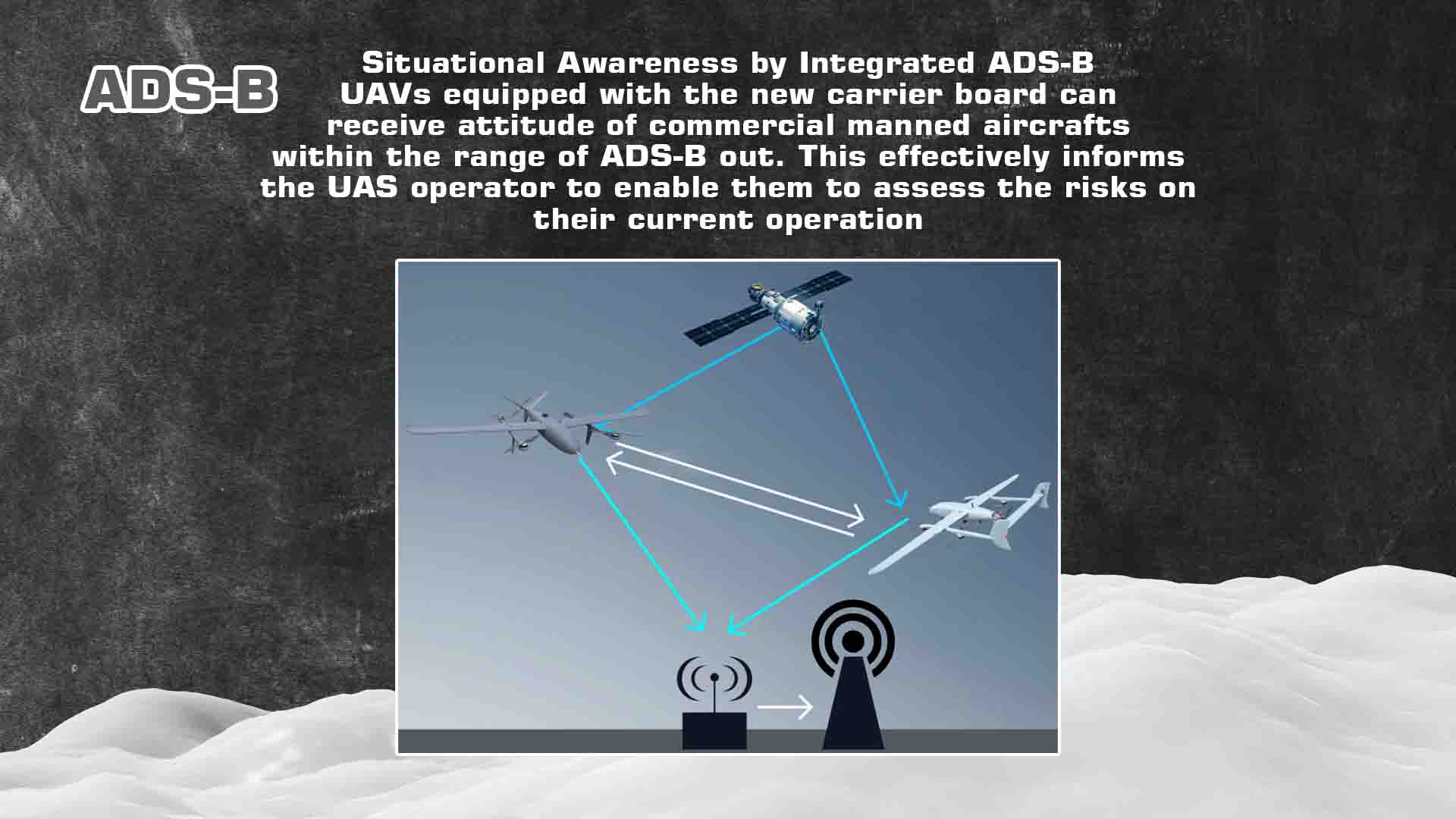

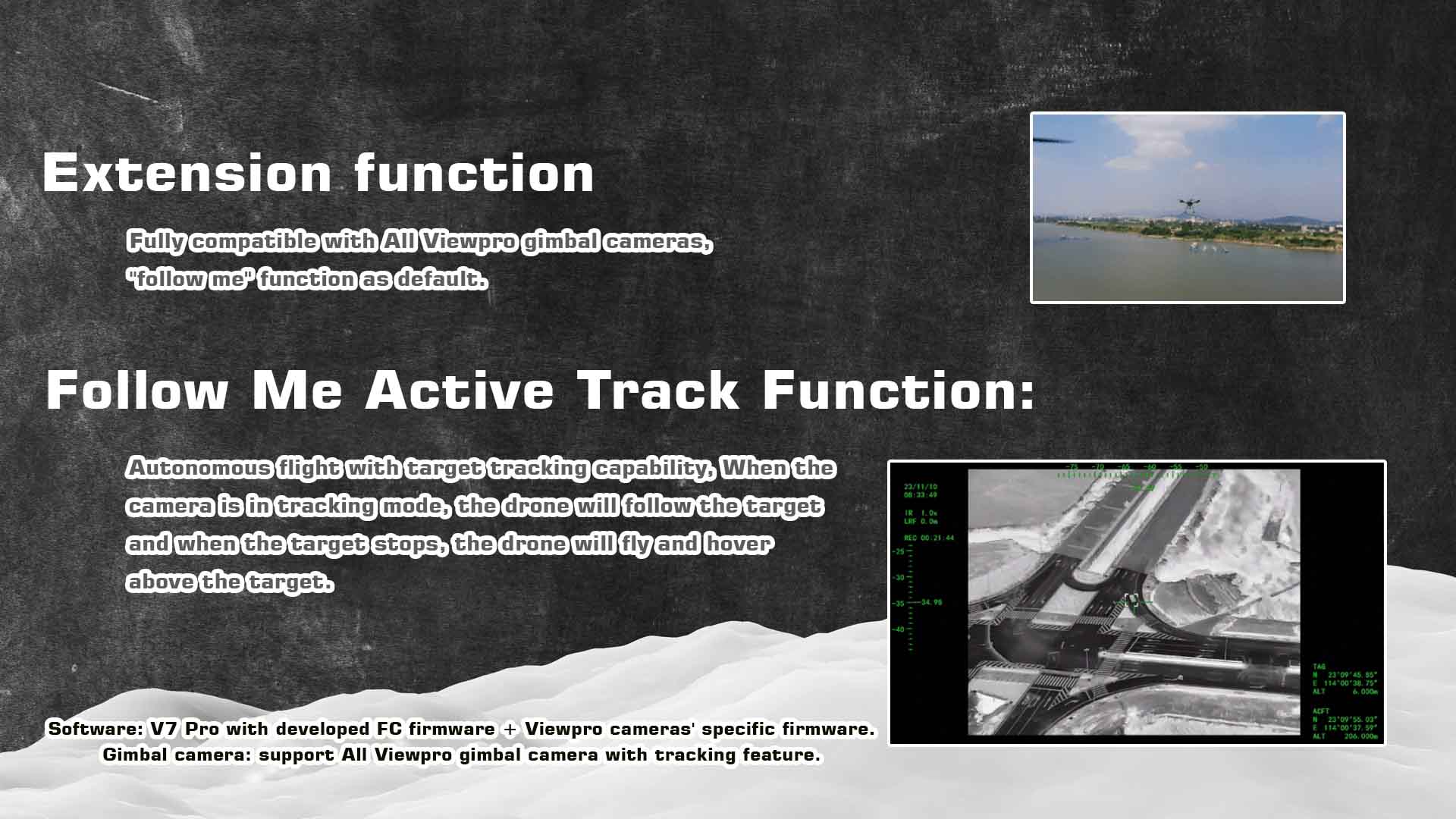

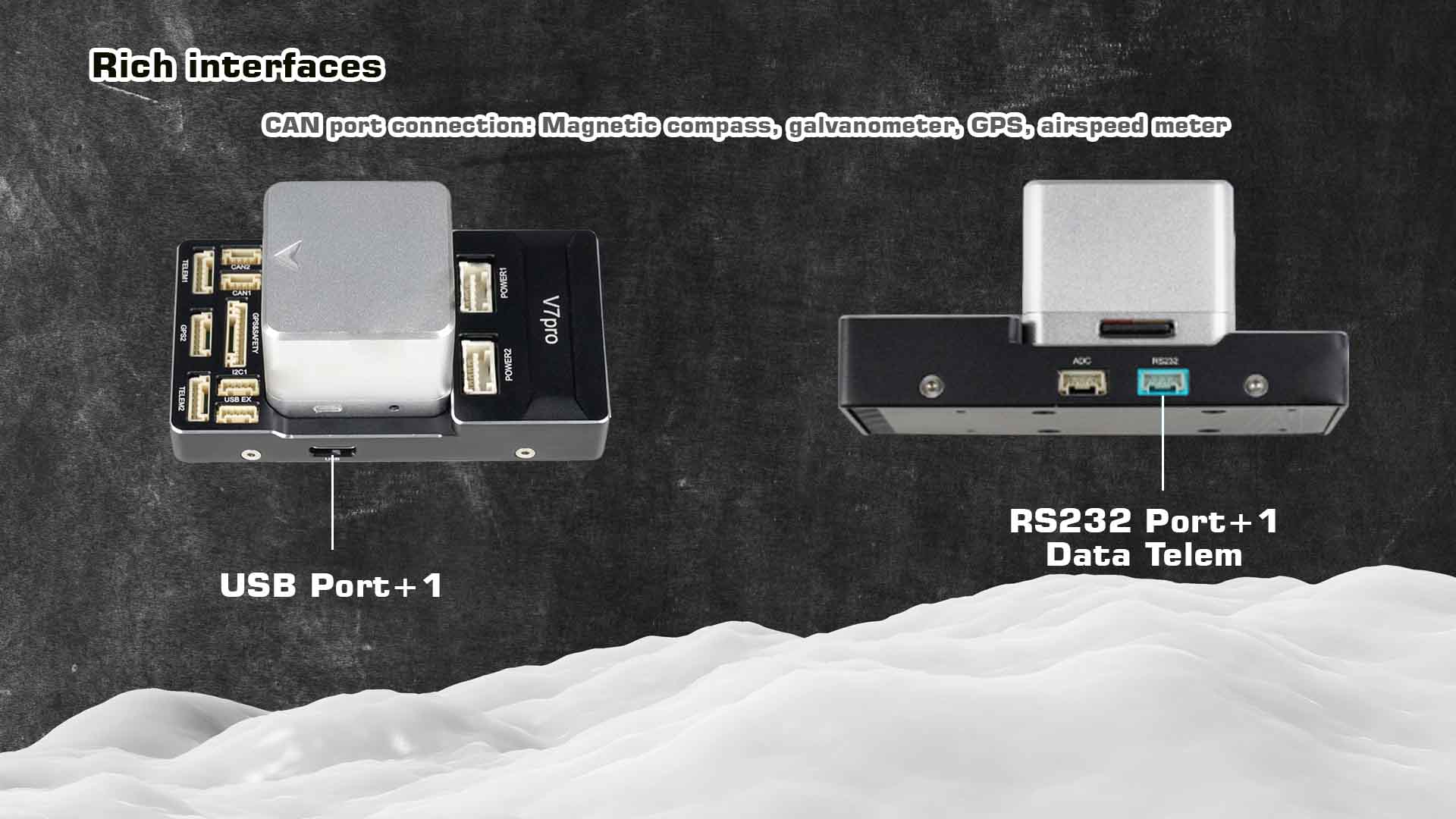

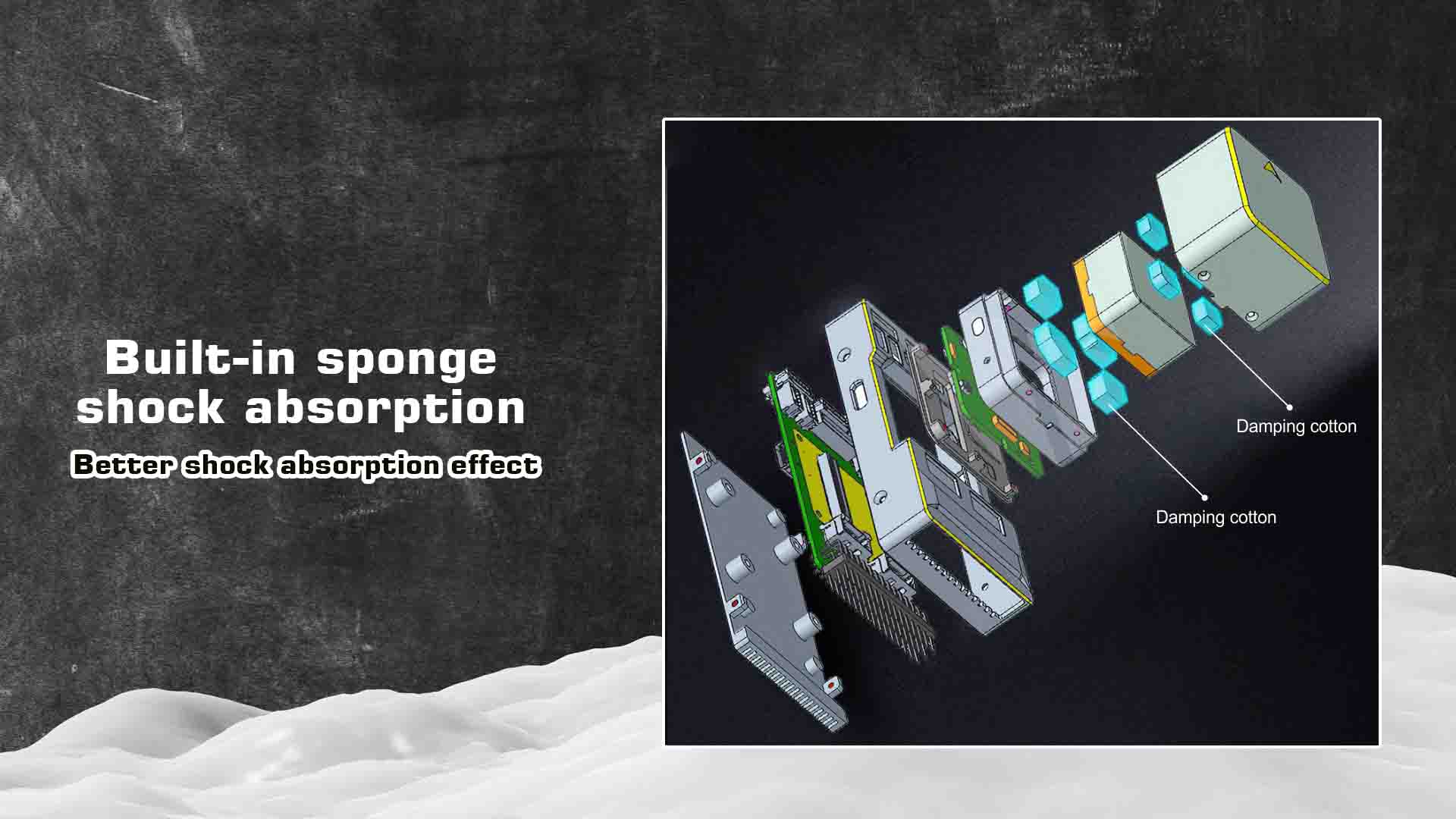

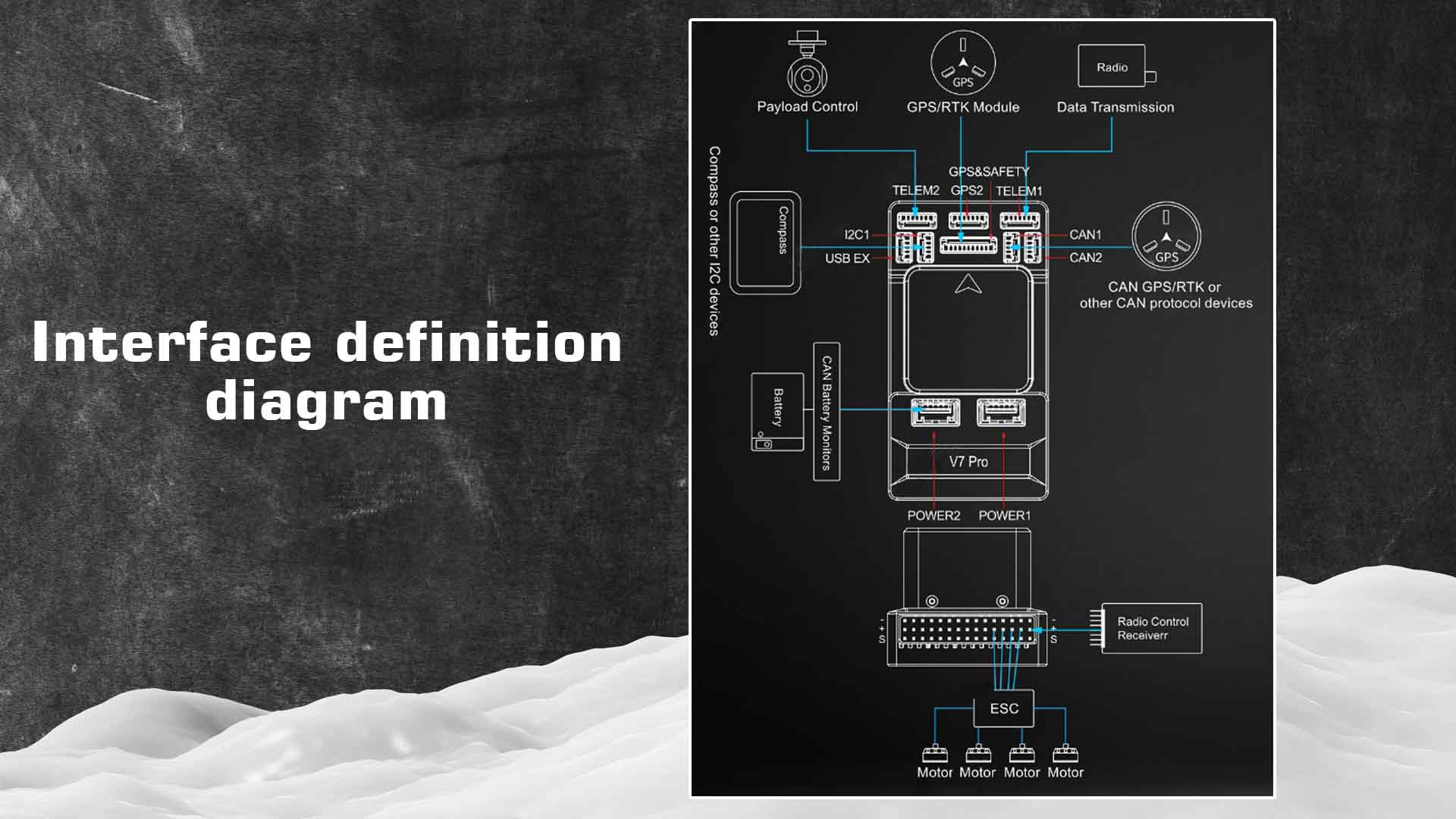

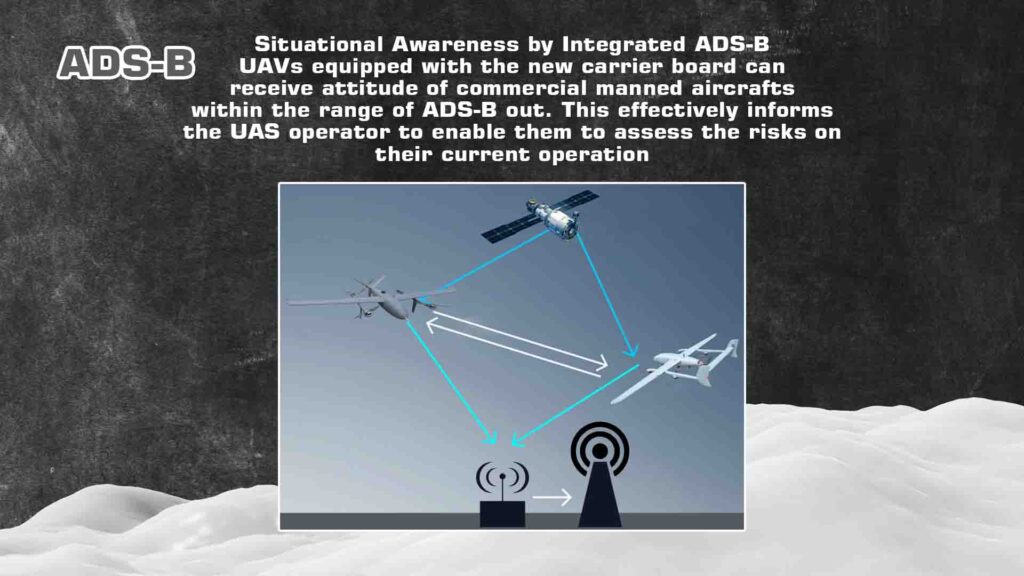

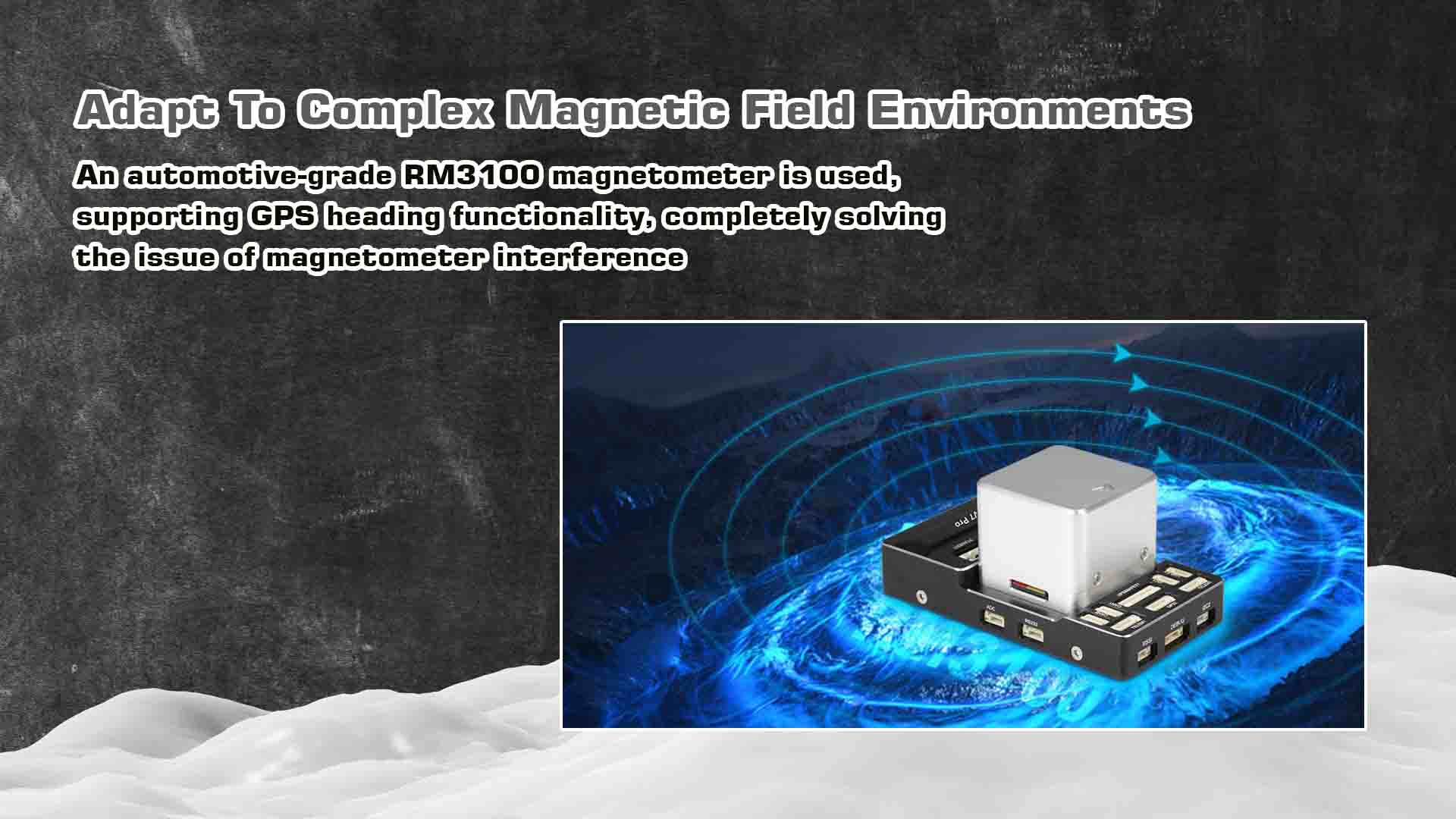

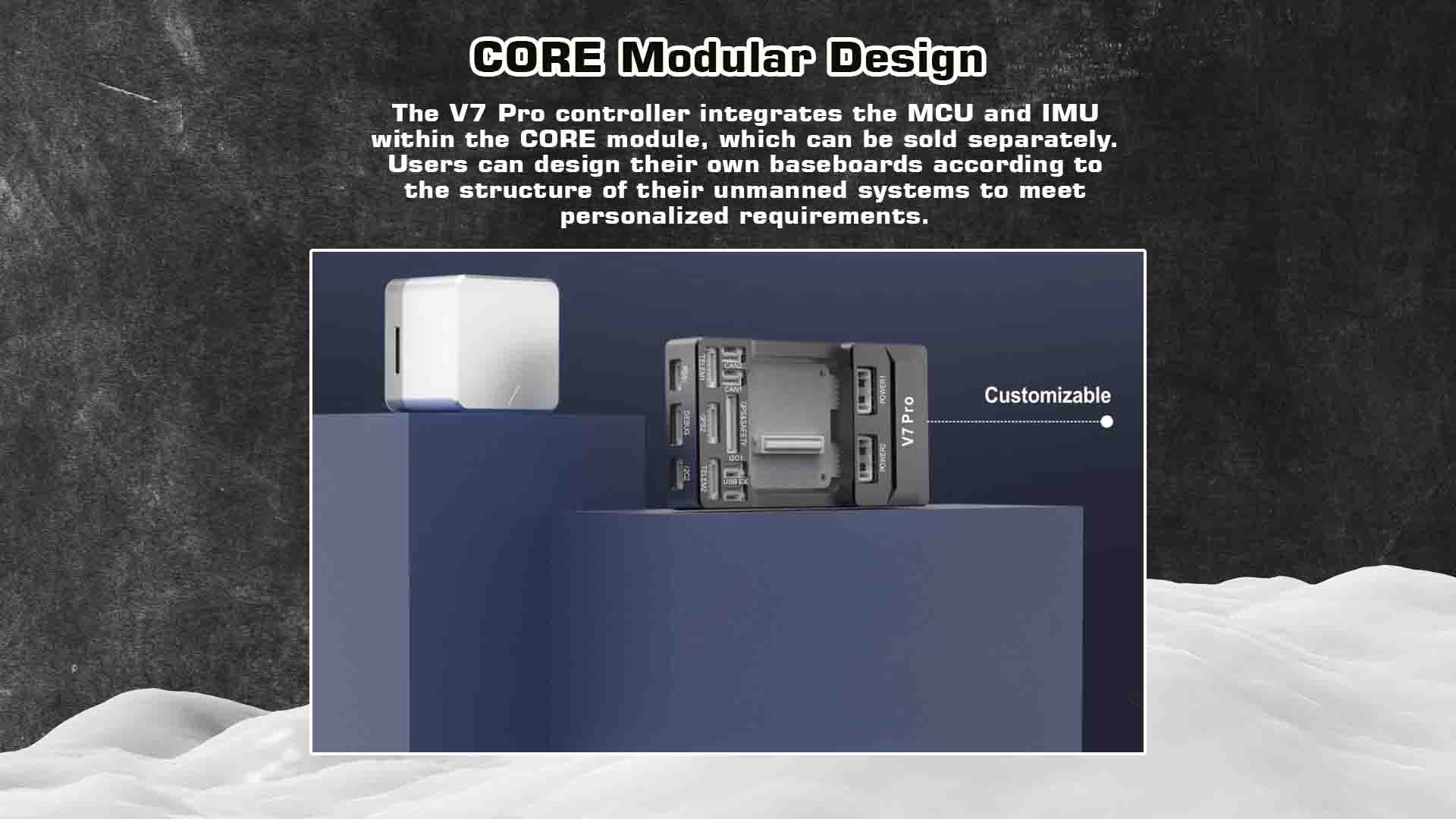

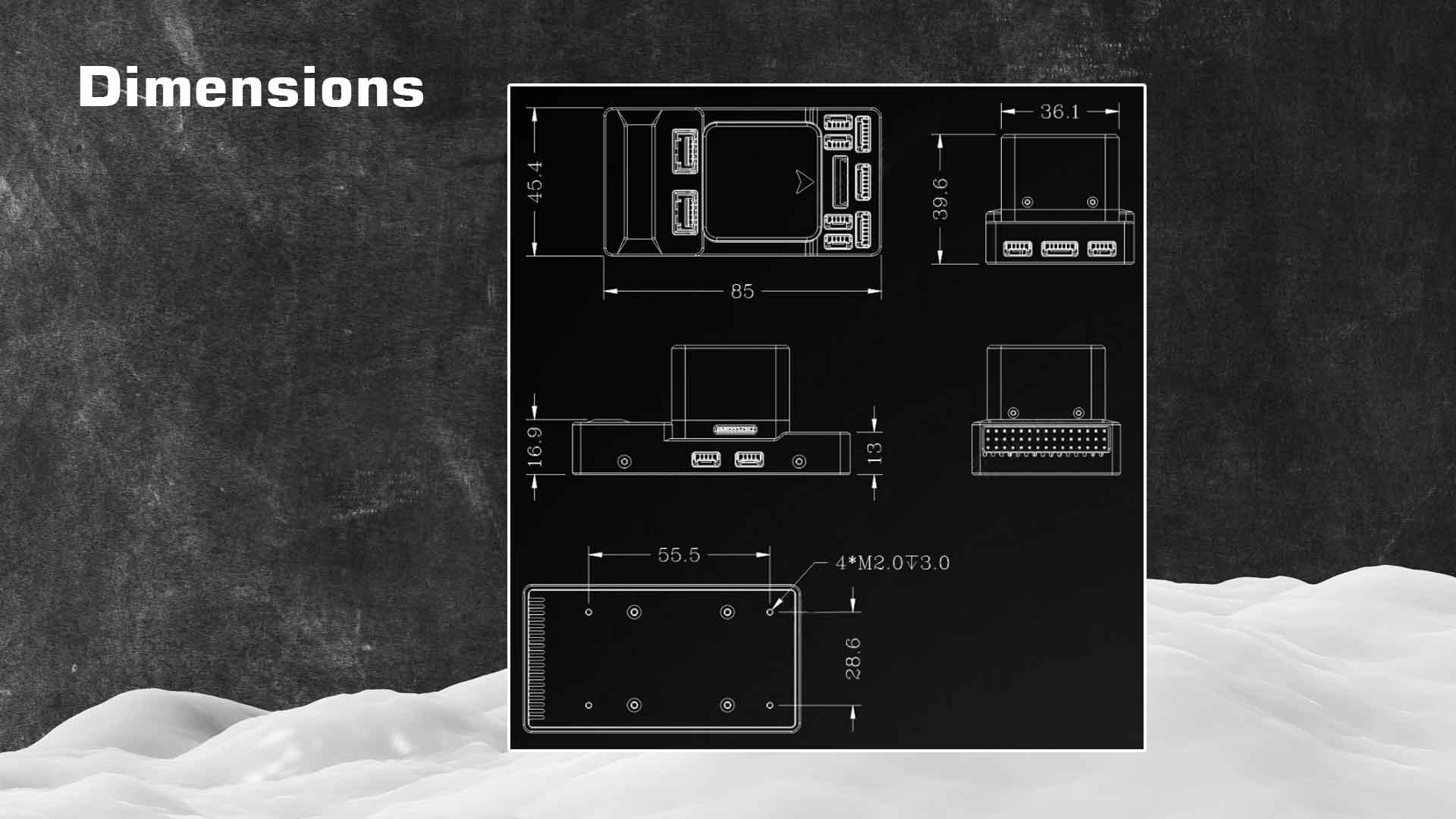

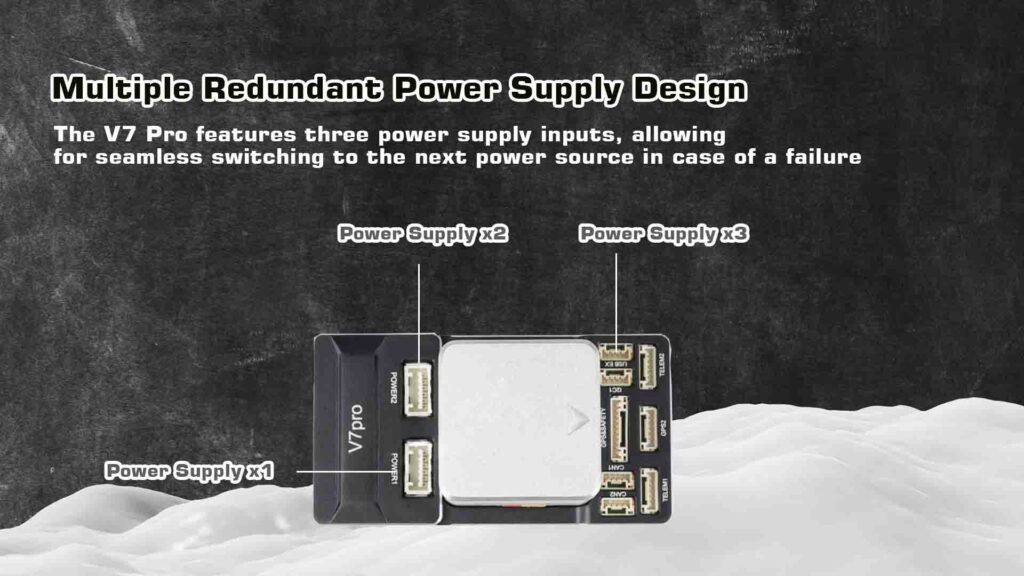

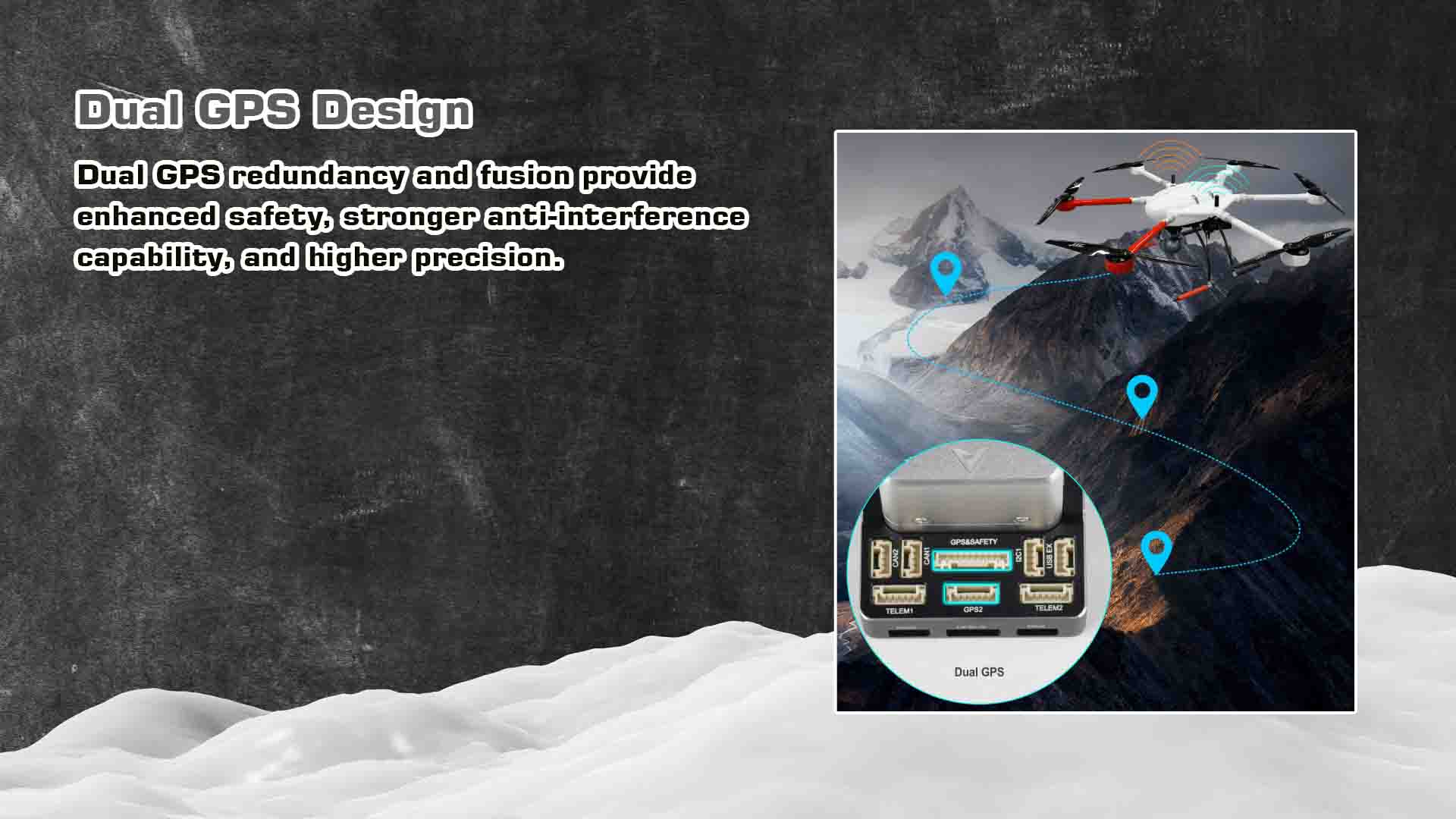

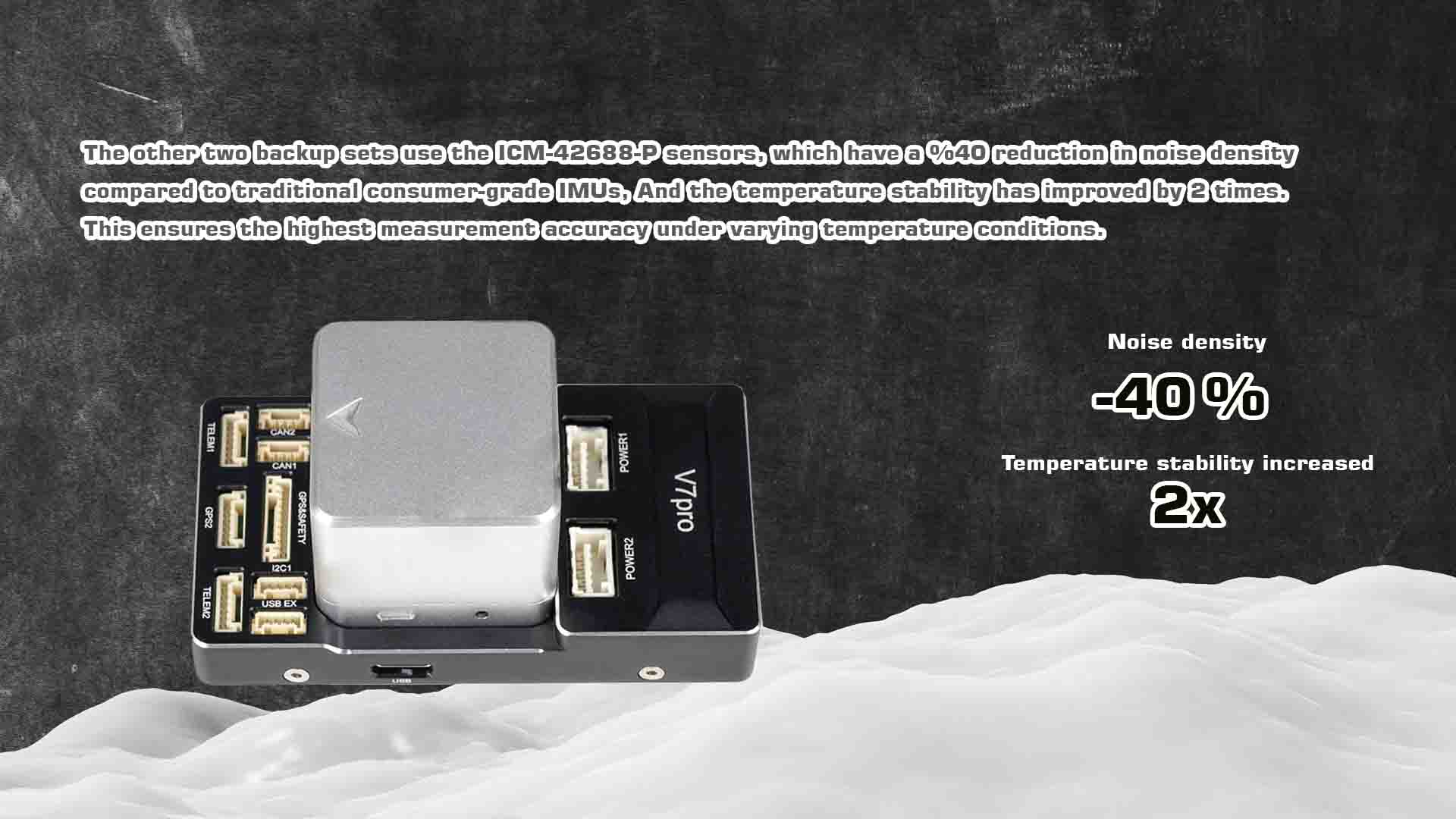

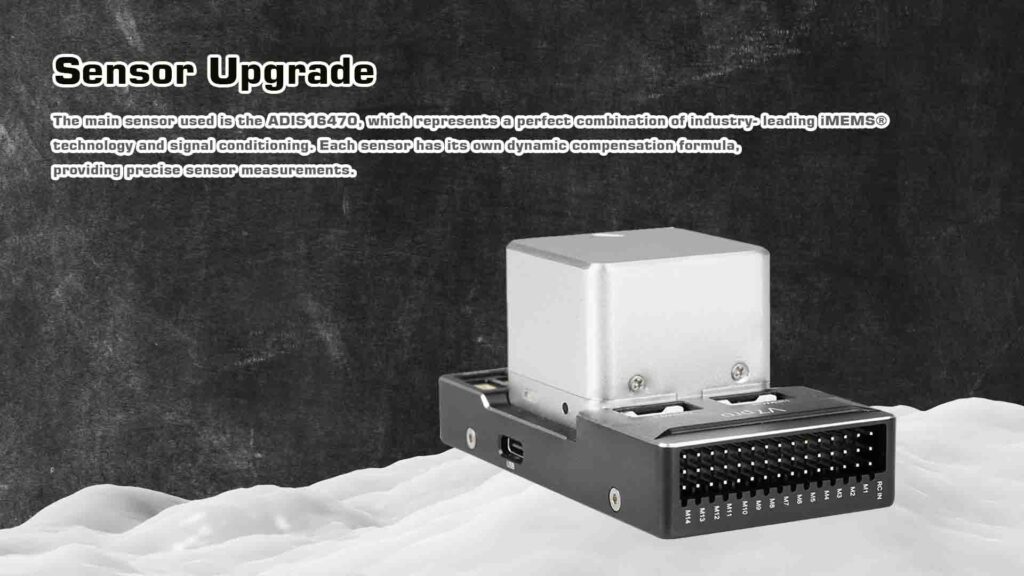

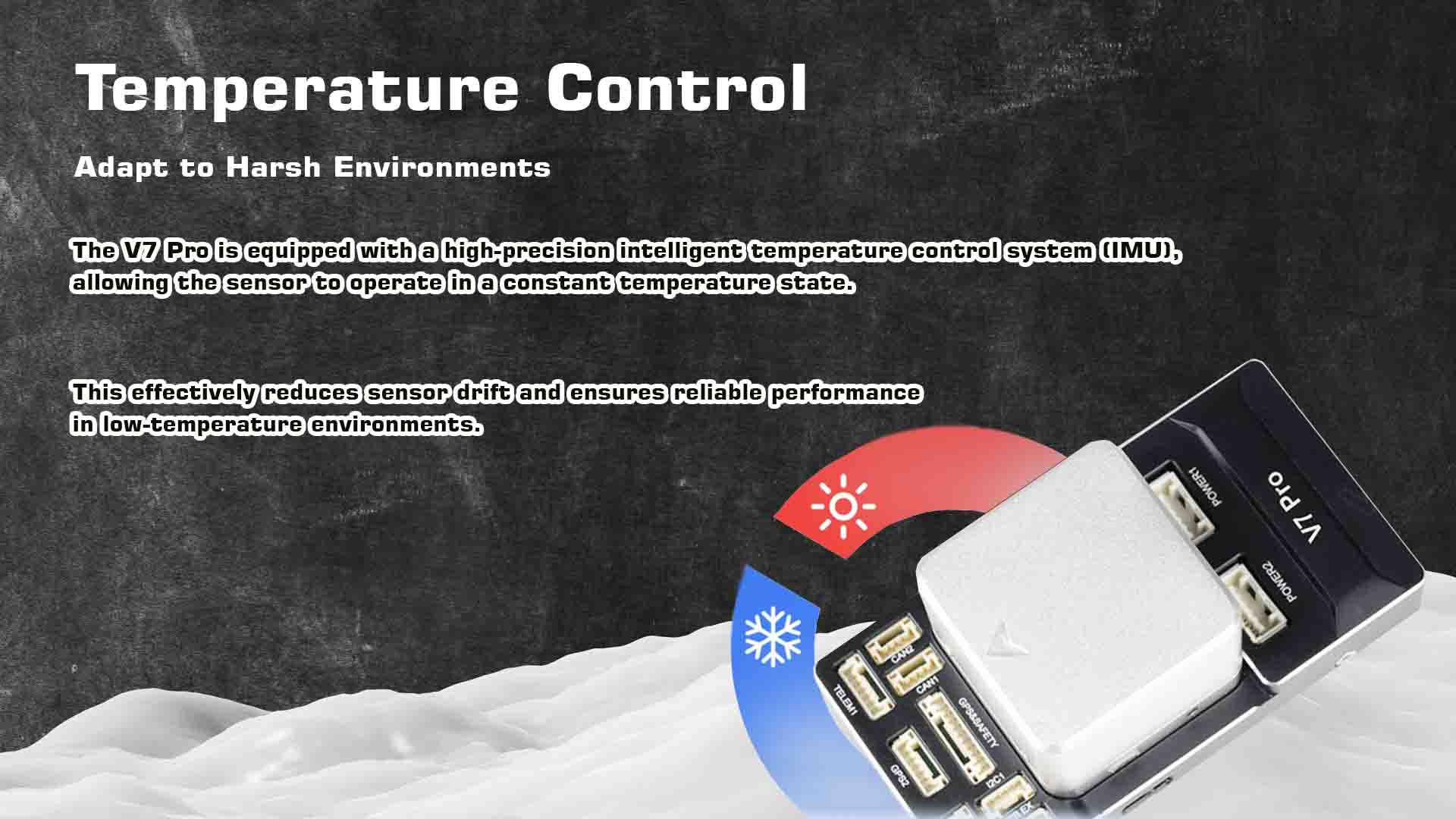

High-level v7 pro high precision autopilot open source unmanned system controller High-level v7 pro multiple redundant imu design for system safety Temperature control of high-level v7 pro Multiple redundant power supply design of high-level v7 pro High-level v7 pro dual gps design High-level v7 pro adapt to complex magnetic field environments High-level v7 pro sensor upgrade Noise density and temperature stability increased of high-level v7 pro H7 processor with powerful performance of high-level v7 pro High-level v7 pro core modular design High-level v7 pro built-in sponge shock absorption High-level v7 pro High-level v7 pro High-level v7 pro extension function High-level v7 pro ads-b High-level v7 pro supports various vehicle types High-level v7 pro dimensions Interface definition diagram of high-level v7 pro High-level v7 pro rich interfaces



If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Specifications

Processor
Processor STM32H743
Weight 100g

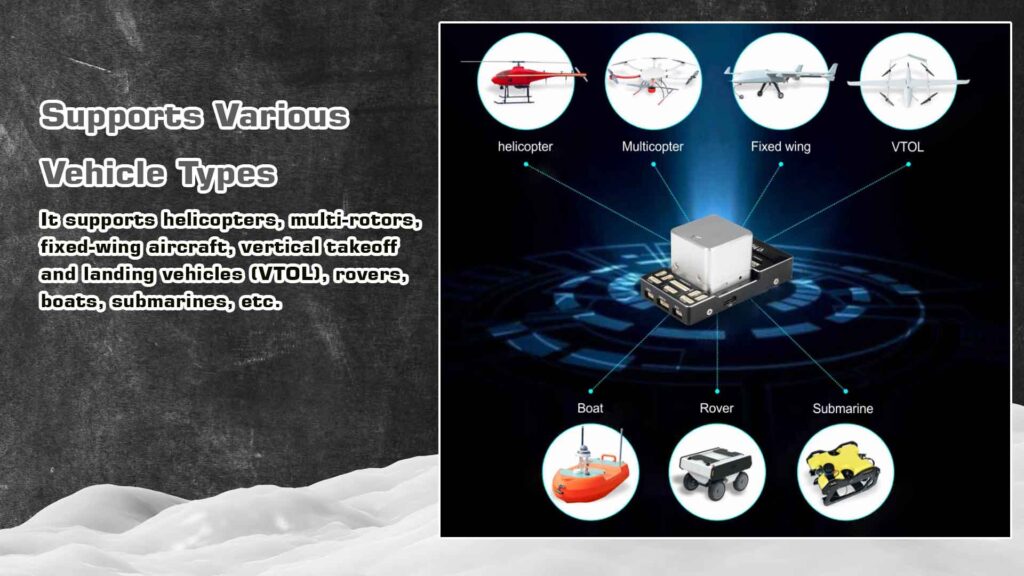

Compatibleย vehicleย models Rotary-wing, fixed-wing, VTOL, helicopter, vehicle, boat
Compatible Firmware Ardupilotย 4.5.7ย betaย and above

Sensor
Accelerometer ADIS16470 / ICM-42688-P / ICM-42688-P
Gyroscope ADIS16470 / ICM-42688-P / ICM-42688-P

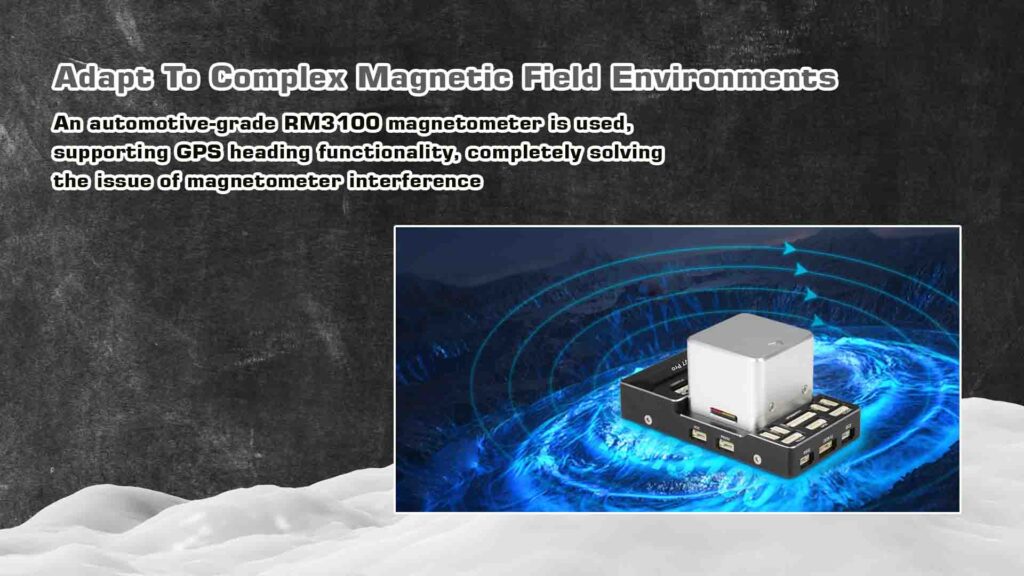

Electronic Compass RM3100
Barometer MS5611x2

Interfaces
UART Serial Port 6
12C 4
PWMย Output 14
RCIN 1 (support PPM/SBUS/DSM)
RSSI 1
SBUS Output 1
CAN 2

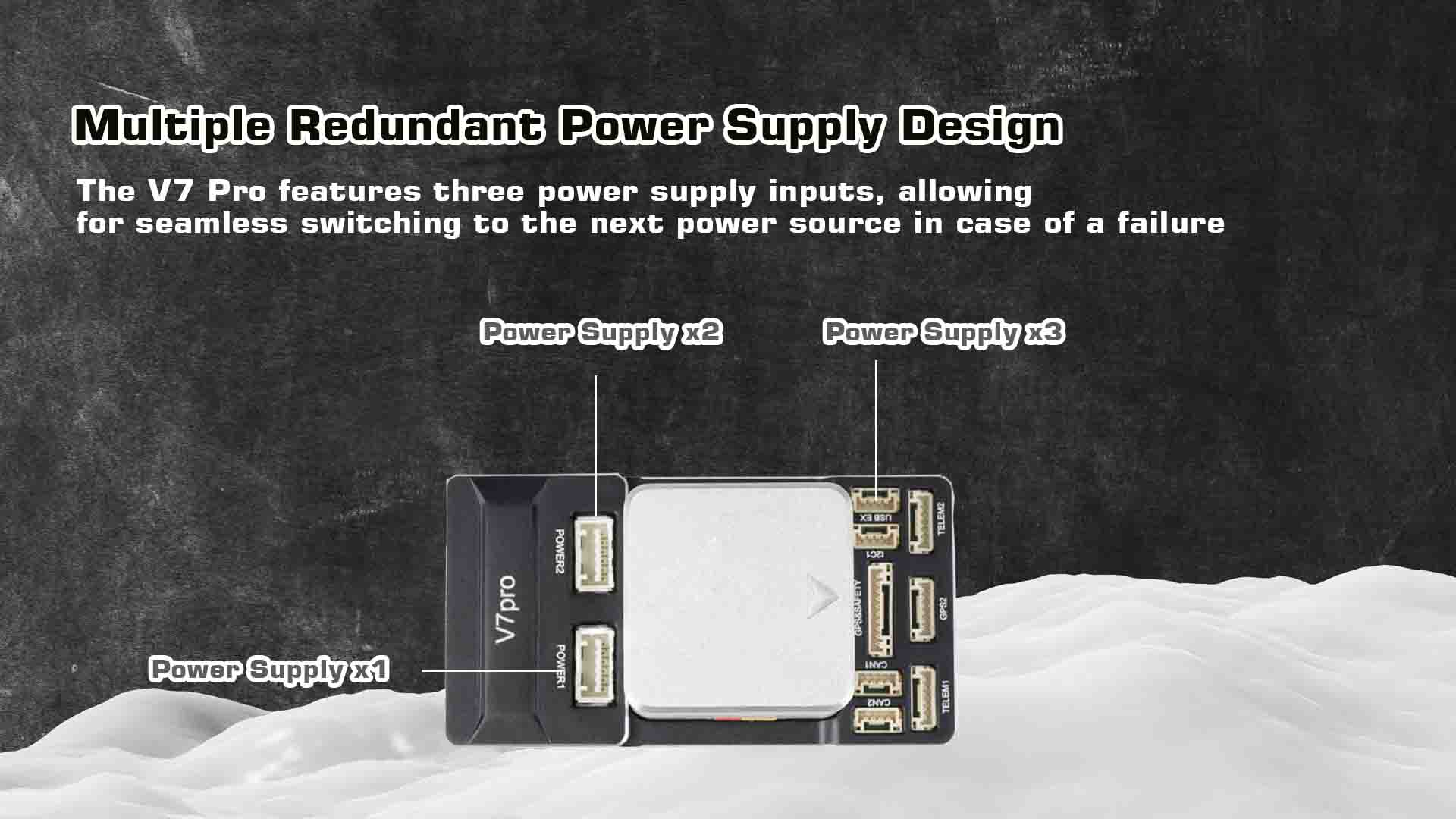

Power Input 2 (POWER 1 is common ADC power detection interface; POWER 2 is CAN power interface)
GPS Interface 2
ADC 2
RS232 1
DEBUG 1
JATG 1
USB Interface 1
USB Expansion Interface 1
SD Card Slot 1
