Holybro H-RTK NEO-F9P with Base Station Antenna

227.00 $

(1 customer review)
PayPal
Visa
Master

Description

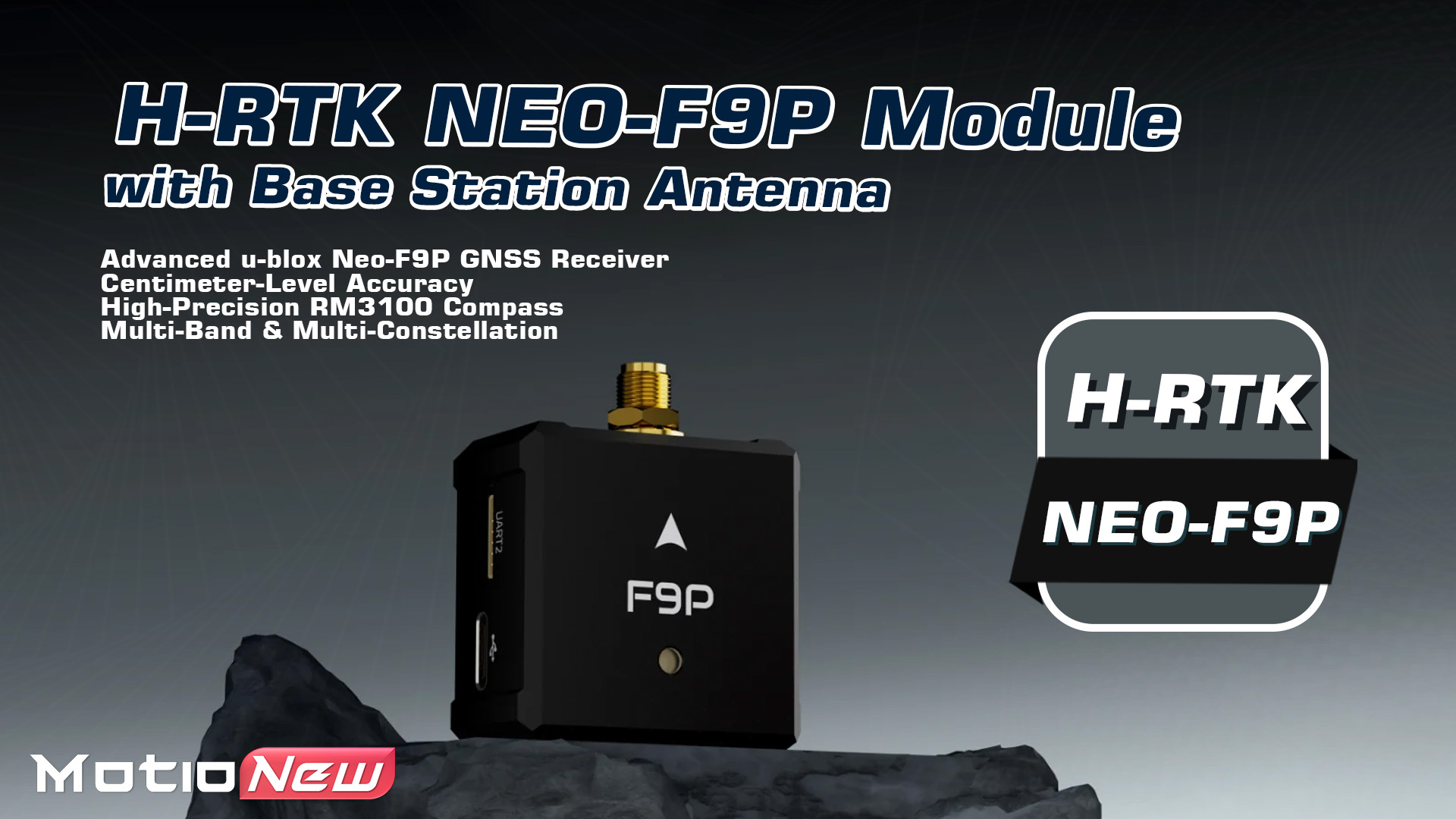

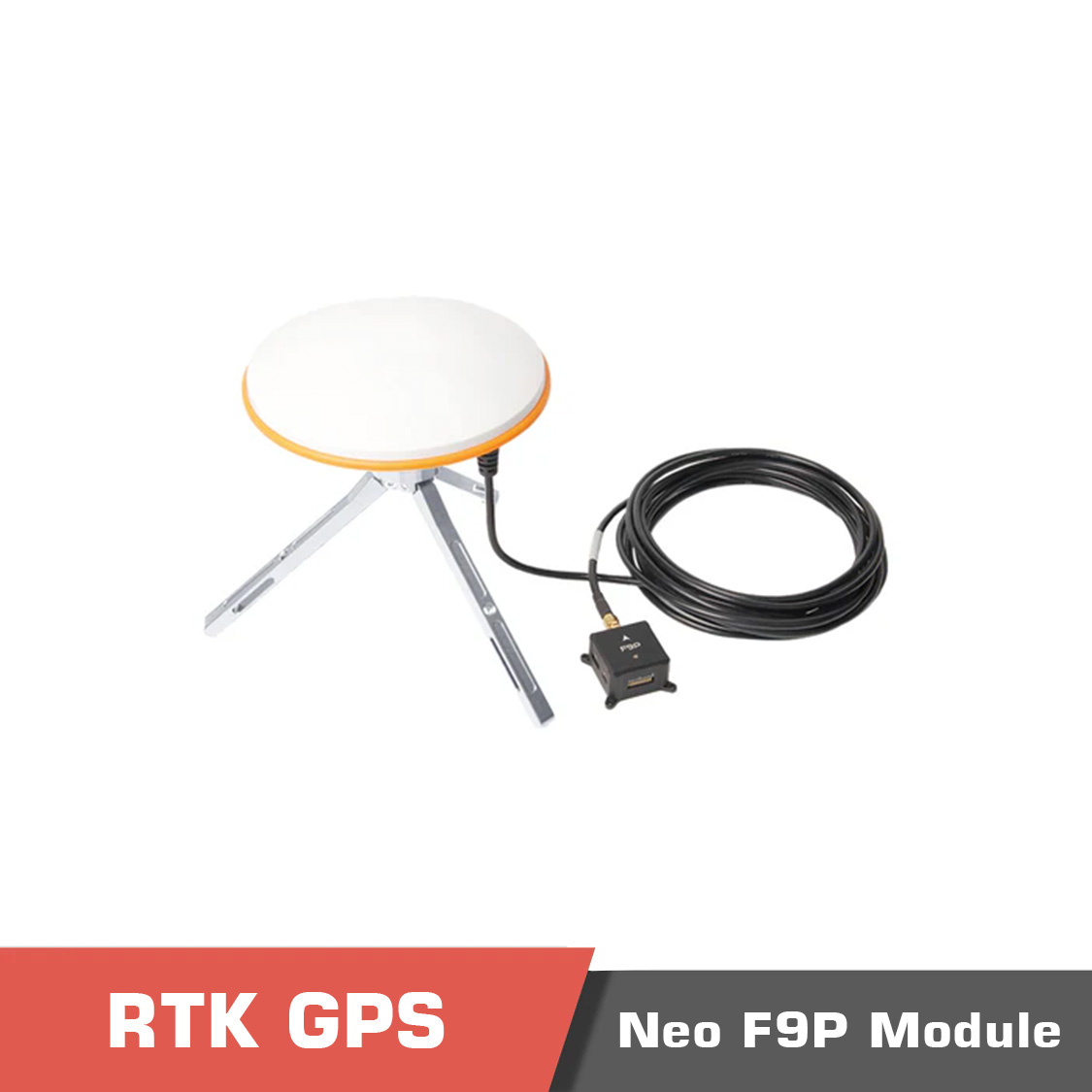

Holybro H-RTK NEO-F9P with Base Station Antenna Overview

The Holybro H-RTK NEO-F9P with Base Station Antennaย GPS features the cutting-edge u-blox NEO-F9P RTK GNSS receiver, a precision RM3100 compass, and a tri-color LED status indicator. Designed for high-accuracy applications, this system offers robust multi-band RTK functionality with fast convergence, stable performance, and fast update rates, making it perfect for dynamic and demanding environments where centimeter-level positioning is essential. A variety of antenna configurations are available to meet different operational requirements.

Multi-Constellation GNSS System with Versatile Connectivity for Advanced UAV Integration

Supporting simultaneous reception of GPS (L1 & L5), GLONASS, Galileo, BeiDou, and QZSS signals, this system provides versatile connectivity options through both UART and DroneCAN interfaces. The DroneCAN version is equipped with an MCU, IMU, and barometer, facilitating reliable communication and smooth integration for sophisticated UAV applications.

High-Precision PNI RM3200 Compass for Reliable UAV Orientation and Stability

The advanced PNI RM3100 compass offers precise orientation and enhanced stability with remarkable dependability, making it ideal for complex UAV tasks. It boasts high resolution, minimal power consumption, excellent noise resistance, an extensive dynamic range, and rapid sampling rates. Its measurements remain stable across varying temperatures and are naturally resistant to offset drift.

Features

  • Advanced GNSS Receiver:ย High precision u-blox NEO-F9P GNSS receiver with reliable and stable centimeter-level positioning
  • Integrated RM3100 Compass:ย Accurate and stable orientation data
  • Rapid RTK Convergence:ย Advanced multi-frequency DGNSS algorithms enable quick RTK Fix
  • High-Gain Antenna:ย Enhanced signal reception across GNSS frequencies
  • Advanced Filtering & Amplification:ย Hybrid Coupler, SAW filter, and LNA architecture deliver exceptional signal strength and effective interference rejection
  • Versatile Installation:ย Multiple antenna options offer flexibility for various situations
  • DroneCAN Option:ย Offers MCU, IMU, barometer, and robust communication for advanced UAV systems



Holybro h-rtk neo-f9p module with base station antennaU-blox neo-f9p gnss receiver H-rtk neo-f9p high-precision compass Internal structure of h-rtk neo-f9p H-rtk neo-f9p modular design Dual gps heading with moving baseline yaw H-rtk neo-f9p with vertical array patch antenna versatile applications Sample wiring diagram of h-rtk neo-f9p H-rtk neo-f9p weight and dimensions

If you have any questions regarding our products, use the Motionew Support teamย page to consult our engineering team.



Specifications

Specification & Comparison

Holybro H-RTK NEO-F9P with Base Station Antenna
Recommended Application โ€ข Rover Station (Marine, Land Vehicle, etc)
โ€ข Base Station
GNSS Receiver u-blox NEO-F9P
Processor N/A
IMU & Barometer N/A
Antenna High-Gain Ceramic Antenna
Antennas Peak Gain L1: 5.5dBi
L5: 4dBi
Antennas LNA Gain 40 ยฑ 2dB
Magnetometer High Precision PNI RM3100
GNSS BeiDou, Galileo, GLONASS, GPS / QZSS
GNSS Band B1I, B2I, E1B/C, E5b, L1C/A, L1OF, L2C, L2OF
Number of Concurrent GNSS 4
Dynamic Heading Accuracy 0.3 degrees
Horizontal Positioning Accuracy PVT: 1.5 m CEP
SBAS: 1.0 m CEP
RTK: 0.01 m +1 ppm CEP
Vertical Positioning Accuracy PVT: 2.0 m R50
SBAS: 1.5 m R50
RTK: 0.01 m +1 ppm R51
Communication Protocol UART or DroneCAN 1 Mbit/s
GNSS Protocol NMEA
UBX binary
RTCM 3.3
SPARTN 2.0.1
Time-To-First Fix Hot Start: 3 s
Aided Starts: 4 s
Cold Starts: 27 s
Navigation Update Rate GPS+GLO+GAL+BDS:
RTK: 7 Hz Max
PVT: 7 Hz Max
RAW: 10 Hz
Anti-Spoofing Advanced anti-spoofing algorithms
Operational Limits Dynamics: โ‰ค 4 g
Altitude: 80,000 m
Velocity: 500 m/s
Antenna Connection Type Board: SMA female
Antenna: SMA male
Working Voltage 4.75 V ~ 5.25 V
Operating Temperature -25โ„ƒ to 85โ„ƒ
Current Consumption ~250 mA
Antenna Cable Length

(Contact us for customization)

 500 cm
Dimensions Module: 43.1ร—44.1ร—22 mm
Antenna Diameter: 152 mm
Antenna Height: 62.2 mm

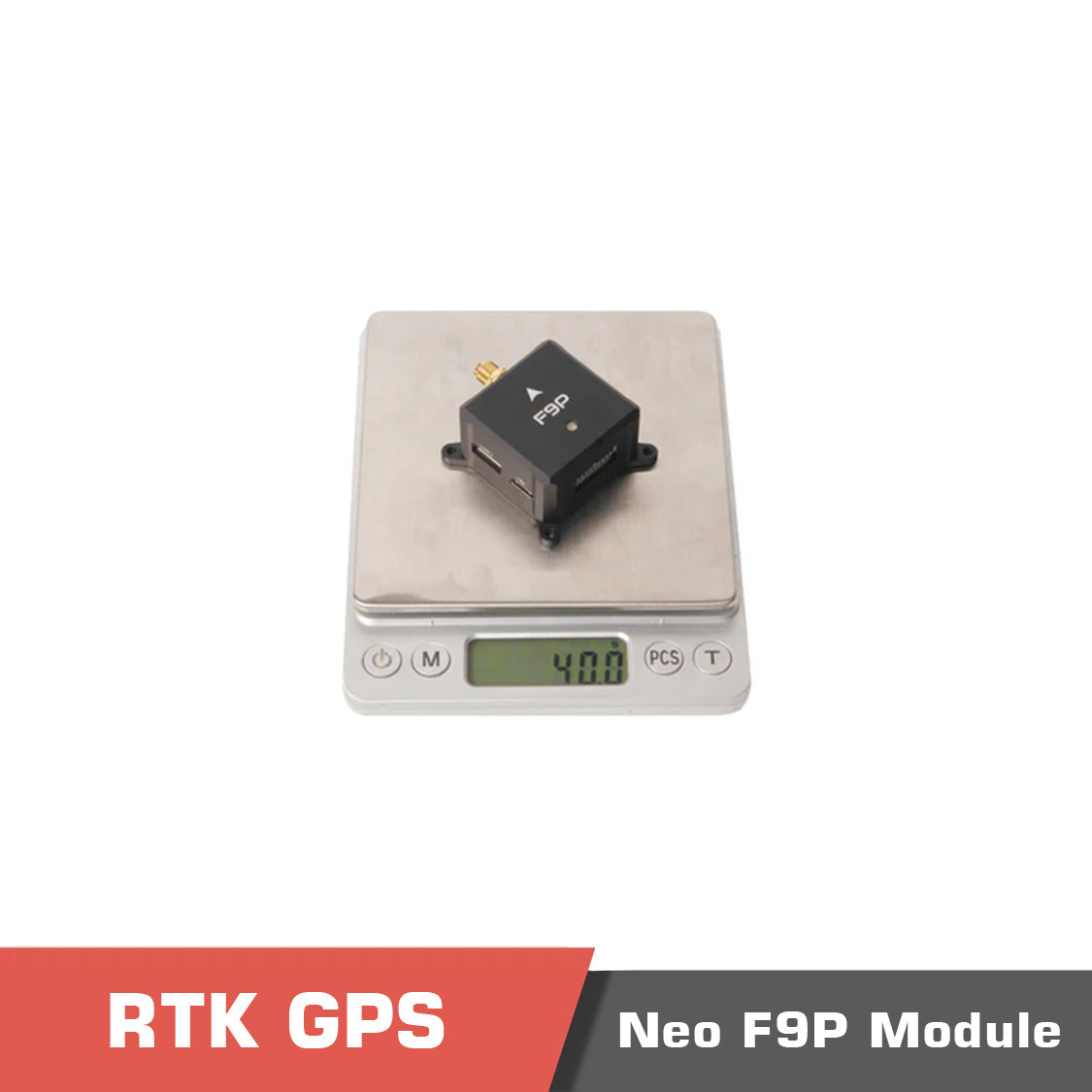

Weight Module: 40 g
Antenna: 343 g

Documents

Pleaseย contact usย for more information.

Product contents

  • 1x NEO F9P Helical-UART
  • 1x High-Precision Vertical Array Patch Antenna(Cable 80cm/Cable 40cm)

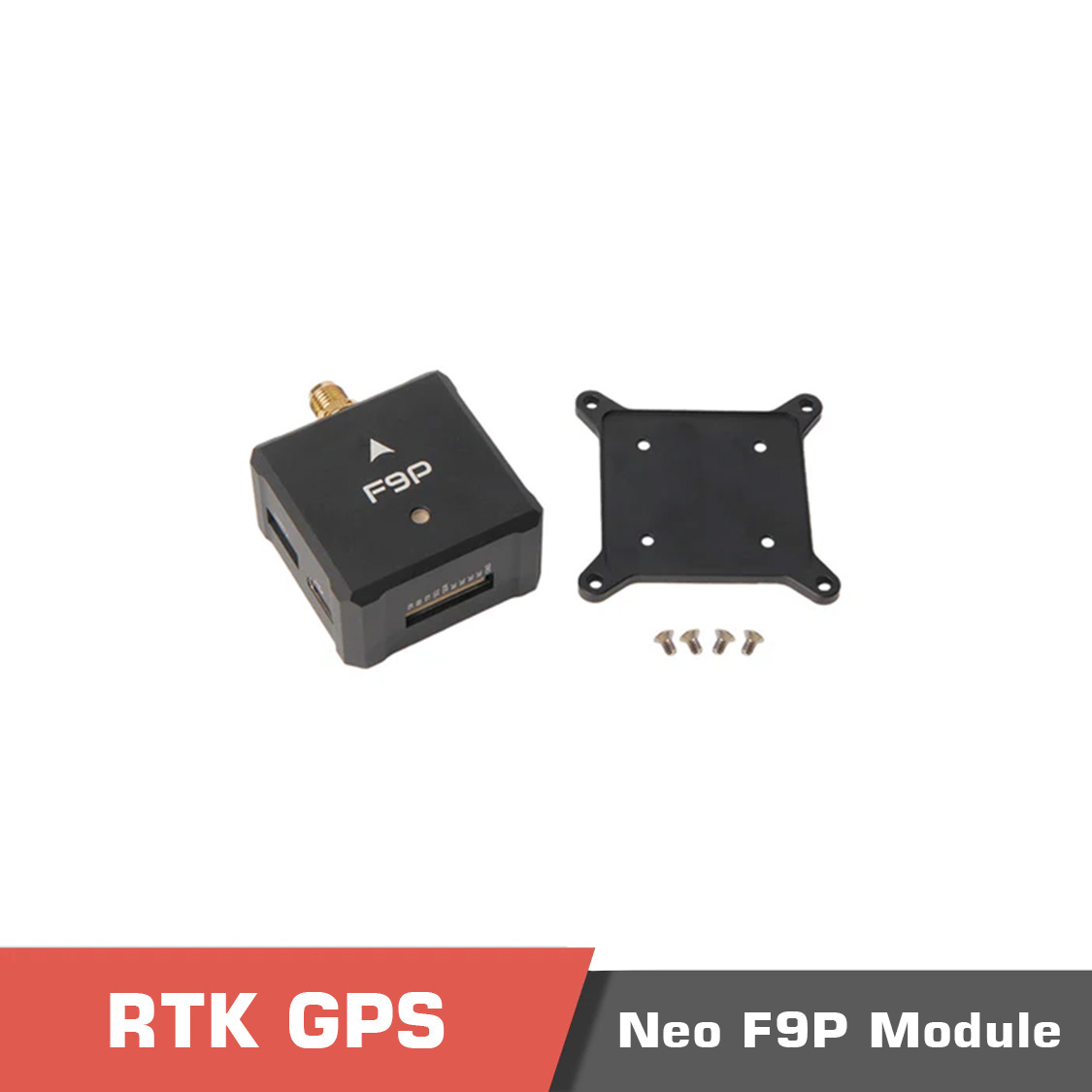

  • 1x Fixed Carbon Fiber Antenna mount



Holybro h-rtk neo-f9p vertical array patch antenna package content

1 review for Holybro H-RTK NEO-F9P with Base Station Antenna

    Reese Hill
    January 20, 2025
    The order process was smooth and simple.
