Holybro H-RTK NEO-F9P with Helical Antenna
197.00 $
Description
Holybro H-RTK NEO-F9P with Helical Antenna Overview
The Holybro H-RTK NEO-F9P with Helical Antenna GPS features the cutting-edge u-blox NEO-F9P RTK GNSS receiver, a precision RM3100 compass, and a tri-color LED status indicator. Designed for high-accuracy applications, this system offers robust multi-band RTK functionality with fast convergence, stable performance, and fast update rates, making it perfect for dynamic and demanding environments where centimeter-level positioning is essential. A variety of antenna configurations are available to meet different operational requirements.
Multi-Constellation GNSS System with Versatile Connectivity for Advanced UAV Integration
Supporting simultaneous reception of GPS (L1 & L5), GLONASS, Galileo, BeiDou, and QZSS signals, this system provides versatile connectivity options through both UART and DroneCAN interfaces. The DroneCAN version is equipped with an MCU, IMU, and barometer, facilitating reliable communication and smooth integration for sophisticated UAV applications.
High-Precision PNI RM3200 Compass for Reliable UAV Orientation and Stability
The advanced PNI RM3100 compass offers precise orientation and enhanced stability with remarkable dependability, making it ideal for complex UAV tasks. It boasts high resolution, minimal power consumption, excellent noise resistance, an extensive dynamic range, and rapid sampling rates. Its measurements remain stable across varying temperatures and are naturally resistant to offset drift.
Features
- Advanced GNSS Receiver:ย High precision u-blox NEO-F9P GNSS receiver with reliable and stable centimeter-level positioning
- Integrated RM3100 Compass:ย Accurate and stable orientation data
- Rapid RTK Convergence:ย Advanced multi-frequency DGNSS algorithms enable quick RTK Fix

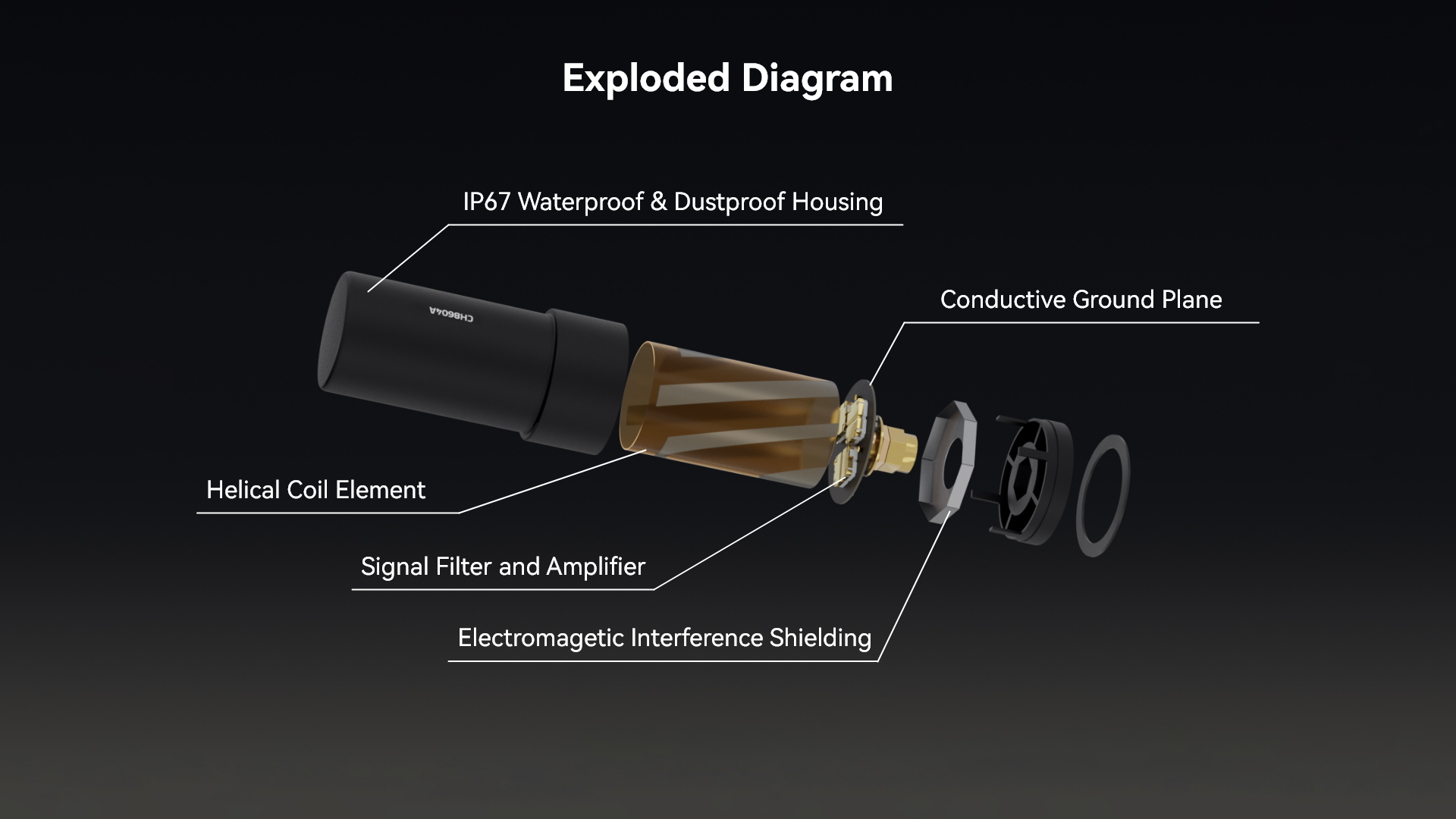

- High-Gain Antenna:ย Enhanced signal reception across GNSS frequencies
- Advanced Filtering & Amplification:ย Hybrid Coupler, SAW filter, and LNA architecture deliver exceptional signal strength and effective interference rejection
- Versatile Installation:ย Multiple antenna options offer flexibility for various situations
- DroneCAN Option:ย Offers MCU, IMU, barometer, and robust communication for advanced UAV systems
If you have any questions regarding our products, use the Motionew Support teamย page to consult our engineering team.
Specifications
Specification & Comparison
| H-RTK NEO-F9P Vertical Array Patch Antenna | |
| Recommended Application | โข Rover Station (UAV, Marine, Land Vehicle, etc) โข Base Station |
| GNSS Receiver | u-blox NEO-F9P |
| Processor | STM32G473 (Available in DroneCAN Version Only |
| IMU & Barometer | ICM42688 & ICP20100 (Available in DroneCAN Version Only) |
| Antenna | Helical Antenna |
| Antennas Peak Gain | L1: 2dBi L5: 2dBi |
| Antennas LNA Gain | 33 ยฑ 2dB |
| Magnetometer | High Precision PNI RM3100 |
| GNSS | BeiDou, Galileo, GLONASS, GPS / QZSS |
| GNSS Band | B1I, B2I, E1B/C, E5b, L1C/A, L1OF, L2C, L2OF |
| Number of Concurrent GNSS | 4 |
| Dynamic Heading Accuracy | 0.3 degrees |
| Horizontal Positioning Accuracy | PVT: 1.5 m CEP SBAS: 1.0 m CEP RTK: 0.01 m +1 ppm CEP |
| Vertical Positioning Accuracy | PVT: 2.0 m R50 SBAS: 1.5 m R50 RTK: 0.01 m +1 ppm R51 |
| Communication Protocol | UART or DroneCAN 1 Mbit/s |
| GNSS Protocol | NMEA UBX binary RTCM 3.3 SPARTN 2.0.1 |
| Time-To-First Fix | Hot Start: 3 s Aided Starts: 4 s Cold Starts: 27 s |
| Navigation Update Rate | GPS+GLO+GAL+BDS: RTK: 7 Hz Max PVT: 7 Hz Max RAW: 10 Hz |
| Anti-Spoofing | Advanced anti-spoofing algorithms |
| Operational Limits | Dynamics: โค 4 g Altitude: 80,000 m Velocity: 500 m/s |
| Antenna Connection Type | Board: SMA female Antenna: SMA male |
| Working Voltage | 4.75 V ~ 5.25 V |
| Operating Temperature | -25โ to 85โ |
| Current Consumption | ~250 mA |
| Antenna Cable Lengthย (Contact us for customization) | 40 cm (default) |
| Dimensions | Module: 43.1ร44.1ร22 mm Antenna Diameter: 27.5 mm Antenna Height: 59 mm |
| Weight | Module: 40 g Antenna: 18 g |
Documents
Reference Links

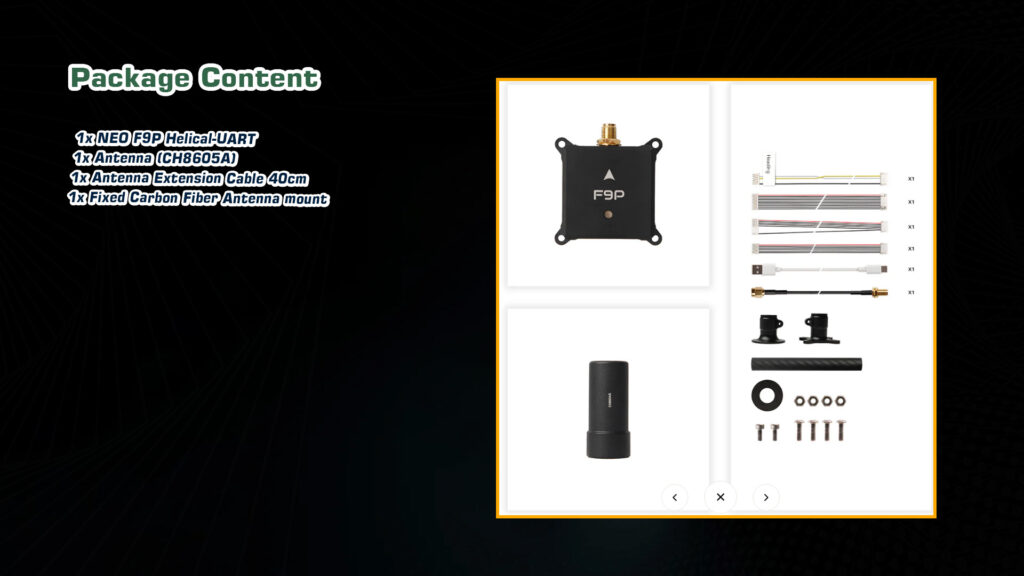

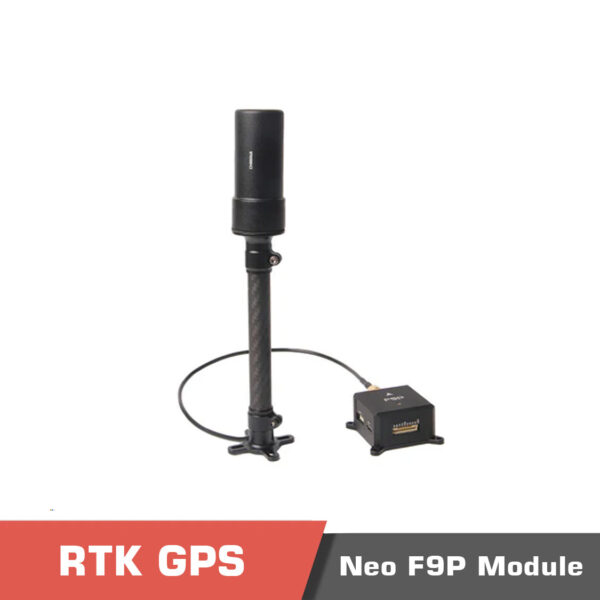

Product contents
- 1x NEO F9P Helical-UART
- 1x Antenna (CH8605A)
- 1x Antenna Extension Cable 40cm
- 1x Fixed Carbon Fiber Antenna mount
