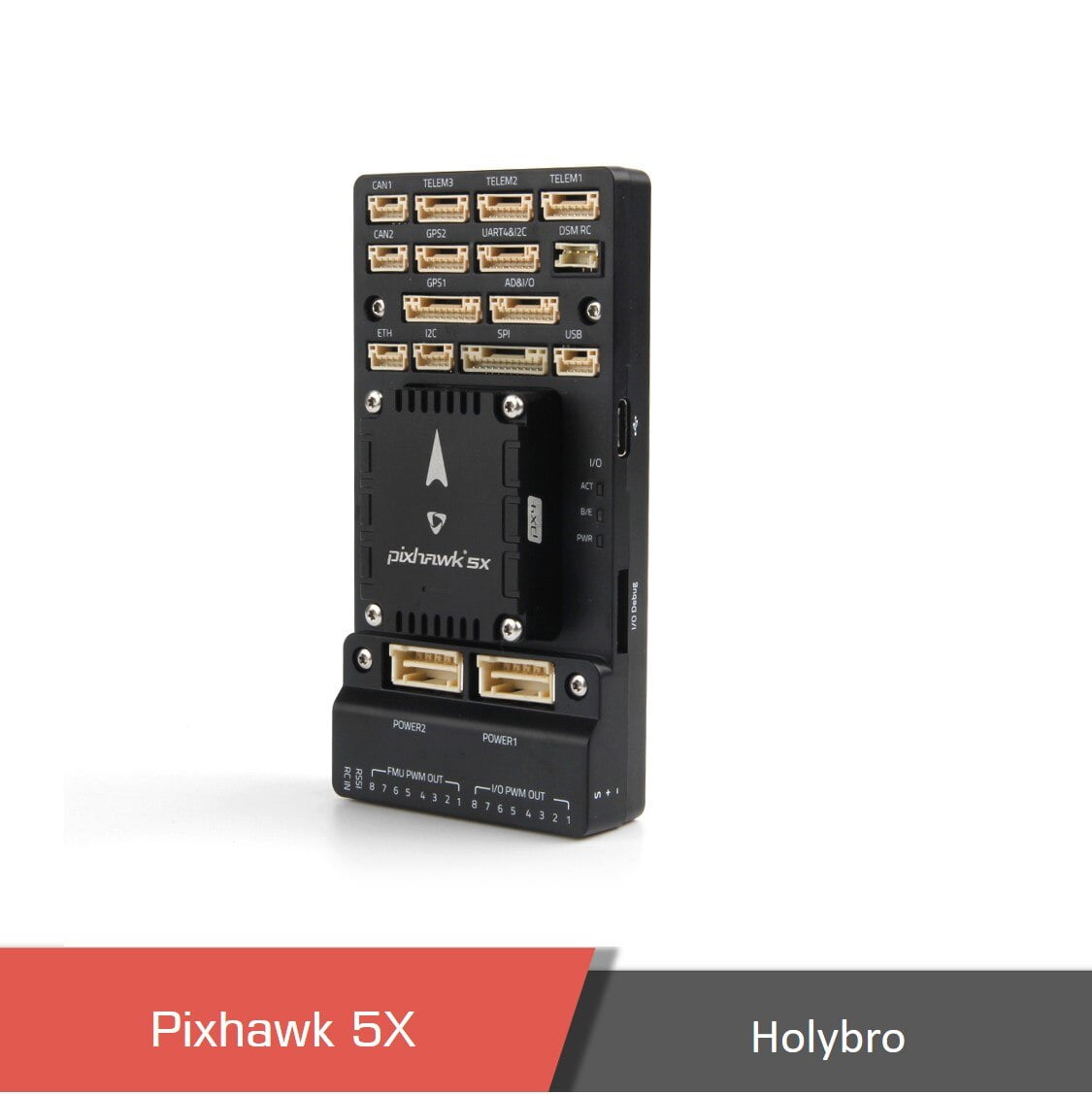

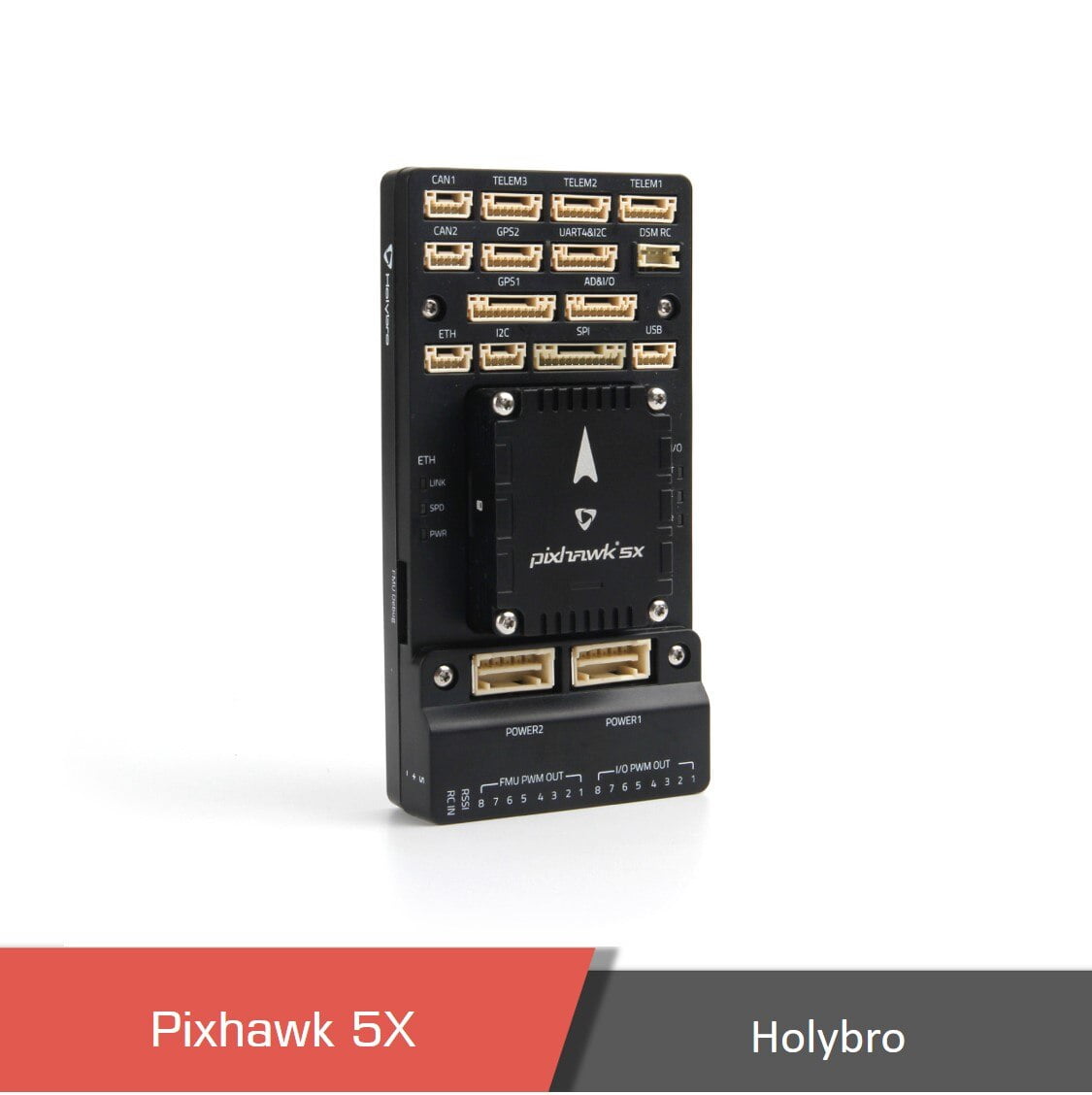

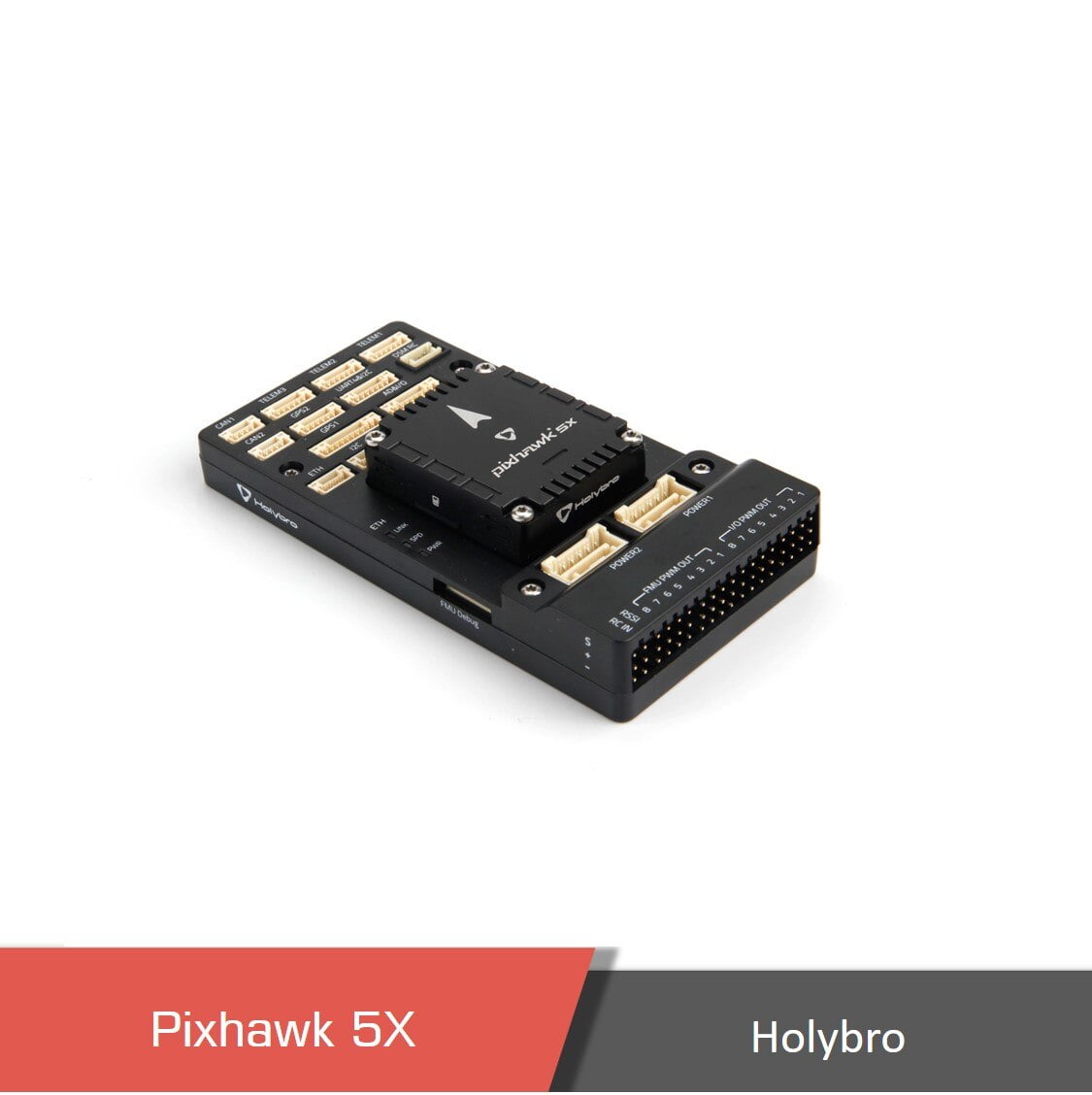

Pixhawk 5X Holybro with STM32F7
100.00 $ – 299.00 $
Description
Pixhawk 5x has been discontinued, check the Pixhawk 6x
Pixhawk 5X Holybro Overview
Inside the Pixhawk 5X Holybro, you can find an STMicroelectronics® based STM32F7, paired with sensor technology from Bosch®, InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications. The Pixhawk® 5X’s F7 microcontroller has 2MB flash memory and 512KB RAM. The PX4 drone Autopilot flight controllers takes advantage of the increased power and RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.
The FMUv5X open standard includes high-performance, low-noise IMUs on board, designed for better stabilization. Triple redundant IMU & double redundant barometer on separate buses. When the PX4 Autopilot detects a sensor failure, the system seamlessly switches to another to maintain flight control reliability.
An independent LDO powers every sensor set with independent power control. A newly designed vibration isolations to filter out high-frequency vibration and
reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances. External sensor bus (SPI5) has two chip select lines and data-ready signals for additional sensors and payload with SPI-interface, and with an integrated Microchip Ethernet PHY (LAN8742AI-CZ-TR), high-speed communication with mission computers via ethernet is now supported. Two smart battery monitoring ports (SMBus), support for INA226 SMBus Power module.
The Pixhawk® 5X is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.
Key Design Points
-

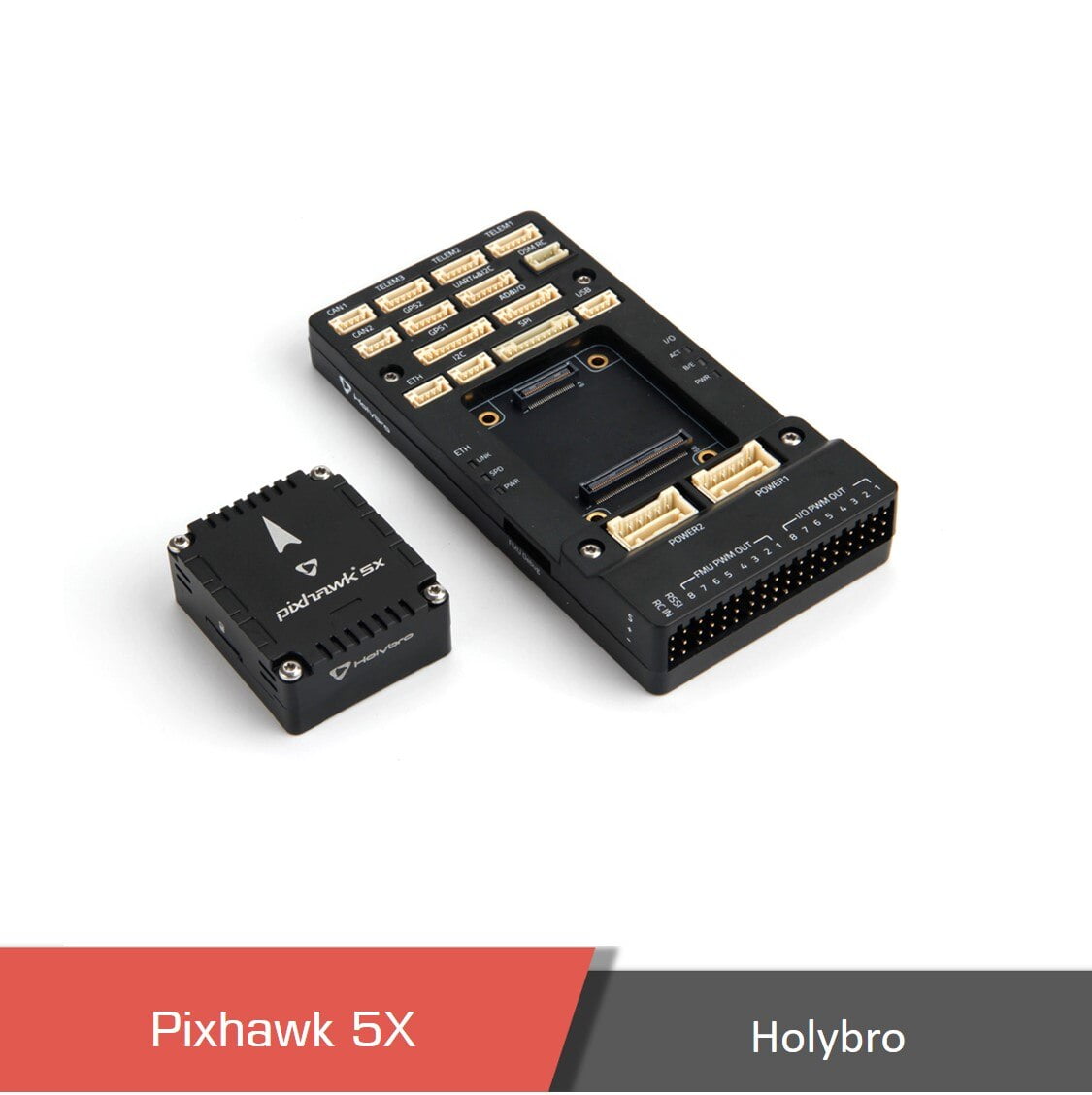

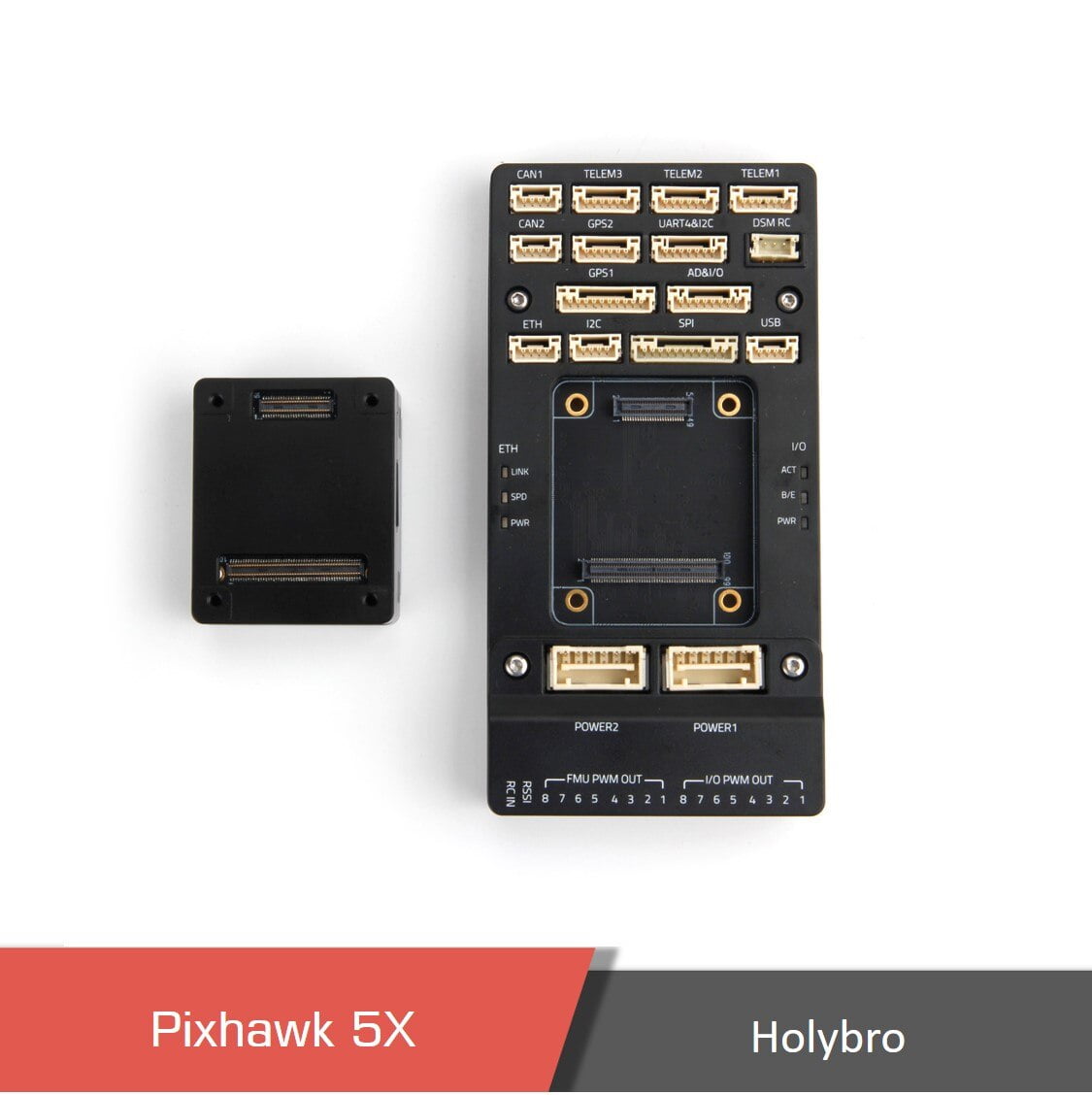

Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector, designed for flexible and customizable systems
-
Redundancy: 3x IMU sensors & 2x Barometer sensors on separate buses, allowing parallel and continuous operation even in the event of a hardware failure
-
Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control
-
Newly designed vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
-
Ethernet interface for high-speed mission computer integration
-
Automated sensor calibration eliminating varying signals and temperature
-
IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs
-
Two smart batteries monitoring on SMBus
-
Additional GPIO line and 5V for the external NFC reader
-
Secure element for secure authentication of the drone (SE050)
Interfaces of Pixhawk 5X
-
16- PWM servo outputs
-
R/C input for Spektrum / DSM
-
Dedicated R/C input for PPM and S.Bus input
-
Dedicated analog / PWM RSSI input and S.Bus output
-
4 general purpose serial ports
3 with full flow control
1 with separate 1A current limit
1 with I2C and additional GPIO line for external NFC reader
-
2 GPS ports
1 full GPS plus Safety Switch Port
1 basic GPS port
-
1 I2C port
-
1 Ethernet port
Transformerless Applications
100Mbps
-
1 SPI bus
2 chip select lines
2 data-ready lines
1 SPI SYNC line
1 SPI reset line
-
2 CAN Buses for CAN peripheral
CAN Bus has individual silent controls or ESC RX-MUX control
-
2 Power input ports with SMBus
-
1 AD & IO port
2 additional analog input
1 PWM/Capture input
2 Dedicated debug and GPIO lines
If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.
Specifications
Flight Controller Module | 23g |
Standard Baseboard | 51g |
Flight Controller Module | 38.8 x 31.8 x 14.6mm |
Standard Baseboard | 52.4 x 103.4 x 16.7mm |
Max input voltage | 6V |
USB Power Input | 4.75~5.25V |
Servo Rail Input | 0~36V |
Technical specification | |
On-board sensors | Accel/Gyro: ICM-20649
Accel/Gyro: ICM-42688P Accel/Gyro: ICM-20602 |
Mag | BMM150 |
Barometer | 2x BMP388 |
FMU Processor | STM32F765
32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM |
Electrical data | |
Max input voltage | 6V |
USB Power Input | 4.75~5.25V |
Servo Rail Input | 0~36V |
Mechanical data | |
Flight Controller Dimensions | 38.8 x 31.8 x 14.6mm |
Standard Baseboard Dimensions | 52.4 x 103.4 x 16.7mm |
Flight Controller Weight | 23g |
Standard Baseboard Weight | 51g |
Product contents
Standard Set (SKU20116) Includes:
- Pixhawk 5X Flight Controller Module
- Pixhawk 5X Standard Baseboard
- Power Distribution Board
- PM02D Power Module
- Cable Set
Standard Set + M8N GPS (SKU20117) Includes:
- Pixhawk 5X Flight Controller Module
- Pixhawk 5X Standard Baseboard
- Power Distribution Board
- PM02D Power Module
- Cable Set
- M8N GPS
Standard Set + M9N GPS (SKU20151) Includes:
- Pixhawk 5X Flight Controller Module
- Pixhawk 5X Standard Baseboard
- Power Distribution Board
- PM02D Power Module
- Cable Set
- M9N GPS
