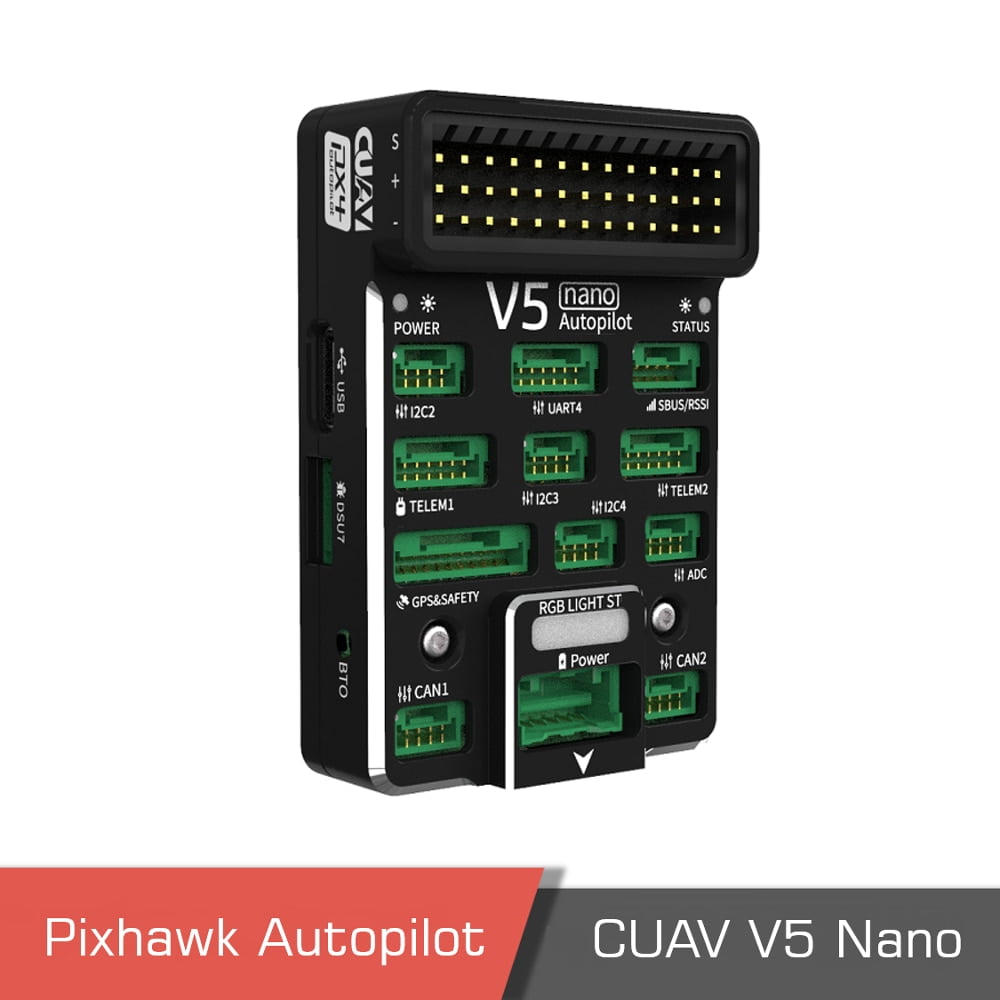

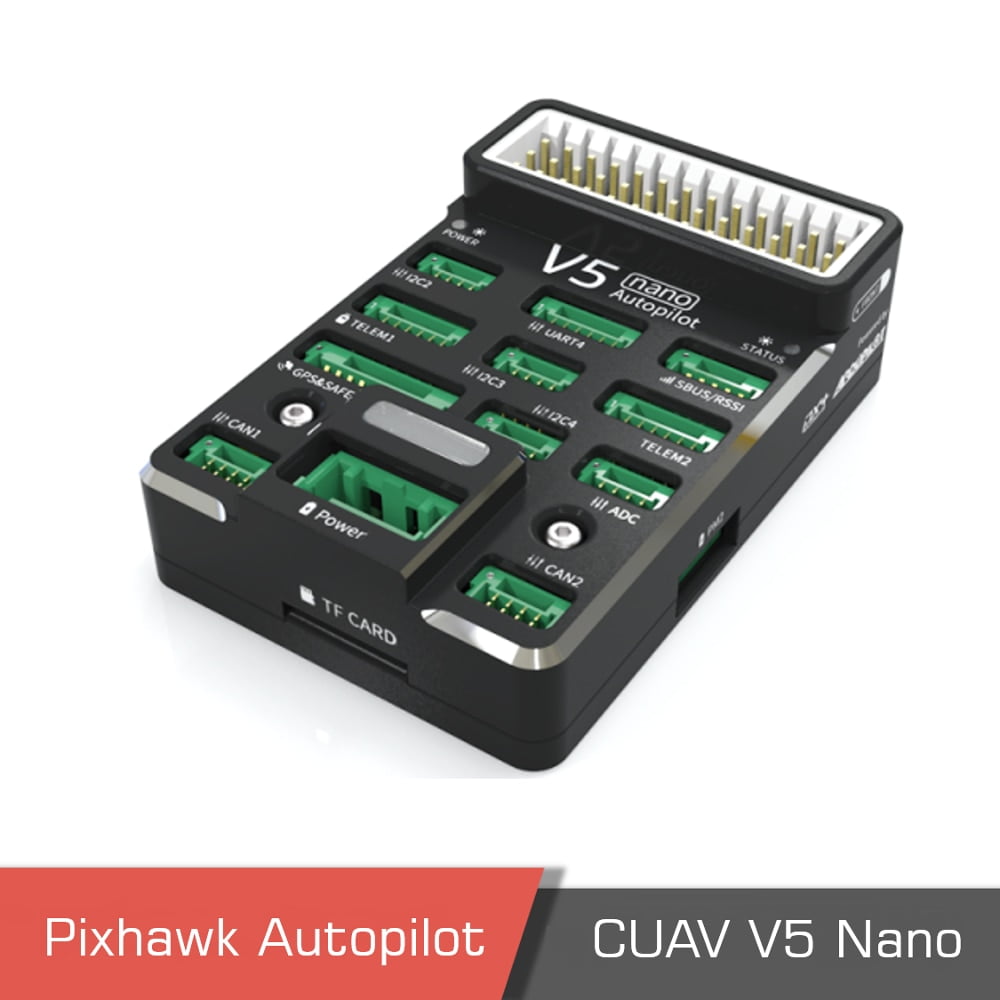

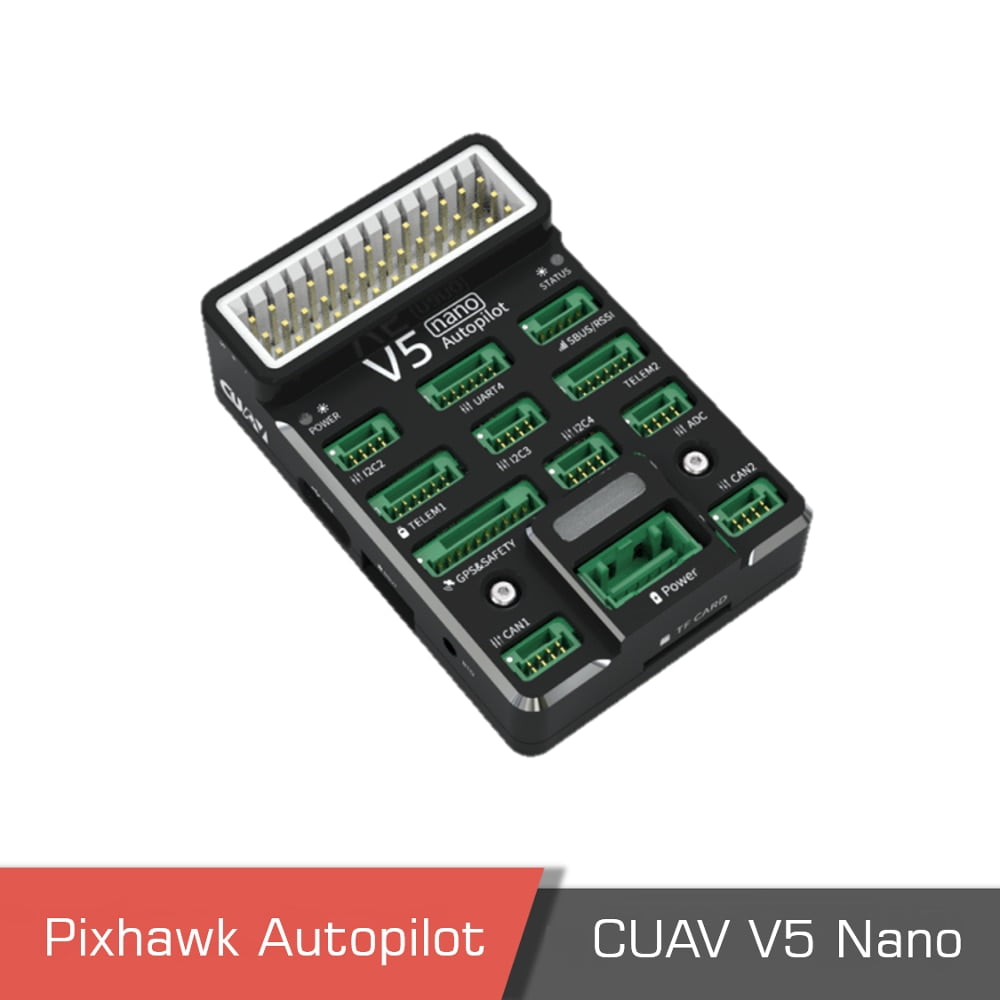

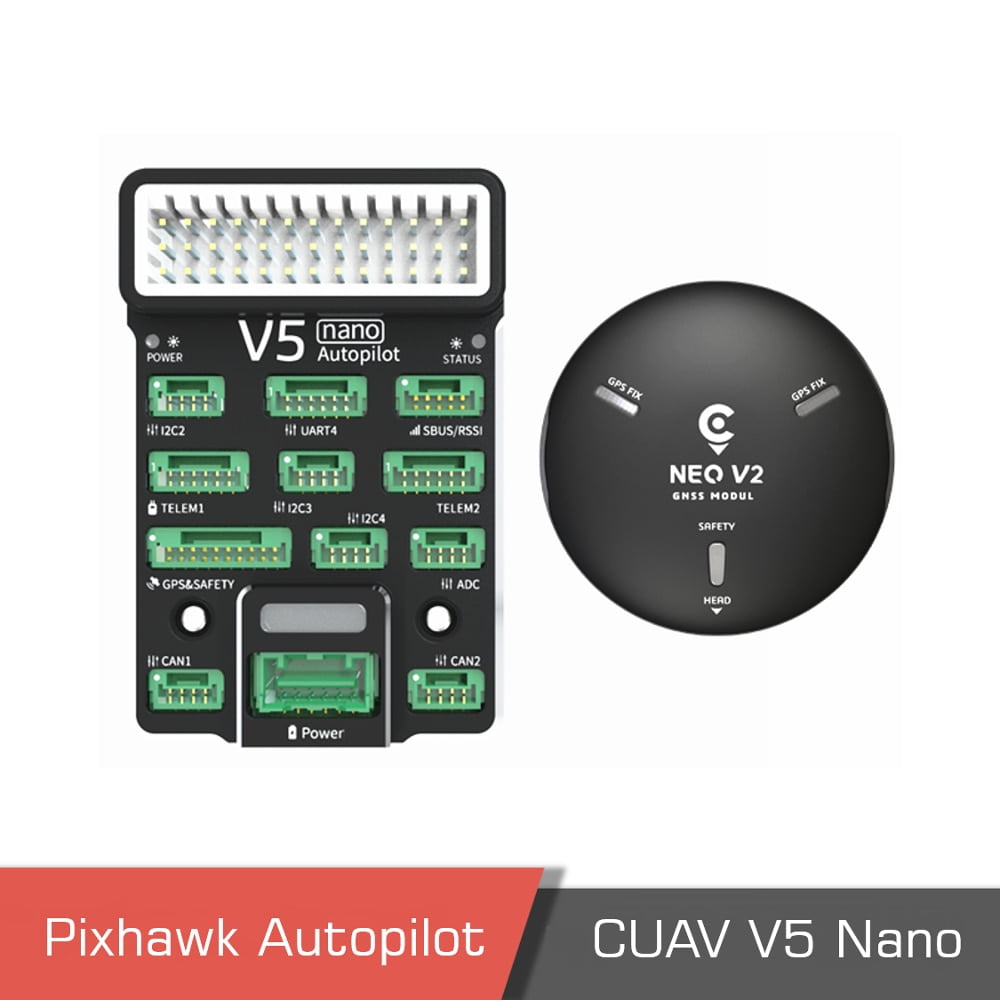

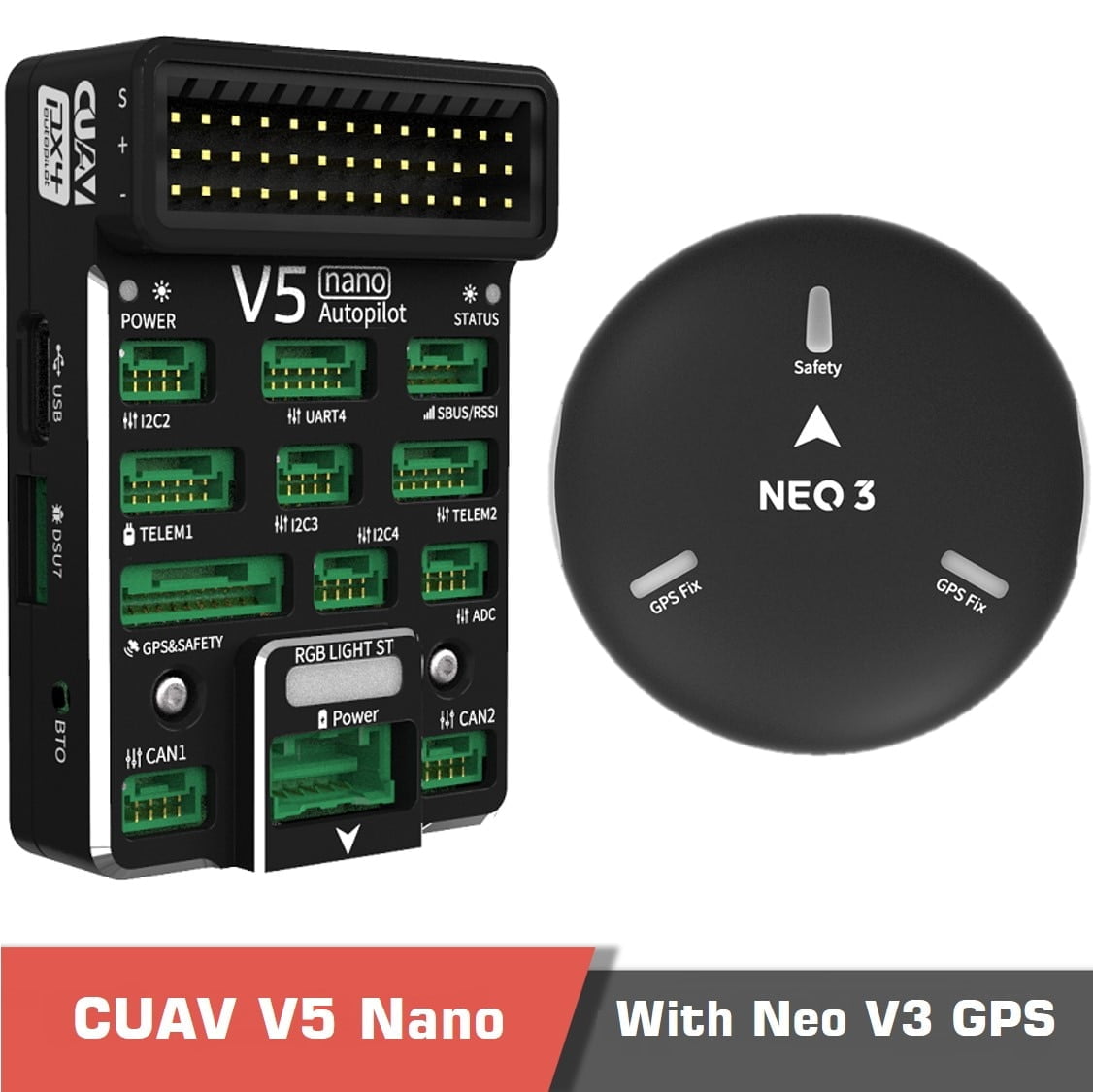

Pixhawk CUAV V5 Nano Autopilot Overview
Pixhawk CUAV V5 nano is an autopilot for space-constrained applications, designed by CUAV® in collaboration with the PX4 team. The autopilot is small enough to use in 220mm racing drones, but remains powerful enough for most drone use.
Main Features of CUAV V5 Nano
The Pixhawk CUAV V5 Nano is fully compatible with the Pixhawk project FMUv5 design standard and utilizes the Pixhawk Connector Standard for all external interfaces. It features a more advanced processor, increased RAM, and expanded flash memory compared to the FMU v3, providing enhanced stability and reliability with its sensors. The CUAV V5 Nano is firmware-compatible with PX4, ensuring seamless integration and operation. Additionally, it offers a generous 2.6mm spacing for I/O pins, simplifying the use of all interfaces and enhancing overall usability.
Comprehensive Features for Advanced UAV Control
The Pixhawk CUAV V5 Nano is equipped with a comprehensive range of features tailored for advanced UAV control. It includes 3 dedicated PWM/Capture inputs on FMU, dedicated R/C inputs for CPPM and Spektrum/DSM/S.Bus, and an Analog/PWM RSSI input. Additionally, it boasts 4 general-purpose serial ports, 3 I2C ports, 4 SPI buses, and 2 CAN buses, providing extensive connectivity options. The system also supports analog inputs for voltage and current monitoring of the battery, along with 2 additional analog inputs. The power system includes a Power Brick input operating at 4.75~5.5V, ensuring reliable power management for demanding applications.
If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.
Specifications
| Specifications od Pixhawk CUAV V5 nano | |
| Main FMU Processor | STM32F765◦32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM |
| On-board sensors | Accel/Gyro: ICM-20689 Accel/Gyro: ICM-20602 Accel/Gyro: BMI055 |
| Magnetometer | IST8310 |
| Barometer | MS5611 |
| Interfaces | 8 PWM outputs |
| USB Power Input | 4.75~5.25V |
| Weight | 40g |
| Operating temperature | -20 ~ 85°C （Measured value) |
| Dimensions | 60x40x14mm |
Product contents
Please contact us for more information.
