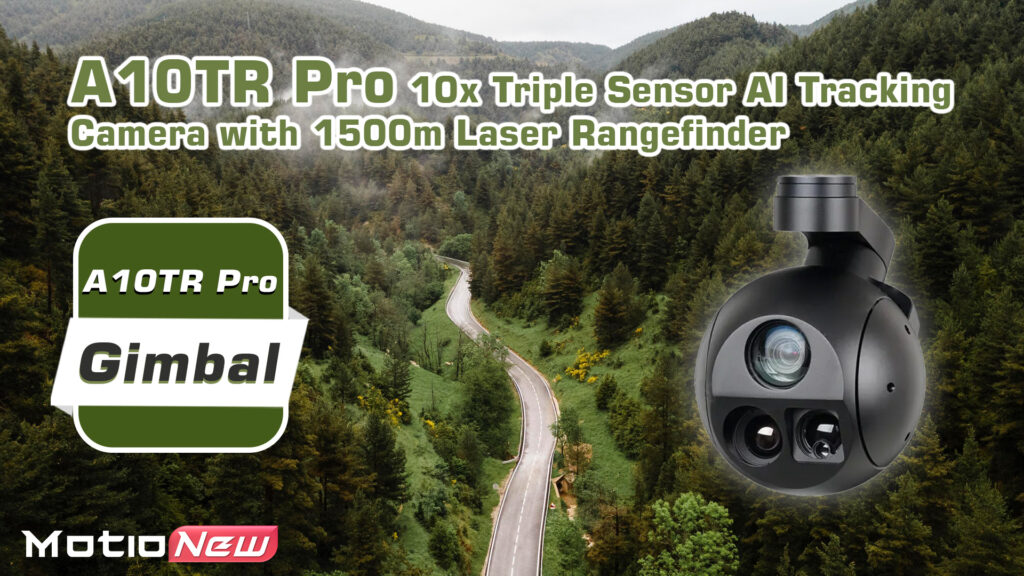

A10TR Pro gimbal camera, 10x Triple Sensor AI Tracking with 1500m Laser Rangefinder

Description

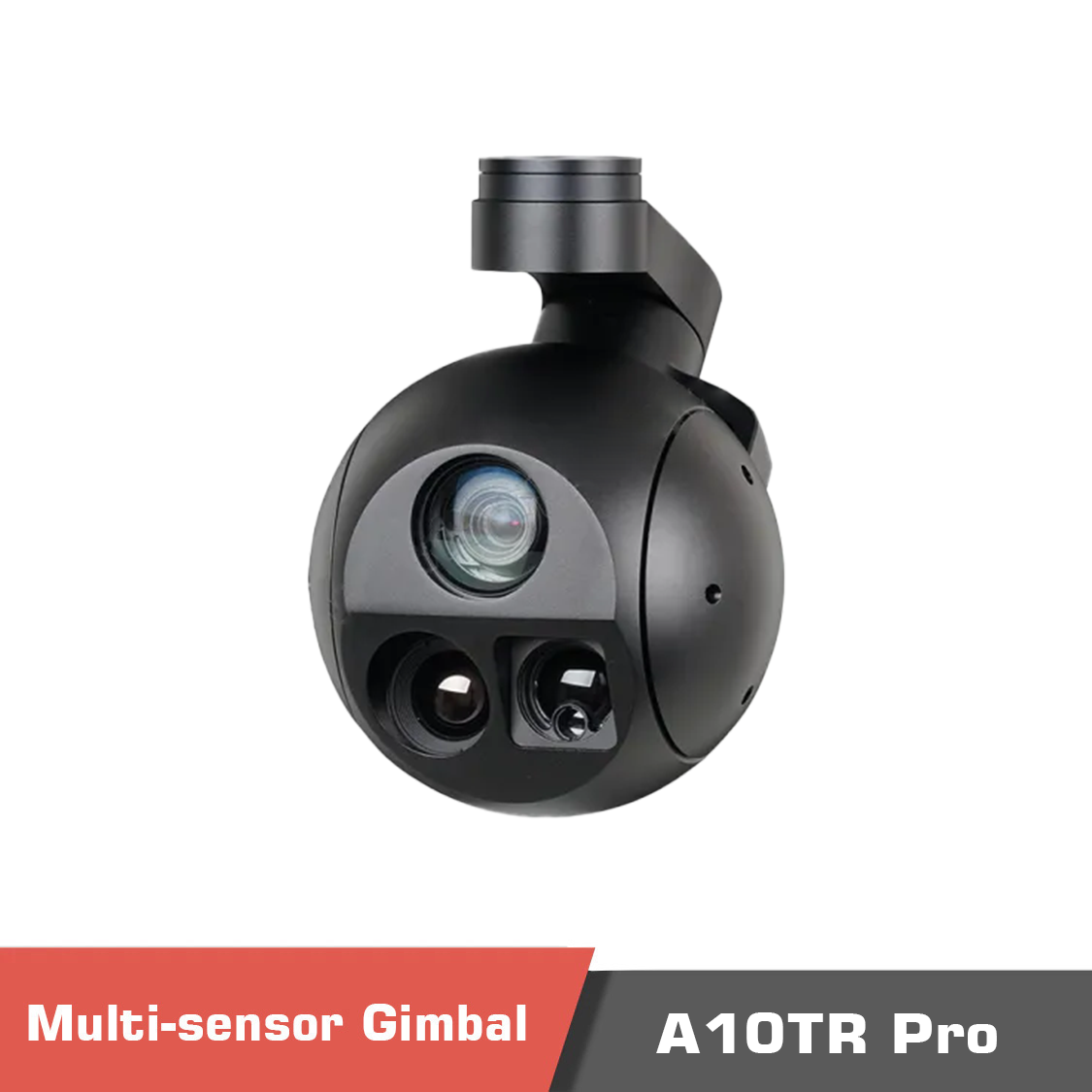

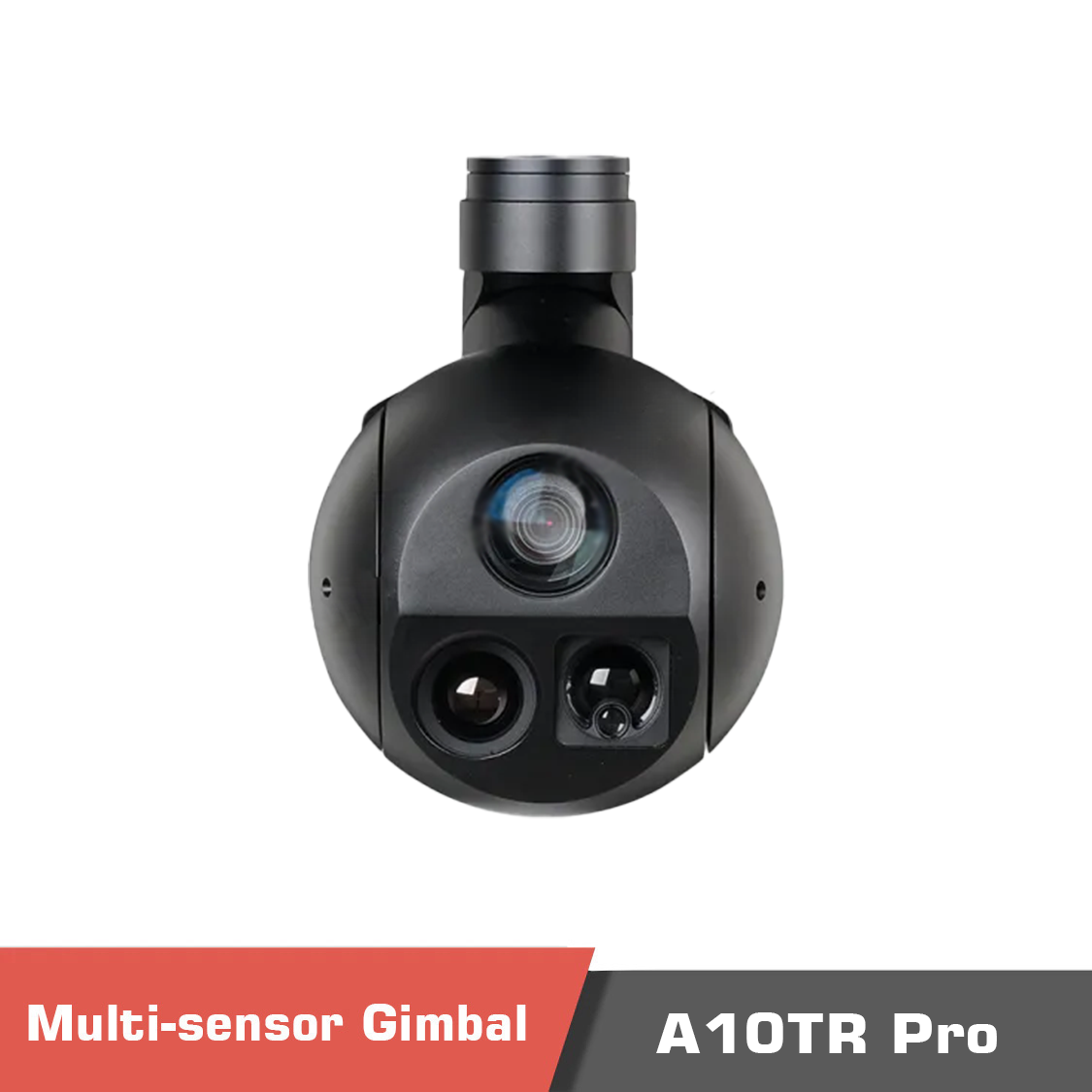

A10TR Pro Gimbal Camera Overview

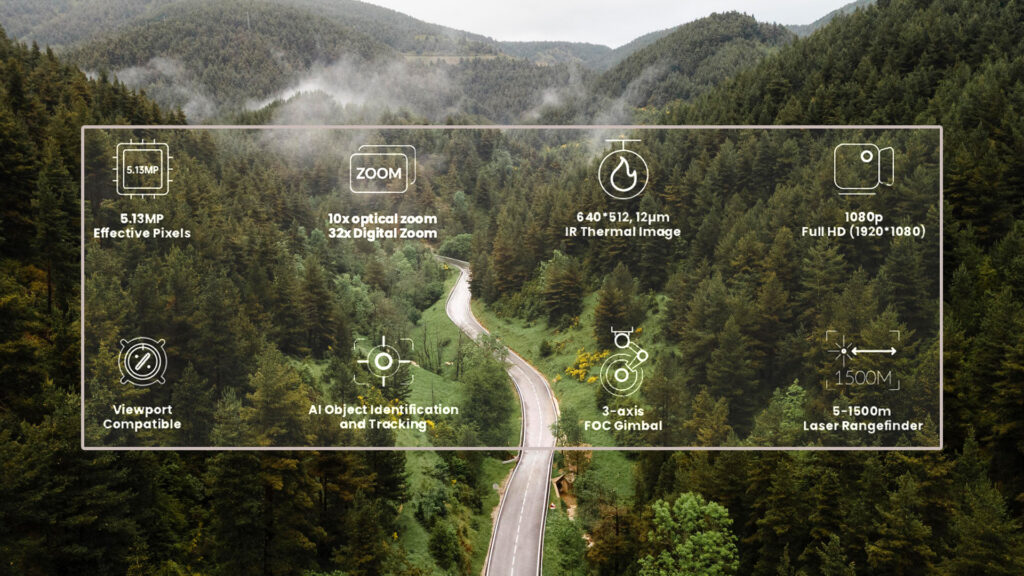

The A10TR Pro Gimbal Camera with 10x EO zoom and triple sensor and AI target tracking is a gimbal camera with the latest technology that brings artificial intelligence (AI tracking) to the drone industry. It is a gimbal drone camera with a 3-axis gimbal that integrates AI tracking and detection algorithms with a 10x optical zoom camera with a 1/3″ Panasonic CMOS Sensor, a 19mm lens IR thermal sensor with 640×512 resolution, and a 1500m laser range finder.

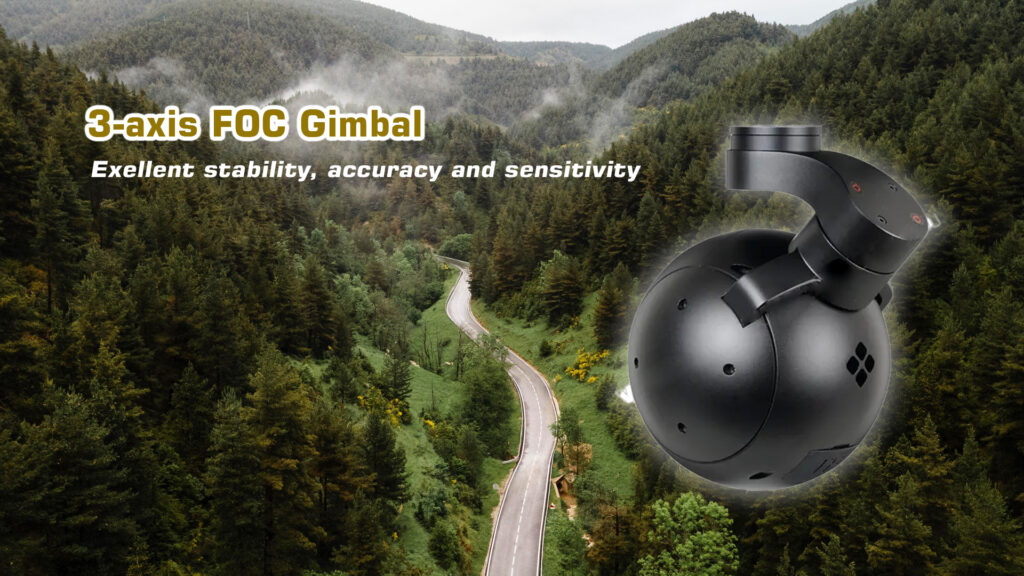

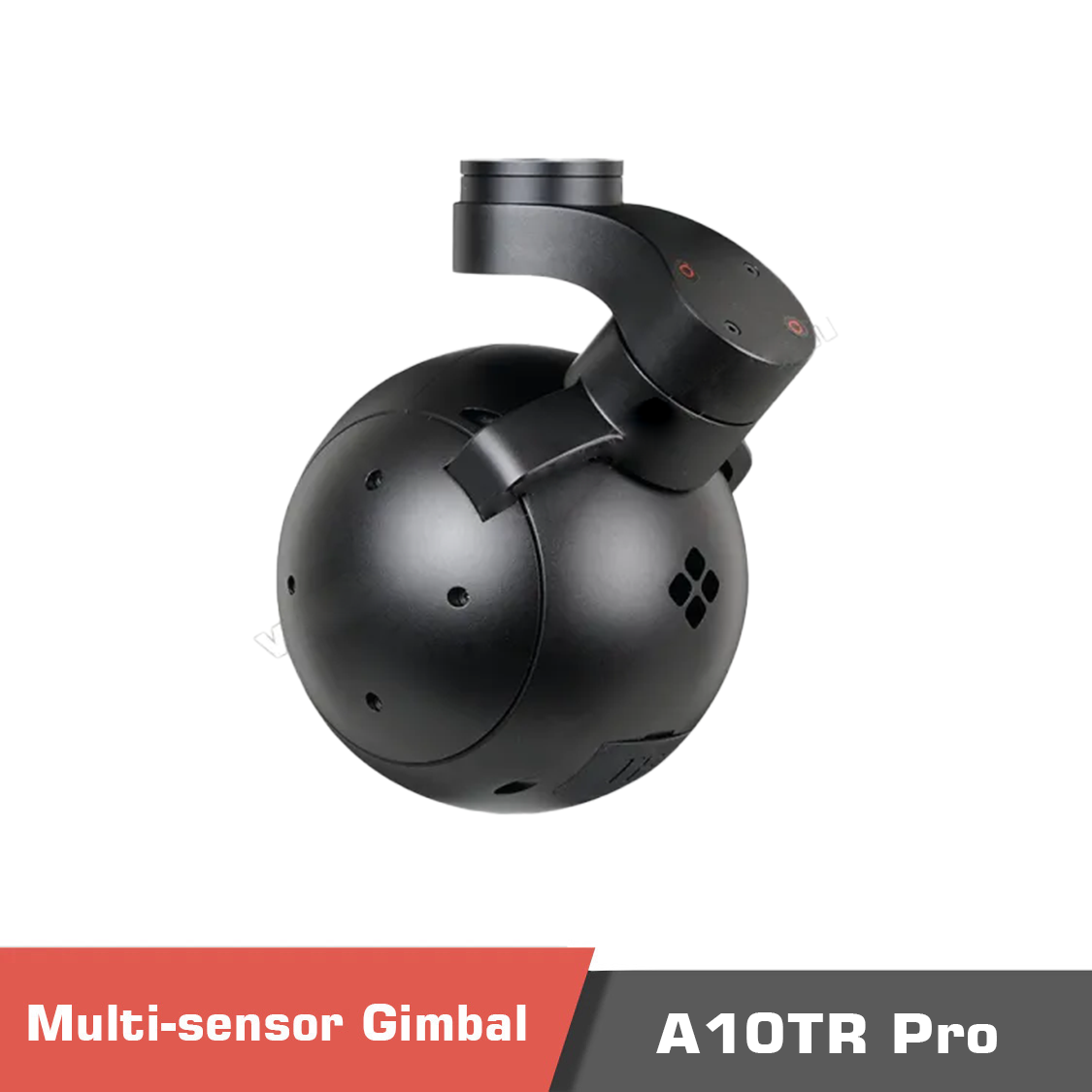

A10TR Pro Gimbal has an aluminum alloy housing to give it a sophisticated look and anti-interference ability, as well as thermal cooling. The 3 axis gimbal camera stabilizes yaw, roll, and pitch. The integrated damping system and gimbal design can significantly reduce mechanical vibration (using four damping balls and a lightweight damping board). It can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution.

Gimbal Camera AI object detection and Tracking Video



A10TR pro Gimbal applications

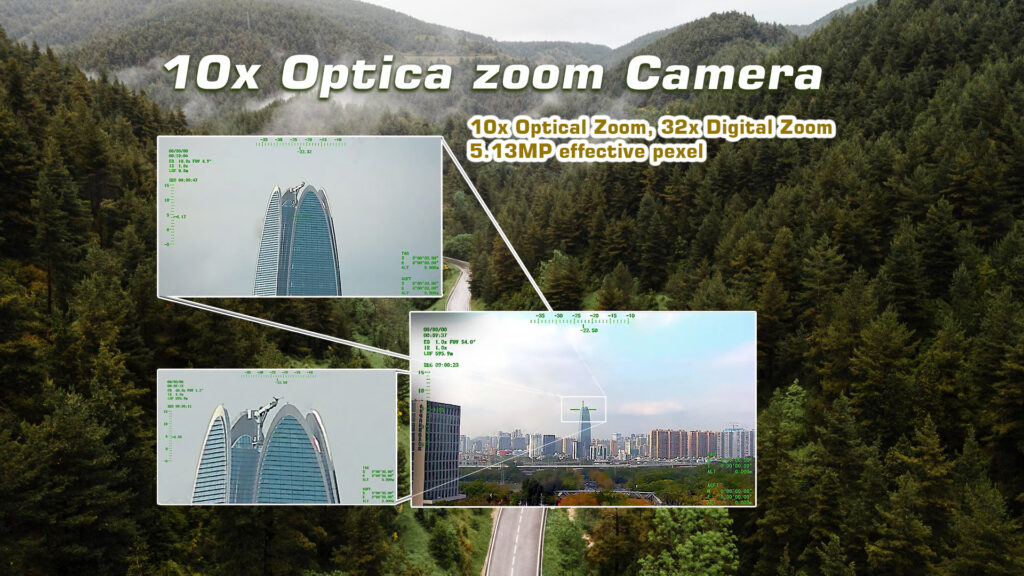

A10TR pro has a 1/3″ Panasonic CMOS Sensor module inside, which has 5.13 megapixels, which is combined with 10x advanced optical zoom technology, more than enough for a lot of applications in different domains including surveying, monitoring, and so on. 10x optical zoom means the drone can maintain a safe distance from the target in case of a dangerous incident like a fire hazard while capturing enough details of the scene.

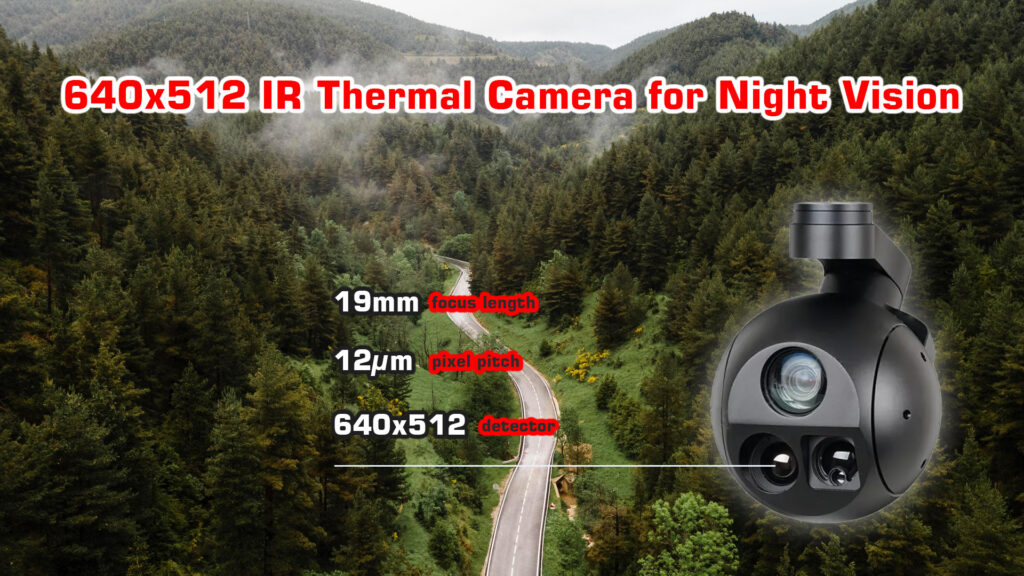

Thermal Camera of A10TR pro Gimbal

The IR thermal sensor is a key feature, with a 19mm focus length and DLC coating film. The sensor is capable of detecting a human-sized target (1.8×0.5m) at 792 meters, recognizing it at 198 meters, and verifying it at 99 meters. For a car-sized target (4.2×1.8m), detection is possible at 2428 meters, recognition at 607 meters, and verification at 303 meters.

The thermal imager operates in the uncooled VOx long wave (8μm~14μm) spectrum, with a detector pixel array of 640×512 and a pixel pitch of 12μm. It utilizes an athermal prime lens for focusing and has a NETD of ≤[email protected] @25℃. The color palette includes options like white, iron red, and pseudo color, with digital zoom ranging from 1x to 8x.

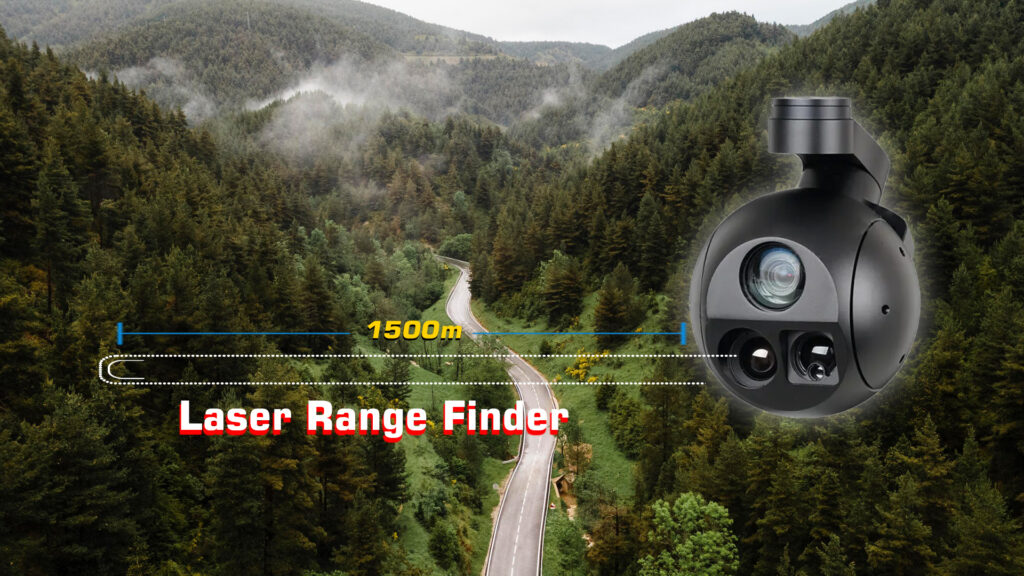

Laser Range Finder

The integrated IR laser rangefinder covers distances from 5 to 1500 meters, with a resolution of ±1 meter for distances under 400 meters and ±0.4% for greater distances. It operates on a 905nm pulse laser with a divergent angle of 3~10 mrad and various measuring response times based on distance. The rangefinder also provides latitude and longitude for target location, supporting accurate distance measurement.

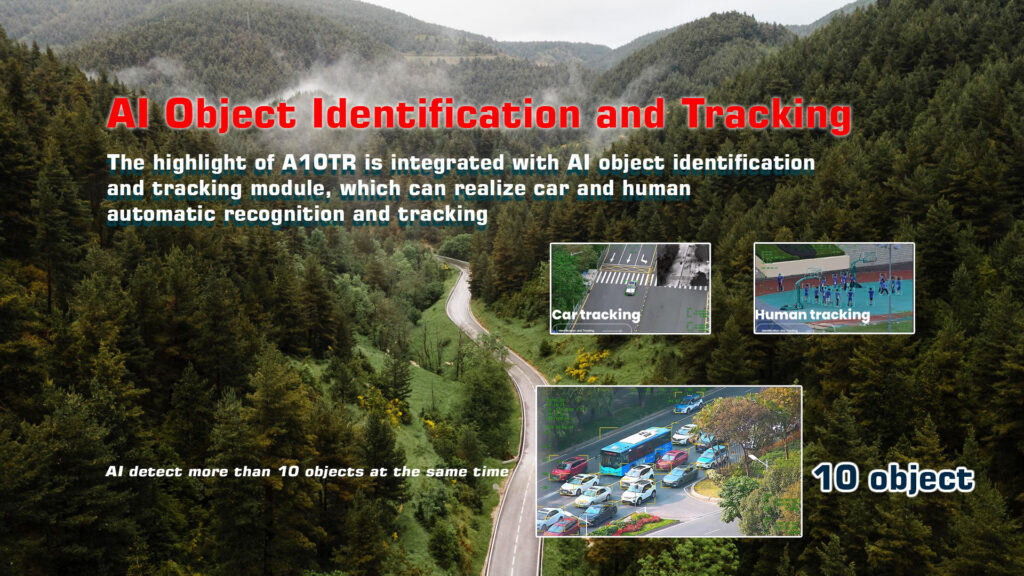

AI object detection and tracking module

The best thing about A10TR pro Gimbal is its AI object detection and tracking module, which can detect more than 10 simultaneous cars, humans, and boats automatically. With Built-in tracking algorithms, combined with an object missing recapture algorithm, stable tracking of the targets is possible. You can define custom characters to be shown on OSD to show trace information display. The tracking speed is up to 48pixel/frame, and object size can be from 16×16 pixels to 256×256 pixels.
