Thermal Optical Zoom Sensor, A30TR-1575 Gimbal Camera with Triple Sensors

39650.00 $

Description

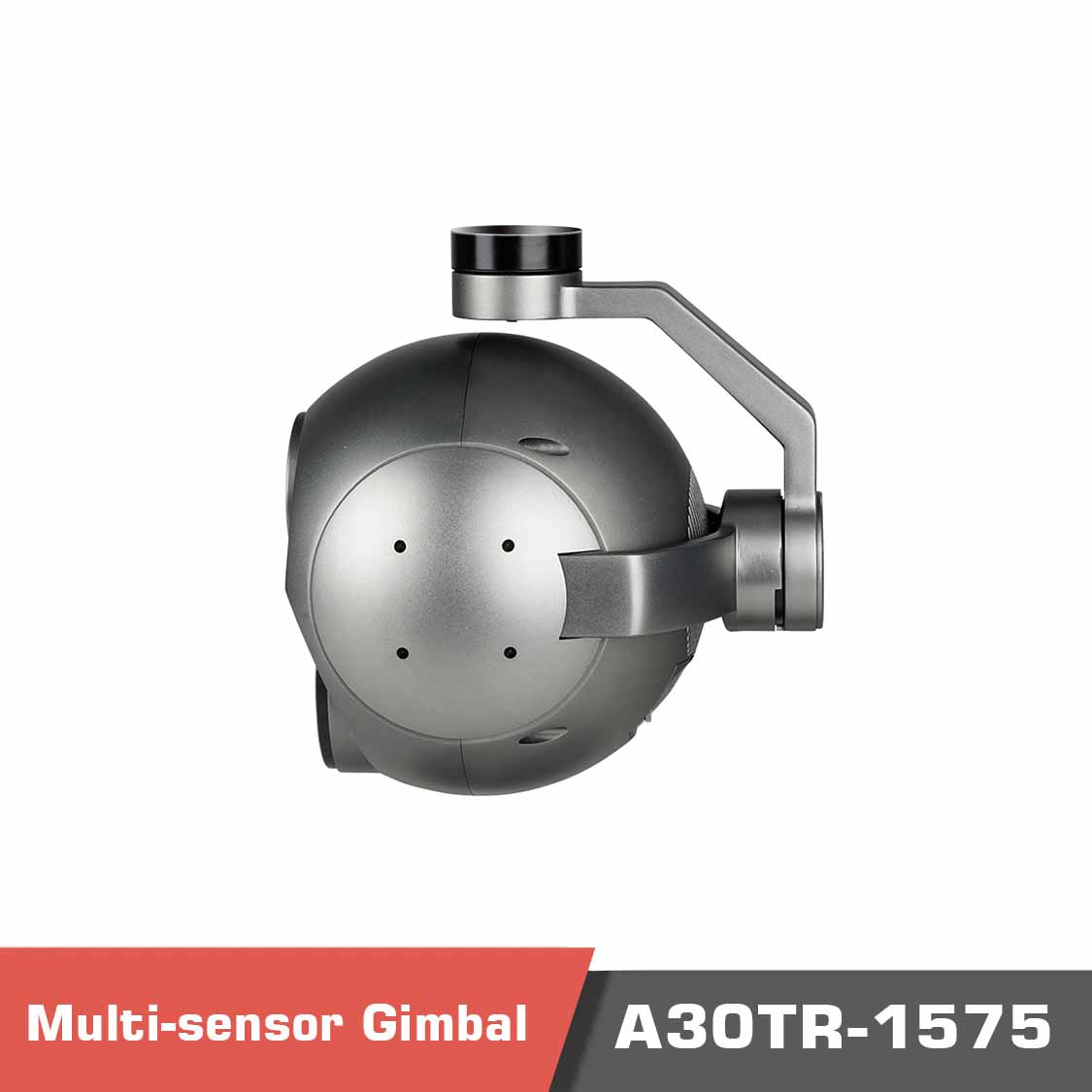

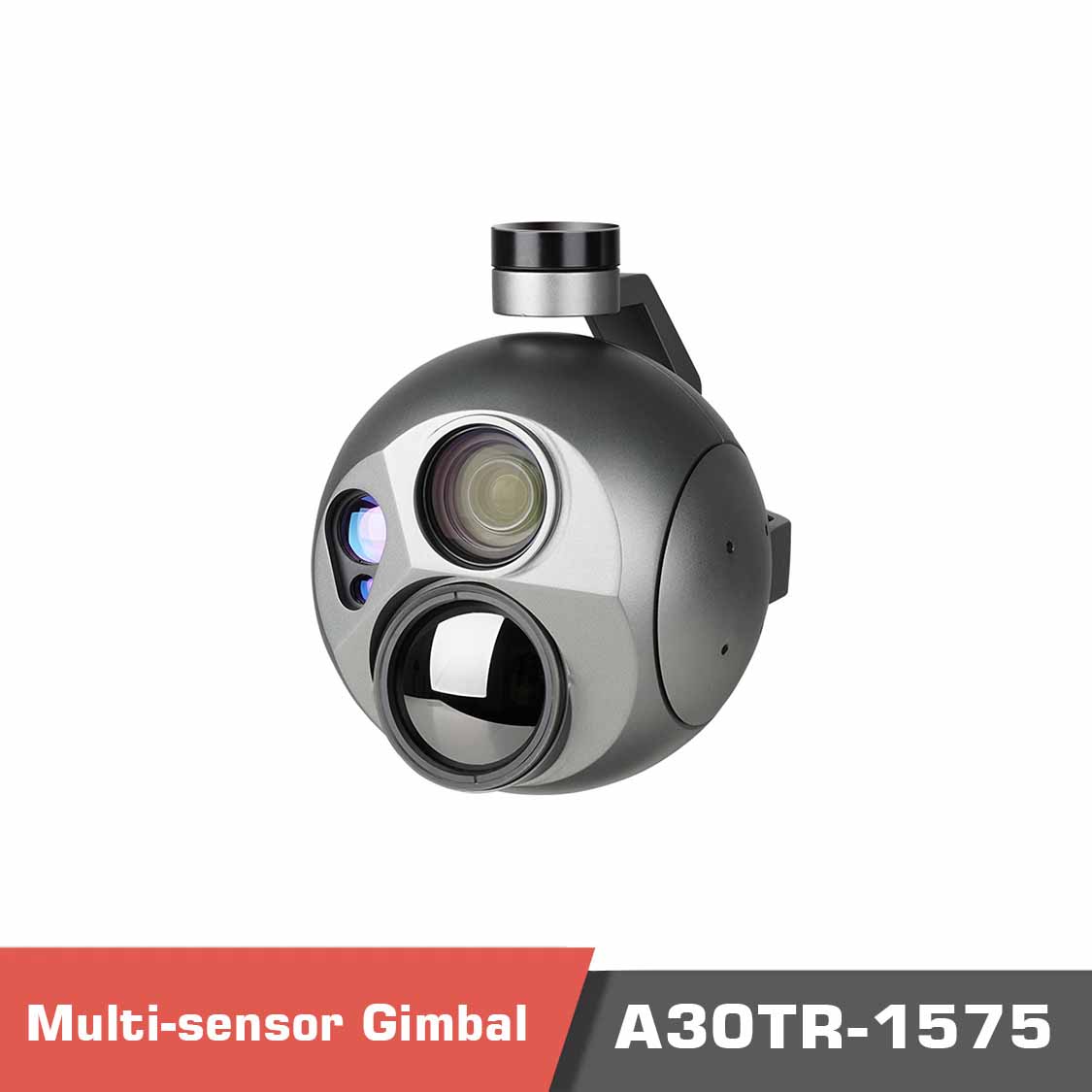

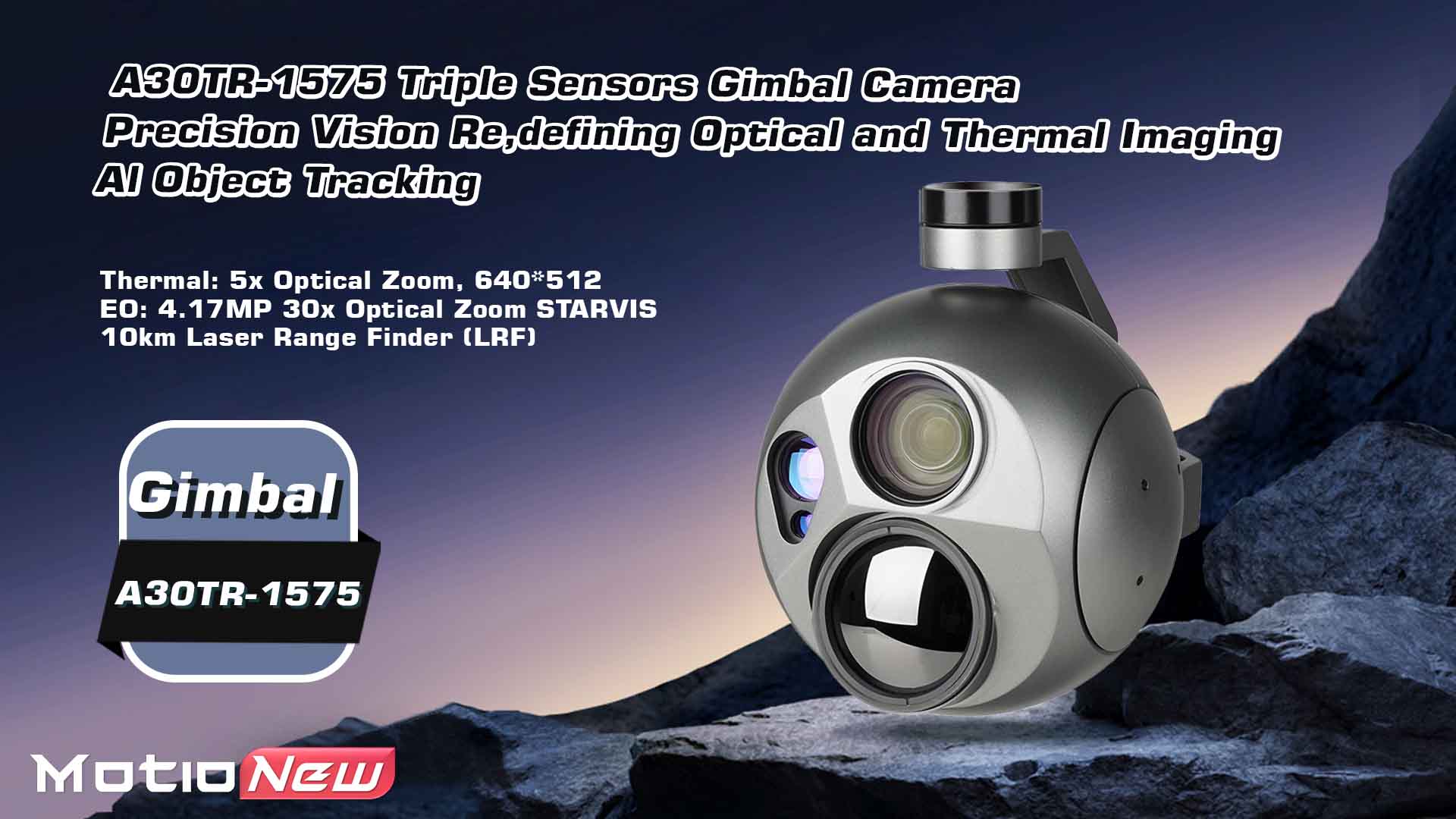

A30TR-1575 Gimbal Camera Overview

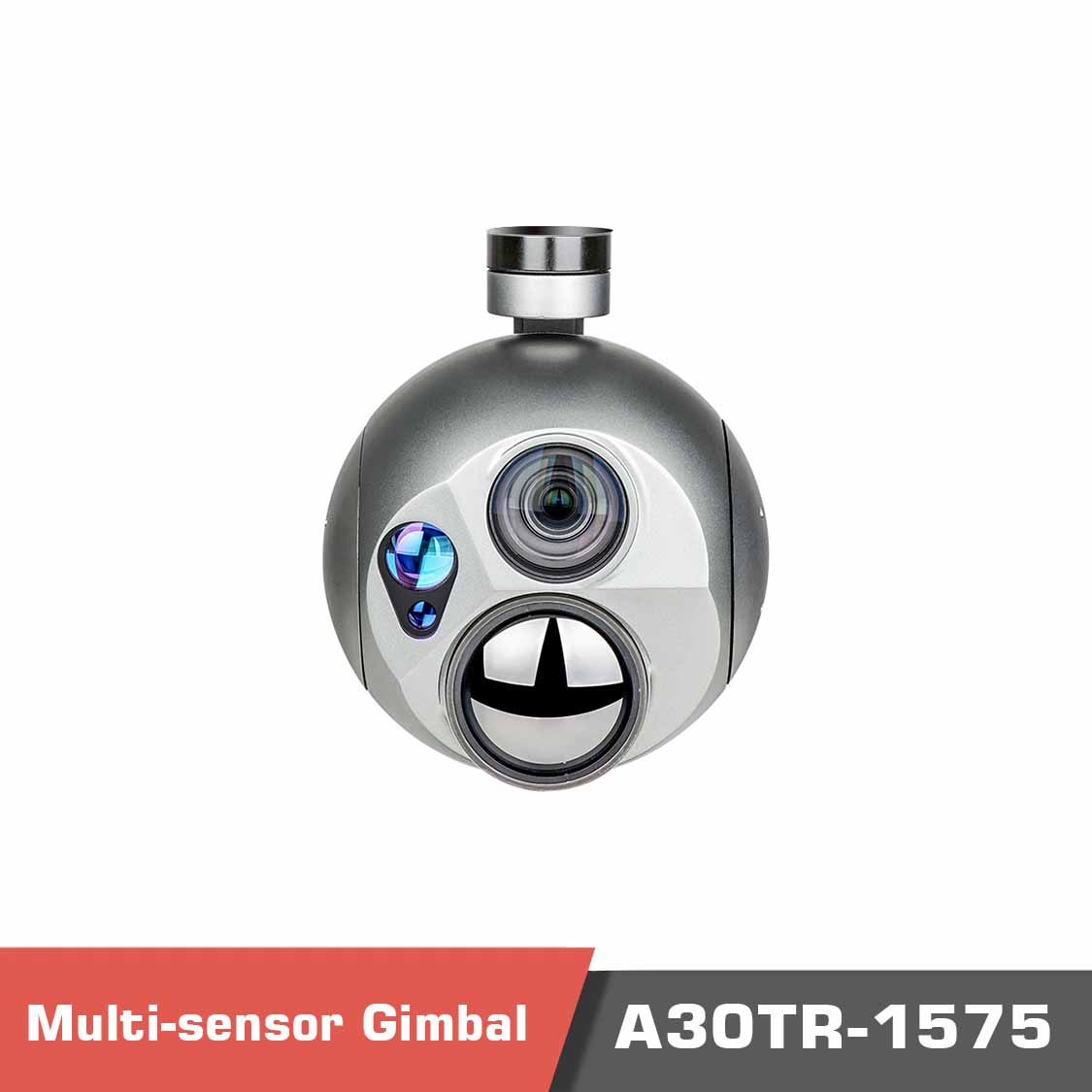

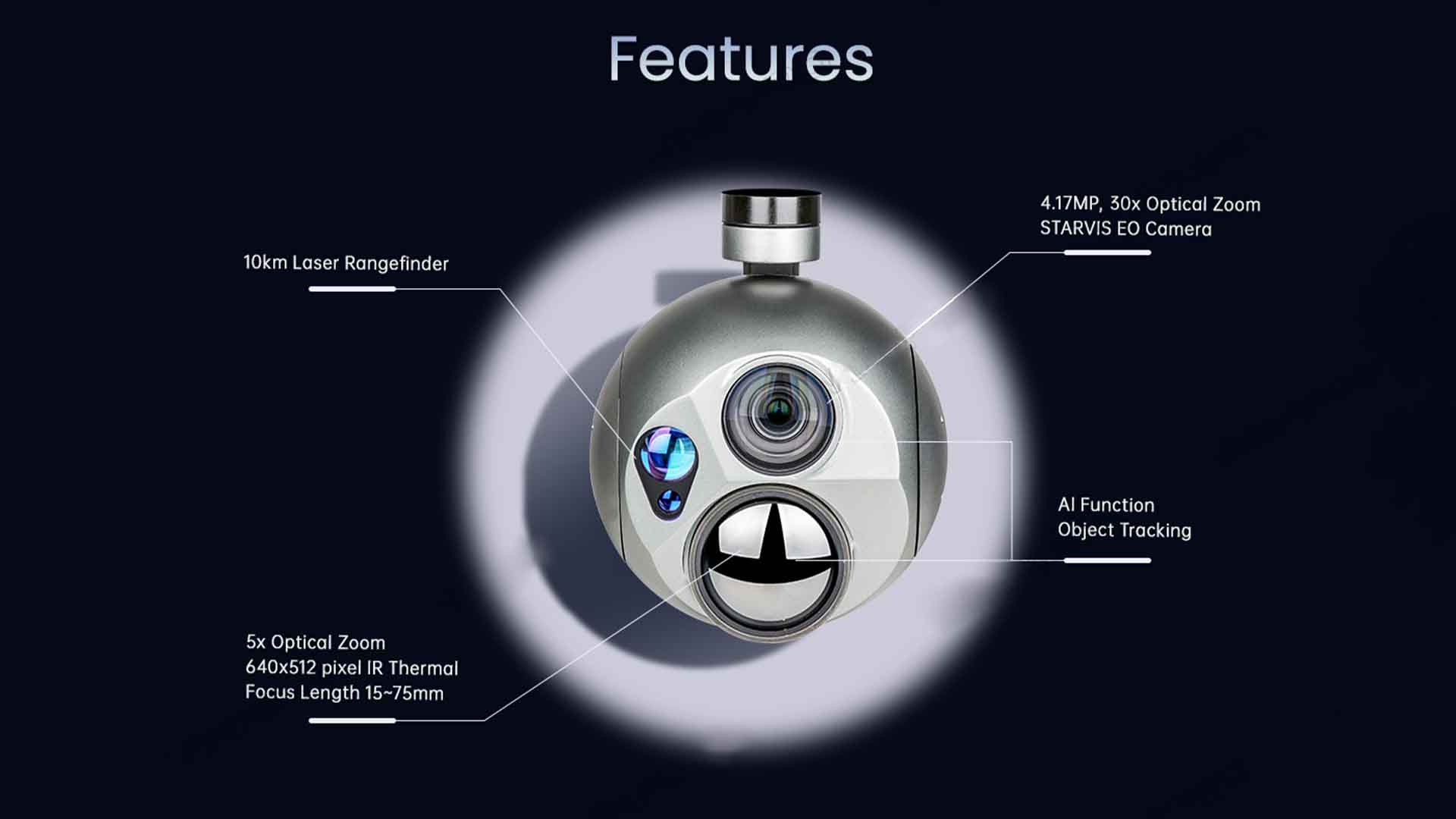

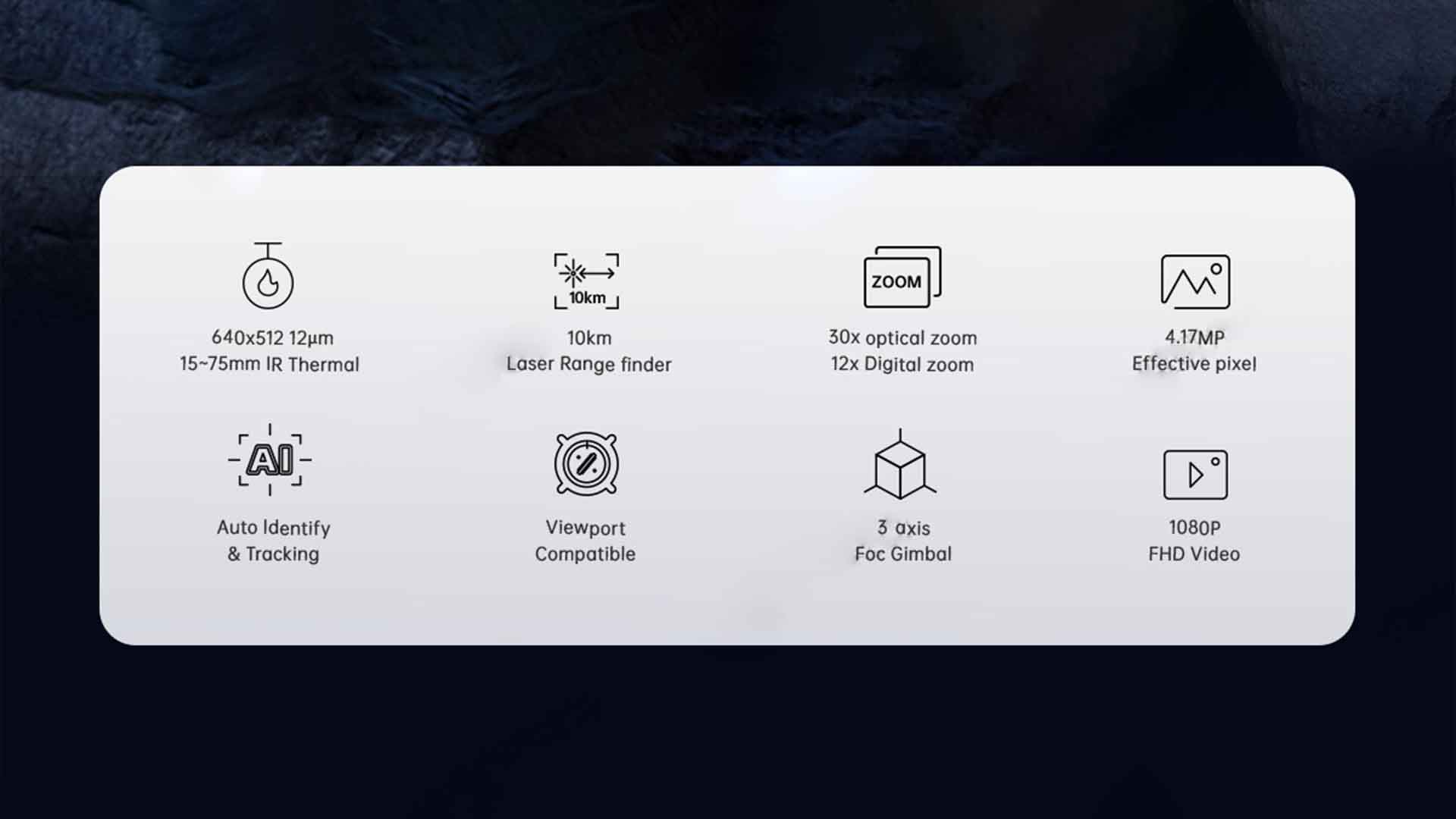

Introducing the A30TR-1575 gimbal camera, an advanced gimbal system designed to deliver superior imaging and tracking capabilities for a variety of applications. At its core, the gimbal features a 1/1.8″ Type STARVIS CMOS image sensor, renowned for its high sensitivity and low-light performance, coupled with a 30x optical zoom lens ranging from 6.5mm to 162.5mm.

This powerful combination allows for detailed and crisp imagery with a total pixel count of 4.17 megapixels. It can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution.

Thermal sensor of A30TR-1575

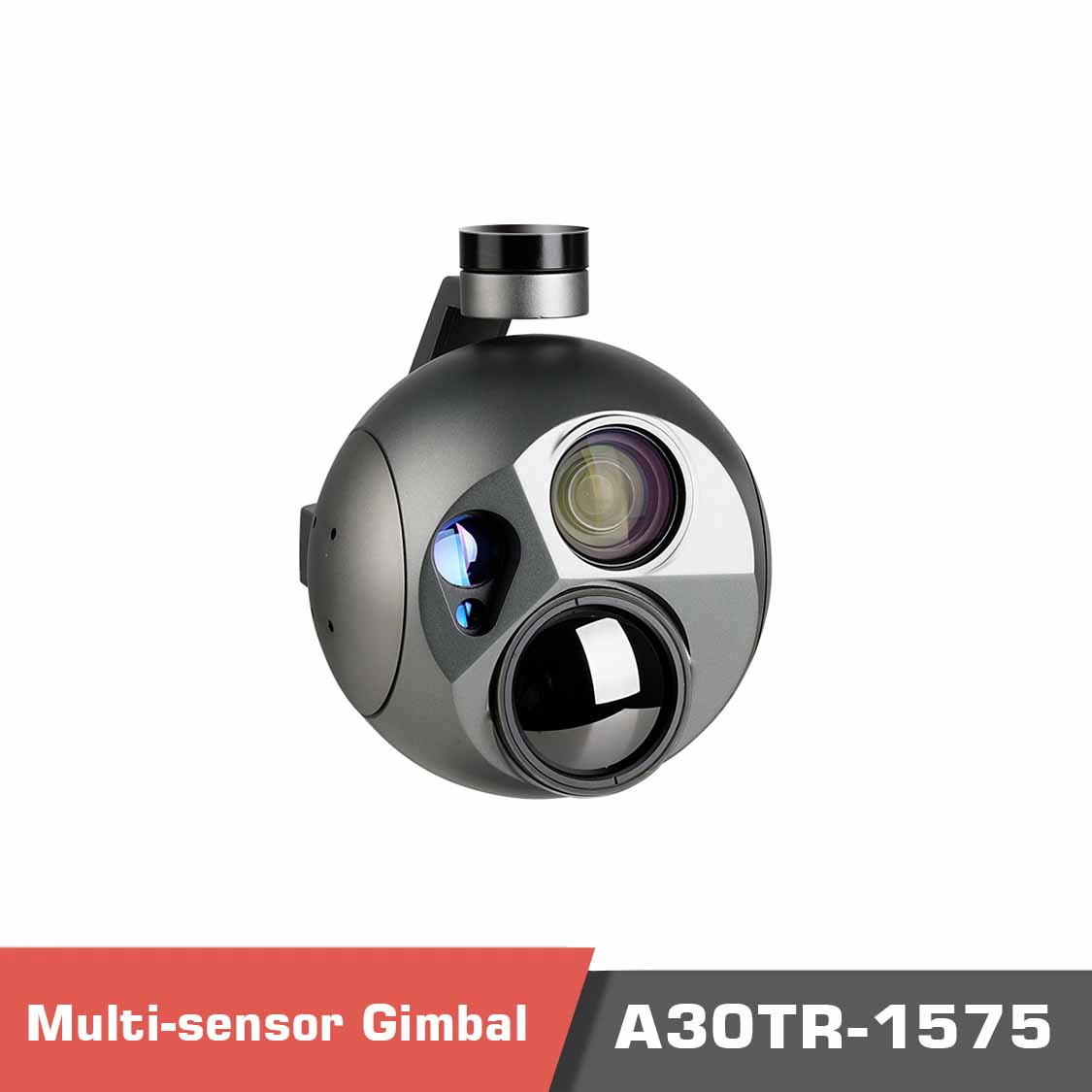

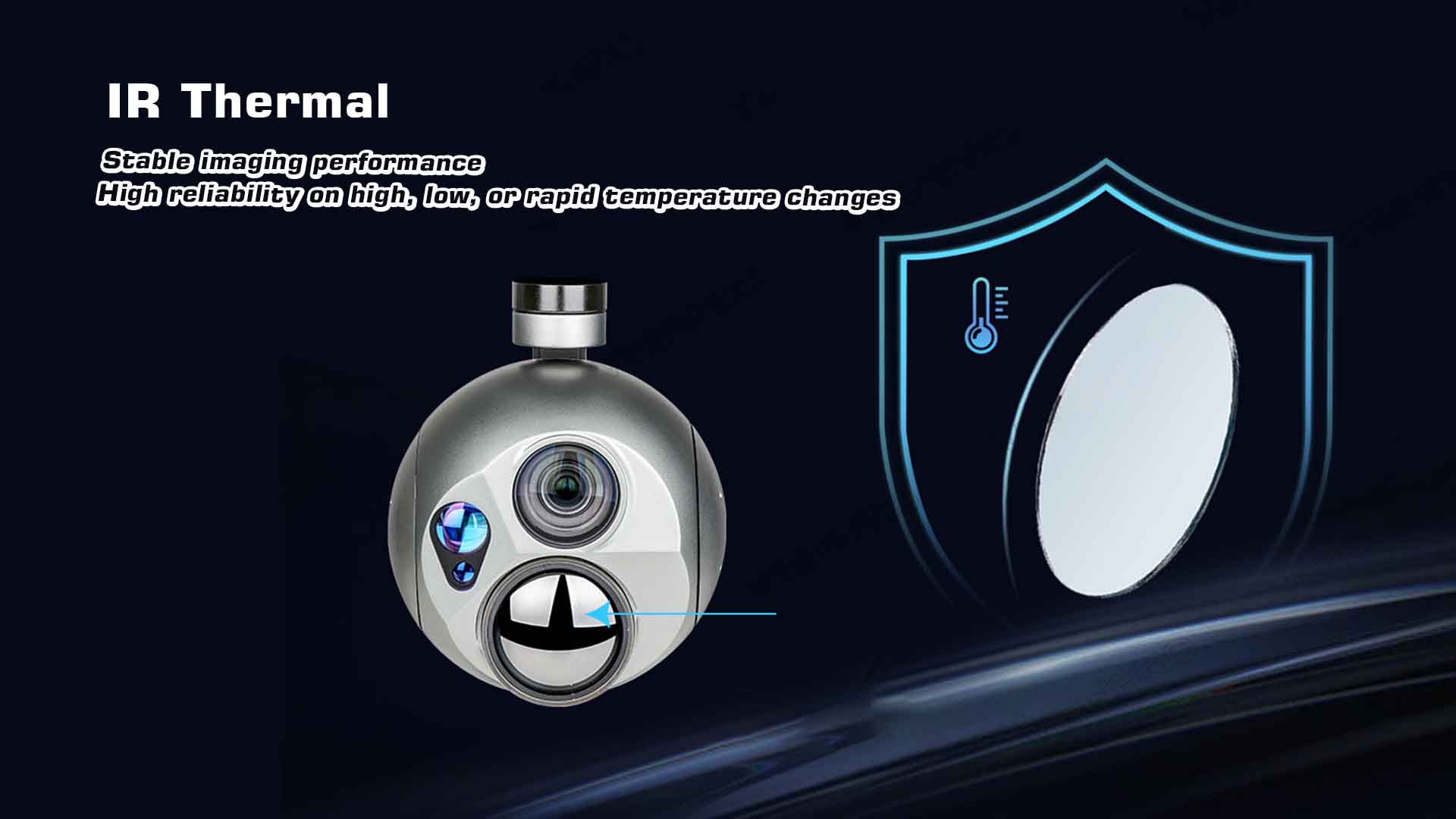

Enhancing its versatility, the A30TR-1575 also includes a thermal sensor with a resolution of 640×512. Most importantly, most of the available models have a fixed lens for the thermal sensor, while digital zoom is supported. The good news is that the new model addresses a highly demanded solution to solve that issue. A30TR-1575 has a variable focus length of 15mm to 75mm, and a 5x optical zoom. The thermal sensor boasts a 12-micrometer pixel size and a 25Hz refresh rate, ensuring precise thermal imaging capabilities.

Operational Applications

Equipped with advanced AI functions, the gimbal offers human and vehicle identification and tracking, making it ideal for security, surveillance, and search-and-rescue operations. The integrated laser rangefinder provides accurate distance measurements up to 5000 meters, further enhancing its operational utility.

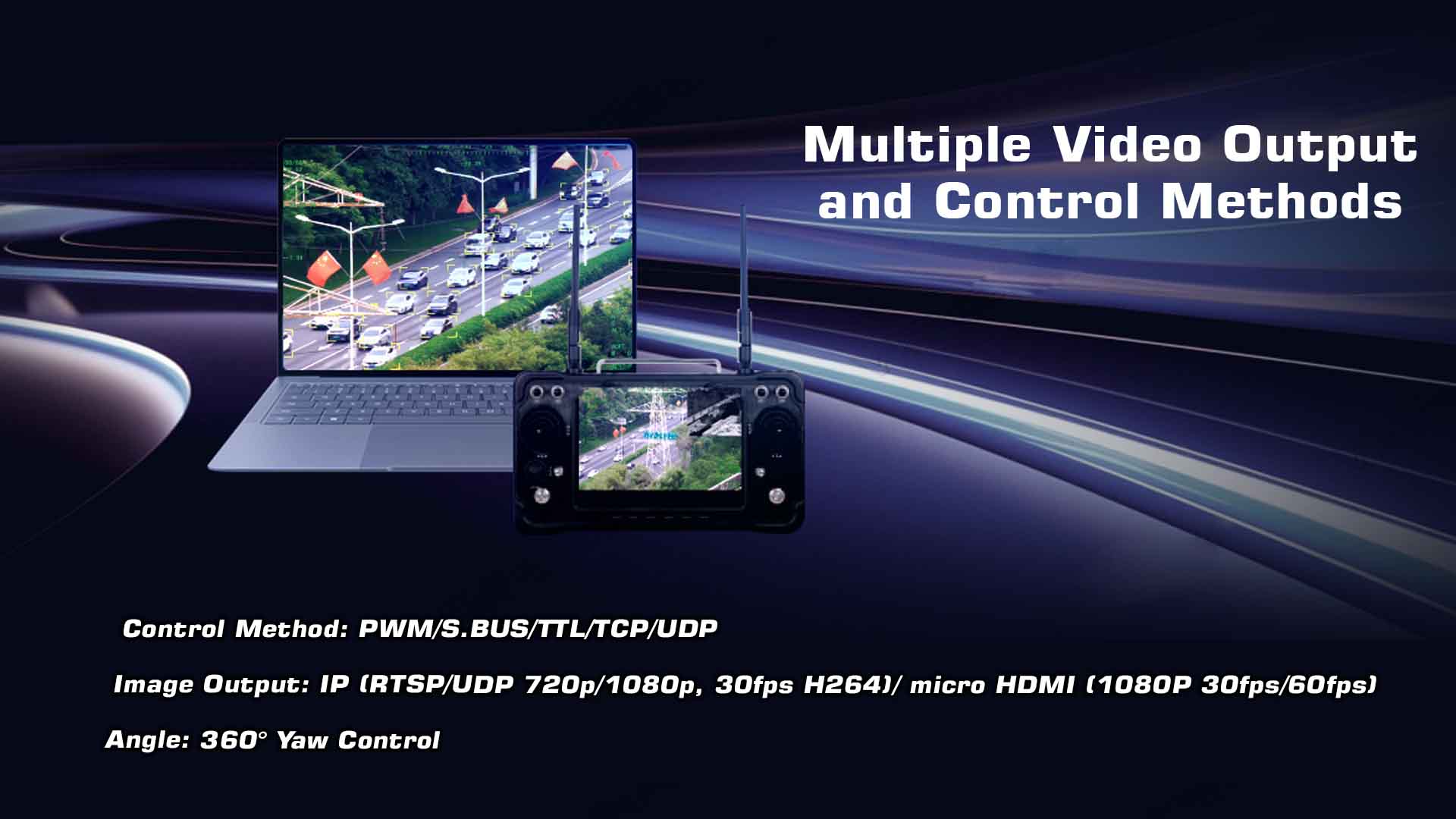

Robust Performance

Designed for robust performance, the A30TR-1575 gimbal camera supports multiple control methods including PWM, TTL, S.BUS, TCP, and UDP, and outputs via IP, ensuring seamless integration with various systems. It operates within a voltage range of 4s to 6s, accommodating different power configurations. For local storage, it supports SD cards up to 256GB, providing ample space for high-quality video and data recording.

Operational Capabilities

Upgrade your operational capabilities with the A30TR-1575 gimbal system, delivering high-definition visual and thermal imaging, reliable AI tracking, and precise laser rangefinding for a wide range of demanding applications.

Gimbal Camera AI object Detection and Tracking Video

Overview of the gimbal A30TR-1575 gimbal camera

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Hardware Parameter
Working voltage	16V
Input voltage	4S ~ 6S (14.8V~25.2V)
Output voltage	5V (connect with PWM)
Dynamic current	1200~1700mA @ 16V
Power consumption	Average 19.2W, Max 27.2W
Working environment temp.	-20℃ ~ +50℃
Output	Micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps H264)
Local-storage	TF card (Up to 256G,class 10, FAT32)
Picture storage format in TF card	JPG(1920*1080)
Video storage format in TF card	MP4(1080P 30fps)
Control method	PWM / TTL / S.BUS / TCP / UDP

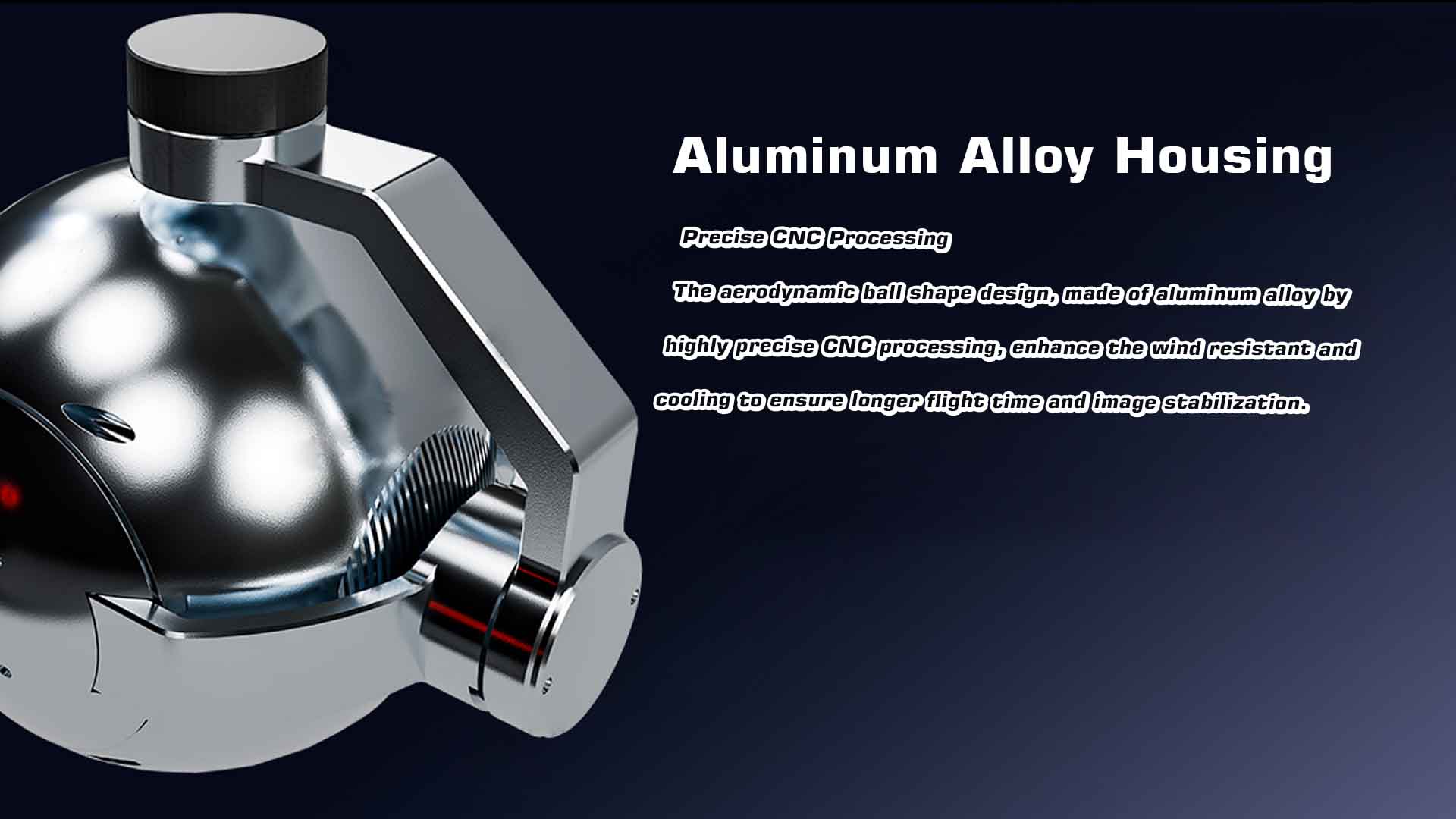

Gimbal Spec

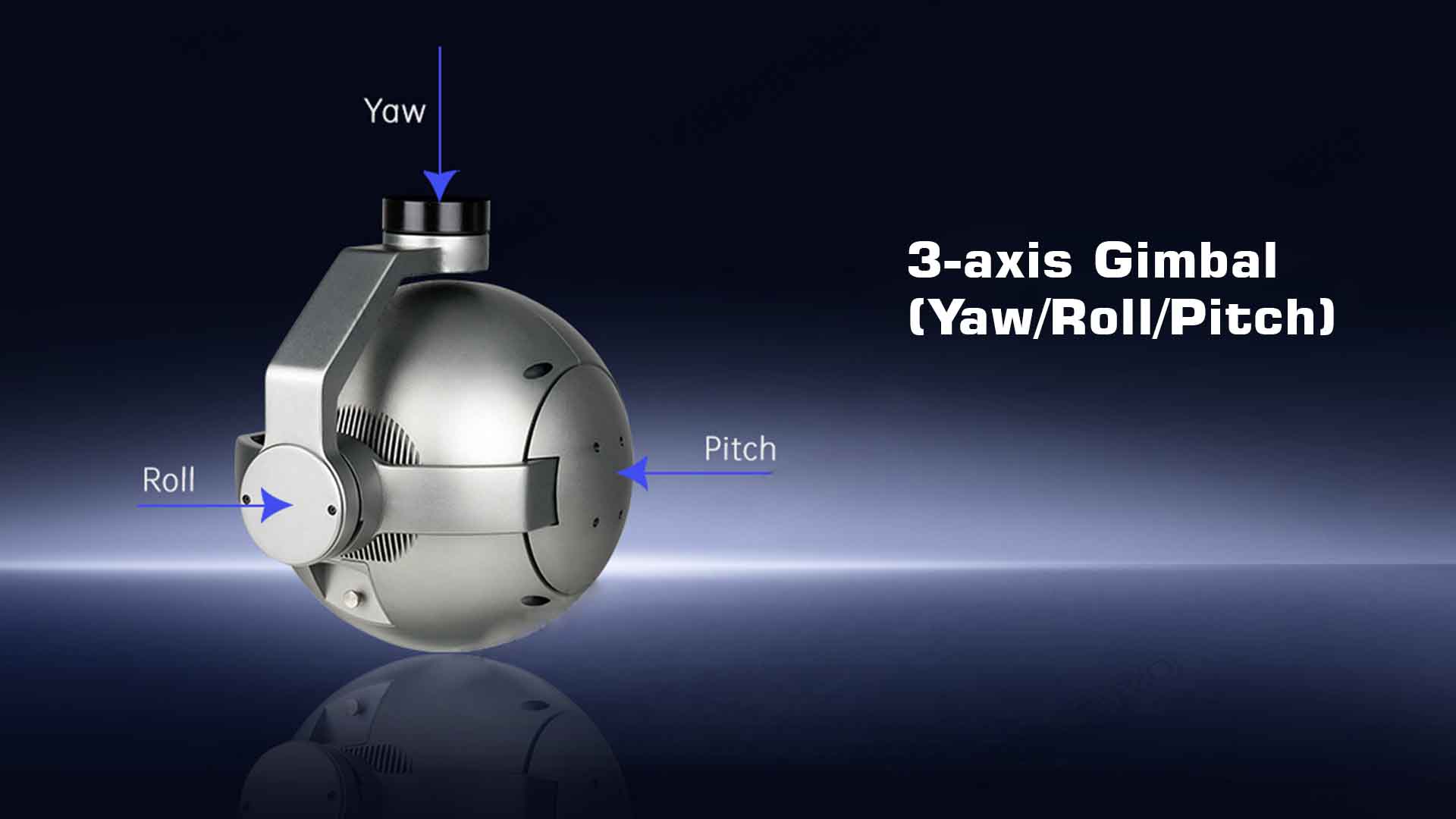

Mechanical Range	Pitch/Tilt: -60°(Up)～105°(Down), Roll: ±60°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range	Pitch/Tilt: -45°～100°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle	Pitch/Roll/Yaw: ±0.02°
One-key to center	√

EO Camera Spec
Imager Sensor	1/1.8 Type STARVIS CMOS Sensor
Picture quality	4.17MP
Lens optical zoom	30x, f=6.5~162.5mm, F1.6 to F4.8
Digital zoom	12x (max. 432x with StableZoom)
Min object distance	100 mm (Wide end), 1200 mm (Tele end)
Horizontal viewing angle	58.1°(wide end) ~ 2.3°(tele end)
Image S/N	50 dB (Weight On)
Min illumination	In the case of ICR-Off
	(Typical value) 0.009 lx (1/30 sec, 50%, High Sensitivity mode On)
	0.09 lx (1/30 sec, 50%, High Sensitivity mode Off)
	0.0012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode On)
	0.012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode Off)
	In the case of ICR-On
	0.00008 lx (1/30 sec, 50%, High Sensitivity mode On)
	0.00063 lx (1/30 sec, 50%, High Sensitivity mode Off)
	0.000005 lx (1/4 sec, 1/3 sec, 30%, High Sensitivity mode On)
High Sensitivity mode On/Off	Off
Recommended illumination	100 lx to 100,000 lx
Gain	Auto/Manual (0 to 50.0 dB (0 to 28 step)) Max. Gain Limit (10.7 to 50.0 dB (6 to 28 step))
White balance	Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Wide Dynamic Range Mode	On/Off
Shutter speed	1/1 sec to 1/10000 sec (22 steps)
Backlight compensation On/Off	Off
Image Stabilizer On/Off/Hold	Off
ICR On/Off	Off
Noise Reduction	On/Off
Defog	On/Off (low, mid, high)

IR Thermal Imager Spec
Focus Length	15~75mm
optical zoom	1x ~ 5x
Horizontal FOV	28.7°~5.86°
Vertical FOV	23.1°~4.69°

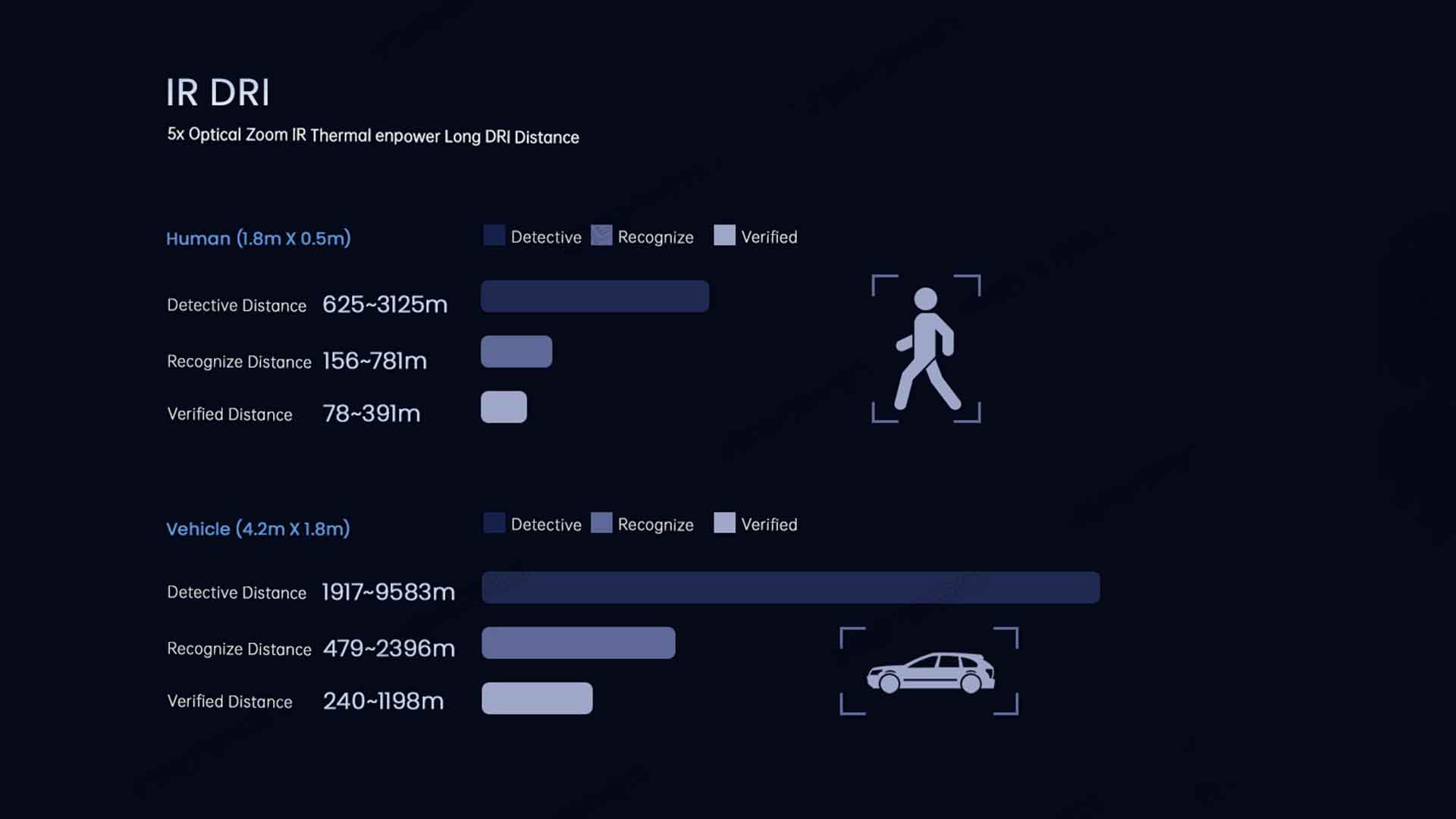

15~75mm Detective Distance (Man: 1.8×0.5m)	625~3125 meters
15~75mm Recognize Distance (Man: 1.8×0.5m)	156~781 meters
15~75mm Verified Distance (Man: 1.8×0.5m)	78~391 meters
15~75mm Detective Distance (Car: 4.2×1.8m)	1917~9583 meters
15~75mm Recognize Distance (Car: 4.2×1.8m)	479~2396 meters
15~75mm Verified Distance (Car: 4.2×1.8m)	240~1198 meters
Working mode	Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel	640×512
Pixel pitch	12μm
Focusing method	Athermal prime lens
NETD	≤40mK@25℃,F #1.0
Color palette	white hot, black hot, Iron Red

EO / IR Camera Object Tracking
Update rate of deviation pixel	30Hz
Output delay of deviation pixel	<30ms
Minimum object contrast	5%
SNR	4
Minimum object size	16*16 pixel
Maximum object size	256*256 pixel
Tracking speed	±48 pixel/frame
Object memory time	100 frames

EO Camera AI Performance
Targets type	Car and human
Simultaneous detection quantity	≥ 10 targets
Min contrast ratio	5%
Min target size	5×5 pixel
Car detection rate	≥85%
False alarm rate	≤10%

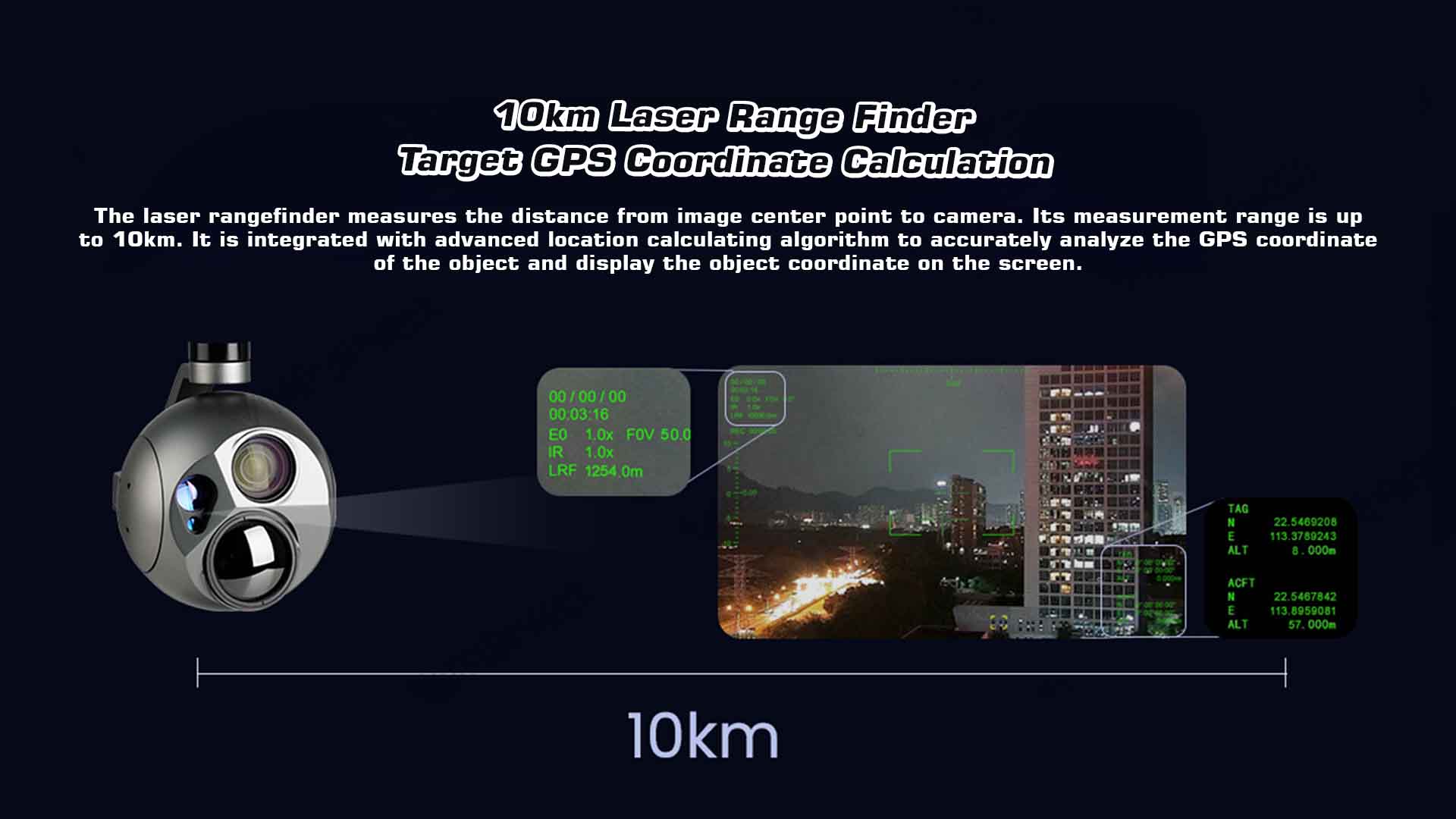

IR Laser Rangefinder
Range	10km for big target (eg. building)
	≥6km for car (2.3m×2.3m)
	≥2.5km for people (1.75m×0.75m)
Accuracy	≤2m (RMS)
Light Beam	1535±5nm pulse laser
Divergent Angle	≤0.5mrad
Laser pulse frequency	1~10Hz
Min measuring range	≤30m
Location Resolving	Latitude and longitude of target
Rangefinder	Measure the distance between the object at the center of screen and the laser rangefinder

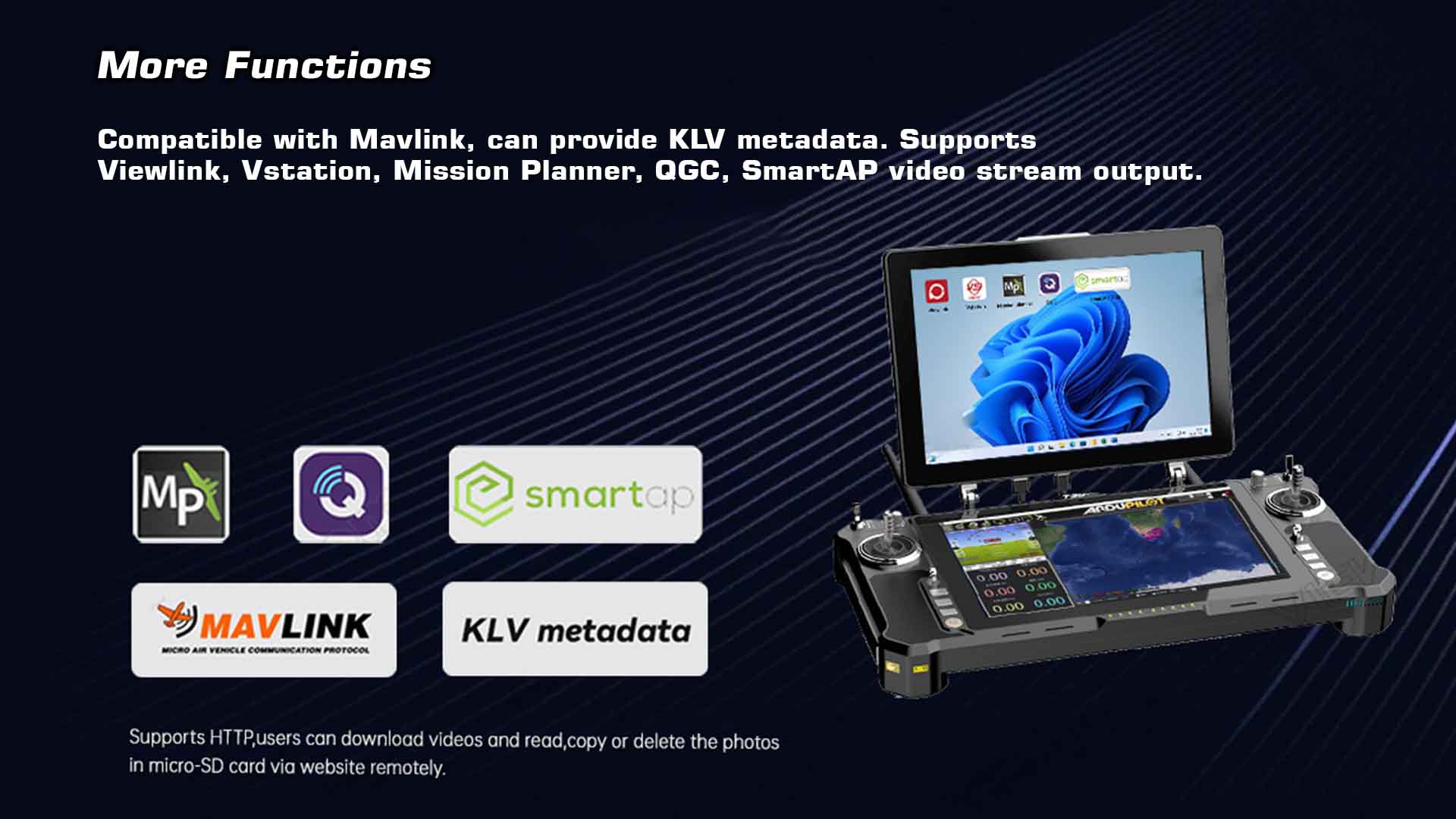

Features

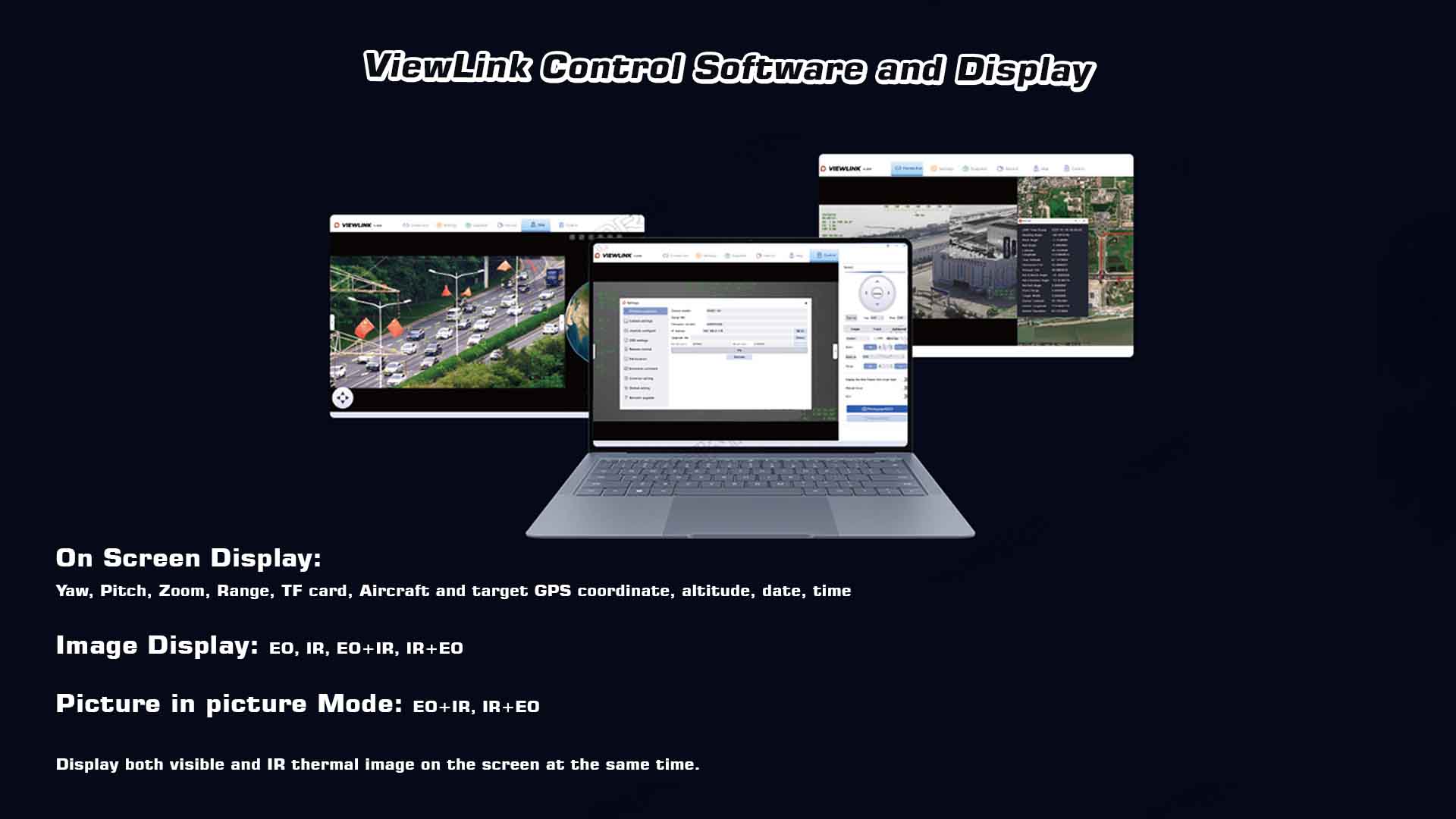

OSD	Display the gimbal’s yaw and pitch angle, magnification, ranging value, card recording duration, aircraft GPS and altitude, target ranging point GPS and altitude, date and time
Geotagging	Display time and GPS coordinate in picture exif
Card reading online	HTTP read pictures or videos
KLV (UDP)	Card recording or Viewlink video playback
ArduPilot / PX4	Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature
Video switching	EO+IR /IR+EO /EO /IR
Dual video stream output (optional)	Support(EO and IR two stream output, notes: unable to record once the dulal video stream output activated)

Packing Information

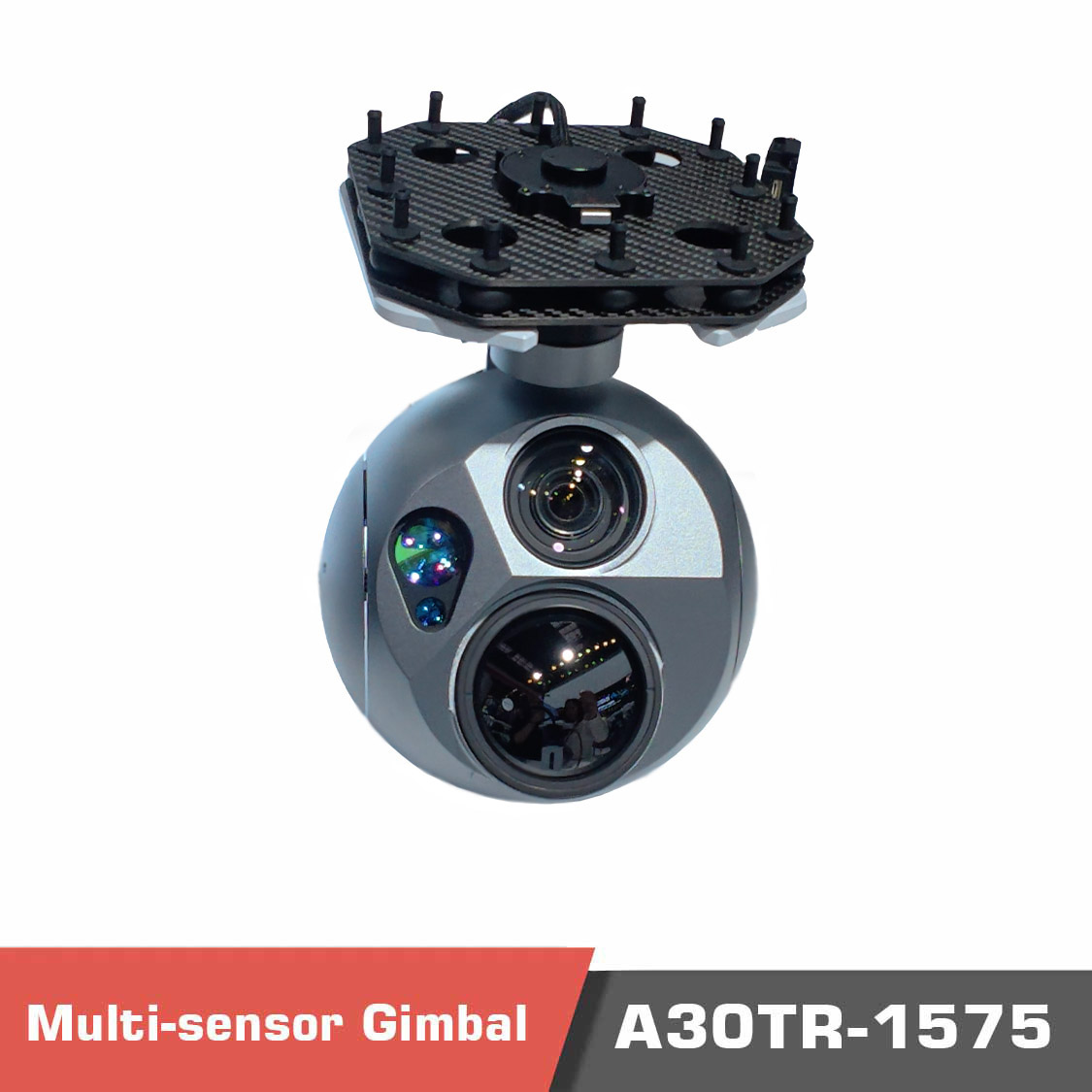

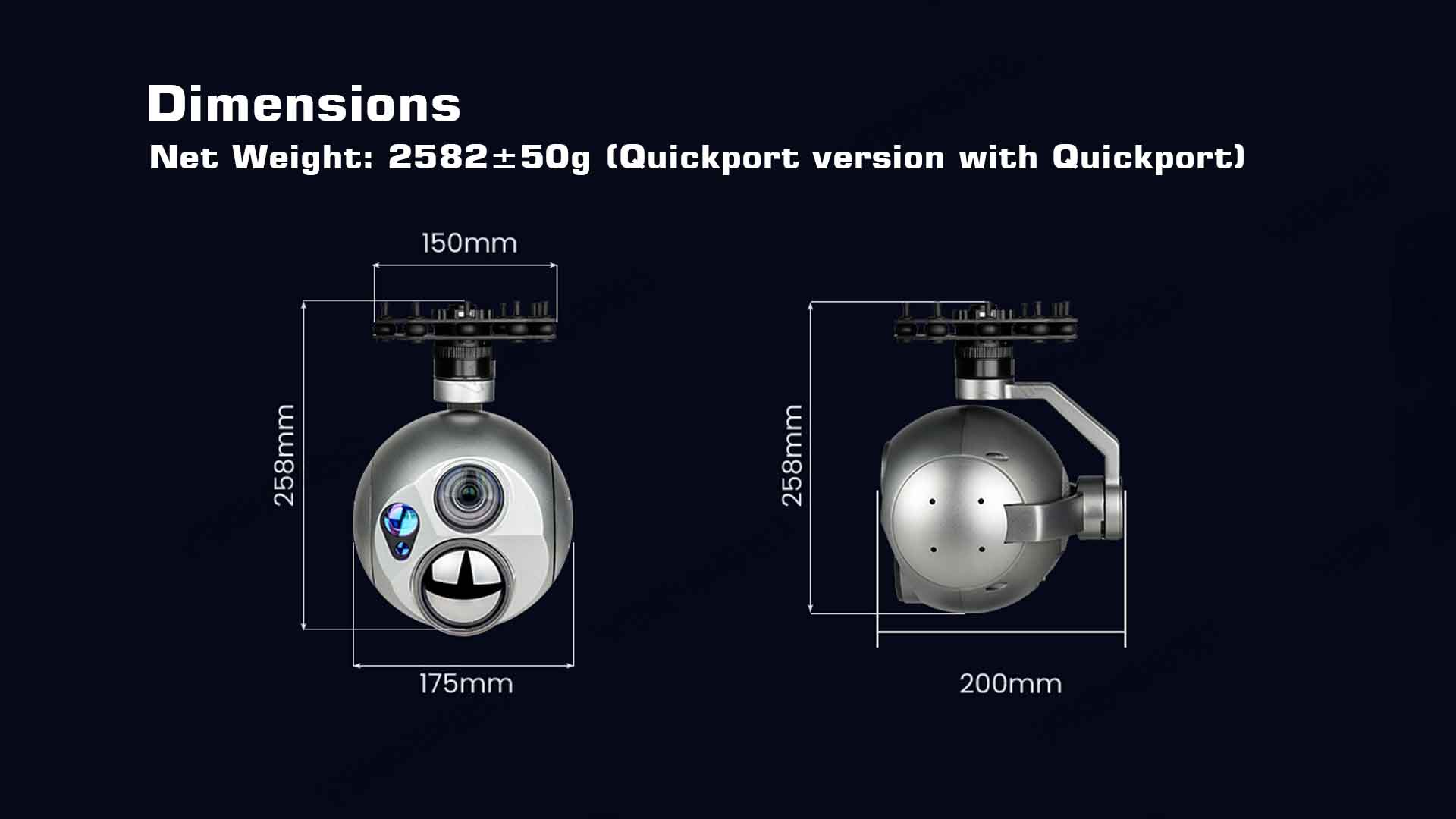

N.W.	2582±50g(Viewport version with Viewport)
Product meas.	200175258mm(Viewport version with Viewport)
Accessories	1pc gimbal camera device, screws, aluminum cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion

Product contents

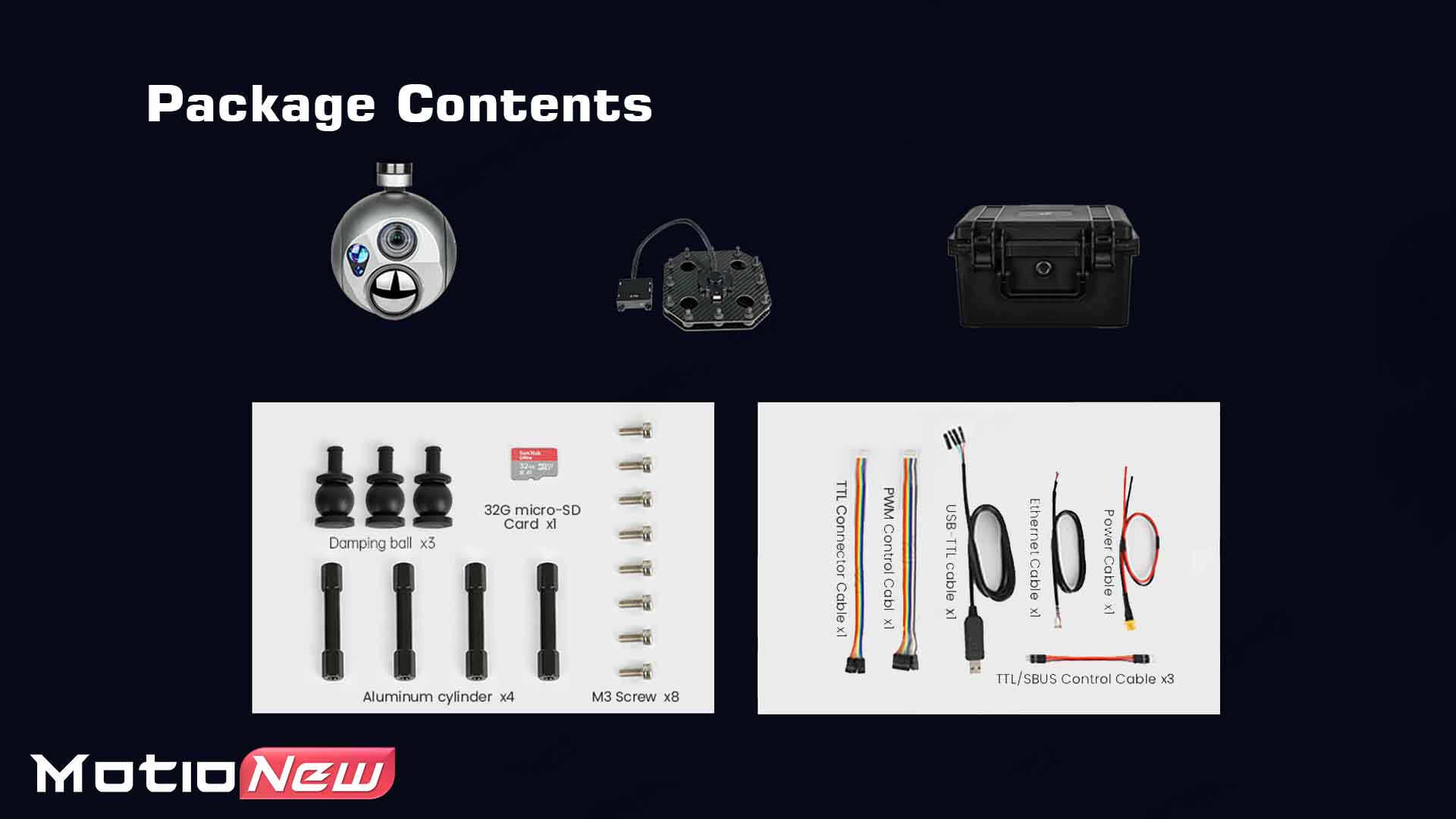

1x A30TR-1575 gimbal camera device, screws, aluminum cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion.
