U7DER / U7DE Gimbal Camera with Micro Prime Lens and Dual EO/IR (Hawkeye series)
2999.00 $ – 14919.00 $
Description

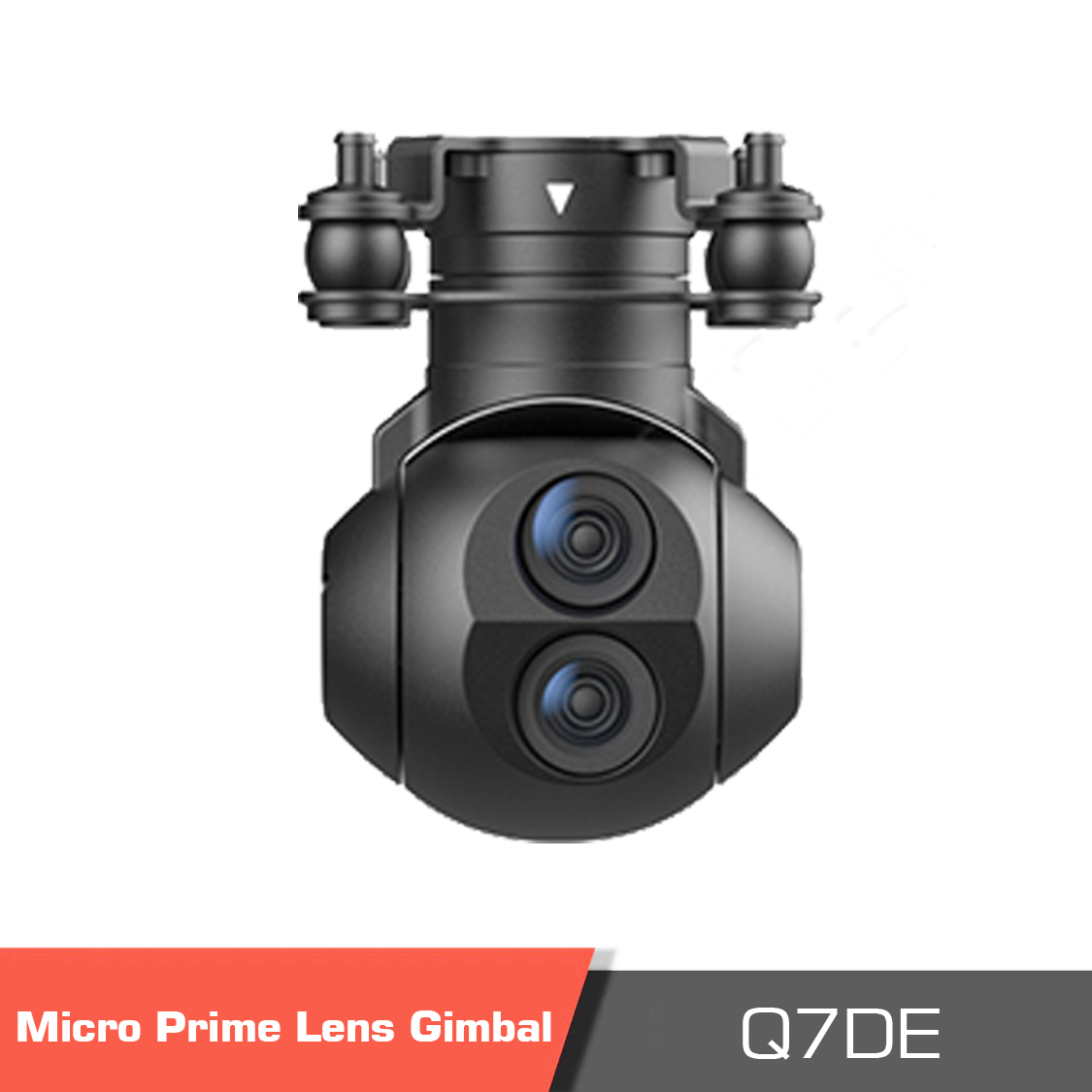

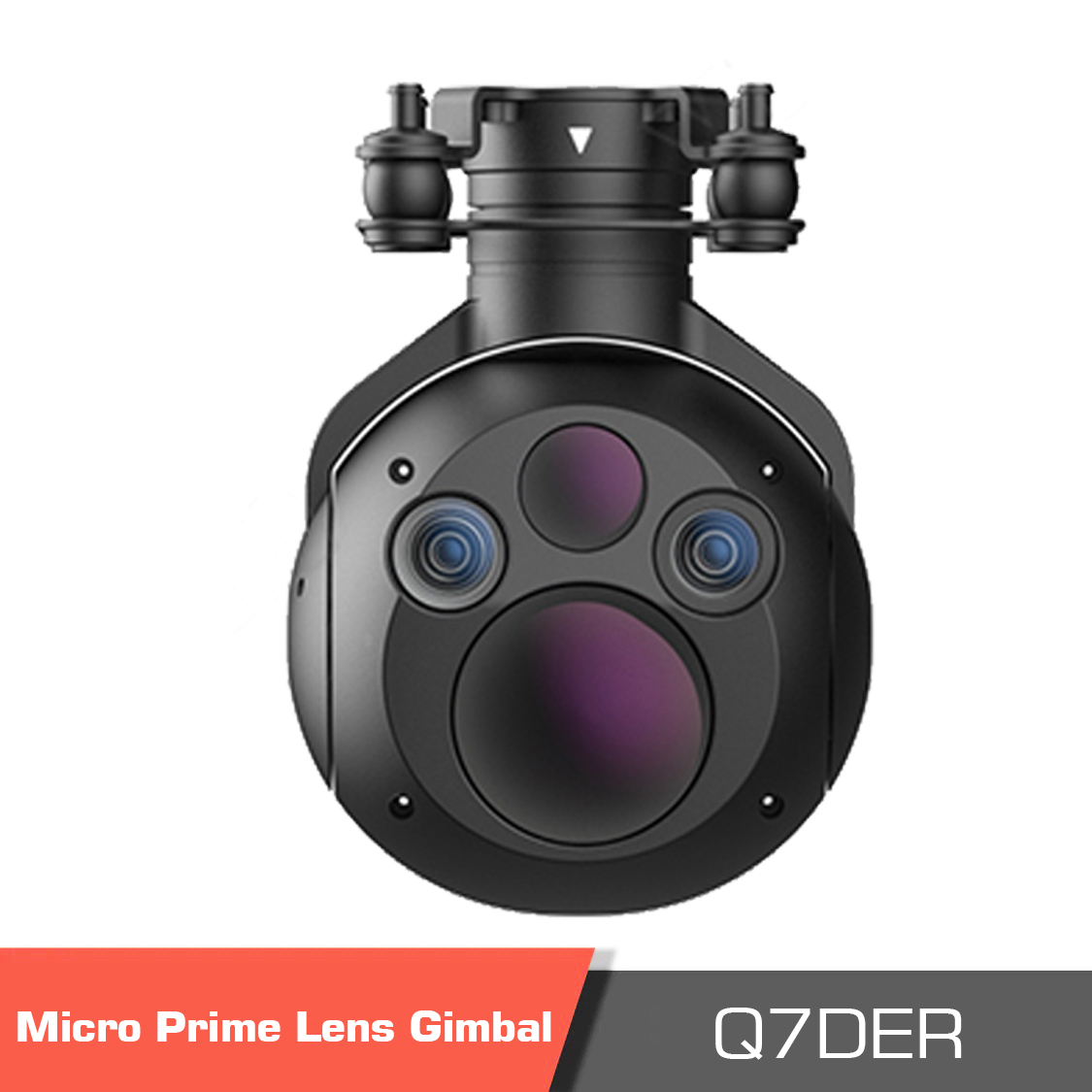

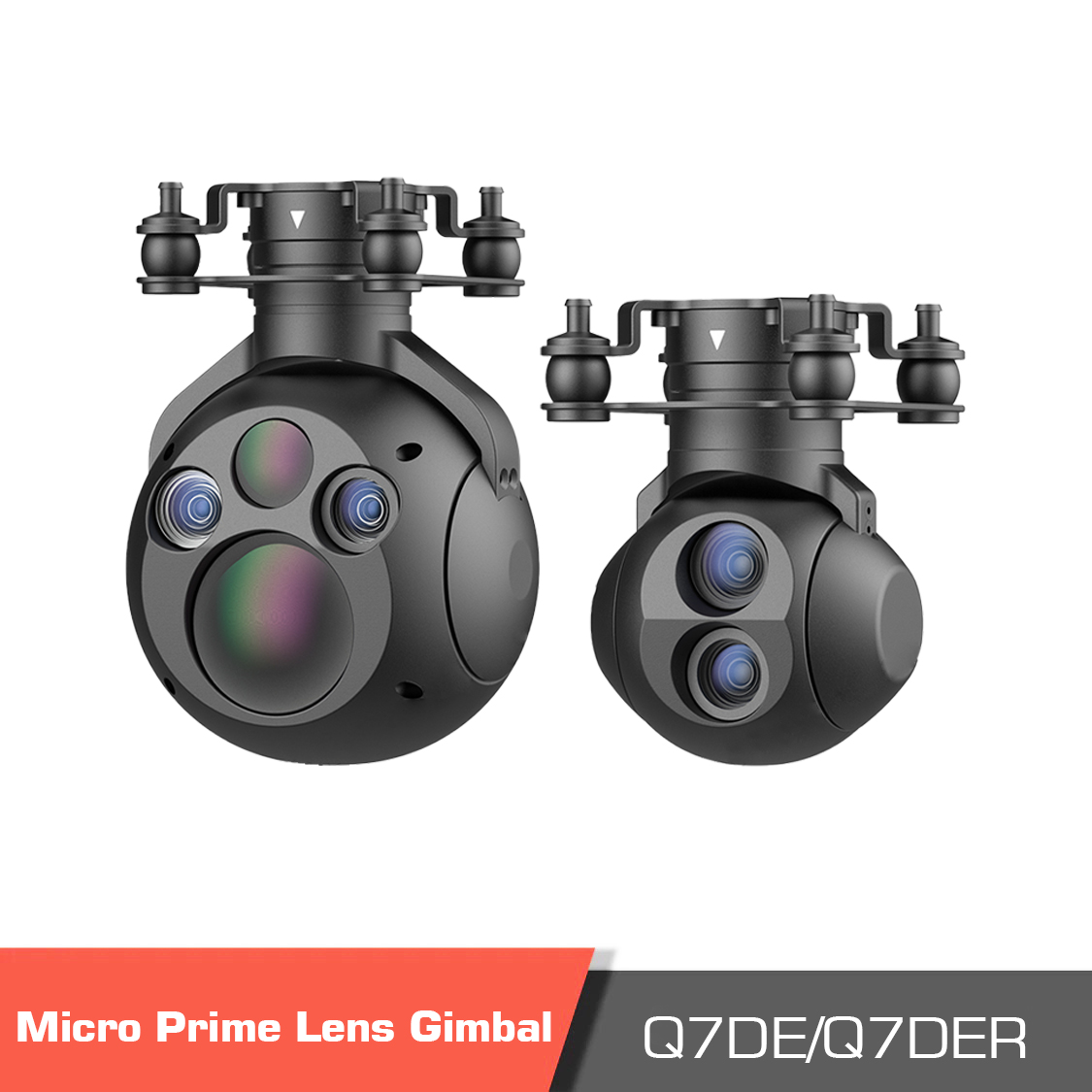

U7DER / U7DE Gimbal Camera with Micro Prime Lens and Dual EO/IR (Hawkeye series)
U7DER / U7DE Gimbal Camera are two gimbals with Dual Electro-optical sensors (dual EO sensors) integrated with AI object identification and tracking module, which can perform automatic car and human recognition and tracking. U7DER has dual IR sensors as well as dual EO sensors. The thermal and visible images can be transmitted simultaneously in a picture-in-picture format (PIP format).
EO Sensors

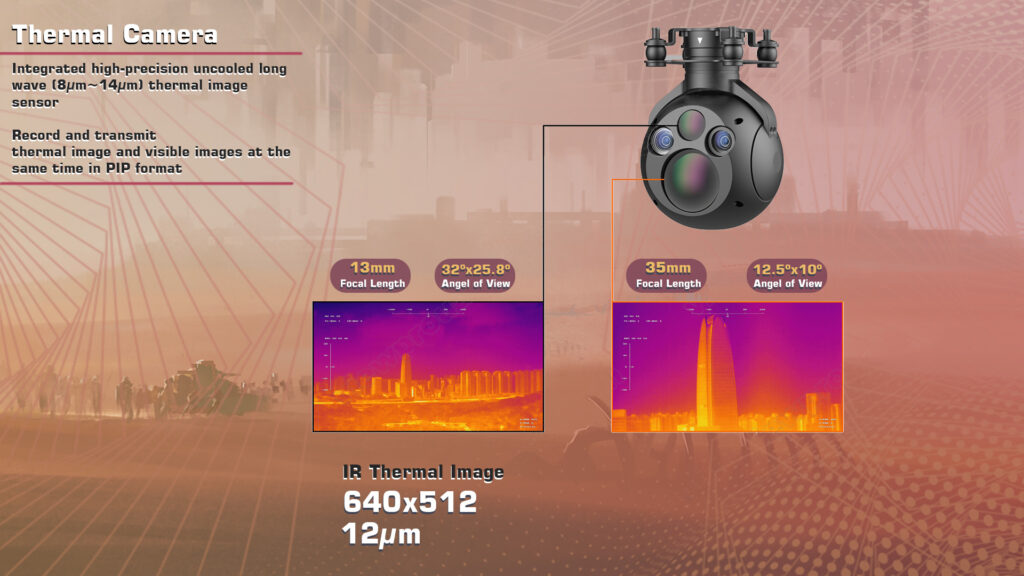

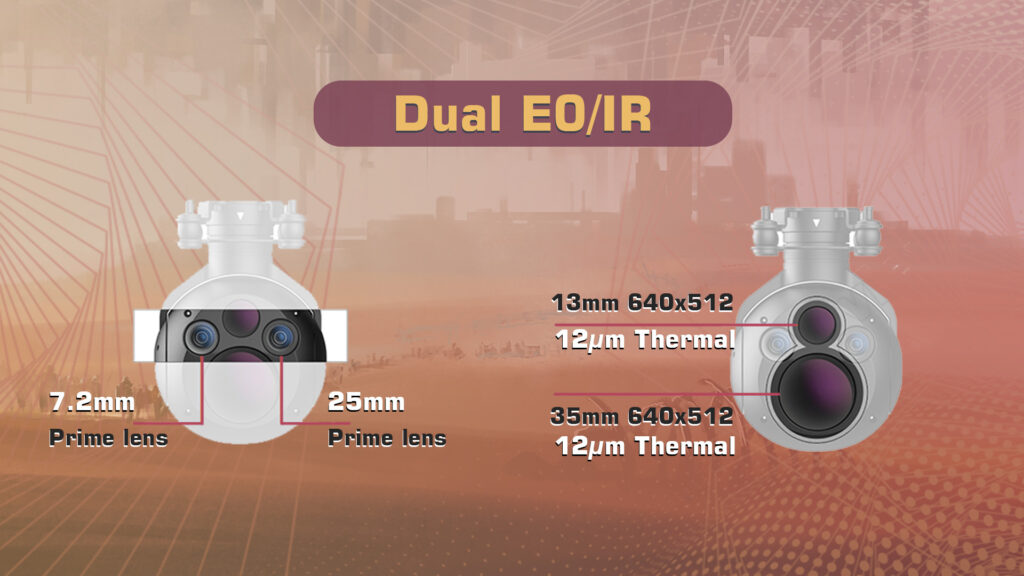

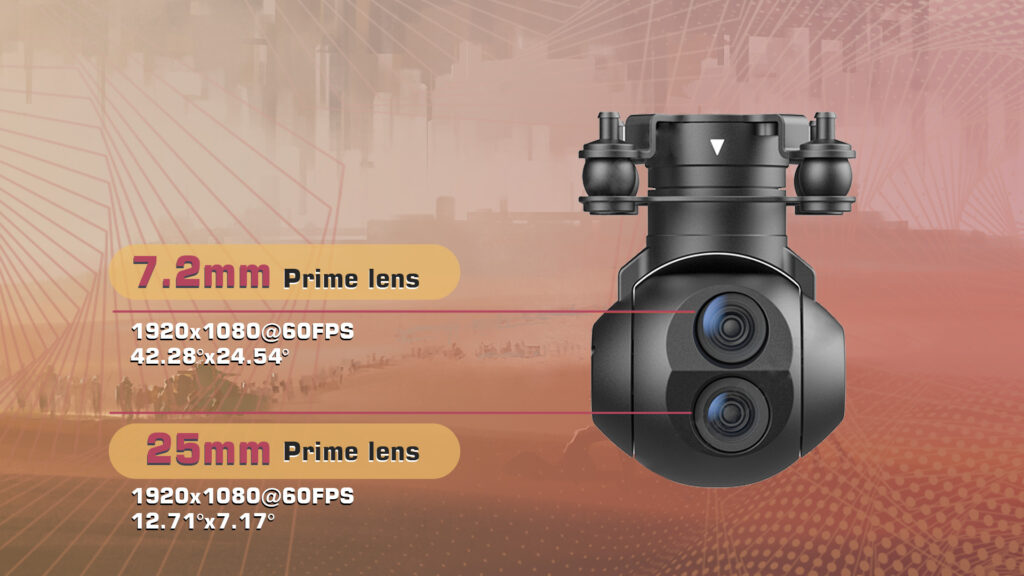

Two 7.2mm and 25mm lenses are provided for EO sensors. They can output videos with full HD resolution 1920×1080@60fps. The thermal sensors are 640×512 and are equipped with 13mm and 35mm lenses. The system supports up to 4x digital zoom.
U7DER / U7DE Gimbal Camera Dimensions and weight

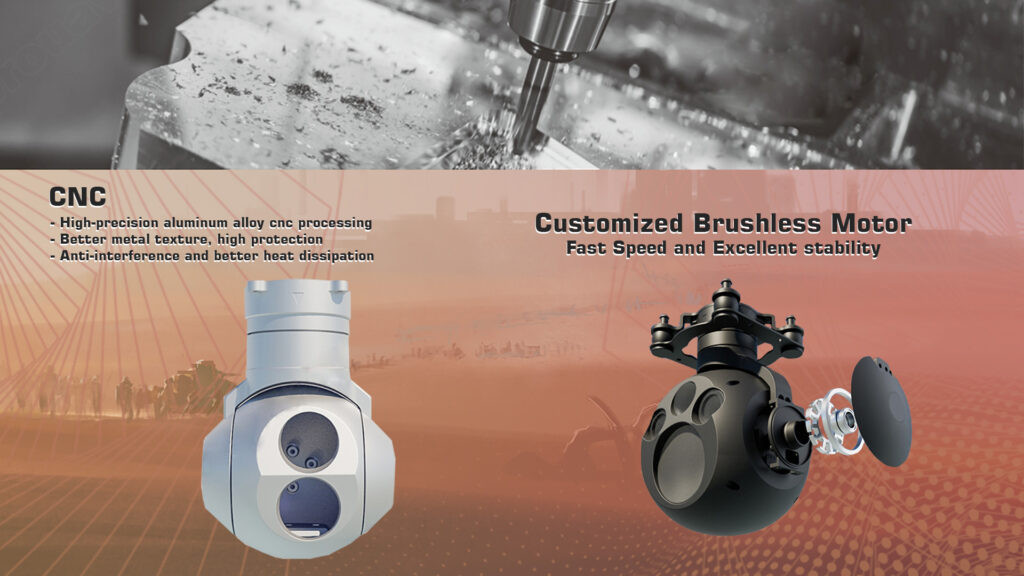

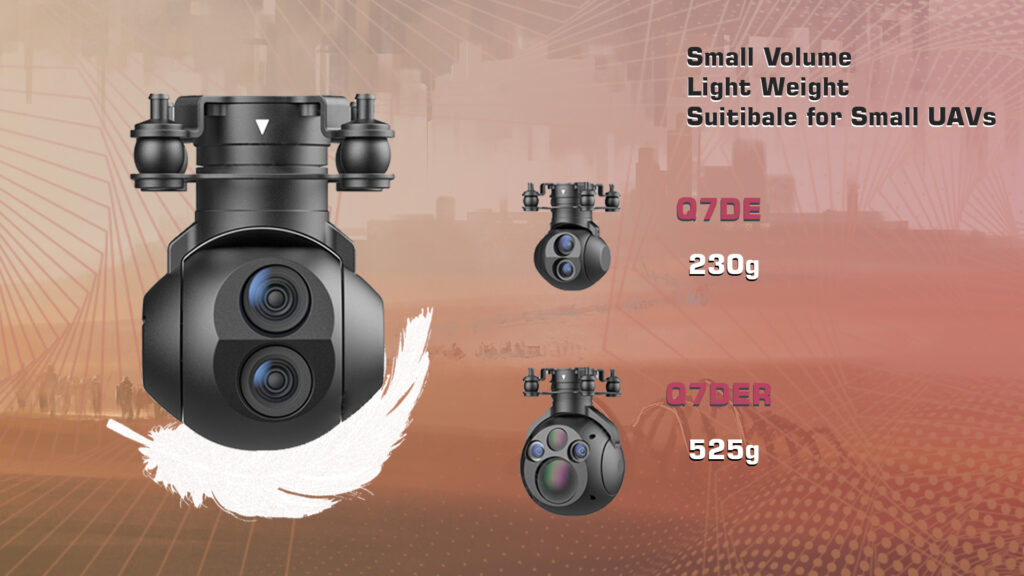

Both models are lightweight and have a compact structure with a small volume. U7DER / U7DE Gimbal Camera weigh only 230g and 525g respectively. High-precision aluminum alloy CNC processing gives the gimbals a sophisticated look, increases protection against incidents, and creates a good shield for anti-interference protection and heat dissipation.ย
More than 10 subjects can be detected at the same time
Both gimbals have embedded artificial intelligence algorithms onboard to detect various human and car subjects, making them ideal for applications such as surveillance, aerial photography, and Gimbal Drone operations. More than 10 subjects can be detected at the same time. It is possible to customize AI detection algorithm based on the characteristics of the intended subject.ย
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
U7DER Specification
| Hardware Parameter | |
| Working voltage | 12V(3S) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 900~1500mA @ 12V |
| Idle current | 900mA @ 12V |
| Working environment temp. | -20โ~+60โ |
| Output | IP rtsp (1080p 30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4ย (1080P 25fps) |
| Control method | TTL / S.BUS/ TCP |
| Gimbal Spec | |
| Angle scope of structure design | Pitch/Tilt: -60ยฐ๏ฝ120ยฐ,ย ย ย Yaw/Pan: ยฑ360ยฐ*N |
| Angle scope of software design | Pitch/Tilt: -45ยฐ๏ฝ90ยฐ,ย ย Yaw/Pan: ยฑ360ยฐ*N |
| Vibration angle | Pitch/Roll: ยฑ0.02ยฐ, Yaw๏ผยฑ0.02ยฐ |
| One-key to center | โ |
| EO Camera 1 Spec | |
| Resolution | 1920*1080 @60fps |
| Focus Length | 7.2mm |
| Angle of View | 42.28ยฐ*24.54ยฐ |
| EO Camera 2 Spec | |
| Resolution | 1920*1080 @60fps |
| Focus Length | 25mm |
| Angle of View | 12.71ยฐ*7.17ยฐ |
| IR Thermal Imager Spec | |
| Angle of View 1 | 32ยฐ*25.8ยฐ |
| Angle of View 2 | 12.5ยฐ*10ยฐ |
| Working mode | Uncooled VOx long wave (8ฮผm~14ฮผm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12ฮผm |
| Focusing method | Thermal prime lens |
| Color palette | White hot, pseudo color |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| EO Camera Object Tracking | |
| Update rate of deviation pixel | 60Hz |
| Minimum object contrast | 5% |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ยฑ48 pixel/frame |
| Object memory time | 100 frames |
| EO / IR Camera Object Tracking | |

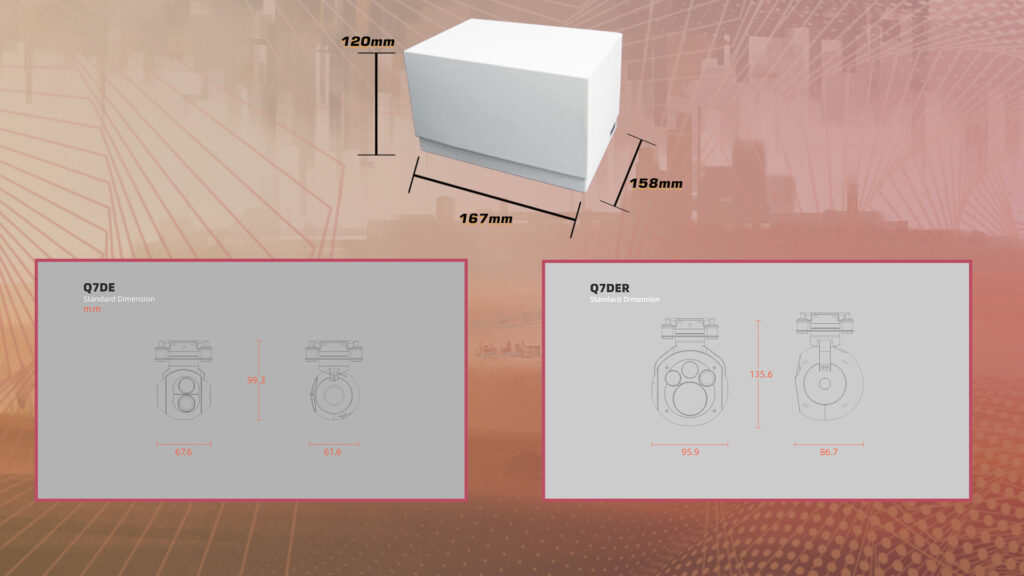

| Product meas. | 95.9*86.7*135.6mm |
| Accessories | 1pc gimbal camera device, screws, USB to TTL cableย / High quality plastic box with foam cushion |
| N.W. | 540g |
| Package meas. | 167*158*120mm |
U7DE Specification
| Hardware Parameter | |
| Working voltage | 12V(3S) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 600~1000mA @ 12V |
| Idle current | 600mA @ 12V |
| Working environment temp. | -20โ~+60โ |
| Output | IP rtsp (1080p 30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4ย (1080P 25fps) |
| Control method | TTL / S.BUS/ TCP |
| Gimbal Spec | |
| Angle scope of structure design | Pitch/Tilt: -60ยฐ๏ฝ120ยฐ,ย ย ย Yaw/Pan: ยฑ360ยฐ*N |
| Angle scope of software design | Pitch/Tilt: -45ยฐ๏ฝ90ยฐ,ย ย Yaw/Pan: ยฑ360ยฐ*N |
| Vibration angle | Pitch/Roll: ยฑ0.02ยฐ, Yaw๏ผยฑ0.02ยฐ |
| One-key to center | โ |
| EO Camera 1 Spec | |
| Resolution | 1920*1080 @60fps |
| Focus Length | 7.2mm |
| Angle of View | 42.28ยฐ*24.54ยฐ |
| EO Camera 2 Spec | |
| Resolution | 1920*1080 @60fps |
| Focus Length | 25mm |
| Angle of View | 12.71ยฐ*7.17ยฐ |
| EO Camera Object Tracking | |
| Update rate of deviation pixel | 60Hz |
| Minimum object contrast | 5% |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ยฑ48 pixel/frame |
| Object memory time | 100 frames |
| Packing Information | |
| Product meas. | 67.6*61.6*99.3mm |
| Accessories | 1pc gimbal camera device, screws, USB to TTL cableย / High quality plastic box with foam cushion |
| N.W. | 285g |
| Package meas. | 167*158*120mm |

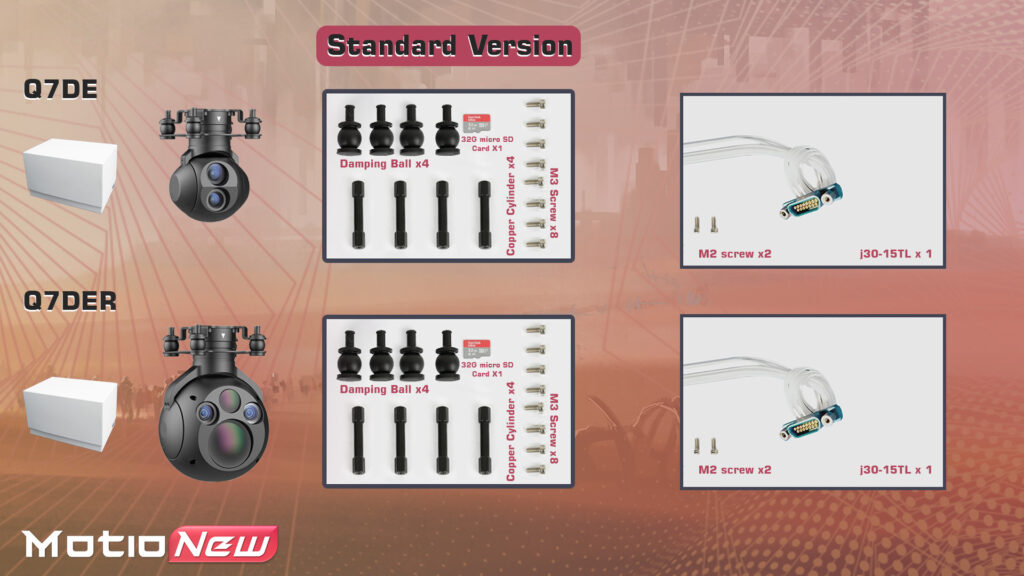

Product contents
1x gimbal camera device (U7DE or U7DER)
4x damping ball
1x 32G micro SD card
4x copper cylinder
8x M3 screw
2x M2 screw
1x j30-15TL
Documents
Please contact us for more information.
