Gimbal Q30TIR-1352 Dual Sensor Tracking

Description

Overview of Gimbal Q30TIR

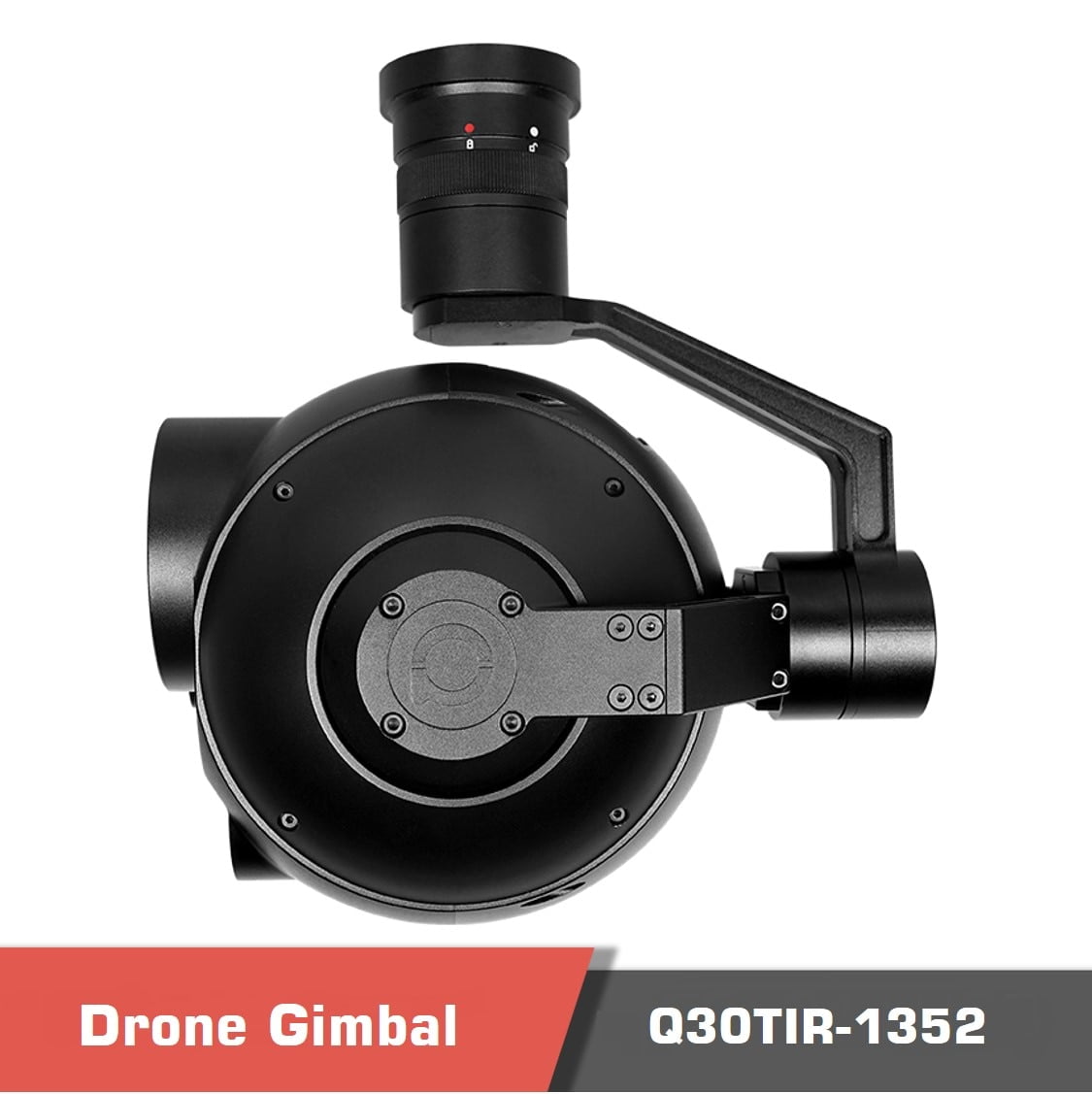

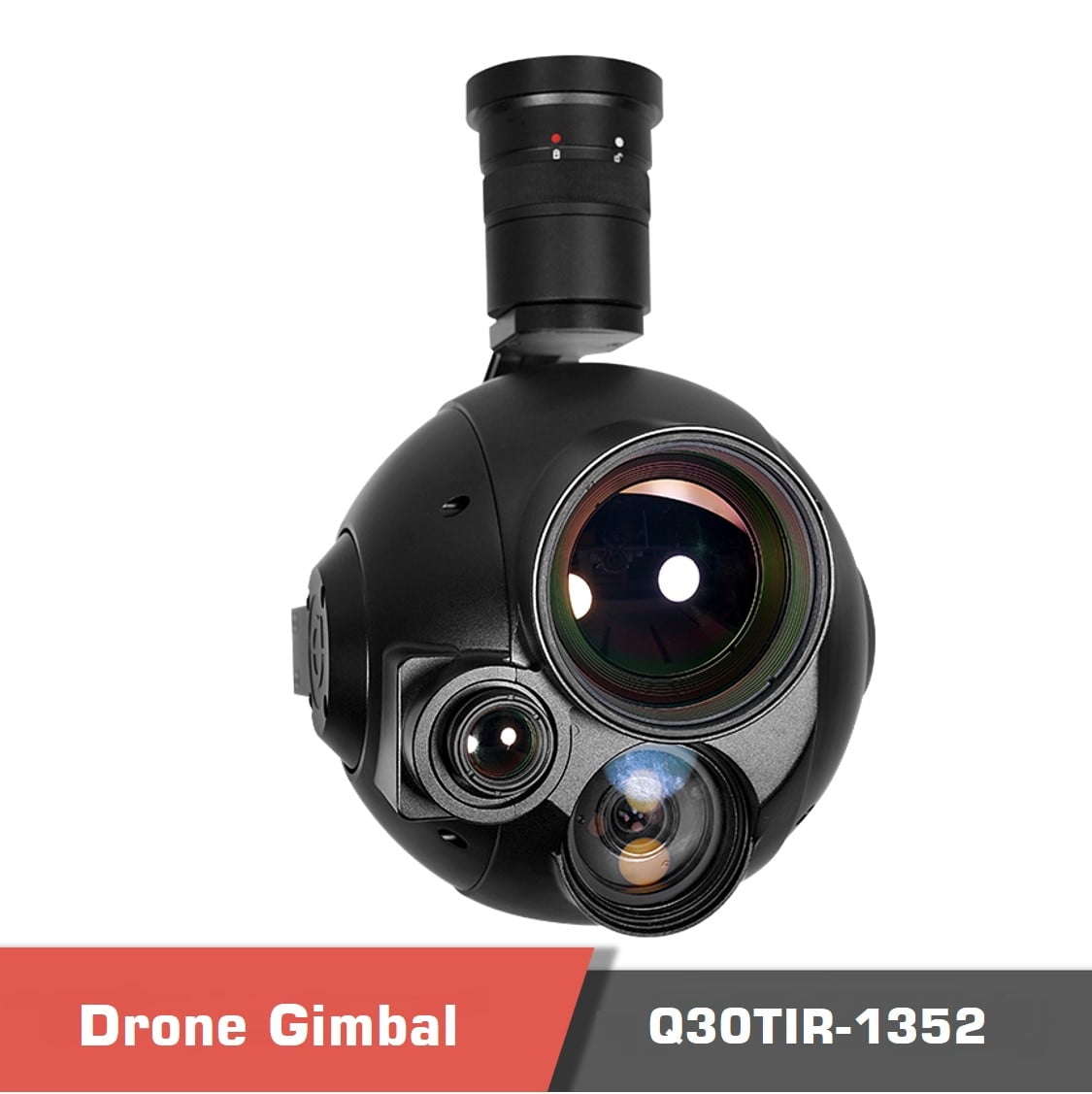

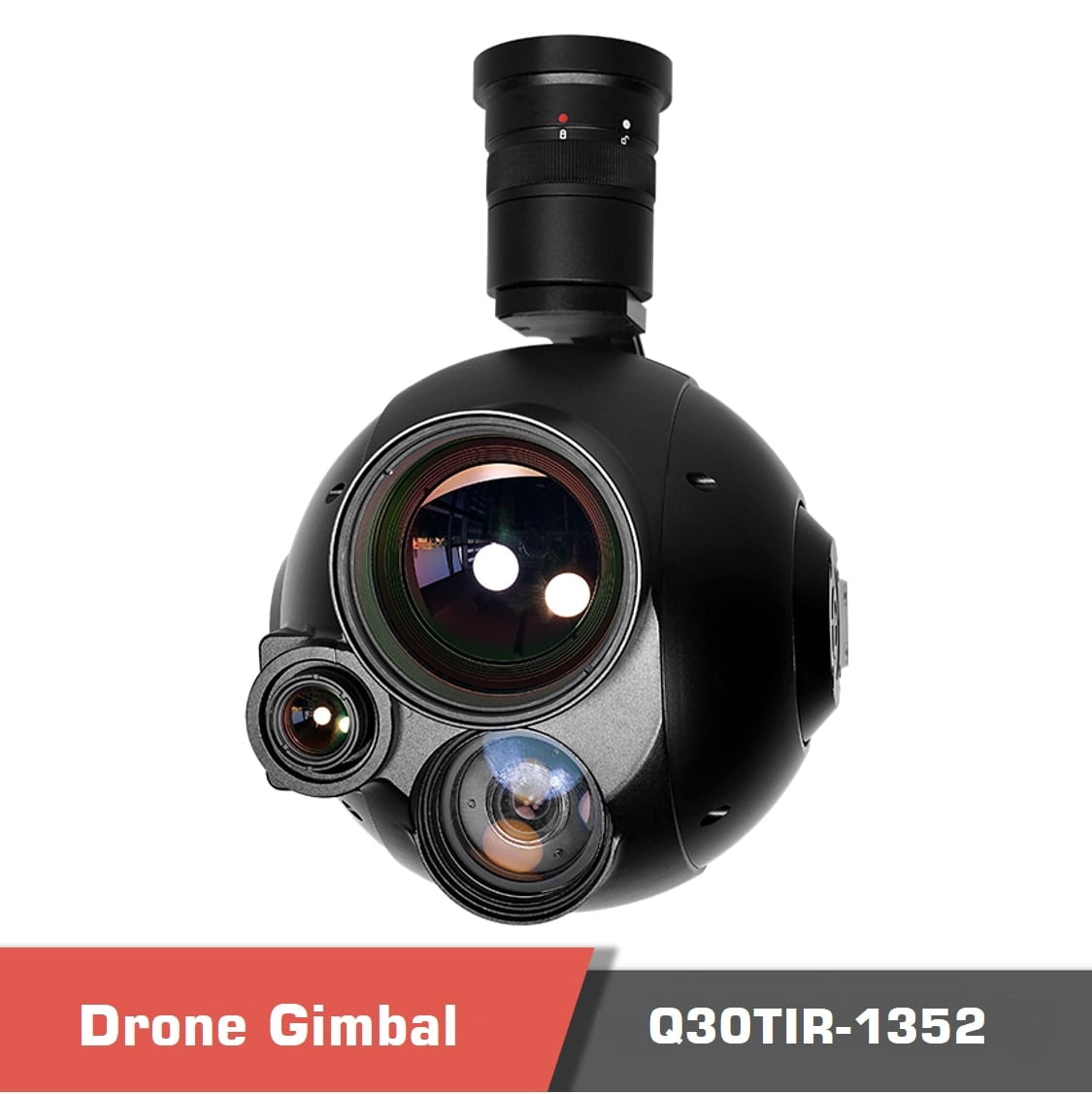

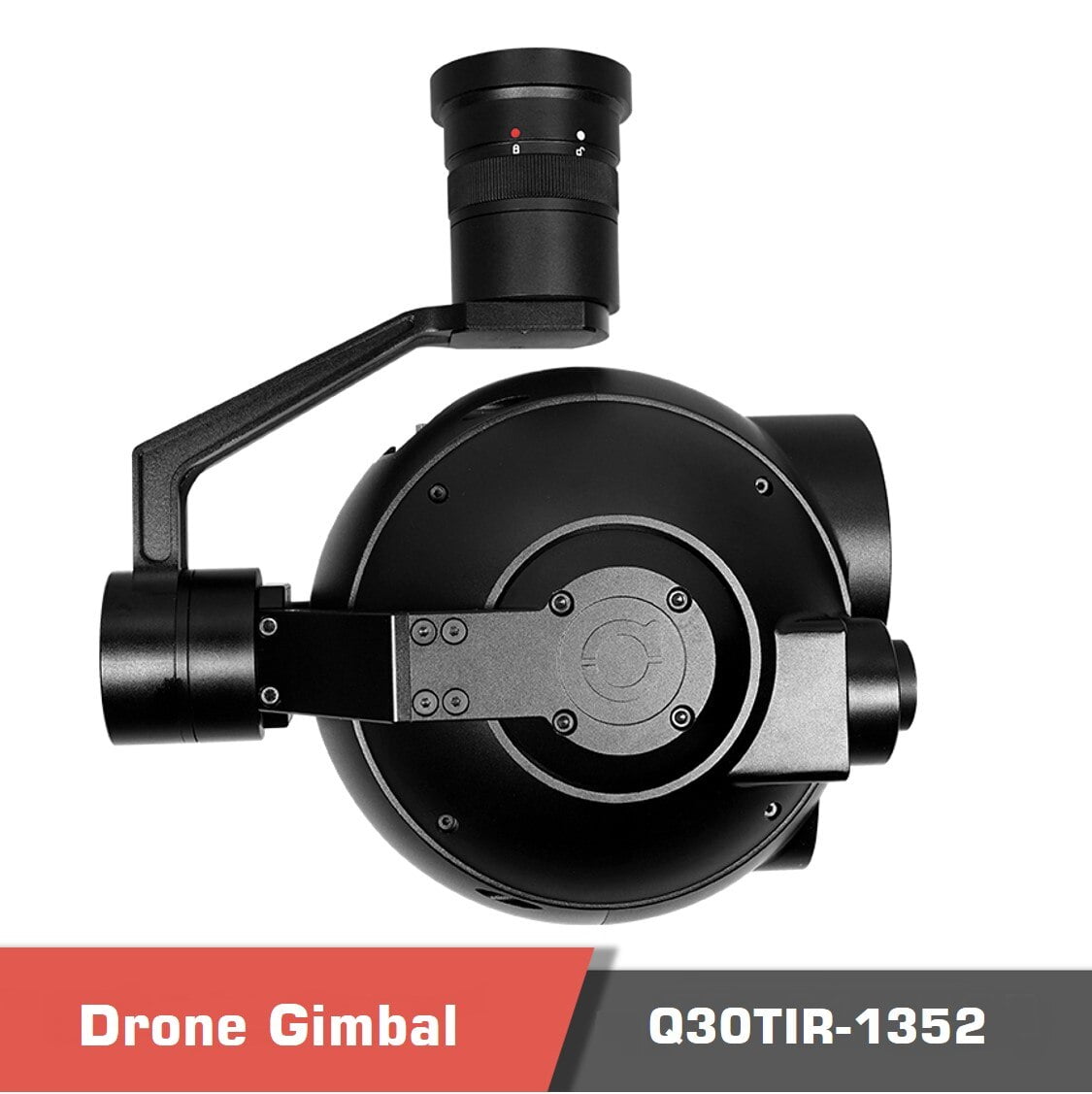

Gimbal Q30TIR-1352 is a powerful 3-axis gimbal camera that integrates a 30x optical zoom SONY camera and dual thermal zoom sensor. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30 times optical zoom. With dual 13mm & 52mm thermal sensors, it features a wide field of view to cover large areas in a single flight or narrow in on a target with 1x to 4x zoom for enhanced image detail. It’s widely used in public safety, industrial inspection, search, and firefighting.

30x Time Optical Zoom EO Night Vision Camera

Powered by 30x optical zoom high resolution camera module, Q30TIR-1352 can recognize cars, buildings and structures in 3000 meters, which can meet the application requirements of various domains.

Visible Light and Thermal Imager Object Tracking

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.

High Resolution Dual Thermal Zooming Camera

Integrated French ULIS high-precision uncooled long wave (8μm ~14μm ) thermal image sensor, Q30TIR-1352 can record and transmit thermal image and visible images at the same time in PIP format. 4x thermal zooming can realize when IR sensor swithes from 13mm to 52mm, this system provides a wide 45.4° field of view for maximum situational awareness and a narrow 11.9° field of view to get the most thermal pixels on your target. Viewpro Q30TIR-1352 allows people to gain thermal FOV flexibility for improved image detail and magnification to assess situations and make critical decisions.

Multi Output Methods Optional

It support both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360 degree enless pan.

Multi Control Methods

Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

Control box signal interfaces of this dual sensor camera

This Thermal Camera is Compatible with Viewport

This Camera is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

Applications

Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.
