U8L Gimbal Camera, 8mm EO+1.5KM Laser Rangefinder Camera (Hawkeye series)
2959.00 $
Description
U8L Gimbal Camera Overview

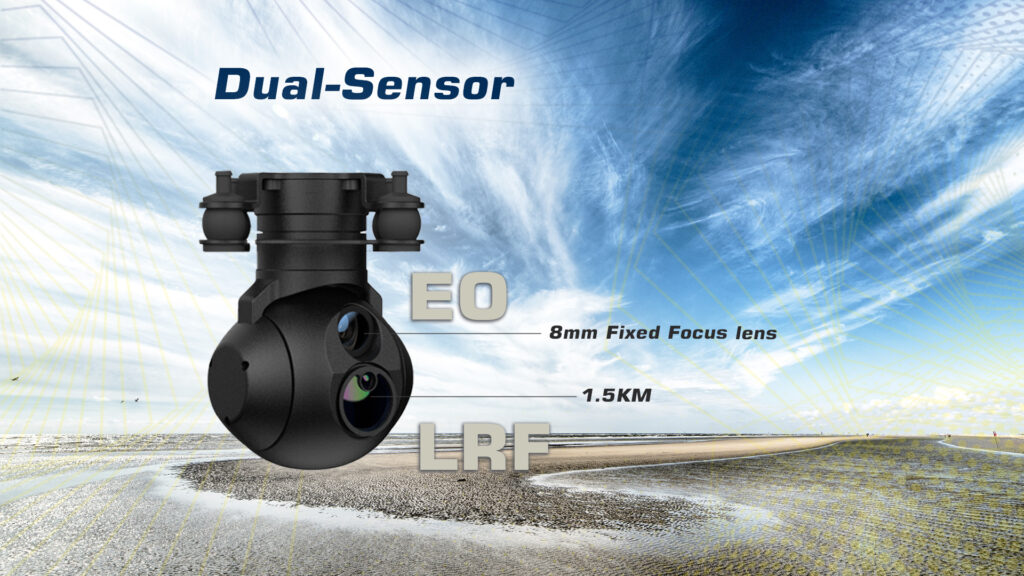

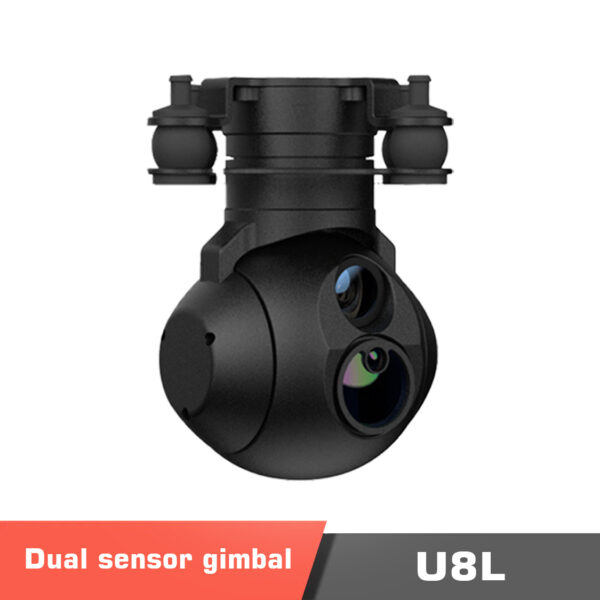

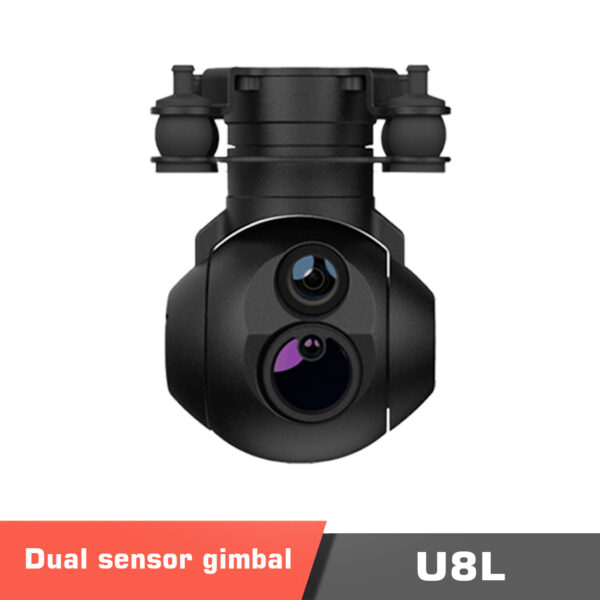

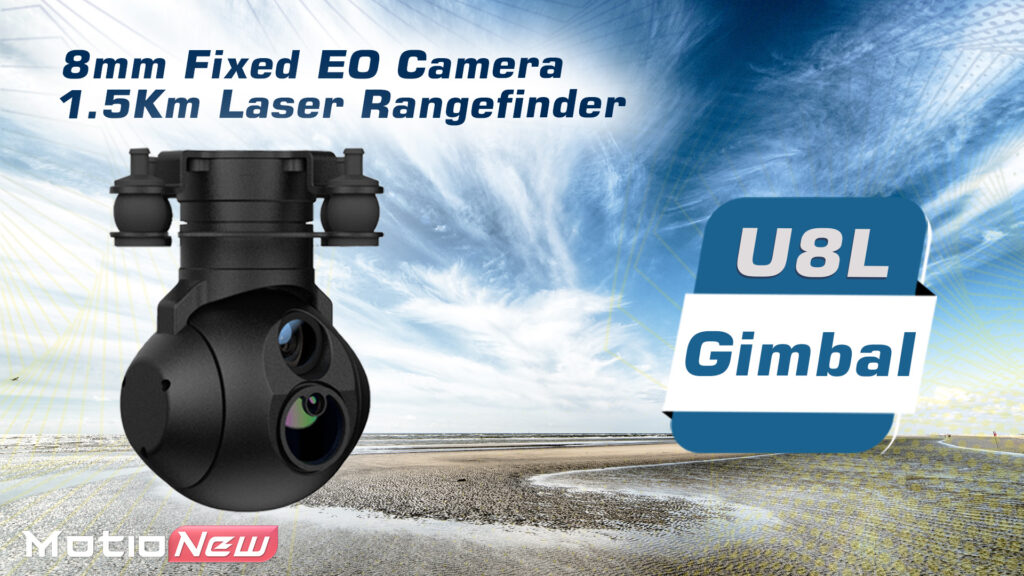

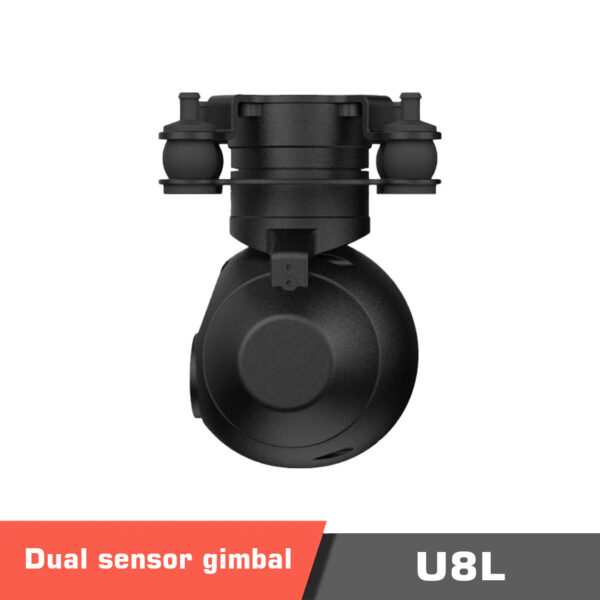

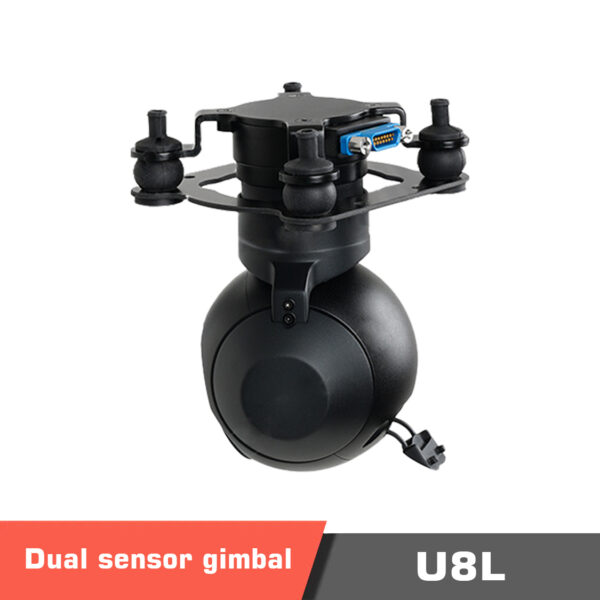

The U8L gimbal camera is a 2-axis gimbal camera that integrates an 8mm fixed EO camera and a 1.5 km Laser rangefinder. It features a built-in AI module that can auto-detect and track humans and cars. It is very suitable for some small-size drones, mainly supplied in patrol, surveillance, inspection, search, and rescue.
The U8L has a number of features that make it a good choice for a variety of applications.
Features of U8L Gimbal Camera:
- 8mm fixed focus EO camera: This camera provides clear and sharp images and videos, even in low-light conditions.
- 1.5KM Laser rangefinder which allows the drone to accurately measure the distance to objects
- Built-in AI module allows the drone to automatically detect and track humans and cars, which can be useful for security and surveillance applications.
- The 2-axis gimbal helps to keep the camera stable during the drone flight for a clear image.
- IP66’s weatherproof rating means that the camera is dustproof and waterproof, making it suitable for use in harsh environments.
The Versatile and Powerful U8L Gimbal Camera for Diverse Applications
The U8L gimbal camera is a powerful and versatile camera that can be used for a variety of applications. It is a good choice for users who need a camera that can provide clear and sharp images and videos, even in low-light conditions. It is also a good choice for users who need a camera with a laser rangefinder or a built-in AI module.
Here are some of the pros and cons of the U8L:
Pros:
- Clear and sharp images and videos, even in low-light conditions
- 1.5KM Laser rangefinder
- Built-in AI module
- 2-axis gimbal
- IP66 weatherproof rating
- Affordable price
Cons:
- No zoom lens, which is due to the small size and weight of the gimbal
- No thermal imaging capabilities
Overall, the U8L is a good value for the price. It is a powerful and versatile camera that can be used for a variety of applications.ย
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
Hardware Parameter | |
Working voltage | 12V(3S) |
Output voltage | 5V (connect with PWM) |
Dynamic current | 650~1000mA @ 12V |
Idle current | 650mA @ 12V |
Working environment temp. | -20โ~+60โ |
Output | IP rtsp (1080p 30fps) |
Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
Photo storage format | JPG(1920*1080) |
Video storage format | MP4ย (1080P 25fps) |

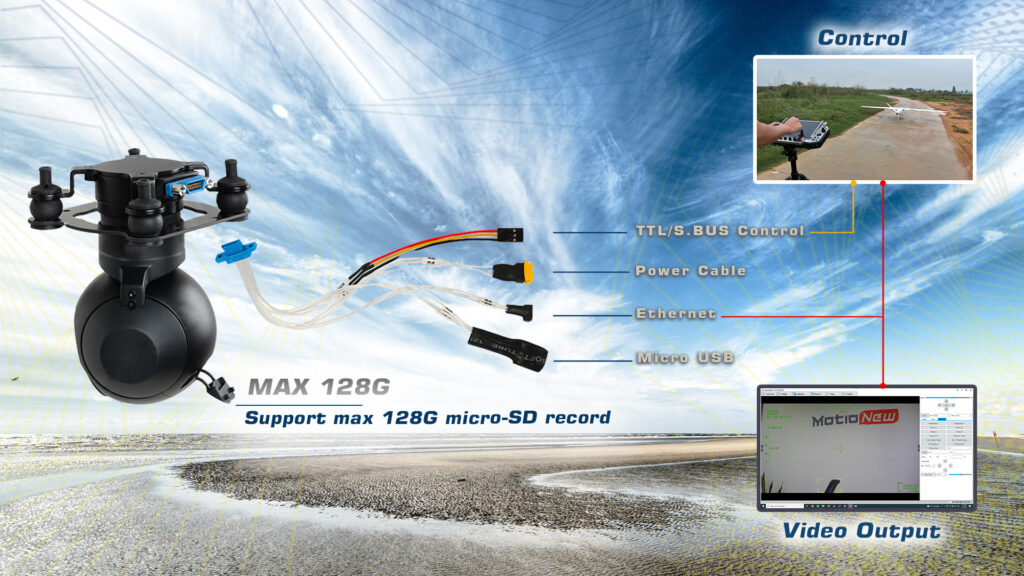

Control method | TTL / S.BUS/ TCP |
Gimbal Spec | |
Angle scope of structure design | Pitch/Tilt: -60ยฐ๏ฝ120ยฐ,ย ย ย Yaw/Pan: ยฑ360ยฐ*N |
Angle scope of software design | Pitch/Tilt: -45ยฐ๏ฝ90ยฐ,ย ย Yaw/Pan: ยฑ360ยฐ*N |
Vibration angle | Pitch/Roll: ยฑ0.02ยฐ, Yaw:ยฑ0.02ยฐ |
One-key to center | โ |
EO Camera Spec | |
Resolution | 3840*2160ย @60fps |
Focus Length | 8mm |
Angle of View | 38ยฐ*22ยฐ |
EOย Camera Object Tracking | |
Update rate of deviation pixel | 60Hz |
Minimum object contrast | 5% |
Minimum object size | 16*16 pixel |
Maximum object size | 128*128 pixel |
Tracking speed | ยฑ48 pixel/frame |
Object memory time | 100 frames |
IR Laser Rangefinder | |
Range | 5~1500 meters |
Resolution | 1:<400ยฑ1ย ย ย ย ย 2:๏ผ400ยฑ0.4% |
Light Beam | 905nm pulse laser |
Divergent Angle | 3~10 mrad |
Measuring Respond Time | 1:<0.06s/m(โค100)ย 2:<0.28s/m(โฅ100~600)ย ย 3:<0.85s/m(โฅ600~1000)ย ย 4:<1s/m(โฅ1000~1500) |
Power | 0.5~0.9W |
Location Resolving | Latitude and longitude of target |
Rangefinder | Target distance measuring |
Packing Information | |
N.W. | 249g (with damping system) |

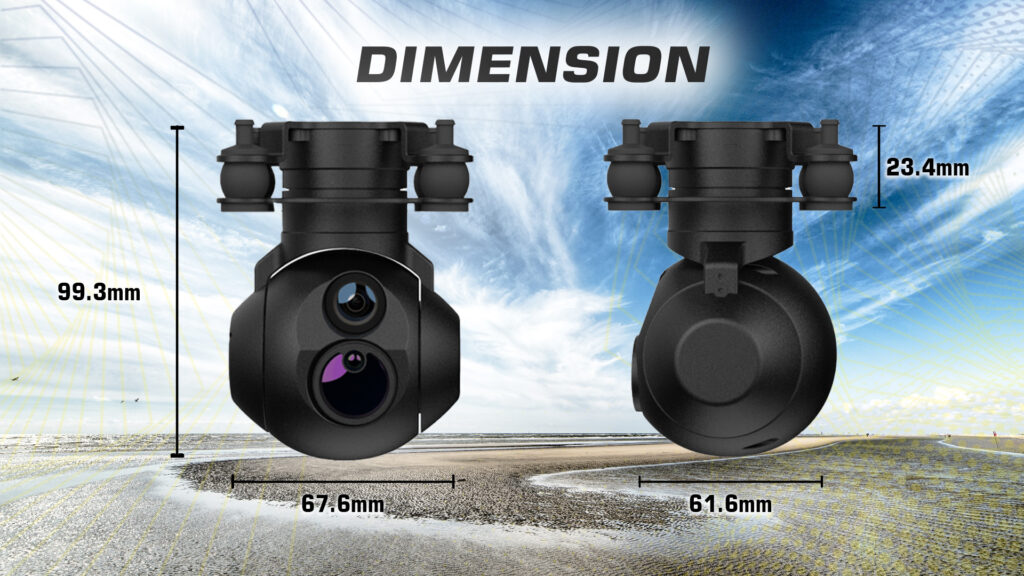

Product meas. | 67.6*61.6*99.3mm |
Package measurement | 167*158*120mm |

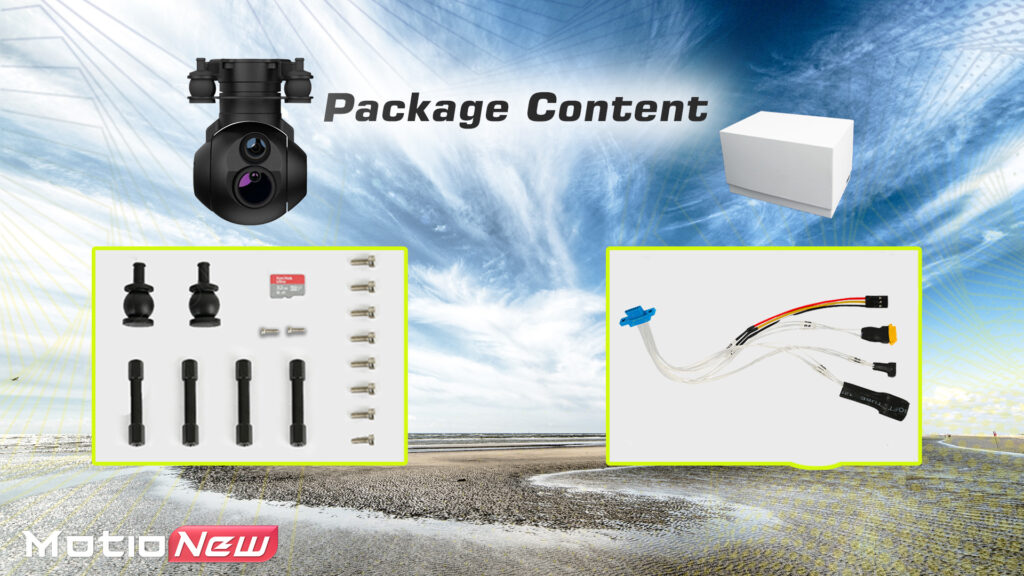

Product contents
1x gimbal camera device, screws, USB to TTL cableย / High quality plastic box with foam cushion
Documents
Please contact us for more information.
