A30TR-50 gimbal, with 5km Laser Rangefinder, EO/IR Camera with AI
16099.00 $ – 16399.00 $
Description

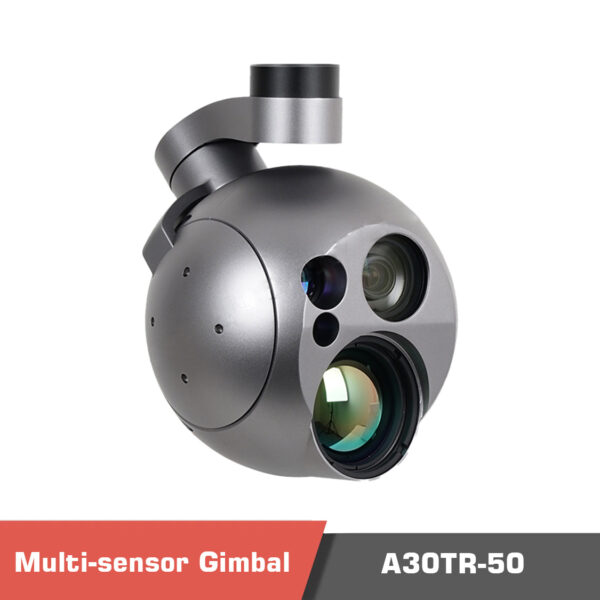

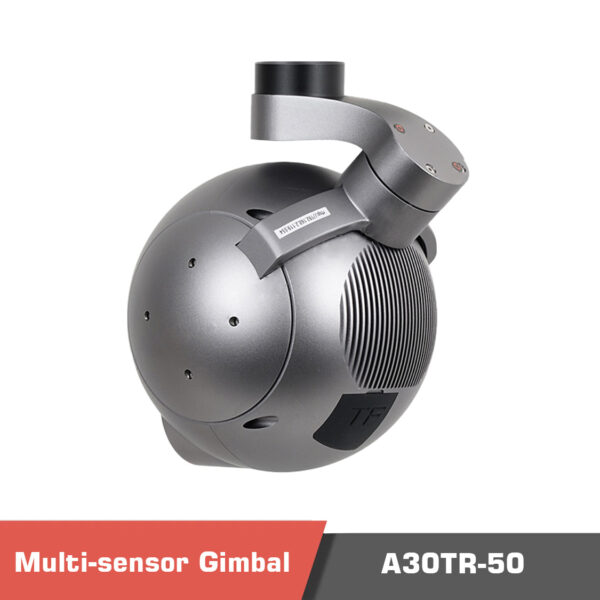

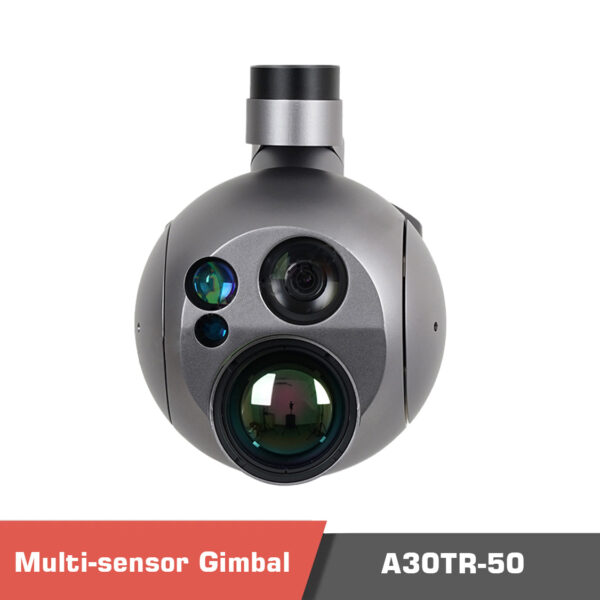

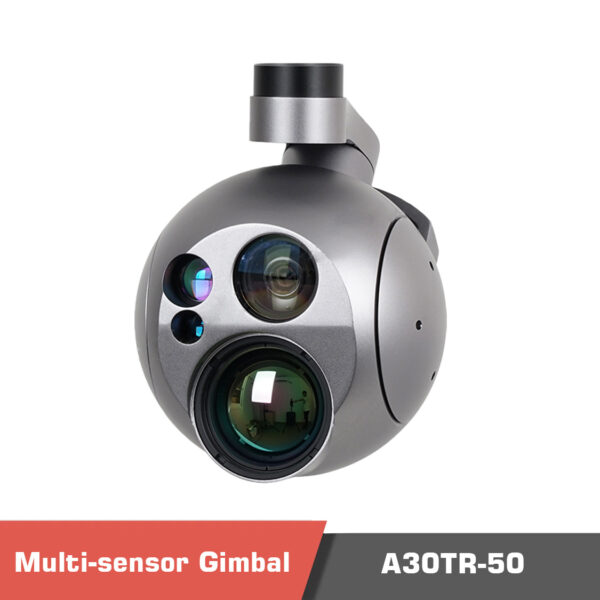

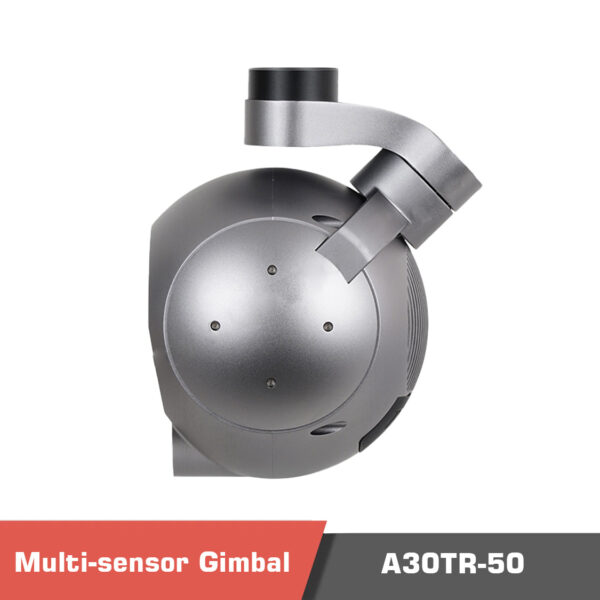

A30TR-50 Gimbal Camera: Advanced Sensor Technology
A30TR-50 gimbal camera is a multi sensor gimbal camera with both EO and IR sensors and a laser range finder. It is equipped with a SONY 1/2.8″ “EXMOR R” CMOS sensor with up to 30x optical zoom, 12x Digital Zoom, 2.13MP which can output Full HD images. With a 50mm IR Thermal which features a 640×512 sensor with 12um pixel size. The gimbal has on-board Artificial Intelligence algorithms to do Automatic Identification and Tracking of desired subjects.
Gimbal Camera AI object detection and Tracking Video

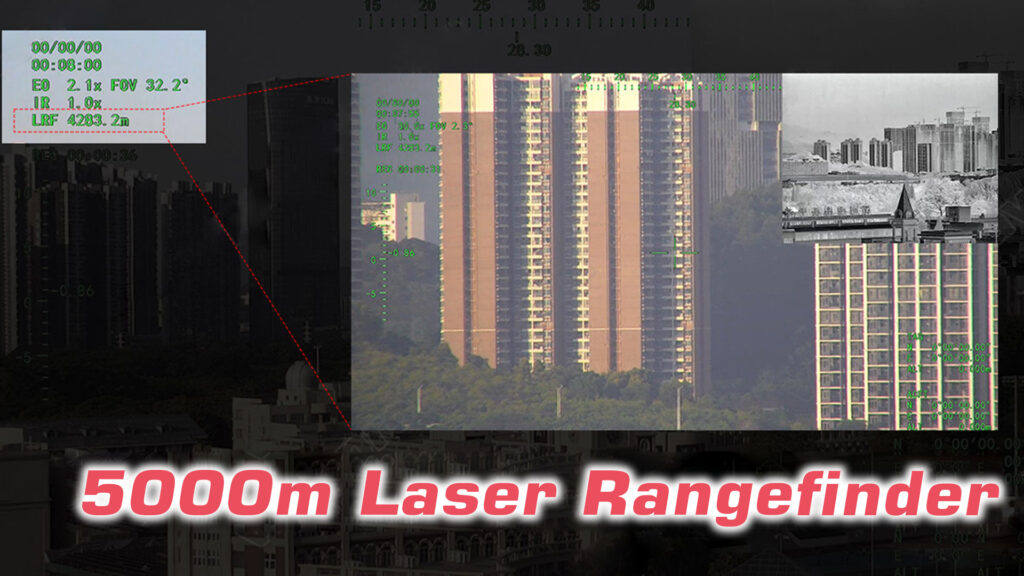

Optimal Precision with Laser Rangefinder
Having a laser rangefinder with a maximum measurement distance of 5km (5000m) makes A30TR-50 one of the best in the market. This gimbal, ideal for Gimbal drone applications, has a variety of flexible output options. It supports HDMI and Ethernet/IP. HDMI and Ethernet outputs are capable of 1080p resolution, while the default Ethernet output is set to 720p with recording capabilities at 1080p. Additionally, the IP output version offers a 360-degree endless pan feature, expanding your creative possibilities.
Flexible Output Options for Versatile Connectivity
Experience seamless control with multiple control methods. The gimbal supports PWM and Serial port TTL control by default, with the option for SBUS control. The IP output version also provides TCP control via an Ethernet cable, ensuring convenient and efficient operation.
Wide Applications for Critical Operations
The applications for the A30TR-50 are vast and diverse. From law enforcement and fire-fighting to power tower and pipeline inspections, search and rescue missions, and more, this gimbal camera is designed to excel in critical operations. It enables wide-ranging monitoring and searching capabilities, ensuring swift information transfer, improved response efficiency, and reduced casualties during emergencies.
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 800~2200mA @ 16V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex-FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |

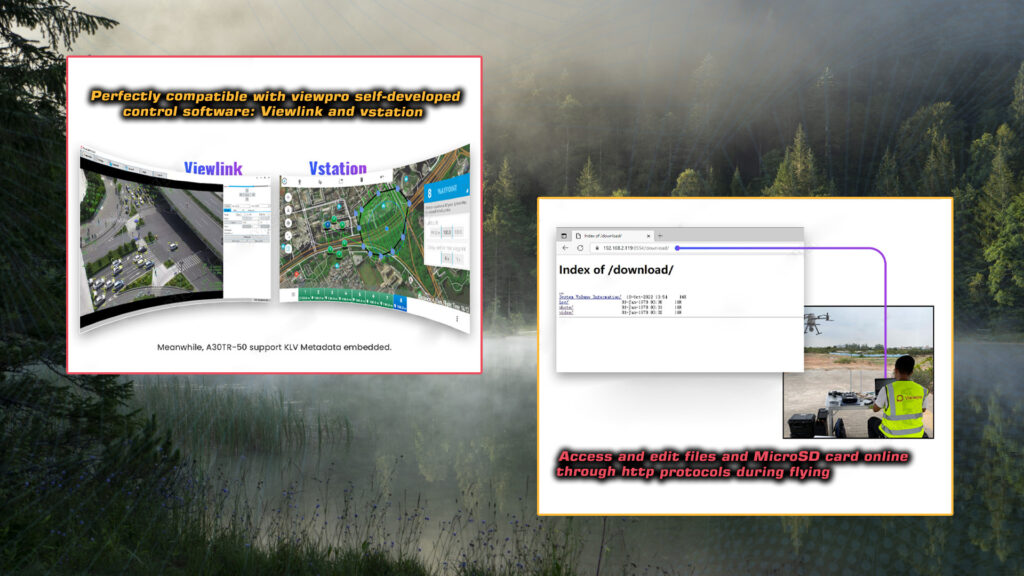

| Card reading online | HTTP read pictures |
| Control method | PWM / TTL / S.BUS / TCP(IP output)/UDP (IP output version) |
| Geotagging | Support, display time, and GPS coordinate in picture EXIF |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -55°～125°, Roll: ±45°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -45°～120°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Camera spec | |
| Image Sensor | SONY 1/2.8″ “Exmor R” CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color [email protected] |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 steps/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 steps/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| IR Thermal Imager Spec | |
| Focus Length | 50mm |
| Coating Film | DLC |
| Horizontal FOV | 8.8° |
| Vertical FOV | 7.0° |
| Diagonal FOV | 11.2° |
| Detective Distance (Man: 1.8×0.5m) | 2083 meters |
| Recognize Distance (Man: 1.8×0.5m) | 521 meters |
| Verified Distance (Man: 1.8×0.5m) | 260 meters |
| Detective Distance (Car: 4.2×1.8m) | 6389 meters |
| Recognize Distance (Car: 4.2×1.8m) | 1597 meters |
| Verified Distance (Car: 4.2×1.8m) | 799 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel pitch | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤[email protected] @25℃ |

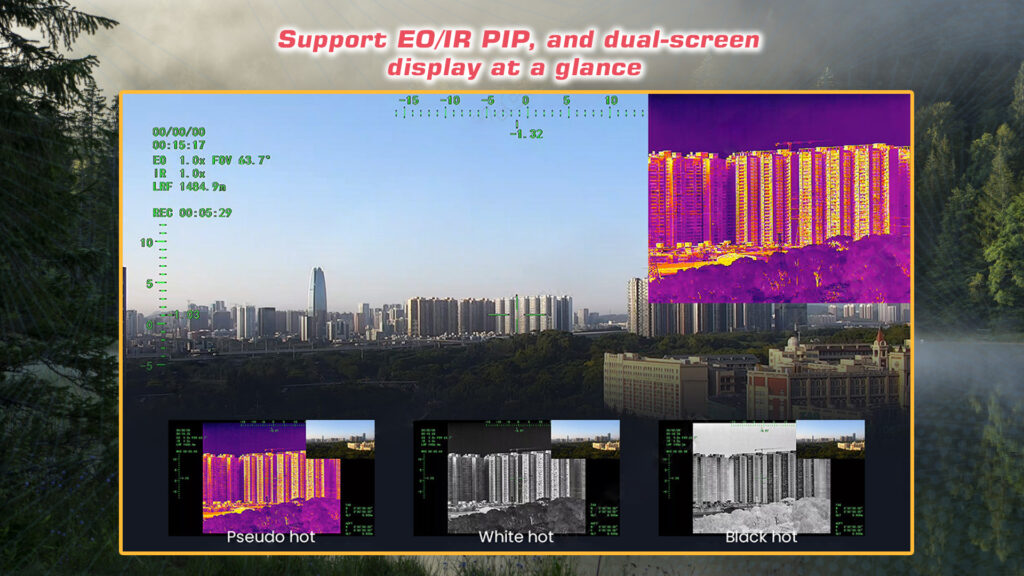

| Color palette | White hot, black hot, pseudo-color |
| Digital zoom | 1x ~ 8x |
| Sync correct time | Yes |
| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames |
| IR Laser Rangefinder | |
| Measure ability | ≥5km for big targets (eg. building) ≥3km for car（2.3m×2.3m ） ≥1.5km for people（1.75m×0.75m ）(Based on typical value: LOS visibility: ≥8km Diffuse reflection rate: ≥0.3 Humility: ≤80%) |
| Accuracy (Typical value) | ≤ ±1m (RMS) |
| Wavelength | 1535nm pulse laser |
| Divergent Angle | ≤ 0.5mrad |
| Measurement frequency | 1~10HZ |
| Min measuring range | ≤20m |
| Resolution | ≤ 50m (multiple targets) |
| Rangefinder | Target distance measuring |
| EO Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
| Packing Information | |
| Net Weight | 1485g (Viewport version) |
| Product Measurements | 145.8*138*222.1mm (Standard version) / 145.8*138*227.8mm (Viewport version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / High-quality plastic box with foam cushion |
| Gross Weight | 3632g |
| Package Measurements | 350*300*250mm |
Product contents
1x A30TR-50 gimbal camera, screws, copper cylinders, damping balls, 1x USB to TTL cable / High-quality plastic box with foam cushion
Documents
Please contact us for more information.
