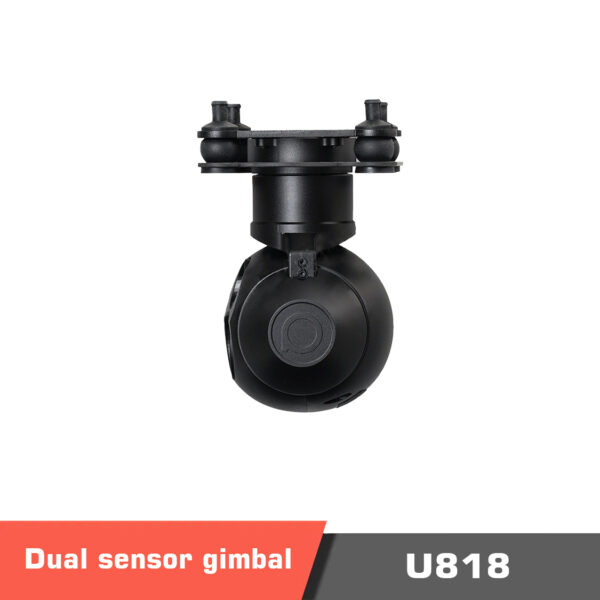

U818 Micro Prime Lens Dual Sensor Tracking Camera for Surveillance, Hawkeye Gimbal
5210.00 $ – 5940.00 $
Description
Professional 3-axis High-precise FOC Program Video
Introduction: The Gimbal U818 Micro Prime Lens

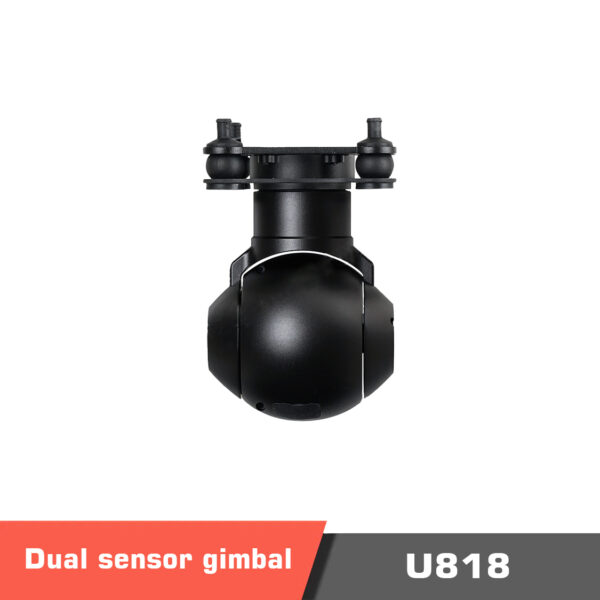

The Gimbal U818 micro prime lens with dual sensor gimbal camera is from the micro-series Hawkeye series, a 260g super lightweight gimbal camera with small volume and compact structure.
Compact and Lightweight Design

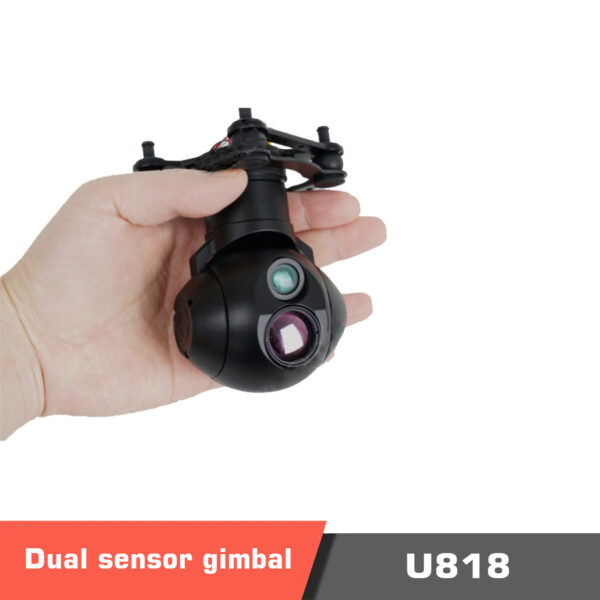

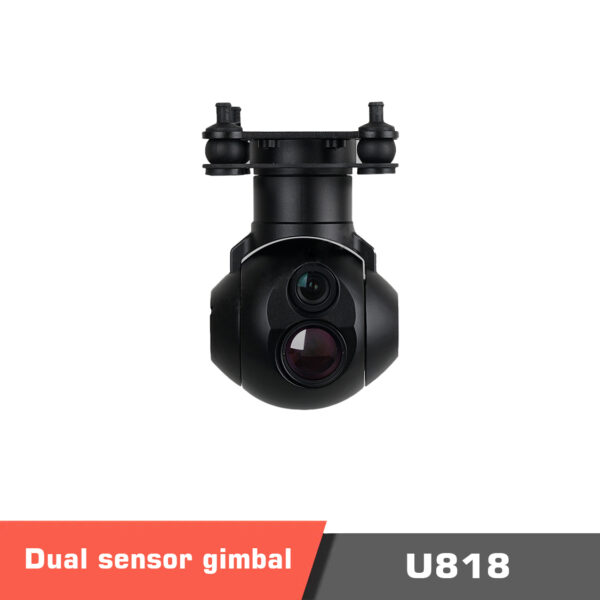

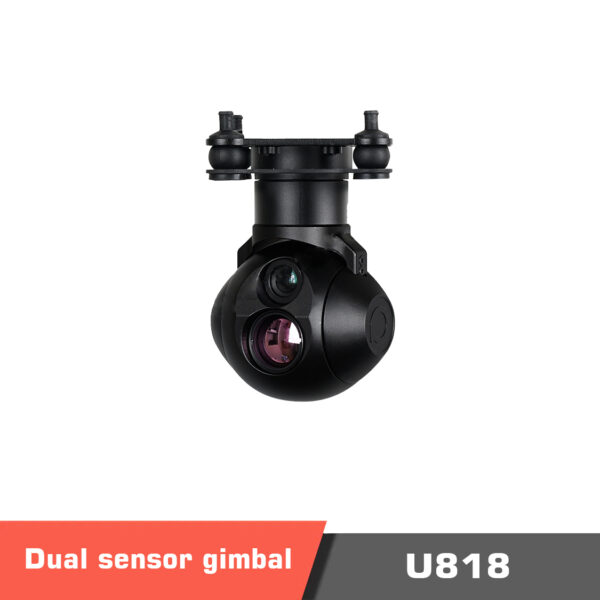

It integrates an 8mm prime lens 3.68MP camera and an 18mm lens thermal camera with 640×512 resolution. The small size (barely the size of one hand) is suitable for drones with small structures and small payload capability making it an excellent choice for Gimbal Drone applications.
Dual Sensor Integration in the Gimbal U818 Micro Prime Lens
The gimbal has 2-axis stabilization to remove the vibrations coming from the body of the drone to provide a clear image.
Stabilization Technology for Clear Imaging
The camera supports up to 4x digital zoom and gives a 51°x31° field of view. The thermal sensor comes with an 18mm lens, 60Hz update rate, and 12um pixel pitch. Pseudo-hot and white-hot pallet colors are supported.
Enhanced Imaging Capabilities of the Gimbal U818 Micro Prime Lens

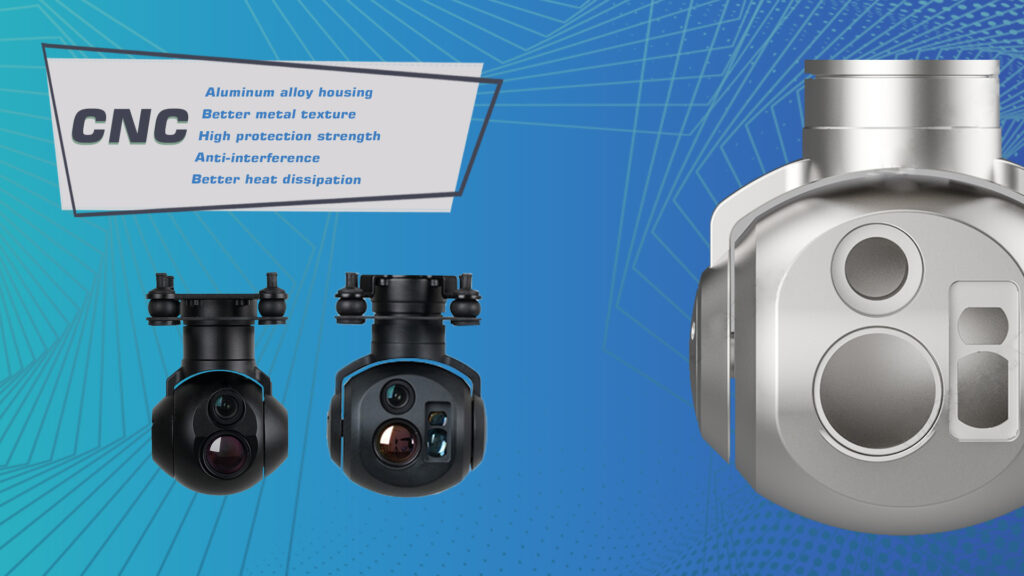

The CNC-processed aluminum body has the advantages of better metal texture, anti-interference, and better heat dissipation.
Durable Construction
It is widely used in surveillance, large-area reconnaissance, and other UAV industrial applications.
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
| U818 specification | U818M specification | ||
| Hardware Parameter | Hardware Parameter | ||
| Working voltage | 12V | Working voltage | 12V(3S) |
| Input voltage | 3S ~ 6S | Output voltage | 5V (connect with PWM) |
| Output voltage | 5V (connect with PWM) | Dynamic current | 650~1000mA @ 12V |
| Dynamic current | 600~900mA @ 12V | Idle current | 650mA @ 12V |
| Idle current | 600mA @ 12V | Working environment temp. | -20℃~+60℃ |
| Working environment temp. | -40℃ ~ +60℃ | Output | IP rtsp (1080p 30fps) |
| Output | IP rtsp (1080p 30fps) | Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) | Photo storage format | JPG(1920*1080) |
| Photo storage format | JPG(1920*1080) | Video storage format | MP4 (1080P 25fps) |
| Video storage format | MP4 (1080P 30fps) | Control method | TTL / S.BUS/ TCP |
| Control method | TTL / S.BUS/ TCP | ||
| Gimbal Spec | Gimbal Spec | ||
| Angle scope of structure design | Pitch/Tilt: -90°～120°, Yaw/Pan: ±360°*N | Angle scope of structure design | Pitch/Tilt: -35°～105°, Yaw/Pan: ±360°*N |
| Angle scope of software design | Pitch/Tilt: -45°～90°, Yaw/Pan: ±360°*N | Angle scope of software design | Pitch/Tilt: -30°～90°, Yaw/Pan: ±360°*N |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° | Vibration angle | Pitch: ±0.02°, Yaw: ±0.02° |
| One-key to center | √ | One-key to center | √ |
| EO Camera Spec | EO Camera Spec | ||
| Imager Sensor | CMOS Sensor | Imager Sensor | CMOS Sensor |
| Resolution | 2560H×1440V(3.68MP) @60fps | Resolution | 2560H×1440V(3.68MP) @60fps |
| Focus Length | 8mm | Focus Length | 8mm |
| Pixel Pitch | 3μm | Pixel Pitch | 3μm |
| Angle of View | 51°*30° | Angle of View | 51°*30° |
| Recognize Distance (Car: 6.5x3m) | ≥3.6km | Recognize Distance (Car: 6.5x3m) | ≥3.6km |
| Digital zoom | 1x ~ 4x | Digital zoom | 1x ~ 4x |
| Defog | Yes | Defog | Yes |
| IR Thermal Imager Spec | IR Thermal Imager Spec | ||
| Focus Length | 18mm | Focus Length | 18mm |
| Horizontal FOV | 24° | Horizontal FOV | 24° |
| Vertical FOV | 18° | Vertical FOV | 18° |
| Recognize Distance (Car: 6.5x3m) | ≥1km | Recognize Distance (Car: 6.5x3m) | ≥1km |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager | Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 | Detector pixel | 640*512 |
| Pixel size | 12μm | Pixel size | 12μm |
| Focusing method | Athermal prime lens | Focusing method | Athermal prime lens |
| NETD | ≤[email protected] @25℃ | Color palette | White hot, pseudo color |
| Color palette | White hot, black hot, pseudo color | Digital zoom | 1x ~ 4x |
| Digital zoom | 1x ~ 4x | Sync correct time | Yes |
| Sync correct time | Yes |
| EO / IR Camera Object Tracking | EO / IR Camera Object Tracking | ||
| Update rate of deviation pixel | 60Hz | Update rate of deviation pixel | 60Hz |
| Minimum object contrast | 5% | Minimum object contrast | 5% |
| Minimum object size | 16*16 pixel | Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel | Maximum object size | 128*128 pixel |
| Tracking speed | ＞48 pixel/frame | Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames | Object memory time | 100 frames |
| Packing Information | Packing Information | ||
| N.W. | 310g (with damping system) | N.W. | 345g (with damping system) |
| Product meas. | 67.9*61.6*89.7mm | Product meas. | 83.7*72.5*110.6mm |
| Accessories | 1pc gimbal camera device, screws, USB to TTL cable / Hight quality plastic box with foam cushion | Accessories | 1pc gimbal camera device, screws, USB to TTL cable / Hight quality plastic box with foam cushion |
| Package meas. | 200*200*150mm |
| IR Laser Rangefinder | |||
| Range | 5~1200 meters | ||
| Resolution | 1m | ||
| Light Beam | 905nm pulse laser | ||
| Divergent Angle | ~6 mrad | ||
| Laser pulse frequency | 1~4Hz | ||
| Location Resolving | Latitude and longitude of target | ||
| Range finder | Target distance measuring |
Product contents
1pc gimbal camera U818 or U818M, screws, USB to TTL cable / High quality plastic box with foam cushion
Documents
Please contact us for more information.
