Description

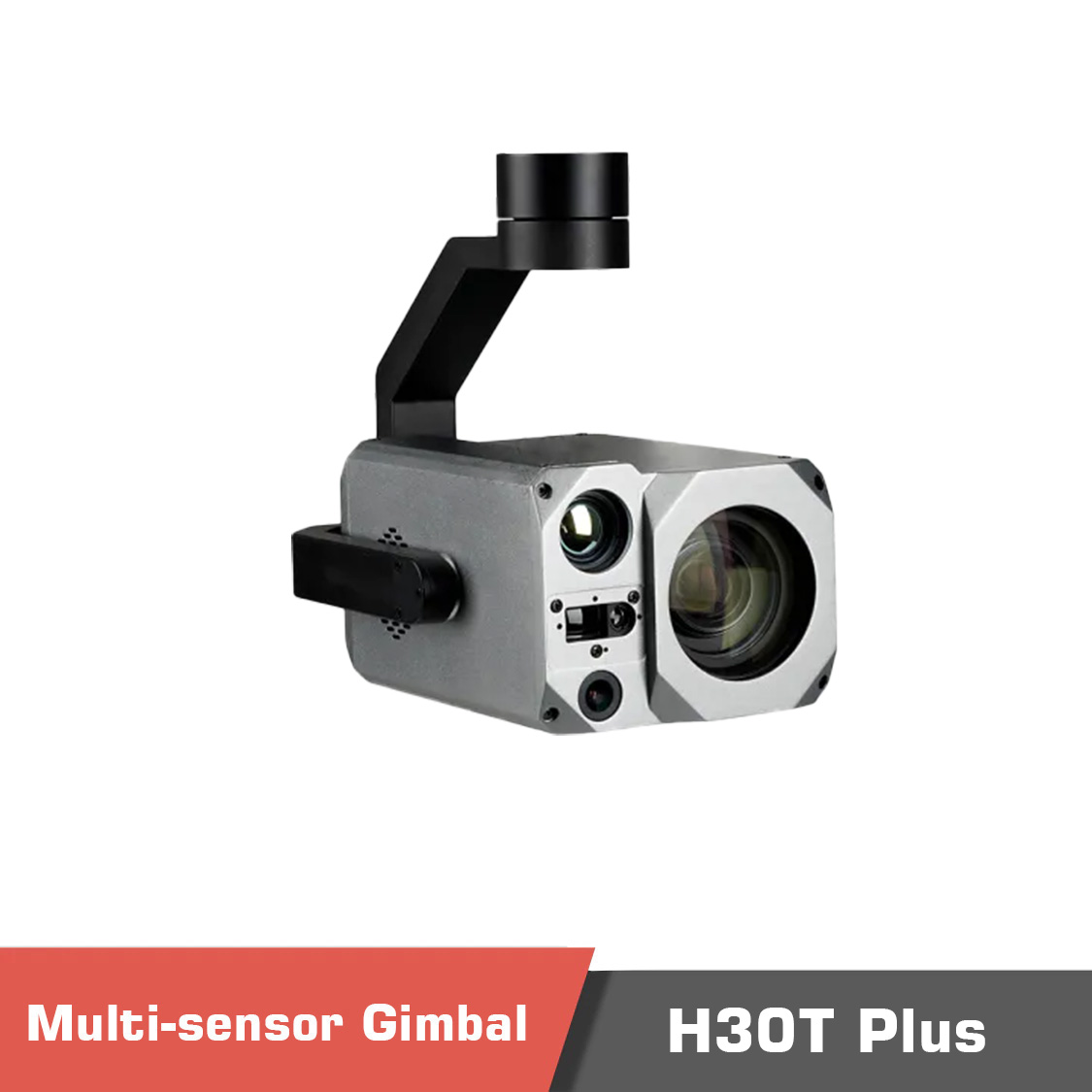

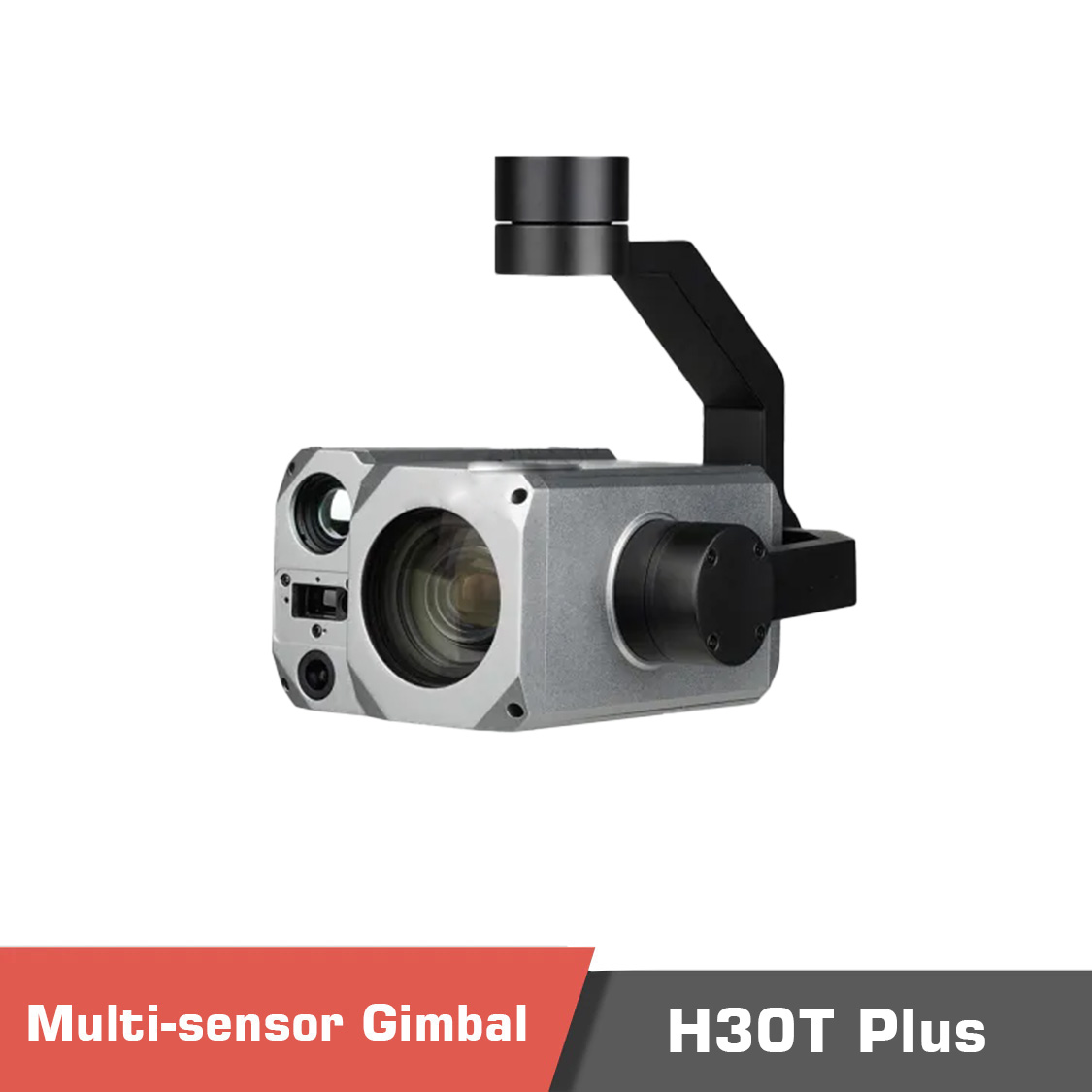

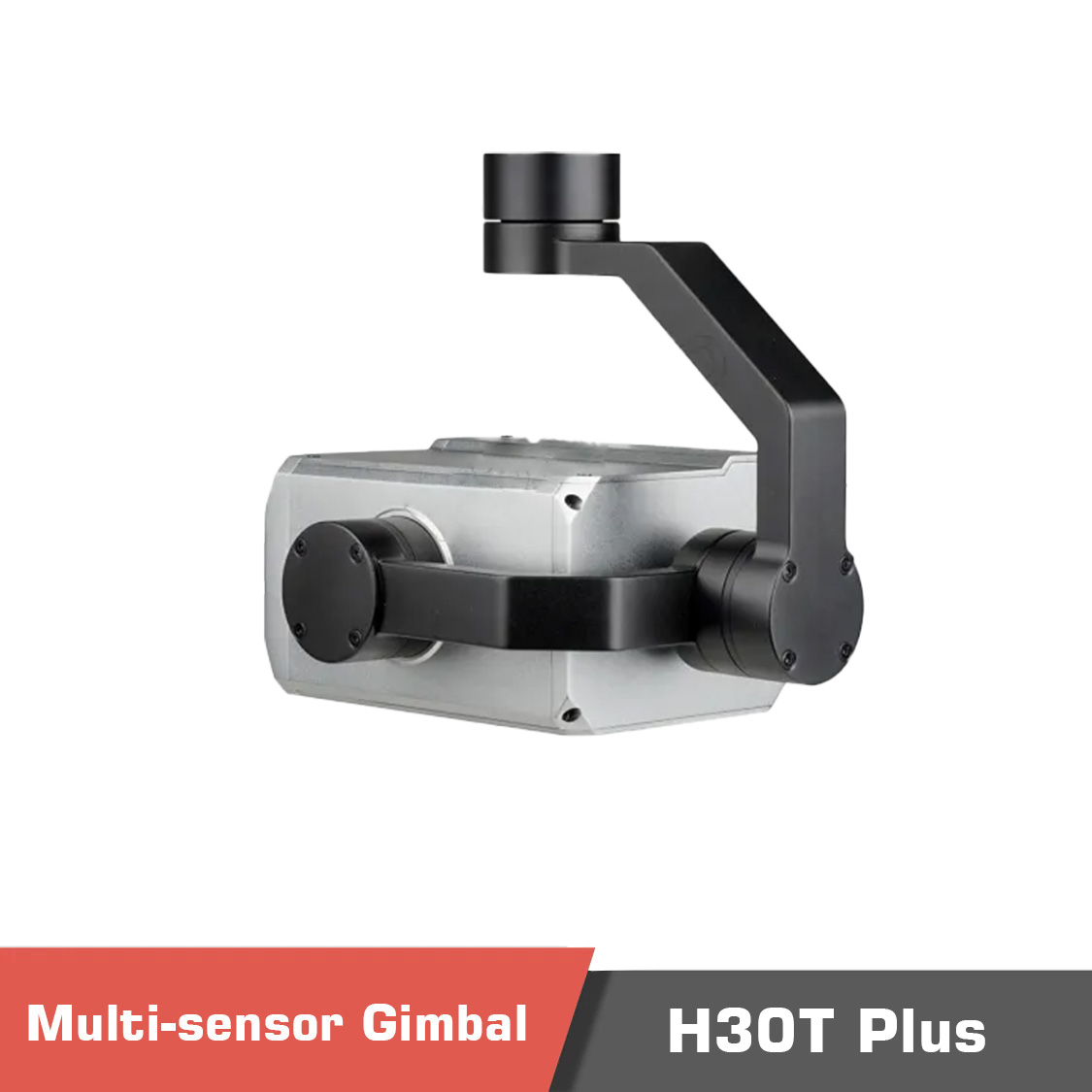

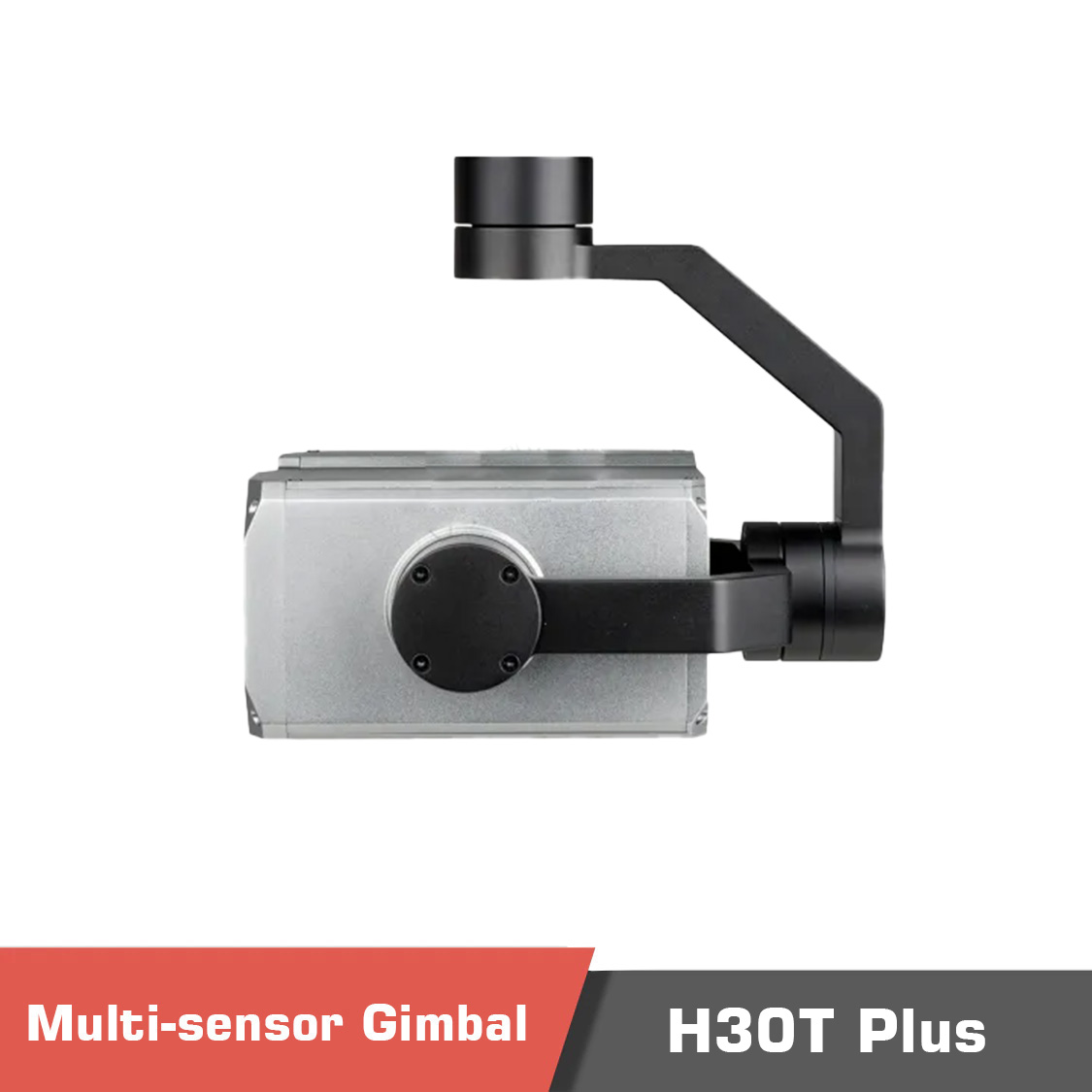

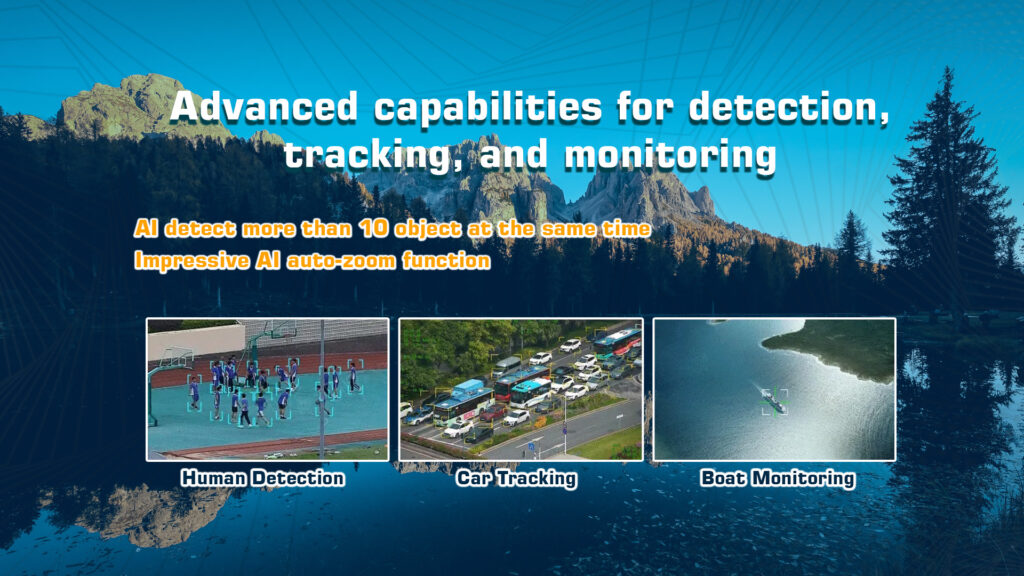

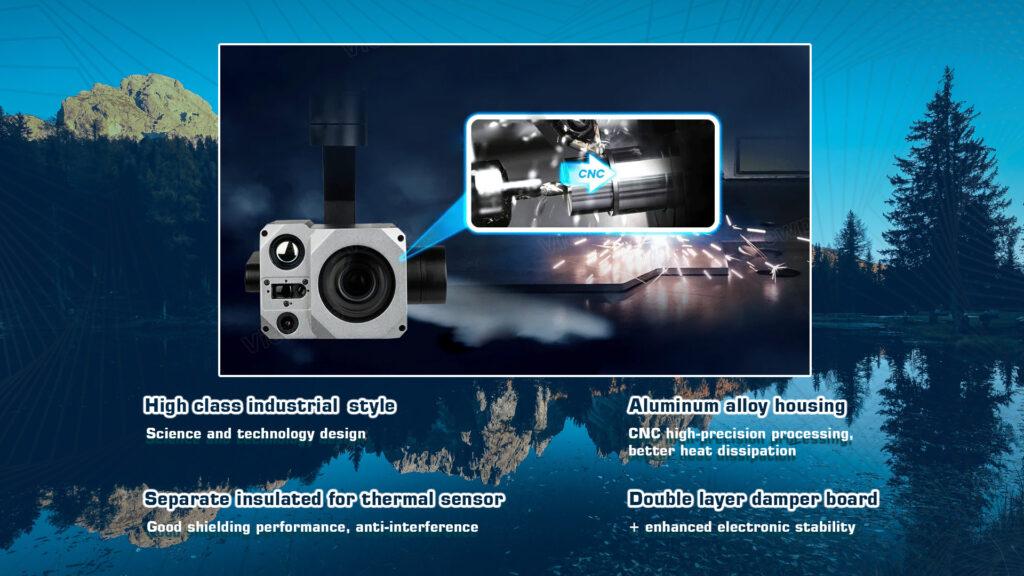

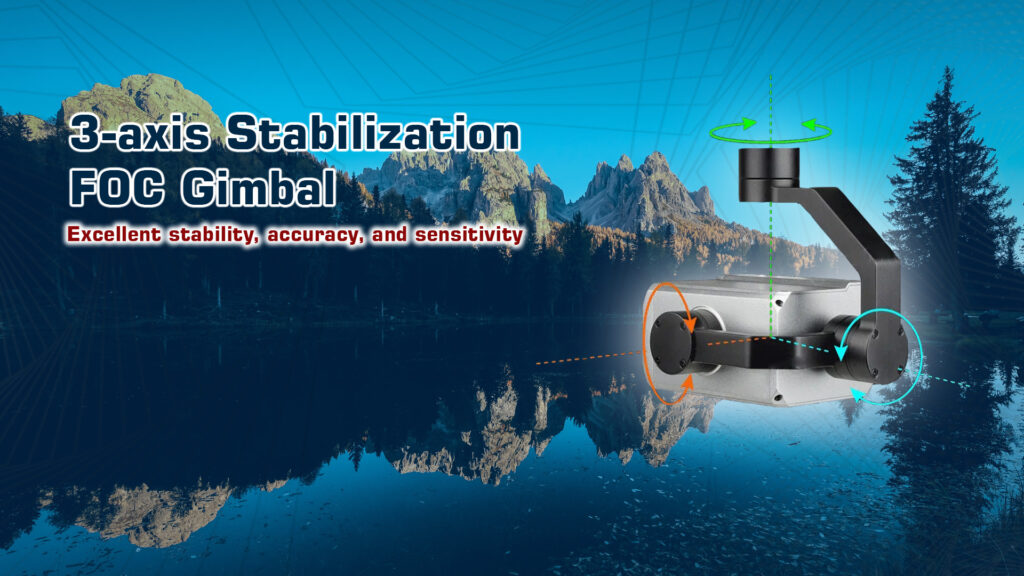

H30T Plus Gimbal Camera Overview

H30T Plus Gimbal camera is a Quad-Sensor gimbal camera with Dual EO sensors, a thermal sensor, and a laser range finder (LRF). It has a 4.17MP EO sensor with 30x optical zoom, as well as a 6mm fixed focus lens sensor with 2MP resolution, both supporting Full HD image output. The thermal sensor is an uncooled VOx long wave sensor with a detector resolution of 640×512 pixels.

The laser range finder can provide the latitude and longitude of the targets with up to 1.5km distance. It can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution.

30x Zoom EO Camera Specification

The H30T Plus gimbal camera features an advanced EO sensor equipped with a 1/1.8″ Type STARVIS CMOS Sensor, delivering a picture quality of 4.17MP. It boasts a powerful 30x optical zoom lens with a focal length ranging from 6.5 to 162.5mm and an aperture of F1.6 to F4.8, supplemented by a 12x digital zoom for a maximum zoom capability of 432x.

The camera supports a minimum object distance of 100 mm at the wide end and 1200 mm at the tele end, with a horizontal viewing angle spanning from 58.1° to 2.3°. The sync system is internal, and the image signal-to-noise ratio is 50 dB (Weight On), ensuring clear and high-quality images.

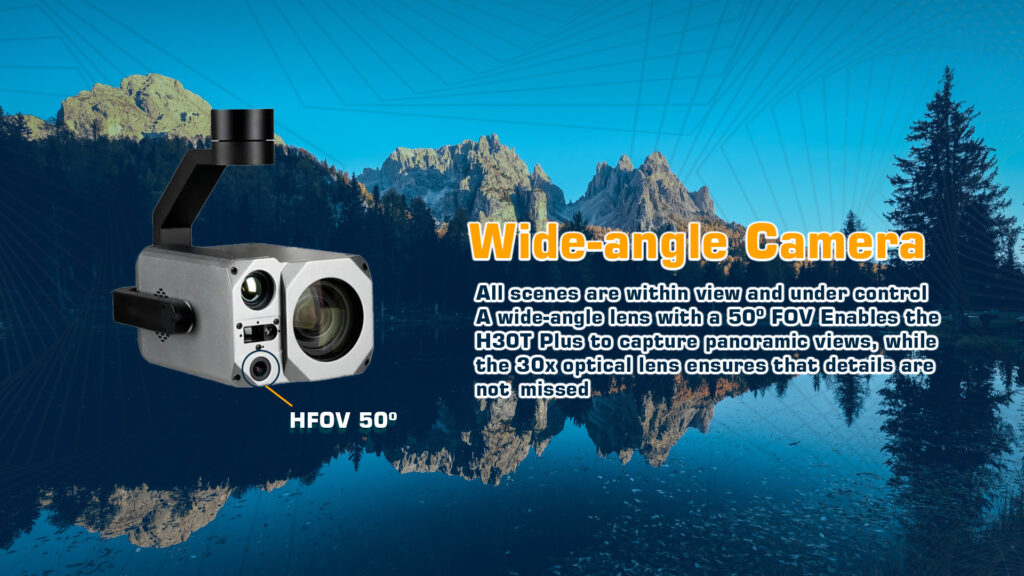

6mm Fixed Focus lens EO Camera Specification

The H30T Plus gimbal camera includes an advanced IR Thermal sensor with a 19mm focus length. This sensor offers a horizontal field of view (FOV) of 22.9°, a vertical FOV of 18.4°, and a diagonal FOV of 29.0°. It is capable of detecting a human (1.8×0.5m) at distances up to 792 meters, recognizing at 198 meters, and verifying at 99 meters. For a car (4.2×1.8m), the detection range extends to 2428 meters, recognition to 607 meters, and verification to 303 meters.

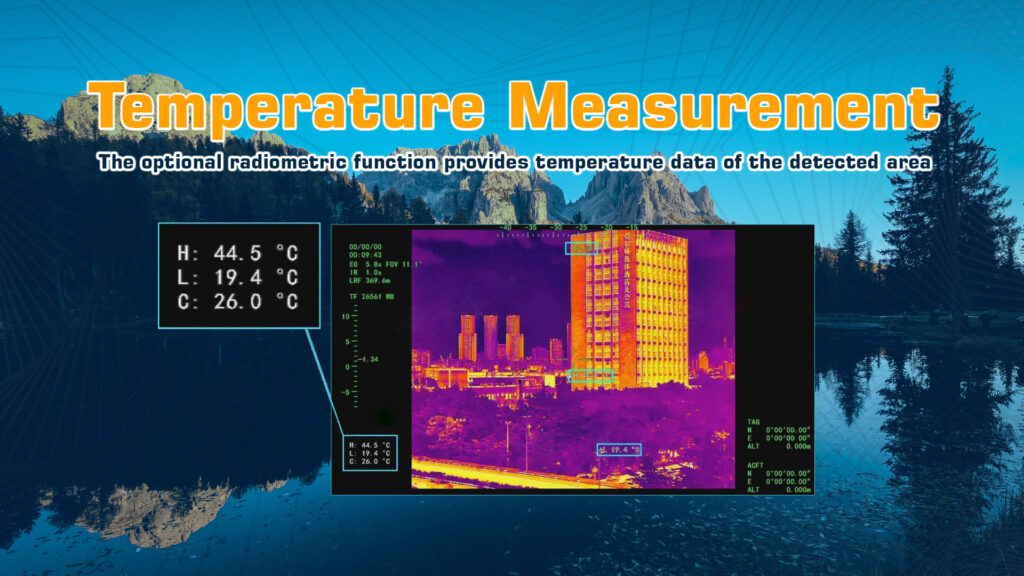

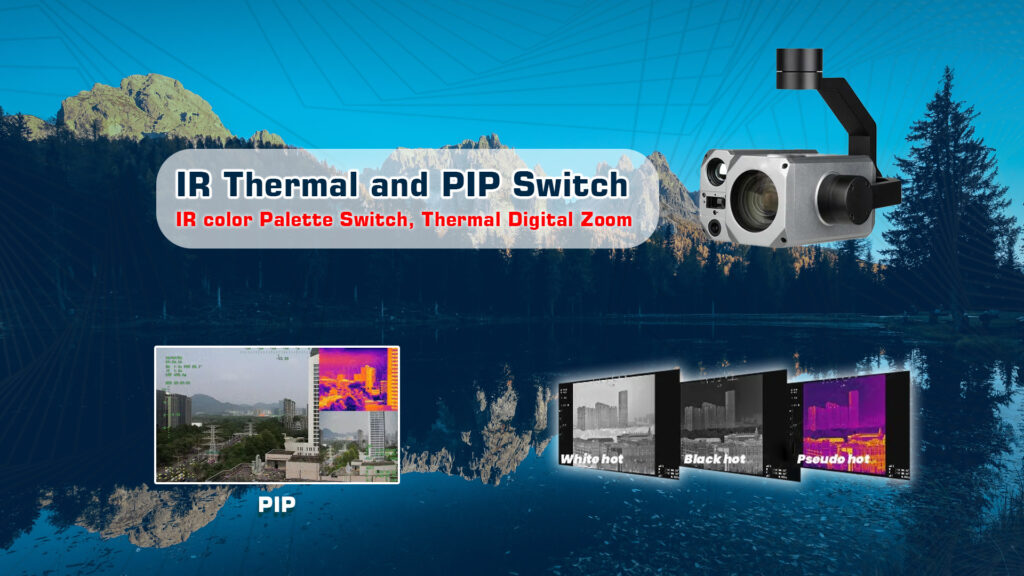

The thermal imager operates in an uncooled VOx long wave (8μm~14μm) mode, with a detector resolution of 640×512 pixels and a 12μm pixel size. The color palette includes white, iron red, and pseudo color, and the digital zoom ranges from 1x to 8x.

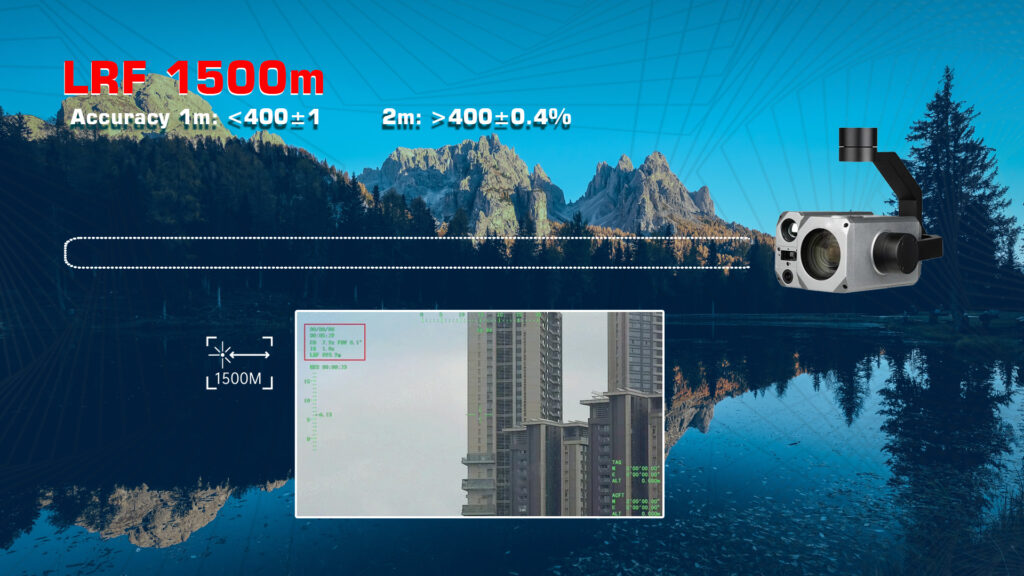

IR Laser Rangefinder

The H30T Plus gimbal camera is equipped with a sophisticated rangefinder capable of measuring distances from 5 to 1500 meters. It offers an accuracy of 1 meter for distances less than 400 meters and an accuracy of 2 meters for distances greater than 400 meters, with a deviation of ±0.4%. The rangefinder utilizes a 905nm pulse laser with a divergent angle of 12 mrad and a laser pulse frequency ranging from 0.1 to 1Hz. Additionally, it provides GPS location resolving, delivering the latitude and longitude of the target, and accurately measures the target distance.

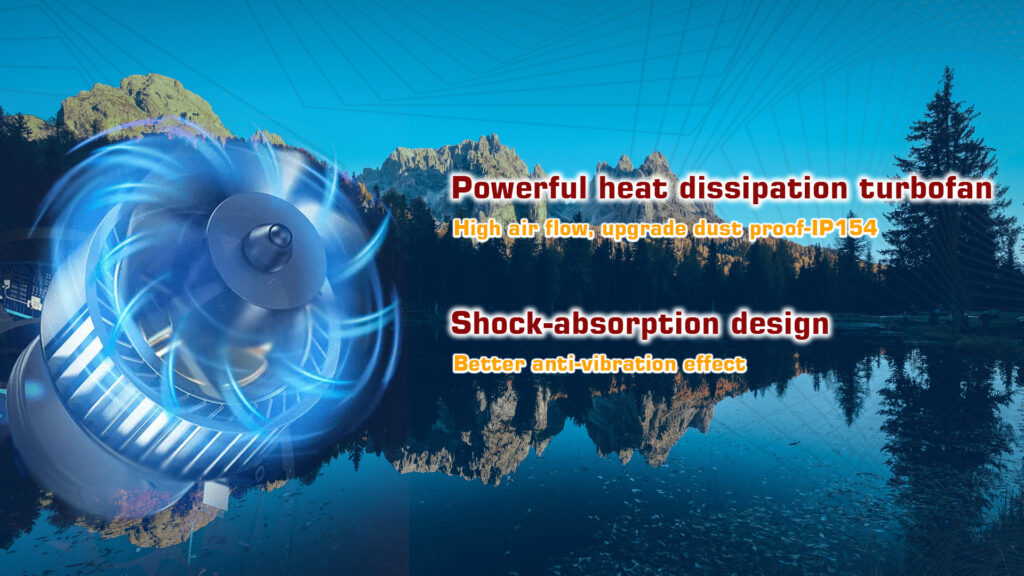

Hardware Parameter of H30T Plus Gimbal Camera

The H30T Plus Gimbal operates with a working voltage of 16V and accepts an input voltage range from 4S to 6S. It provides an output voltage of 5V when connected with PWM and has a dynamic current range between 1100 to 2500mA at 16V. This gimbal camera is designed to function in a wide temperature range, from -20℃ to +60℃, making it suitable for various environmental conditions. It supports micro HDMI output at 1080P 30fps/60fps and IP output with RTSP/UDP at 720p/1080p 30fps.

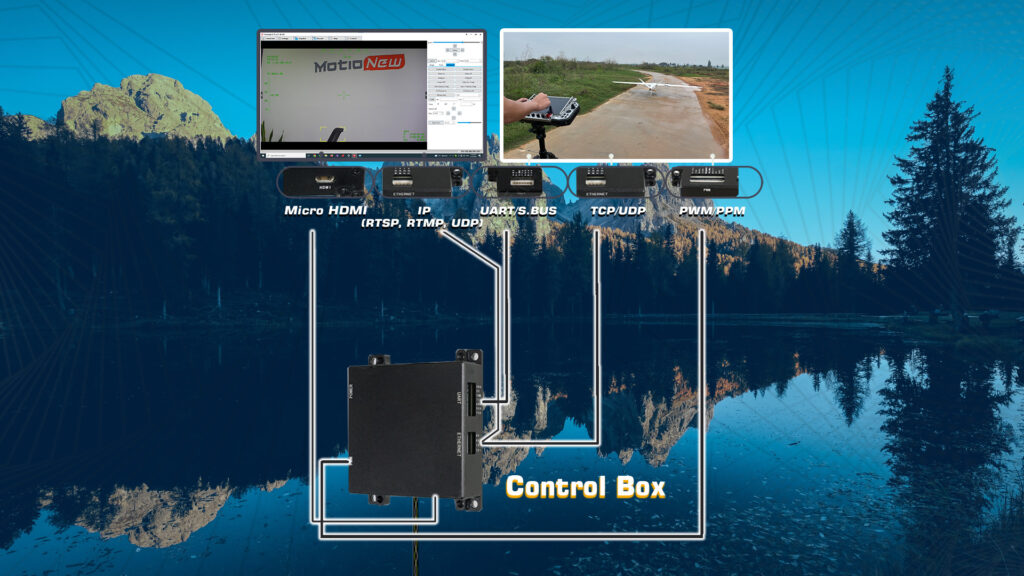

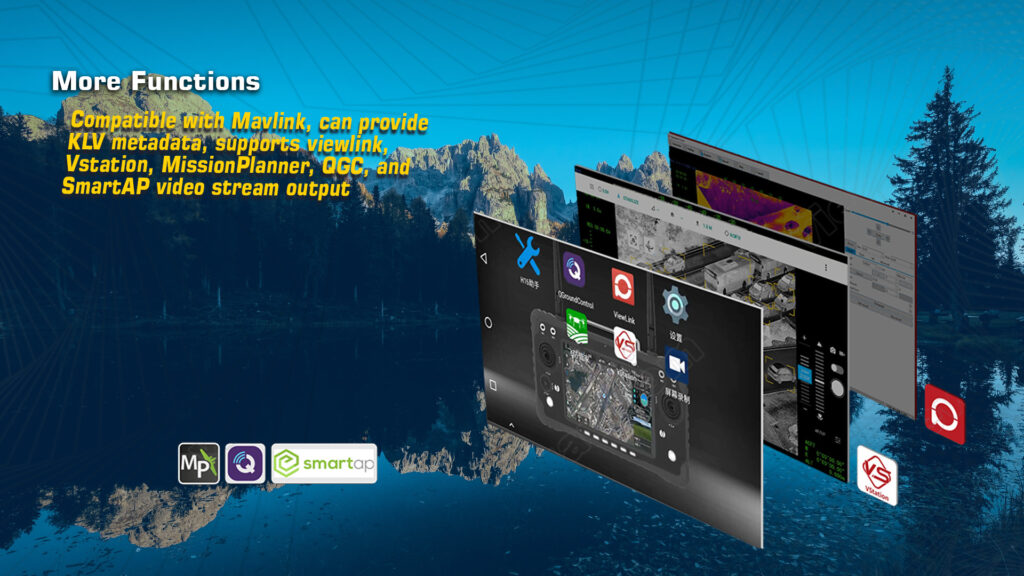

The H30T Plus Gimbal offers local storage with a TF card of up to 256GB, class 10, FAT32 format. Photos are stored in JPG format with a resolution of 1920×1080, and videos in MP4 format at 1080P 30fps. It supports online card reading through HTTP for reading pictures. Control methods include PWM, TTL, S.BUS, TCP (IP output version), and UDP (IP output version). Additionally, it supports geotagging, displaying time and GPS coordinates in picture EXIF data, providing valuable metadata for each captured image.
