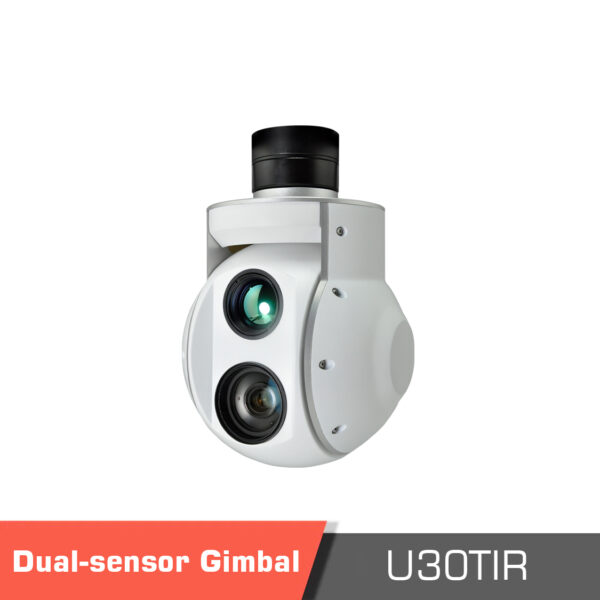

U30TIR Gimbal Camera, 30x Zoom Dual-sensor 2-axis Gimbal Camera
15149.00 $ – 15499.00 $
Description
U30TIR Gimbal Camera Overview
U30TIR gimbal camera features a 30x optical zoom lens. It’s powered by SONY 1/2.8″ Exmor R, 2.13 mega effective pixels, fast auto-focus speed, 1080p HD image quality, as well as visible light, and thermal image object tracking. It is compact in size and supports PWM, S. BUS, and TTL. Detecting by the heat source, the 25mm thermal can reveal the damage to buildings, fire spark in the forest, the location of people or animals, and more. Mainly used for applications where you need aย fixed wing drone with gimbal camera, it’s widely used in day and night surveillance, search, inspection, and firefighting.
Camera Specifications of U30TIR
Powered by SONY 1/2.8 Exmor R CMOS module, with [email protected] starlight level min illumination, U30TIR gimbal can still clearly display image features in the utterly poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.
Professional Thermal Imager
Integrated with the French ULIS high-precision uncooled long wave (8ฮผm ~14ฮผm) thermal image sensor, U30TIR gimbal can record and transmit thermal and visible images at the same time in picture in picture format (PIP format).
There exists an Optional Thermometry version: With a temperature measuring sensor, it could accurately attain the temperature of objects and individuals. The thermal sensor allows three pointsโ temperatures ranging between 0โ~120โ to be measured and displayed on the screen. Adjust the different colors applied to the thermal data based on the needs of specific scenarios.
Built-in normalization, cross-correlation, and tracking algorithms, combined with object missing recapture algorithm, achieve a stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor and trace information display. The tracking speed is up to 32 pixels/frame, the object size range is from 16×16 pixel to 160×160 pixel, with the minimum signal-to-noise ratio (SNR) of 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improves the accuracy and tracking effect.
Multi Output Methodsย

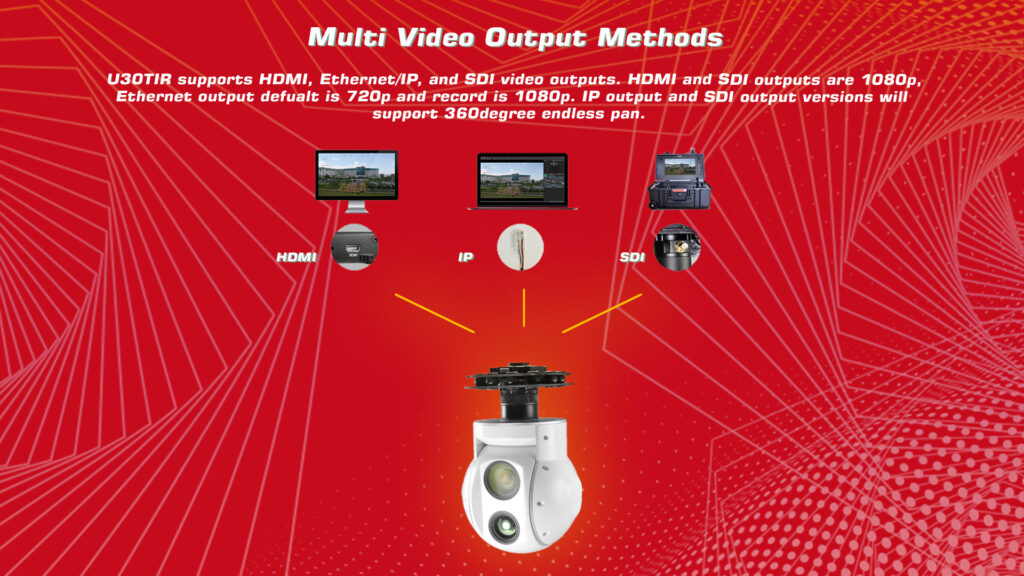

U30TIR gimbal supports HDMI, Ethernet/IP, and SDI output. HDMI and SDI output resolution are 1080p while Ethernet output resolution by default is 720p and recording resolution is 1080p. IP output and SDI output versions will support 360-degree endless pan.
Multi Control Methods for this thermal camera
By default, the gimbal can be controlled using PWM and Serial TTL, as well as SBUS. IP output version also supports TCP control via ethernet cable.
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
Specification
| Hardware Parameter | |
| Working voltage | 12V ~ 16V |
| Input voltage | 3S ~ 4S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 500mA @ 12V |
| Idle current | 400mA @ 12V |
| Power consumption | โค 6W |
| Working environment temp. | -20โย ~ +60โ |
| Output | micro HDMI(HD output 1080P 60fps) / IP / SDI |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method | PWMย / TTL / S.BUS (subject to actual product) |
| Gimbal spec | |
| Pitch/Tilt | ยฑ90ยฐ |
| Roll | No support |
| Yaw/Pan | ยฑ170ยฐ / ยฑ360ยฐ*N (IP / SDI output) |
| Vibration angle | Pitch/Roll: ยฑ0.01ยฐ, Yaw๏ผยฑ0.01ยฐ |
| One-key to center | โ |
| Camera spec | |
| Imager Sensor | SONY 1/2.8โณ โExmor Rโ CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7ยฐ(wide end) ~ 2.3ยฐ(tele end) |
| 720p mode: 63.7ยฐ(wide end) ~ 2.3ยฐ(tele end) | |
| SD: 47.8ยฐ(wide end) ~ 1.7ยฐ(tele end) | |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color [email protected] |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) |
| Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) | |
| White balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| Photoformate | JPEG |
| Videoformate | MP4 |
| Camera Object tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <15ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16×16 pixel |
| Maximum object size | 160×160 pixel |
| Tracking speed | ยฑ32 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Thermal imager spec | |
| Lens size | 25mm |
| Horizontal FOV | 24.6ยฐ |
| Vertical FOV | 18.5ยฐ |
| Diagonal FOV | 30.4ยฐ |
| Detective Distance (Man: 1.8ร0.5m) | 735 meters |
| Recognize Distance (Man: 1.8ร0.5m) | 184 meters |
| Verified Distance (Man: 1.8ร0.5m) | 92 meters |
| Detective Distance (Car: 4.2ร1.8m) | 2255 meters |
| Recognize Distance (Car: 4.2ร1.8m) | 564 meters |
| Verified Distance (Car: 4.2ร1.8m) | 282 meters |
| Working mode | Uncooled long wave (8ฮผm~14ฮผm) thermal imager |
| Detector pixel | 640×480 |
| Pixel size | 17ฮผm |
| Focusing method | Thermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | โค50mK (@25โ) |
| MRTD | โค650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x, 3x |
| Sync correct time | Yes |
| Thermometer type | Temperature bar (pseudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0โ~100โ |
| Thermal Object Tracking | |
| Update rate of deviation pixel | 25Hz |
| Output delay of deviation pixel | <3ms |
| Minimum object size | 16×16 pixel |
| Maximum object size | 128×128 pixel |
| Tracking speed | ยฑ32 pixel/frame |
| Object memory time | 100 frames (4s) |
| Packing Information | |
| N.W. | 1151g |
| Product dimensions | 127x122x177.1mm |
Product contents
1x U30TIR gimbal, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / High quality plastic box with foam cushion
Documents
Please contact us for more information.
