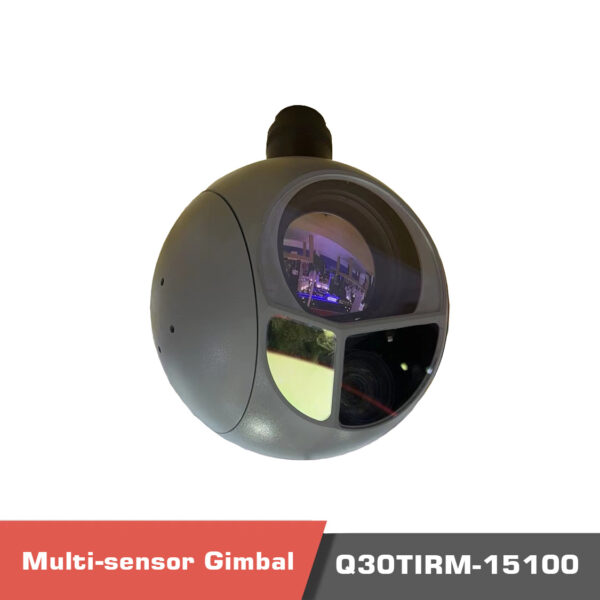

Q30TIRM-15100 Gimbal Camera for Drone

49190.00 $

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Description

Introductions Q30TIRM-15100

Introducing the Q30TIRM-15100 gimbal camera, an elite gimbal system meticulously designed for high-precision imaging and advanced tracking capabilities, catering to a wide range of professional applications. At its core lies a 1/1.8 Type STARVIS CMOS image sensor, celebrated for its exceptional sensitivity and low-light performance, paired with a 30x optical zoom lens with a focal range of 6.5mm to 162.5mm. This powerful combination allows for detailed and crisp imagery with a total pixel count of 4.17 megapixels.

Gimbal Camera AI object detection and Tracking Video

High Resolution Thermal Sensor Optical Zoom

Q30TIRM-15100 gimbal camera stands out with its multi-sensor functionality having a high-resolution thermal sensor, thermal optical zoom, and long range laser range finder.. The Q30TIRM-15100 also features a thermal sensor with a high resolution of 1280×1024, offering a variable focus length of 15mm to 100mm and a 7x optical zoom. The thermal sensor’s 12-micrometer pixel size and 25Hz refresh rate ensure precise and clear thermal imaging, making it ideal for surveillance, search-and-rescue, and various industrial applications.

Enhanced Versatility with Laser Rangefinder and Object Tracking

Equipped with a laser rangefinder capable of measuring distances from 5 meters to an impressive 10,000 meters, the Q30TIRM-15100 significantly enhances its operational versatility. The object tracking feature ensures reliable and accurate monitoring of moving targets, making it an indispensable tool for security and reconnaissance missions.

Seamless Integration and Ample Storage with Multi-Method Control and High-Capacity SD Support

The Q30TIRM-15100 supports a variety of control methods including PWM, TTL, S.BUS, TCP, and UDP, and offers outputs via micro HDMI and IP, allowing seamless integration with diverse systems. It operates efficiently within a voltage range of 4s to 6s, making it compatible with various power setups. For local storage, the gimbal supports SD cards up to 512GB, providing ample space for high-definition video and data storage.

Weighing 5120 grams and with dimensions of 150mm by 309.6mm by 236mm, the Q30TIRM-15100 is robustly built to withstand demanding conditions while ensuring stable performance.

Superior Imaging, Tracking, and Rangefinding for Professional Applications

Elevate your operational capabilities with the Q30TIRM-15100 gimbal system, delivering unparalleled visual and thermal imaging, reliable object tracking, and precise laser rangefinding. This advanced system is designed to meet the rigorous demands of professional surveillance, industrial inspection, and other critical applications, providing you with the ultimate tool for superior performance and reliability.

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Hardware Parameter
Working voltage	16V
Input voltage	4S ~ 6S (14.8V~25.2V)
Output voltage	5V (connect with PWM)
Dynamic current	1000~1500mA @ 16V
Power consumption	Average 16W, Max 24W
Working environment temp.	-20℃ ~ +50℃
Output (optional)	IP (RTSP/UDP 720p/1080p 25fps/30fps H264/H265) / SDI (1080P 30fps)
Local-storage	TF card (Up to 512G, class 10, FAT32 format)
Picture storage format in TF card	JPG (1920*1080)
Video storage format in TF card	MP4 (1080P 30fps)
Control method	PWM / TTL / S.BUS / TCP / UDP

Gimbal Spec
Mechanical Range	Pitch/Tilt:-55°～105°, Roll: ±60°, Yaw/Pan: ±360°*N
Controllable Range	Pitch/Tilt: -45°～100°, Yaw/Pan: ±360°*N
Vibration angle	Pitch/Roll/Yaw: ±0.02°
One-key to center	√

EO Camera spec
Imager Sensor	1/1.8 Type STARVIS CMOS Sensor
Picture quality	4.17MP
Lens optical zoom	30x, f=6.5~162.5mm, F1.6 to F4.8
Digital zoom	12x (max. 432x with StableZoom)
Min object distance	100 mm (Wide end), 1200 mm (Tele end)
Horizontal viewing angle	58.1°(wide end) ~ 2.3°(tele end)
Image S/N	50 dB (Weight On)
Min illumination	In the case of ICR-Off (Typical value) 0.009 lx (1/30 sec, 50%, High Sensitivity mode On) 0.09 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.0012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode On) 0.012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode Off) In the case of ICR-On 0.00008 lx (1/30 sec, 50%, High Sensitivity mode On) 0.00063 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.000005 lx (1/4 sec, 1/3 sec, 30%, High Sensitivity mode On)
High Sensitivity mode On/Off	Off
Recommended illumination	100 lx to 100,000 lx
Gain	Auto/Manual (0 to 50.0 dB (0 to 28 step)) Max. Gain Limit (10.7 to 50.0 dB (6 to 28 step))
White balance	Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Wide Dynamic Range Mode	On/Off
Shutter speed	1/1 sec to 1/10000 sec (22 steps)
Backlight compensation On/Off	Off
Image Stabilizer On/Off/Hold	Off
ICR On/Off	Off
Noise Reduction	On/Off
Defog	On/Off (low, mid, high)

IR Thermal Imager Spec
Focus Length	15~100mm
Horizontal FOV	54.2°~8.8°
Vertical FOV	44.5°~7.0°
15~100mm Detective Distance (Man: 1.8×0.5m)	625~4167 meters
15~100mm Recognize Distance (Man: 1.8×0.5m)	156~1042 meters
15~100mm Verified Distance (Man: 1.8×0.5m)	78~521 meters
15~100mm Detective Distance (Car: 4.2×1.8m)	1917~12778 meters
15~100mm Recognize Distance (Car: 4.2×1.8m)	479~3194 meters
15~100mm Verified Distance (Car: 4.2×1.8m)	240~1597 meters
Working mode	Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel	1280*1024
Pixel size	12μm
Focusing method	Athermal prime lens
NETD	≤40mK@25℃,F #1.0
Color palette	White hot, black hot, pseudo color
Digital zoom	1x ~ 8x

EO / IR Camera Object Tracking
Update rate of deviation pixel	50Hz
Output delay of deviation pixel	5ms
Minimum object contrast	5%
SNR	4
Minimum object size	32*32 pixel
Maximum object size	128*128 pixel
Tracking speed	±48 pixel/frame
Object memory time	100 frames (4s)
The mean square root values of pulse noise in the object position	< 0.5 pixel

Laser Rangefinder
Range	10km for big target (eg. building) ≥6km for car (2.3m×2.3m) ≥2.5km for people (1.75m×0.75m)(Based on typical value: LOS visibiligy: ≥10km Diffuse reflection rate: ≥0.3 Humility: ≤80%)
Accuracy	≤2m (RMS)
Light Beam	1535±5nm pulse laser
Divergent Angle	≤0.5mrad
Laser pulse frequency	1~10Hz
Min measuring range	≤30m
Location Resolving	Latitude and longitude of target
Rangefinder	Measure the distance between the object at the center of screen and the laser rangefinder

Features
OSD	Display the gimbal’s yaw and pitch angle, magnification, ranging value, card recording duration, aircraft GPS and altitude or target ranging point GPS and altitude (choose one of them, and target ranging point GPS and altitude), date and time
Geotagging	Display time and GPS coordinate in picture exif
Card reading online	SMB read pictures or videos / HTTP read pictures or videos
KLV (UDP)	Card recording or Viewlink video playback
ArduPilot / PX4	Support (Mavlink protocol ) Optional: Support Ardupilot Follow me feature
Video switching	EO+IR /IR+EO /EO /IR
Dual video stream output	Not support(EO and IR two stream output)

Packing Information
N.W.	5370±20g(Viewport version with Viewport)
Product meas.	266.7236335.1mm(Viewport version with Viewport)

Product contents

1x Q30TIRM-15100 gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion

Documents

Please contact us for more information.
