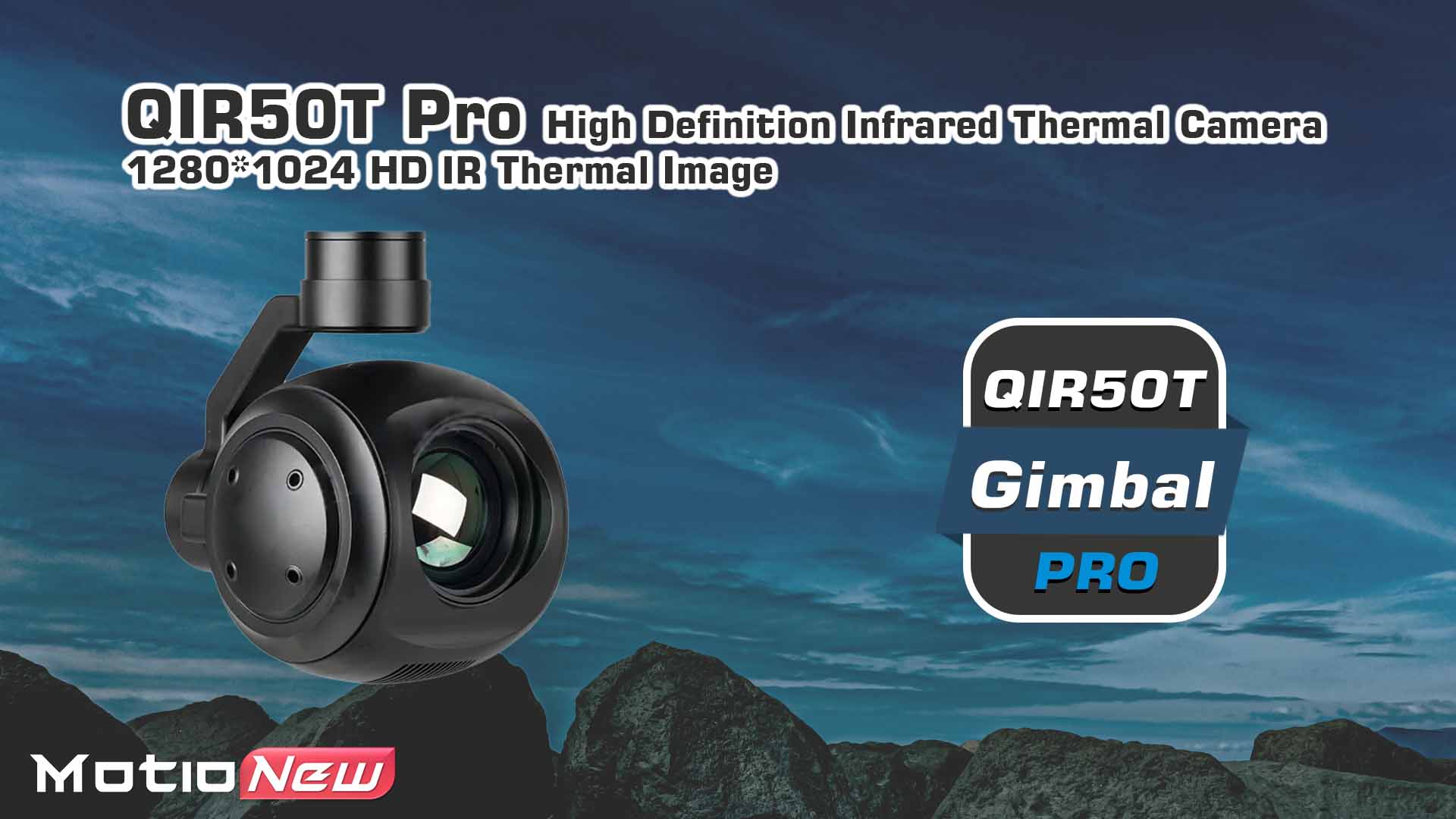

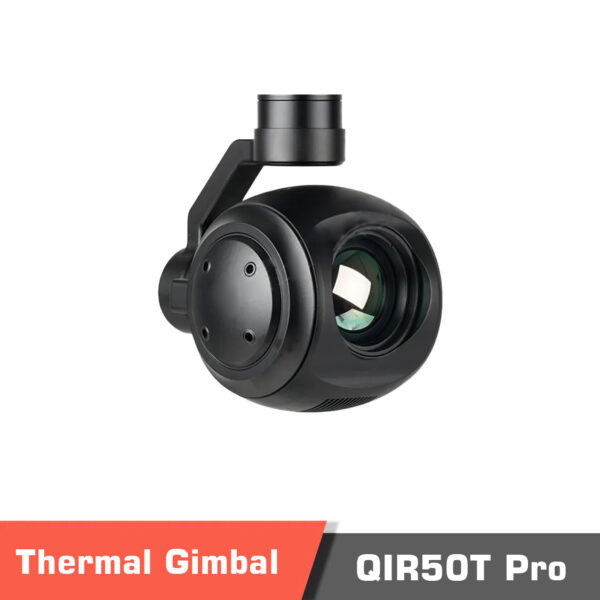

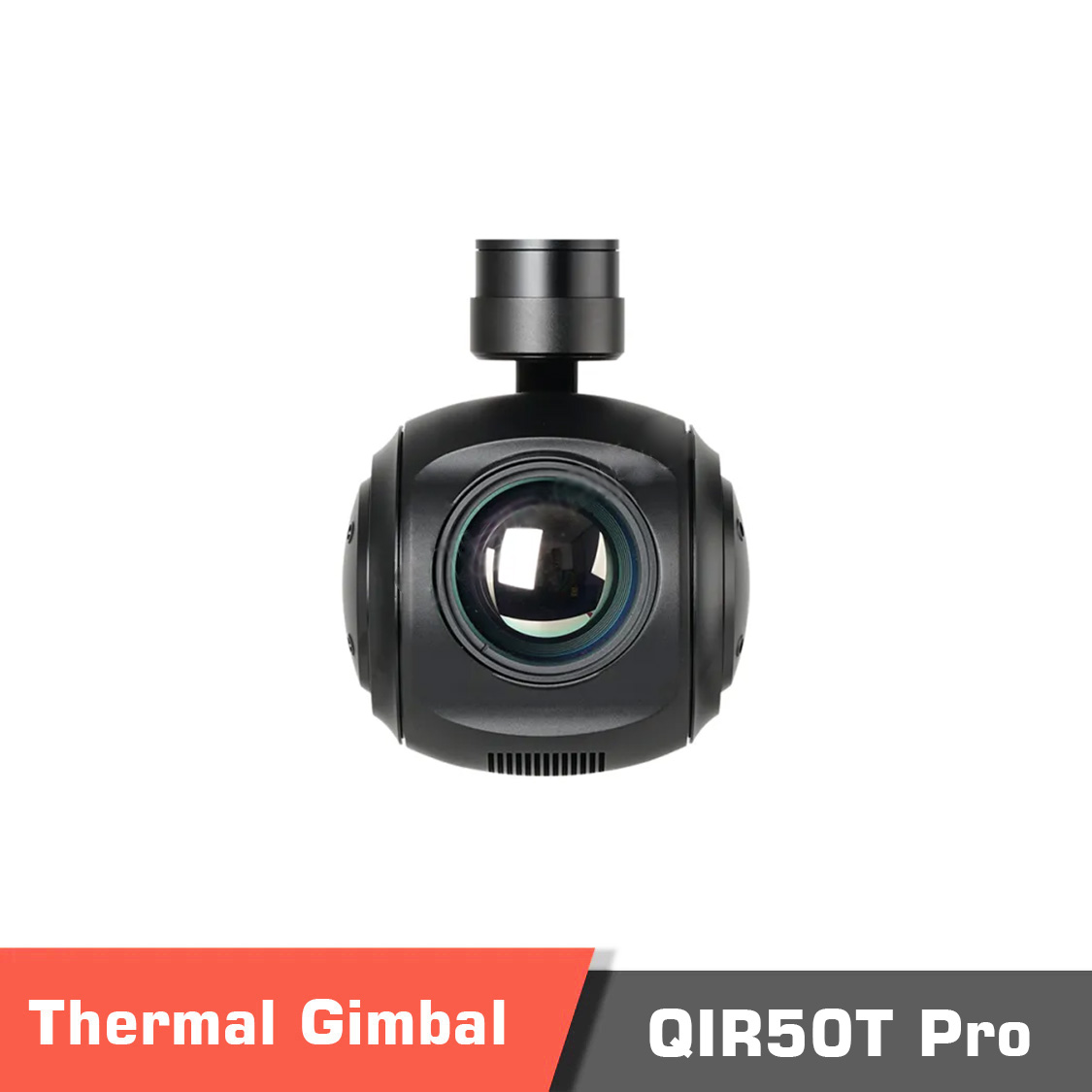

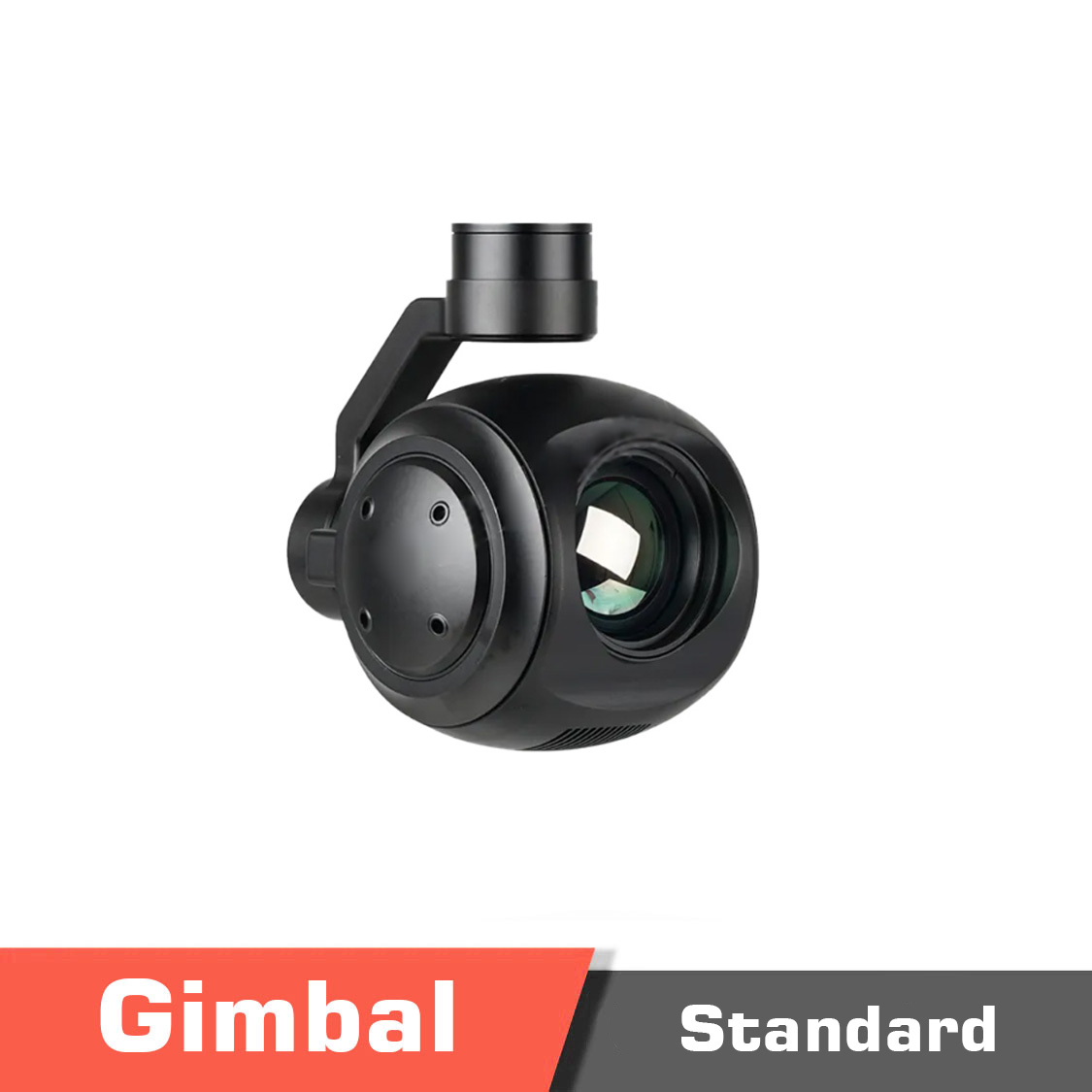

1280×1024 HD IR Thermal QIR50T Pro Gimbal Camera
10690.00 $ – 10890.00 $
Description
QIR50T Pro Overview

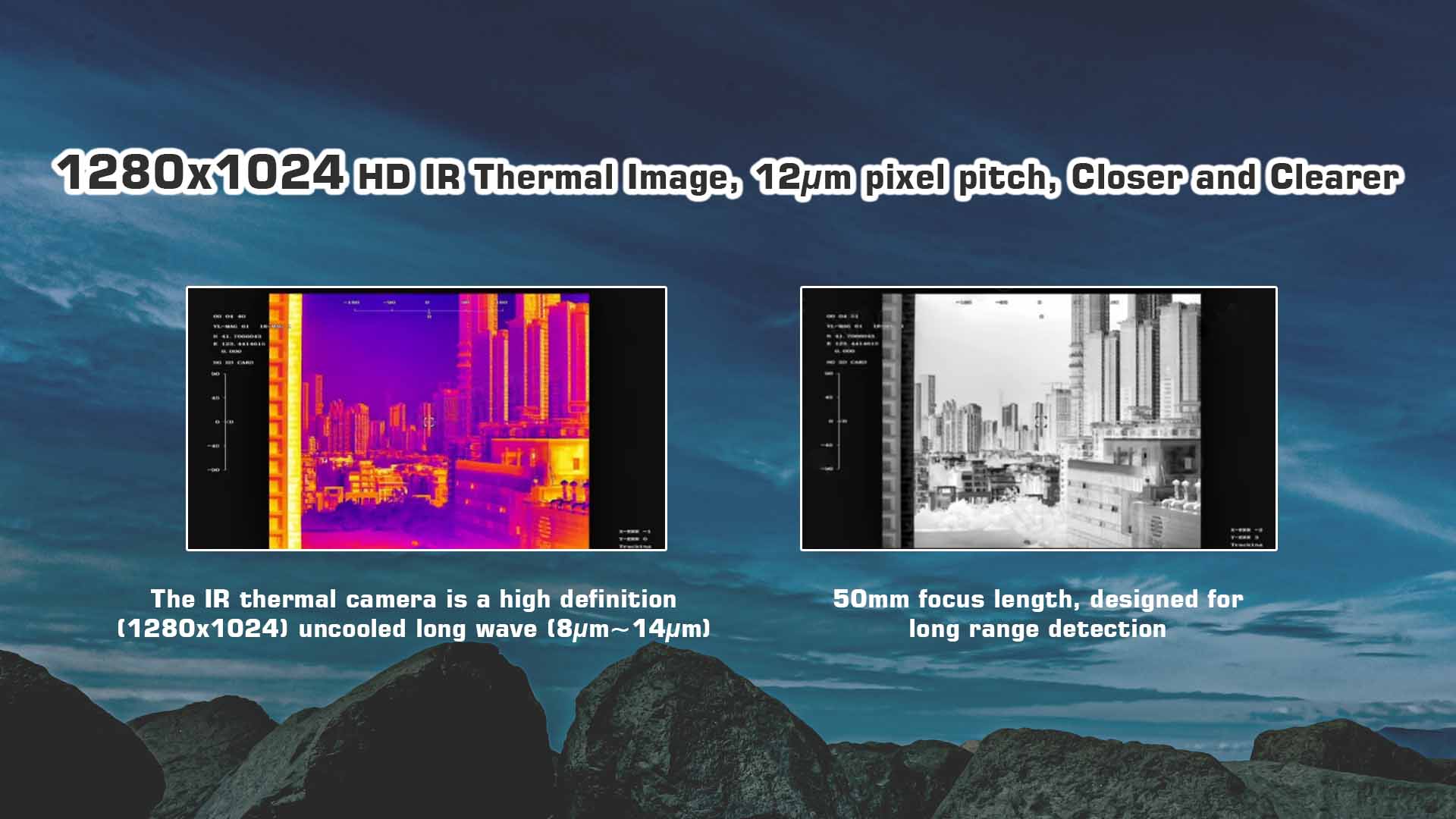

The QIR50T Pro is a high-performance IR thermal camera featuring a 1280×1024 HD uncooled long-wave (8μm~14μm) thermal imager with a 12μm pixel pitch, ensuring enhanced clarity and precision for long-range detection. Equipped with a 50mm focus length, it delivers closer and clearer imaging for critical applications.
The camera operates on a working voltage of 16V, with an input range of 4S to 6S and an output voltage of 5V when connected via PWM. It supports dynamic current ranging from 500mA to 1000mA at 16V and functions effectively in temperatures from -20℃ to +60℃. The QIR50T Pro offers versatile output options, including micro HDMI (1080P 60fps), IP (RTSP/UDP 720p/1080p at 25fps/30fps), and SDI (1080P 30fps).
It supports local storage via an SD card (up to 512G, class 10, FAT32 format), with picture storage in JPG format (1920×1080) and video storage in MP4 (1080P 30fps). Users can access stored data online via SMB or HTTP read, while control options include PWM, TTL, S.BUS, and TCP/UDP for IP output versions, making it a versatile solution for advanced thermal imaging applications.
It can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution.

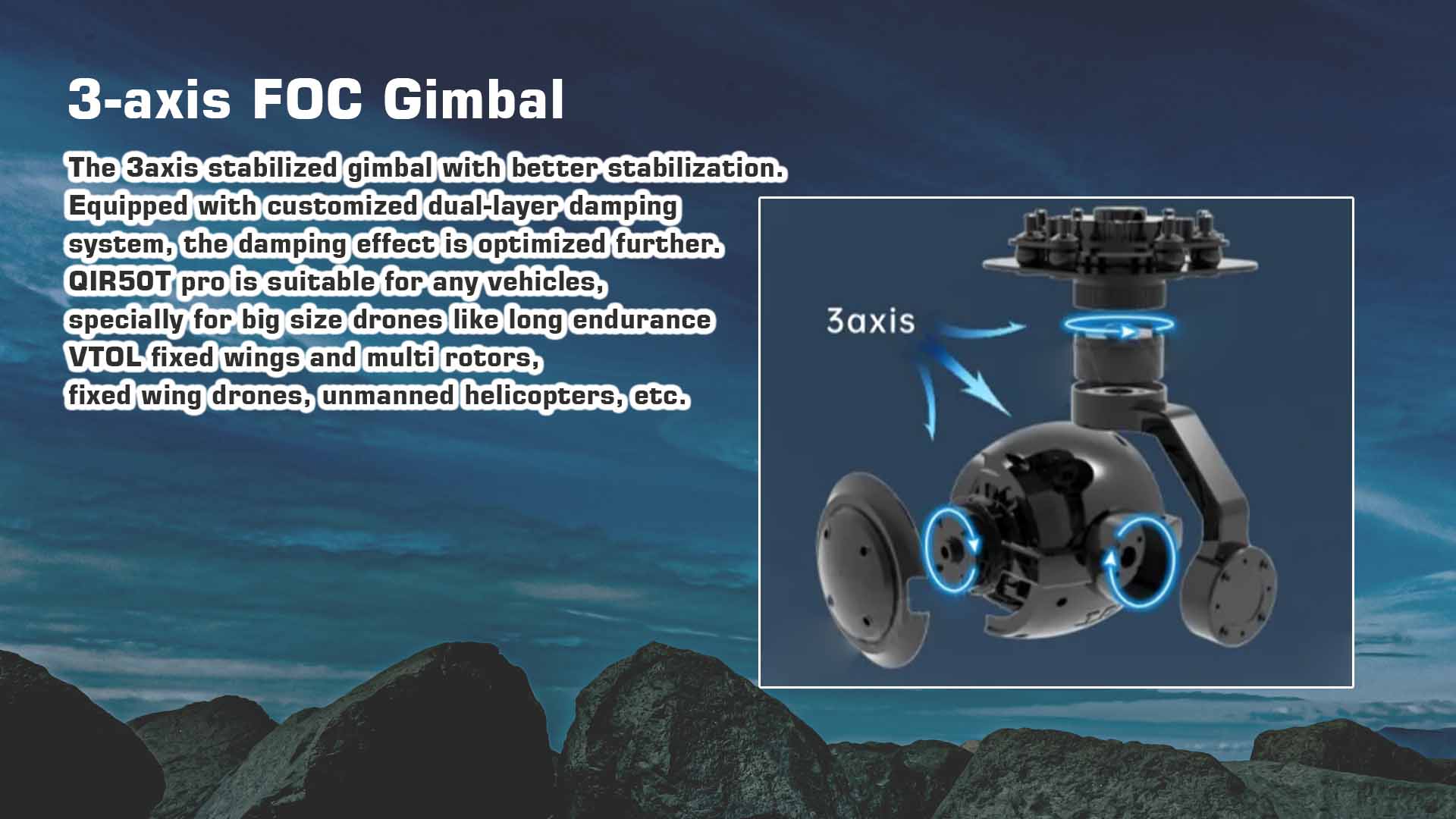

Professional 3-axis High-precise FOC Program Video
Overview of the QIR50T Pro High definition Infrared Thermal Camera
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
QIR50T Pro High Resolution IR Thermal Gimbal Camera Specification
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 500mA~1000mA @ 16V |
| Working environment temp | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps) |
| Local-storage | SD card (Up to 512G,class 10, FAT32 format) |
| Picture storage format in TF card | JPG(1920×1080) |
| Video storage format in TF card | MP4 (1080P 30fps) |

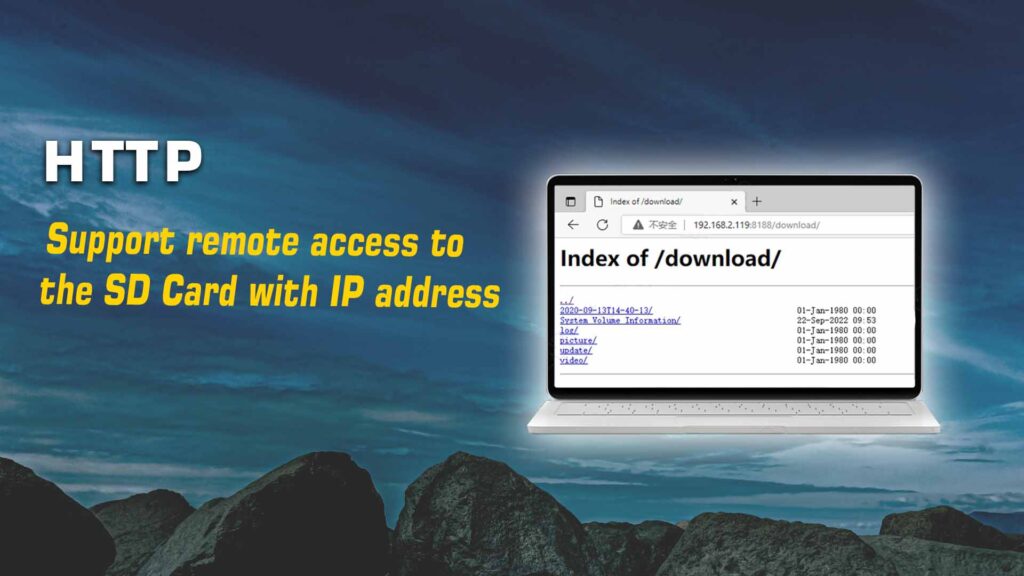

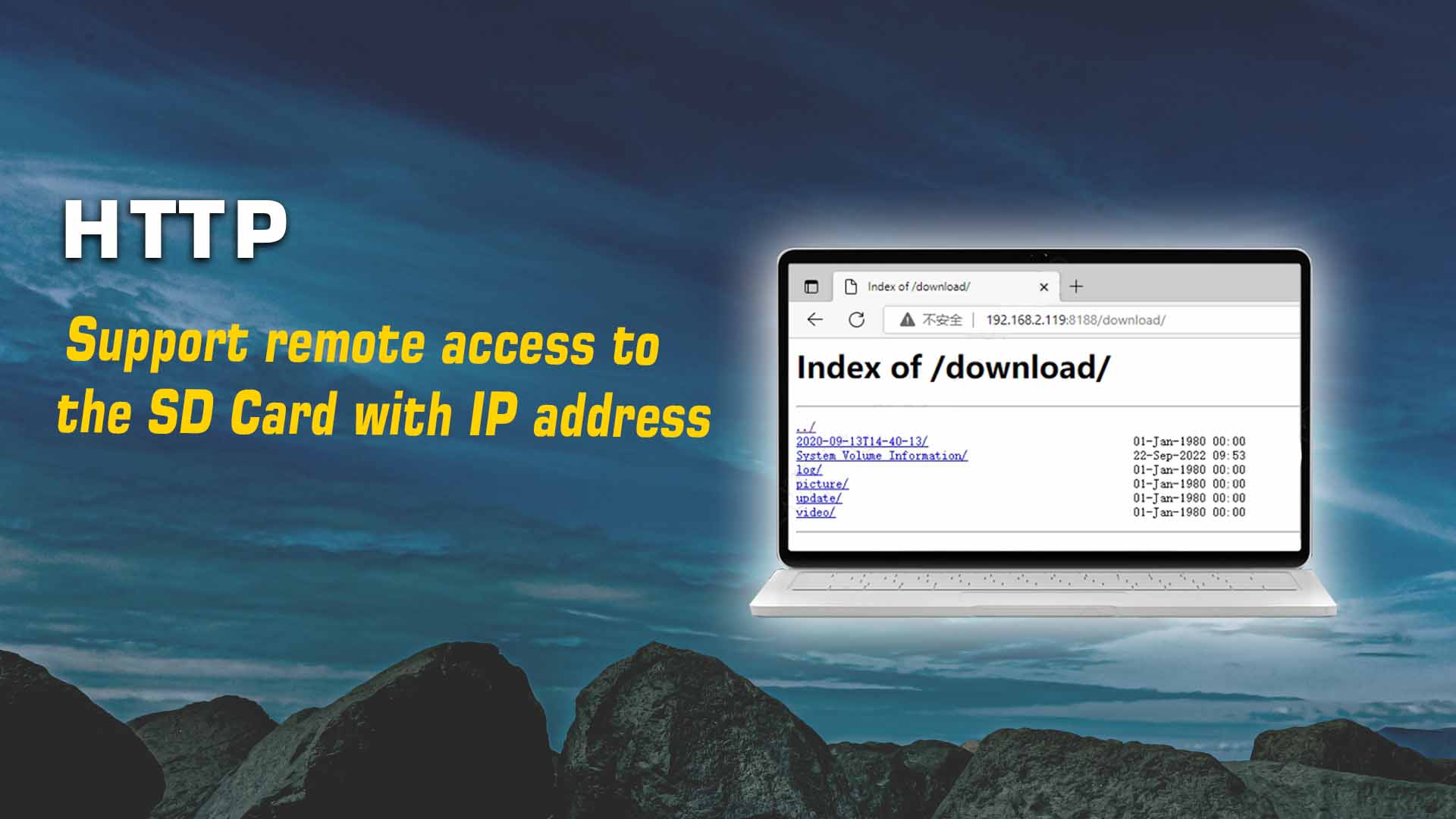

| Card reading online | SMB read / HTTP read |

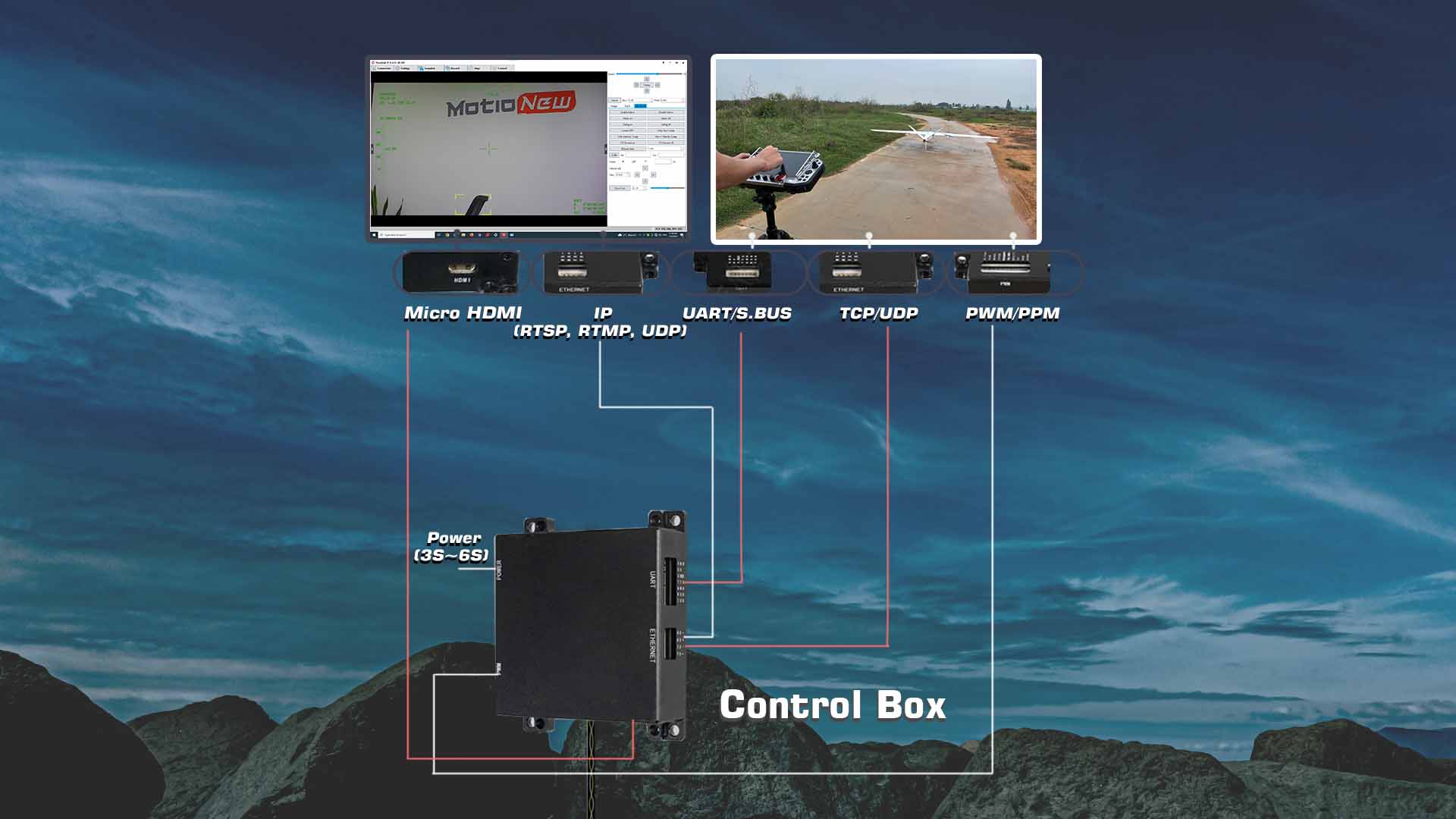

| Control method | PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -90~125° , Roll: ±35°, Yaw/Pan: ±300° / ±360°*N (IP / SDI output version) |
| Controllable Range | Pitch/Tilt: -45°~120° , Yaw/Pan: ±290° / ±360°*N (IP / SDI output version) |
| Vibration angle | Pitch/Roll: ±0.02° , Yaw：±0.02° |
| One-key to center | √ |
| IR Thermal Imager Spec | |
| Focus Length | 50mm |
| Horizontal FOV | 17.5 |
| Vertical FOV | 14 |
| Diagonal FOV | 22.3 |

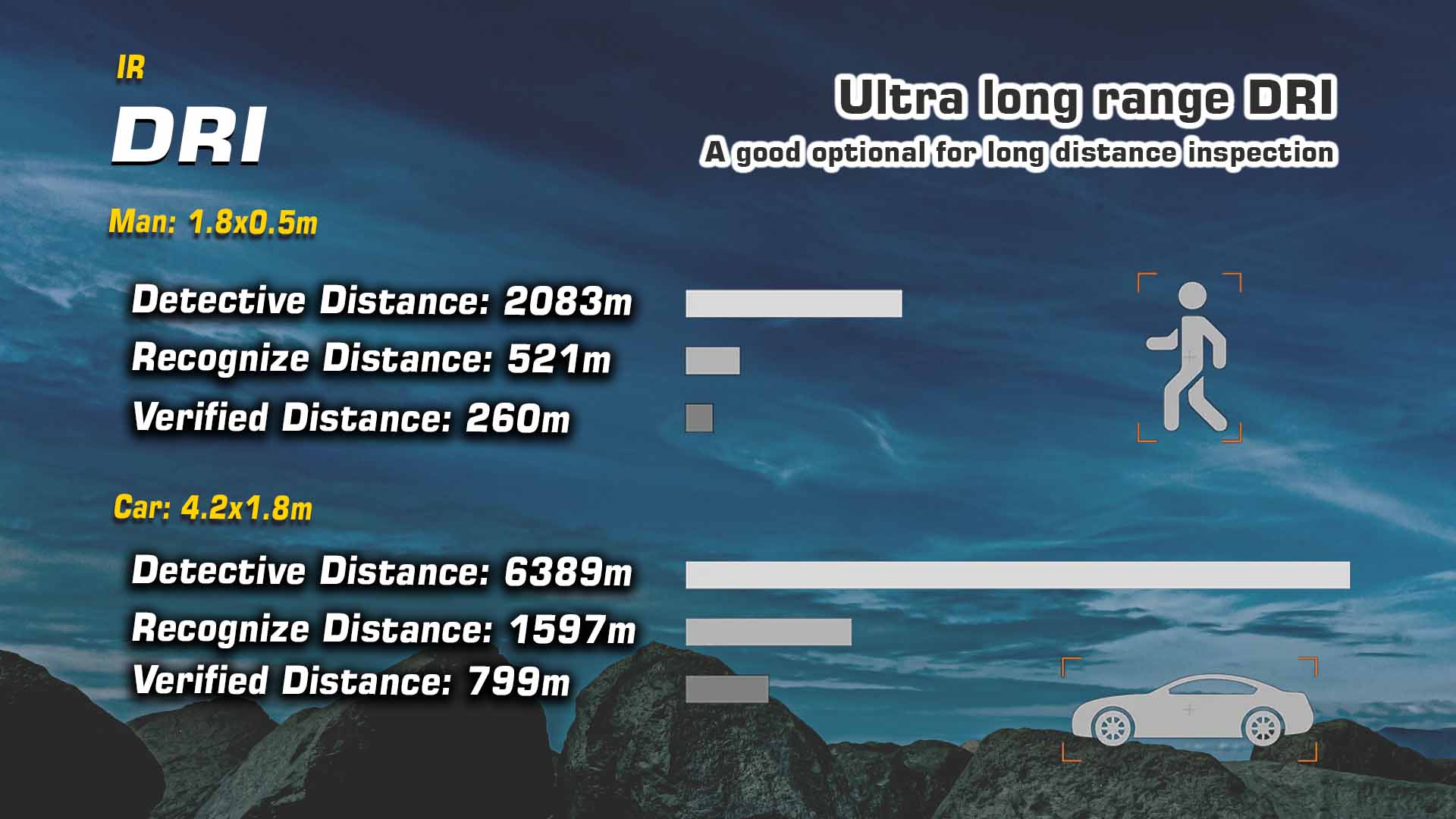

| Detective Distance (Man: 1.8×0.5m) | 2083 meters |
| Recognize Distance (Man: 1.8×0.5m) | 521 meters |
| Verified Distance (Man: 1.8×0.5m) | 260 meters |
| Detective Distance (Car: 4.2×1.8m) | 6389 meters |
| Recognize Distance (Car: 4.2×1.8m) | 1597 meters |
| Verified Distance (Car: 4.2×1.8m) | 799 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 1280×1024 |
| Pixel pitch | 12μm |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |

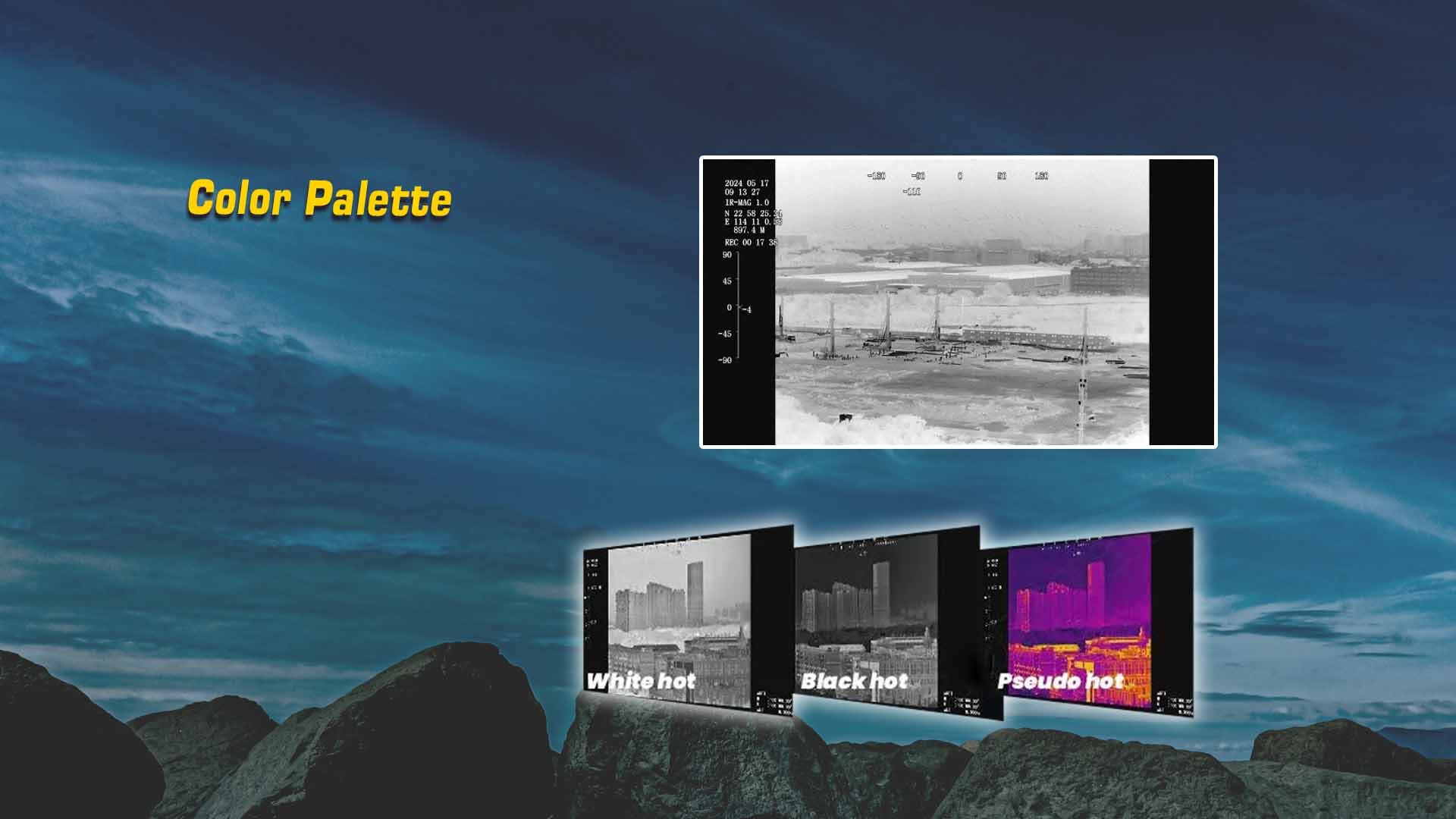

| Color palette | White, black, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |

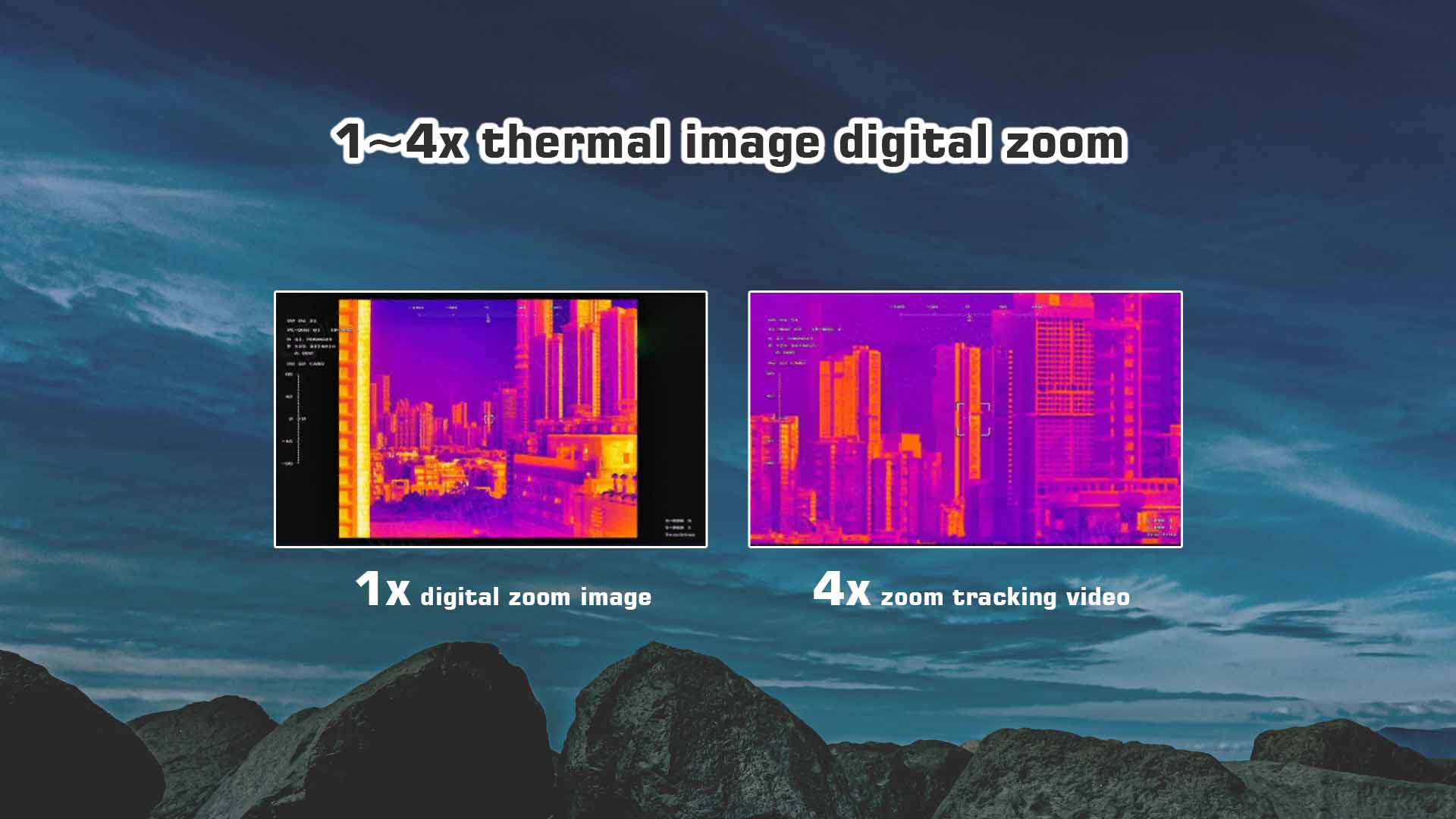

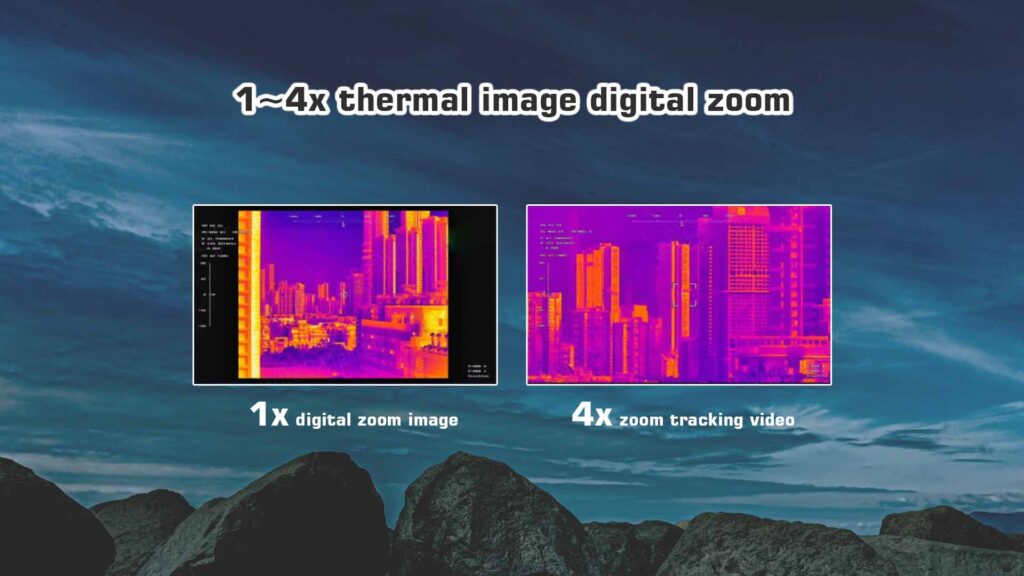

| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |

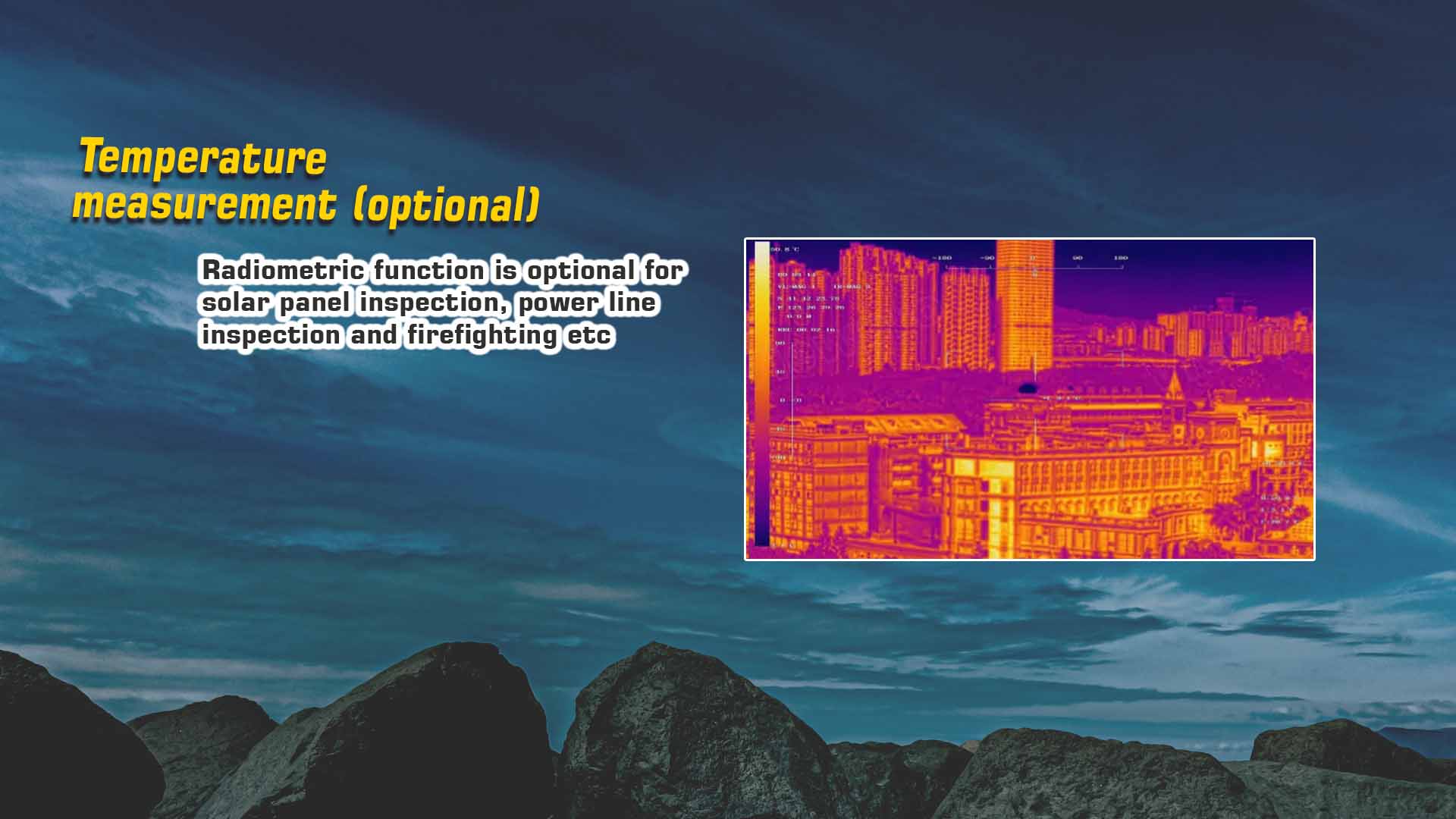

| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0℃~120℃ (For thermometry version only) |
| IR Thermal Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object size | 32×32 pixel |
| Maximum object size | 128×128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames (4s) |
| Packing Information | |
| N.W. | 1020g (Viewport version) |

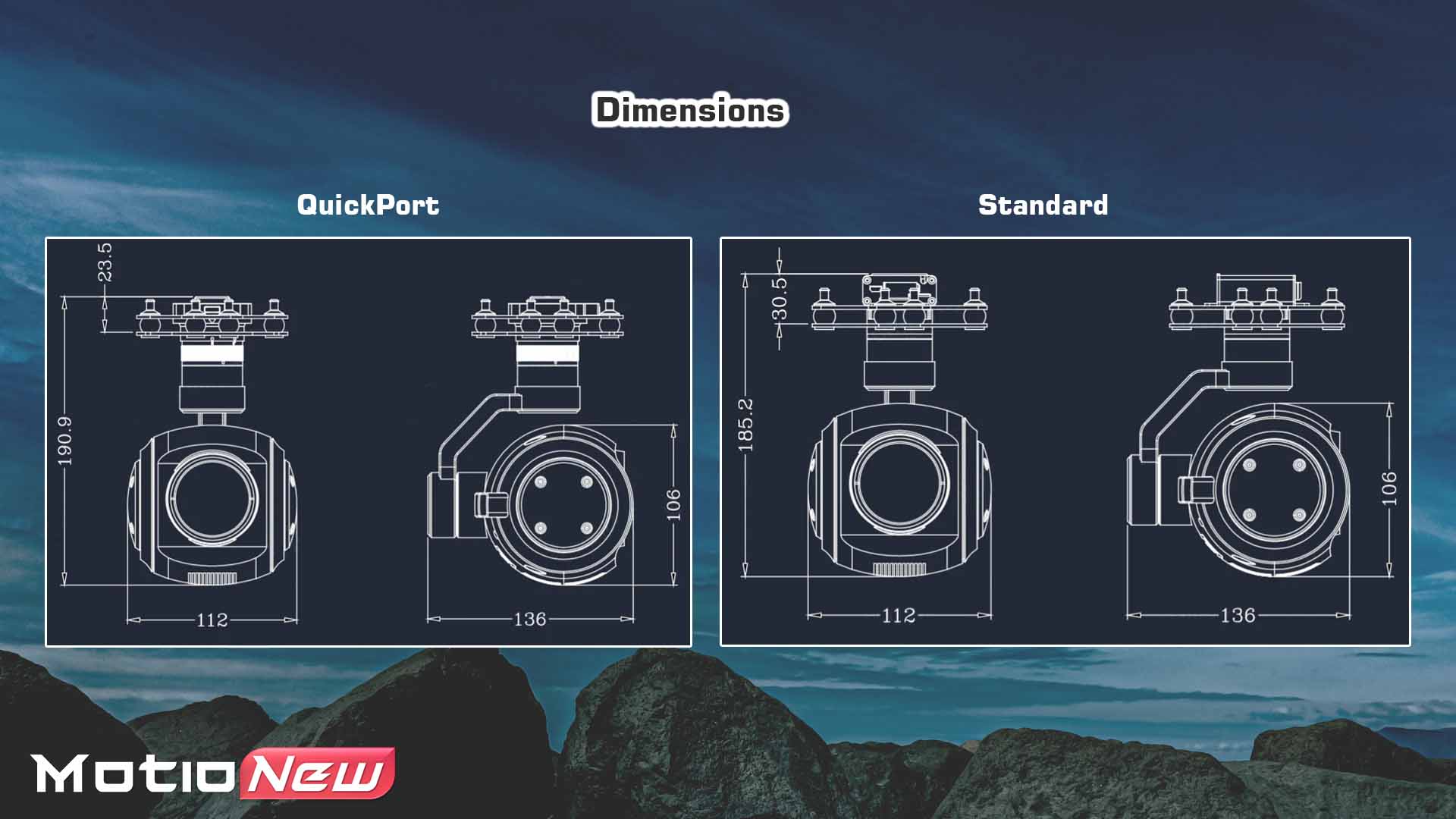

| Product meas. | 112x136x190.9mm |

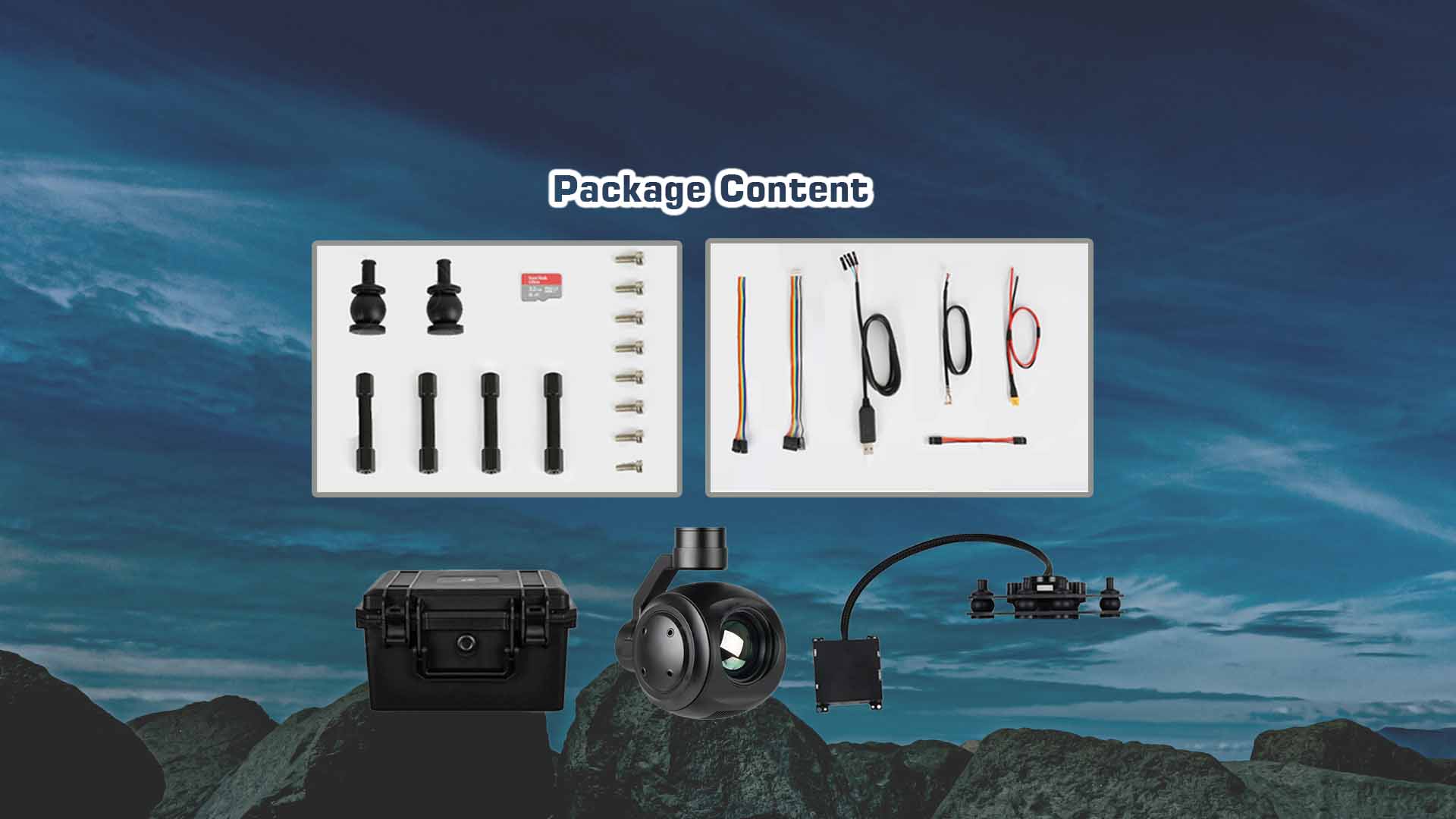

| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 2632g |

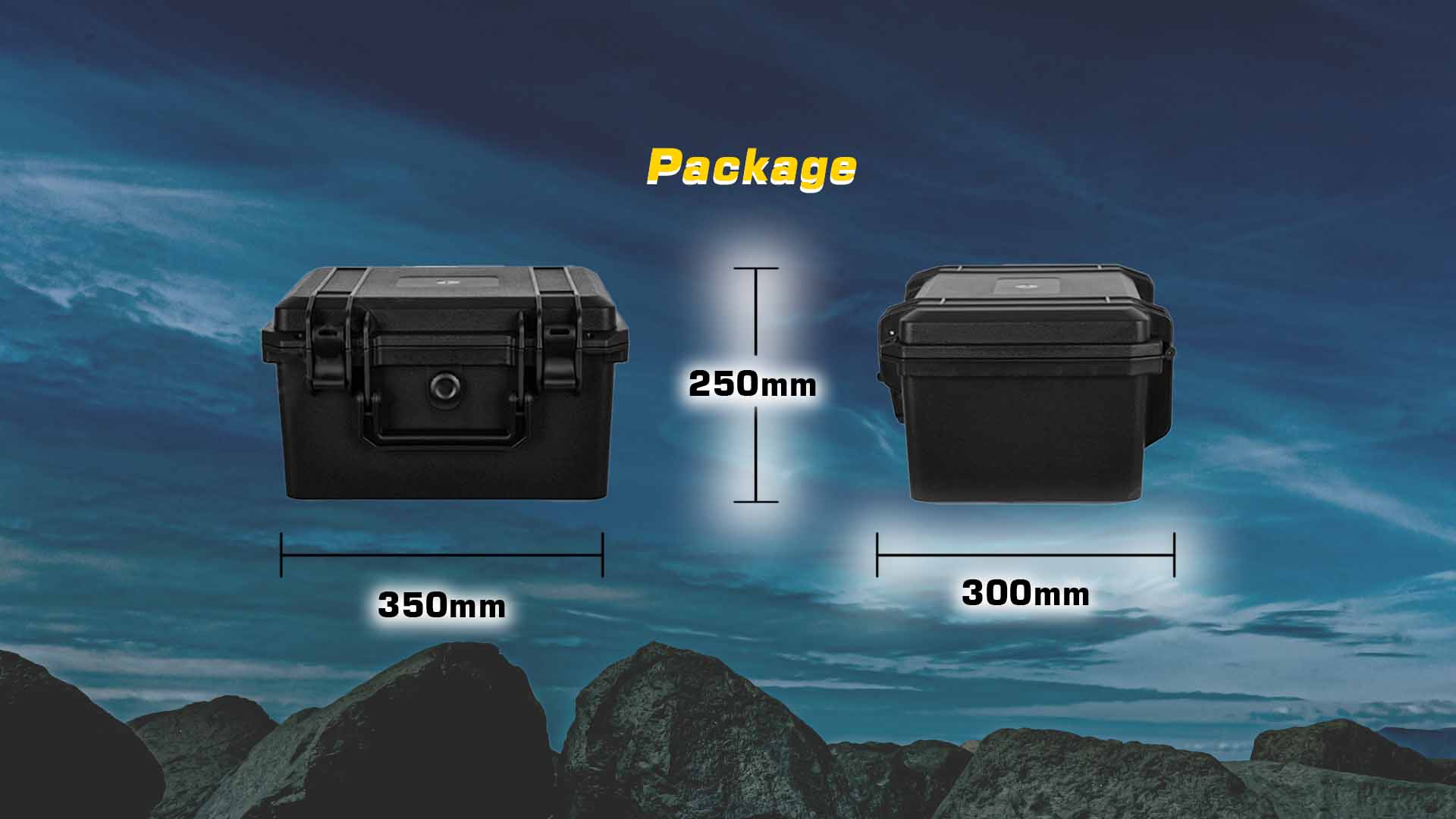

| Package meas. | 300x250x200mm |
Product contents
1 pcs of Gimbal + cable set
Documents
Please contact us for more information.
