Q10E Gimbal Camera for Drone

Description

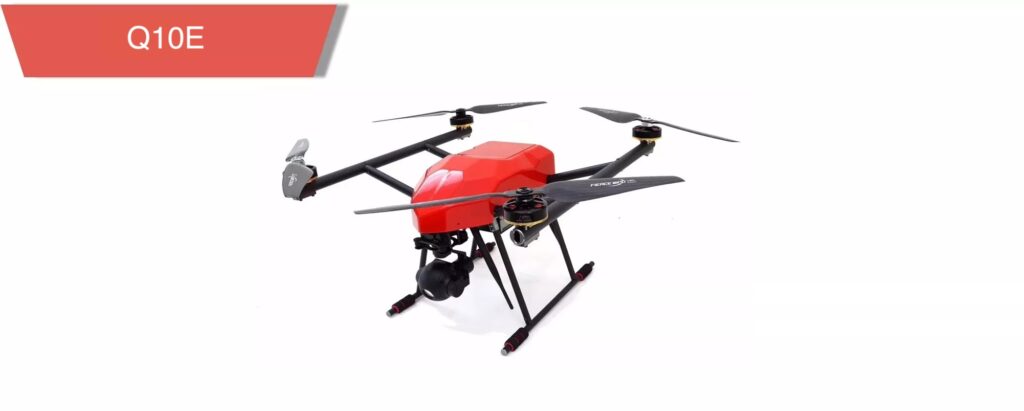

Q10E Gimbal Camera Overview

The Q10E gimbal camera  is designed with 3-axis stabilization capability, and carries a 10X zoom camera for drone aerial inspection, surveillance, and search and rescue missions. It has an HD 10X optical zoom camera and a 3-axis high stabilized gimbal, which is able to capture 1080p 30fps video. The captured data are recorded on an onboard TF card. This stabilizer gimbal is controlled by the drone pilot or a secondary individual allowing for an overhead view that can cover a large field of ground quickly and effectively. The 10x optical zoom function of the camera allows you to see every detail of interest in the scene while staying at a distance.

Q10E Professional 3-axis High-precise Gimbal

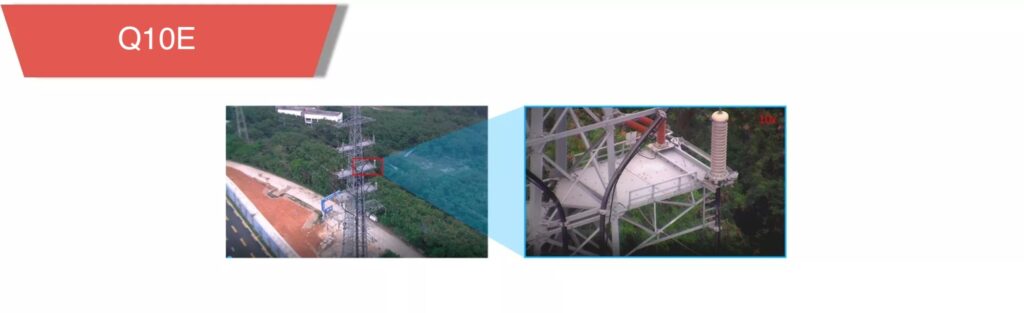

10x Optical Zoom Camera with Q10E

This drone camera features a 10x optical zoom lens. making it an essential tool for Gimbal drone operators. It is powered by a 2.48MP 1/3″ SENSOR CMOS module, provides great performance in poor light environments, and has a wide dynamic range of 105dB. This feature is excellent for flying at sunset or sunrise. In the presence of backlight or strong light, the view of the over bright and over dark regions can still be captured at the same time. The camera stabilizer gimbal outputs Full HD 1080p (1920×1080) images, and has autofocus — uses a fast focus algorithm with focus time <1s.

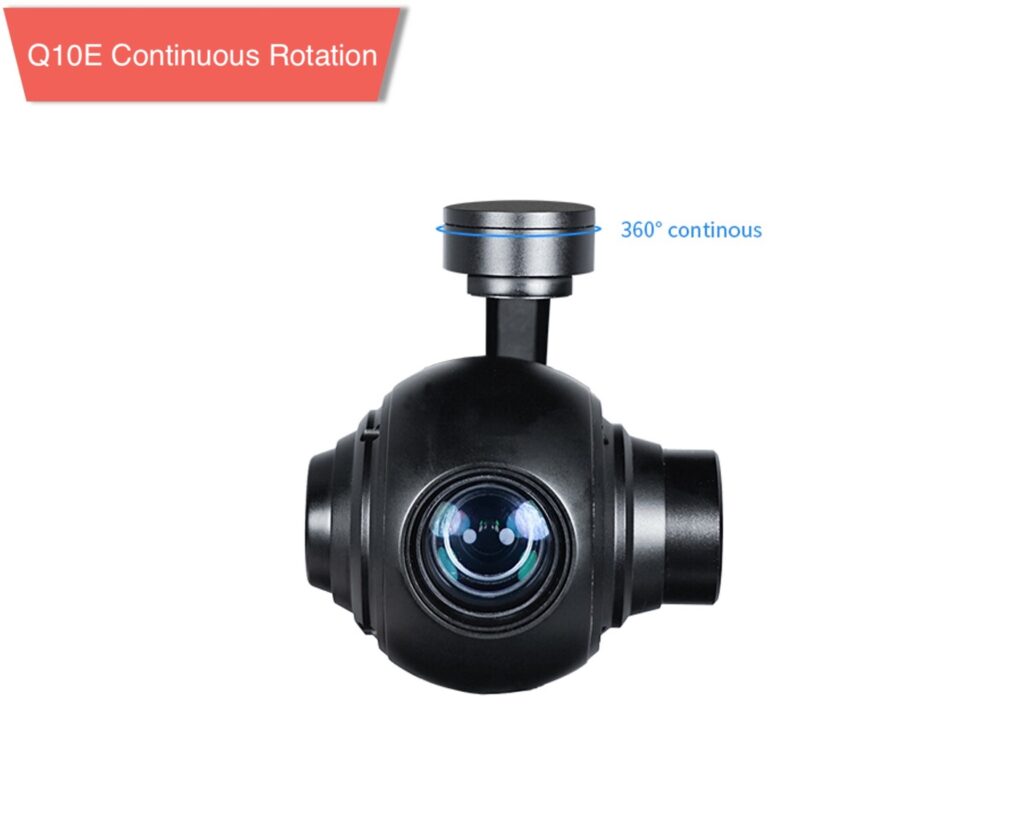

IP Output with 360 degrees continuous

The Q10E gimbal camera supports IP video output and 360 degrees of continuous yaw rotation. The Default IP video output resolution is set at 720P.

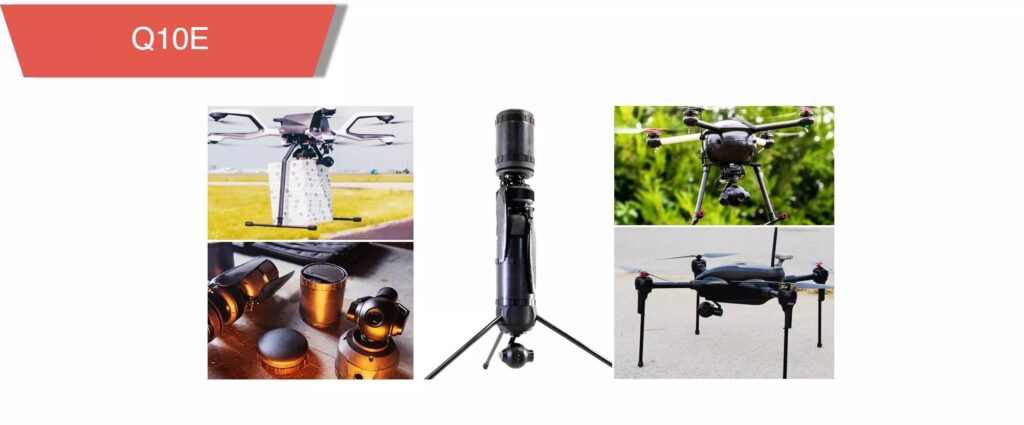

Q10E – 3-axis Small Size Gimbal Camera

Q10E is a professional 3-axis gimbal zoom camera with high stability, small size, lightweight, and low power consumption. Also known as brushless gimbals, it is suitable for VTOL Drones, helicopters, fixed-wing planes, Multirotor aircraft, and other types of drones.

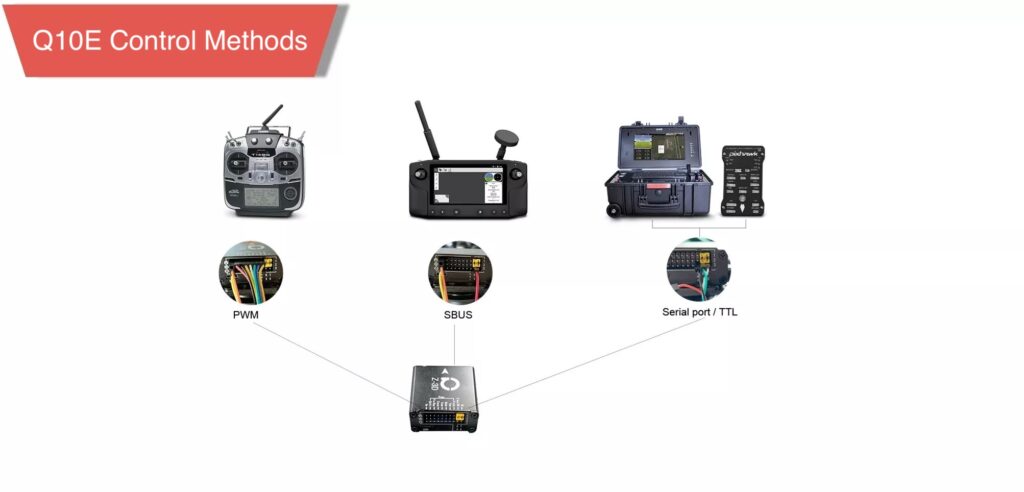

Multi Control Methods

The default control method is PWM and Serial port (TTL voltage level). However, you can optionally use SBUS to control the gimbal. Using Viewpro software Viewlink you can do TTL control.

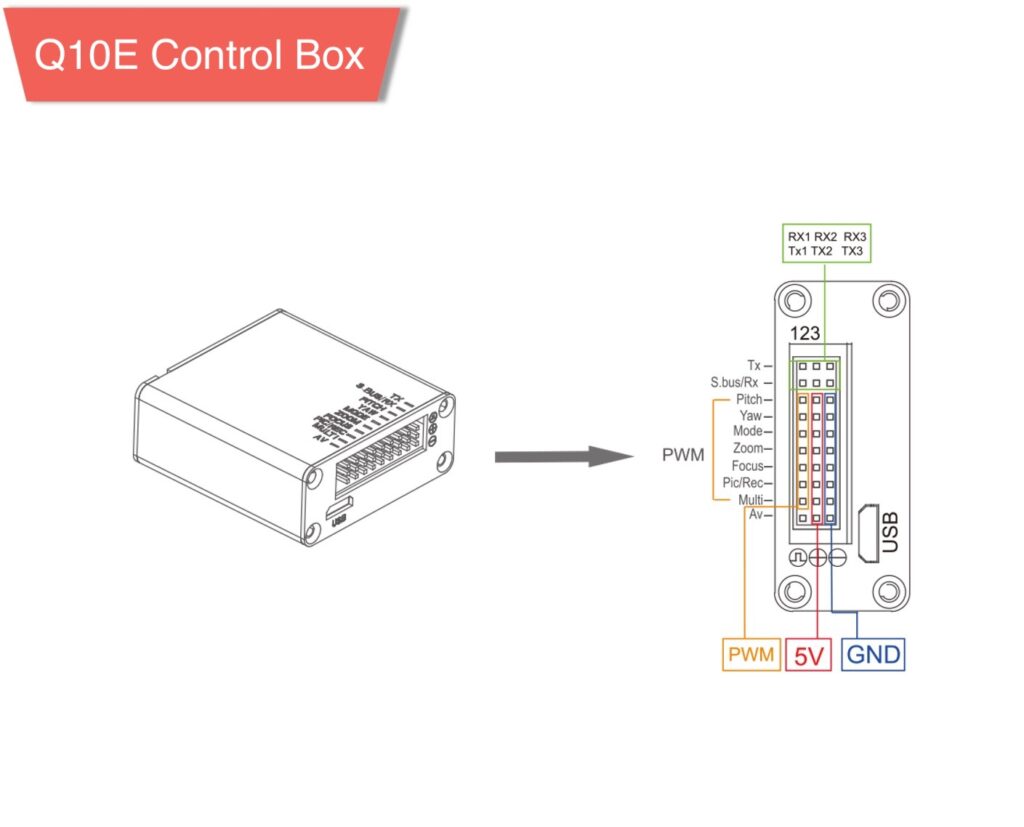

Control box signal interfaces:

Q10E Gimbal Camera Applications

Q10E gimbal camera is designed to be used in various fields like public security, electric power lines inspection, control of fire hazards, aerial photography and cinematography, construction sites, and any other industry that can benefit from the usage of drones.

Compatible with Viewport

Q10E is compatible with quick-release connectors. This gives you easy assembly, and plug and play capability. You can just install the quick-release connector on your drone, and use different types of drone camera based on your mission requirements.

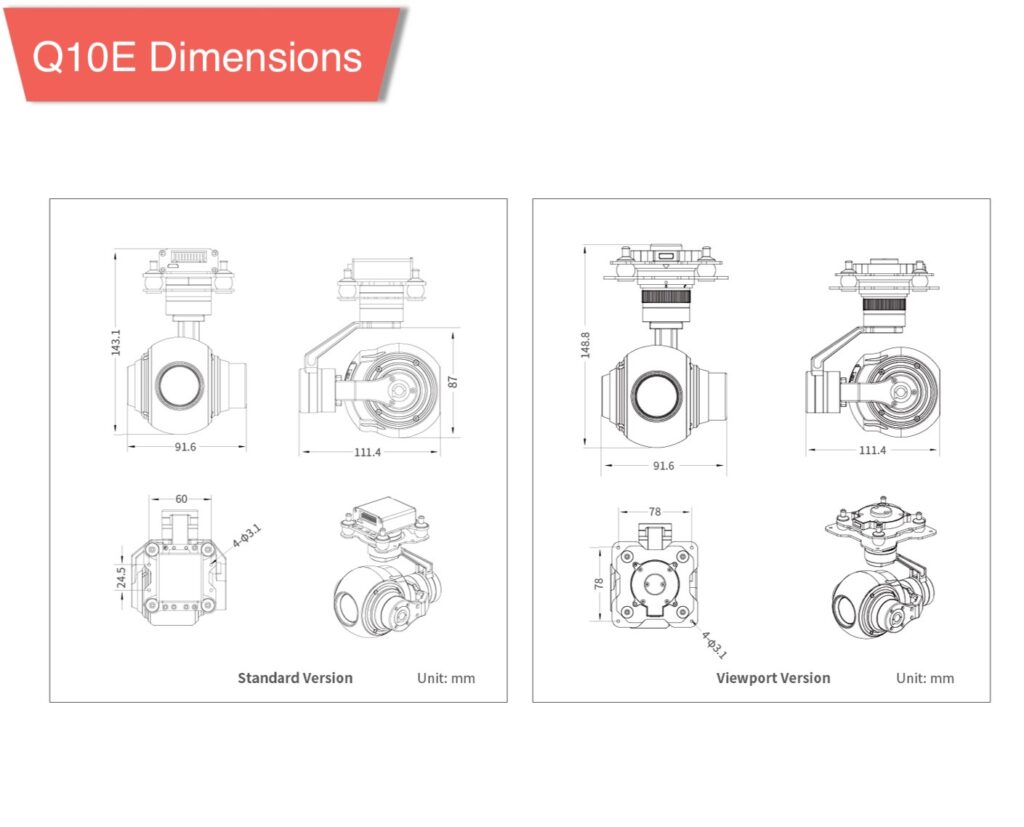

Dimensions
