NV16 / NV20 Agricultural Drone Frame
Description
Important Notice!
If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. MotioNew products cannot be used for military, terrorist, or war purposes. Please read our Terms of Service for more information.

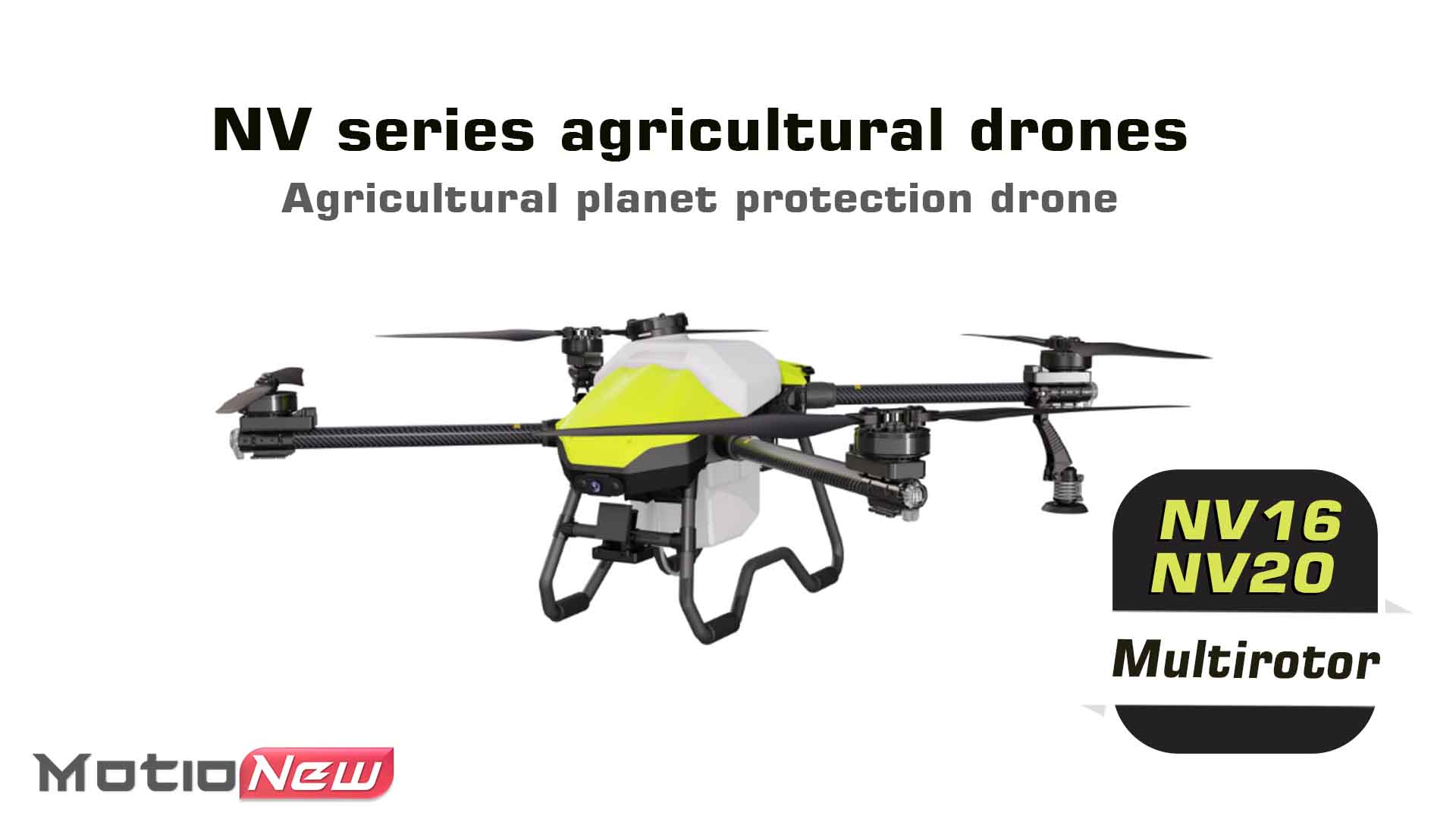

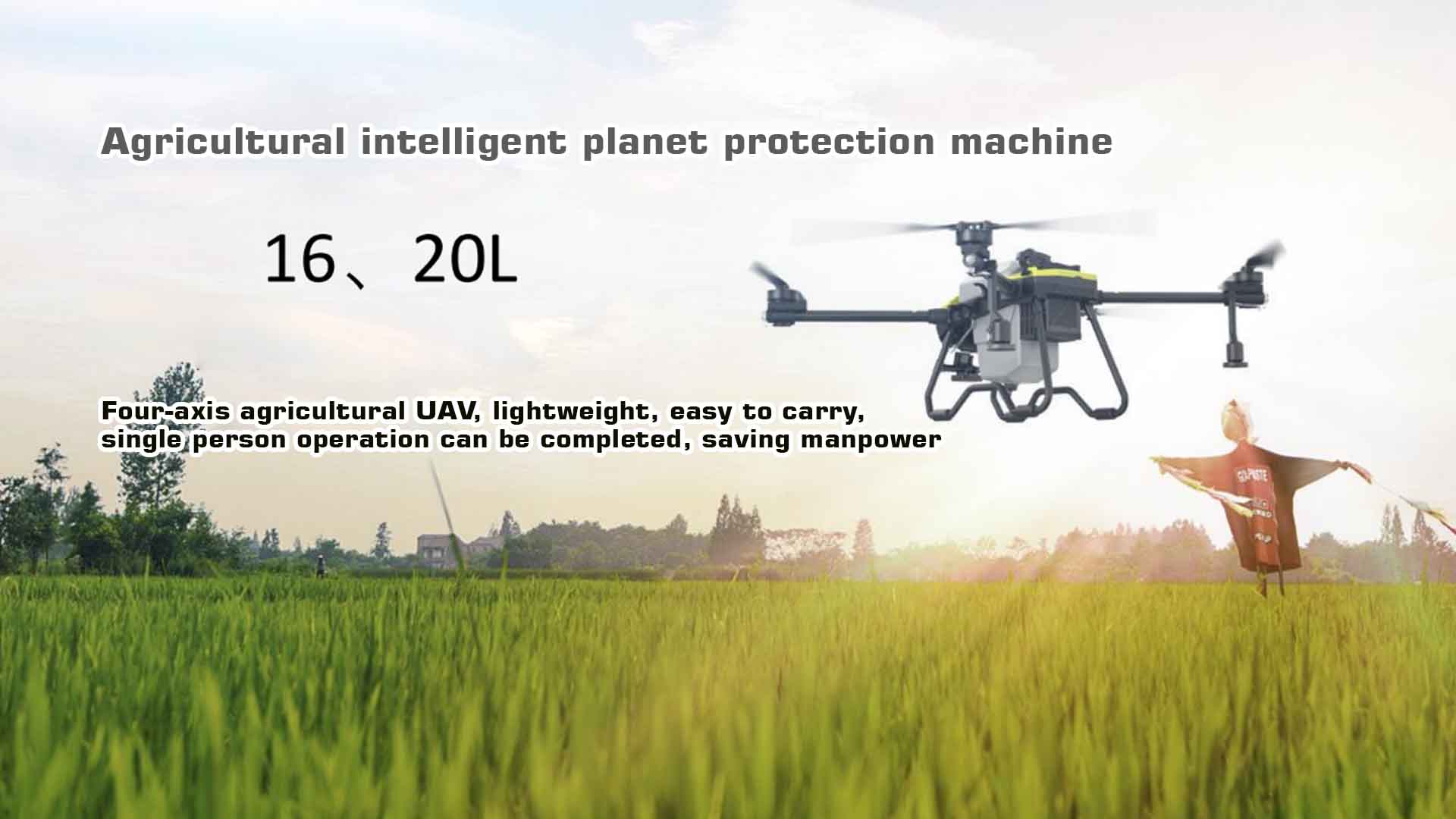

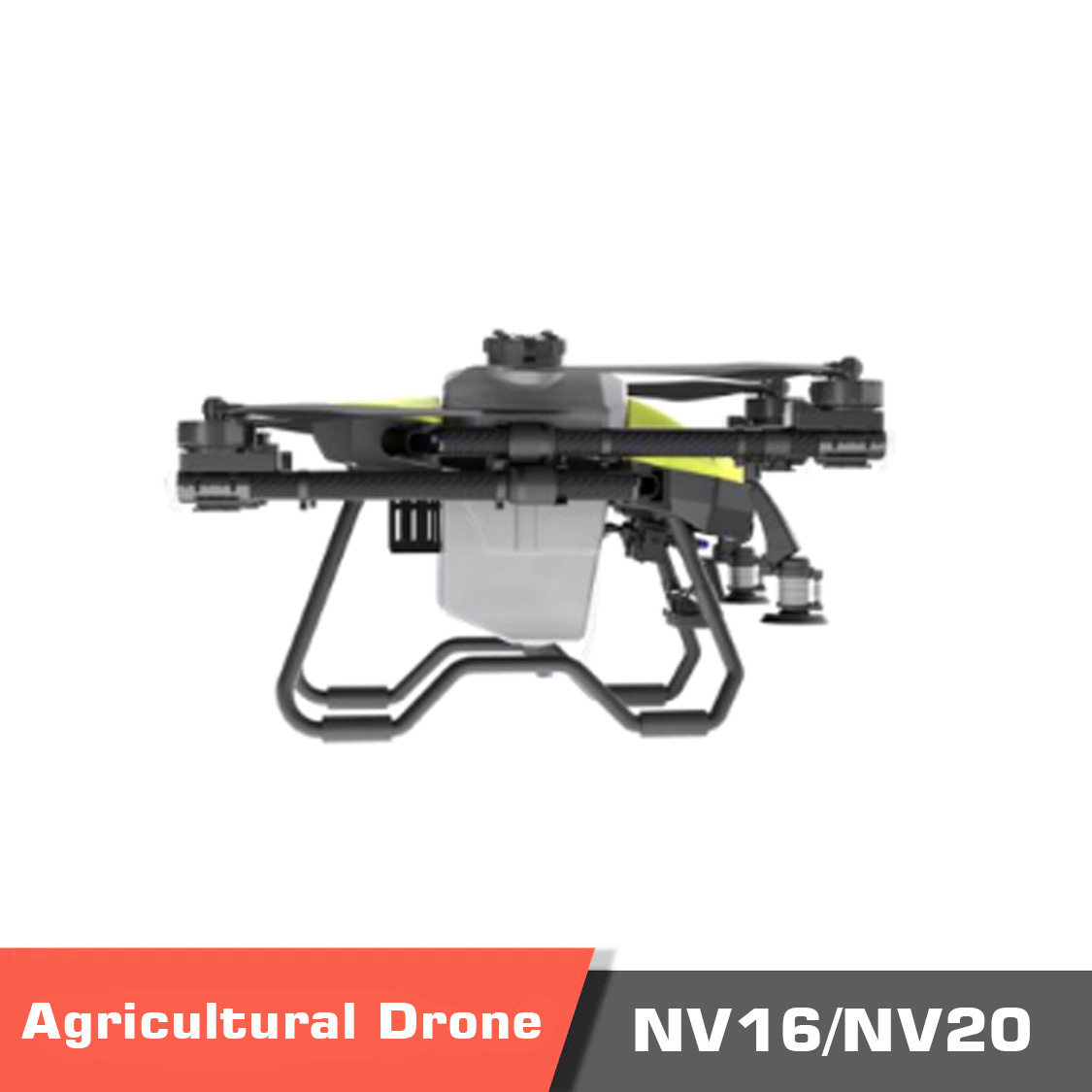

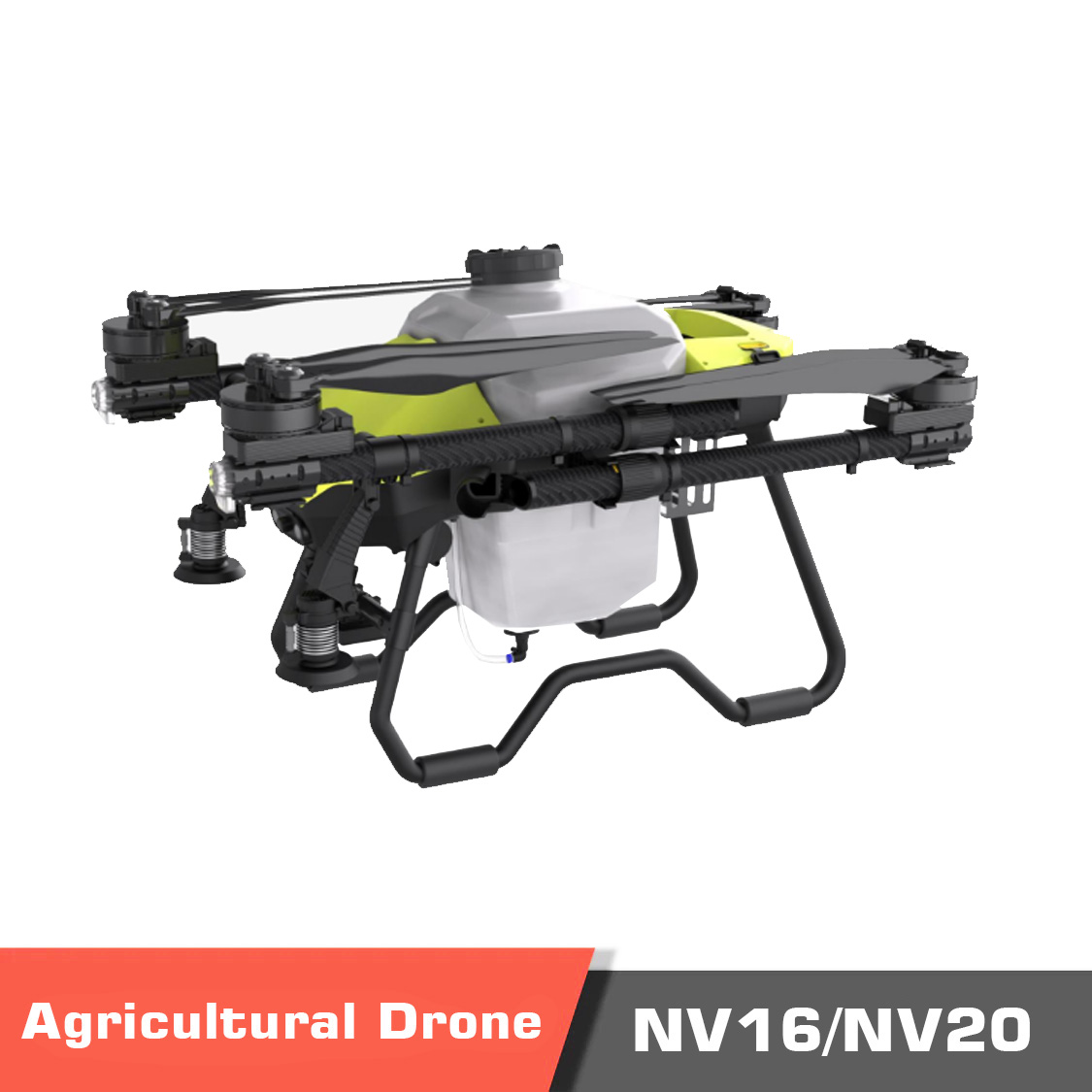

Introducing NV16 / NV20 Agricultural Drone

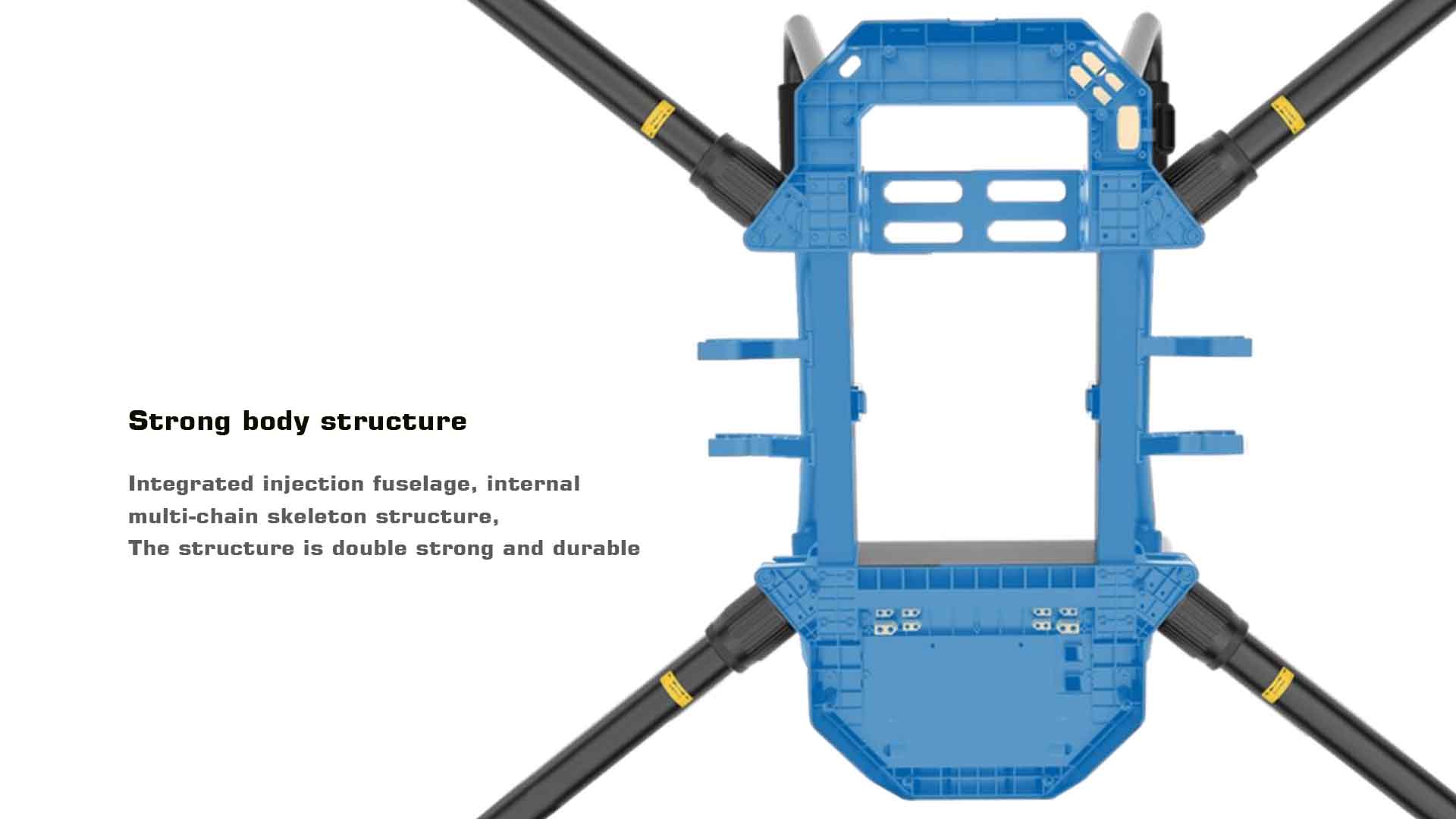

NV16 / NV20 Agricultural Drone System is the solution for you to enjoy the ultimate experience. PCB is installed inside the ย Multirotor drone frame, and the installation and wiring is simple without leakage.
The NV16/NV20 agriculture drones are robust and efficient solutions designed for a wide range of agricultural tasks. With a diagonal wheelbase of 1480mm and an operating voltage of 58.8V (14s), they ensure reliable performance.
The NV16 weighs 16kg with a 16L load capacity, while the NV20 weighs 20kg and can carry up to 20L. Both models feature a flight speed of 3-8m/s and a spray width of 3-5m, allowing for efficient and precise spraying operations. The maximum takeoff weights are 38kg for the NV16 and 40kg for the NV20, making them versatile tools for agricultural applications.
High Performance, Efficiency, and Durability for Modern Farming of NV16 / NV20 Agricultural Drone

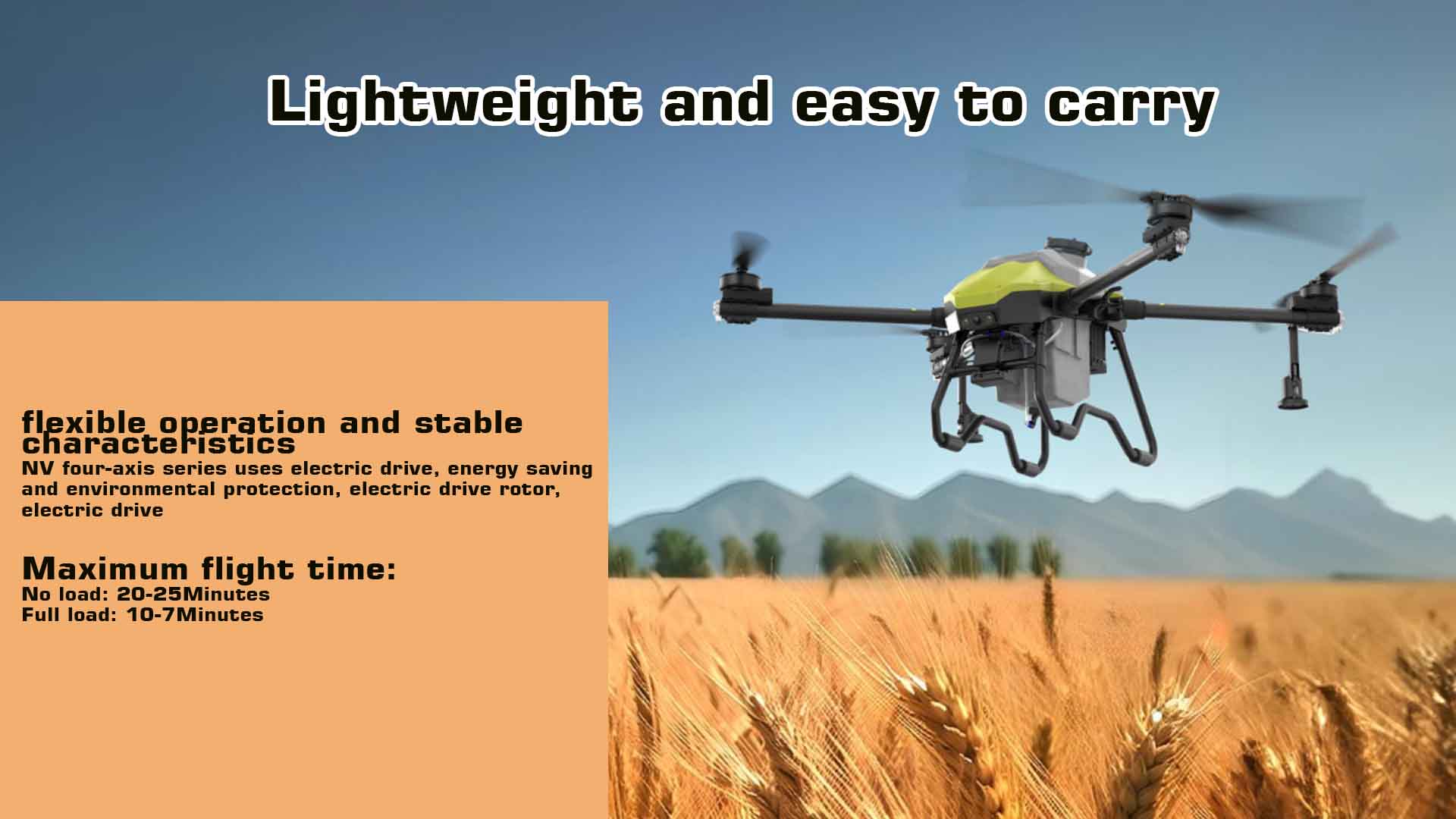

The NV16/NV20 agriculture drones deliver outstanding performance and efficiency, making them ideal for various agricultural operations. With a flight time of 20-25 minutes when unloaded and 7-10 minutes at full load, they ensure reliable operation for extended periods. These drones achieve an impressive operational efficiency of 1.5-3 acres per minute and a daily efficiency of 300-600 acres.

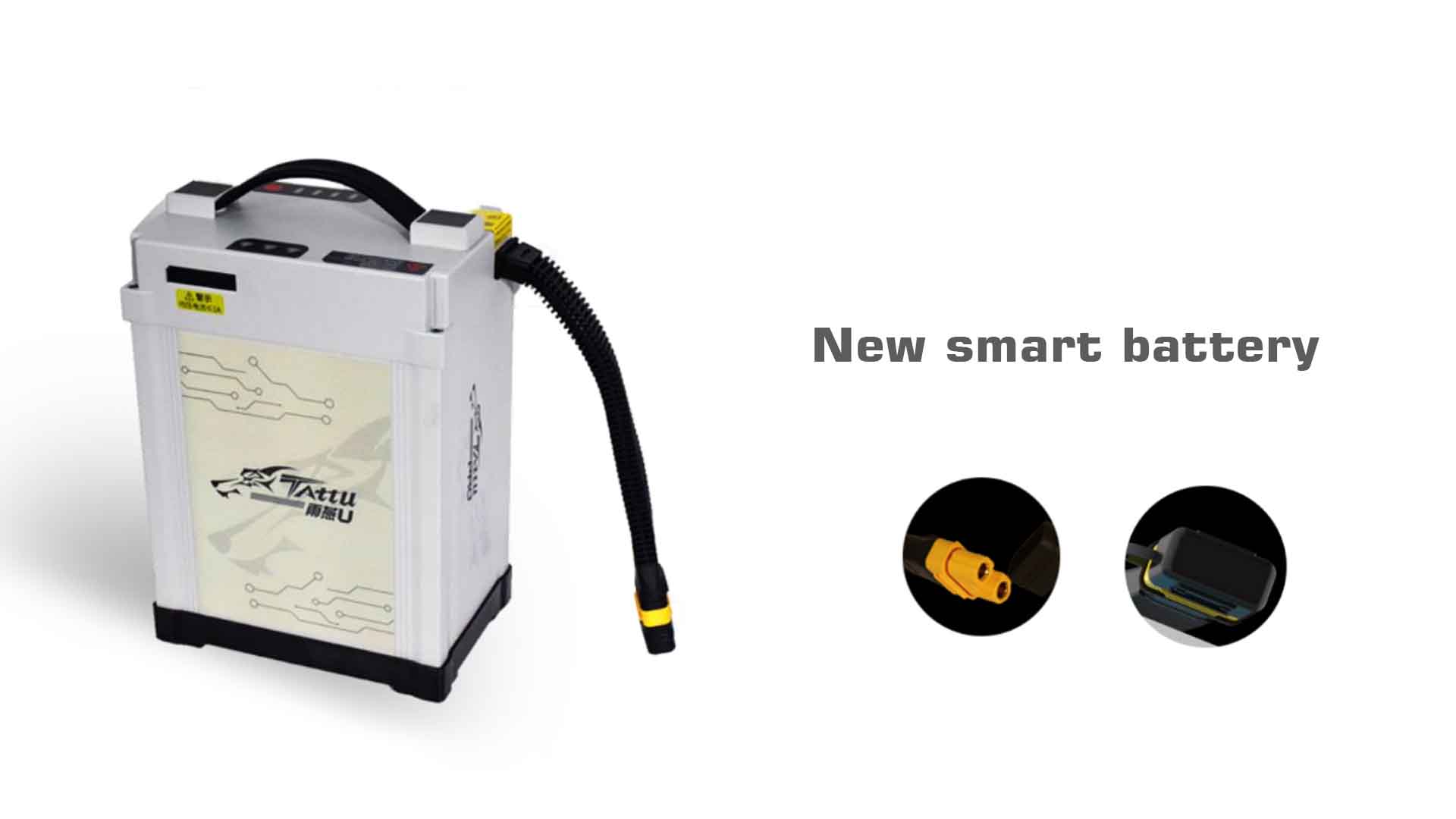

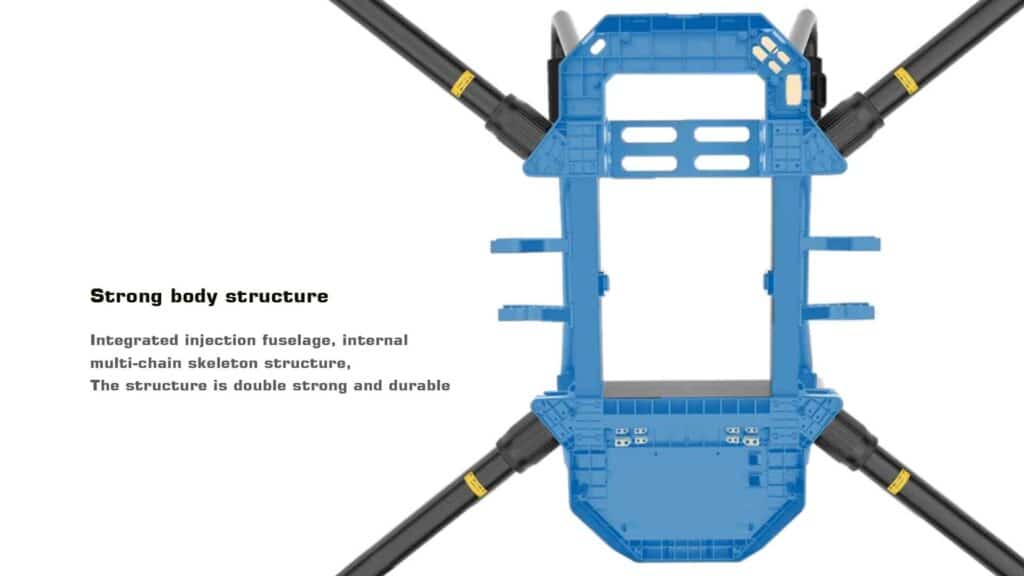

Powered by high-capacity batteries (14s 18000mAh for NV16 and 14s 22000mAh for NV20), they feature a quick charging time of just 15-30 minutes. Constructed with durable materials such as carbon fiber, nylon fiber, and aluminum alloy, the NV16/NV20 agriculture drones are built to withstand rigorous agricultural demands while maintaining top-tier performance.

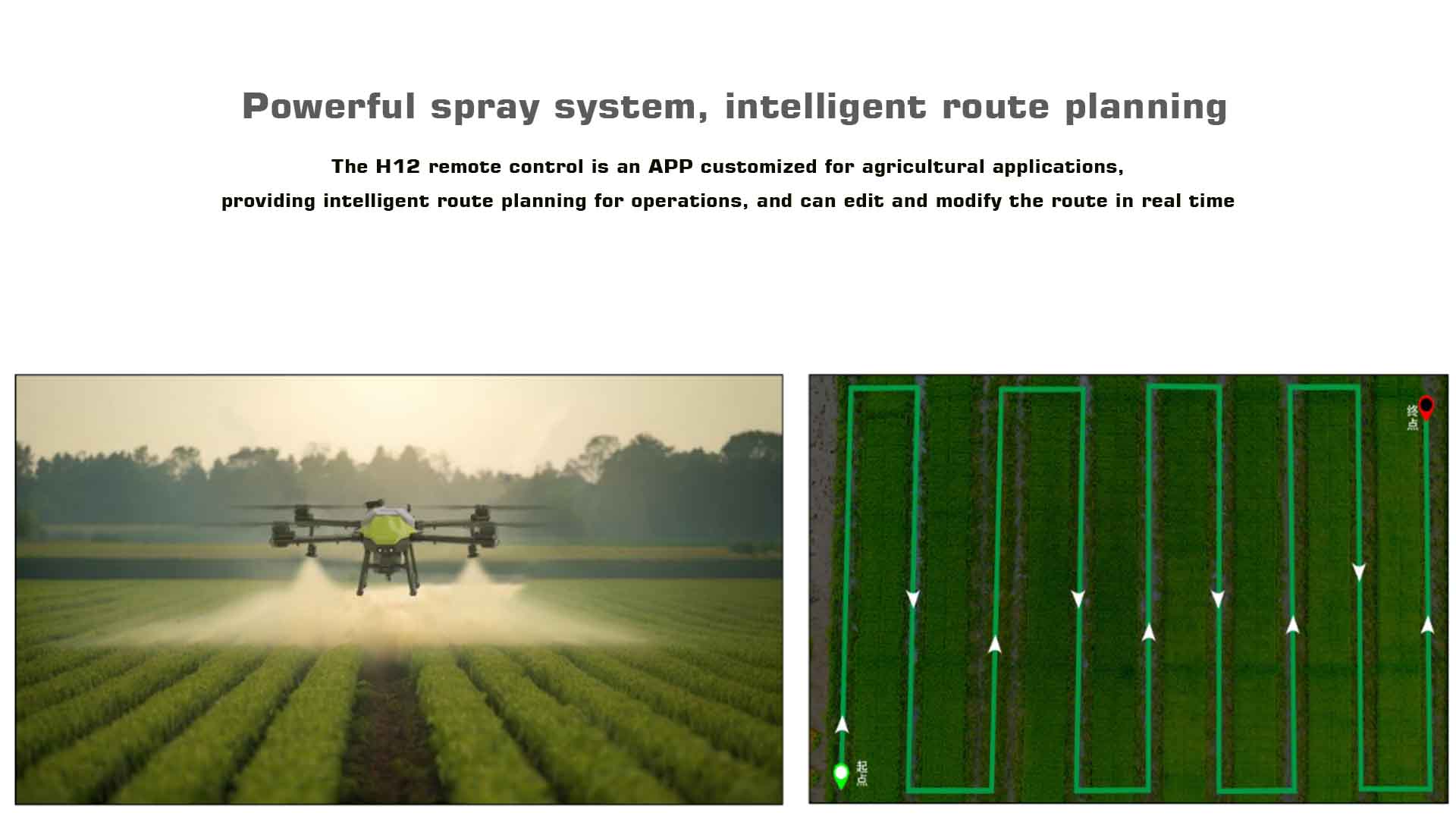

Advanced Spray System with Real-Time Intelligent Route Planning
The NV16 / NV20 agriculture drone features an advanced spray system equipped with centrifugal nozzles, allowing flexible adjustment of the flow rate and atomization effect for precise and efficient spraying. Its powerful spray capabilities are complemented by intelligent route planning, enabled through the H12 remote control, an app specifically customized for agricultural applications. This intuitive app allows operators to plan routes intelligently, edit and modify them in real-time, ensuring optimal efficiency and adaptability during operations.
Precision Agriculture with Advanced Spray System and Intelligent Route Planning

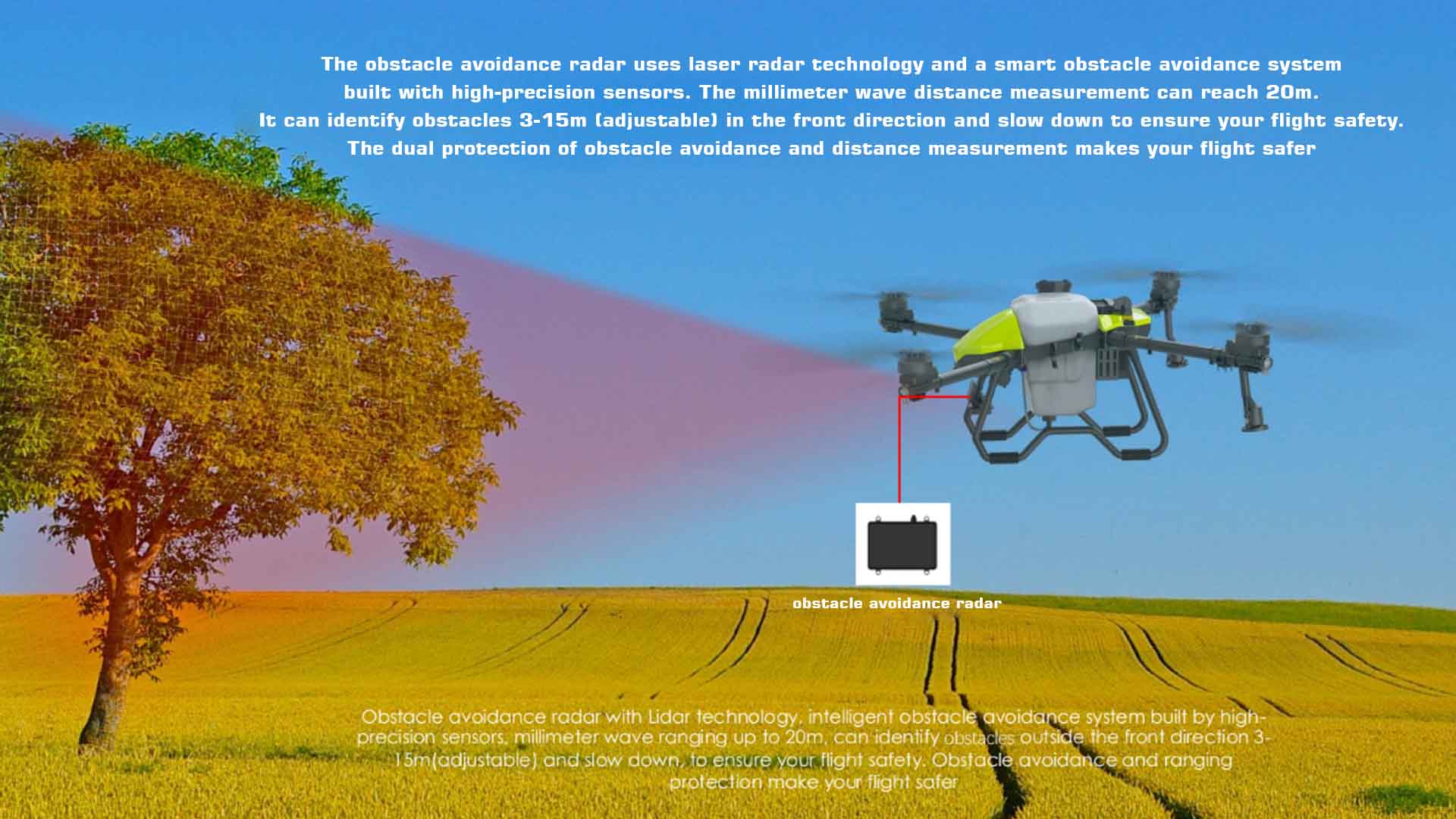

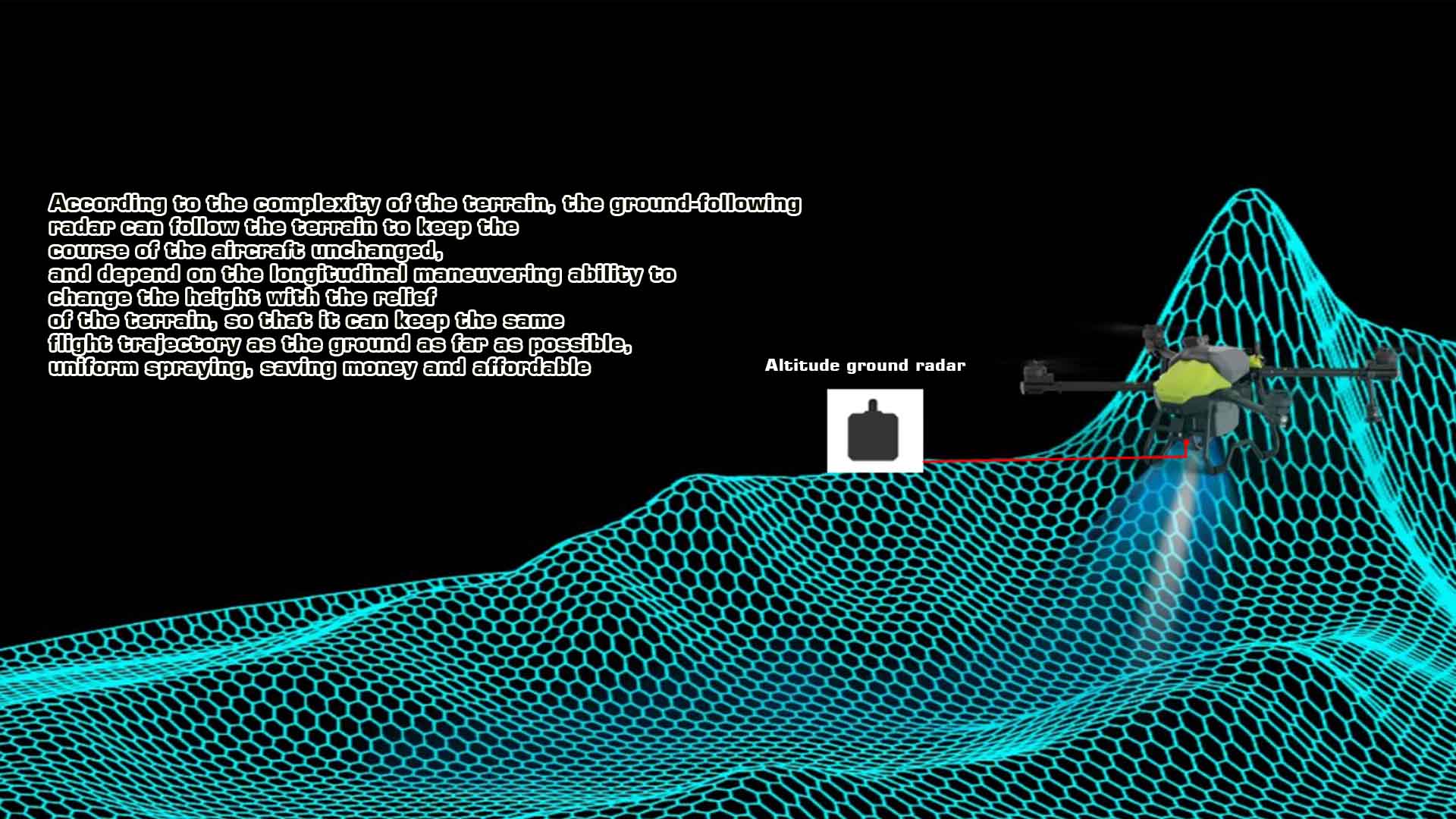

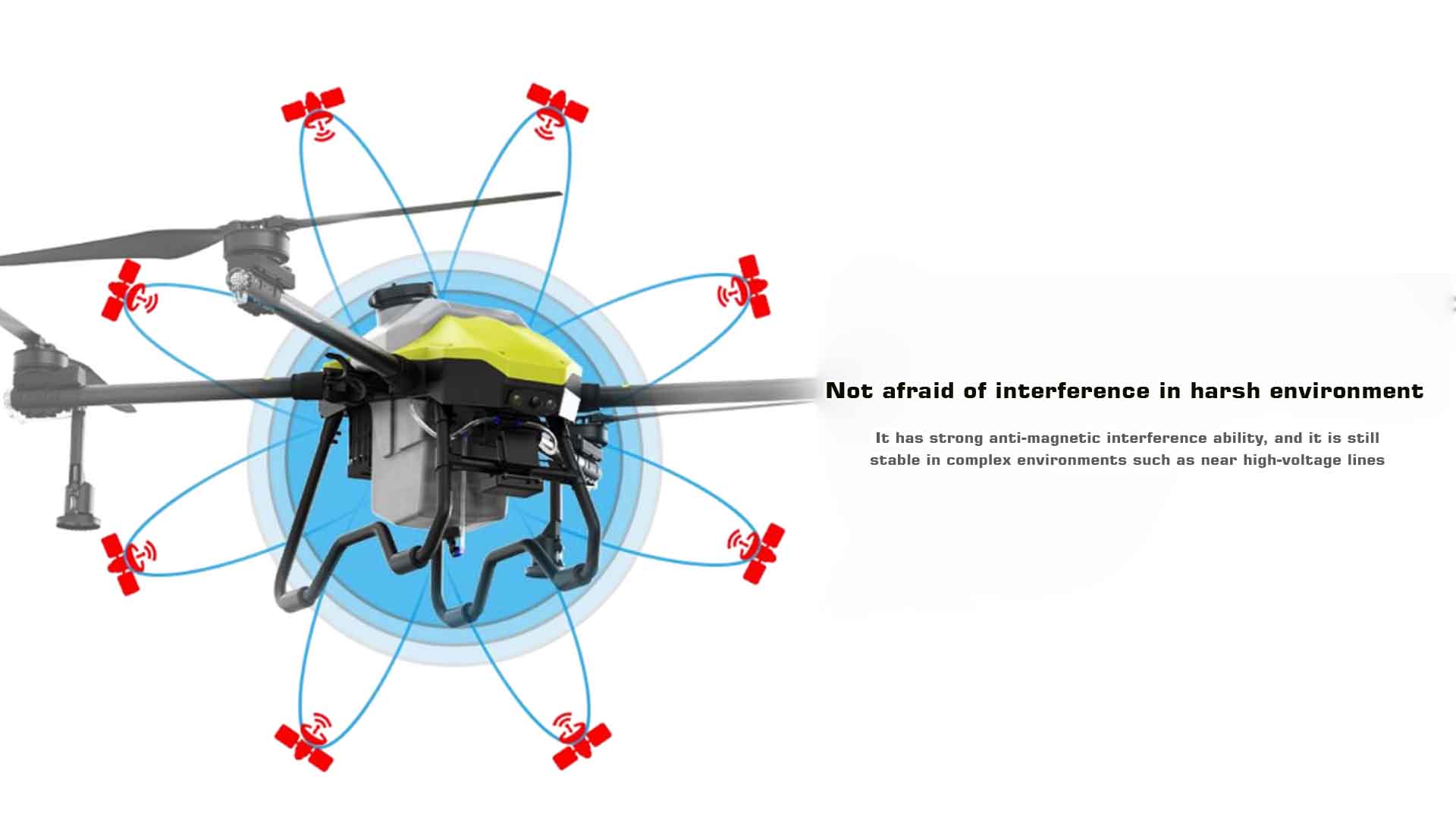

The NV16 / NV20 Agricultural Drone is designed to conquer all types of terrain with ease, enabling intelligent flight and all-terrain autonomous operations across terraces, mountains, hills, rivers, and plains. Built to thrive in harsh environments, it demonstrates remarkable resilience against interference, featuring a strong anti-magnetic interference capability.
Even in complex surroundings, such as areas near high-voltage power lines, the NV16/NV20 remains stable and reliable, ensuring consistent performance under challenging conditions.

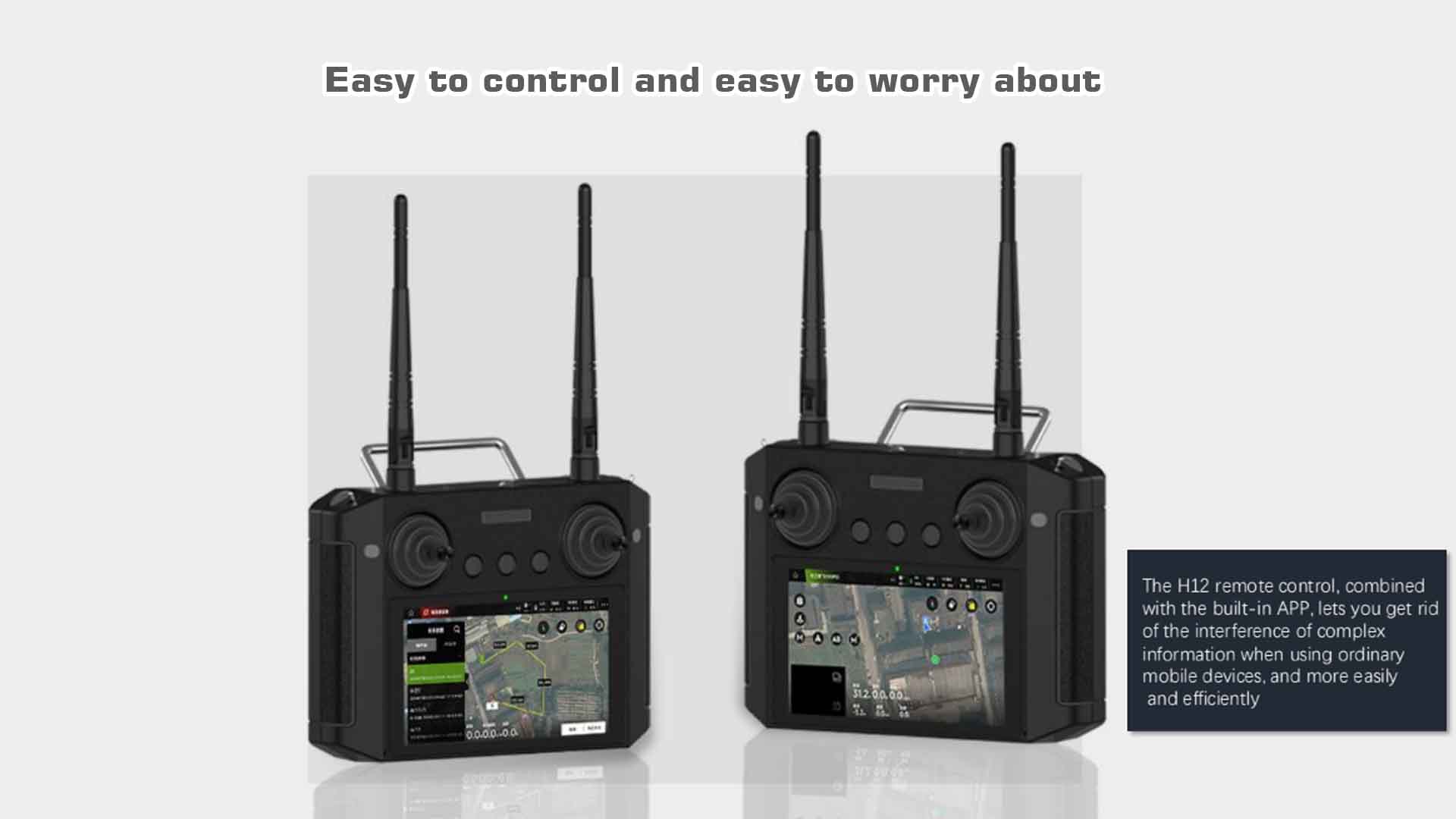

Simplified Control with the H12 Remote for Worry-Free Operation for NV16 / NV20 Agricultural Drone
The NV16 / NV20 Agricultural Drone is designed for ease of control and worry-free operation. The H12 remote control, integrated with a specialized built-in app, eliminates the distractions and interference often encountered when using ordinary mobile devices. This streamlined system ensures a simpler, more efficient user experience, allowing operators to focus on their tasks with greater clarity and control.
Overview Table of the NV16 / NV20 Agricultural Drone
| Specifications |
NV16 | NV20 |
| Diagonal wheelbase | 1480mm | |
| Operating voltage | 58.8V (14s) | |
| weight | 16kg | 20kg |
| load | 16L | 20L |
| Flight speed | 3-8M/s | |
| Spray width | 3-5M/s | |
| Maximum weight | 38kg | 40kg |
| Maximum pump pressure | 0.8mPa | |
| Spray flow | 4-8/Min | |
| Flight time | No load: 20-25min / Full load: 7-10min | |
| Operational efficiency | 1.5-3Acres/Min | |
| battery | 14s 18000mah | 14s 22000mah |
| Charging time | 15-30min | |
| Materials | Carbon fiber / Nylon fiber / Aluminum alloy | |
| Packing box | 980*590*610mm | |
If you have any questions regarding our products, use the Motionew Contact usย to consult our engineering team.
Product contents
| Specifications | NV16 | NV20 |
| Developed size | 1225*1055*585mm | 1225*1055*585mm |

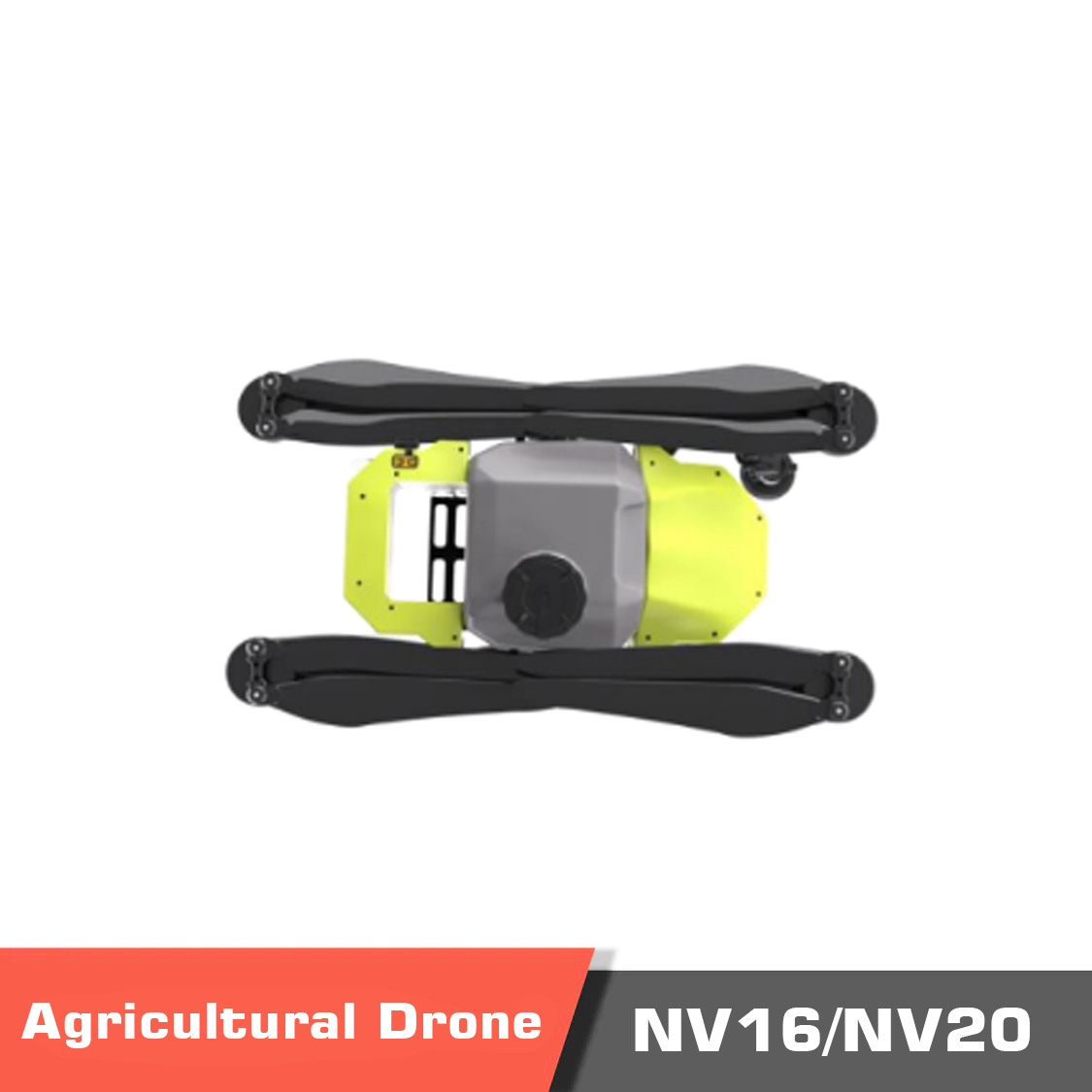

| Folding size | 875*525*585mm | 875*525*585mm |
| Diagonal wheelbase | 1480mm | 1480mm |
| Operating voltage | 58.8V (14s) | 58.8V (14s) |
| weight | 16kg | 20kg |
| load | 16L | 20L |
| Flight speed | 3-8M/s | 3-8M/s |
| Spray width | 3-5M/s | 3-5M/s |
| Maximum weight | 38kg | 40kg |
| Spray system | Centrifugal nozzle | Centrifugal nozzle |
| Maximum pump pressure | 0.8mPa | 0.8mPa |
| Spray flow | 4-8/Min | 4-8/Min |
| Flight time | No load: 20-25min / Full load: 7-10min | No load: 20-25min / Full load: 7-10min |
| Operational efficiency | 1.5-3Acres/Min | 1.5-3Acres/Min |
| battery | 14s 18000mah | 14s 22000mah |
| Charging time | 15-30min | 15-30min |
| Daily efficiency | 300-600Acres | 300-600Acres |
| Materials | Carbon fiber / Nylon fiber / Aluminum alloy | Carbon fiber / Nylon fiber / Aluminum alloy |
| Packing box | 980*590*610mm | 980*590*610mm |
Specifications
Pleaseย contact usย for more information.
Documents
Pleaseย contact usย for more information.
