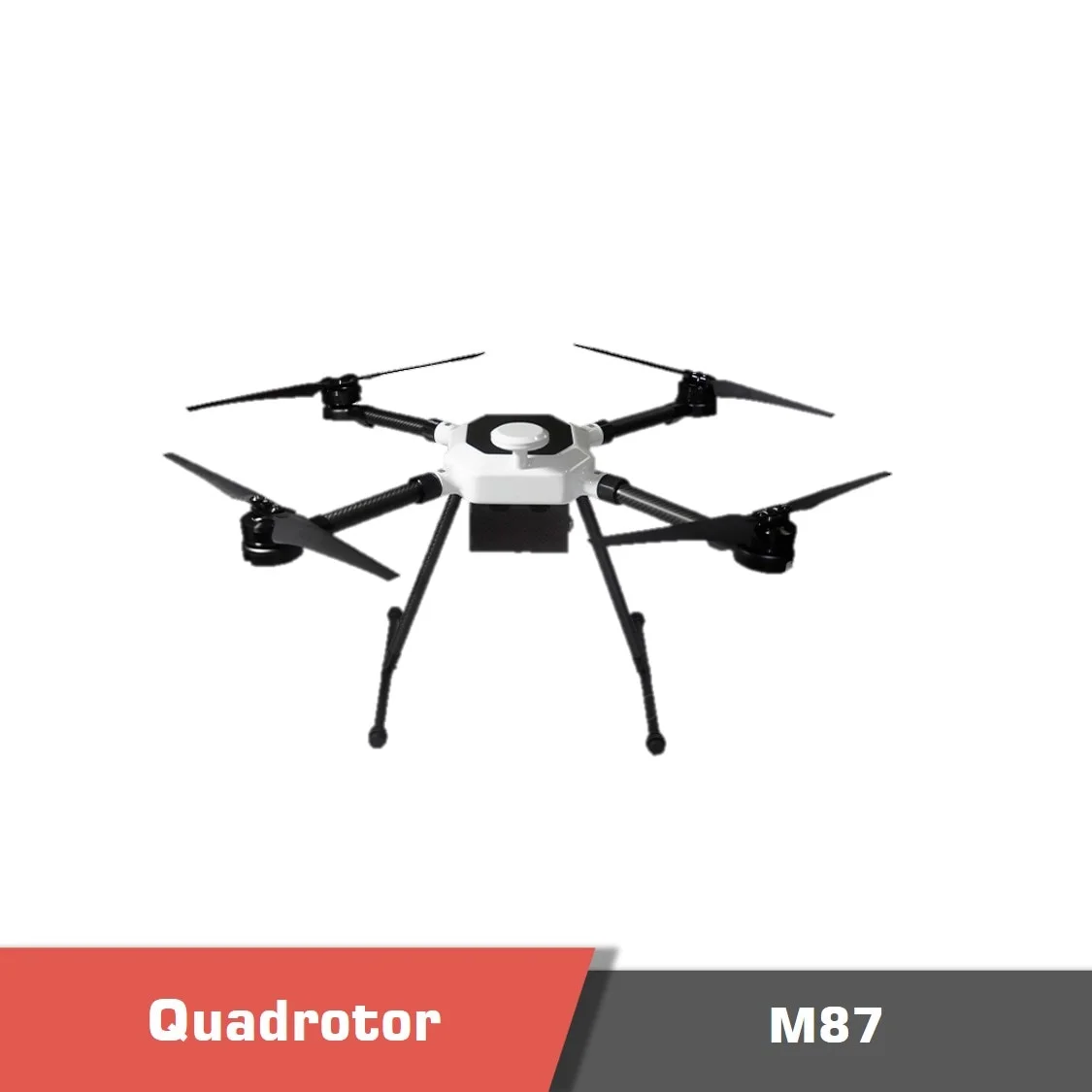

M87 Lightweight Quadrotor Rotary-wing UAV

1468.50 $2047.00 $

(1 customer review)
PayPal
Visa
Master

Description

Important Notice!
If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. MotioNew products cannot be used for military, terrorist, or war purposes. Please read our Terms of Service for more information.


Key Features of the M87 Lightweight Quadrotor

M87 lightweight quadrotor is a foldable and portable ultra light weight quadrotor Multirotor UAV with 850mm wheelbase. The 70min long endurance feature supports users to double the work efficiency while ensuring human safety. The use of many general-purpose components reduces product maintenance costs of this rotary-wing multirotor drone. Itโ€™s a preferred choice where low SWAP-C (Size, Weight, Power and Cost) without compromising performance is a key requirement.

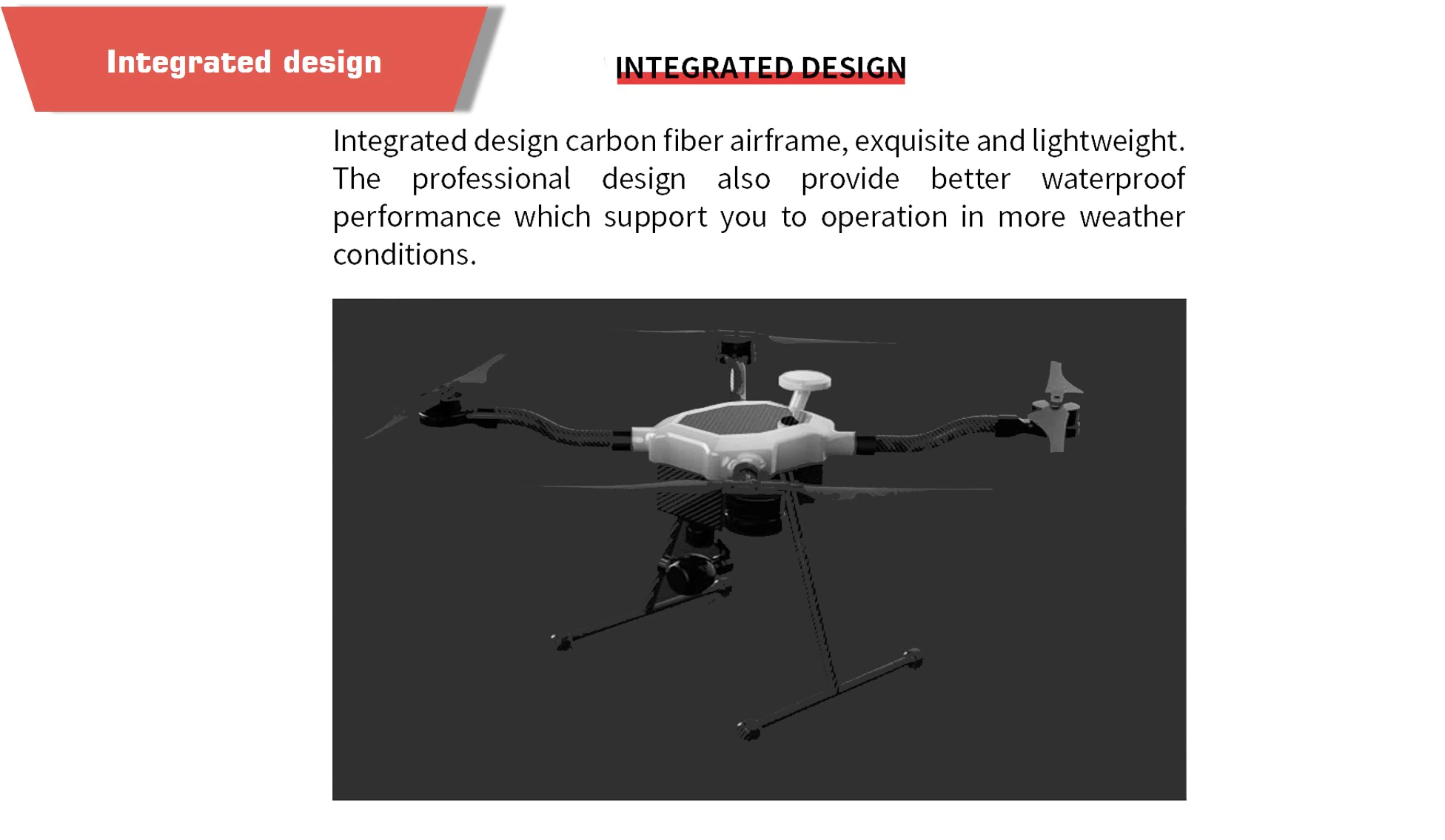

Design Features of Carbon Fiber Airframe

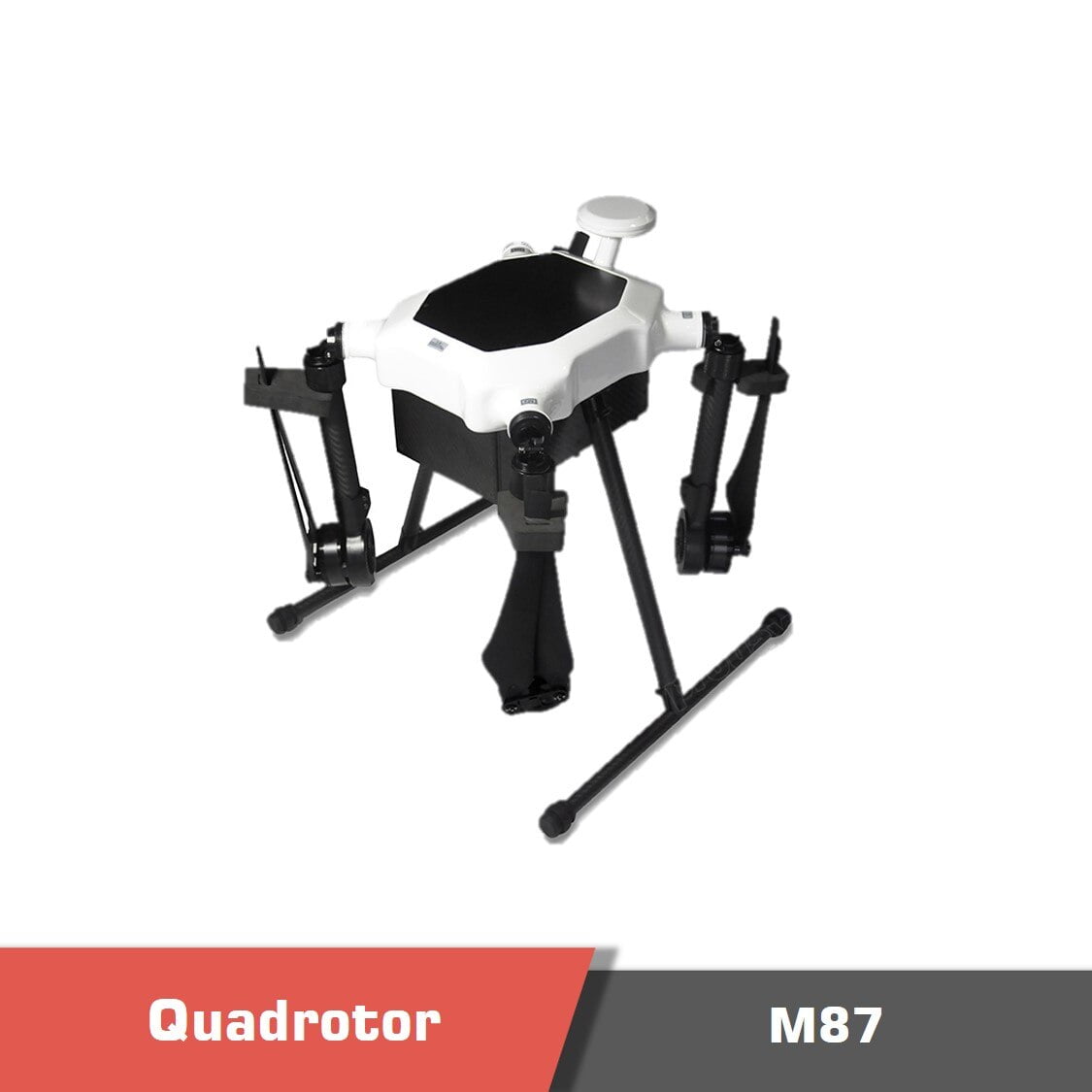

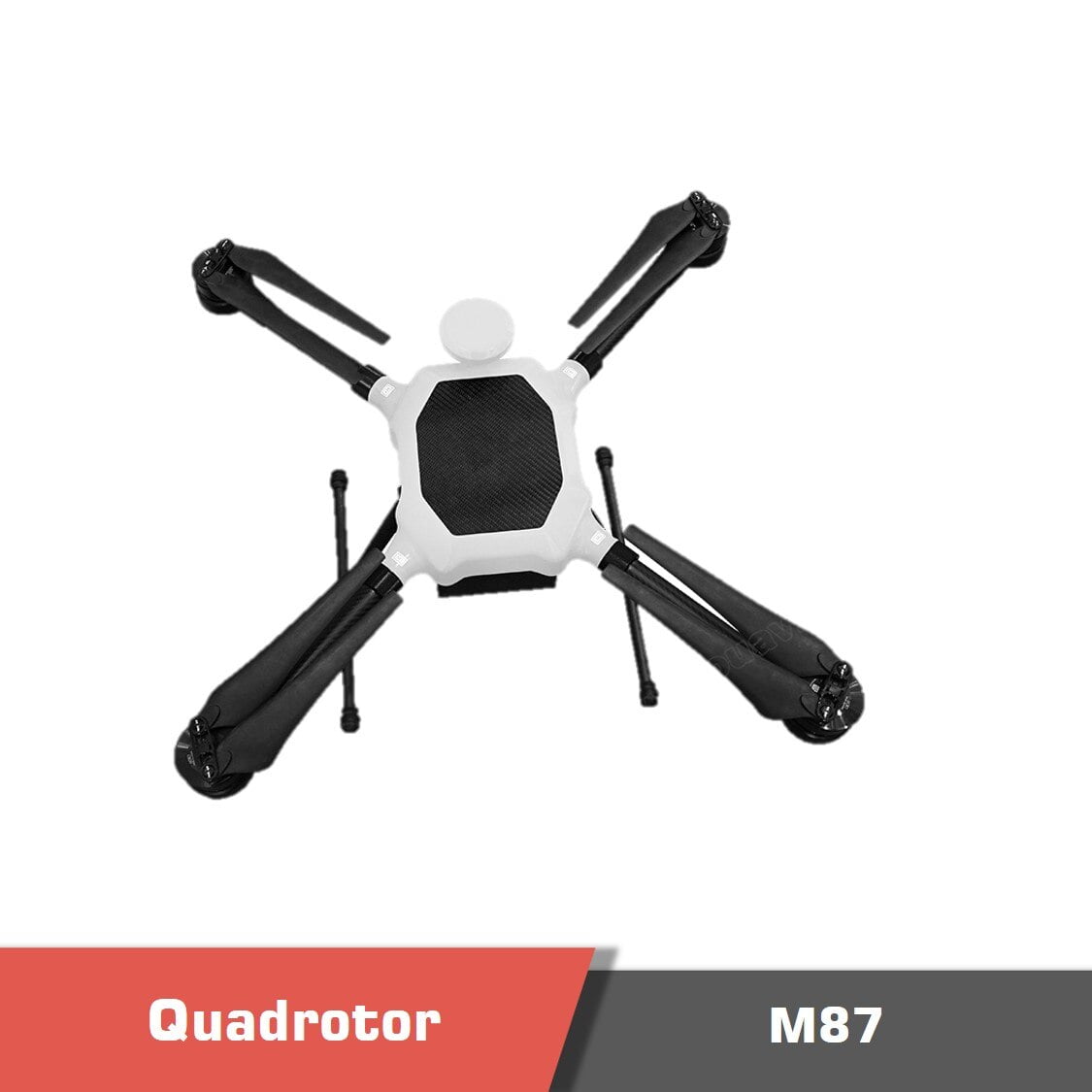

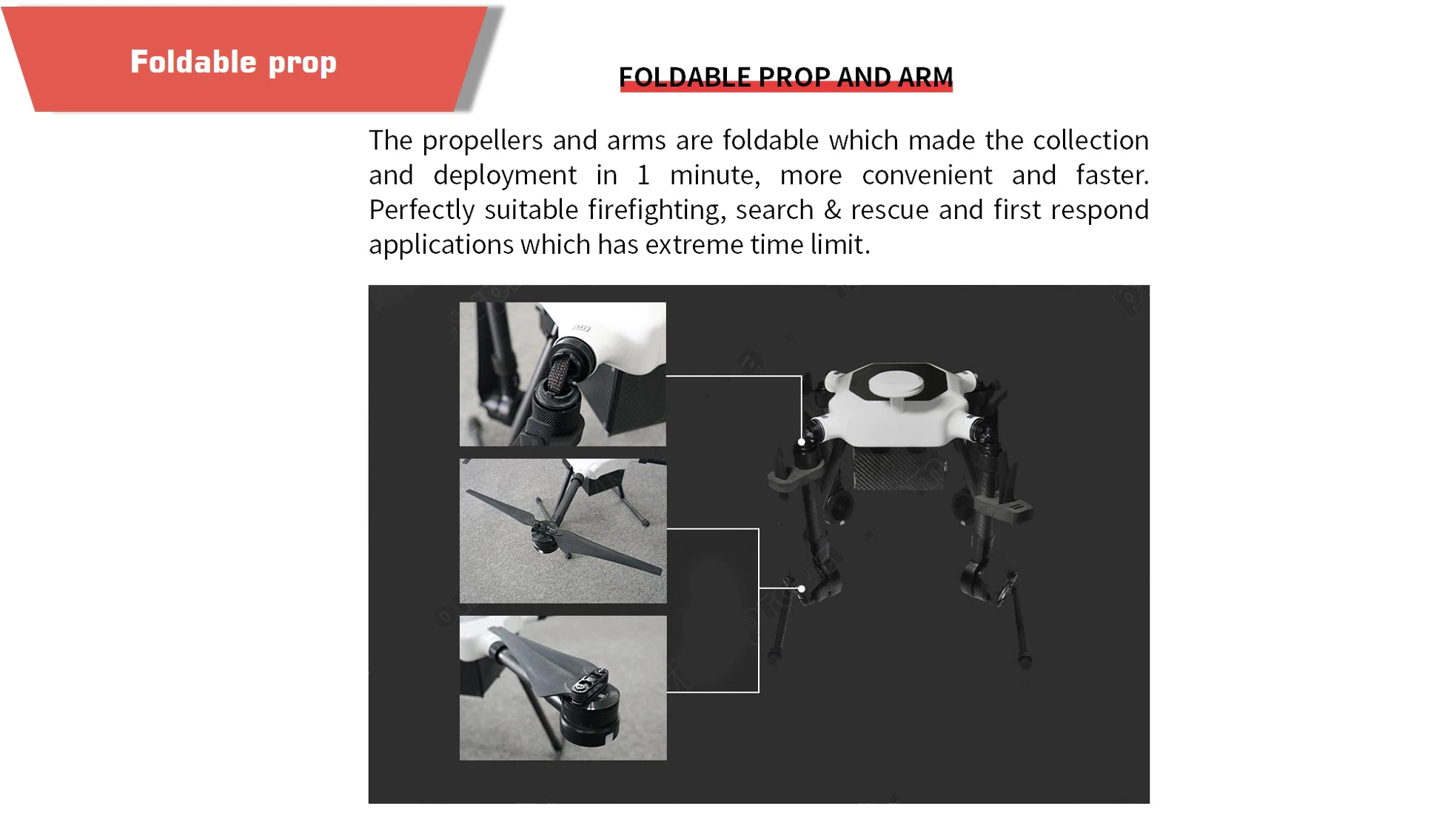

Made of carbon fiber, the airframe is high strength while weight is only 1.2kgs. Integrated design provide a beautiful appearance while ensuring the IP44 water proof performance, can implement missions in light raining days. Foldable propellers and arms helps the aircraft to be portable, ease to carry and rapid deployment in 1 minute.

Overview of M87 Lightweight Quadrotor Drone System

M87 is both light weight and highly efficient. With 2pcs 6s 27000mah semisolid HED Li-ion battery as power source, equipped with Hobby wing motors and props, M87 can carry max 5kgs payloads with stable flight performance. The flight time can reach 70minutes without payload and 55 minutes with 700g payload.

The system is perfectly suitable for protection of sensitive industrial sites (such as oil & gas and chemical industry to monitor the oil tanks and oil refining equipment, pipelines and chemical plants), inspection and first respond. It can provide continuous monitoring while significantly reduced human intervention. Equipped with high-definition optical and thermal sensors and data link. M87 offers very precise aerial vision, day and night, which allows customers to enhance their safety while keeping operational costs low.

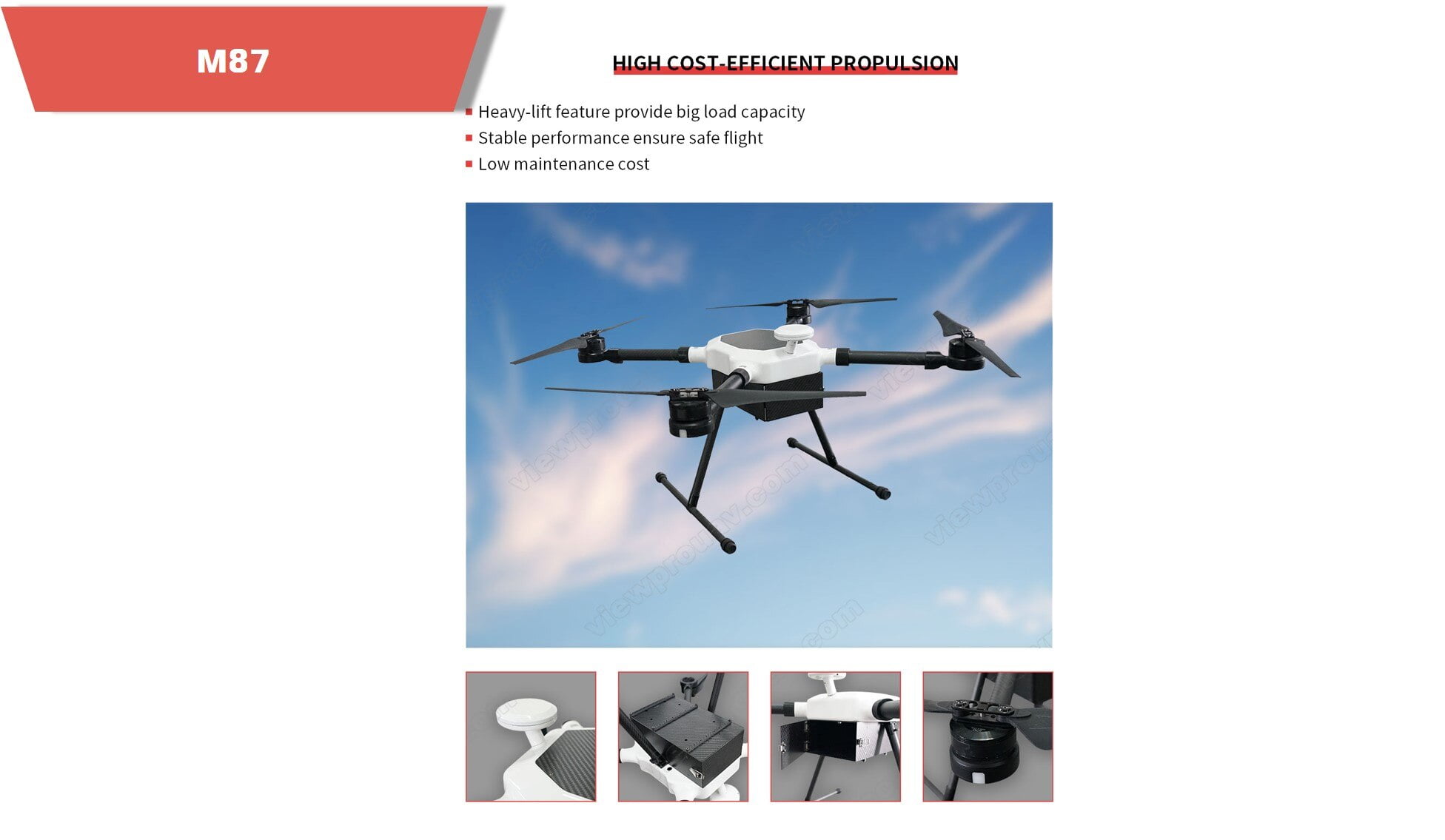

M87 lightweight quadrotor rotary-wing uav p1 motionew

M87 lightweight quadrotor rotary-wing uav p2 motionew

M87 lightweight quadrotor rotary-wing uav p3 motionew

M87 lightweight quadrotor rotary-wing uav p4 motionew

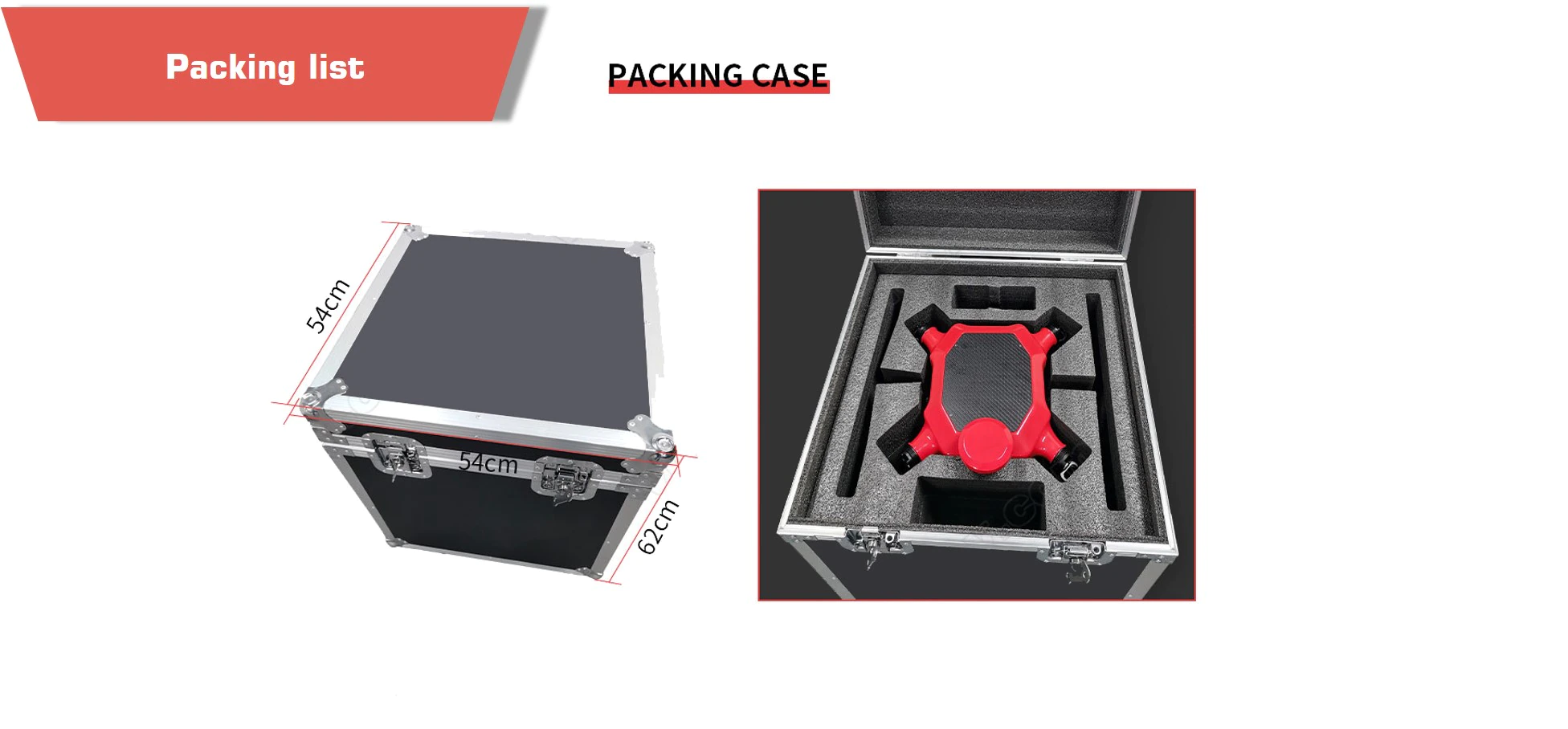

M87 lightweight quadrotor rotary-wing uav p5 motionew

M87 lightweight quadrotor rotary-wing uav p6 motionew

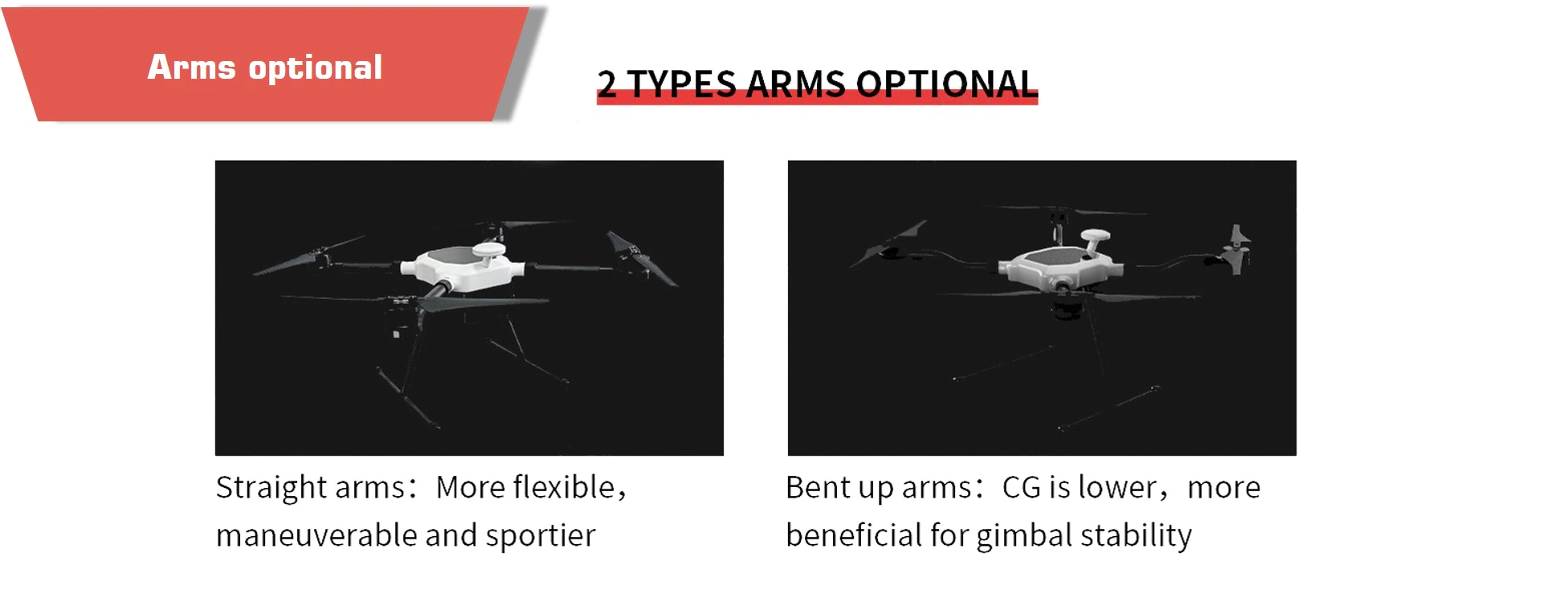

M87 lightweight quadrotor rotary-wing uav p7 motionew

M87 lightweight quadrotor rotary-wing uav p8 motionew

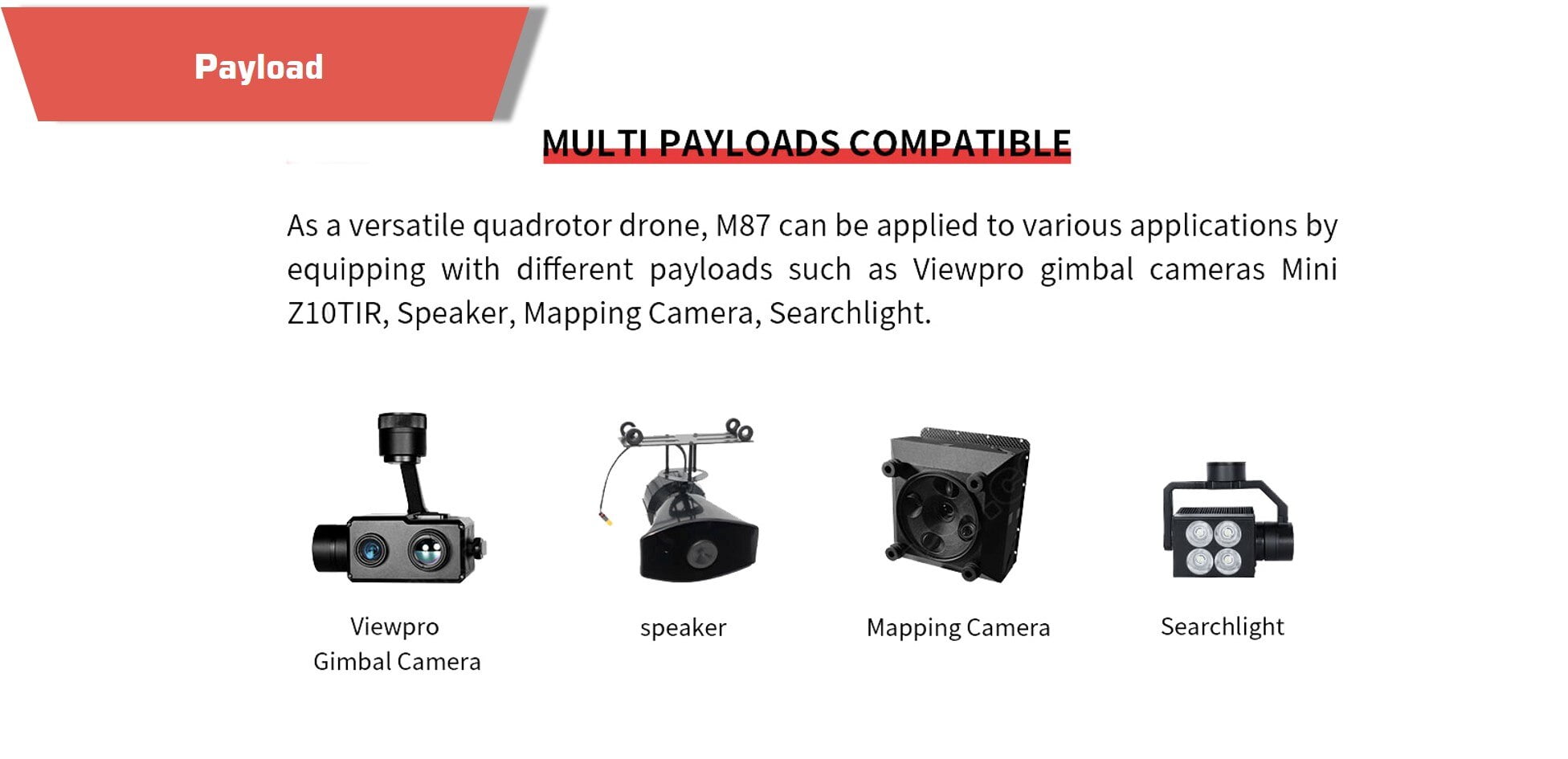

M87 lightweight quadrotor rotary-wing uav p9 motionew

M87 lightweight quadrotor rotary-wing uav p10 motionew

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Model No. M87
Type Quadrotor

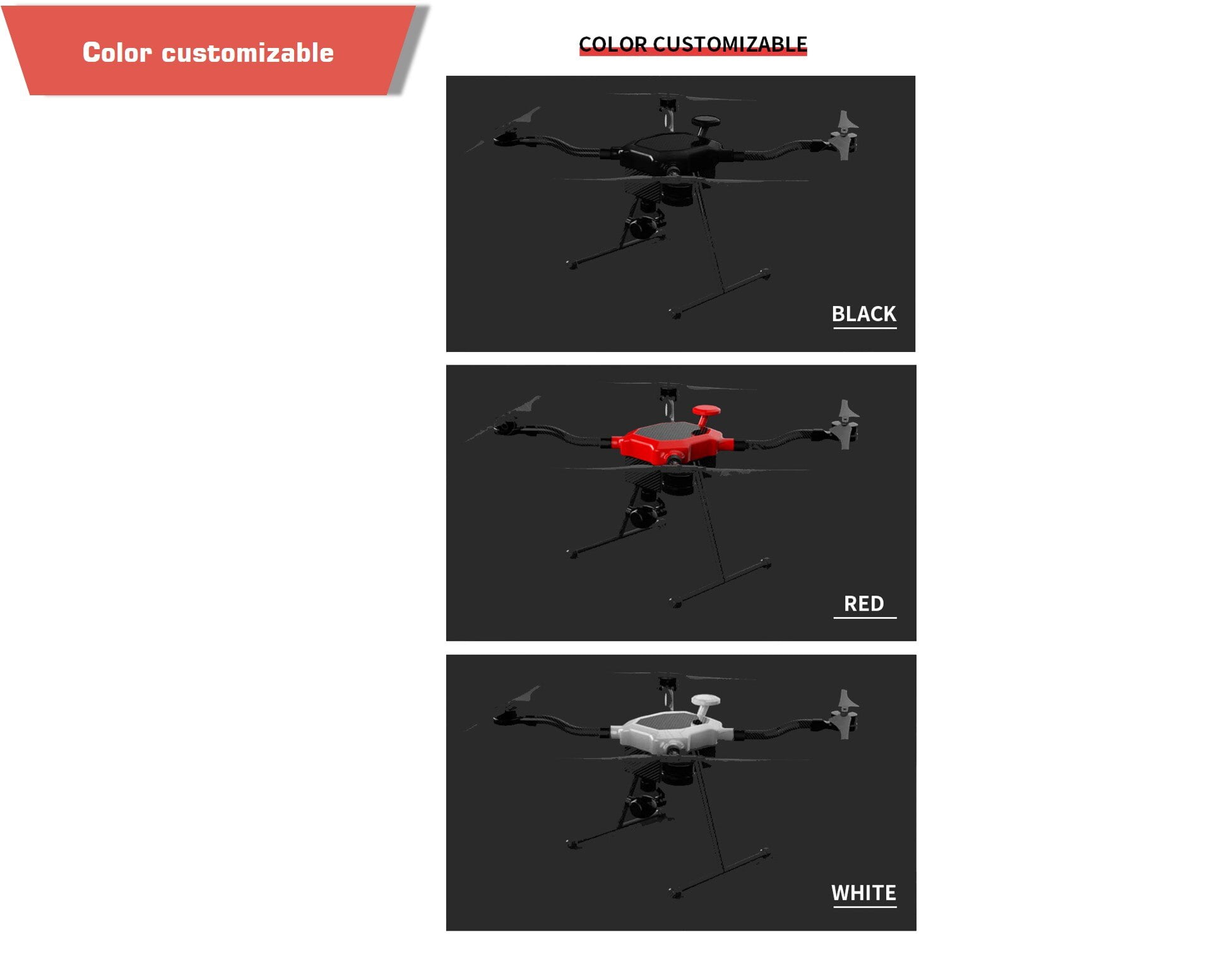

Color White and black as default (Support customization)

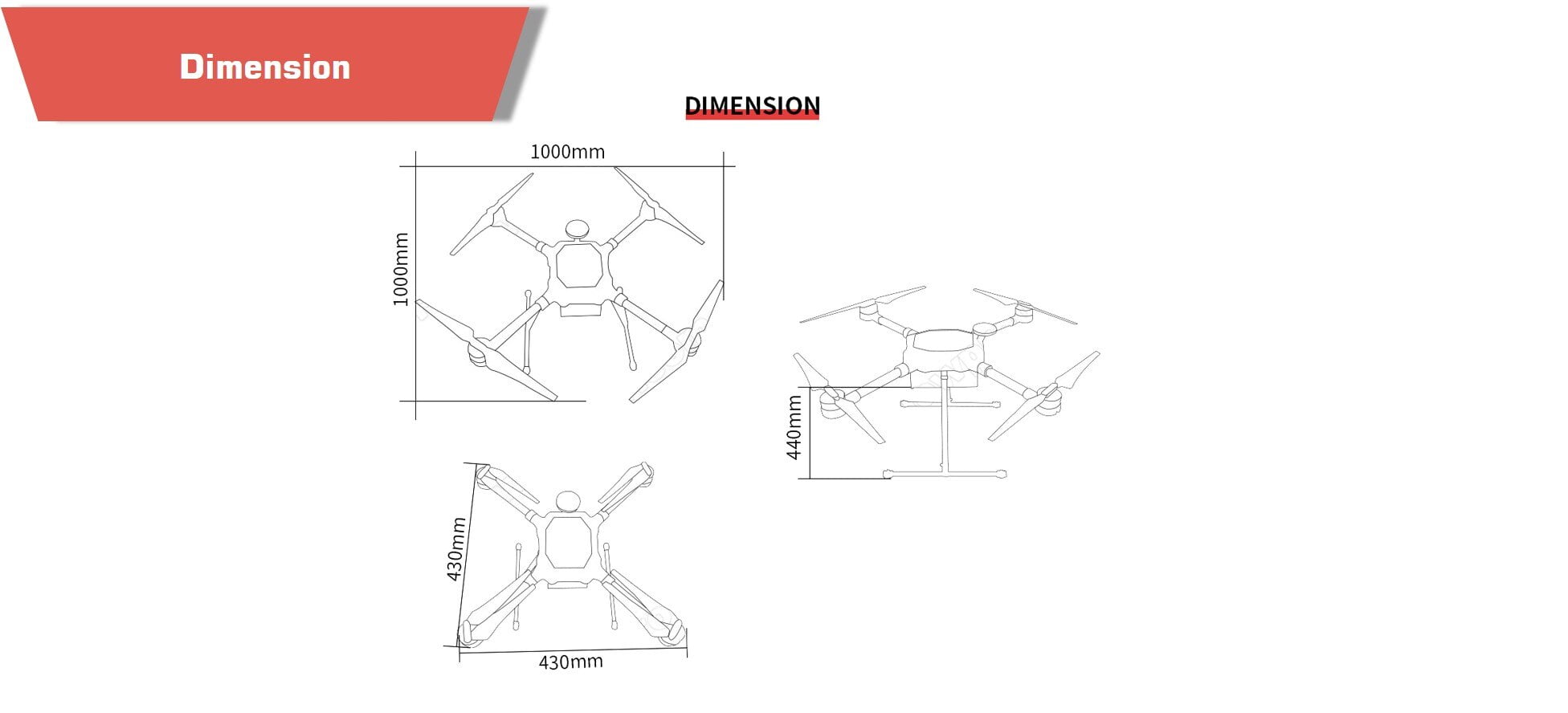

Expanded Dimension 1000ร—1000ร—440mm
Folded Dimension 400ร—430ร—440mm
Wheelbase 850mm
Belly to Ground 230mm
Material Carbon fiber
Airframe Weight 1.2kgs
MTOW 10.5kg
Max Payload 5kg
Suggested Load 700g
Max Flight Time 70min(no-load), 55min with 700g payload
Maxi Pitching Angle 25ยฐ(GPS mode)
Maxi Angular Velocity Pitching axis: 300ยฐ/s
Yaw axis: 120ยฐ/s
Max Flight Speed 23m/s
Max Ascending Speed Stabilize17m/s, Loiter 6m/s
Max Descending Speed 4m/s
Max Flight Altitude 2000m
Max Wind Resistance โ‰ค12m/s
Battery (Recommended) 2 * 6S 16000mAH / 2 * 6S 27000mAH HED Li-ion
Working Temperature -20โ„ƒ~60โ„ƒ
IP Grade IP44
Package Size 54*54*62CM

Product contents

Packing List for Different Versions:

Version CUAV V5 RTF Cube Orange RTF CUAV X7 RTF
Flight Controller CUAV V5 Cube Orange CUAV X7
GPS NEO V2 GNSS Here 3 GNSS NEO V2 Pro GNSS
Drone Frame โˆš โˆš โˆš
VTOL Motor 4pcs 4pcs 4pcs
VTOL ESC 4pcs 4pcs 4pcs
VTOL Propeller 2Pairs 2Pairs 2Pairs
RC& Ground
Station
1xย FT24 14Channels RC 1xย DK32SE 16Channels RC 1xย DK32SE 16Channels
RC
Video Transmitter / / /
Battery / / /
Battery Charger / / /
Carrying Case โˆš โˆš โˆš
Assembling, tuning and flight test service โˆš โˆš โˆš

Documents

Pleaseย contact usย for more information.
