ZHT Naga X8 Coaxial Multi-Rotor Long Endurance Industrial Drone
7899.00 $
Description
Important Notice!
If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. MotioNew products cannot be used for military, terrorist, or war purposes. Please read our Terms of Service for more information.

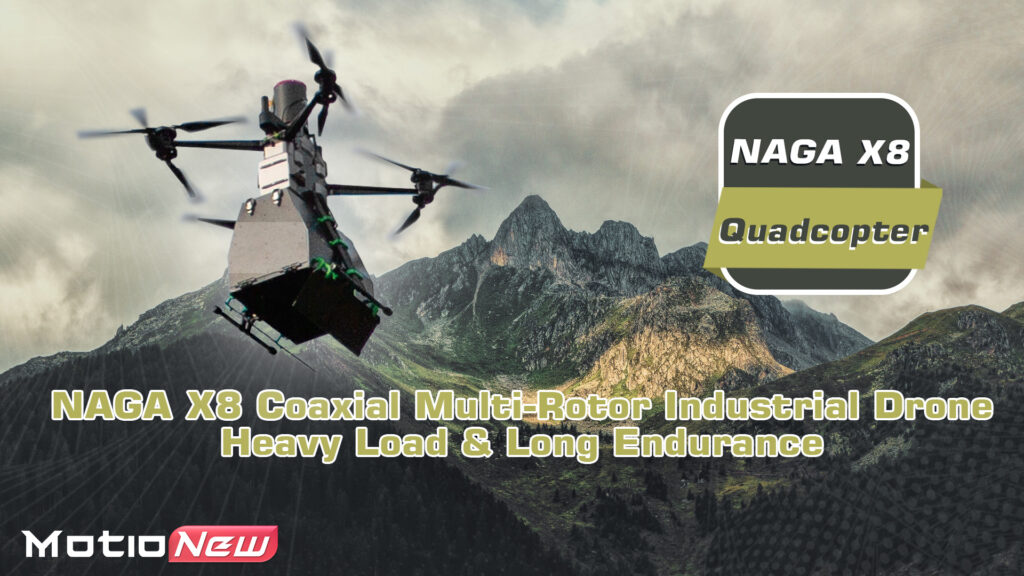

Naga X8 Coaxial Multi-Rotor Overview

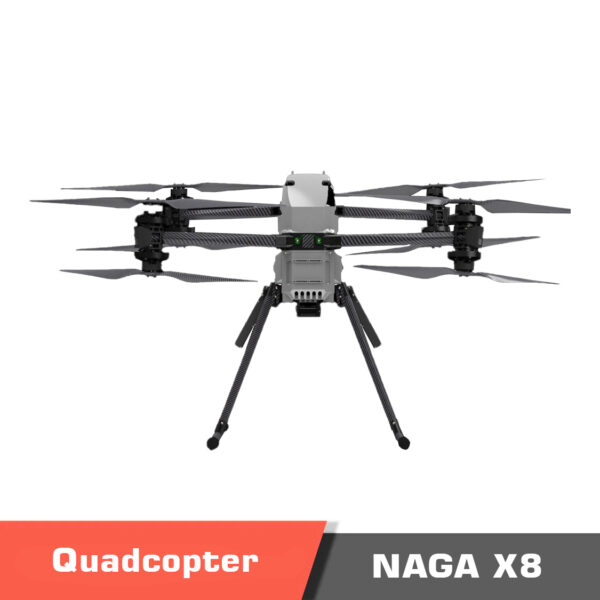

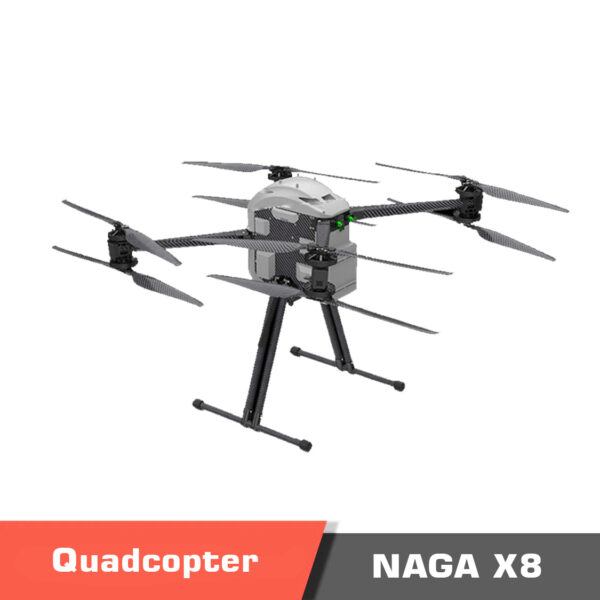

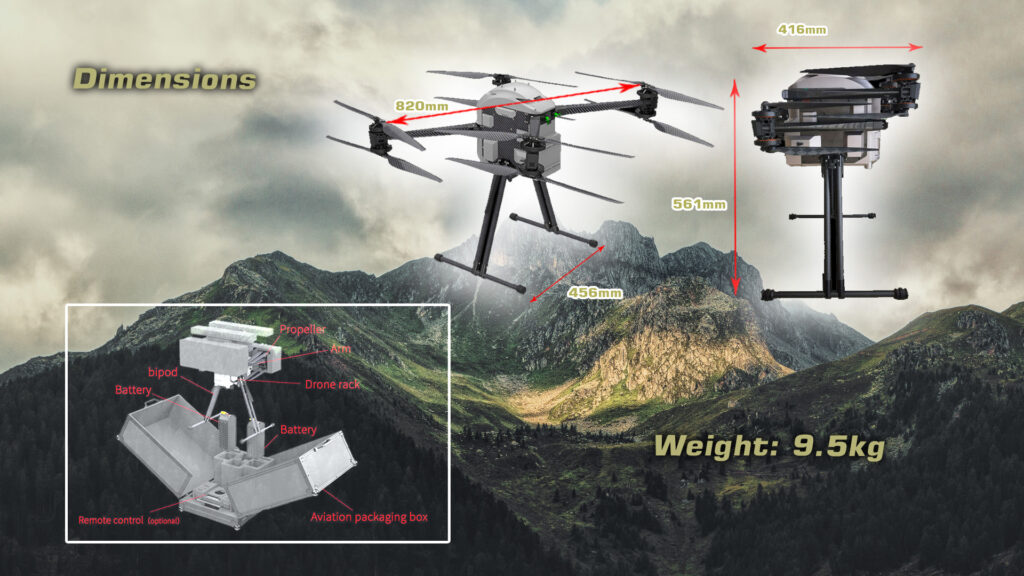

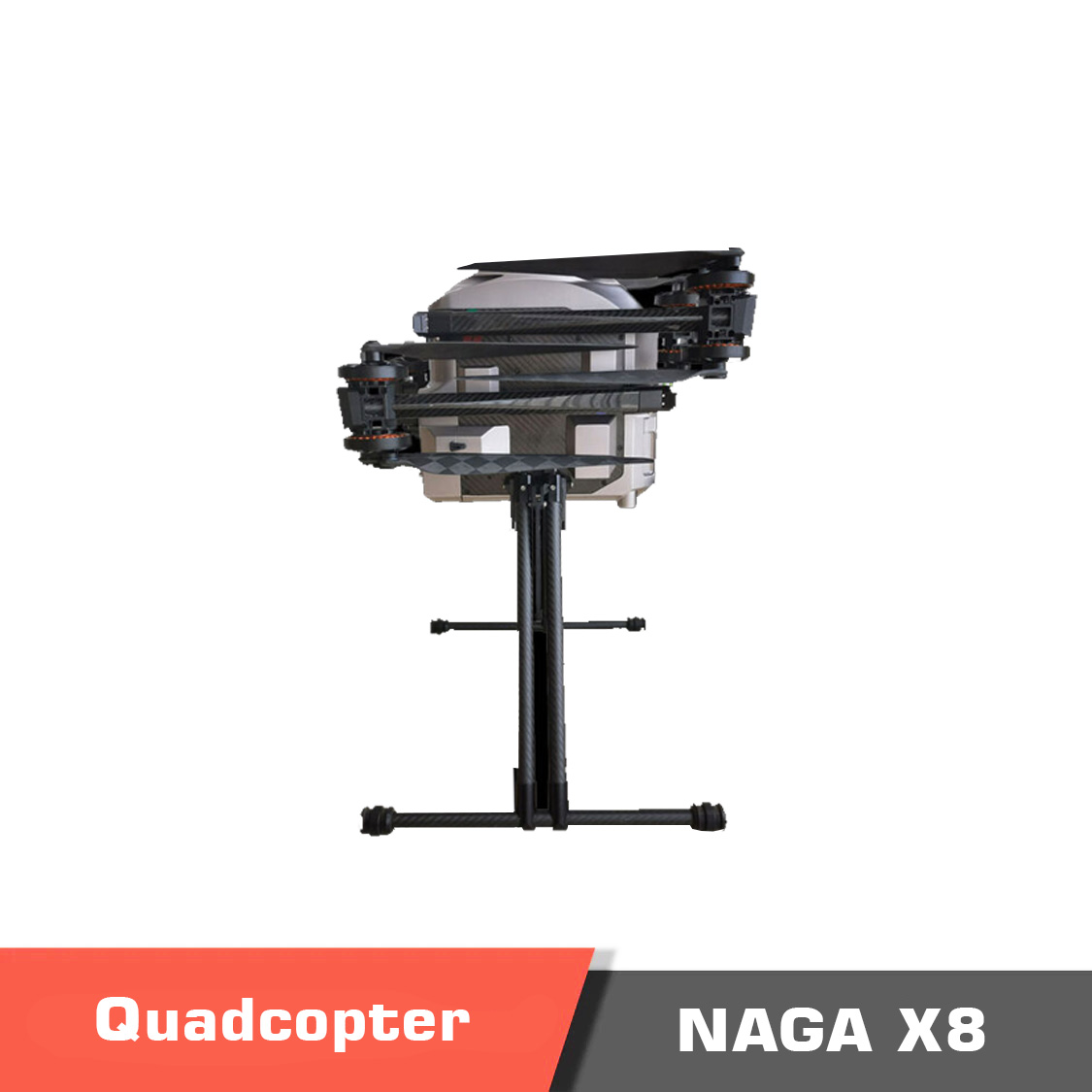

The ZHT NAGA X8 Coaxial Multi-Rotor Drone is a high-performance drone designed for demanding professional applications. With a symmetric wheelbase of 820mm, it features a robust construction using carbon fiber composite and aircraft aluminum, ensuring durability and lightweight efficiency. The drone measures approximately 650x645x492mm when the arms and landing gear are unfolded and props removed, and 418x382x492mm when the arms are folded, props disassembled, and landing gear unfolded. It weighs approximately 3.9kg without the battery and 9.5kg with two batteries installed.
Specifications of ZHT Naga X8

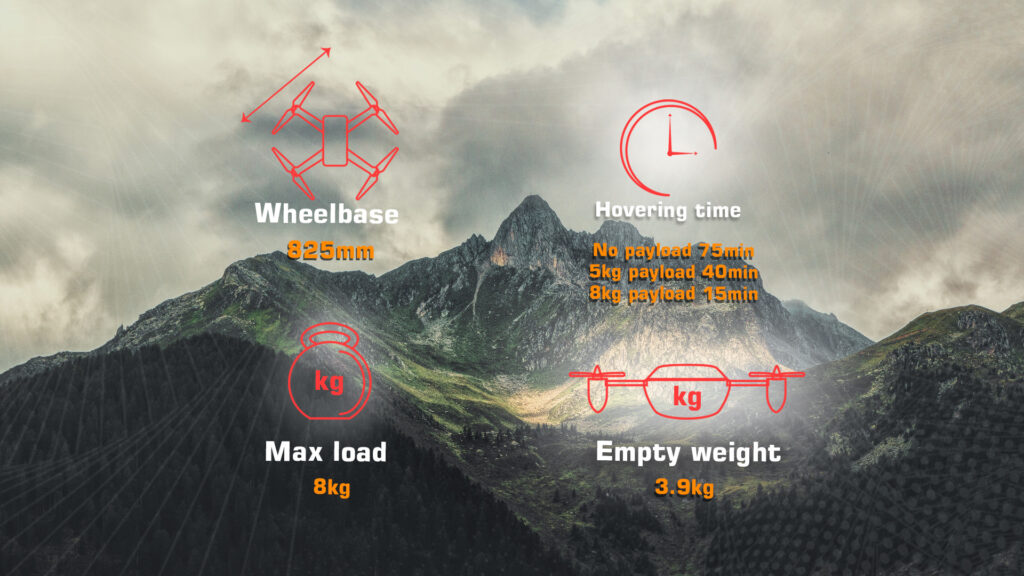

This versatile drone can carry a maximum load of up to 8kg and has a maximum takeoff weight of 18kg. Its endurance varies depending on the payload: up to 75 minutes with no payload, 40 minutes with a 5kg payload, and 15 minutes with an 8kg payload. The ZHT NAGA X8 offers impressive hovering accuracy, maintaining a vertical precision of ยฑ0.2m and horizontal precision of ยฑ0.1m in moderate or no wind conditions.
Performance Capabilities
The NAGA X8 is equipped with powerful performance capabilities, including a maximum angular velocity of 150ยฐ/s, a maximum pitch angle of 25ยฐ, an ascent speed of 2.5m/s, and a descent speed of 2m/s. It can reach a maximum horizontal speed of 20m/s and a flight altitude of up to 5500m. The drone is designed to withstand wind speeds of up to 14m/s and has an ingress protection rating of IP55, ensuring it can operate in harsh conditions. It functions efficiently within a temperature range of -20โ to +50โ.
Power System

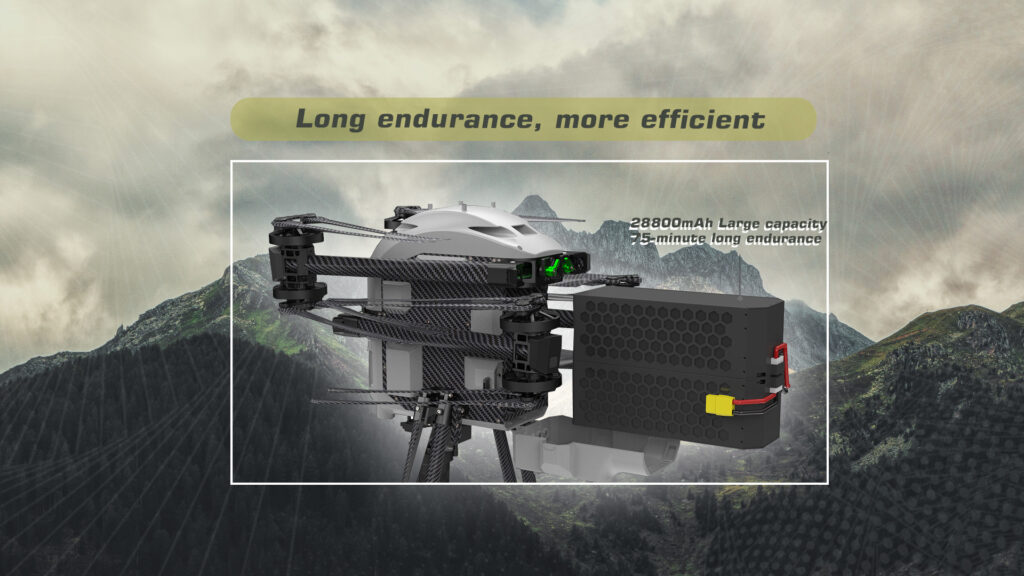

Powered by a 14S, 28800mAh battery, the NAGA X8 boasts substantial power reserves, with each battery weighing approximately 3.1kg and measuring 240x90x77mm. This makes the NAGA X8 a reliable and capable drone for a wide range of professional applications, offering excellent performance, durability, and versatility.
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
| NAGA X8 PARAMETERS | |
| Model No | NAGA X8 |
| Max. Symmetric Wheelbase | 820mm |
| Material | Carbon fiber composite and Aircraft Aluminum |
| Size | โ650x645x492mm (Arms & landing gears Unfolded, Props removed) โ418x382x492 (Arm&folded, Props disassemble, Landing gear unfold) |
| Weight | โ 3.9kg๏ผexcl. battery๏ผ โ 9.5kg๏ผincl. battery x2 pcs๏ผ |
| Max. Loading Capacity | โค 8kg |
| Max. Takeoff Weight | โค 18kg |
| Endurance | โค 75min @ no payload ๏ผ โค 40 min @ 5kg payload ๏ผ โค 15 min @ 8kg payload๏ผ |
| Hovering Accuracy (with moderate or no wind) | vertical ยฑ0.2m๏ผ horizontal ยฑ0.1m |
| Max. Angular Velocity | 150ยฐ/s |
| Max. Pitch Angle | 25ยฐ |
| Max. Ascent Speed | 2.5m/s |
| Max. Descent Speed | 2m/s |
| Max. Horizontal Speed | 20m/s |
| Max. Flight Altitude | 5500m |
| Max. Wind Speed Resistance | 14m/s |
| Ingress Protection Rating | IP55 |
| Operating Temperature | ๏นฃ20โ ~ +50โ |
| Battery Capacity | 14S๏ผ28800mAh |
| Battery Weight | โ3.1kg |
| Battery Size | 240x90x77mm |
| Notes: The size and weight may be changed according to customerโs personalized customization requirements. Please refer to the actual object. | |

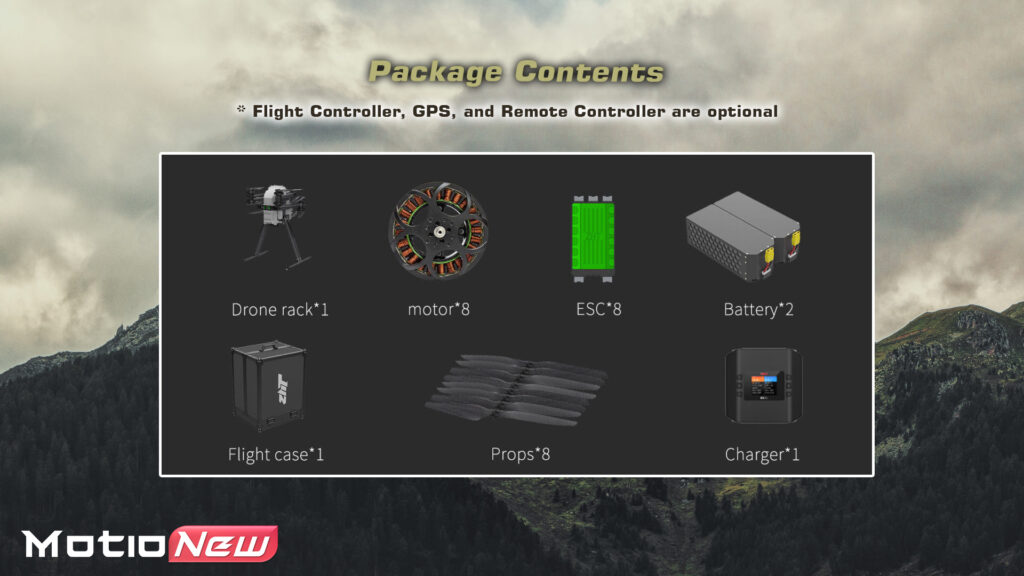

Product contents
1x NAGA X8 Frame
8x Motors
8x ESC
2x PDB
2x Battery
8x Propellers
1x Charger
1x Carry Case
1x H7 Flight Controller + M10S GPS

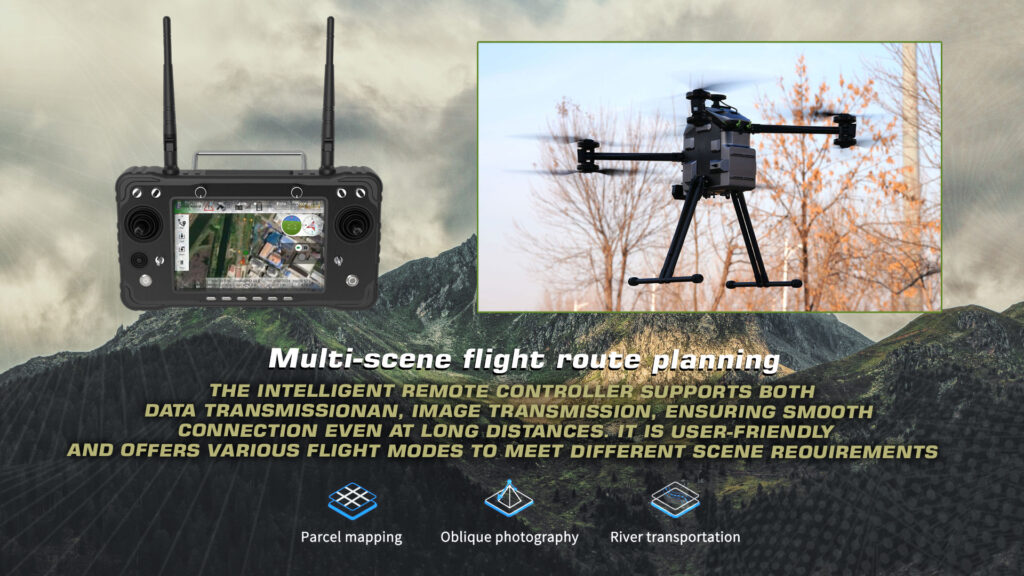

1x MK15 RC controller
Documents
Pleaseย contact usย for more information.
