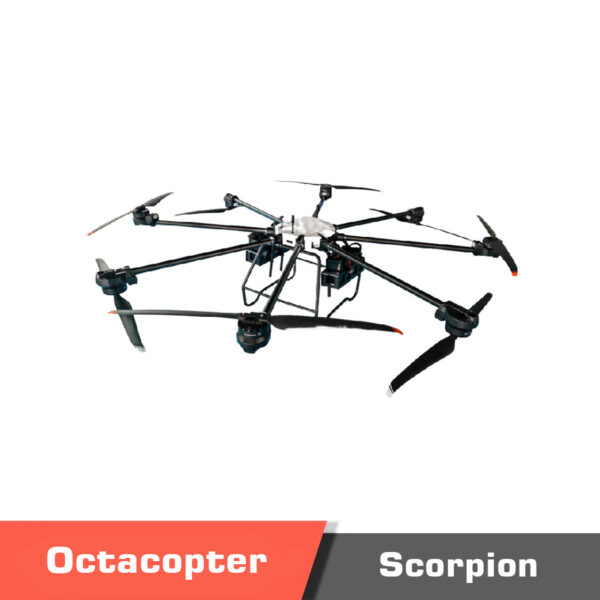

Scorpion Octacopter 100kg Payload
Description
Important Notice!
If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. MotioNew products cannot be used for military, terrorist, or war purposes. Please read our Terms of Service for more information.

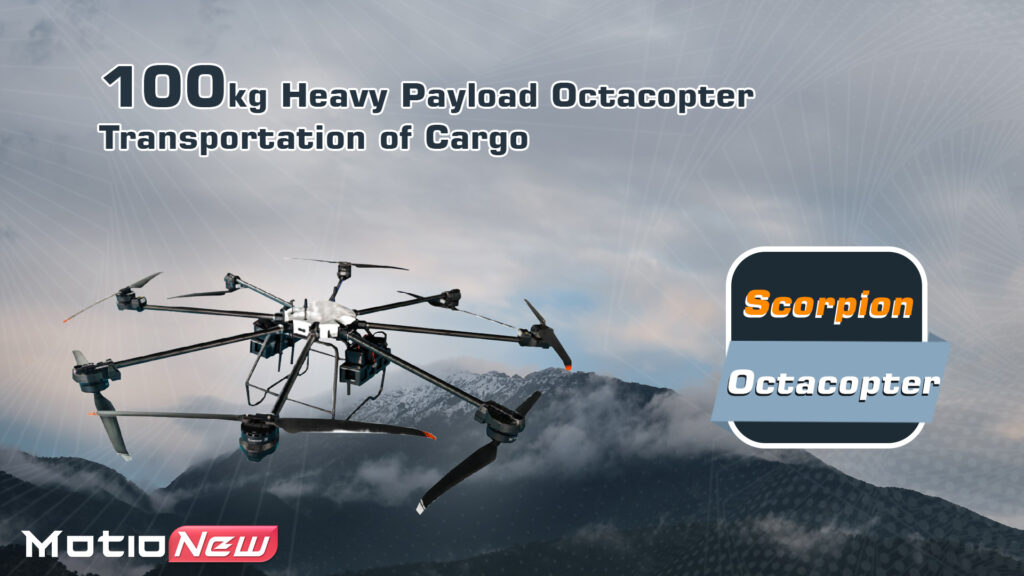

Scorpion Octacopter Overview
Introducing the groundbreaking Scorpion Octacopter 100kg payload, the future of aerial transportation and logistics. This state-of-the-art drone is set to transform the transportation of goods, delivering unmatched efficiency and dependability. Featuring a robust wheelbase of 3060 mm and an advanced eight-axis, eight-propeller design, the Scorpion offers exceptional stability and agility, guaranteeing smooth and secure cargo delivery.
impressive load capacity of Scorpion Octacopter
One of the standout features of the Scorpion Octacopter is its remarkable load capacity of up to 100 kg, making it perfect for carrying a diverse array of goods over different terrains. Whether it’s delivering medical supplies to remote regions or transporting vital equipment to hard-to-reach locations, the Scorpion is more than capable of handling the job.
High-Strength Carbon Fiber Integrated Molded Body
Featuring a high-strength carbon fiber integrated molded body, the Scorpion Octacopter is both lightweight and exceptionally durable, capable of enduring the demands of regular use. This innovative construction enhances the drone’s performance and longevity, providing a reliable and cost-effective solution for businesses and organizations.

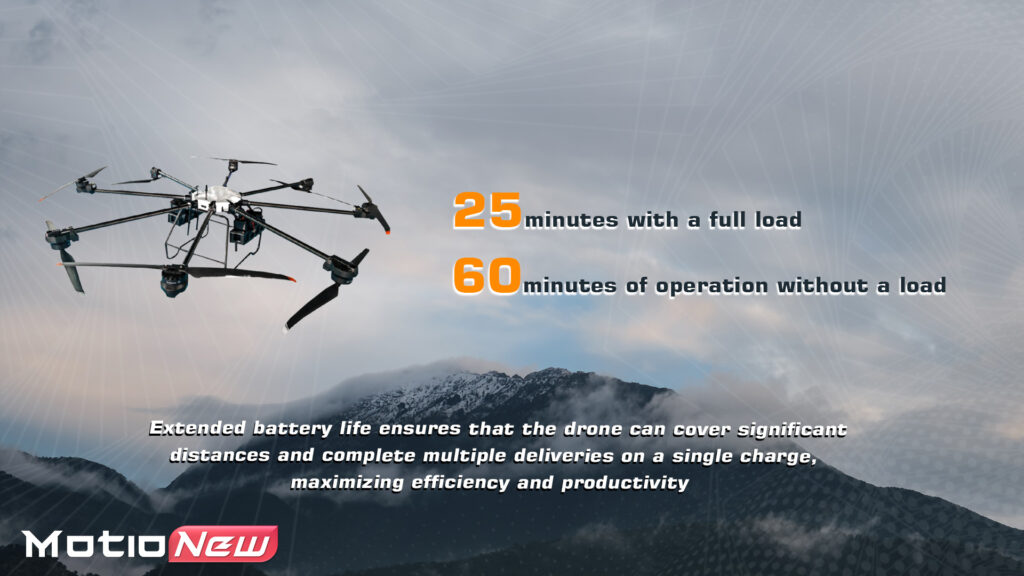

The highest performance and efficiency of the battery
Beyond its sturdy construction, the Scorpion Octacopter offers an impressive battery life, providing up to 60 minutes of flight time without a load and 25 minutes with a full load. This extended battery life ensures the drone can travel long distances and complete multiple deliveries on a single charge, enhancing efficiency and productivity.
The best choice in transportation
Whether for commercial delivery services, emergency response operations, or industrial logistics, the Scorpion Octacopter is set to revolutionize the transportation of goods. Its advanced features, coupled with its innovative design, make it a game-changer in the realm of aerial transportation and logistics. Experience the future of cargo transport with the Scorpion 100kg payload – where efficiency and reliability converge.
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
Specifications
| Parameters | |
| Flight control system | Industry class flight control |
| Symmetrical motor wheelbase | ≤1220mm |
| Folding size | 900x900x600mm |
| Empty weight | 15kg |
| Protection class | IP54 |
| Flight parameter | |
| Maximum thrust-to-weight ratio | 1.8 |
| Hover accuracy | (GNSS signal is good) |
| Starting RTK | horizontal ±10cm, vertical ±10cm |
| Unactivated RTK | horizontal ±0.6m, vertical ±0.3m |
| Power battery | aero engine +12s lithium battery |
| Cruising speed | 15m/s |
| Maximum flight speed | 80km/h |
| Maximum flight altitude | 2000 meters |
| Usage ceiling: Climb rate | 5m/s,5m/s |
| Sailing time | > 3h (no load) |
| Engine parameter | |

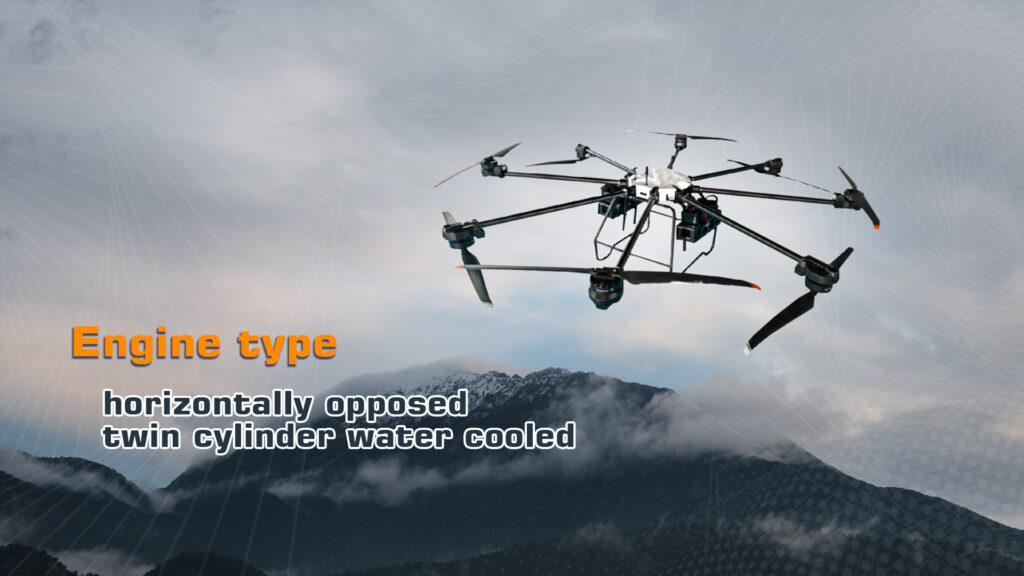

| Engine type | horizontally opposed twin cylinder water cooled |
| Engine displacement | 35cm3 |
| Engine weight | 3.3kg (without accessories) |
| Starting mode | one-button start (remote start) |
| Throttle control mode | full power range automatic control |
| Ignition mode | 12V CDI DC ignition |
| Generator type | three-phase permanent magnet generator |
| Generator voltage | DC50V |
| Generator power | ≤2.5KW(0 altitude) |
| Sensing and Obstacle Avoidance system | (optional) |
| Forward looking radar | √ |
| Type number | QOAR1271 |
| Operating voltage | 12V |
| Power rate | 5.6W |
| Perception | millimeter wave |
| Operating frequency | 79-81GHz |
| Pitch beam width | 15°@6db (medium distance) /14°@6db (short distance) |
| Azimuth beamwidth | 30°@6db (medium distance) /120°@6db (short distance) |
| Distance accuracy | 0.1-0.2m |
| Safe distance | 10m |
| Obstacle avoidance direction | in front of the drone |
| Protection class | IP65 |
| Communication and operating systems | |
| Signal bandwidth | 20MHz/10MHz |
| Operating voltage | 7-12.6V |
| Image transmission distance | FCC20Km/CE/SRRC/MIC 12Km |
| Image transmission delay | minimum 110ms |
| Image transmission pixels | 720@30fps/1080P@30/60fps |
| Transmission frequency | 2.4GHz ISM |
| Acceptance sensitivity | -99d Bm@20MHz B |
Product contents
Please contact us for more information.
Documents
Please contact us for more information.
