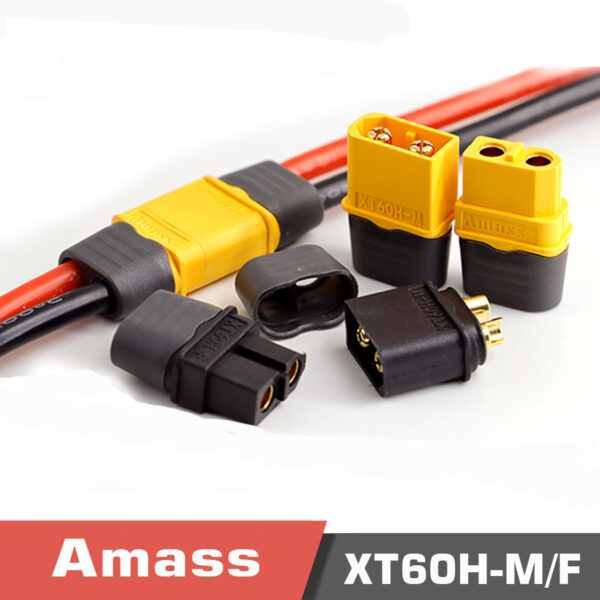

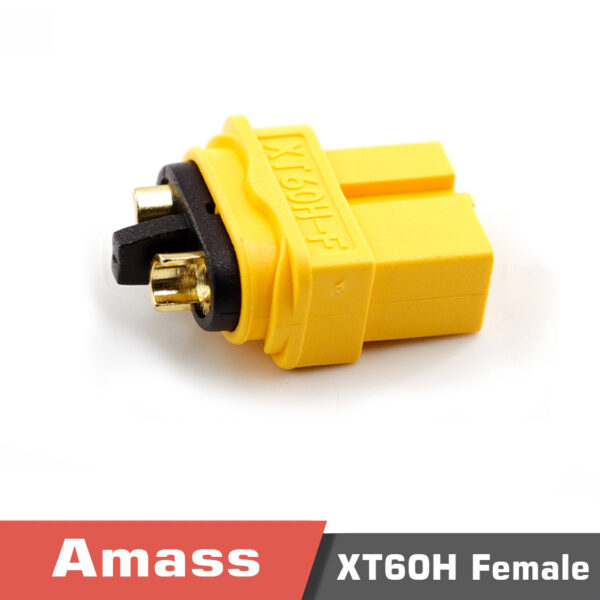

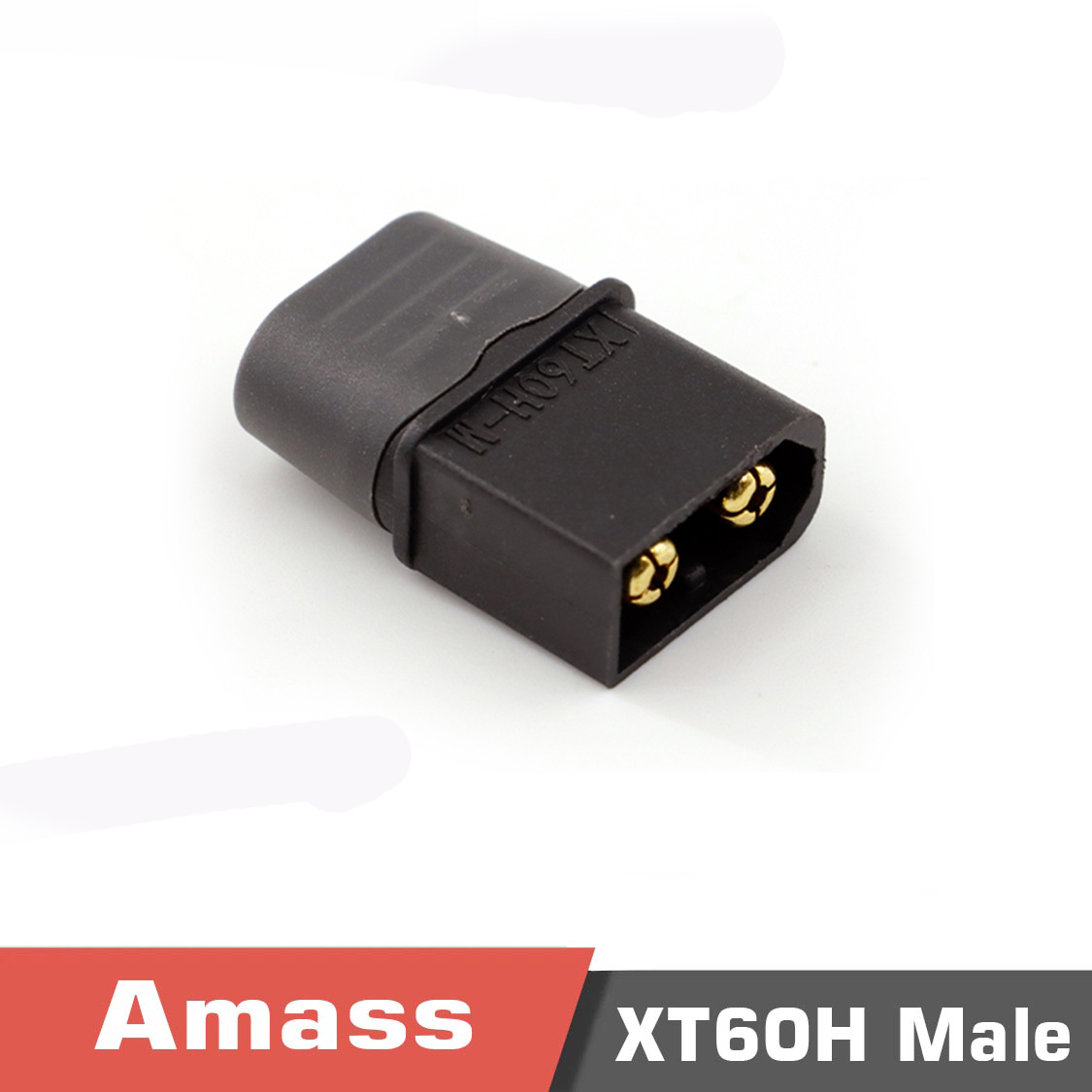

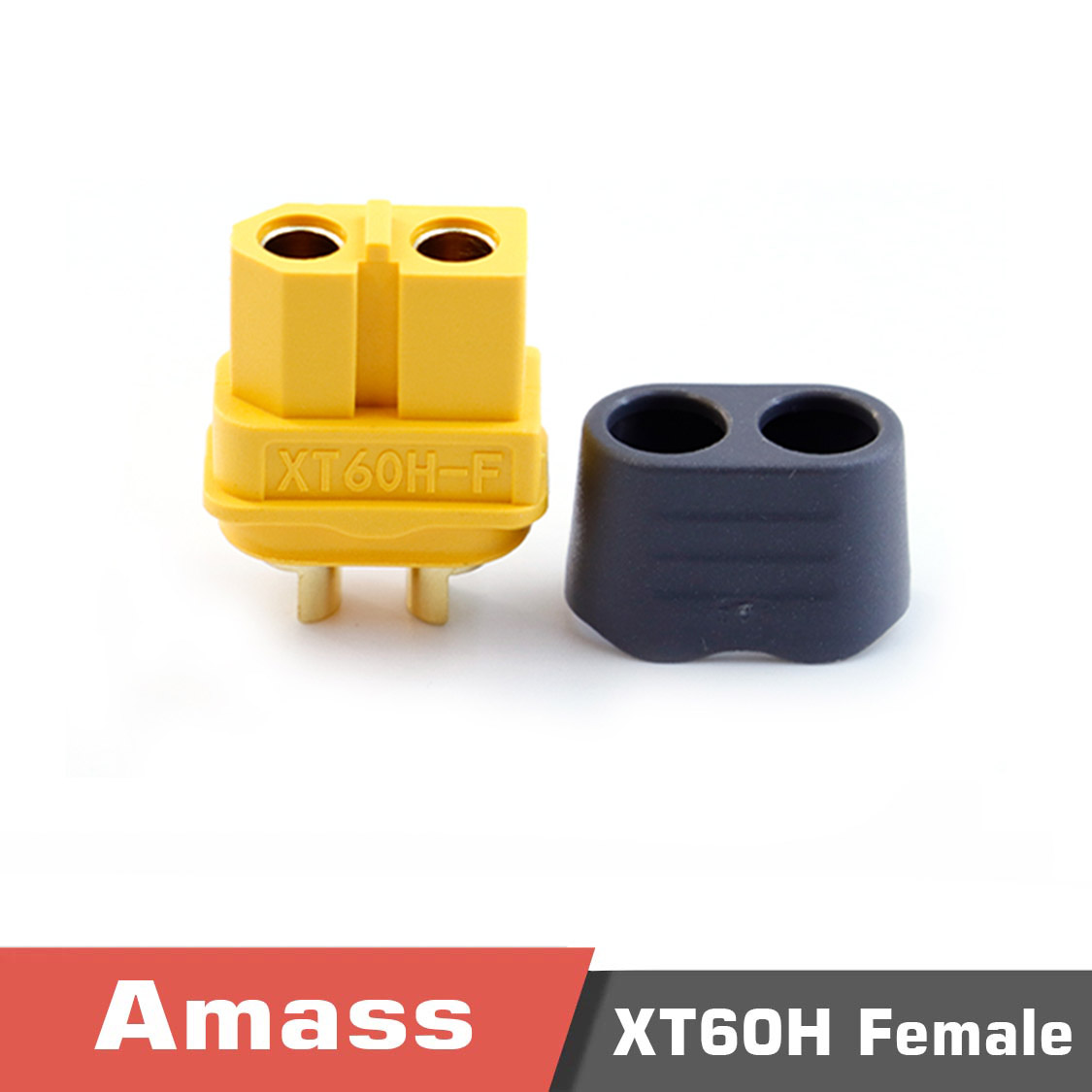

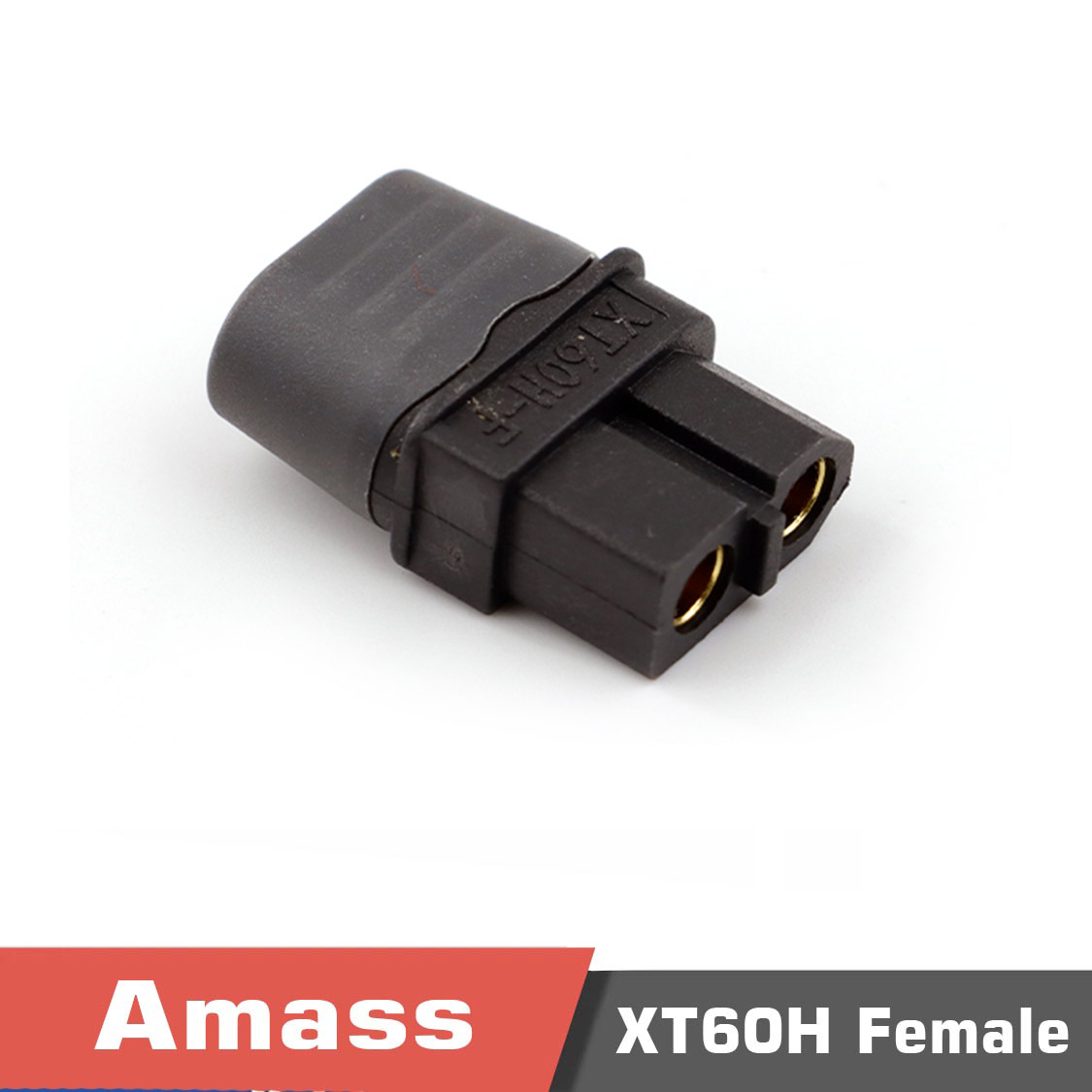

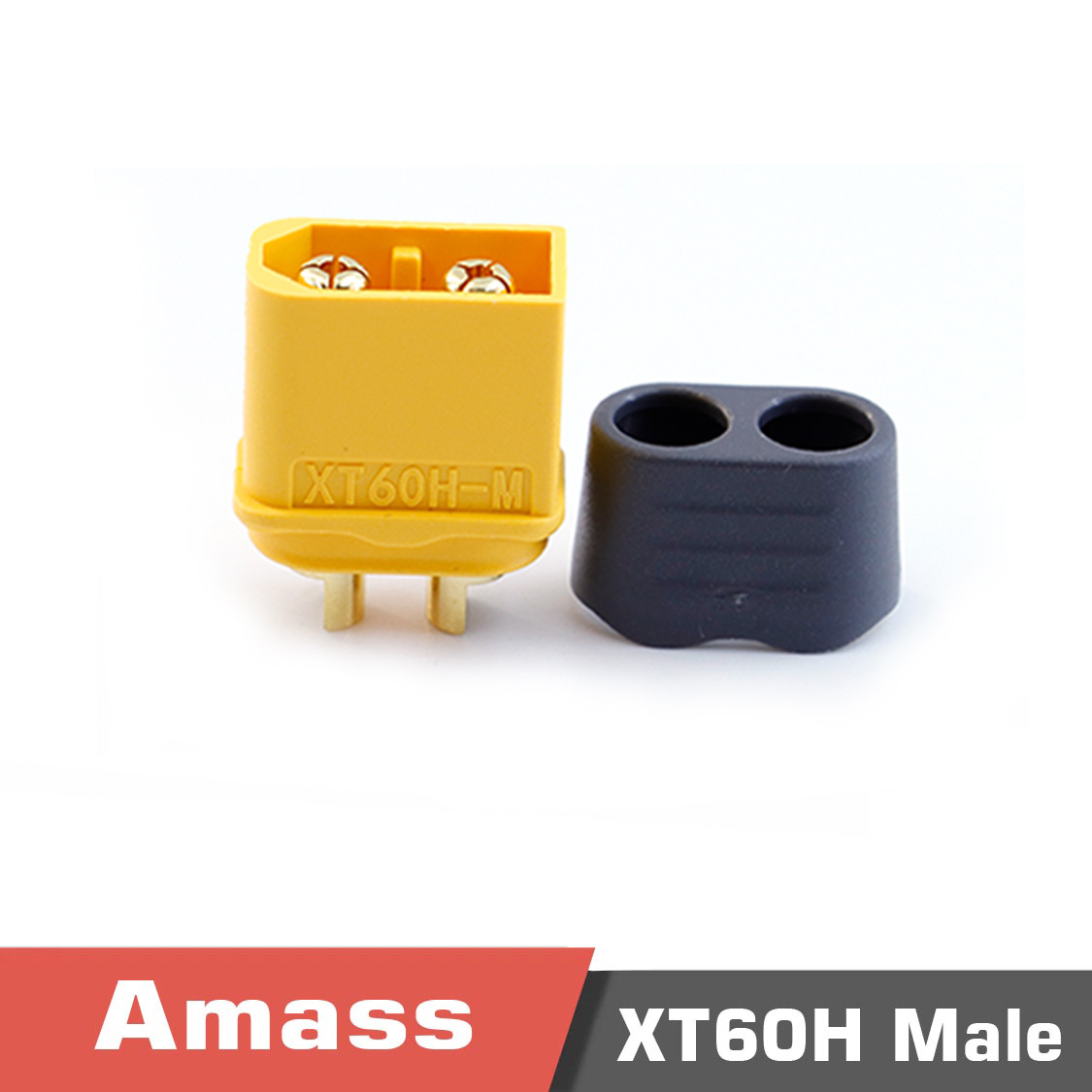

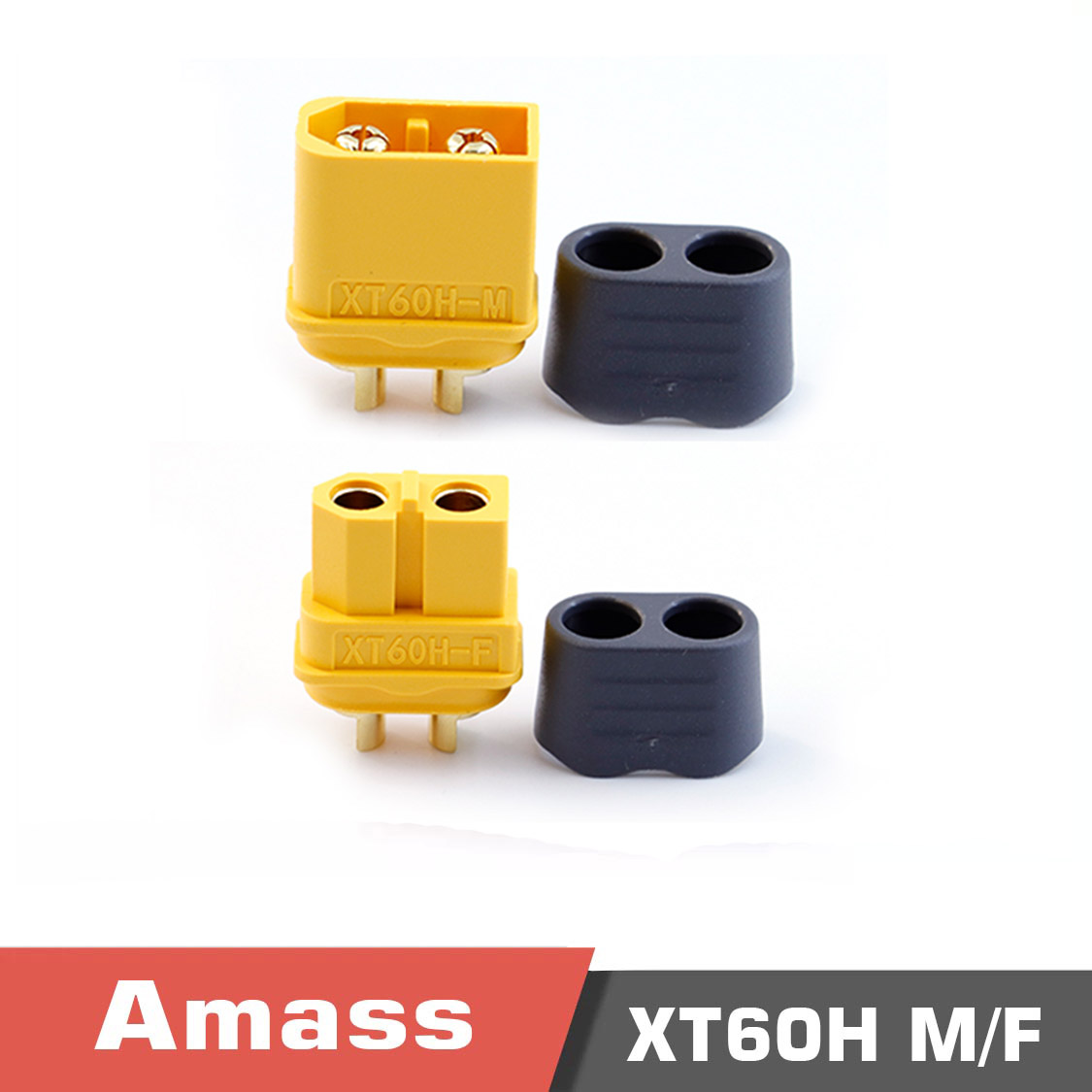

Amass XT60H plug with sheath version aircraft model 3.5mm gold-plated plug T plug connector
1.50 $ – 23.00 $
Description
Amass XT60H Specifications

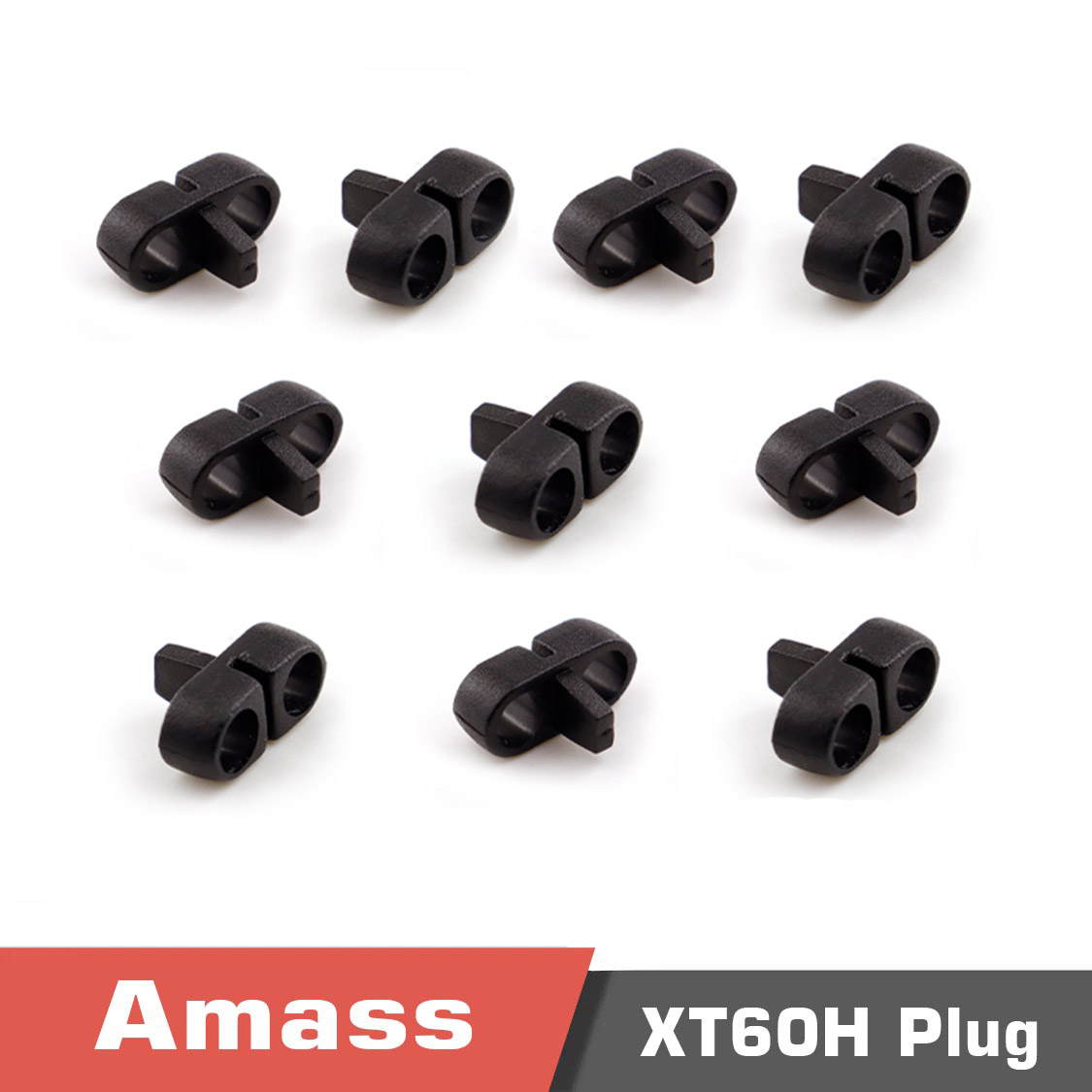

The Amass XT60H series products are a classic 180ยฐ outlet welding injection type 2PIN connector, designed for high-performance power connections. These connectors feature an optional rear cover and are arranged in a rectangular shape, making them a standard plug-in choice for power lithium-ion motors.
Additionally, the Amass XT60H series supports a wire-to-board design, allowing for versatile integration in various electrical applications. Their robust construction ensures reliable connections, making them suitable for demanding industrial and automotive environments. Designed for line-to-line connection scenarios, the XT60H series is commonly used in motors and controllers, where stable and efficient power transmission is essential.
Electrical Characteristics Amass XT60H
The connectors boast excellent electrical characteristics, including a rated current of 35A MAX (12AWG/ฮ <85ยฐC) and a withstand voltage of 500V DC. They offer high insulation resistance (โฅ2000Mฮฉ) and low contact resistance (โค1.0mฮฉ), ensuring minimal power loss.
Mechanical properties of XT60H
With a mechanical service life of 100 cycles, the XT60 series maintains durability under repeated use. Additionally, its salt spray resistance of 48 hours enhances its longevity, making it resistant to corrosive environments.
About Environmental resistance
The Amass XT60H series is built to withstand harsh conditions, featuring a protection level of IP40, which provides moderate dust resistance. Its wide working temperature range of -20ยฐC to 120ยฐC ensures stable performance in both extreme cold and high-heat applications. Moreover, the connectors meet UL94 V-0 flame retardant standards, enhancing safety by preventing fire hazards.
These features make the XT60H series an ideal choice for power distribution systems, ensuring efficiency, safety, and long-term reliability in various electrical and electronic applications.
If you have any questions regarding our products, use the Motionew Contact usย to consult our engineering team.
Specifications
| Electrical Characteristics | |
| Rated Current | 35A MAX (12AWG/ ฮ<85ยฐC) |
| Withstand Voltage | 500V DC |
| Insulation Resistance | โฅ2000Mฮฉ |
| Cintact Resistance | โค1.0mฮฉ |
| Mechanical Properties | |
| Service life | 100 times |
| Salt spray | 48h |
| Environmental Resistance | |
| Protection level | IP40 |
| Working temperature | -20ยฐC to 120ยฐC |
| Flame retardant grade | UL94 V-0 |
| Material | |
| Outer shell | PA, Color: Yellow, Black |
| Pinhole parts | Copper alloy, electroplating: gold |
Product contents
Please contact us for more information.
