ISDT B60 B80 battery Charger, smart professional 22S Lipo Charger
664.69 $
Description
ISDT B60 B80 battery Charger is a smart professional 22S Lipo Charger with up to 3000W Charge power with balance charge capability. This fast charger is suitable for a variety of battery types, specifically LiFe, LiPo, LiHv, and ULiHv Batteries.

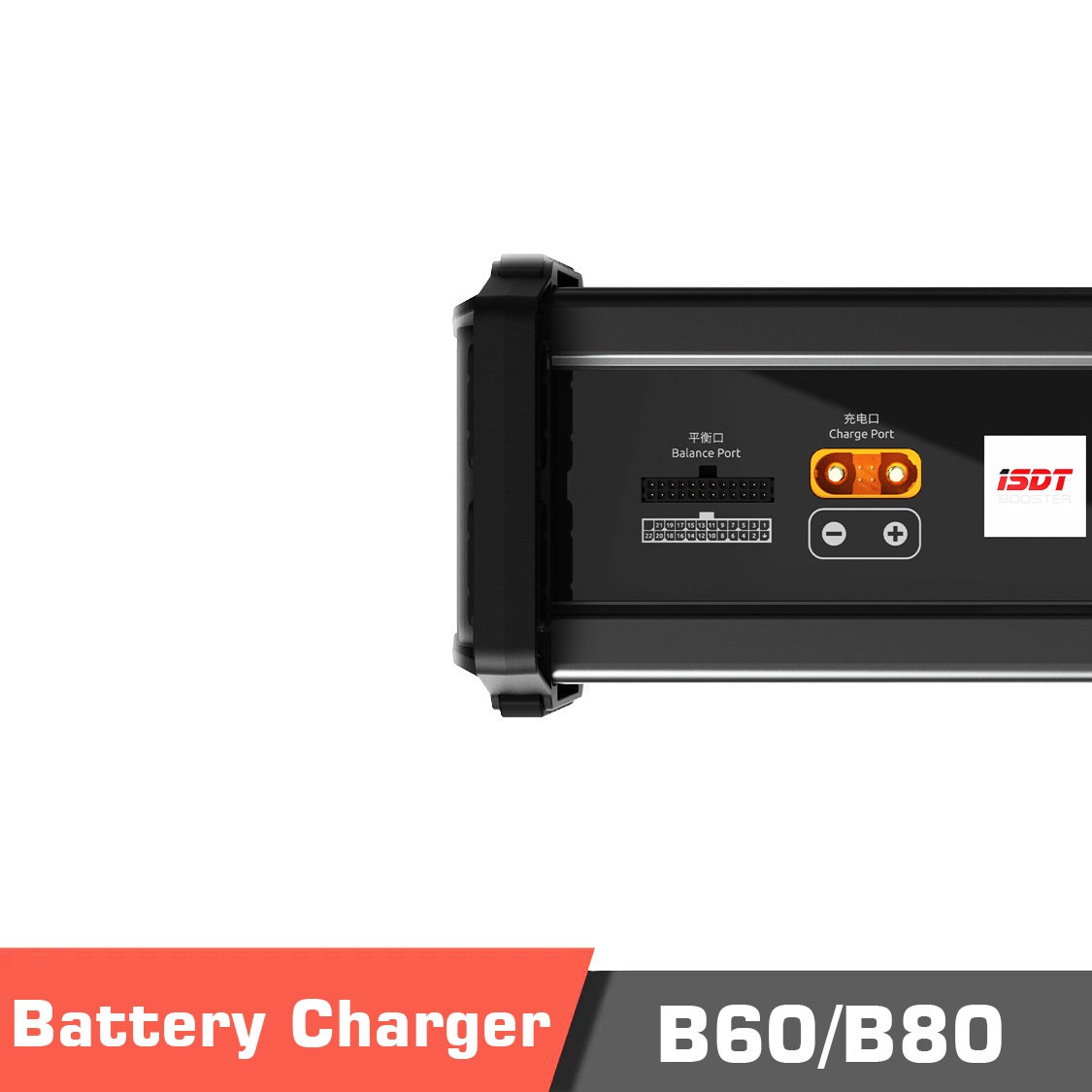

Combination of a single channel of max. 3000W output power, 80V high voltage, and 40A high current makes ISDT B80 B60 a strong and powerful batter charger. The charger is designed only for large batteries. It is equipped with a 22S balance port that can support 6S to 22S LiFe batteries and up to 18S LiPo batteries.

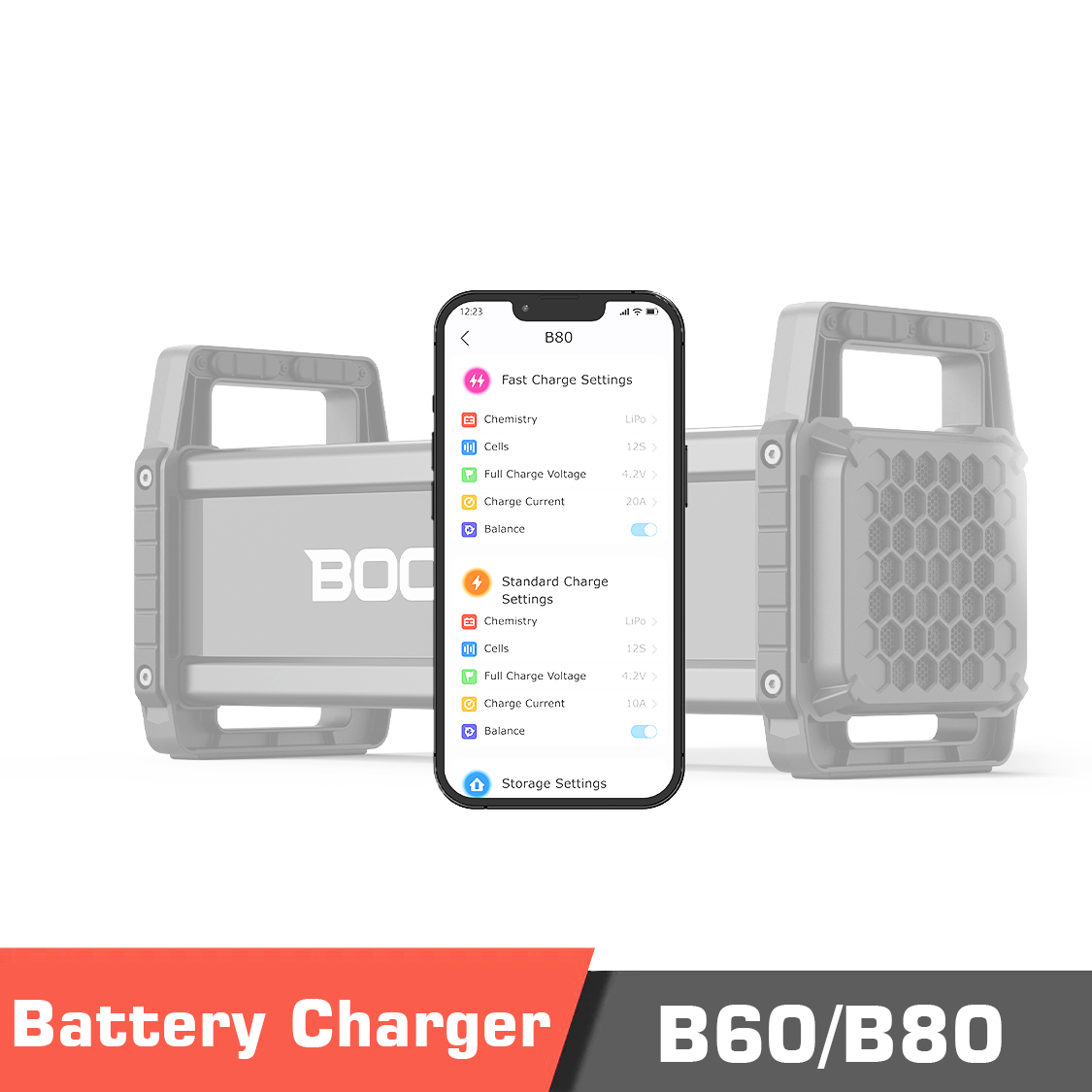

The designed mobile application connects wirelessly to the charger and allows you to change the charging parameters and do an Over the Air (OTA) upgrade from your cellphone.

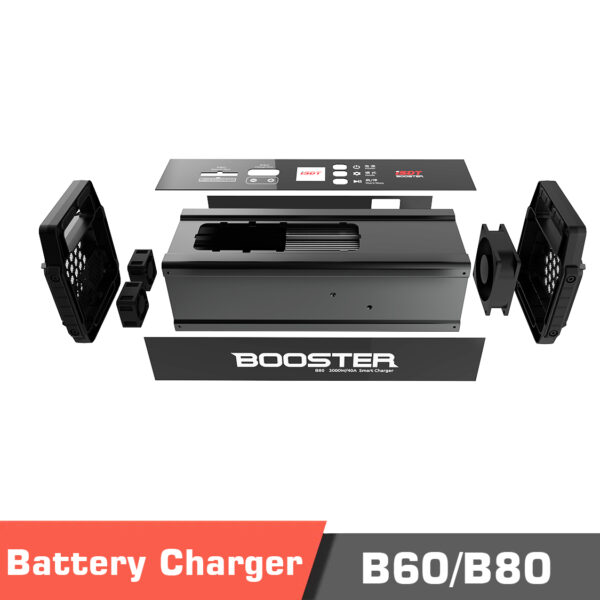

Aluminum alloy is used to build both inside and outside parts to achieve toughness. Using aluminum as the body shell’s material provides a sophisticated look, as well as better heat dissipation in coordination with the built-in fan.
Specifications
| Model | B80 | B60 |
| Input voltage range | AC 100~240V | AC 100~240V |
| Output voltage range | DC 20~80V | DC 20~58V |
| Maximum input current | AC 16A | AC 16A |
| Maximum charging power | 3000W (@220V AC)
1500W (@110V AC) 1400W (@100V AC) |
3000W (@220V AC)
1500W (@110V AC) 1400W (@100V AC) |
| Maximum discharge power | 200W | 200W |
| Supported battery types and cell count | LiFe (8~22S), LiPo (6~18S), LiHv (6~18S), ULiHv (6~18S) | LiFe (6~16S), LiPo (6~14S), LiHv (6~13S), ULiHv (6~13S) |
| Charging current | 1.0~40.0A (Max) | 1.0~55.0A (Max) |
| Discharging current | 0.5~5.0A (Max) | 0.5~5.0A (Max) |
| Balance current | 2A/Cell Max | 2A/Cell Max |
| Abnormal voltage alarm | Support | Support |
| Incorrect cell count setting alarm | Support | Support |
| BattAir | Support | Support |
| Working temperature | 0~40โ | 0~40โ |
| Storage temperature | -20~60โ | -20~60โ |
| Dimension | 356 ร 136.8 ร 164.1 mm | 356 ร 136.8 ร 164.1 mm |
| Weight | About 3973g | About 3973g |

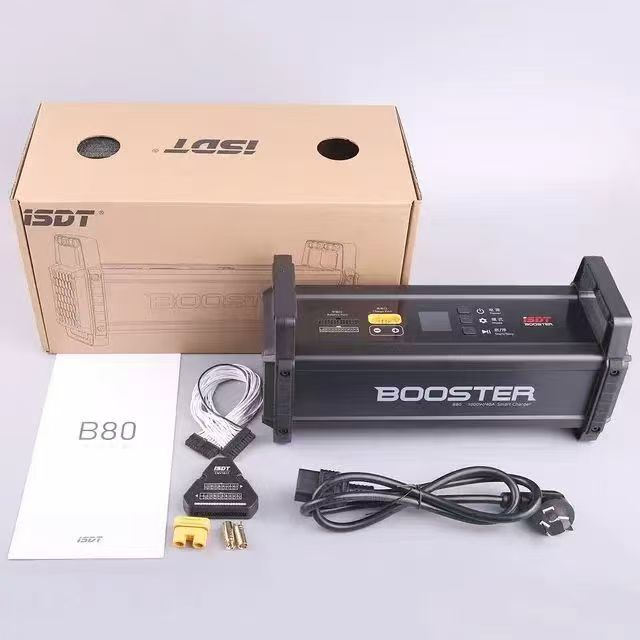

Product contents
Documents
Please contact us for more information.
