ROCK HV battery 6s 22000mAh-Semi Solid-State Battery
337.00 $ – 411.00 $
Description
Please inform us about the connector type that best meets your needs.
We offer a wide range of batteries in various sizes and models, though some are not yet publicly listed. Please feel free to send us a message if your required model is not listed.
General Specifications
ROCK HV battery 6S 22000mAh HV semi solid-state battery comes in two versions. The first one is only 2.55Kg, with 196.7Wh/kg energy density, discharge rate of 25C and the other one is only 1.96Kg, with 250.4Wh/kg energy density, and a discharge rate of 10C.
The ROCK HV Semi Solid-State Battery is from a Semi Solid-state Li-ion battery series that has a higher discharge current and higher cell voltage compared to a normal solid-state Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.35v and the discharge rate can be up to 25C.
Advantages of ROCK HV battery 6s 22000mAh
Compared to traditional semi solid-state li-ion batteries, the HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.
ROCK HV Battery 6s 22000mAh applications
The Ultra HV Solid-state Li-ion battery is ideally suited for a broad spectrum of applications, including UAVs, agriculture drones, industrial multi-copters, VTOLs, robots, surface ships, and more. Elevate the performance and endurance of your equipment with the advanced technology embodied in the Rock HV Semi Solid-State battery series. Experience a new era in energy storage that redefines the possibilities for unmanned systems and electrical devices.
For a comprehensive reading of related products, please visit the Motionew website.
Specifications

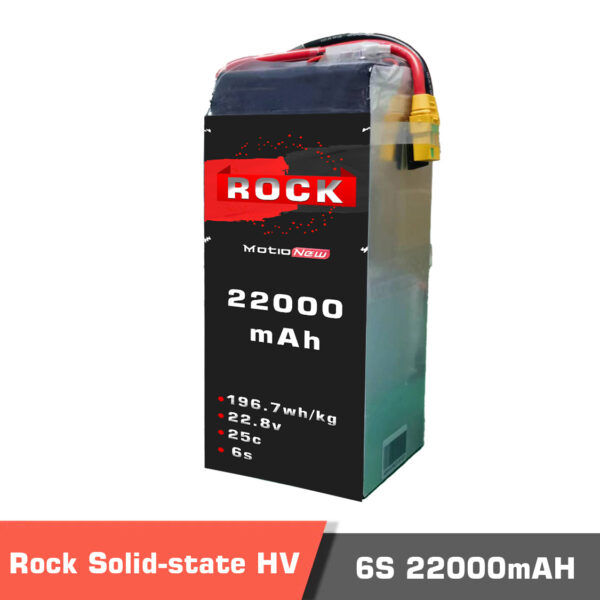

25C discharge rate specification
| Voltage | 22.8V |
| Capacity | 22000mAh |
| Max.Discharge | 25C |
| Energy | 196.7 Wh/kg |
| Size | 220x90x68mm |
| Weight | 2.55kg |
10C discharge rate specification
| Voltage | 22.2V |
| Capacity | 22000mAh |
| Max.Discharge | 10C |
| Energy | 250.4 Wh/kg |
| Size | 205x75x65mm |
| Weight | 1.96kg |
Product contents
1x Rock Solid-state Li-Po Battery 22000mAh 6s 25c or 10c
Documents
Please contact us for more information.
