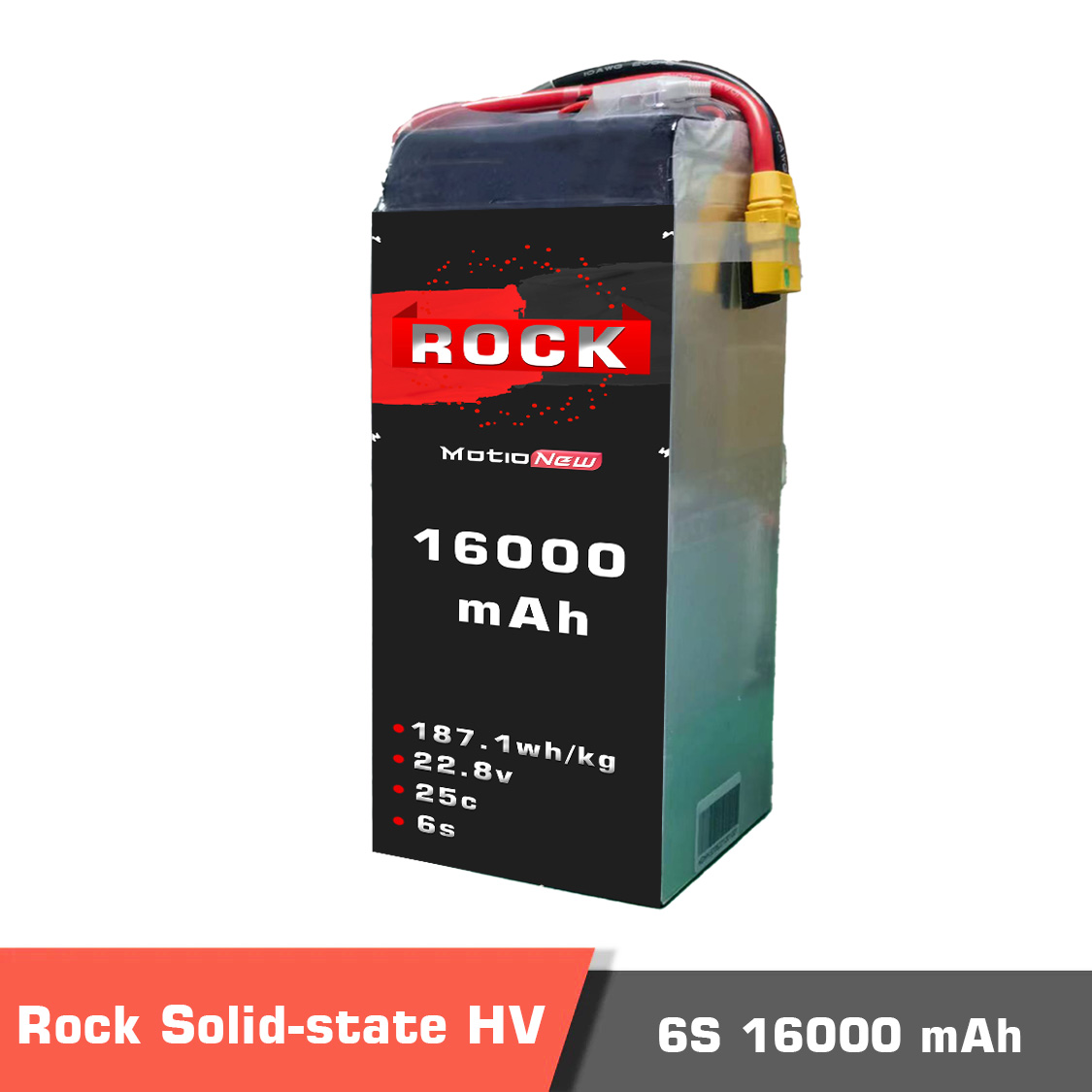

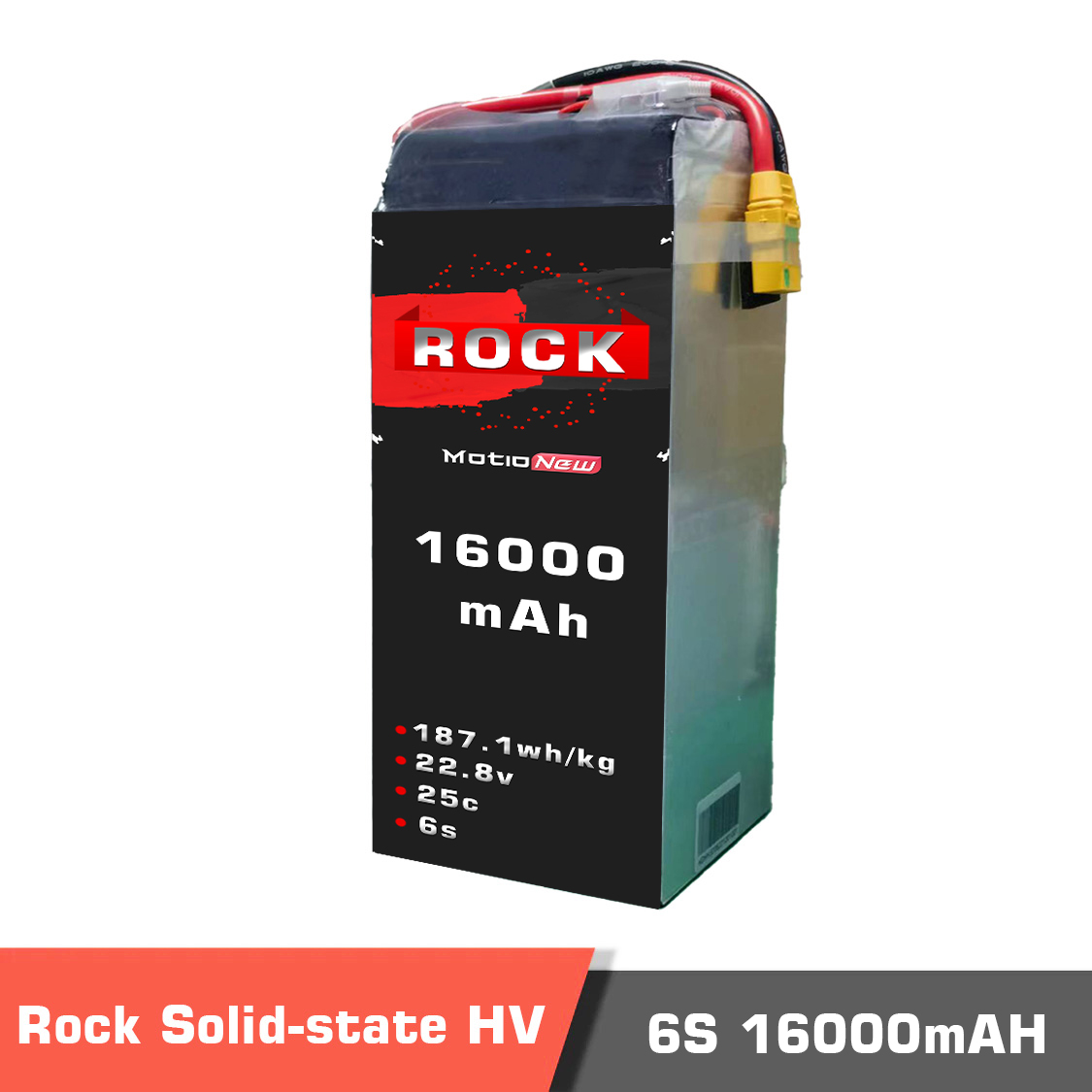

ROCK HV battery 6s 16000mAh-Semi Solid-State Battery
244.00 $ – 299.00 $
Description
Please inform us about the connector type that best meets your needs.
We offer a wide range of batteries in various sizes and models, though some are not yet publicly listed. Please feel free to send us a message if your required model is not listed.
General Specifications
Rock HV battery 6S 16000mAh HV semi solid-state battery is only 1.95Kg, with 187.1Wh/kg energy density, for the continuous discharge rate of 25C and is only 1.5Kg, with 236.8Wh/kg energy density, for the continuous discharge rate of 10C.
The Rock HV battery is a Semi Solid-state battery series that has a higher discharge current and higher cell voltage compared to a normal solid-state Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.35v and the discharge rate can be up to 25C.
Advantages of Rock HV battery 6s 16000mAh
Compared to traditional semi solid-state li-ion batteries, the HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.
Rock HV Battery 6s 16000mAh applications
HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
25C discharge rate specification
| Voltage | 22.8V |
| Capacity | 16000mAh |
| Max.Discharge | 25C |
| Energy | 187.1 Wh/kg |
| Size | 200x75x64mm |
| Weight | 1.95kg |
10C discharge rate specification
| Voltage | 22.2V |
| Capacity | 16000mAh |
| Max.Discharge | 10C |
| Energy | 236.8 Wh/kg |
| Size | 205x75x49mm |
| Weight | 1.5kg |
Product contents
1x Rock Solid-state Li-Po Battery 160000mAh 6s 10c or 25c
Documents
Please contact us for more information.
