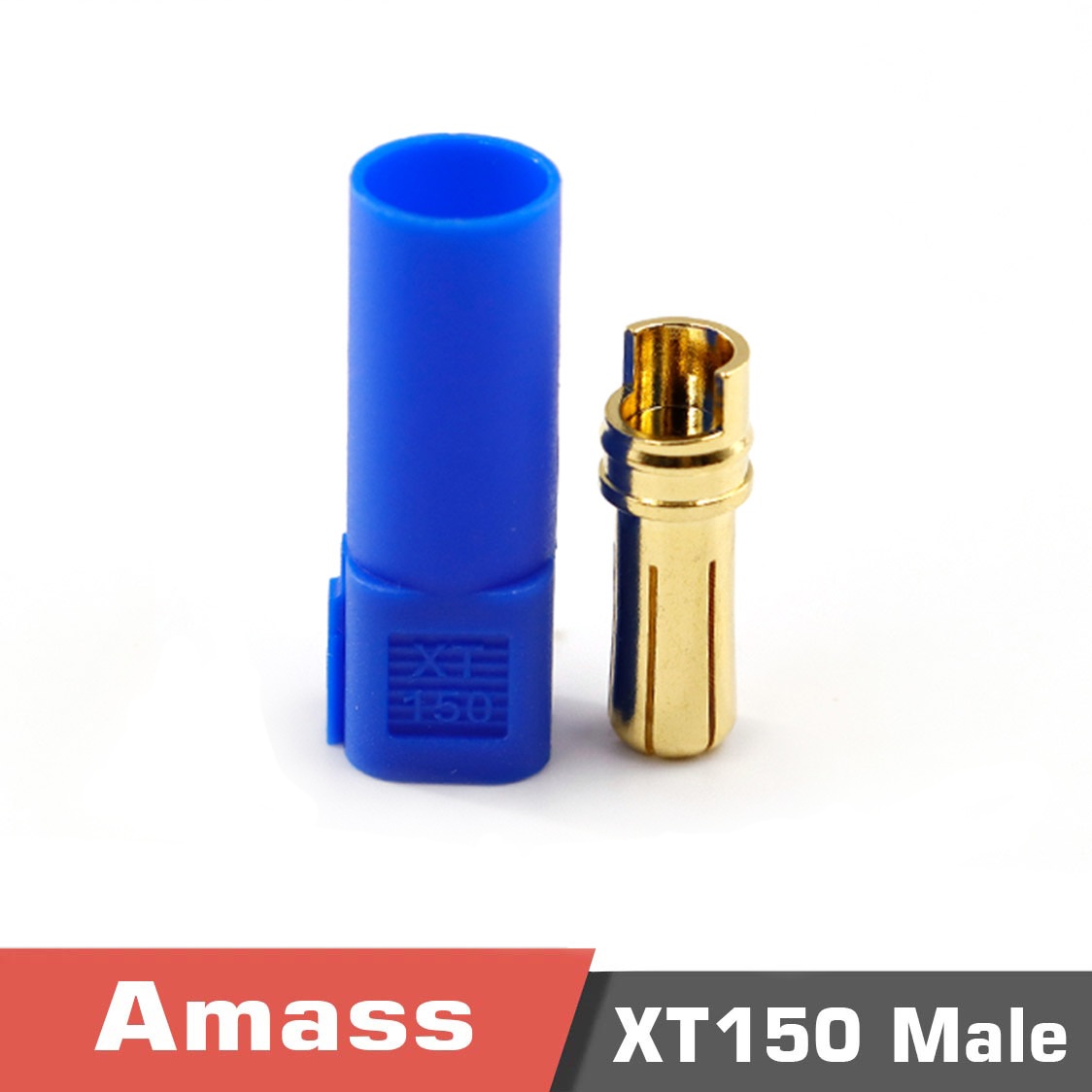

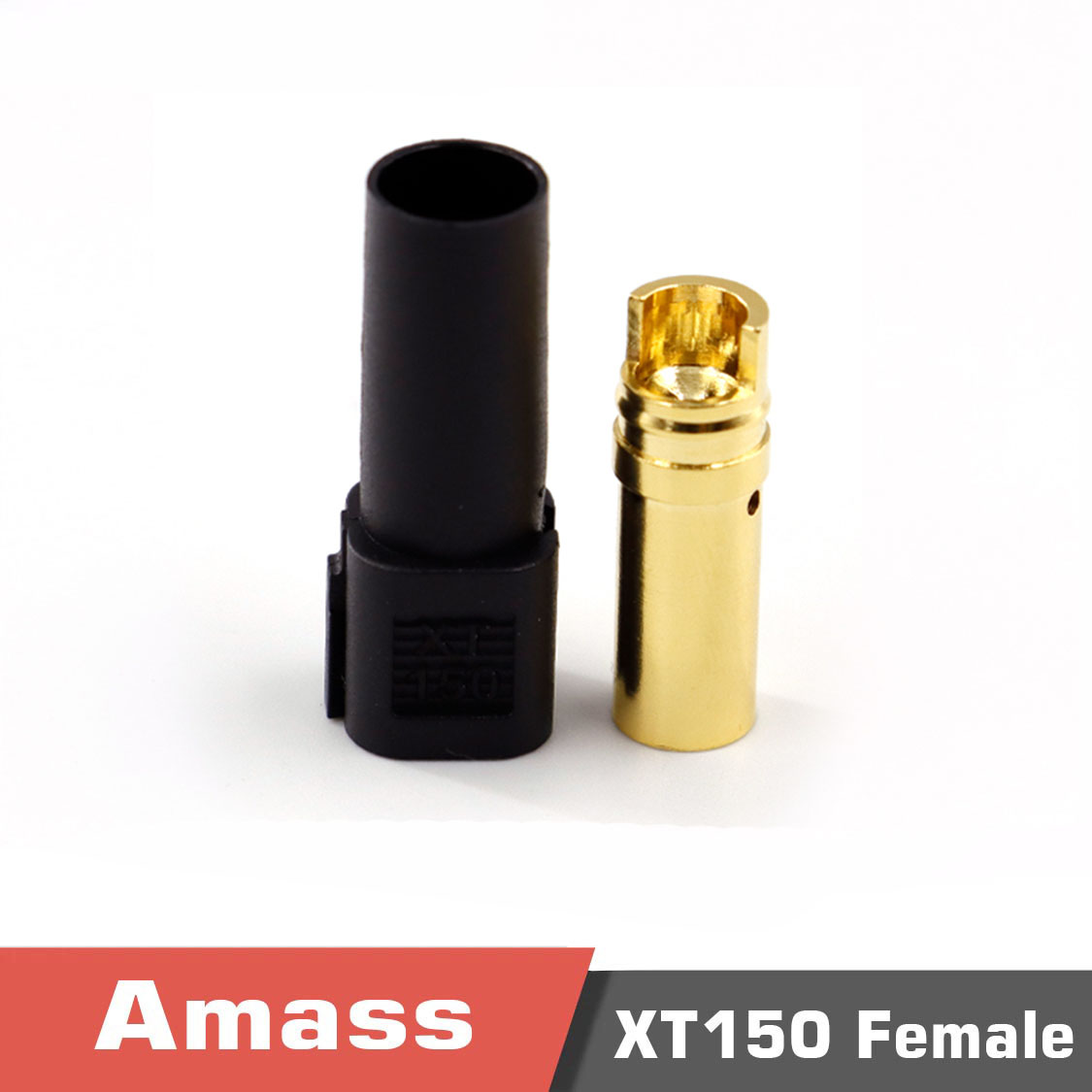

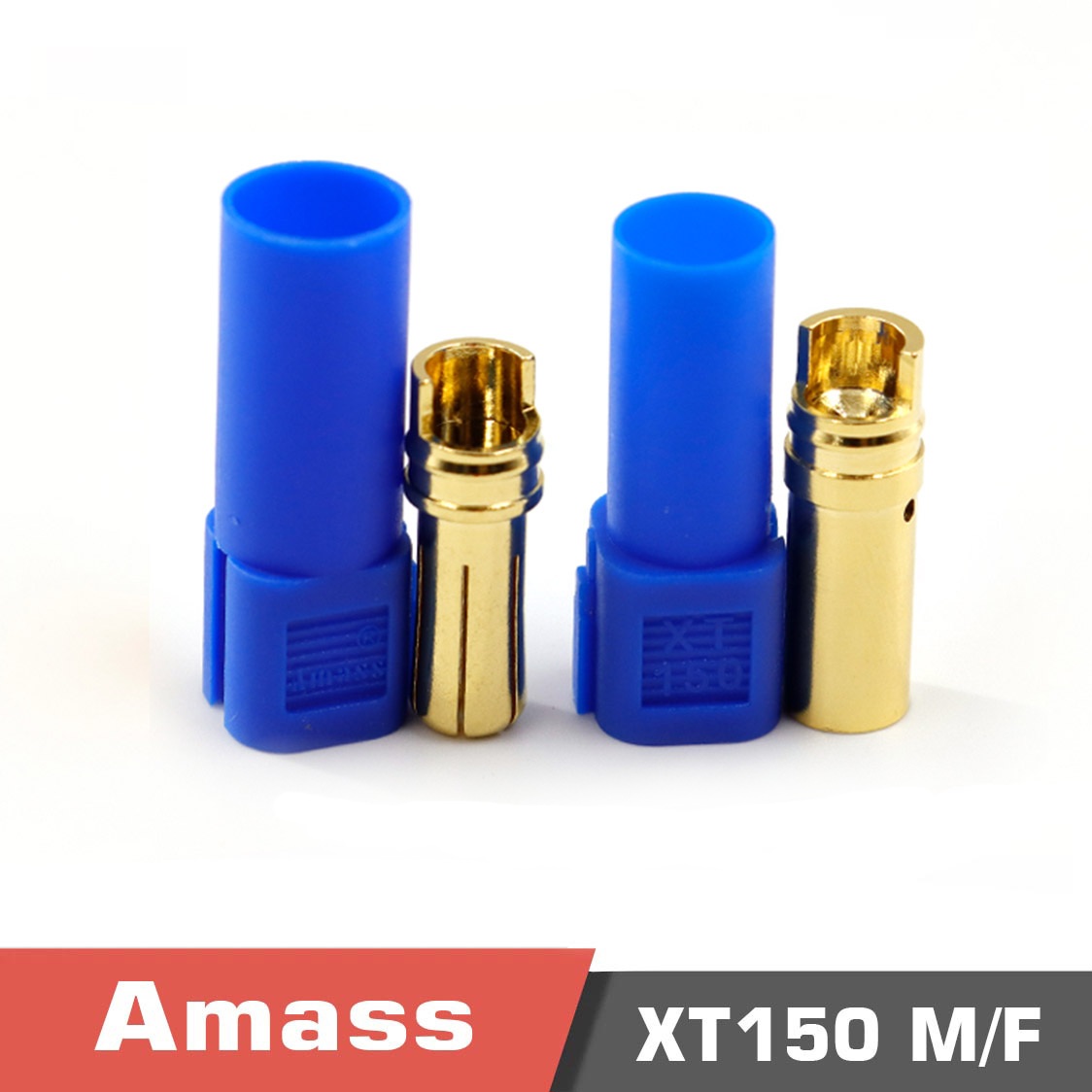

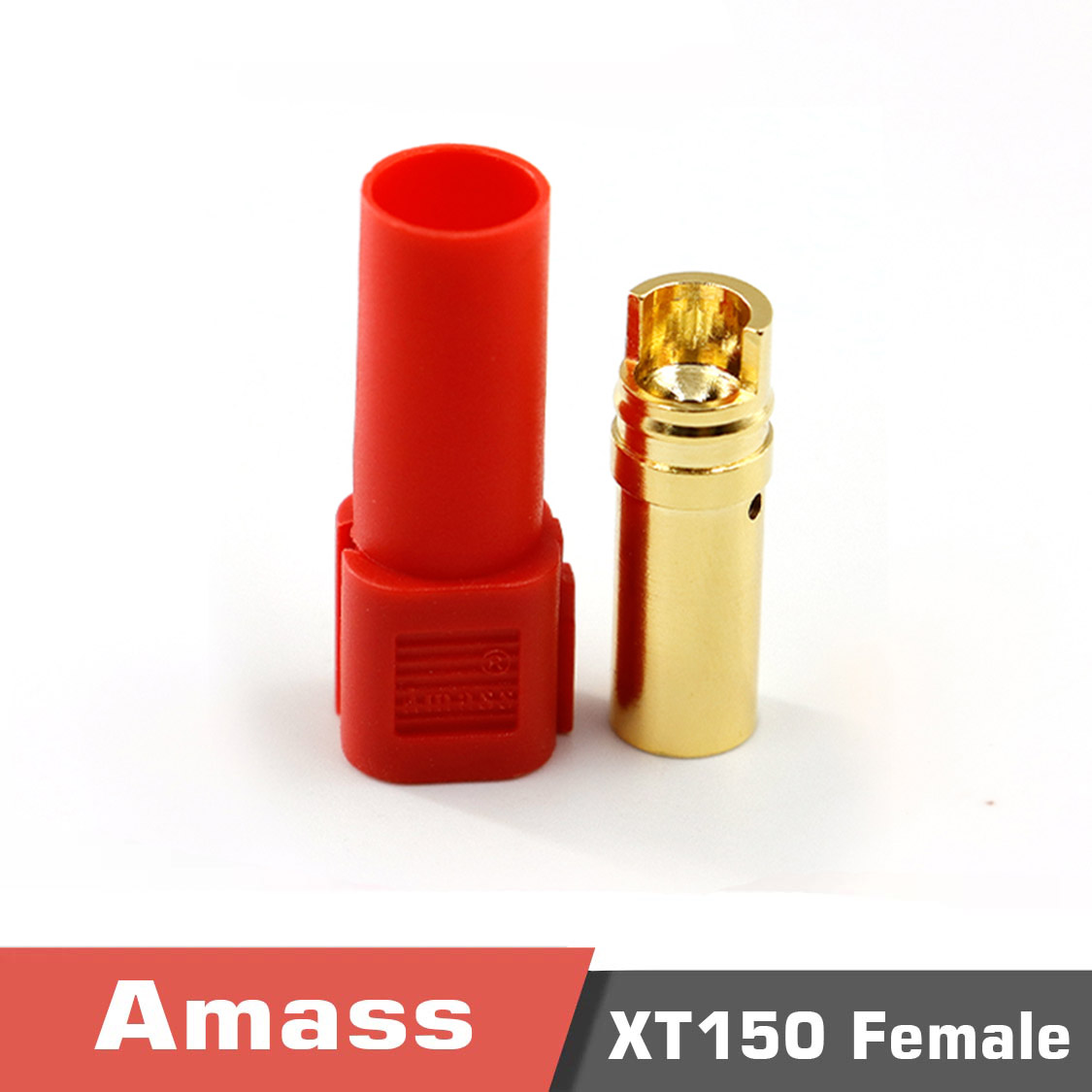

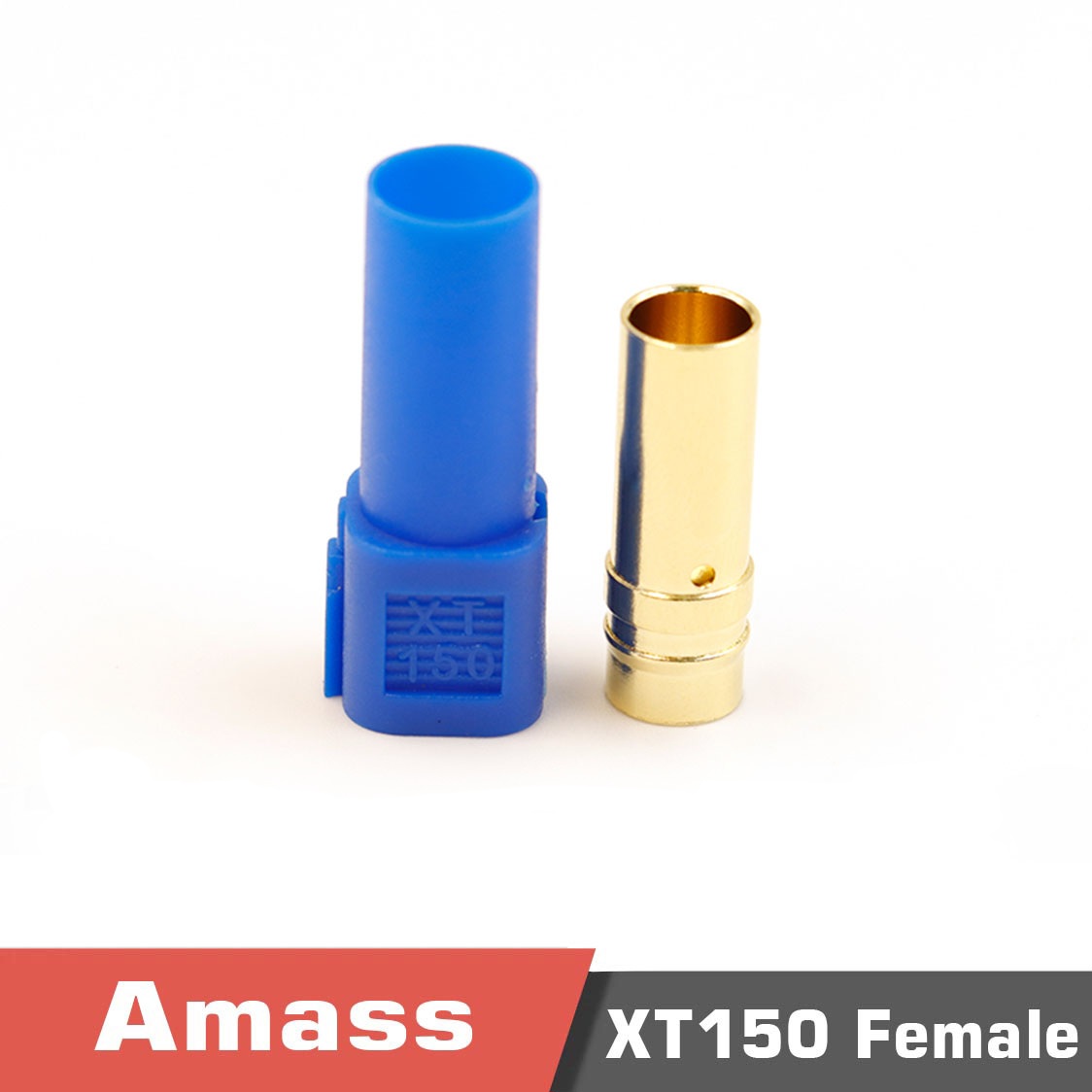

XT150-M/F Genuine Amass gold-plated plug 120A high current red black blue 6mm banana head pack of 5 pieces

XT150-M/F Overview

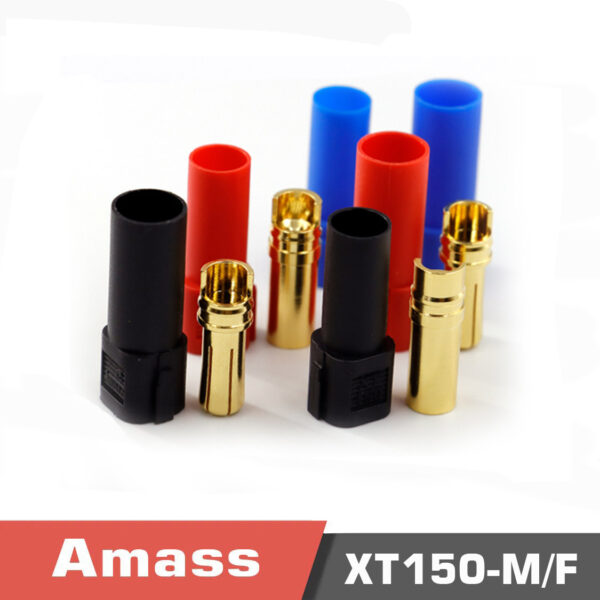

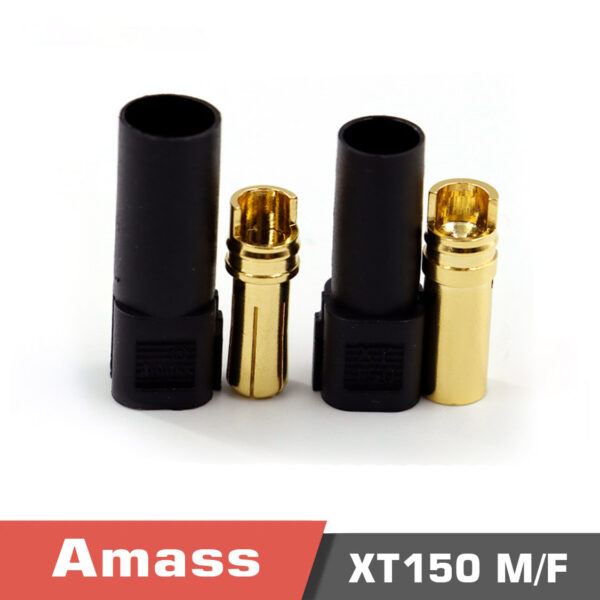

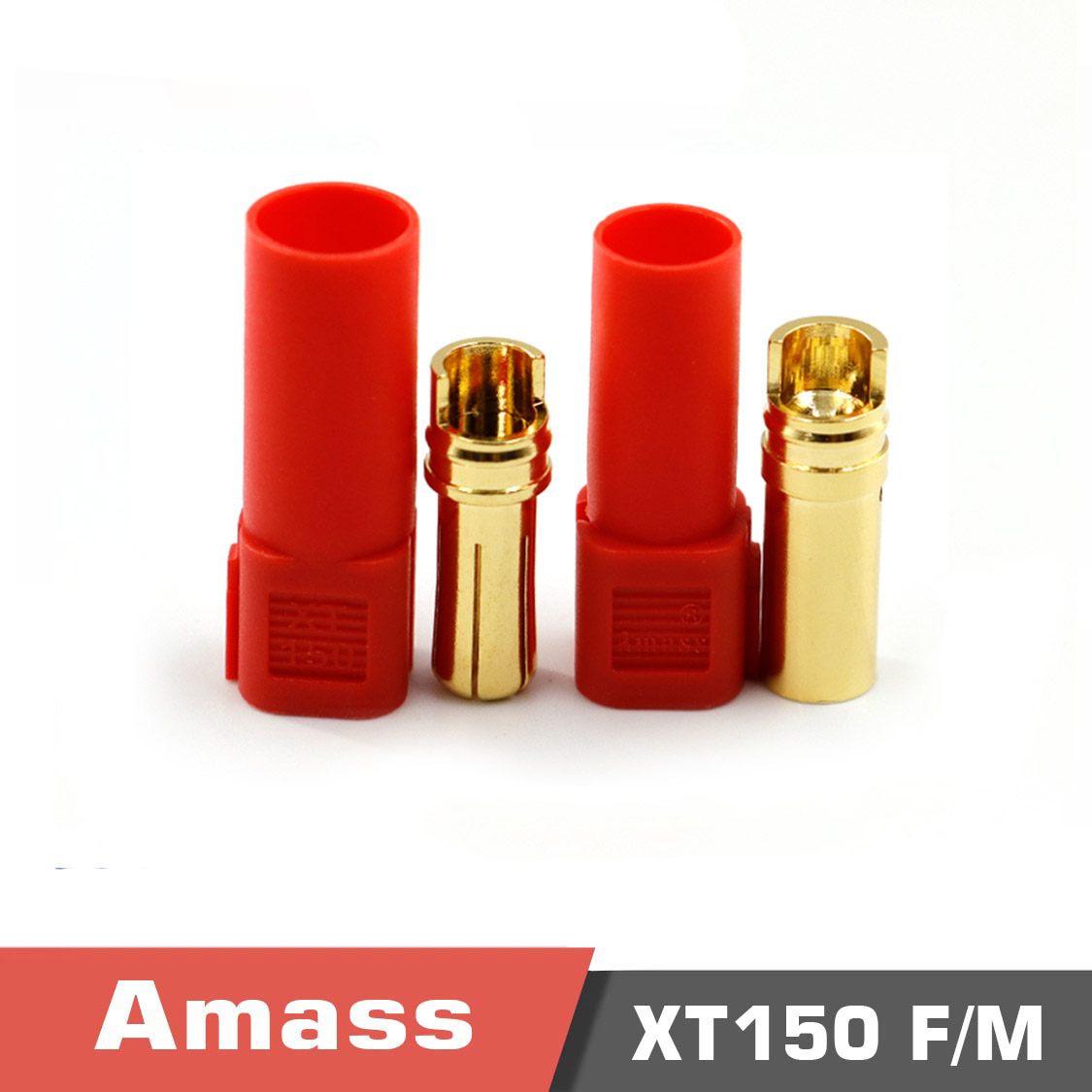

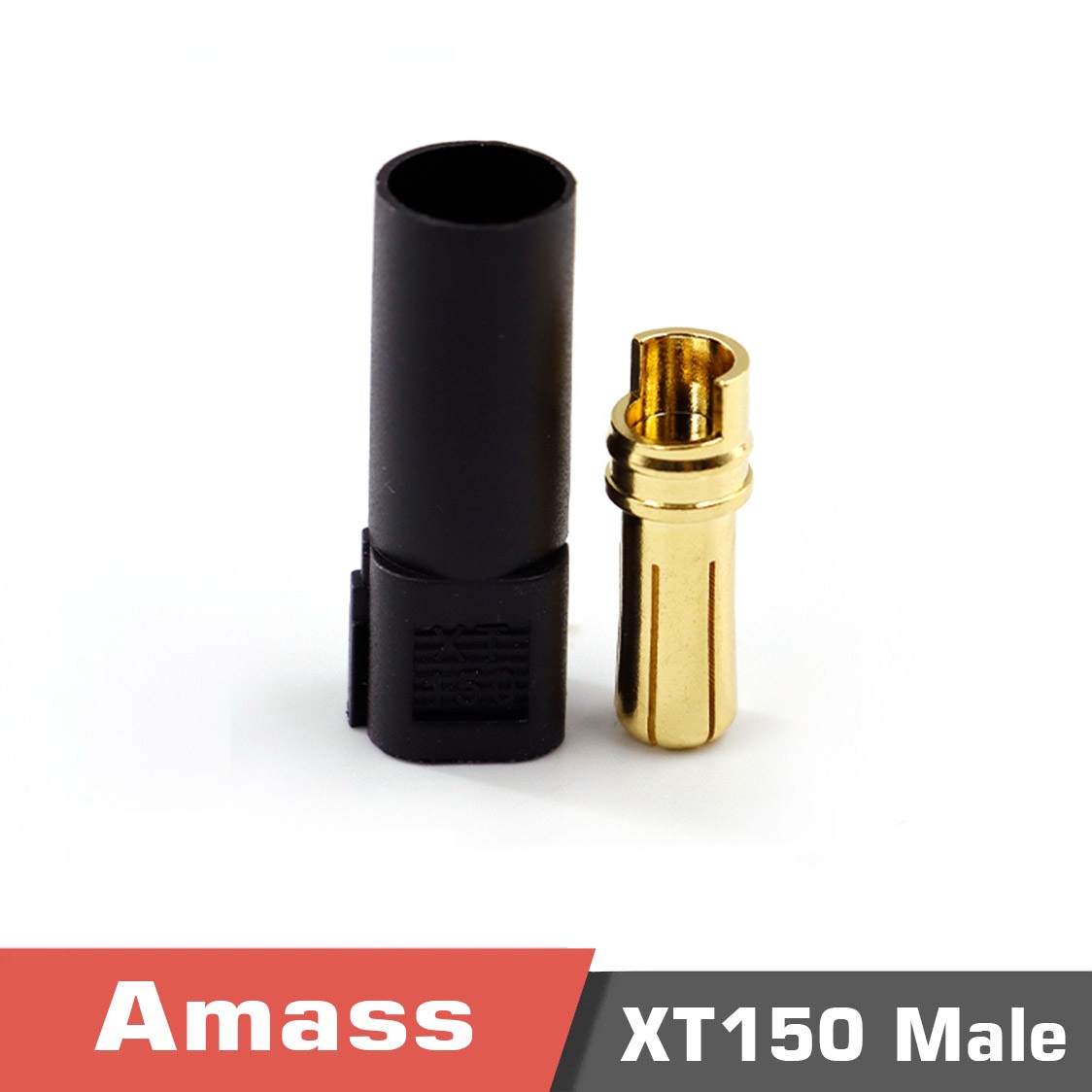

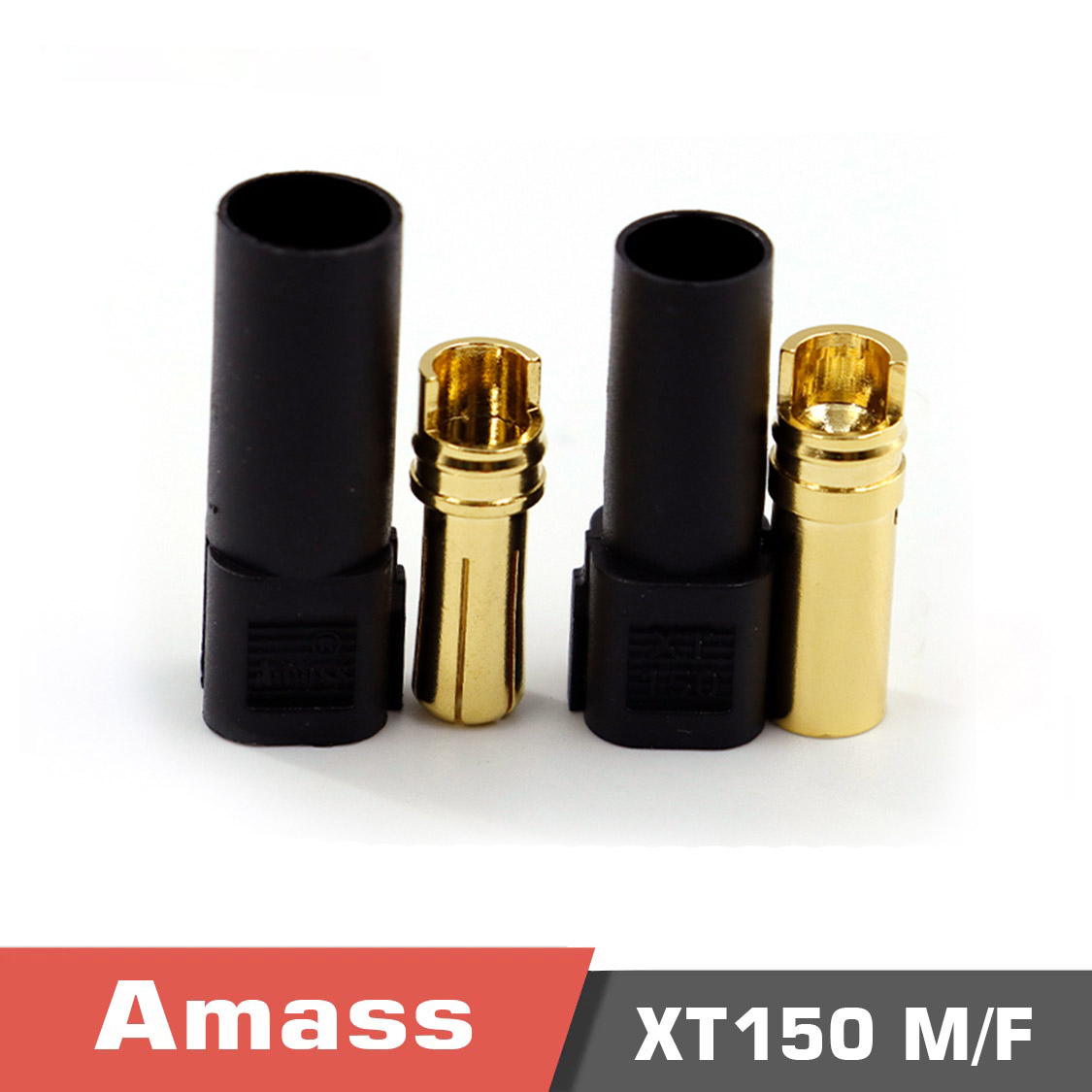

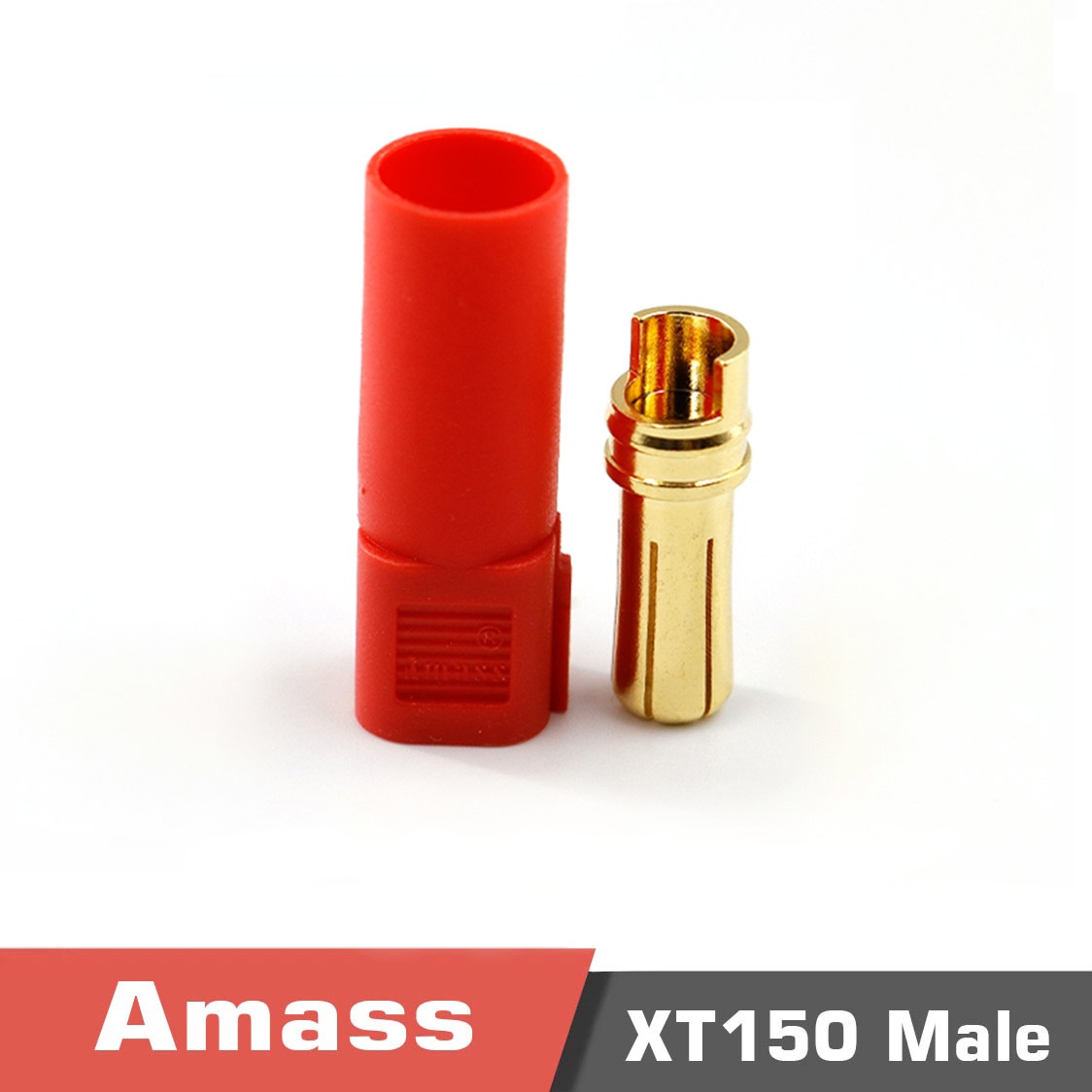

The XT150-M/F Connector (Item No. XT150) is a high-performance electrical connector designed for reliable and secure power transmission. Available in red, black, and blue, it features a brass gold-plated metal construction for excellent conductivity and corrosion resistance, while the PA plastic housing ensures durability with an FR level of UL98 V2.

Engineered for controllers, it offers an insertion force between 2.5KG to 4.5KG and maintains a low contact resistance of 0.20mΩ, ensuring efficient power flow. The connector supports a rated voltage of DC 500V and a rated current of 60A, with the capability to handle an instantaneous current of up to 130A. Designed for long-term use, it withstands up to 1000 usage cycles and is compatible with 8AWG cable specifications. Operating efficiently in extreme conditions, it maintains functionality within a temperature range of -20°C to 120°C, making it ideal for high-power applications.
