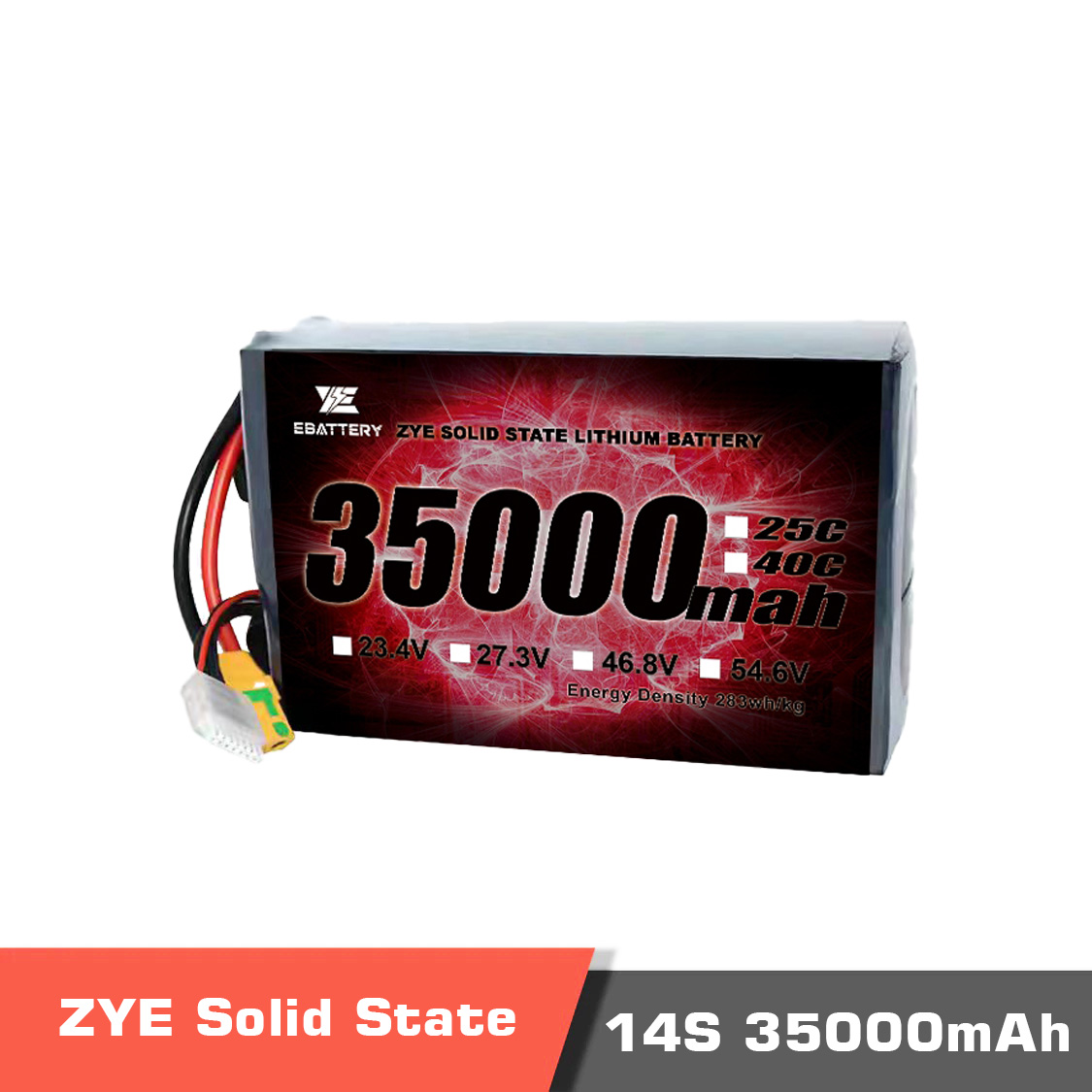

ZYE Power Ultra HV battery 14s 35000mAh-Semi Solid-State Battery
1077.00 $
Customer Product Gallery
Description
Please inform us about the connector type that best meets your needs.
We offer a wide range of batteries in various sizes and models, though some are not yet publicly listed. Please feel free to send us a message if your required model is not listed.
** All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available. **
General Specifications
ZYE Power Ultra HV battery 14S 35000mAh Ultra HV semi solid-state battery is only 8.15kg, with 237Wh/kg energy density. The continuous discharge rate is 12C (420A) and the peak discharge rate is 20C (700A).
The ZYE Power Ultra HV Semi Solid-State battery is a Semi Solid-state Li-ion battery series that has a higher discharge current and higher cell voltage compared to a normal solid-state Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.45v and the discharge rate can be up to 25C.
Advantages of battery 14s 35000mAh
Compared to traditional semi solid-state li-ion batteries, the Ultra HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.
Battery 14s 35000mAh applications
Ultra HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.
If you have any questions regarding our products, use the Motionew Contact us to consult our engineering team.
Specifications
| Voltage | Nominal: 55.3V, Full: 62.3V |

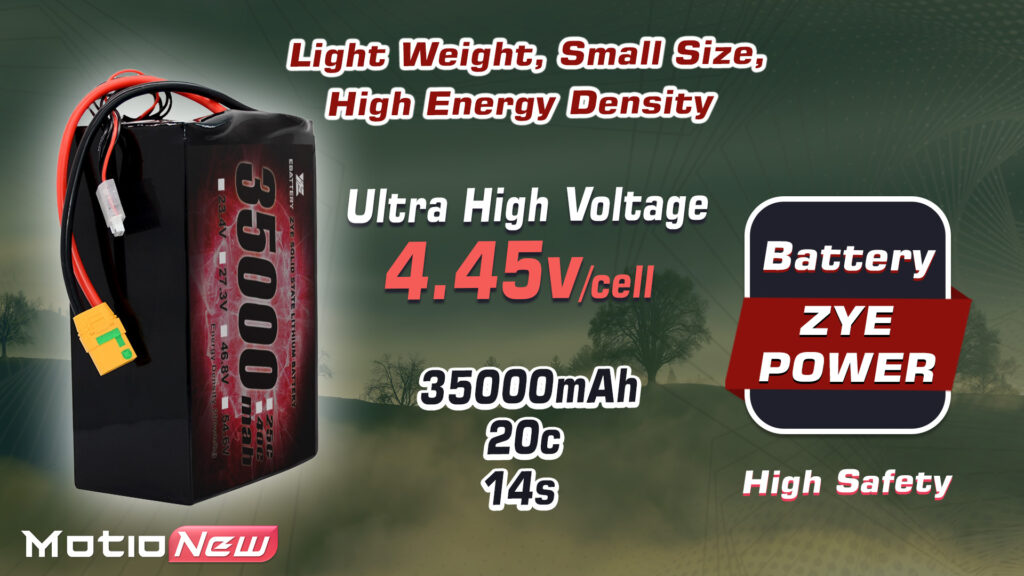

| Cell Voltage | 4.45v/cell |
| Capacity | 35000mAh |
| Continuous Discharge Rate | 12C (420A) |
| Max./Peak Discharge Rate | 20C 700A) |
| Energy | 237Wh/kg |
| Size | 205x138x145mm |
| Weight | 8.15kg |
Product contents
1x Ultra High Voltage Solid-state Battery 14s 35000mAh
Documents
Please contact us for more information.
All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available.
