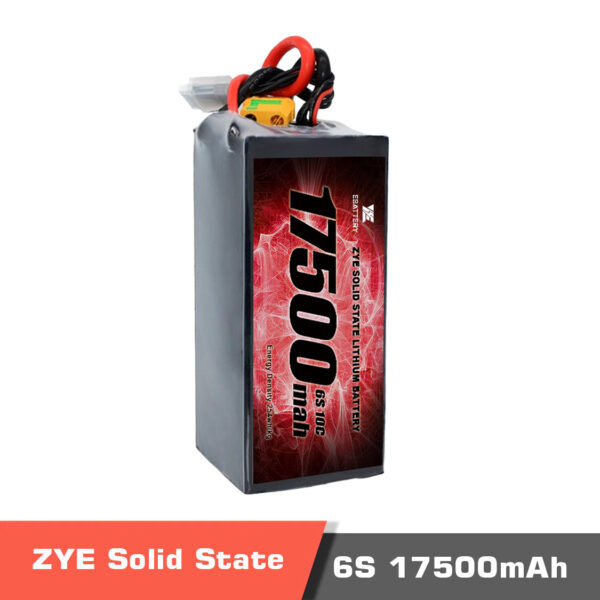

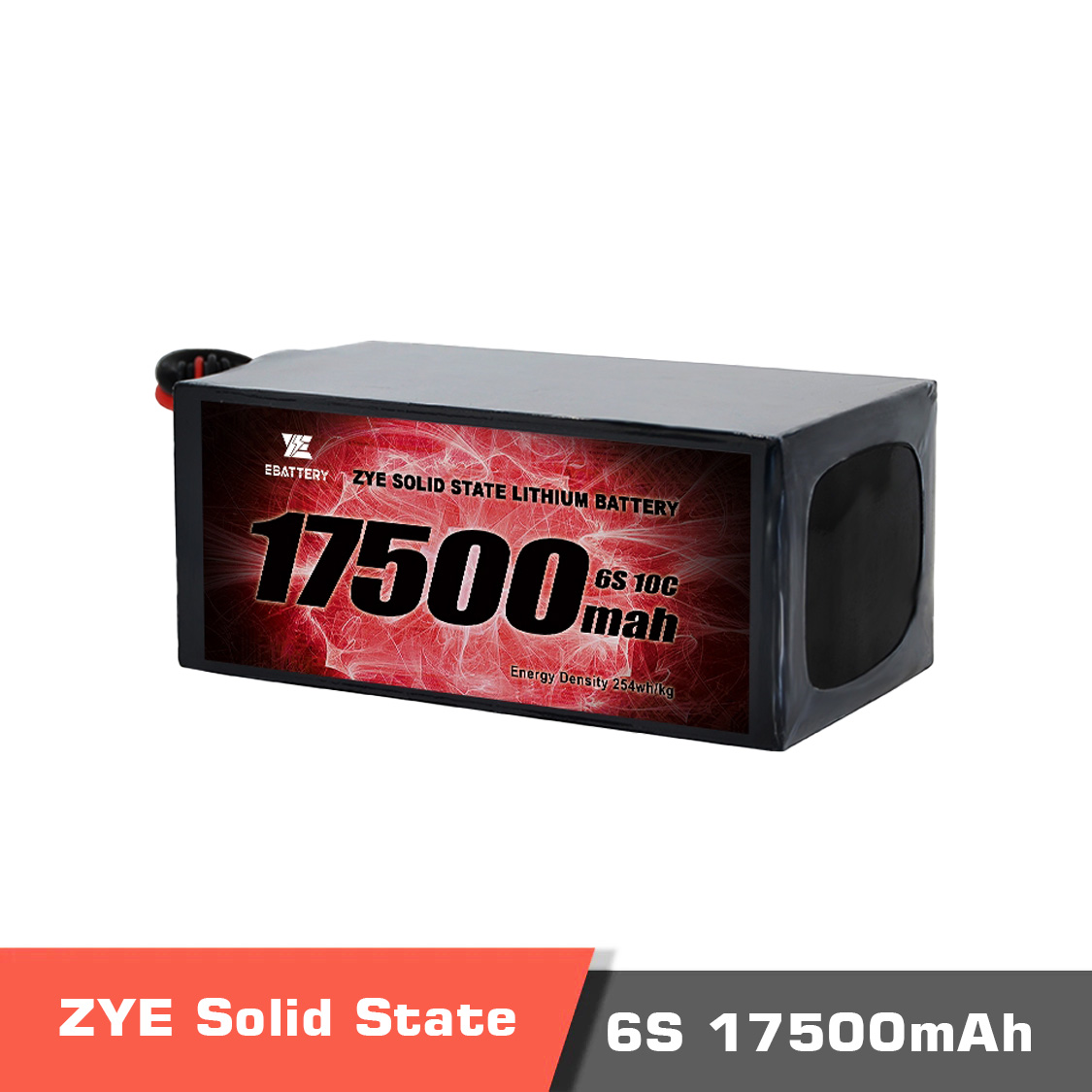

ZYE Power Ultra HV battery 6s 17500mAh-Semi Solid-State Battery
230.70 $
Customer Product Gallery
Description
General Specifications
ZYE Power Ultra HV battery 6S 17500mAh Ultra HV semi solid-state battery is only 01.63kg, with 254Wh/kg energy density. The continuous discharge rate is 5C (87A) and the peak discharge rate is 10C (175A).
The ZYE Power Ultra HV Semi Solid-State battery is a Semi Solid-state Li-ion battery series that has a higher discharge current and higher cell voltage compared to a normal solid-state Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.45v and the discharge rate can be up to 25C.
Advantages of battery 6s 17500mAh
Compared to traditional semi solid-state li-ion batteries, the Ultra HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.
Battery 6s 17500mAh applications
Ultra HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
| Voltage | Nominal: 23.7V, Full: 26.7V |
| Cell Voltage | 4.45v/cell |
| Capacity | 15000mAh |
| Continuous Discharge Rate | 5C (87A) |
| Max./Peak Discharge Rate | 10C 175A) |
| Energy | 254Wh/kg |
| Size | 180x73x68mm |
| Weight | 1.63 |
Product contents
1x Ultra High Voltage Solid-state Battery 6s 17500mAh
Documents
Please contact us for more information.
