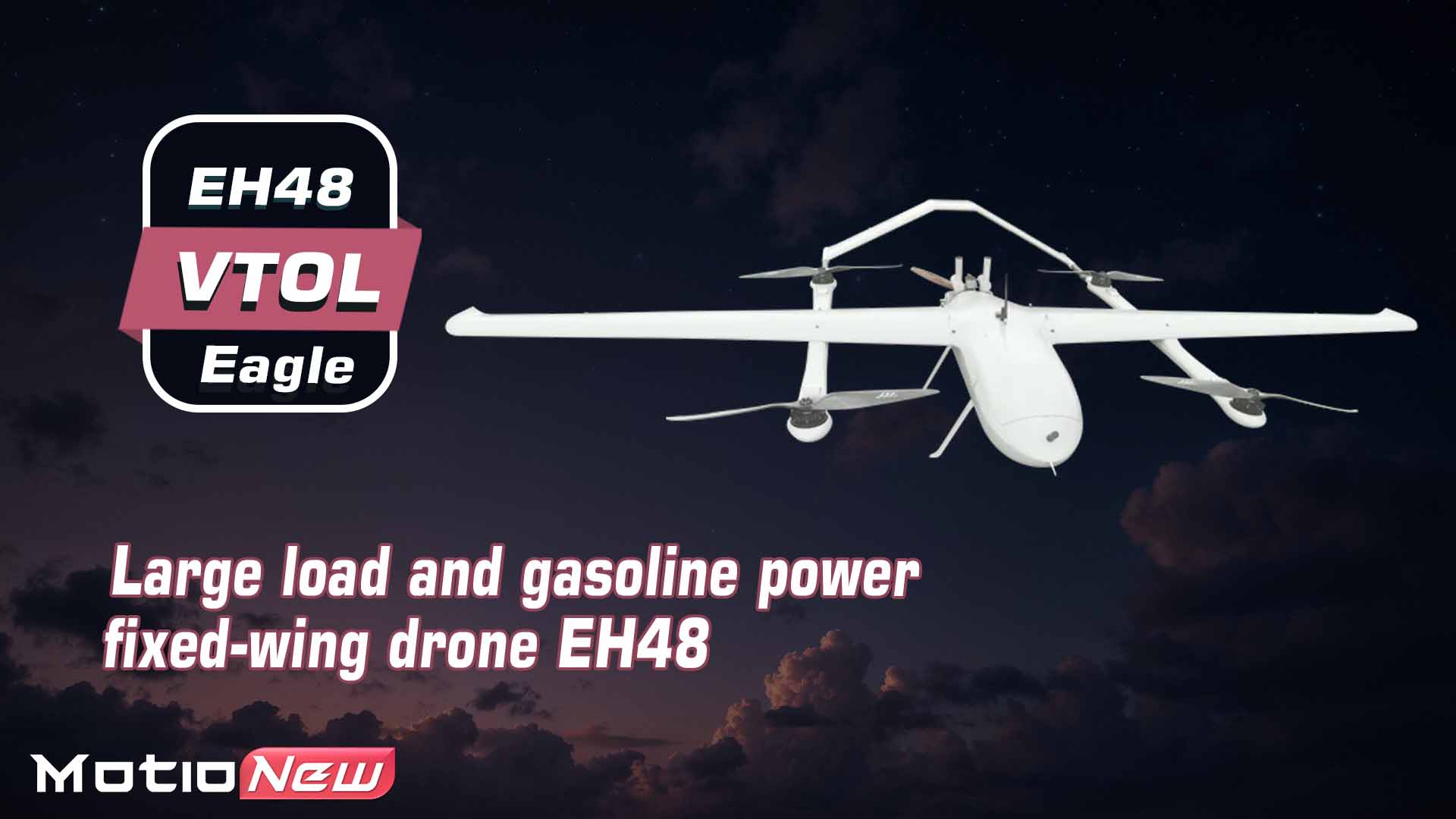

Eagle EH48 Large load and gasoline power fixed-wing drone
29500.00 $ – 44100.00 $
Description
Important Notice!
If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. MotioNew products cannot be used for military, terrorist, or war purposes. Please read our Terms of Service for more information.
Eagle EH48, Large load, gasoline power fixed-wing drone Overview

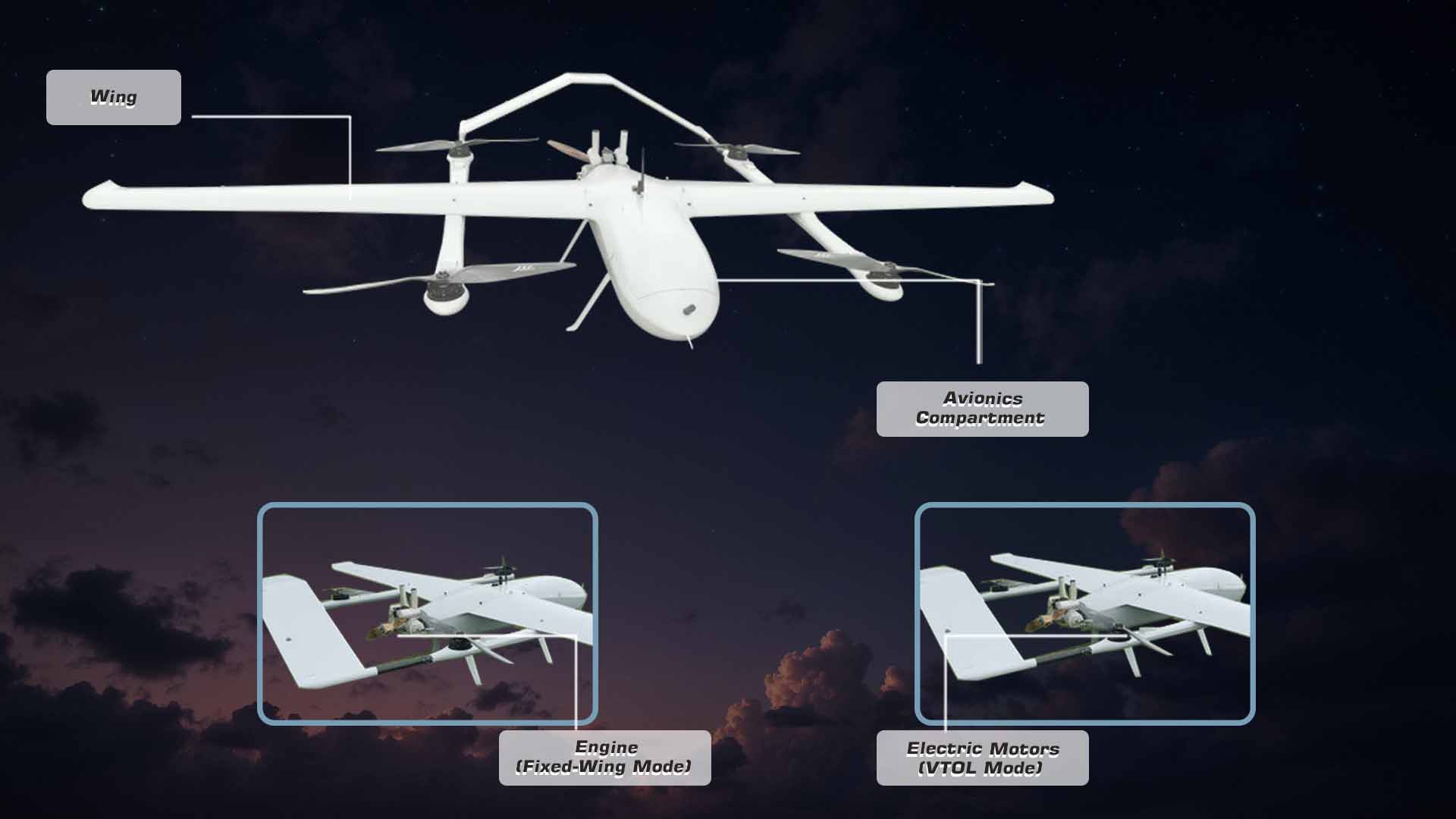

The Eagle EH48 is a vertical take-off and landing (VTOL) fixed-wing UAV with hybrid power. It adopts a composite aerodynamic layout of quad-rotors and fixed wings, combining the advantages of VTOL from quad-rotor models and the long range of fixed-wing models.
Versatile Hybrid-Powered UAV for Long-Endurance Missions
Flexible and capable of adapting to various complex take-off and landing conditions, it features hybrid power with fuel and battery, achieving a long endurance of more than 10 hours, making it widely used in inspection, emergency communication, and other fields.
High-Performance VTOL Fixed-Wing UAV with Exceptional Endurance

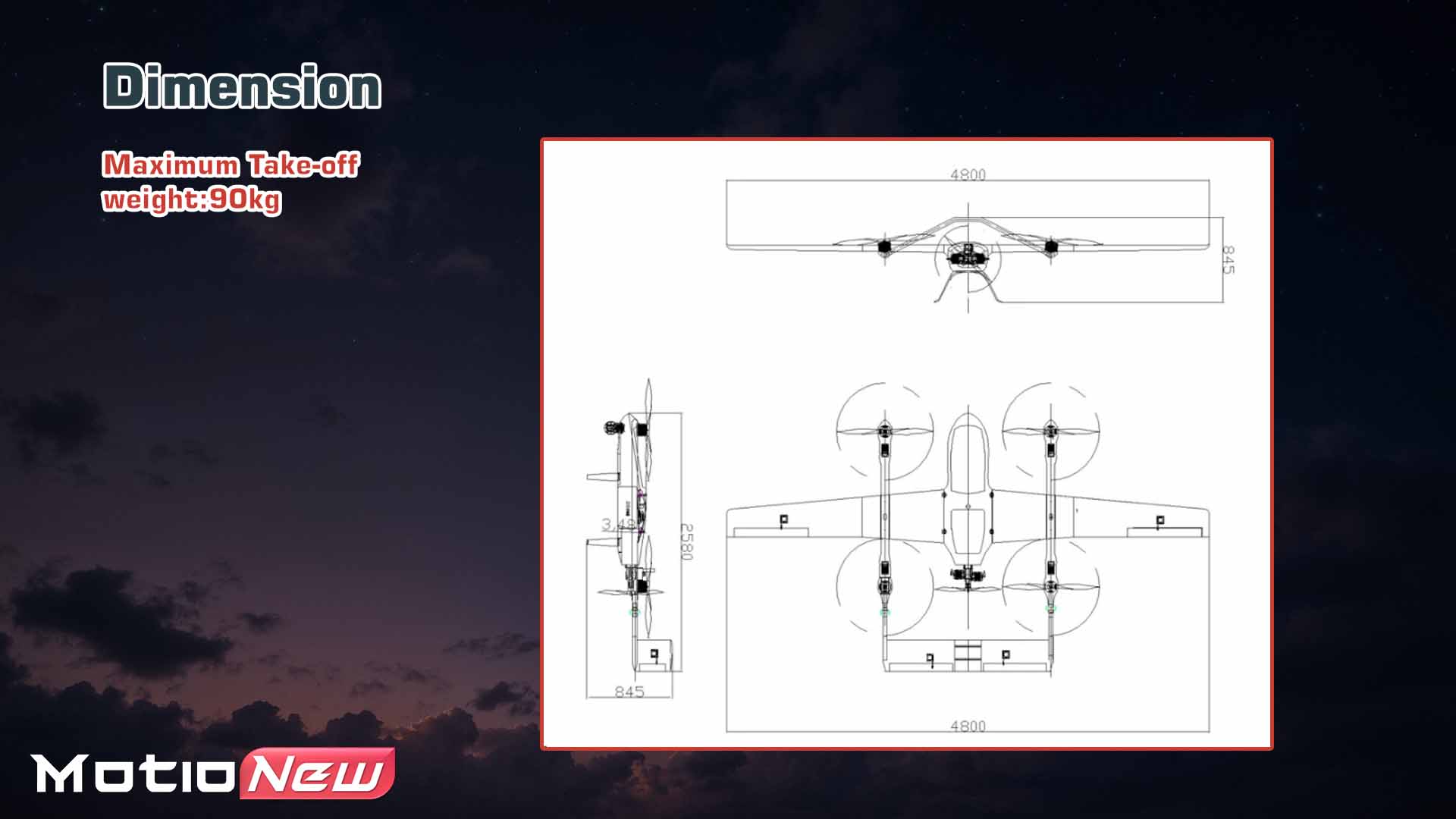

The Eagle EH48ย is a high-performance vertical take-off and landing (VTOL) fixed-wing UAV designed for various demanding applications. With a fuselage length of 2.58m and a wingspan of 4.8m, it can carry a maximum payload of 30kg while maintaining exceptional endurance.
It achieves 2 hours of flight time with a 30kg payload and 6 hours with a 20kg payload. The UAV operates at a cruising speed of 100-120km/h (27-33m/s) and supports a maximum take-off weight of 90kg. Equipped with a 25L fuel capacity, it can reach a maximum flight altitude of 5000m and has a control radius of up to 400km depending on the payload.
Rugged Reliability and Adaptability in Harsh Environments Eagle EH48
Built for durability, it operates effectively in temperatures ranging from -10โ to 45โ and meets IP54 waterproof standards. With a maximum wind resistance of 12m/s (level 6), the Eagle EH48 is designed to perform reliably in challenging environments. The UAV is conveniently packed in an aviation-grade packaging box measuring 1.95 ร 0.92 ร 0.71m for secure transport and deployment.

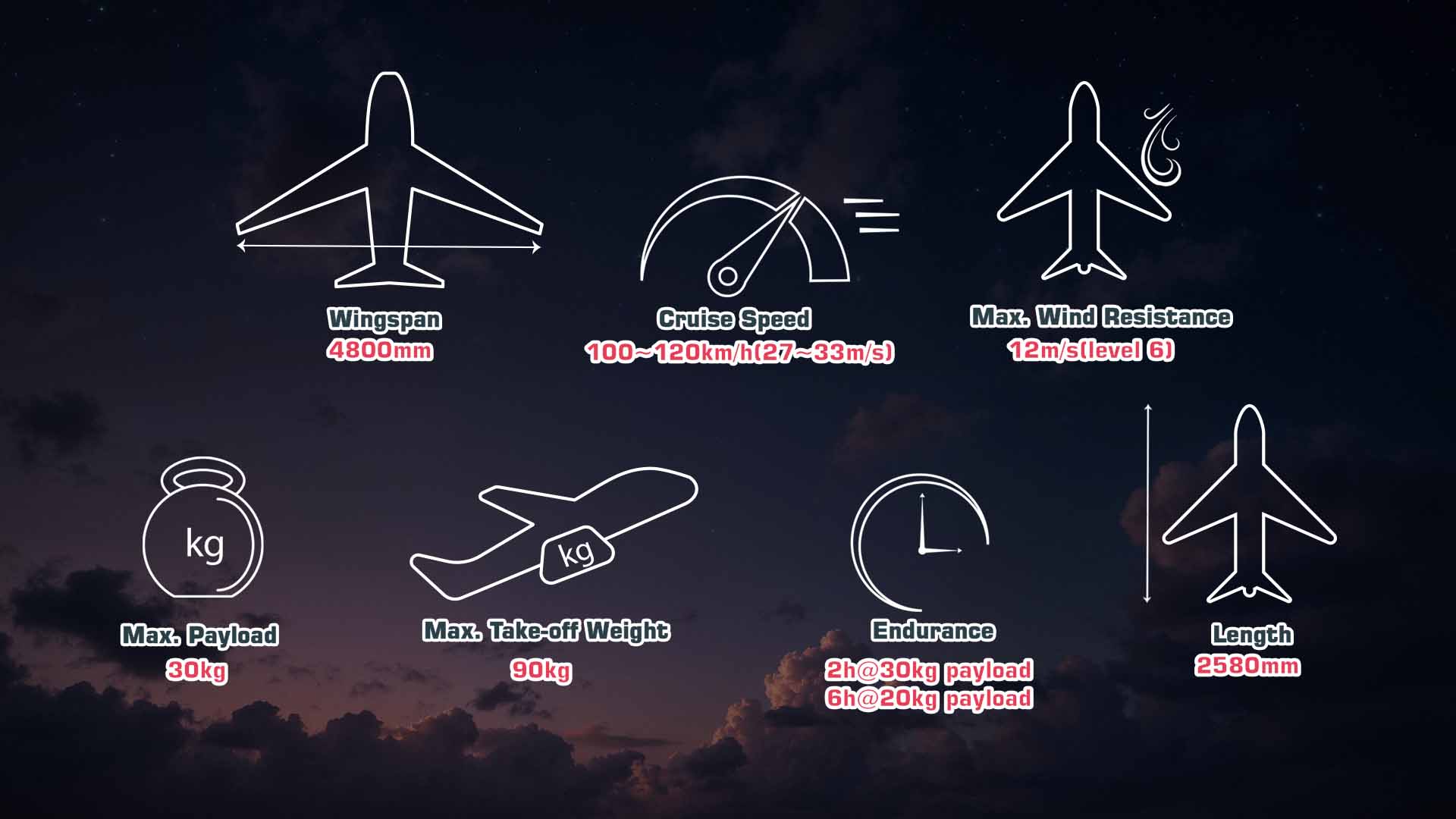

Overview Table of the Eagle EH48 Specifications
| Weights | |
| Maximum Take-off Weight | 90kg |
| Max. payload weight | 30kg |
| Dimensions | |
| Dimensions | Fuselage Length: 2580mm |
| Wingspan: 4800mm | |
| Performance | |
| Endurance | 2h@30kgย payload |
| 6h@20kgย payload | |
| Cruising Speed | 100~120km/h(27~33m/s) |
| Maxย fuelย capacity | 25L |
| Max. Flight Altitude | 5000m |
| Controlย radius | 200-400kmย (dependingย onย fuelย capacity) |
| Waterproofย class | IP54 |
| Maximumย windย resistance | 12m/s (level 6) |
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
Parameters for Eagle EH48
| Fuselageย Length | 2.58m |
| Wingspan | 4.8m |
| Maxย payload | 30kg |
| Maximumย take-offย weight | 90kg |
| Endurance | 2h@30kgย payload |
| 6h@20kgย payload | |
| Cruisingย speed | 100~120km/h (27~33m/s) |
| Maxย fuelย capacity | 25L |
| Maximumย flightย altitude | 5000m |
| Controlย radius | 200-400kmย (dependingย onย fuelย capacity) |
| Operatingย temperature | -10โ-45โ |
| Waterproofย class | IP54 |
| Maximumย windย resistance | 12m/s (level 6) |
| Aviation packaging box size | 1.95*0.92*0.71m |
Documents
Please contact us for more information.
Product contents
| Eagle EH48 PNP | Eagle EH48 RTF |
| Only including the frame and propulsion system | Complete flight platform assembly and debugging completed Ready to Takeoff |
| 1x Composite Frame (Carbon fiber+glass fiber) | 1x Composite Frame (Carbon fiber+glass fiber) |
| 4x Motor for VTOL Mode | 4x Motor for VTOL Mode |
| 4x ESC for VTOL Mode | 4x ESC for VTOL Mode |
| 2x (Pairs) Propeller for VTOL Mode | 2x (Pairs) Propeller for VTOL Mode |
| 1x Tail Propeller | 1x Tail Propeller |
| 1x Engine | 1x Engine |
| 4x Rudder servo | 4x Rudder servo |
| 1x Power board | 1x Power board |
| 1x Packing box | 1x Packing box |
| 1x Autopilot + RTK | |
| 1x Airspeed Tube | |
| 1x Remote Controller | |
| 1x Charger | |
| 1x Battery 6S-10000mAh | |
| 1x Battery 14S-24000mAh | |
| 1x Debugging Service |
