Eagle EH60 Large payload, long endurance commercial UAVs
51150.00 $ – 63500.00 $
Description
Important Notice!
If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. MotioNew products cannot be used for military, terrorist, or war purposes. Please read our Terms of Service for more information.

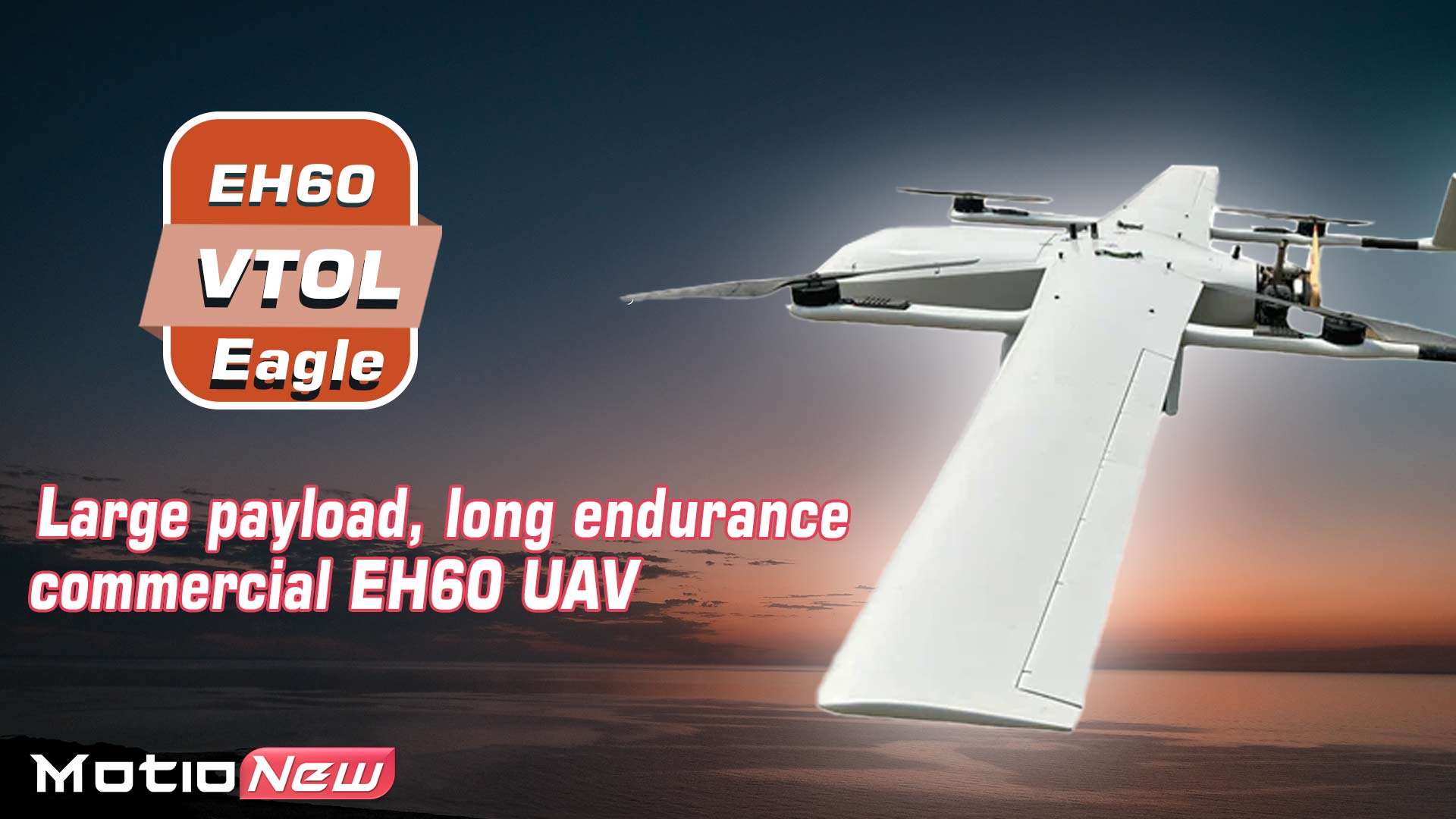

Eagle EH60, Large payload, long endurance commercial UAVs Overview

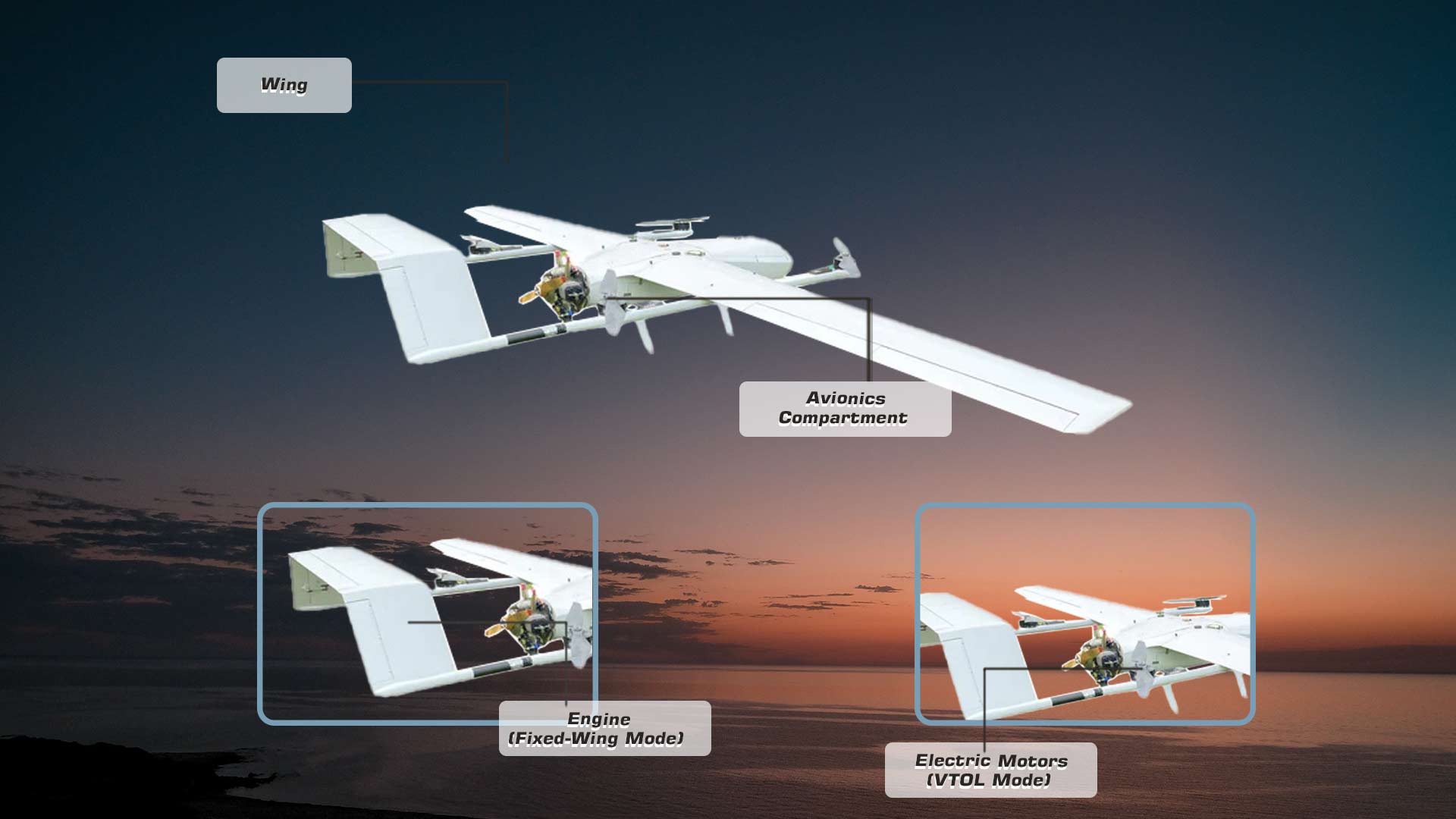

The Eagle EH60ย is a vertical take-off and landing (VTOL) fixed-wing UAV with hybrid power. It adopts a composite aerodynamic layout of quad-rotors and fixed wings, combining the advantages of VTOL from quad-rotor models and the long range of fixed-wing models.
It is specifically developed for emergency disaster relief, emergency material delivery and other application scenarios with the characteristics of high load capacity, multitasking, and long endurance.
Versatile Hybrid-Powered UAV for Long-Endurance Missions
Flexible and capable of adapting to various complex take-off and landing conditions, it features hybrid power with fuel and battery, achieving a long endurance of more than 10 hours, making it widely used in inspection, emergency communication, and other fields.
High-Performance VTOL Fixed-Wing UAV with Exceptional Endurance
The Eagleย EH60 is a high-performance vertical take-off and landing (VTOL) fixed-wing UAV designed for various demanding applications. With a fuselage length of 3000mm and a wingspan of 6000mm, it can carry a maximum payload of 50kg while maintaining exceptional endurance.
It achieves 5 hours of flight time with a 30kg payload. The UAV operates at a cruising speed of 120km/h (27-33m/s) and supports a maximum take-off weight of 150kg. Equipped with a 25L fuel capacity, it can reach a maximum flight altitude of 5000m with Limbach 275EFI Engine and 6200m with DLA360 EFI Engine, and has a control radius of 200-400km, depending on the payload.
Rugged Reliability and Adaptability in Harsh Environments Eagle EH60
Built for durability, it operates effectively in temperatures ranging from -10โ to 45โ and meets IP54 waterproof standards. With a maximum wind resistance of 12m/s (level 6), the Eagleย EH60 is designed to perform reliably in challenging environments.

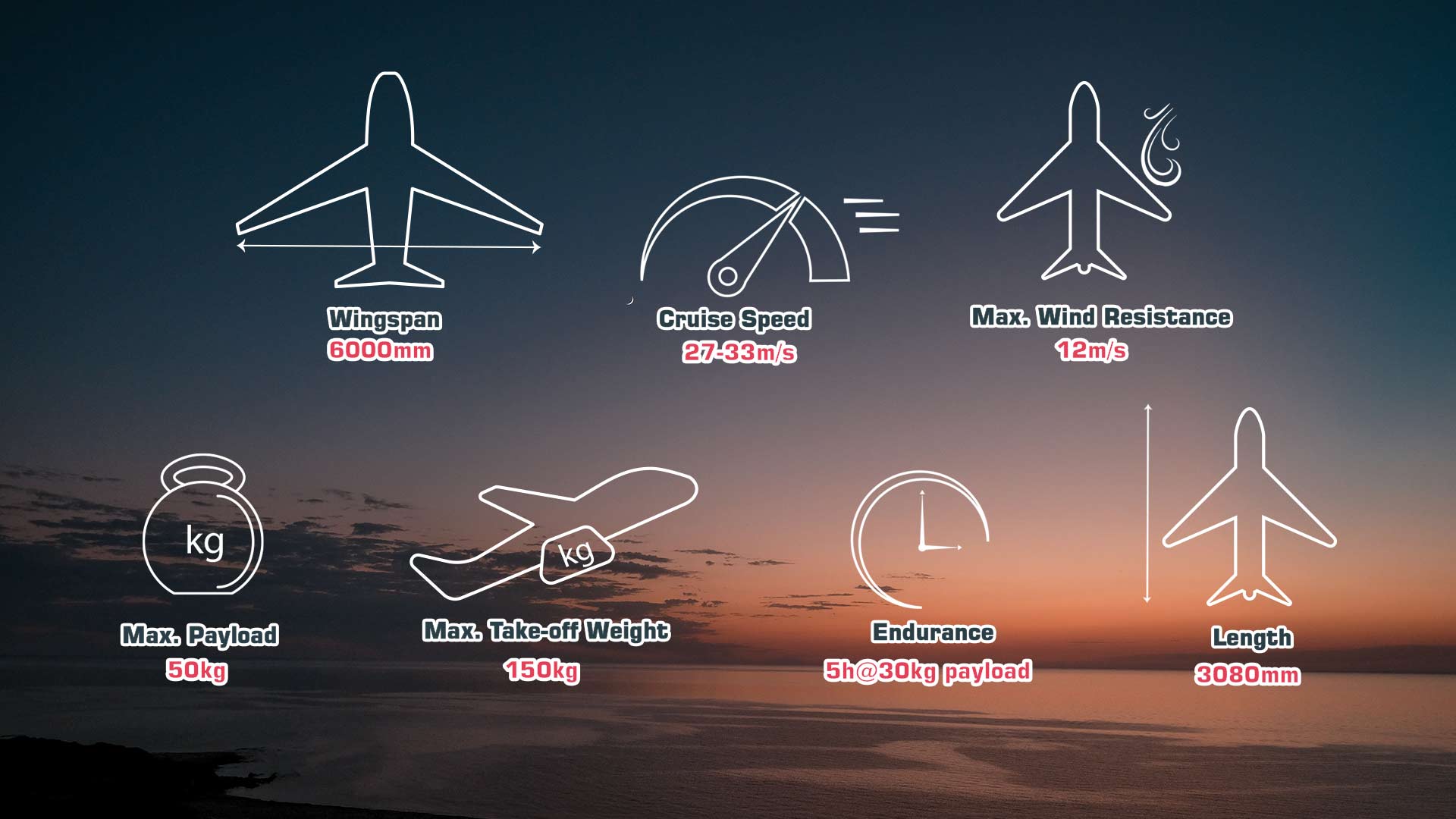

Overview Table of the Eagle EH60 Specifications
| Weights | |
| Maximum Take-off Weight | 150kg |
| Max. payload weight | 50kg |

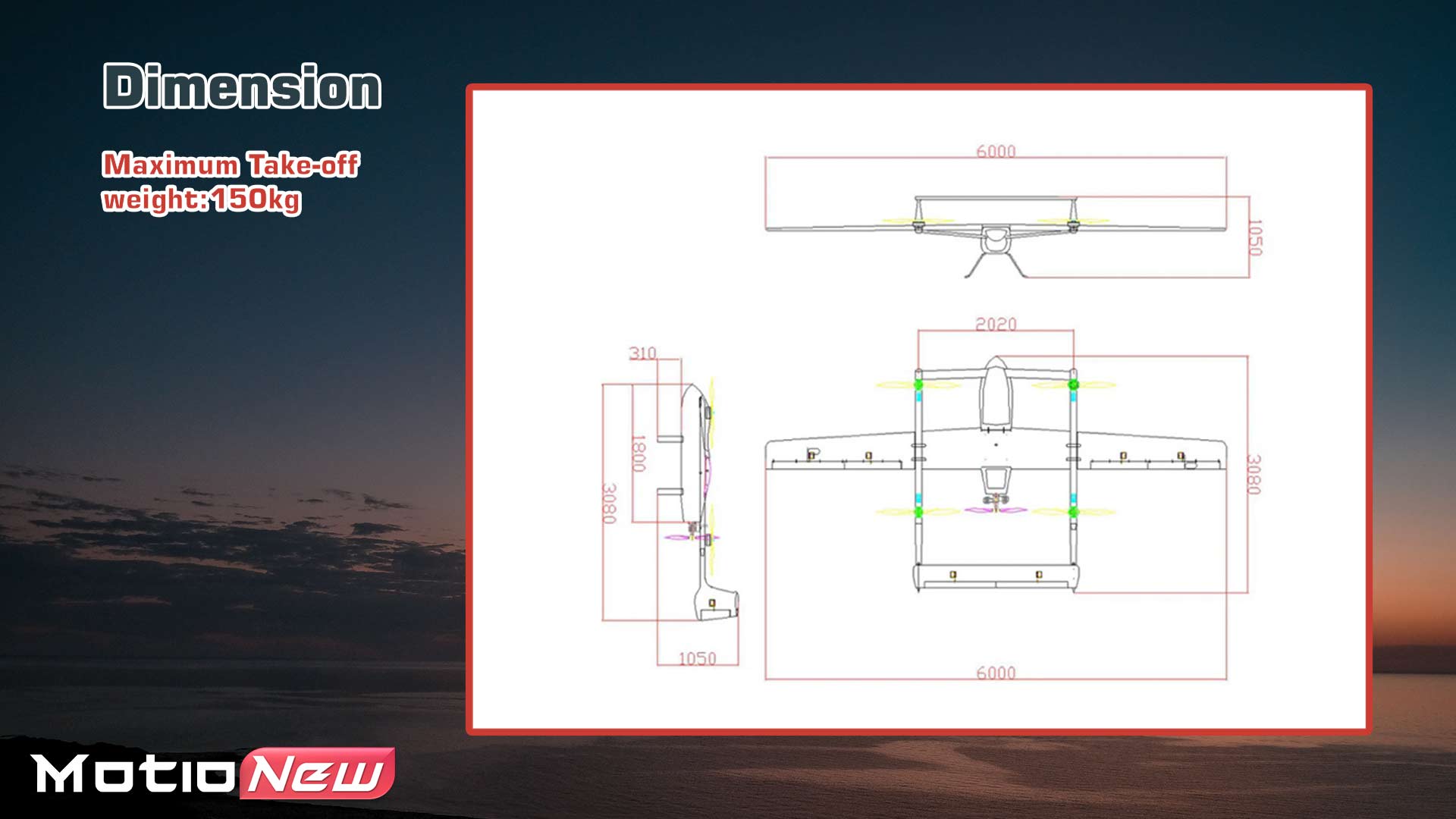

| Dimensions | |
| Dimensions | Fuselage Length: 3000mm |
| Wingspan: 6000mm | |
| Performance | |
| Endurance | 5h@30kg payload |
| Cruising Speed | 120km/h (27~33m/s) |
| Maxย fuelย capacity | 25L |
| Max. Flight Altitude | 5000m (Limbach 275EFI Engine) |
| 6200m (DLA360 EFI Engine) | |
| Controlย radius | 200-400kmย (dependingย onย fuelย capacity) |
| Waterproofย class | IP54 |
| Maximumย windย resistance | 12m/s (level 6) |
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
Parameters for Eagle EH60
| Fuselageย Length | 3m |
| Wingspan | 6m |
| Maxย payload | 50kg |
| Maximumย take-offย weight | 150kg |
| Endurance | 5h@30kg payload |
| Cruisingย speed | 120km/h (27~33m/s) |
| Maxย fuelย capacity | 25L |
| Maximumย flightย altitude | 5000m (Limbach 275EFI Engine) |
| 6200m (DLA360 EFI Engine) | |
| Controlย radius | 200-400kmย (dependingย onย fuelย capacity) |
| Operatingย temperature | -10โ-45โ |
| Waterproofย class | IP54 |
| Maximumย windย resistance | 12m/s (level 6) |
Documents
Please contact us for more information.
Product contents
| Eagle EH60 PNP | Eagle EH60 RTF |
| Only including the frame and propulsion system | Complete flight platform assembly and debugging completed Ready to Takeoff |
| 1x Composite Frame (Carbon fiber+glass fiber) | 1x Composite Frame (Carbon fiber+glass fiber) |
| 4x Motor for VTOL Mode | 4x Motor for VTOL Mode |
| 4x ESC for VTOL Mode | 4x ESC for VTOL Mode |
| 2x (Pairs) Propeller for VTOL Mode | 2x (Pairs) Propeller for VTOL Mode |
| 1x Tail Propeller | 1x Tail Propeller |
| 1x Engine | 1x Engine |
| 4x Rudder servo | 4x Rudder servo |
| 1x Power board | 1x Power board |
| 1x Packing box | 1x Packing box |
| 1x Autopilot + RTK | |
| 1x Airspeed Tube | |
| 1x Remote Controller | |
| 1x Charger | |
| 1x Battery 6S-10000mAh | |
| 1x Battery 14S-24000mAh | |
| 1x Debugging Service |
