Eule MH649, Heavy Lift, Hybrid Large VTOL
Description
Important Notice!
If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. MotioNew products cannot be used for military, terrorist, or war purposes. Please read our Terms of Service for more information.
Eule MH649, Heavy Lift, Hybrid Large VTOL Overview
The Eule MH649 is a cutting-edge small UAV system designed for precision, versatility, and efficiency in modern operational scenarios. With an operational radius of 50km to 300km, it provides unmatched flexibility.
Vertical take-off and landing, reliable and stable, with strong anti-interference ability
Eule MH649 features low take-off and landing environment requirements, with vertical take-off and landing capability that eliminates the need for a runway. The system is designed to support target locking and tracking tasks, even in satellite-rejected environments. Additionally, its data chain incorporates autonomous frequency hopping and robust anti-jamming technology, ensuring reliable and secure communication in complex operational scenarios.
Large radius, Low cost, High costeffectiveness
The Eule MH649 is an advanced UAV system designed for precision, efficiency, and adaptability in diverse operational scenarios. It features a versatile operational radius, with a single unit capable of achieving 50km or 100km ranges, and up to 300km using UAV-to-UAV relay technology.
Equipped with onboard AI vision, the Eule MH649 can independently identify targets such as people, vehicles, ships, and more. The recommended flight operation altitude ranges between 800m and 2000m, making it suitable for varied terrains. Its small radar reflector and advanced air relay technology ensure unobstructed signal transmission, even in challenging mountainous environments.
Support mobile platform take-off and landing, support remote take-off and landing
Eule MH649 is equipped with a built-in anti-interference sensor, enabling it to take off and land on platforms moving at speeds of no less than 30km/h. The system supports advanced operations, allowing the drone to land in area A and take off from area B, effectively avoiding tracking and ensuring mission success in dynamic and challenging environments.
Support real-time voice intercom
Eule MH649 features advanced MESH networking capabilities, enabling simultaneous operation of up to 7 UAVs without interference. The system’s data link also supports voice communication between the command center and the forward unit, ensuring seamless coordination and efficient mission execution.
Strong ability to resist GNNS interference
Built in self-developed anti-interference algorithm, it can safely fly in GNSS denied environment, and can switch visual navigation mode to track targets for long-term continuous reconnaissance.

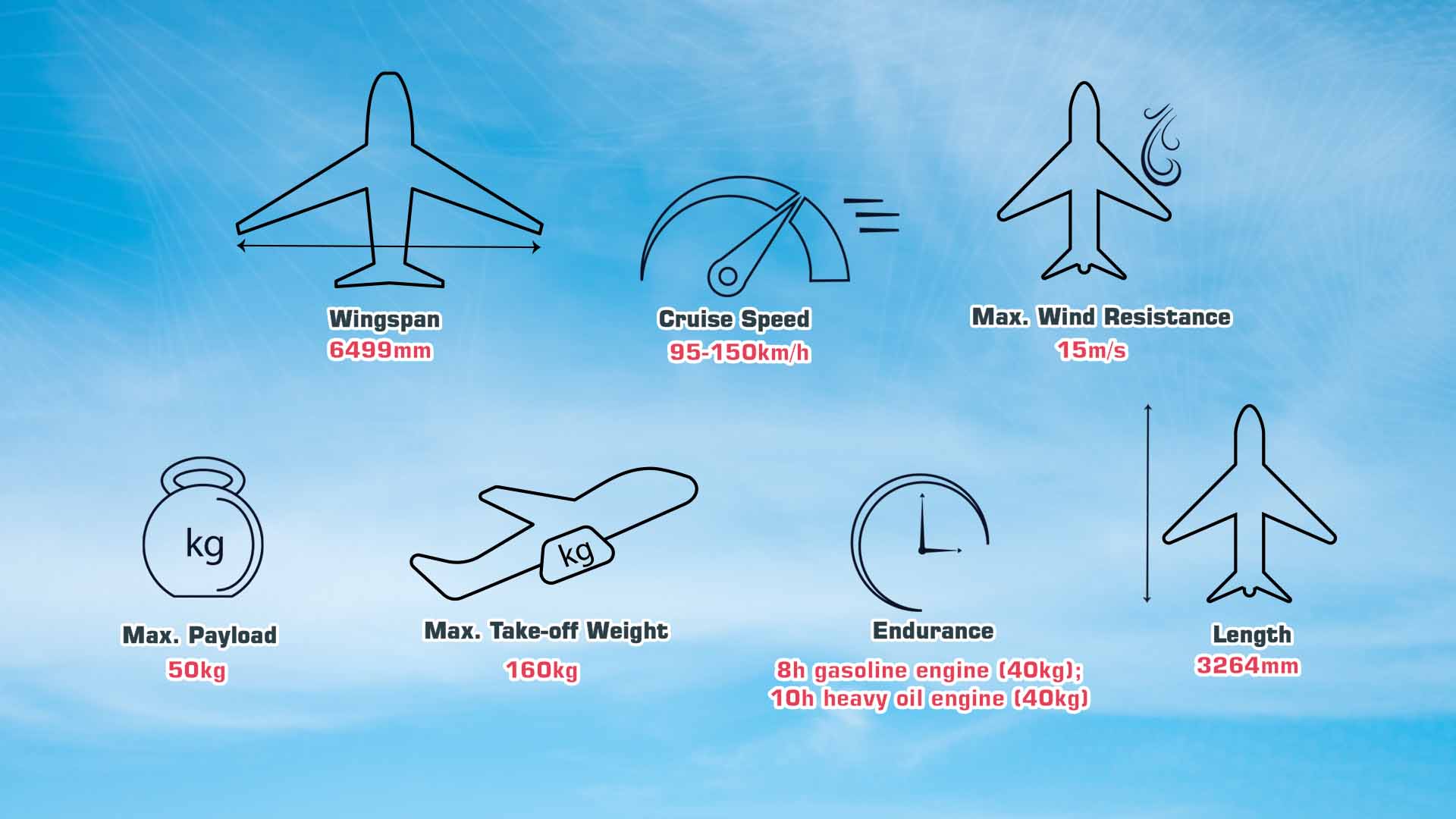

Overview Table of the Eule MH649 Specifications
| Weights | |
| Maximum Take-off Weight | 160kg |
| Max. payload weight | 50kg |

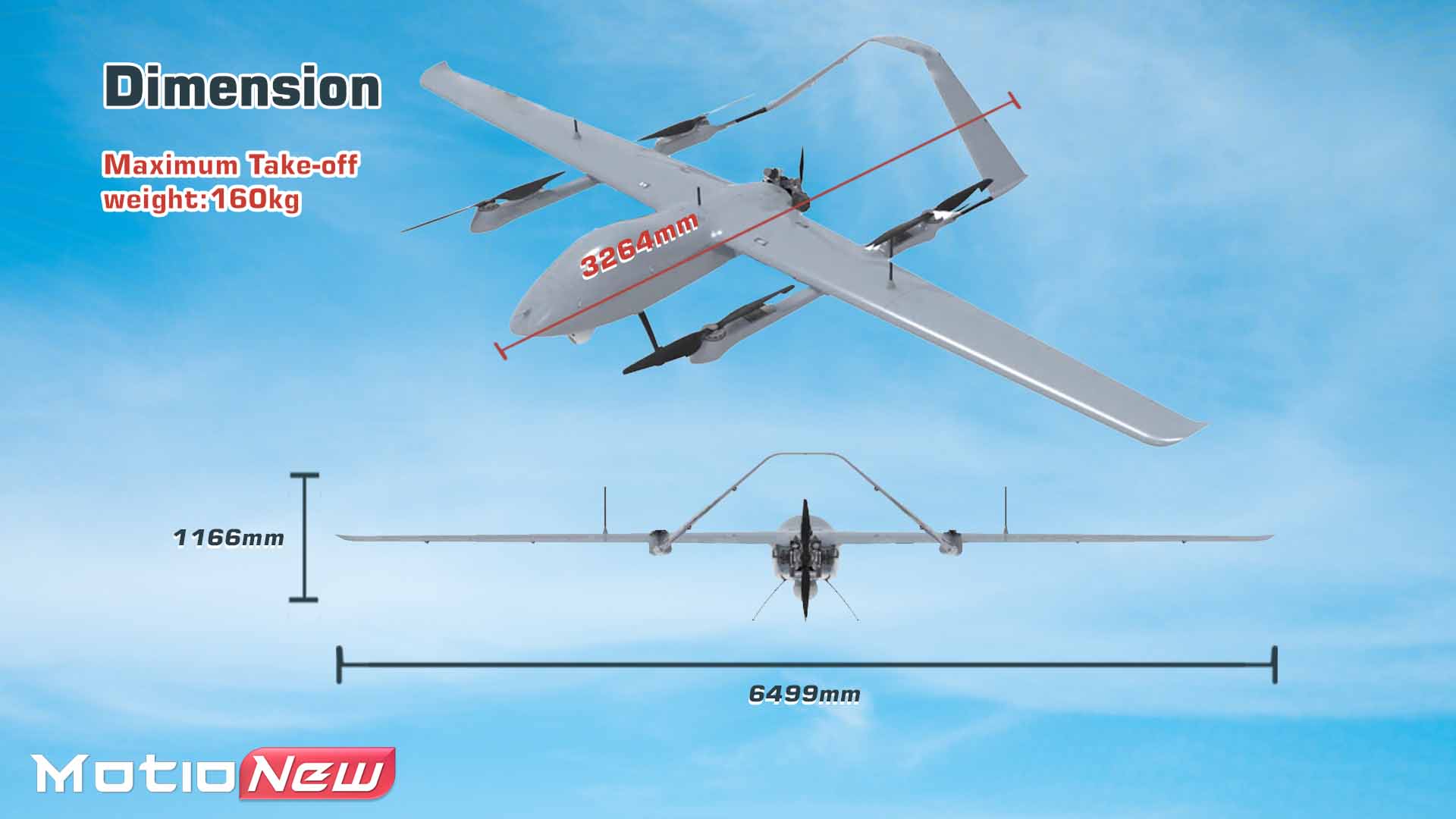

| Dimensions | |
| Dimensions | Wingspan: 6499mm |
| Length: 3264mm | |
| Height: 1166mm | |
| Cruise Engine | |
| Engine | Gasoline |
| Performance | |
| Cruising Speed | 95 – 105km/h |
| Max. Wind Resistance | 15m/s |
| Flight Time | 8-10hours |
| Max. Flight Altitude | 500m |
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
Parameters for Eule MH649
| Dynamical system | Gasoline / heavy oil |
| Endurance | 8h gasoline engine (40kg) |
| 10h heavy oil engine (40kg) | |
| Cruising speed | 95-150km/h |
| Maximum load | 50kg |
| Maximum load weight | 160kg |
| Wind resistance | 15m/s |
| Control distance | 100/300km(selectable) |
| Wingspan * Length *Tall | 6499*3264*1166mm |
| Maximum take-off elevation | 4500m |
| transportation clearance (m) | 2350*1450*1260mm |
Documents
Please contact us for more information.
Product contents
Please contact us for more information.
