VTOL Drone Voron M35, Long Endurance, Heavy Payload Fixed-Wing

11440.00 $12999.00 $

(1 customer review)
PayPal
Visa
Master

Description

Important Notice!
Our company’s unmanned aerial vehicle (UAV) products only support domestic transactions within China. If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. Furthermore, the products cannot be used for military, terrorist, or war purposes.

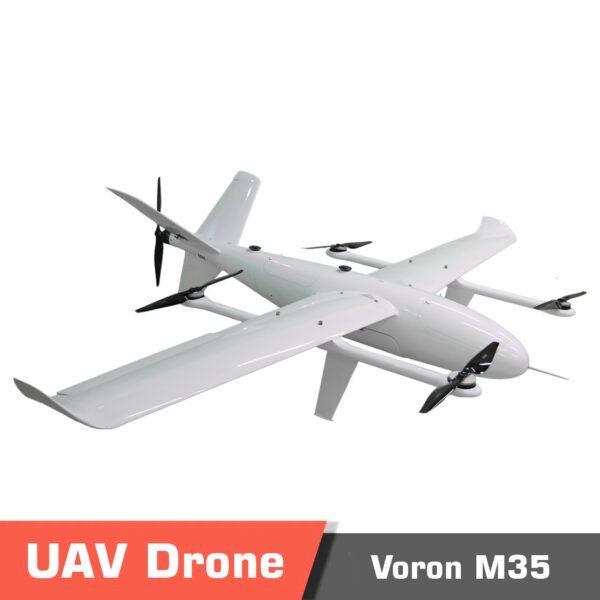

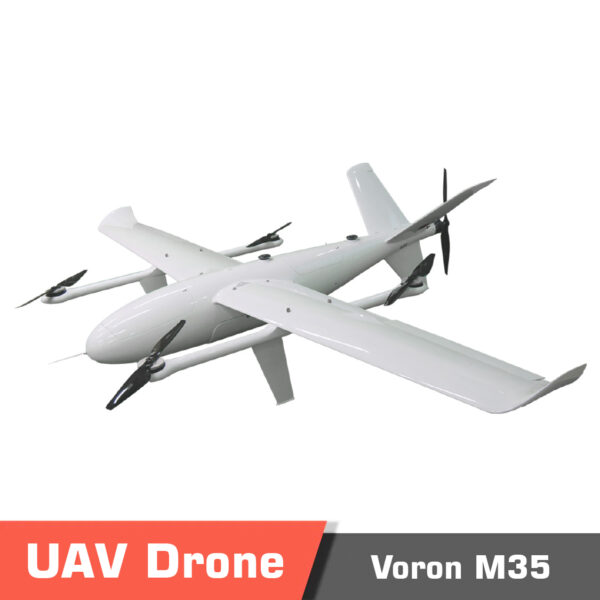

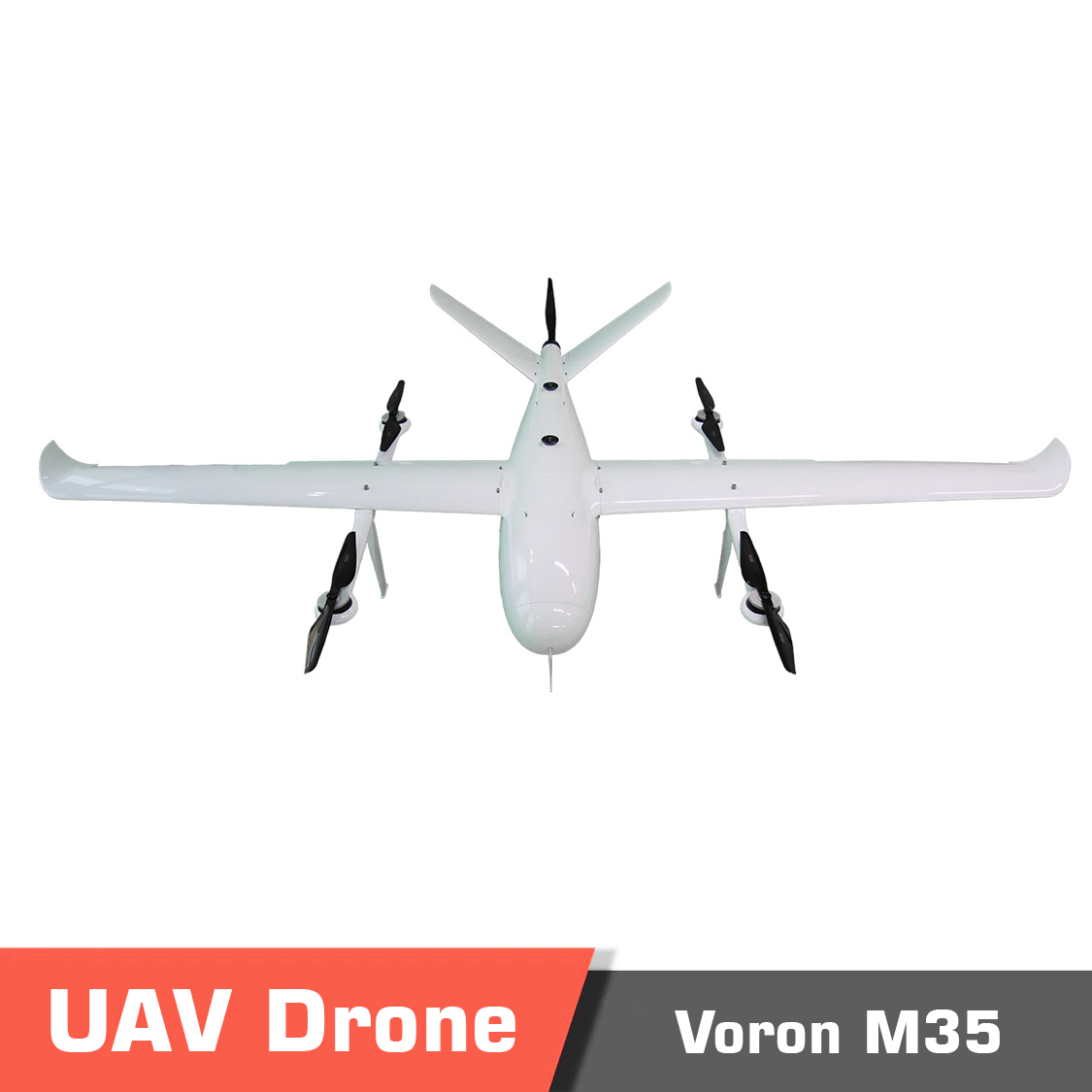

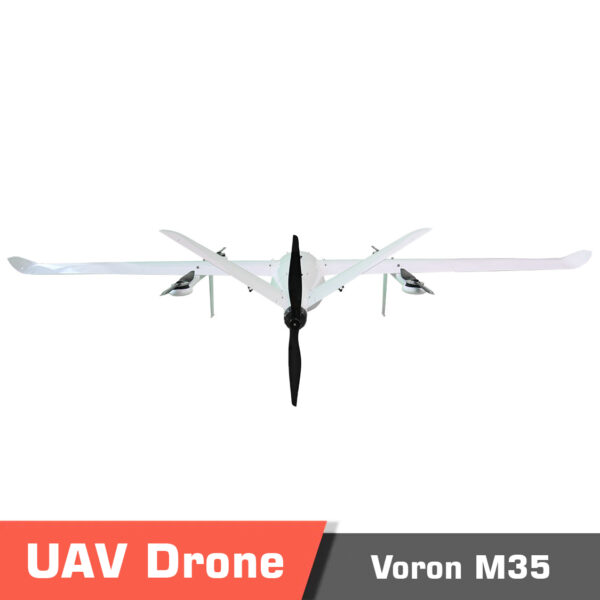

VTOL drone Voron M35, Long Endurance, Heavy Payload Fixed-Wing


Versatile Battery-Powered VTOL Drone for Aerial Surveying and Transport

VTOL Drone Voron M35 Fixed-Wing VTOL is a battery-powered fixed-wing UAV, offering 150min endurance time with a 5kg payload (70min with 10kg payload) that is catered to the needs of a wide range of aerial surveying applications like terrain mapping, lightweight material transport, ground reconnaissance, and border patrol. Voron M35 Fixed-Wing VTOL V-tail design allows for incredible aerial maneuvers. It adopts a composite aerodynamic layout of quadrotors and fixed-wings and combines the advantages of VTOL of the quadrotors and the long range of fixed wing drones. This flexible and lightweight aircraft features a 33Kg take-off weight and a 10Kg maximum load. The efficiency of the power system can be optimized to meet the characteristics of various surveying and mapping scenarios. Equipped with a modular design and a 3.5m wing span, the UAV can be quickly deployed in less than 90 seconds. A detachable load compartment design allows matching the center-of-mass of the cargo with that of the plane, realizing fast switching and enabling mission-matched loads.

Efficient Cooling and Stability Features of the Voron M35 VTOL Drone

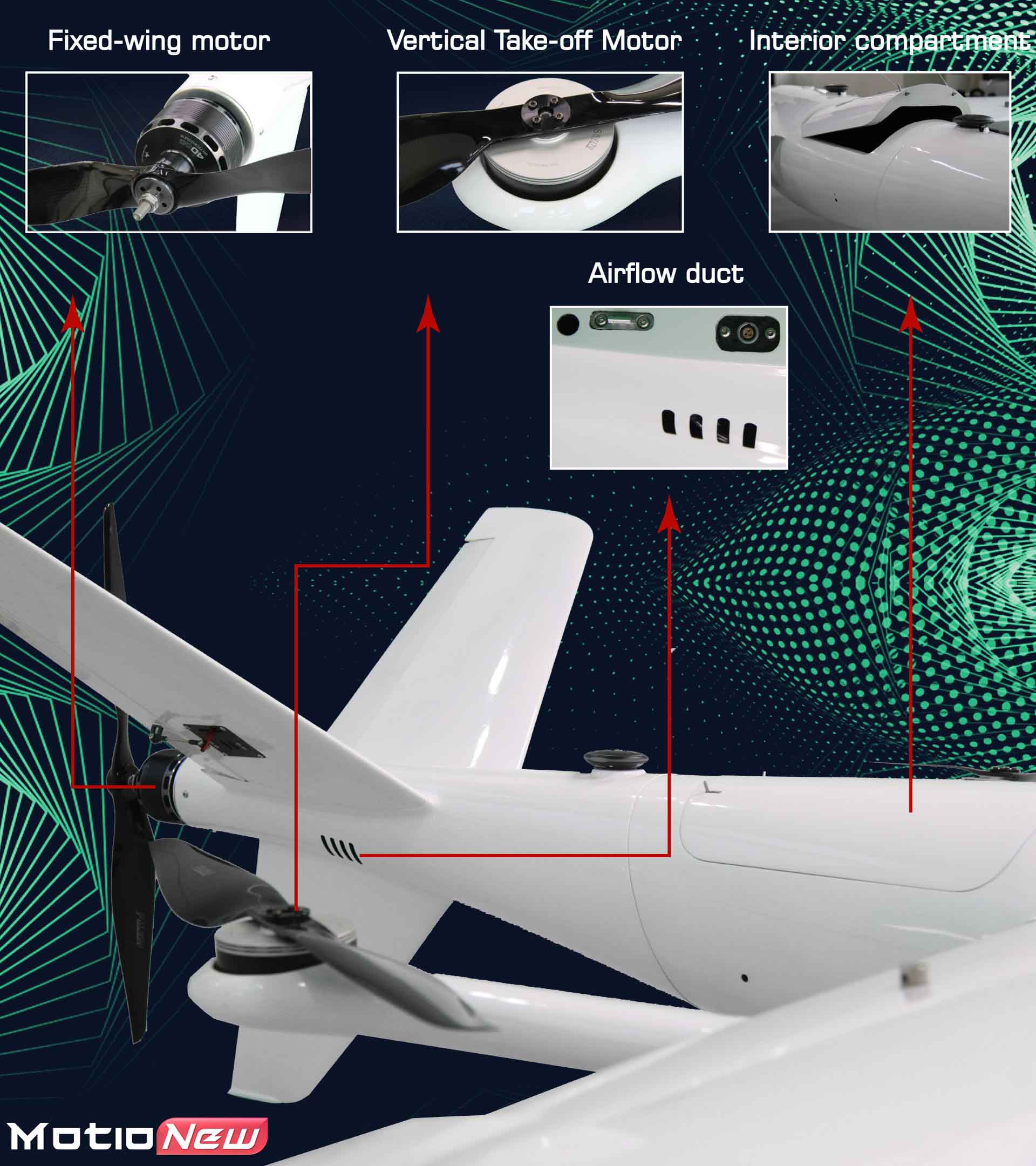

The cooling in Voron M35 is provided by side air conduits direct the airflow on the internal electronics. Low-acoustic noise performance is guaranteed due to the electric power and less maintenance and life-cycle cost. The motor-tilt design improves flight stability.

High Performance and Precision of the Voron M35

Voron M35 can reach a maximum speed of 108km/h, and fly up to 5800 meters in height. Achieving 0.1m positioning accuracy is possible with the help of dual GPS and RTK systems.

Durable and Flexible Design of the Voron M35

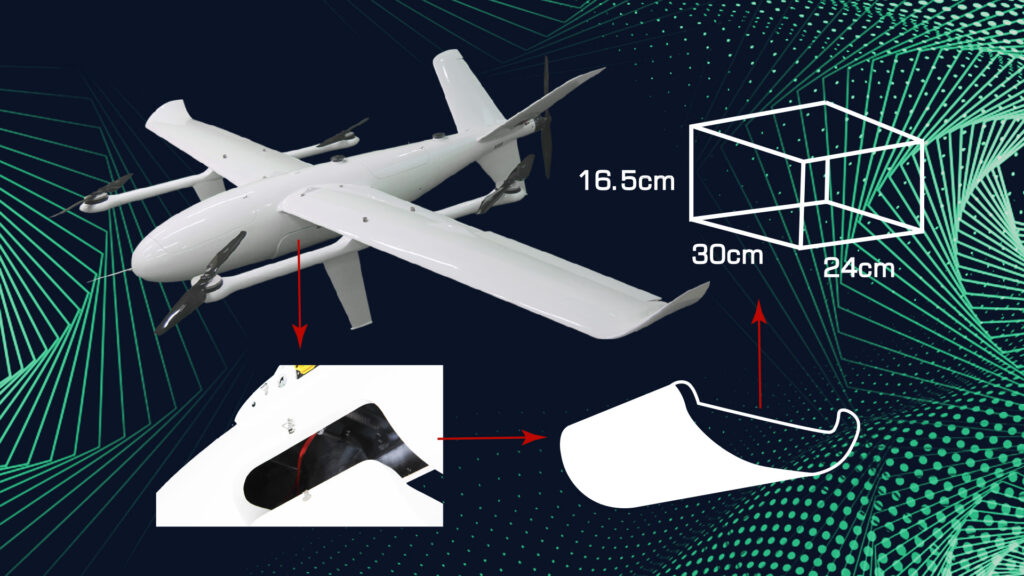

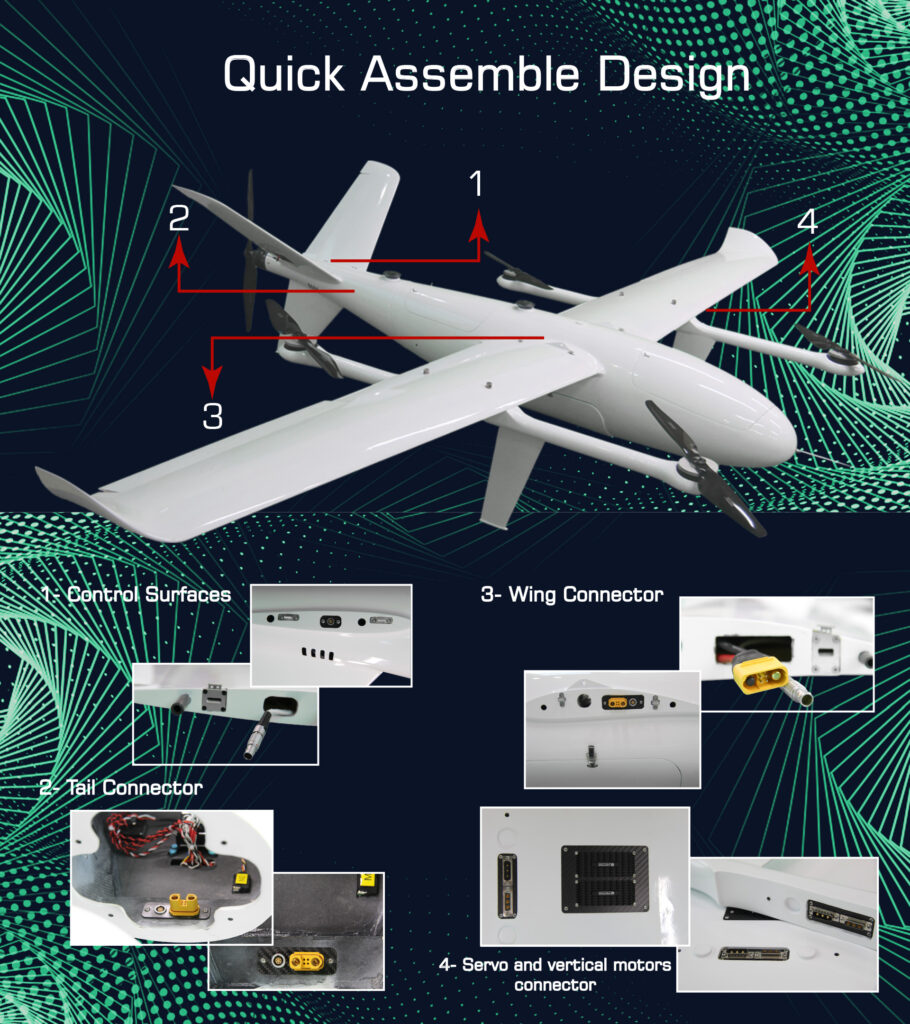

Build from pure carbon fiber, the Voron M35 fuselage is lightweight and flexible. It has a detachable payload compartment design, for easier replacement of different types of payloads. All parts of the system including wings, tail, and arms are designed based on a quick assembly and disassembly of the structure.

Read more in our blog post about this VTOL UAV.

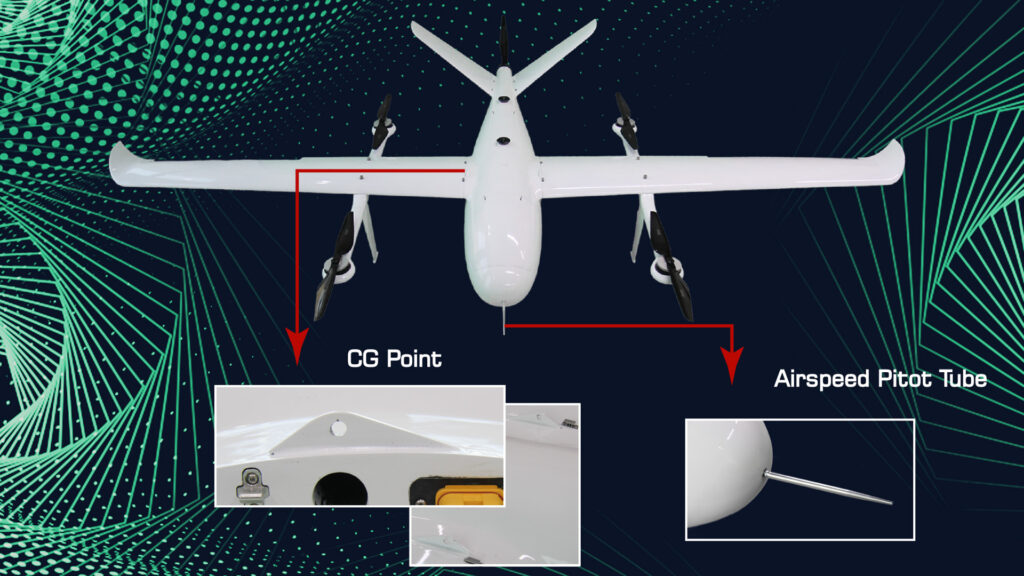

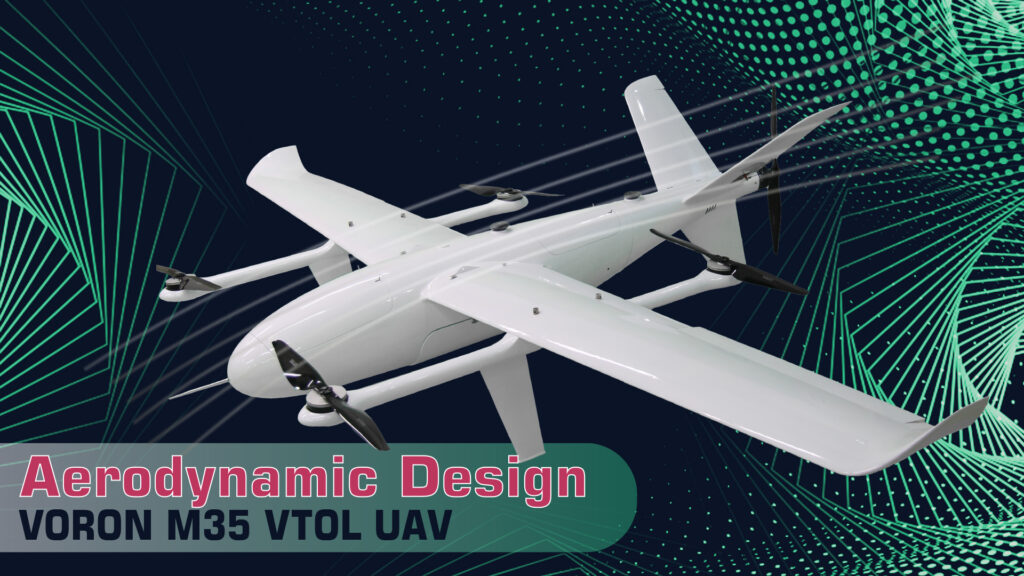

Voron m35 vtol droneFixedwing uav aerodynamic designVoron m35 airspeed installation port4 - vtol drone voron m35 - motionew - 15Voron m35 demissionVoron m35 assemble7 1 - vtol drone voron m35 - motionew - 168 2 - vtol drone voron m35 - motionew - 17

For a comprehensive reading of related products, please visit the Motionew website.



Specifications



Specifications
Maximum Take-off Weight 33kg
Max. payload weight 10kg
Max. Cruise Speed 108km/h (30m/[email protected])

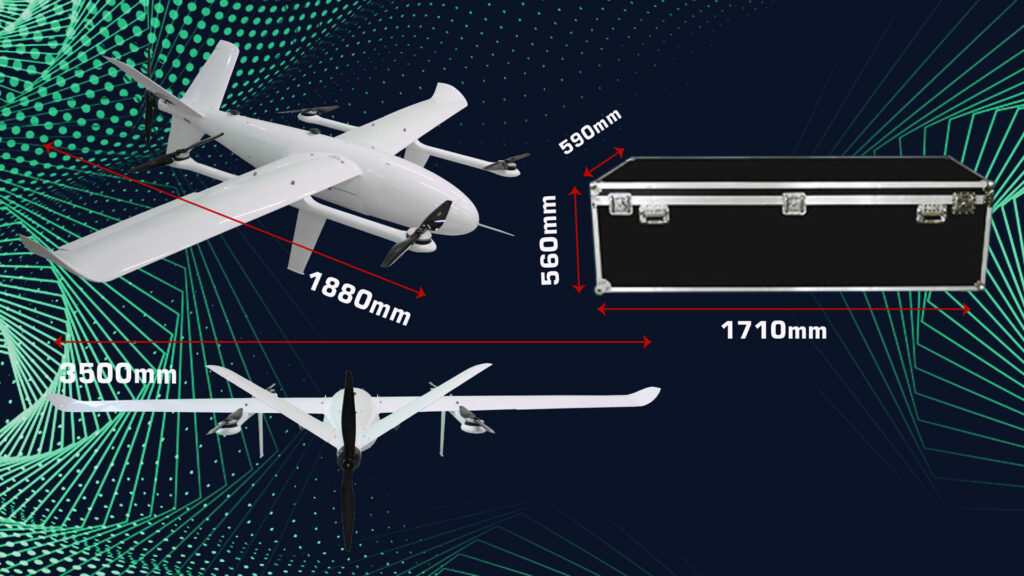

Wingspan 3500mm
Length 1880mm
Belly to Ground 195mm
Battery Cabin 30*20*15
Material Carbon fiber + fiberglass
Airframe Weight 8kg
Flight Time 150min with 5kg payload, 70min with 10kg payload
Stall Speed 54km/h (15m/s)
Max Flight Altitude 5800m
Max Wind Resistance 16m/s (fixed wing), 7.9m/s (VTOL)
Battery (Recommended) 4 * 6S 27000mAH HED Li-ion
Working Temperature -20℃~45℃
IP Grade IP44
Packing Chargeable Size 207*80*64.5cm (Tail Undetachable Version)
171*56*59cm (Tail Detachable Version)



Documents

Please contact us for more information.

Product contents

Bundle 1: Pixhawk RTF

1x Voron M35 VTOL

1x Tail Motor + Tail ESC + Propeller for Tail Motor

4x Servo

4x Motor + ESC for VTOL Mode

2x (pairs) Propellers for VTOL Mode

2x UBEC

1x Pixhawk Cube Orange Standard Set with Here 3 GNSS (or CUAV X7+ Pro Flight Controller with NEO 3 Pro GNSS)

1x Radio Controller

1x Carrying Case

1x Assembling, tuning, and Flying Test Service



Bundle 2: Dual GPS

1x Voron M35 VTOL

1x Tail Motor + Tail ESC + Propeller for Tail Motor

4x Servo

4x Motor + ESC for VTOL Mode

2x (pairs) Propellers for VTOL Mode

2x UBEC

1x Pixhawk Cube Orange Standard Set (or CUAV X7+ Pro Flight Controller)

2x C-RTK 9Ps High Precision Positioning Module Sky End

1x Radio Controller

1x Carrying Case

1x Assembling, tuning, and Flying Test Service



For more options, please Contact Us.
