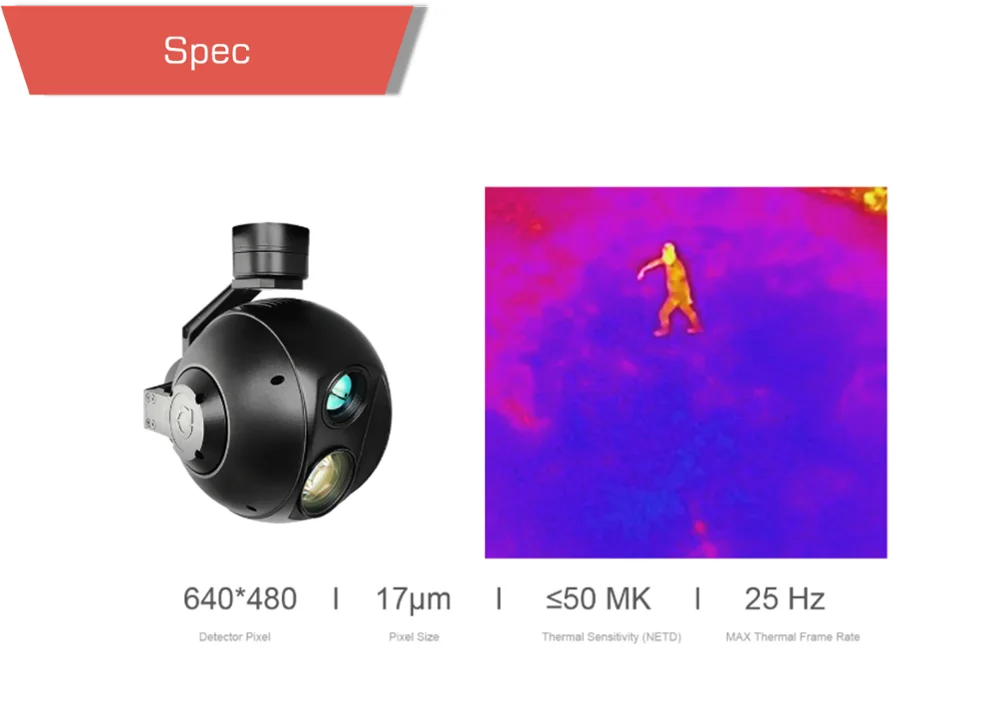

Dual Sensor Gimbal Tracking UAV Thermal Camera Q30TIR

Stabilized the Q30TIR is a highly optimized 3-axis dual sensor gimbal in drone payload with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings – as is common with many gimbals – the Q30TIR uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.

SONY 30x Zoom Starlight Camera

Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Q30TIR can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p FHD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 3000 meters, which can meet the application requirements of various domains.

Advanced IR Thermal Imager

Integrated French ULIS high-precision uncooled long wave (8μm ~14μm ) thermal image sensor, Q30TIR can record and transmit thermal image and visible images at the same time in PIP format. With temperature measuring sensor, it could accurately attain the temperature of objects and individuals. The thermal sensor allows three points’ temperature ranging between -30℃~300℃ to be measured and displayed on screen. Adjust the different colors applied to the thermal data based on the needs of specific scenarios.
